Banana Pi BPI-RV11XX AI Vision Camera Module Series

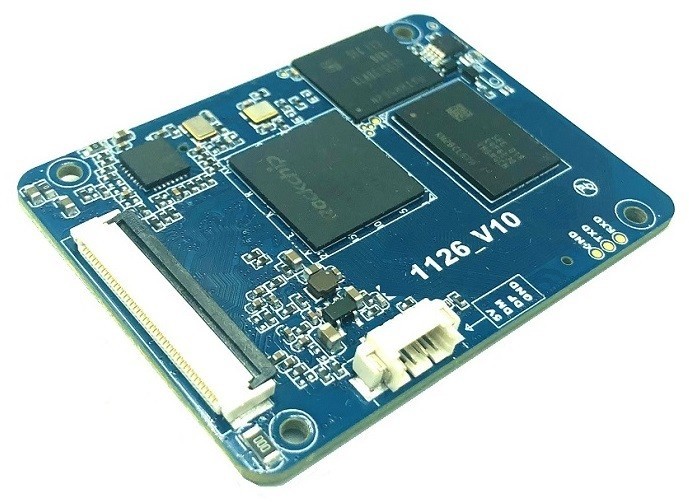

The Banana Pi team has just launched its next generation of entirely hardware BPI-RV1126 image signal processors and post-processors on a tiny small form factor ARM circuit board, measuring only 38mm*38mm. The board is used for IPC and CVR products (HDR, function 3A (AE, AF, AWB), LSC, 3DNR, 2DNR, sharpening, Dehaze, fisheye correction, gamma correction, feature point detection, etc.). The chip integrates multiple algorithm accelerators for commonly used algorithm acceleration in IPC and CVR.
RV1109 vs. RV1126 Board Design
Product Photo |  |  |
Model | Banana Pi BPI-RV1126 | Banana Pi BP-RV1109 |
CPU |  |  |
Quad-core Arm Cortex-A7 @ 1.5 GHz + RISC-V MCU @ 400 MHz | Dual-core Arm Cortex-A7 @ 1.5 GHz + RISC-V MCU @ 400 MHz | |
RAM | DDR4 standard 1GB, optional 2GB | |
NPU | 2.0 TOPS with support for INT8/ INT16 | 1.2 TOPS with support for INT8/ INT16 |
Machine learning platform | Tensor Flow/MXNet/PyTorch/Caffe | |
Support fast booting | Yes (150ms) | |
USB Interfaces | 1 | 2 |
Image Signal Processor (ISP) | 14M ISP with 3F HDR | 5M ISP with 3F HDR |
Multi-Media | 14M ISP 2.0 with 3F HDR (Line-based/Frame-based/DCG) | 5M ISP 2.0 with 3F HDR (Line-based/Frame-based/DCG) |
Power parameters | Min: 4.5V - Max 5.5V | |
USB 2.0 OTG and USB 2.0 host | No |  |
Default System | Linux 4.19 + QT 5.12 | |
LVDS (TFT / LCD display) | |  |
Mipi CSI | | 1 |
MIPI DSI | | 2 |
Dimensions | ? | 38mm*38mm |
- Ideal for AI algorithms, it can realize cross-border detection, face detection, license plate recognition, and other intelligent applications to speed up the process of product landing.
- Superior performance and high-cost performance.
Comparing RV1109 vs. RV1126
Banana Pi Rockchip RV1109 Development Board
Compared with other general-purpose chips, the RV1109 has more substantial computing power. The NPU, a processing core specially designed for deep convolutional neural networks, can have lower power consumption and higher processing power while having excellent visual algorithm processing capabilities, including price-performance ratio.
Banana Pi Rockchip RV1126 Development Board
Based on Rockchip RV1126 adopts quad-core ARM Cortex-A7 and RISC-V MCU, supports 250ms fast boot, supports 2.0 Tops NPU, 14M ISP with 3 frames HDR, supports simultaneous input of 3 cameras, 4K H.264/H.265 video encoding, and decoding.
Interfaces
The board based on the RV1109 chip integrates two MIPI CSI (or LVD S /SubLVDS) and a DVP interface, which can support the simultaneous input of three cameras. The core board adopts SODIMM 260P interface, electroplated nickel, gold pin, corrosion resistance, super performance, system start speed, and high stability.
Practical applications
The BPI-RV1126 chip is widely used in intelligent security, video communication, video analysis, and other scenes, currently in intelligent security cameras, video conference camera, DMS system, vehicle data recorders, and other types of products.
Cost-effective advanced driver-assistance system
The two boards are ideally suited for developing accident prevention systems. You can plug in some cameras and use them to design a collision-avoidance system (CAS), also known as a pre-crash system, forward-collision warning system, or collision mitigation system, which is an advanced driver-assistance system designed to prevent or reduce the severity of a collision.
Price & Availability
Not yet officially available. We will update this article once new information becomes available. In the meanwhile, you are welcome to visit Sinovoip official AliExpress store.
