BlitzWolf BW-BR4 Bluetooth Transmitter Review

By androidpimpJune 17, 2020Updated:January 11, 2023No Comments8 Mins Read
Facebook Twitter Pinterest LinkedIn Tumblr Email
BlizWolf Audio Streaming Device 2
BlizWolf Audio Streaming Device 2
Table of Contents
  1. BlitzWolf BW-BR4 Bluetooth transmitter
  2. Product Introduction
  3. Package
  4. Package Content (Unboxing)
  5. Build Quality & Design
  6. Operation Modes
  7. Specification
  8. User Case #1: Transmitting audio to car speakers
  9. User Case #2: Transmitting audio to Bluetooth speaker
  10. User Case #3: Transmitting audio from an SBC
  11. User Case #4: Transmitting audio from a Smartphone (RX)
  12. Sound Quality
  13. Range
  14. Charging Time
  15. Battery Operation/Life
  16. Final verdict

BlitzWolf BW-BR4 Bluetooth transmitter

Building the perfect audio system to stream music from Spotify can be very challenging, especially if trying to design a cost-effective device. Now, this is when things get more interesting. My idea is to use a low-cost SBC (Single Board Computer) connected to the BlitzWolf BW-BR4 audio Bluetooth adapter that was kindly provided to me by Banggood for this semi review hands-on review.

Blitzwolf BW-BR4

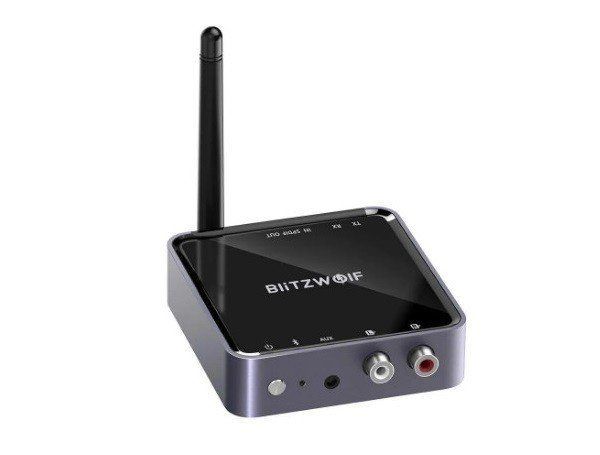

  • BlizWolf Audio Streaming Device 1
    BlitzWolf BW-BR4 | Front

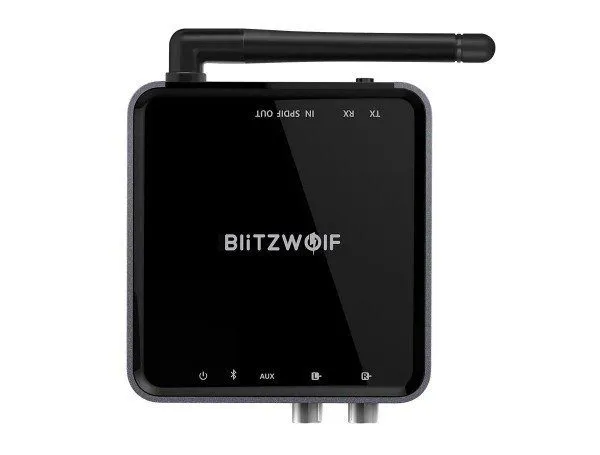

  • BlizWolf Audio Streaming Device 2
    BlitzWolf BW-BR4 | Top

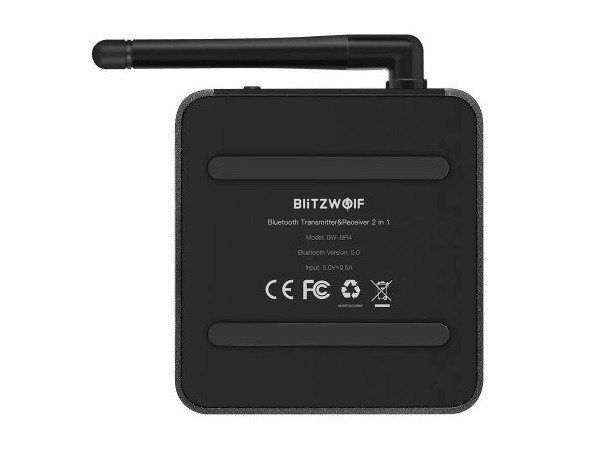

  • BlizWolf Audio Streaming Device 3
    BlitzWolf BW-BR4 | Buttom

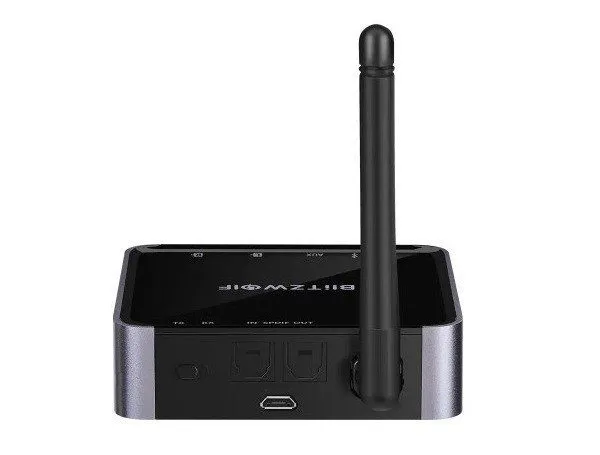

  • BlizWolf Audio Streaming Device 4
    BlitzWolf BW-BR4 | Rear

Product Introduction

The BlitzWolf BW-BR4 device can function both as a receiver and transmitter device and can best be connected with external speakers. It uses Bluetooth 5.0, Lossless Transmission with an external antenna, assuring a Stable signal, long transmission distance (up to 100m), and is intelligently compatible with 99% of devices. Pure copper gold-plated terminals strengthen the stability and accuracy of audio transmission signals with Proper size and attractive appearance. t is a compact small-size case measuring 85.2 x 80.8 x 23.1mm.

It supports multiple input interfaces (3.5mm AUX, SPDIF Input/Output, CA). The Micro USB port on the rear side charges the unit’s internal 3.7V 600mAh battery via a standard 5V power adapter, making it very portable and easy to use inside a car. As mentioned previously, the device can operate in TX/RX (Transmitter / Receiver) modes with a button switch on the device’s backside.


Package

  • BW BR4 Music Receiver Pkg 1
    BW BR4 Music Receiver Pkg 1
  • BW BR4 Music Receiver Pkg 2
    BW BR4 Music Receiver Pkg 2
  • BW BR4 Music Receiver Pkg 3
    BW BR4 Music Receiver Pkg 3

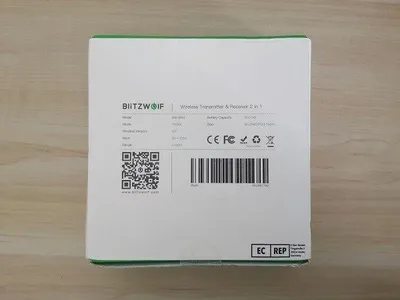

  • BW BR4 Music Receiver Pkg 4
    BW BR4 Music Receiver Pkg 4
  • BW BR4 Music Receiver Pkg 5
    BW BR4 Music Receiver Pkg 5

Package Content (Unboxing)

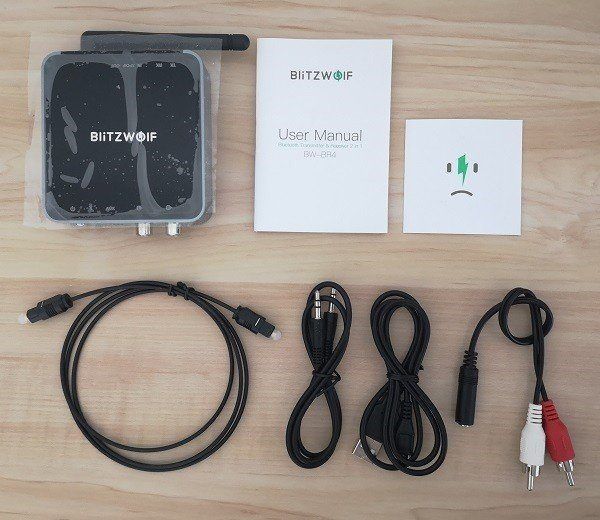

From left to right:

  • 1x BR4 Bluetooth Transmitter & Receiver
  • 1x User Manual
  • 1x Service Contact Card
  • 1x Fiber Optic Cable(100cm)
  • 1x 3.5mm Audio Cable(60cm)

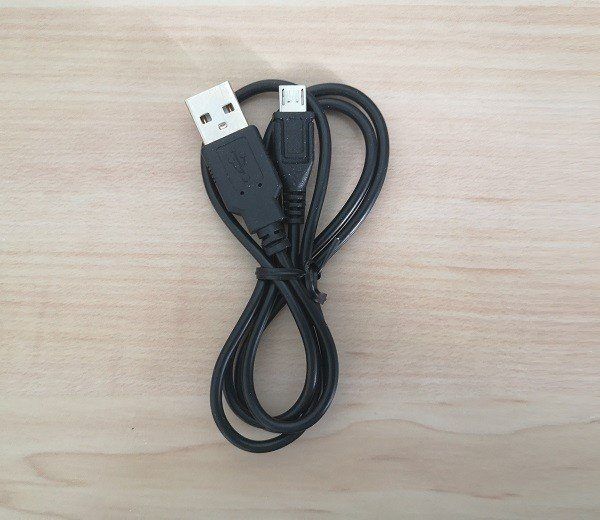

  • 1x Micro USB Charging Cable(85cm)
  • 1x 3.5mm to RCA Cable(26cm)
  • BW BR4 Unboxing 1
    BlitzWolf BW-BR4 Unboxing - 1 of 9

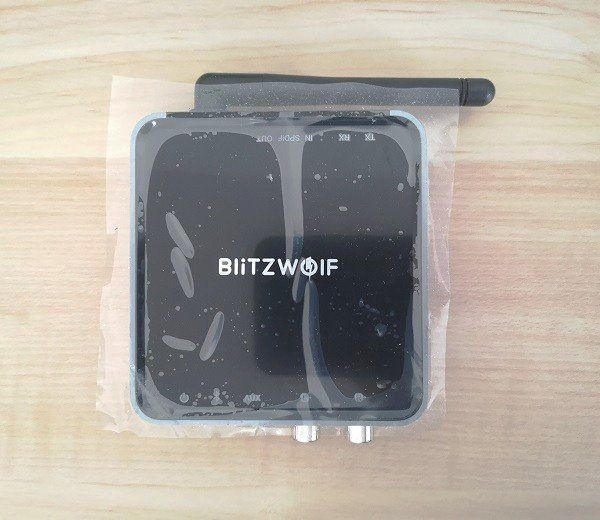

  • BW BR4 Unboxing 2
    BlitzWolf BW-BR4 Unboxing - 2 of 9

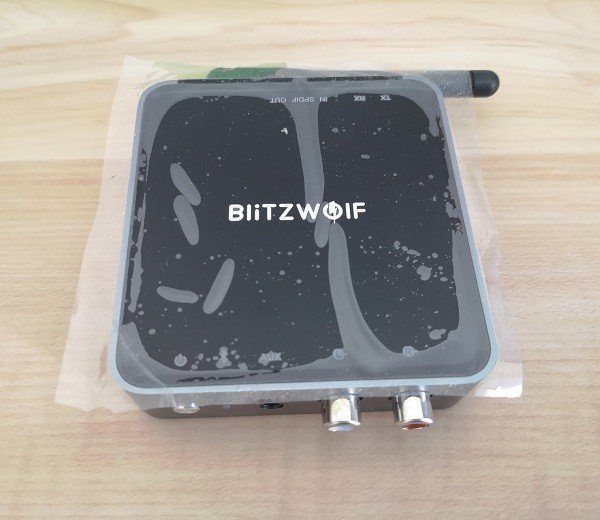

  • BW BR4 Unboxing 3
    BlitzWolf BW-BR4 Unboxing - 3 of 9
  • BW BR4 Unboxing 4

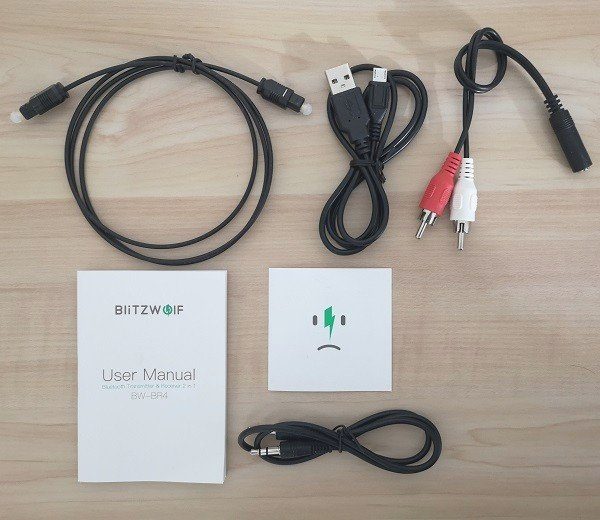

    BlitzWolf BW-BR4 Unboxing - 4 of 9

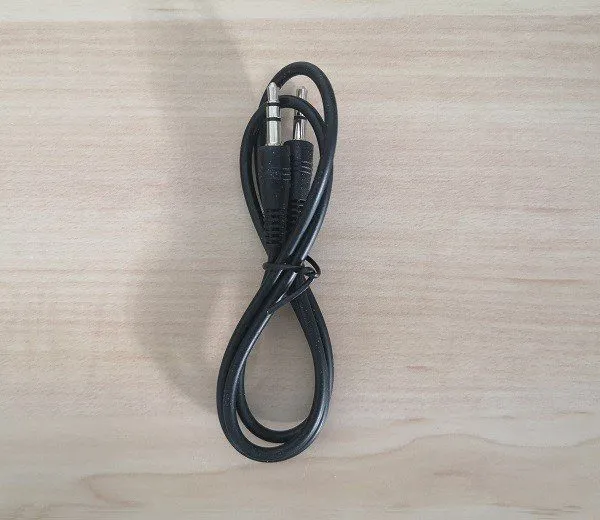

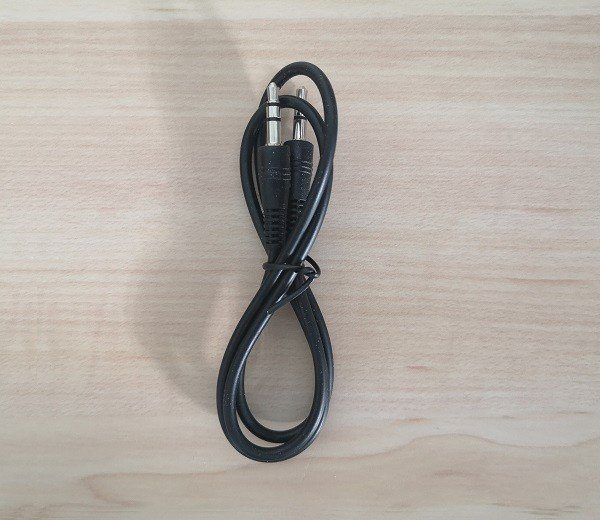

  • BW BR4 Unboxing 5
    BlitzWolf BW-BR4 Unboxing - 5 of 9

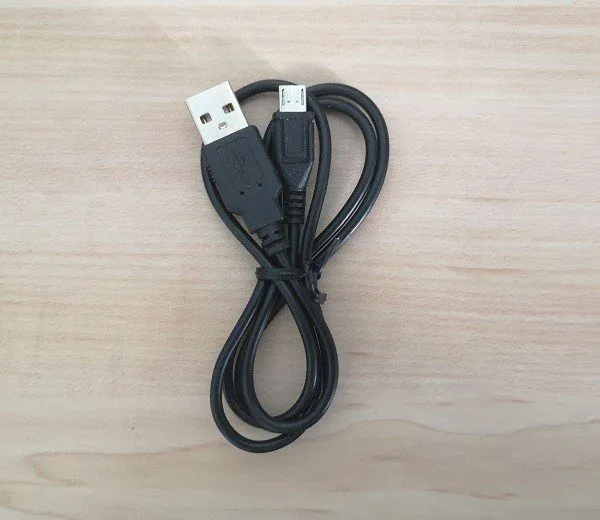

  • BW BR4 Unboxing 6
    BlitzWolf BW-BR4 Unboxing - 6 of 9
  • BW BR4 Unboxing 7

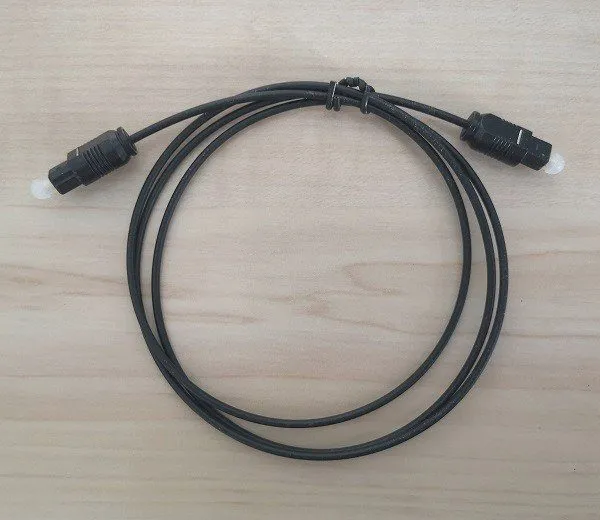

    BlitzWolf BW-BR4 Unboxing - 7 of 9

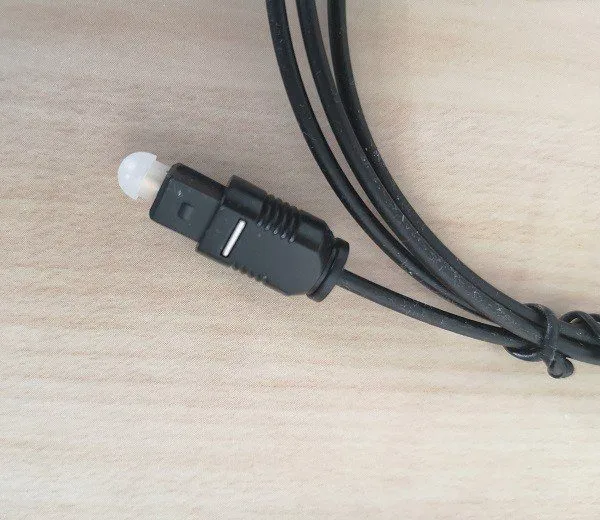

  • BW BR4 Unboxing 8
    BlitzWolf BW-BR4 Unboxing - 8 of 9
  • BW BR4 Unboxing 9

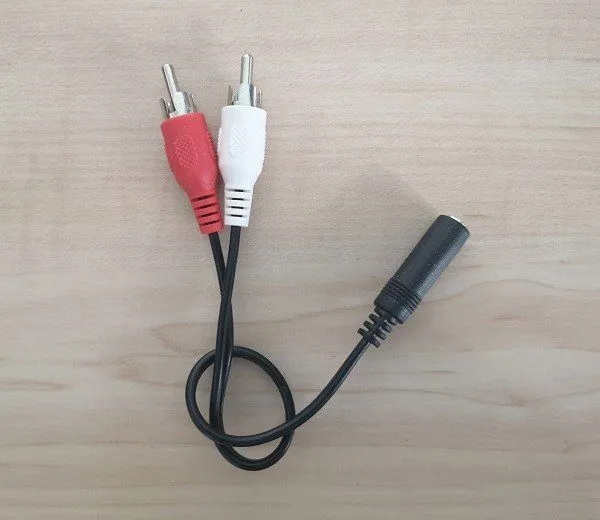

    BlitzWolf BW-BR4 Unboxing - 9 of 9

Build Quality & Design

BW-BR4 comes in an elegant case with an excellent clean design made from high-quality plastic. It consists of a grey metallic-like surface with a very glossy upper cover in black color that can leave finger smudges.

  • BW BR4 Music Receiver 0

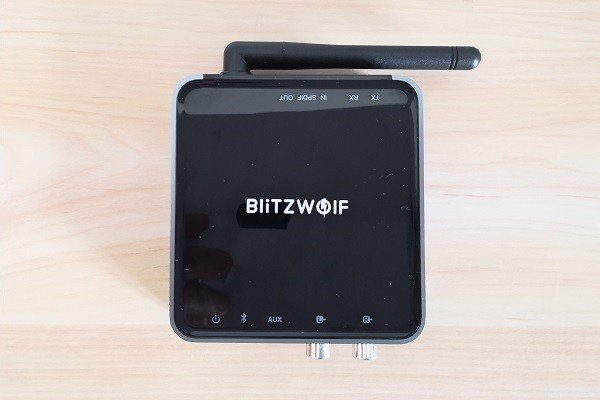

    BlitzWolf BW-BR4 - 1 of 11

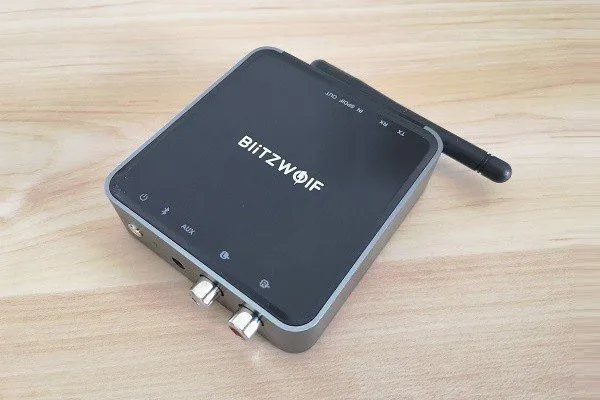

  • BW BR4 Music Receiver 1

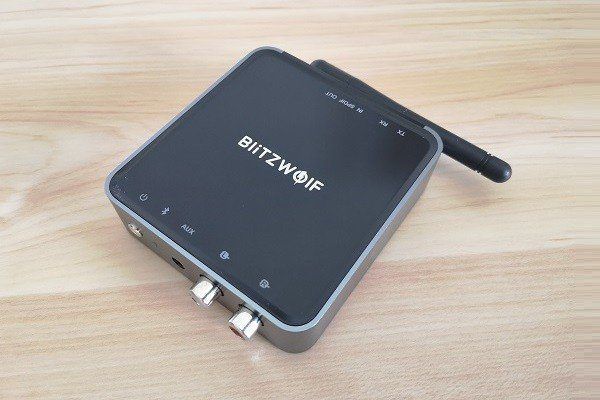

    BlitzWolf BW-BR4 - 2 of 11
  • BW BR4 Music Receiver 2

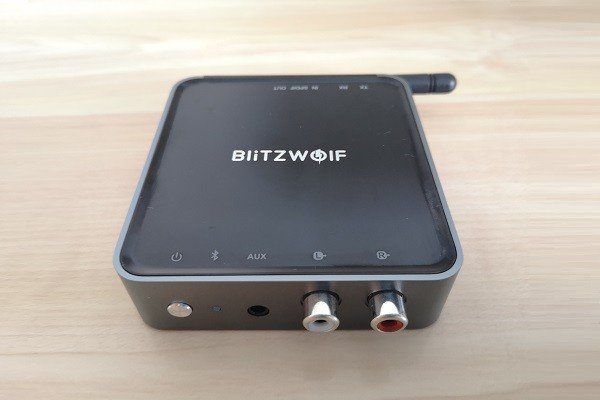

    BlitzWolf BW-BR4 - 3 of 11
  • BW BR4 Music Receiver 3

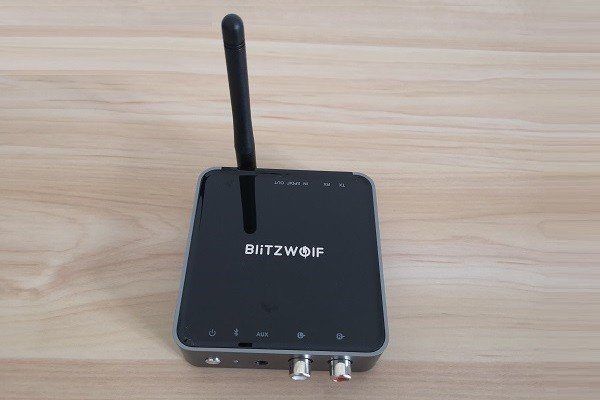

    BlitzWolf BW-BR4 - 4 of 11
  • BW BR4 Music Receiver 4

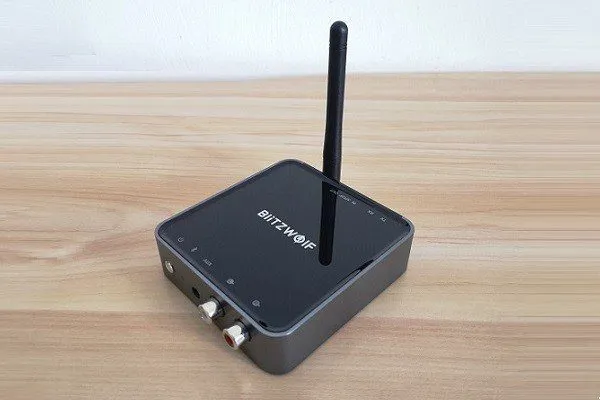

    BlitzWolf BW-BR4 - 5 of 11

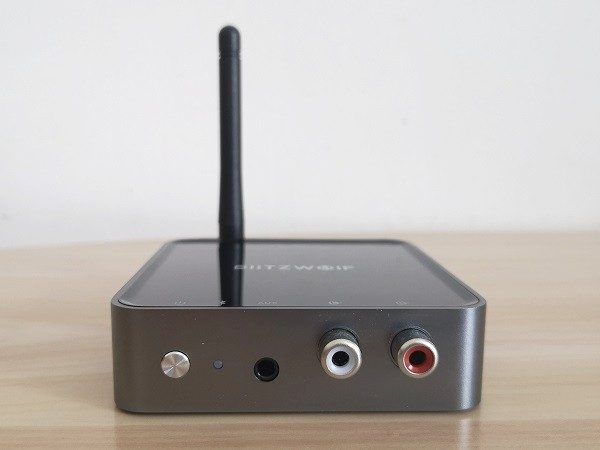

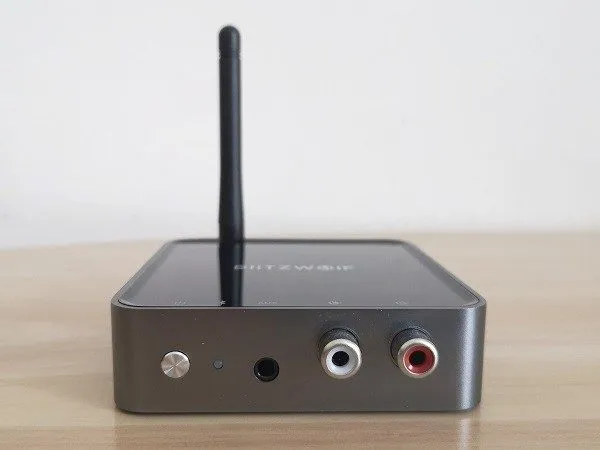

  • BW BR4 Music Receiver 5
    BlitzWolf BW-BR4 - 6 of 11

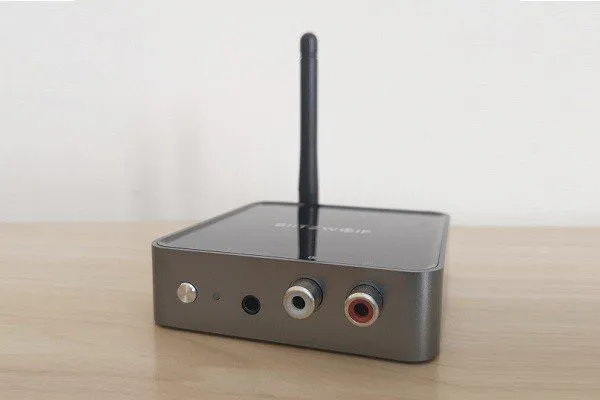

  • BW BR4 Music Receiver 6

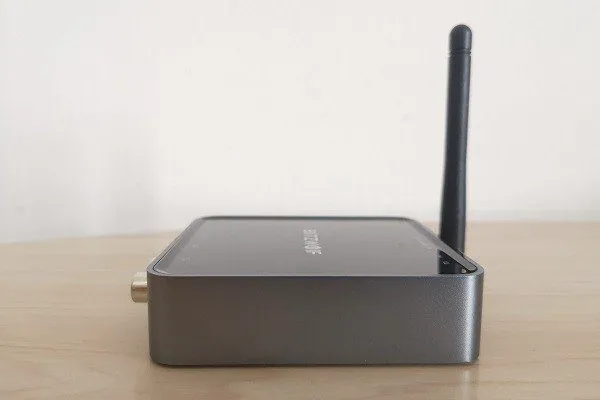

    BlitzWolf BW-BR4 - 7 of 11
  • BW BR4 Music Receiver 7
    BlitzWolf BW-BR4 - 8 of 11

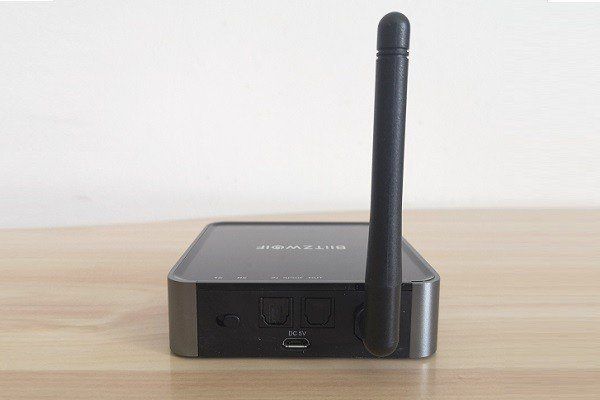

  • BW BR4 Music Receiver 8
    BlitzWolf BW-BR4 - 9 of 11
  • BW BR4 Music Receiver 9

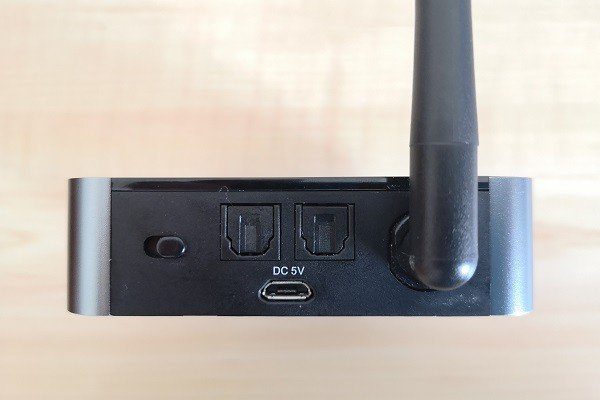

    BlitzWolf BW-BR4 - 10 of 11
  • BW BR4 Music Receiver 10

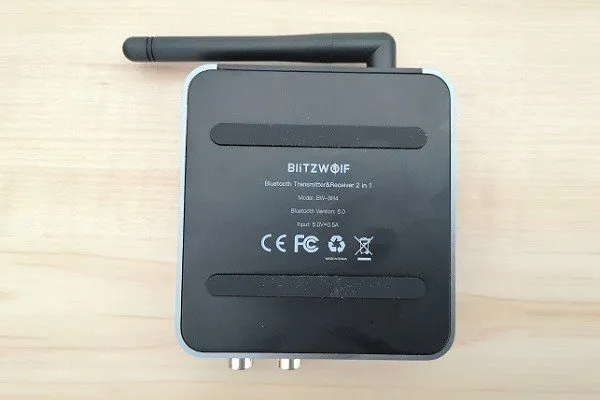

    BlitzWolf BW-BR4 - 11 of 11

Operation Modes

The BW-BR4 has a TX/RX switch on the device’s rear side. It allows you to select from Transmit/TX mode (for sending audio from a wired jack to your headphones) to Receive/RX mode (for sending music or directions wirelessly from your iPhone to a car’s AUX IN or to the AUX IN of a non-Bluetooth speaker).


Receiver mode (RX)

In receiver mode, when the BW-BR4 unit is hooked to external speakers, it can receive a stream from a portable mobile device, for example, from a smartphone or tablet PC.

Because the unit is rechargeable with an internal 600mAh battery, you can also use it inside a car. Pair your car’s Bluetooth system with the BW-BR4 and stream music to external speakers.


Transmite mode (RX)

In transmitter mode, you can connect the BW-BR4 unit to any audio source and stream the audio directly to a Bluetooth appliance. This function is handy if you have a home audio system and need wireless connectivity to stream and listen to music via headphones. Connecting to Bluetooth speakers is also a good option; if you have a pair, you can position them in a few spots inside a room and enjoy an excellent surround effect without using cables.


BC8675 Bluetooth Chip

The BC8675 chip gives you Bluetooth V5.0 and optical audio output for a universal wireless solution.


Stable Transmission

164ft Wireless Connection Range
Built-in antenna, up to 50 meters (164ft) long-range, and stable transmission to share your audio from indoors to outdoors.


Optical Fiber Transmit

It gives you the option of a digital connection to your playback device for maximum audio quality.


Long Standby Time

With a built-in 600mAh battery, you get up to 17 hours of working time and 175 hours of standby time.


Double simultaneous connections

The BlitzWolf BW-BR4 device is capable of double connection. This means that two devices can be connected simultaneously via Bluetooth connection. This can be used, for example, watching television via two headphones to keep things quiet, for example, sleeping children, or connecting two Bluetooth speakers to have music from different sources in the house from the same start.


Specification

BrandBlitzWolf®
ModelBW-BR4
ColorBlack
Bluetooth VersionV5.0
Frequency2.402~2.480GHz
InterfaceMicro USB(5V Charging), 3.5mm AUX, SPDIF Input/Output, RCA
Chipset SolutionCSR BC8675
Operation RangeClass I, 100 meters
Bluetooth ProfileA2DP, AVRCP
Audio codingTX: aptX™ HD, aptX™ low latency, aptX™, SBC
RX: aptX™ HD, aptX™ low latency, aptX™, AAC, SBC
Battery Capacity3.7V 600mAh
Charging TimeAbout 2.5 hours
Standby TimeRX mode: About 175 hours
Working TimeAUX – About 15 hours
SPDIF – About 17 hours
Operating Temperature-10—55℃
Net Weight 111.2g
Size 85.2 x 80.8 x 23.1mm

User Case #1: Transmitting audio to car speakers

According to the power requirement printed on the bottom of the unit, to charge the BW-BR4 unit, you will need to use a 5V 0.5A power adapter (not included in the package). To avoid any future problems damaging the device, if you don’t have a 0.5A in reach, we advise sticking with a maximum 1A adapter with a standard Micro USB plug.

If you need to charge the unit, you would probably need to use the car USB socket. If you don’t have one, you can use a charger connected to the car cigarette lighter socket.


User Case #2: Transmitting audio to Bluetooth speaker

In this configuration, you can use the BW-BR4 to input audio from a source appliance, such as a home media center, and pair it with Bluetooth headphones to listen to music.


User Case #3: Transmitting audio from an SBC

Building a home Audio system

The Project Objective is to build a super low-cost audio system composed of the BlitzWolf BW-BR4 and a cheap SBC (Single board computer) running android or any Debian-based distribution.

The needed accessories/items required for this project to work listed in the following table:

        Item No'

           Item

     Item Photo

            QTY

      Buy Links

            1

 BlitzWolf BW BR4

              1

Buy Now!


            2

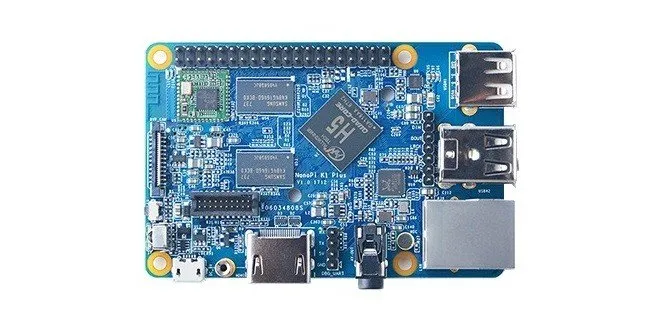

  NanoPi K1 Plus

               1

Buy Now!


            3

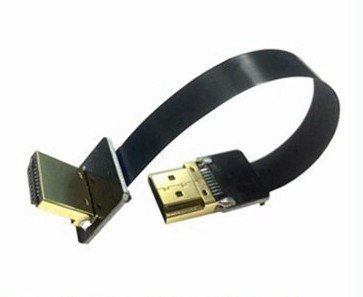

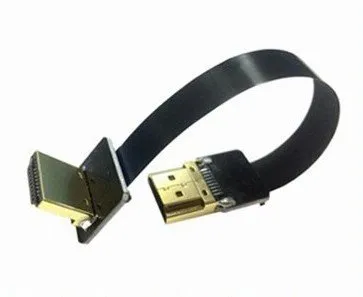

A2-A2 Ribbon Flat HDMI Cable. L=15CM

             1

Buy Now!


            4

5 inch 800*480 TFT LCD Display

             1

Buy Now!


Please note that you can choose almost any SBC with an AUX or HDMI interface. If you don’t need the comfort of using a display, you can reduce additional costs from the system’s overall price by buying a board without an HDMI port. For this one, we picked the FriendlyElec NanoPi K1 Plus board that has both.

Suppose you are looking for a more elegant solution with a built-in display. It would be best if you considered buying one kit with a plastic enclosure with a built-in 3.5-inch display panel that should be enough to display general functions when playing m sic. If you prefer to mount the SBC externally, you can buy a more significant five-up to 7-inch display and mount it behind a frame housing bracket.

  • BlitzWolf BW BR4 SBC 01

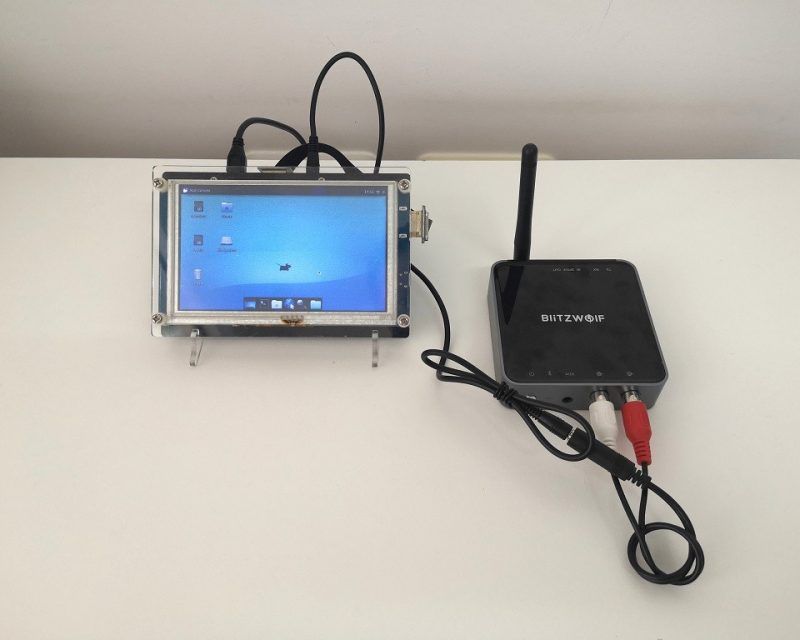

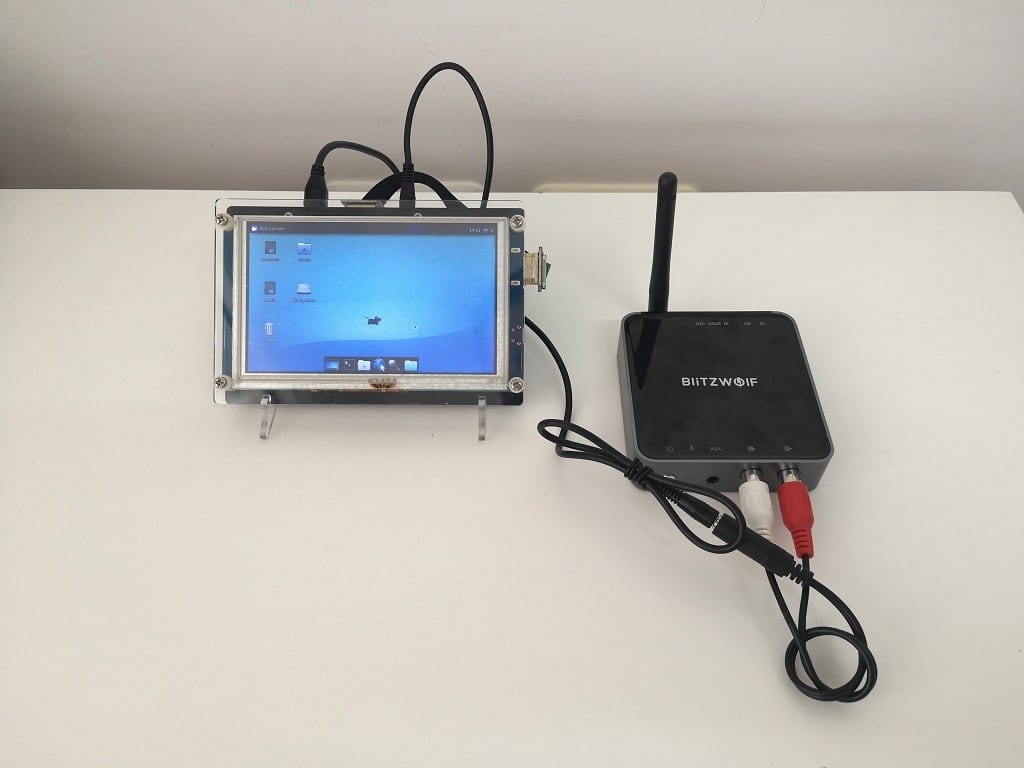

    BlitzWolf BW-BR4 + NanoPi K1 Plus | PIC 1 of 9
  • BlitzWolf BW BR4 SBC 02

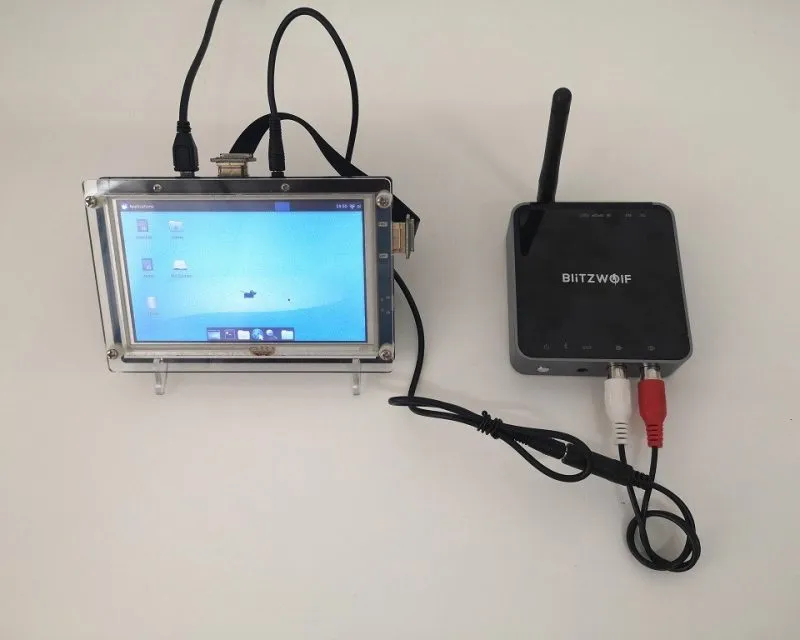

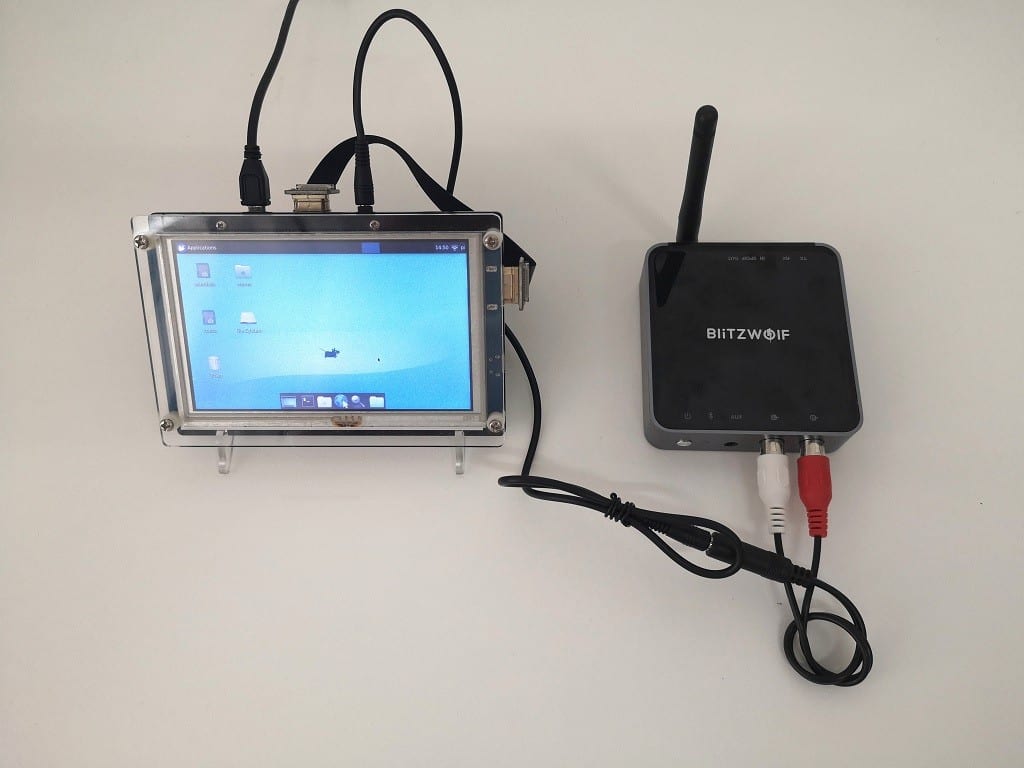

    BlitzWolf BW-BR4 + NanoPi K1 Plus | PIC 2 of 9
  • BlitzWolf BW BR4 SBC 03

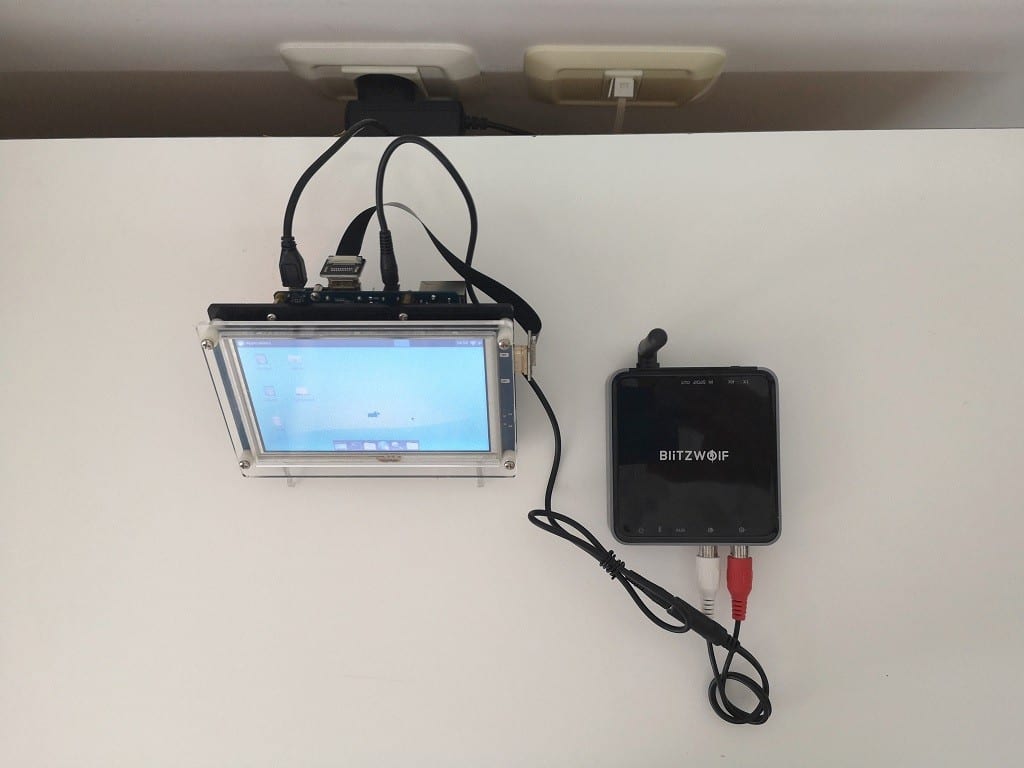

    BlitzWolf BW-BR4 + NanoPi K1 Plus | PIC 3 of 9

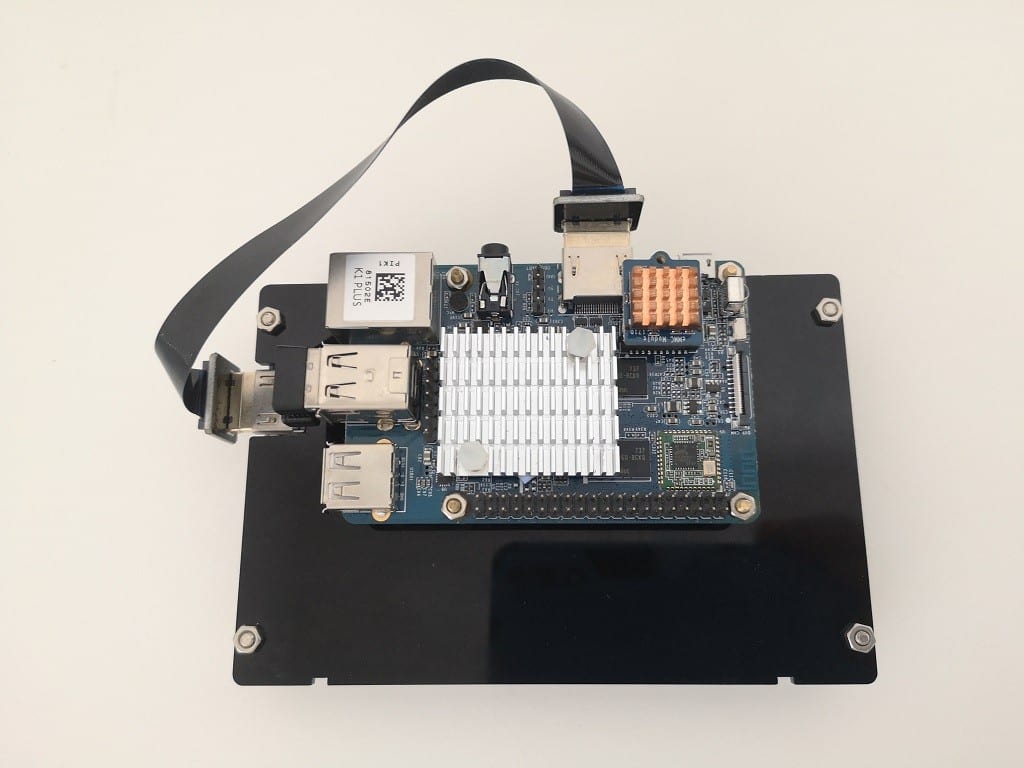

  • BlitzWolf BW BR4 SBC 04

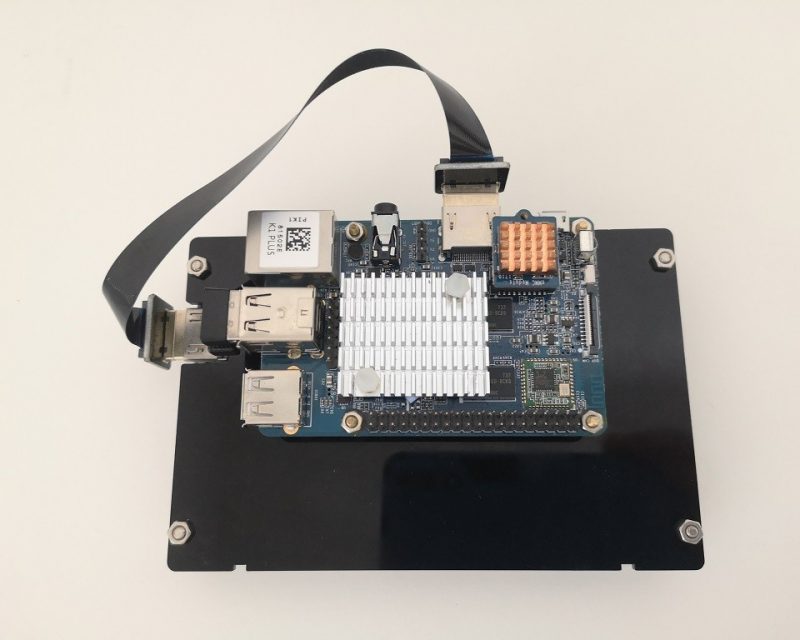

    BlitzWolf BW-BR4 + NanoPi K1 Plus | PIC 4 of 9
  • BlitzWolf BW BR4 SBC 05

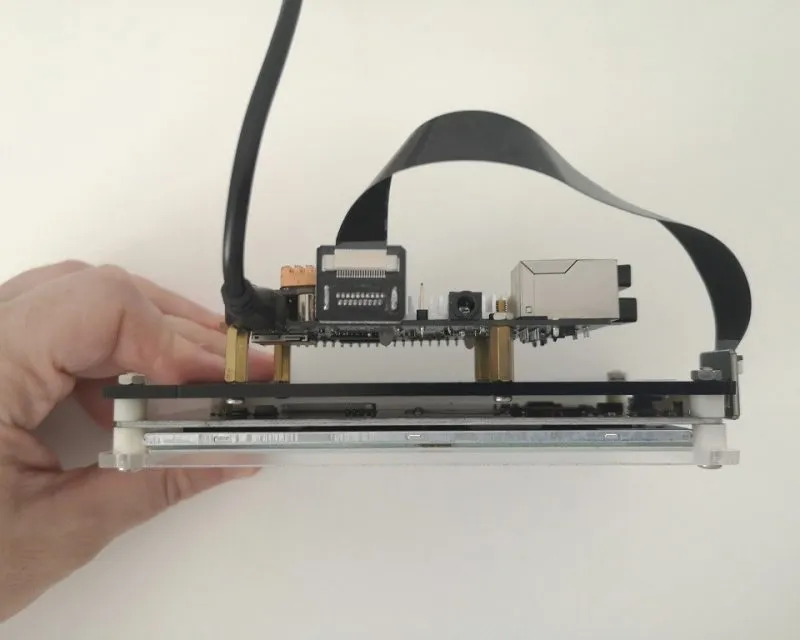

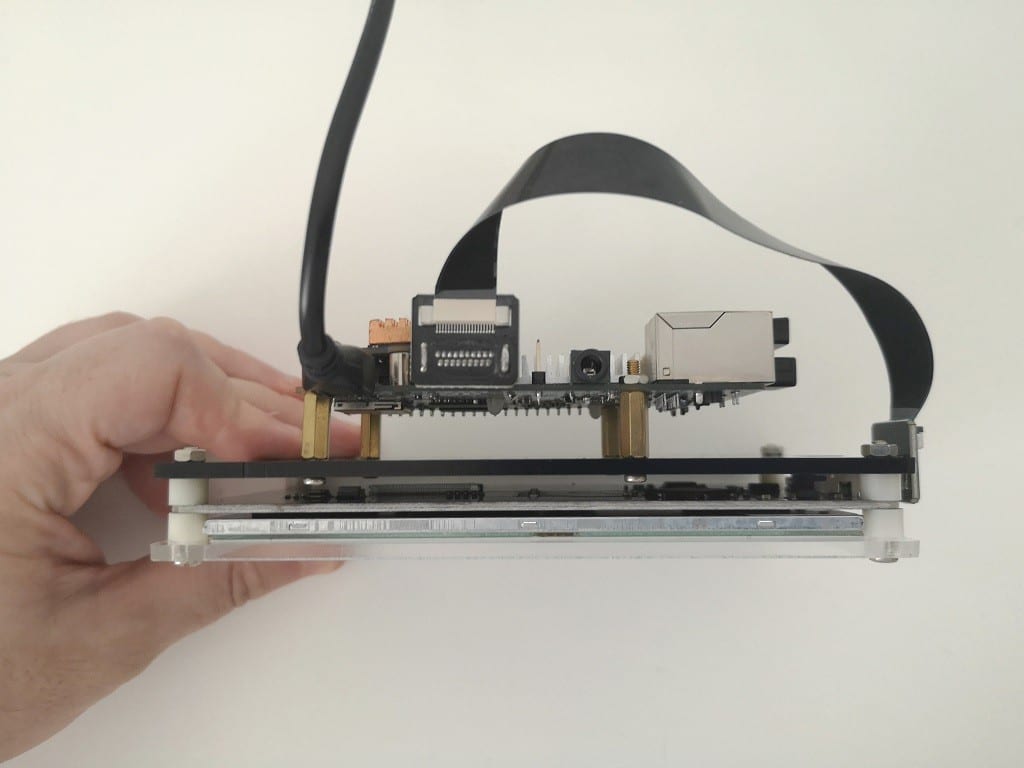

    BlitzWolf BW-BR4 + NanoPi K1 Plus | PIC 5 of 9

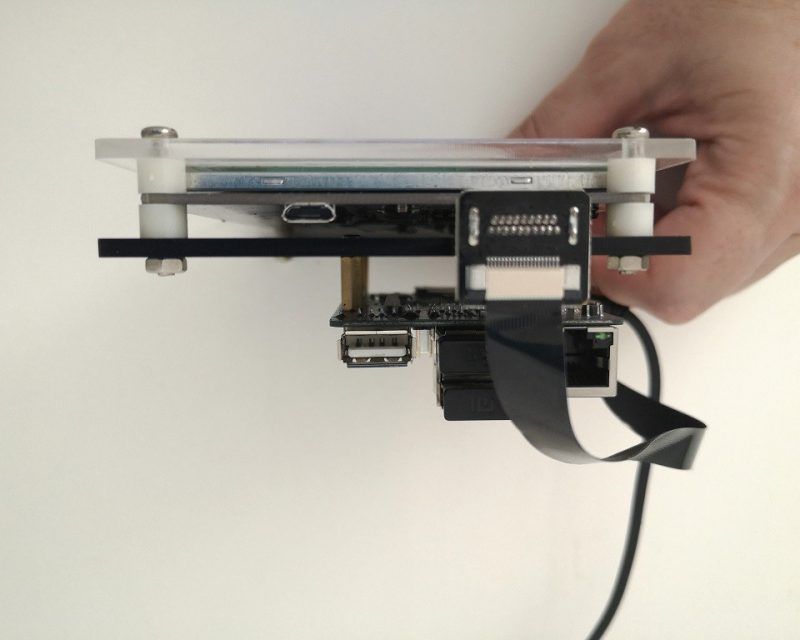

  • BlitzWolf BW BR4 SBC 06

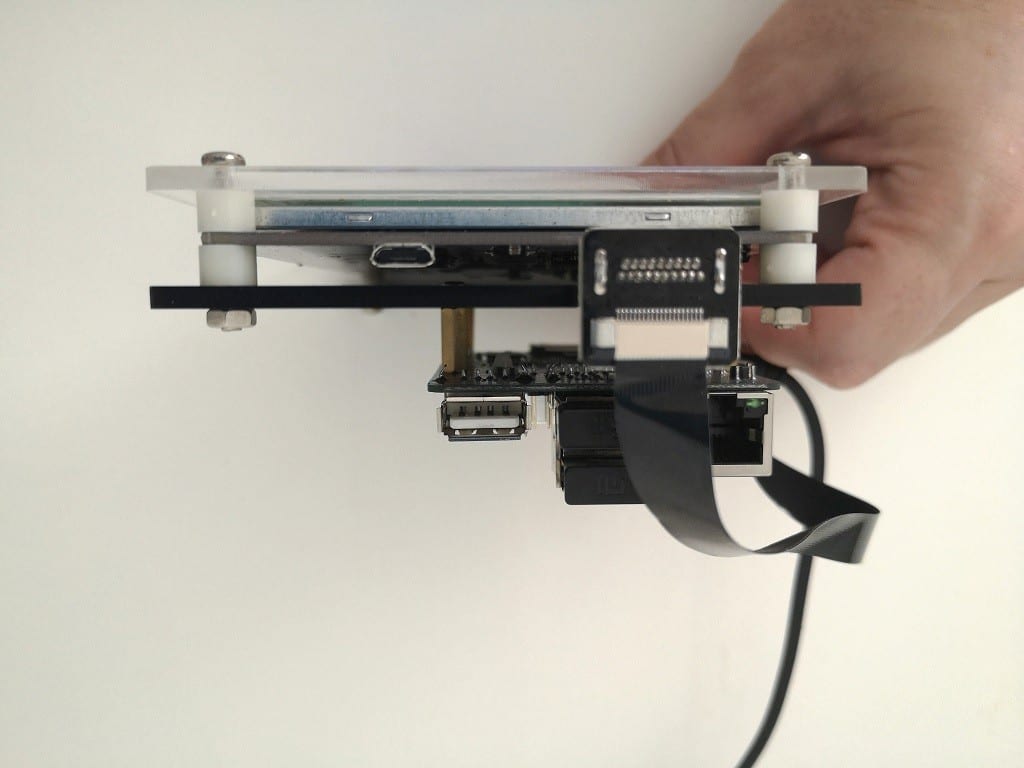

    BlitzWolf BW-BR4 + NanoPi K1 Plus | PIC 6 of 9

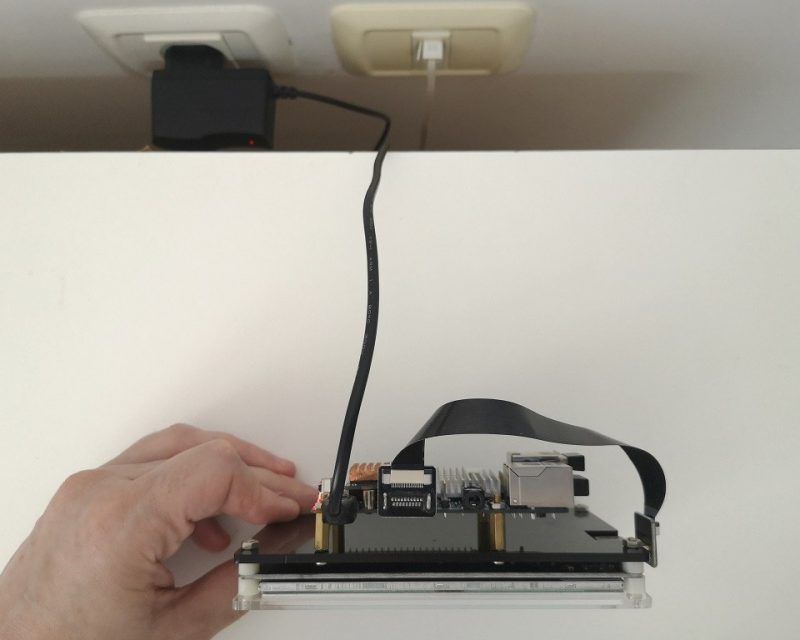

  • BlitzWolf BW BR4 SBC 07

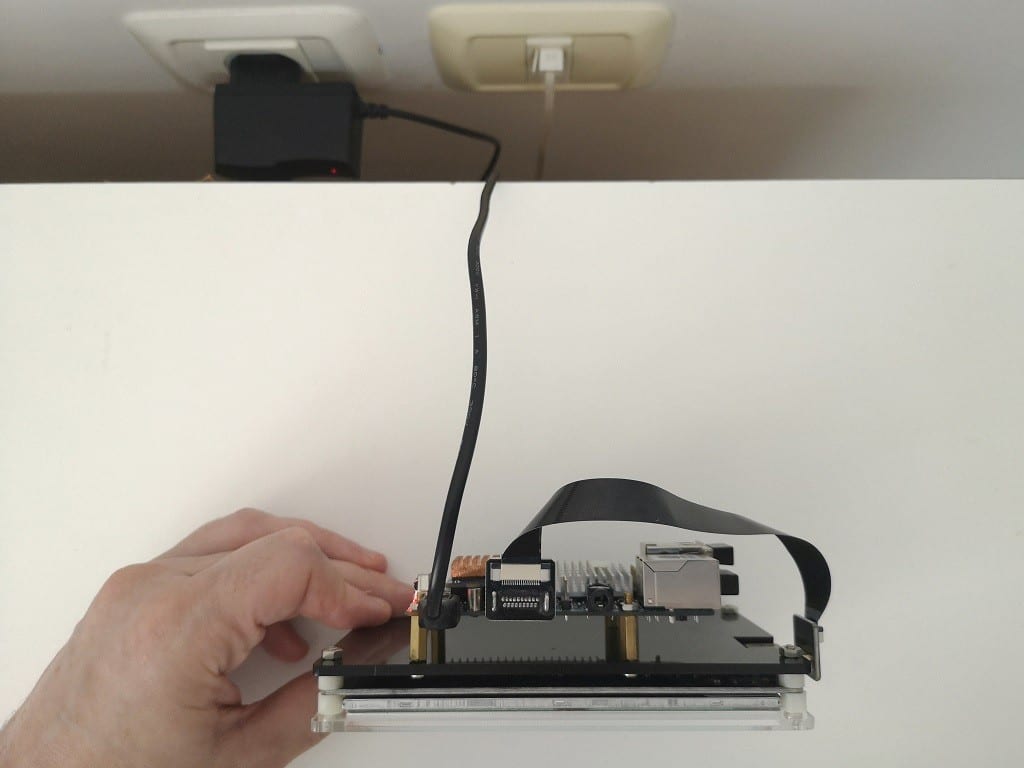

    BlitzWolf BW-BR4 + NanoPi K1 Plus | PIC 7 of 9
  • BlitzWolf BW BR4 SBC 08

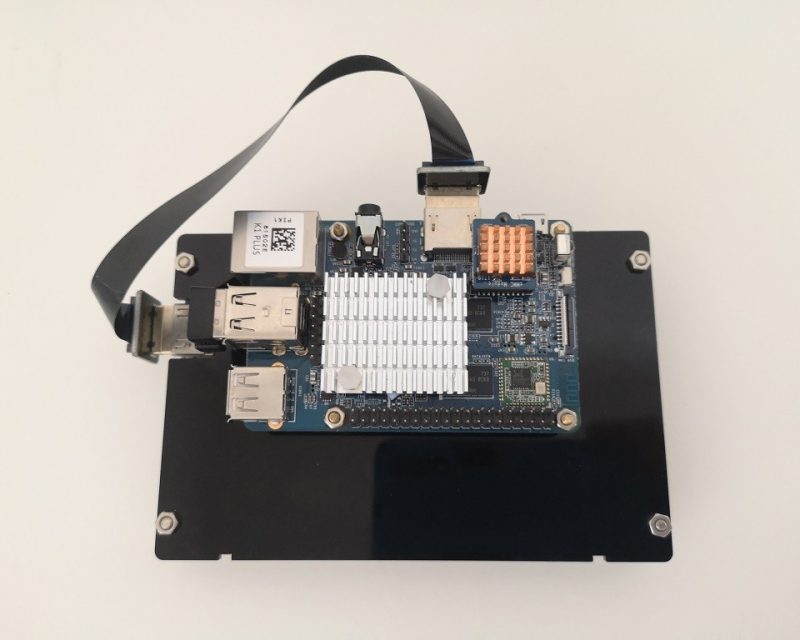

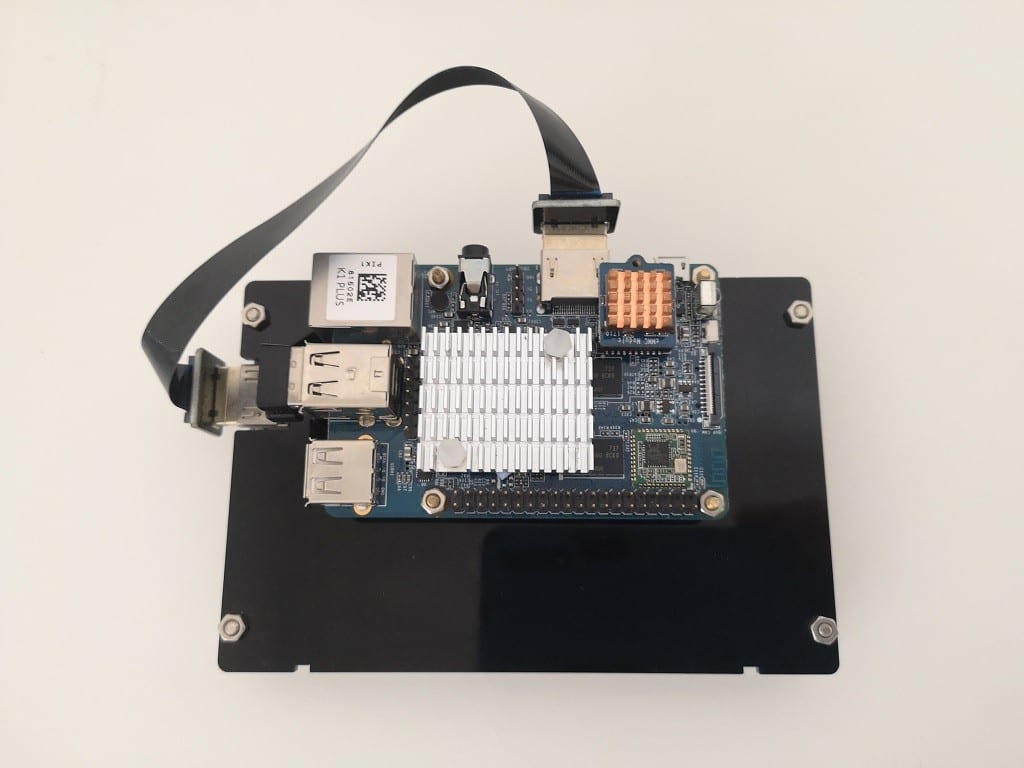

    BlitzWolf BW-BR4 + NanoPi K1 Plus | PIC 8 of 9

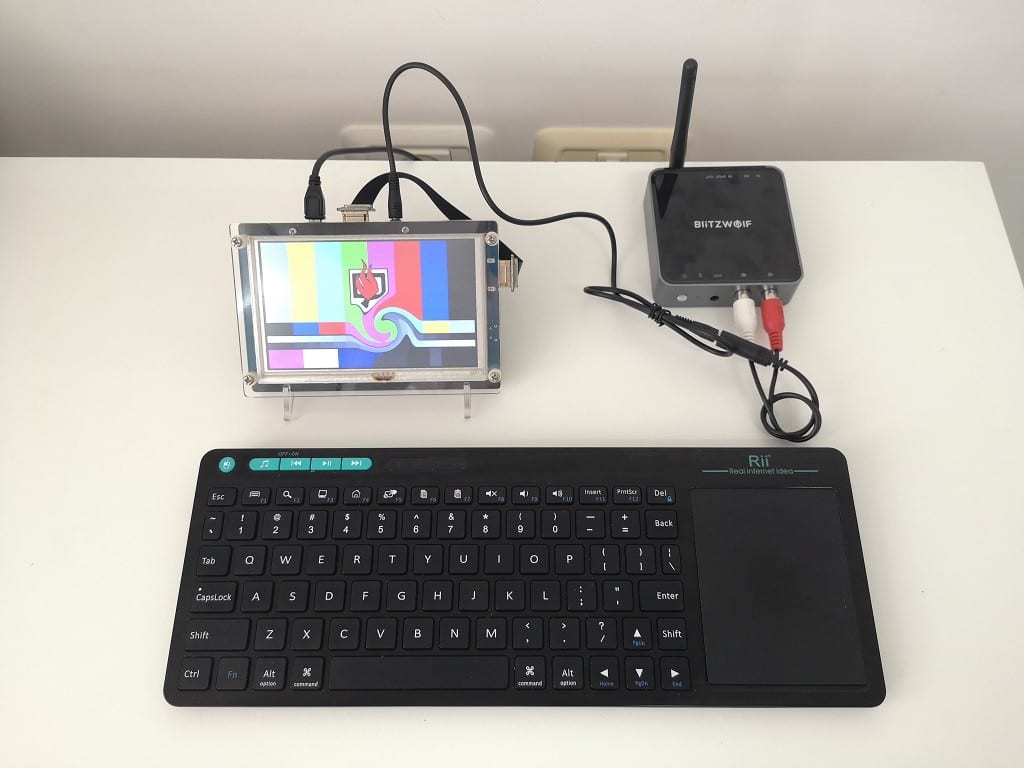

  • BlitzWolf BW BR4 SBC 09

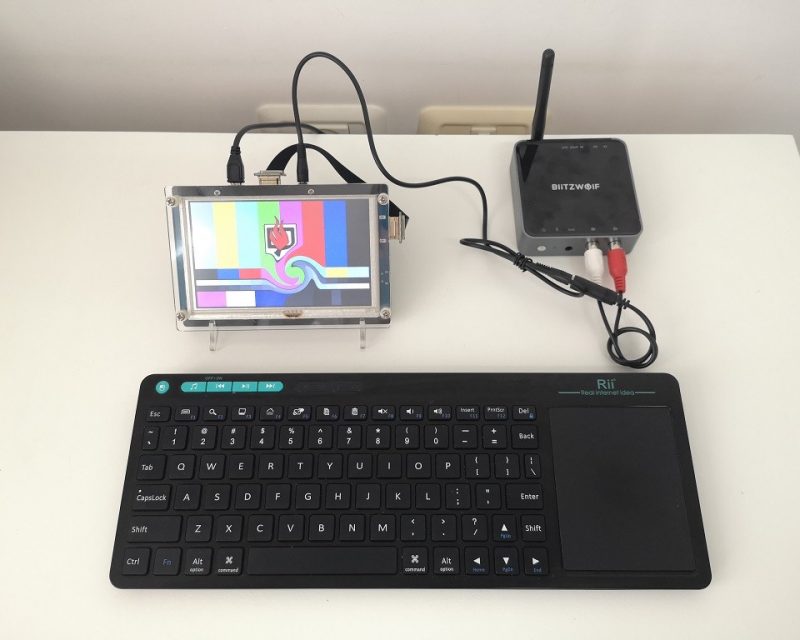

    BlitzWolf BW-BR4 + NanoPi K1 Plus | PIC 9 of 9

Setup & configuration:

  • Enabling the BlitzWolf BW-BR4 in TX mode.
  • Plugging the BlitzWolf BW-BR4 into the SBC Audio jack using the coax extension stereo cable.
  • Downloading nanopi-k1-plus_eflasher_friendlycore-xxxx image.
  • Burning image file to eMMC or Micro SD Card using the ‘Etcher‘ Tool.
  • Installing Xfce Desktop environment: apt update & apt install xfce4
  • Running Xfce: startx
  • Set the output through the headphone jack interface by editing the configuration file:

sudo nano /etc/asound.conf

Changing the card interface to ‘Card 1‘ (Audio jack).

1
2
3
4
5
6
7
8
9
10
pcm.!default {
type hw
card 1
device 0
}

ctl.!default {
type hw
card 1
}

Installing Spotify for Linux & Radio Tray

1
sudo apt update && sudo apt install spotify-client radiotray

That’s It! Now you are ready to pair your Bluetooth speaker/headphone with the BW-BR4 device and listen to your favorite music.


Optional Configurations (Source: AliExpress)

Configuration#1: (Raspberry Pi Board not included)

Item DescriptionQTYBuy Link
7-inch Display1https://ali.ski/UjSN-D
Display Housing Bracket1https://ali.ski/1DgiU

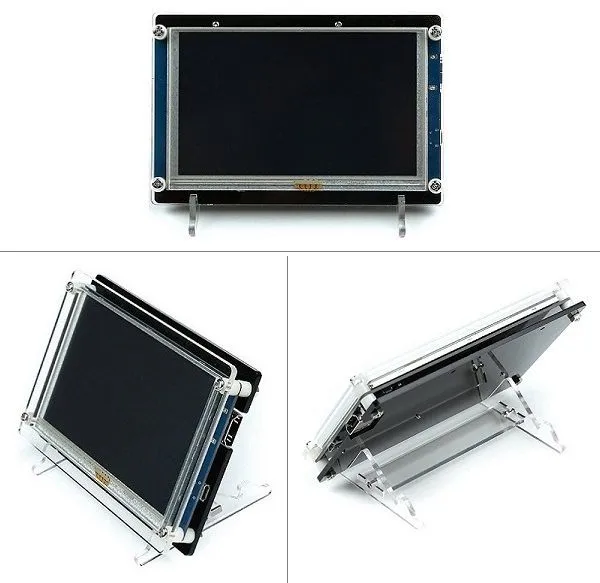

Configuration#2: (Raspberry Pi Board not included)

Item DescriptionQTYBuy Link
Full Kit (Case + 3.5 inches TFT Display)1https://ali.ski/jrwJ3M

User Case #4: Transmitting audio from a Smartphone (RX)

The most popular option is probably streaming audio via smartphone from streaming services such as YouTube, Spotify, Deezer, live radio stations, etc.

To connect your speakers, you will need to use the RCA Extension cable or a stereo headphone plug to connect to the AUX port. We use a pair of old/used speakers with an impedance of 6 ohms (each) for this configure ion. Remember that this arrangement worked well, but if you need a higher volume boost, connecting the BlitzWolf BW-BR4 to a suitable hi-fi system equipped with an amplifier is best.

Results

In my test, the volume level is not very high when pairing a Huawei P20 smartphone to a pair of 6 ohms speakers (each) without an amplifier. To overcome this problem and override manufacturer default volume levels presets in your phone, I highly recommend installing a volume boost app such as ‘Volume Booster Pro.’

Streaming audio from a mobile phone to a pair of wired speakers.

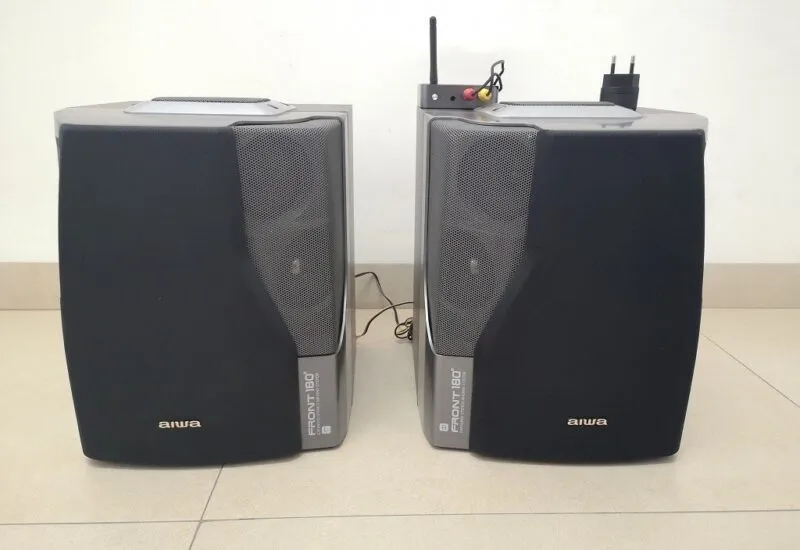

  • BW BR4 Speakers 1

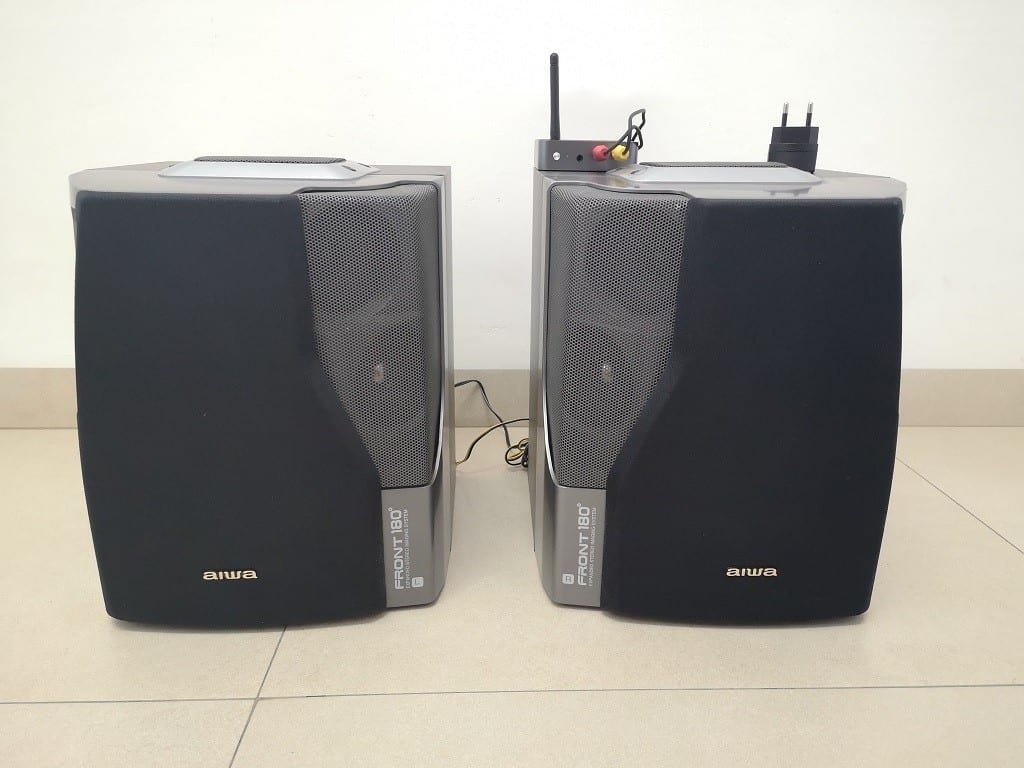

    BlitzWolf BW-BR4 | Streaming to wired speakers - 1 of 9
  • BW BR4 Speakers 2

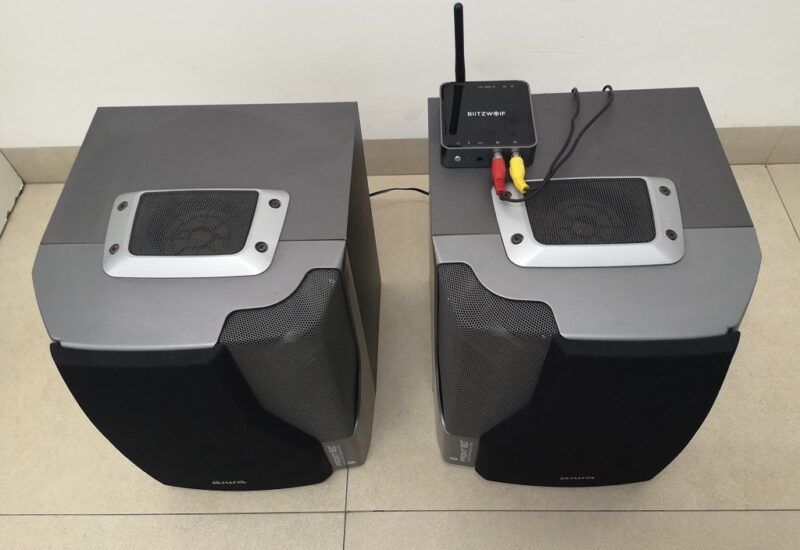

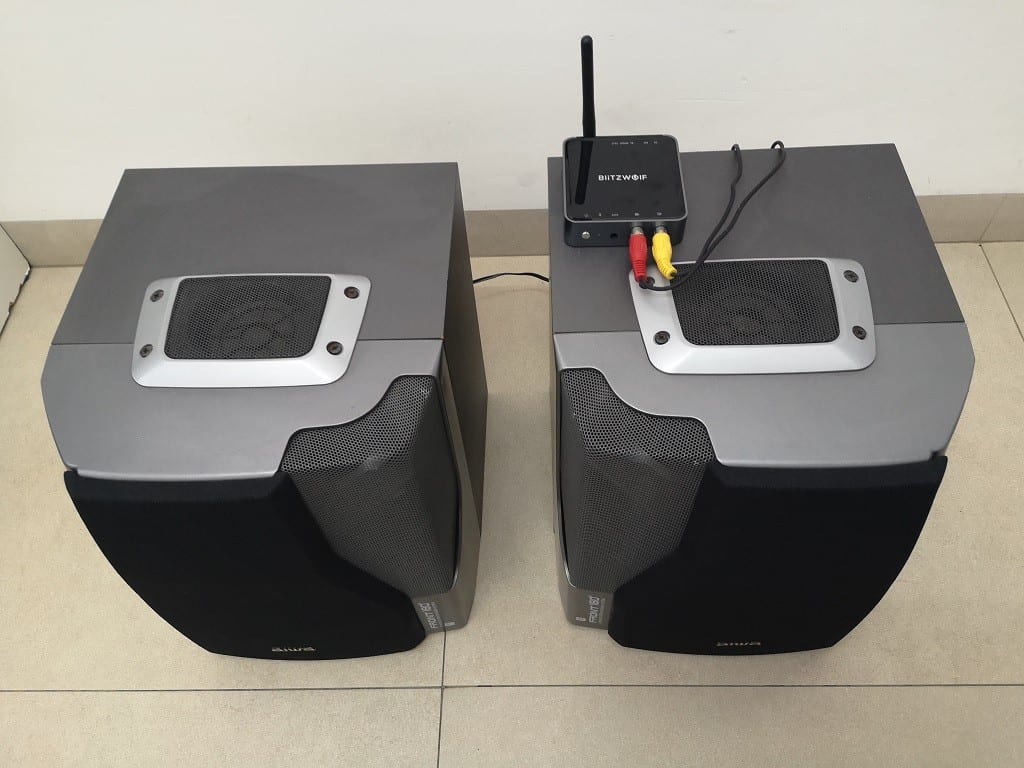

    BlitzWolf BW-BR4 | Streaming to wired speakers - 2 of 9
  • BW BR4 Speakers 3

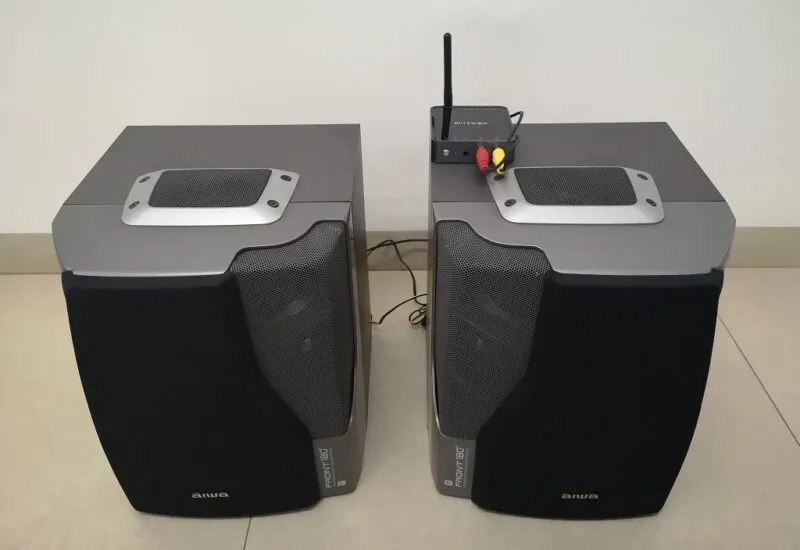

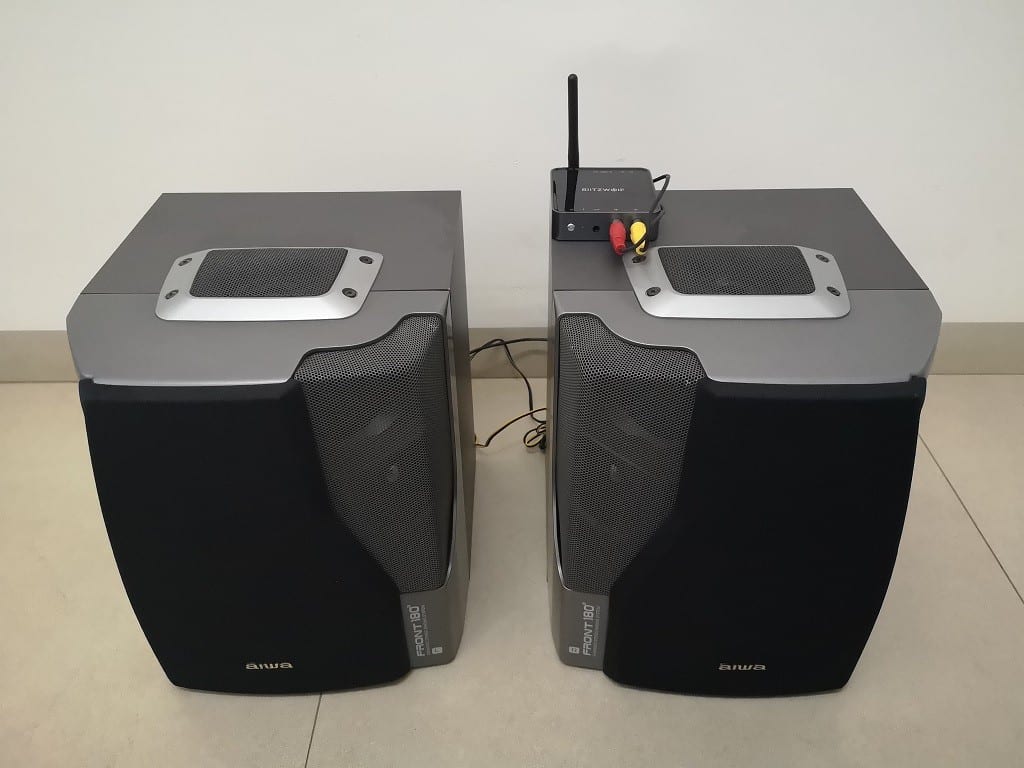

    BlitzWolf BW-BR4 | Streaming to wired speakers - 3 of 9

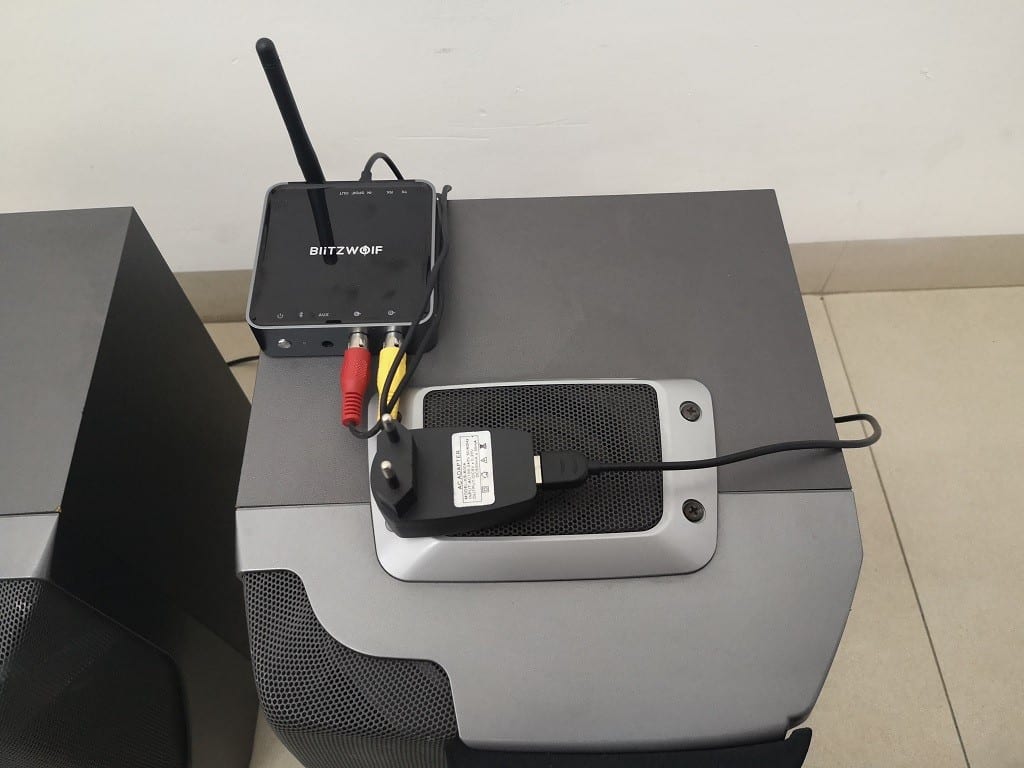

  • BW BR4 Speakers 4

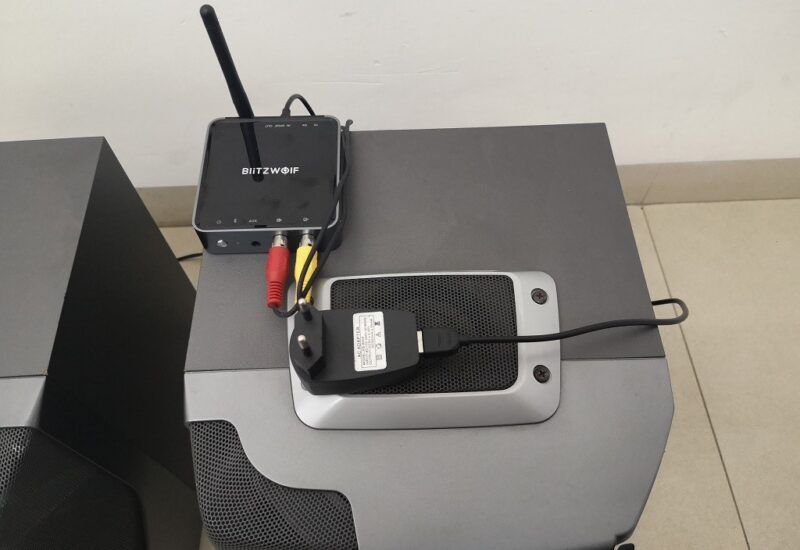

    BlitzWolf BW-BR4 | Streaming to wired speakers - 4 of 9

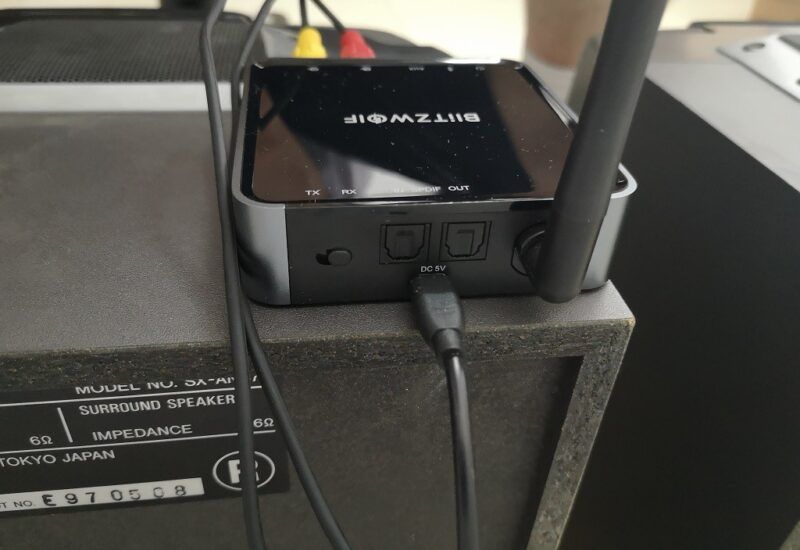

  • BW BR4 Speakers 5

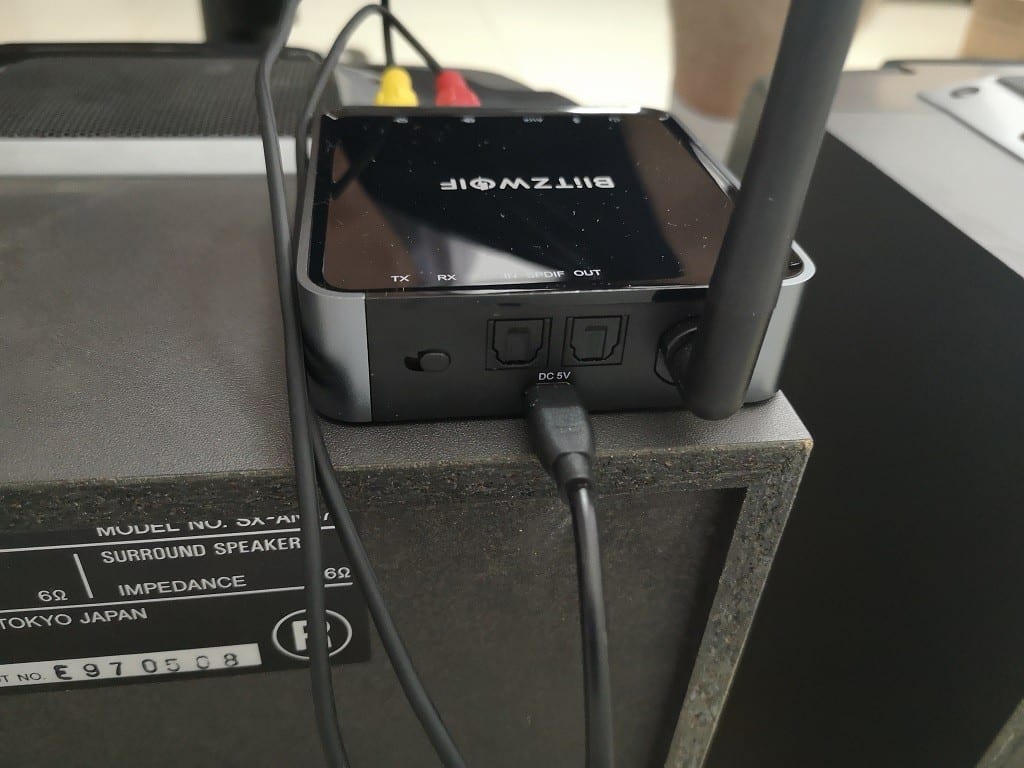

    BlitzWolf BW-BR4 | Streaming to wired speakers - 5 of 9
  • BW BR4 Speakers 6

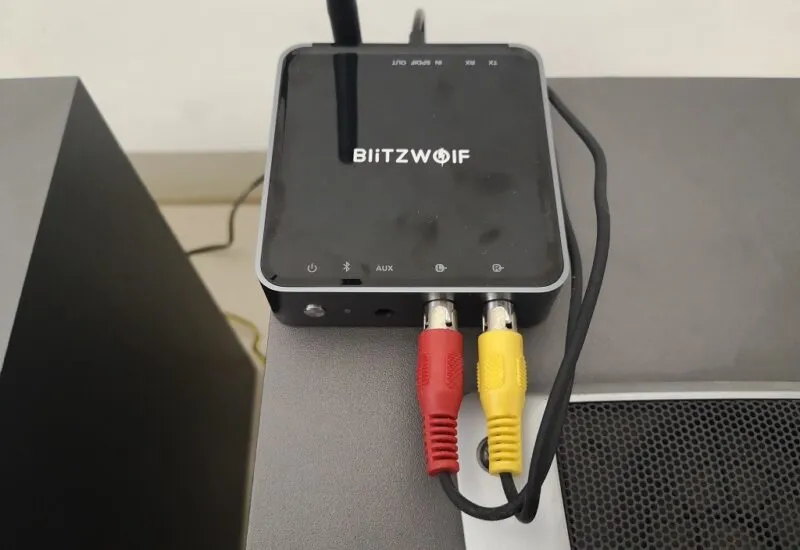

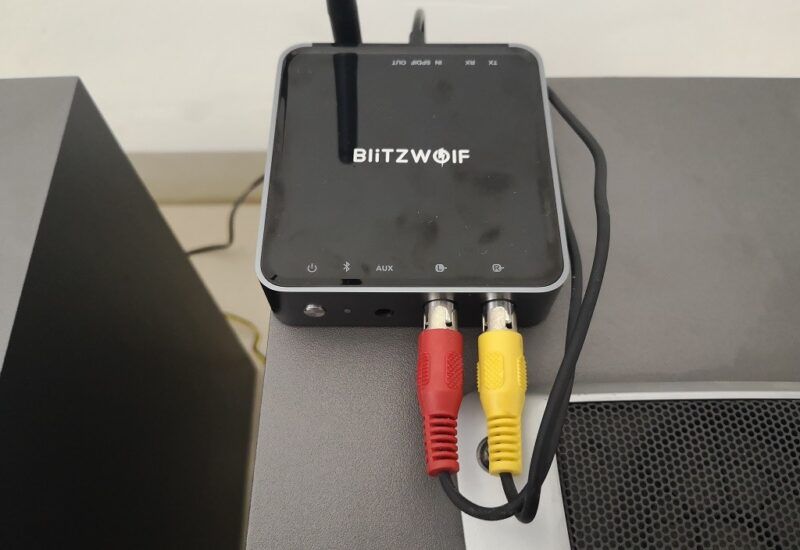

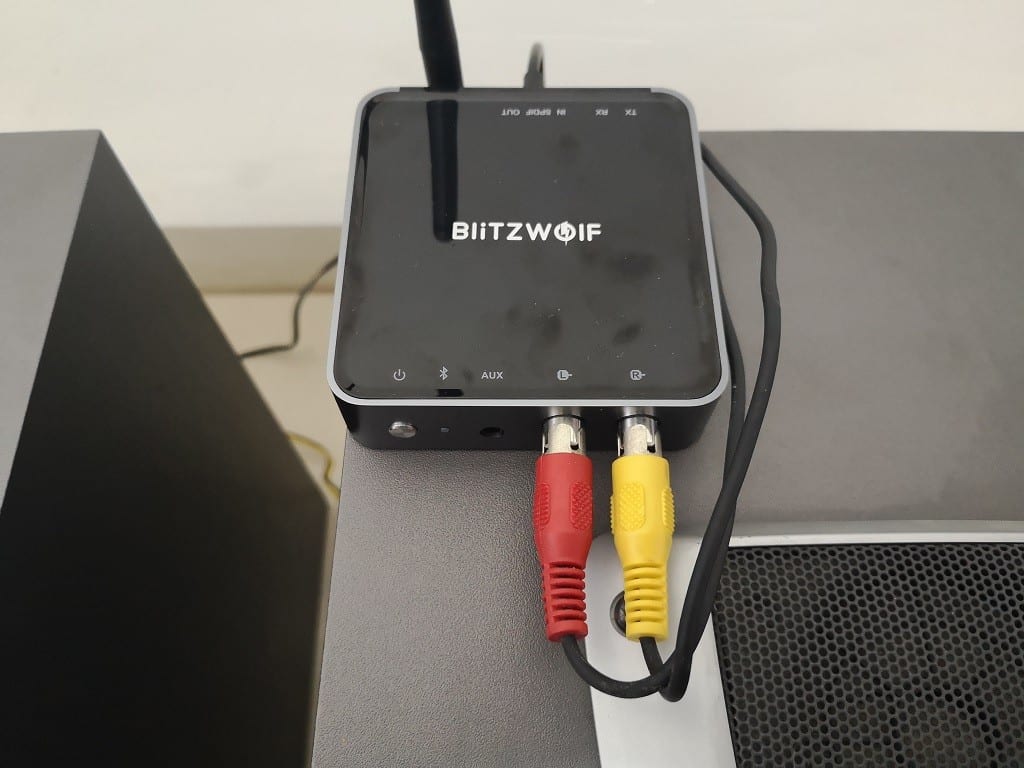

    BlitzWolf BW-BR4 | Streaming to wired speakers - 6 of 9

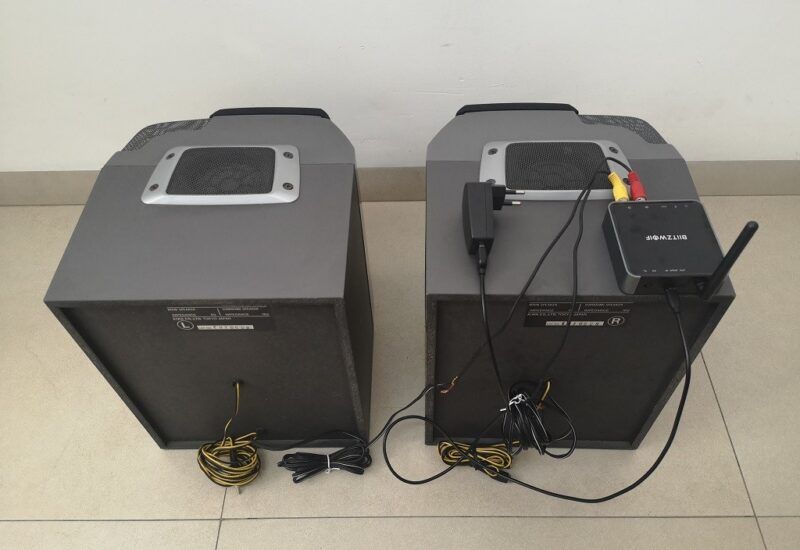

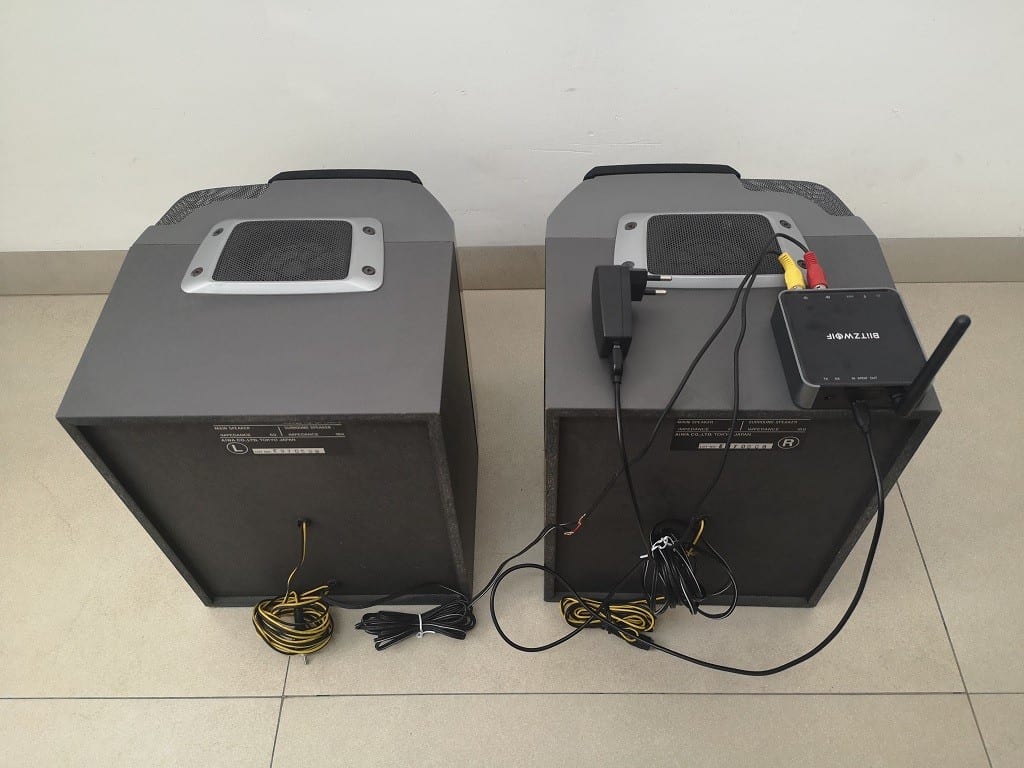

  • BW BR4 Speakers 7
    BlitzWolf BW-BR4 | Streaming to wired speakers - 7 of 9

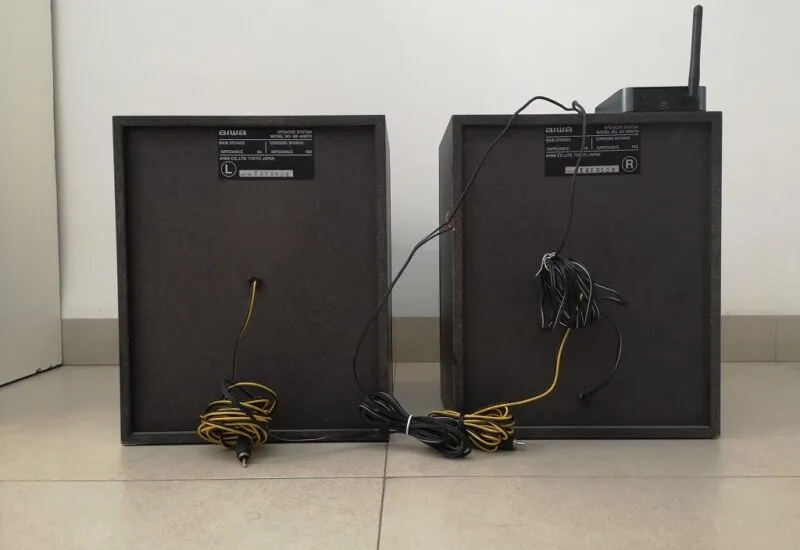

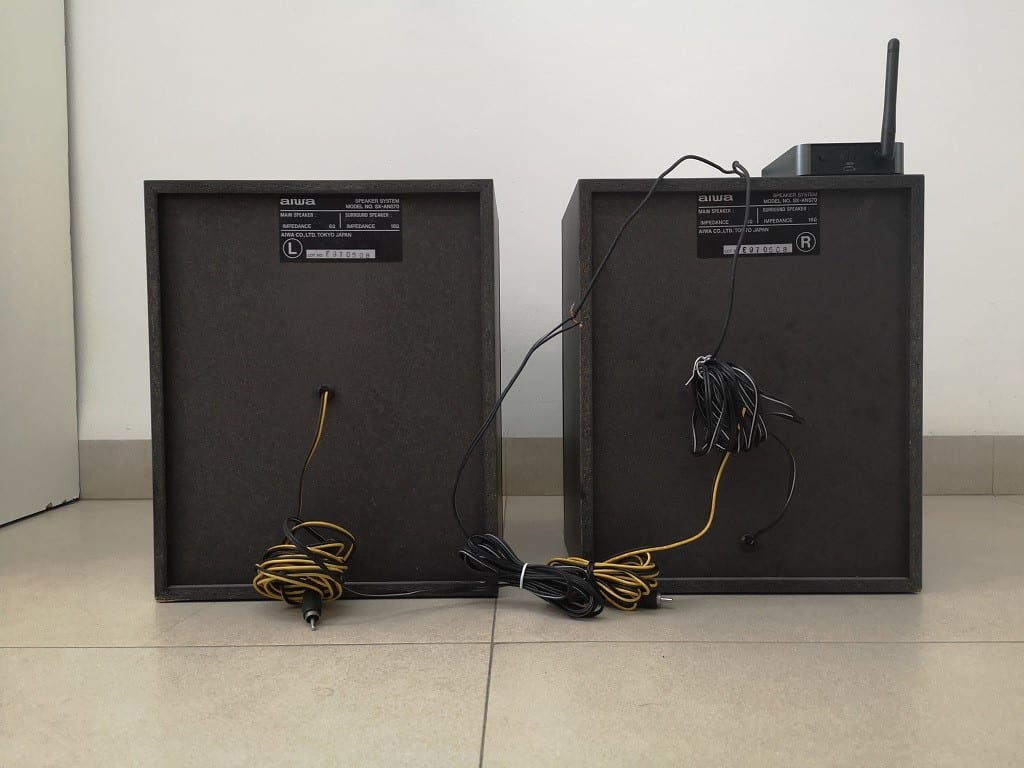

  • BW BR4 Speakers 8
    BlitzWolf BW-BR4 | Streaming to wired speakers - 8 of 9

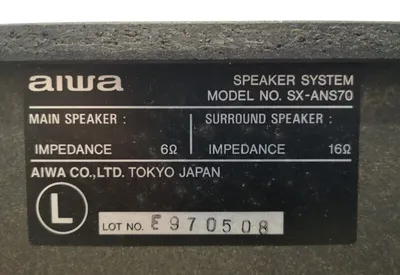

  • BW BR4 Speakers 9
    BlitzWolf BW-BR4 | Streaming to wired speakers - 9 of 9

Sound Quality

From my general impression, the BlitzWolf BW-BR4 provided excellent clear s und. The AUX port is also very comfortable if you want to connect with a 3.5 mm headphone plug. If you seek maximum sound quality at higher volume levels, I recommend connecting your BW-BR4 through a coaxial or optical cable directly into an amplifier.


Range

In my test, the BlitzWolf BW-BR4 device performed well with no interference when placed in a nearby room with open doors at a distance of about 4 meters.


Charging Time

To power the BW-BR4 device, you can connect it to a standard USB port of a PC television or a car.


Battery Operation/Life

The battery life of the BlitzWolf BW-BR4 was impressive. For such a small device with a 600mAh battery inside, it can last up to 175 hours on standby mode. In real-world situations, you can expect it to work in both RX/TX modes through AUX and SPDIF interfaces for about 15-17 hours.


Price and Availablity

BW BR4 Music Receiver 0
8.4
BlitzWolf BW-BR4 Bluetooth Audio Receiver & Transmitter
Check lowest prices
POSITIVES
  • Build Quality
  • Internal Battery
  • Sound Quality
NEGATIVES
  • None
