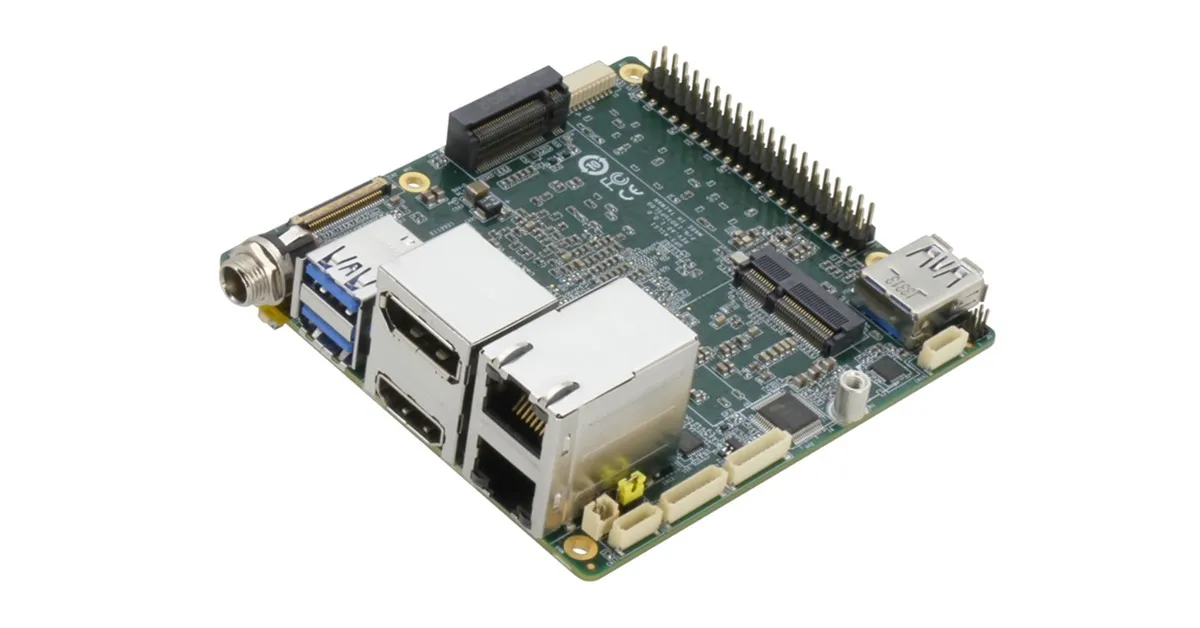

UP Squared 7100
AAEON announces that the UP Squared 7100 will come with either Intel N97 or Intel N100 processors. Additionally, the company will provide options for Intel Atom x7000E and Core i3 Alder Lake-N processors. Starting in early 2025, models with Intel Atom x7000RE “Amston Lake” chips will also be available.
The new cutting-edge computer board developed by AAEON Technology. It boasts a compact size, housing an Intel Alder Lake-N low-power processor, a maximum of 16 GB LPDDR5 memory, and up to 128 GB eMMC storage. With its impressive capabilities, it facilitates seamless performance for various tasks. Furthermore, the board offers incredible expansion options, featuring two M.2 slots for storage and wireless cards, support for dual displays, and the convenience of two Gigabit Ethernet ports.

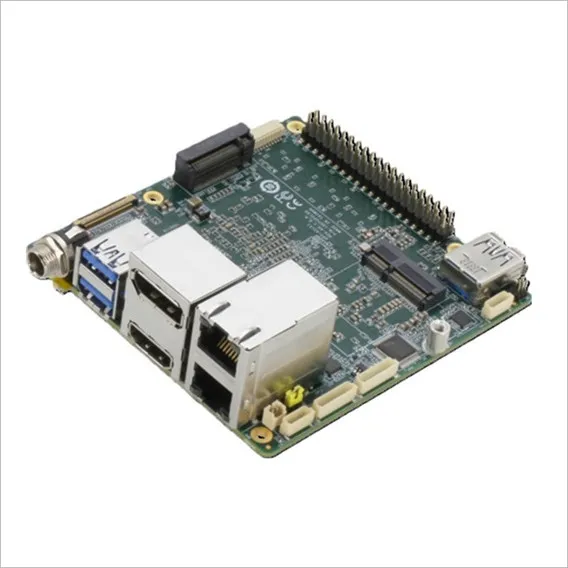

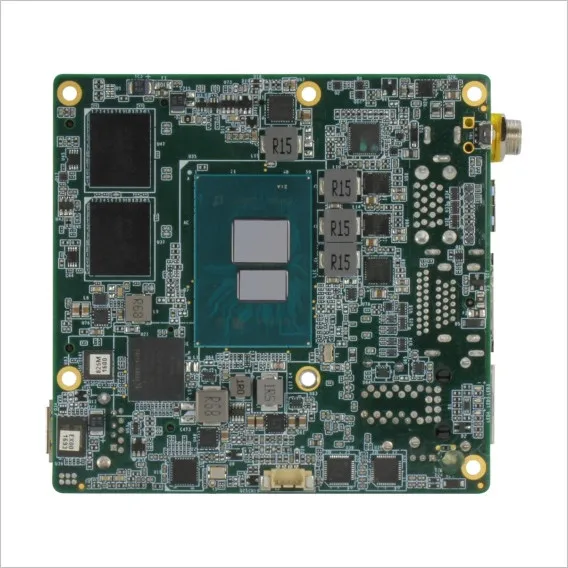

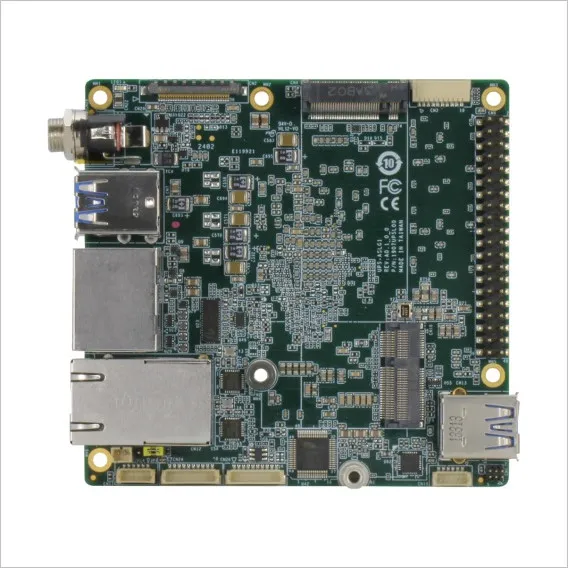

A closer look at the board
Key Points
- Intel® Processor N-series SoC.
- Onboard LPDDR5 Memory up to 16 GB.
- Onboard eMMC Storage up to 128 GB.
- 2x Gb Ethernet RJ-45 (full speed).
- 3x USB 3.2 Type A.
- 1x 40 pin GPIO.
- DP 1.2 / HDMI 2.0b / eDP 1.3.
- 2x RS232/422/485.
- x1 M.2 2230 E-Key.
- x1 M.2 2280 M-Key.
- TPM 2.0.
- 12V DC-in.
UP Squared 7100 Specifications
| PROCESSOR | Intel® Processor N97 Intel® Processor N100 |
| GRAPHICS | Intel® UHD Graphics for 12th Gen Intel® Processors |
| MEMORY | Up to 16 GB LPDDR5 |
| STORAGE | Up to 128 GB eMMC |
| I/O | HDMI 2.0b x 1 DP 1.2 x 1 eDP 1.3 x 1 Audio wafer (Line out + MIC in) x 1 RS-232/422/485 via wafer x 2 |
| USB | USB 2.0 x 2 (from 10 pin wafer x 1) USB 3.2 Gen 2 Type A x 3 |
| EXPANSION | 40 pin GPIO x 1 M.2 2230 E-Key x 1 (PCIe x1, USB2.0 x1) M.2 2280 M-key x 1 (PCIe x2) |
| DISPLAY INTERFACE | HDMI 2.0b x 1 DP 1.2 x 1 eDP 1.3 x 1 |
| ETHERNET | Gb Ethernet (full speed) RJ-45 x 2 |
| SECURITY | Onboard TPM 2.0 |
| RTC | Yes. |
| OS SUPPORT | Microsoft Windows 10/11 Ubuntu 22.04 LTS Yocto 5.1 |
| POWER REQUIREMENT | |
| POWER | 12V DC-in |
| POWER SUPPLY TYPE | AT/ ATX (ATX as default) |
| POWER CONSUMPTION (TYPICAL) | 15W~37W |
| MECHANICAL | |
| DIMENSION | 3.37″ x 3.54″ (85.6 mm × 90 mm) |
| NET WEIGHT | 0.41 lbs (0.19kg) |
| GROSS WEIGHT | 0.66 lbs (0.3kg) |
| ENVIRONMENT | |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) / 0.5 airflow |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF | 1224238 |
| CERTIFICATION | CE/FCC Class A, RoHS Compliant, REACH |

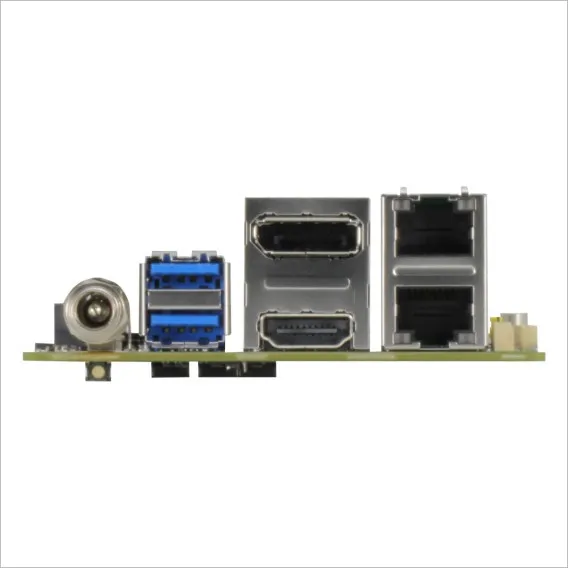

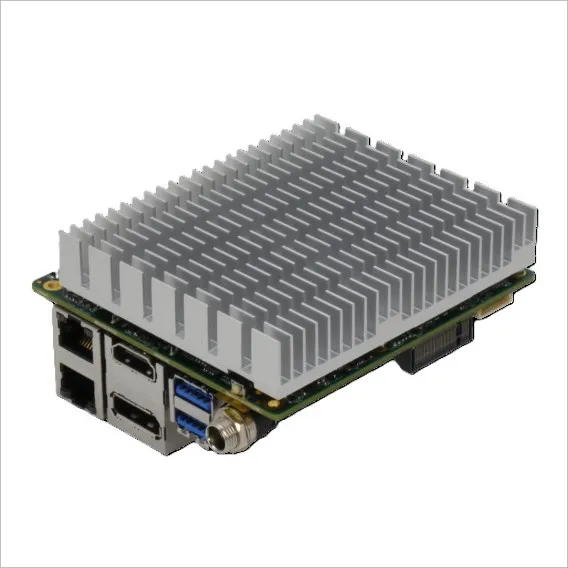

Extra Interfaces
Despite being primarily designed for industrial applications, the UP Squared 7100 is not limited to commercial use. It is an exceptional product that will soon be available for purchase from the UP Shop. Therefore, both professionals and home users seeking a cutting-edge and reliable computer board can look forward to obtaining this outstanding device.
With a 40-pin GPIO HAT and multiple serial ports (RS-232/422/485), the platform offers remarkable flexibility, allowing for a multitude of connectivity options to cater to diverse applications.
UP Squared Pro 7100 changes compared to its predecessor, the 7000 model.
The UP Squared Pro 7000 and UP Squared 7100 boards have significant differences. The Pro 7000 measures 4″ x 4″ (101.6 x 101.6 mm) and has three M.2 slots, a SATA III connector, and two 2.5 GbE Ethernet ports. On the other hand, the 7100 board is smaller, measuring 3.54″ x 3.37″ (90 x 85.6 mm), and has only two M.2 slots, no SATA connector, and Gigabit Ethernet. These differences suggest that the new model, UP Squared 7100, might be more affordable.
About
AAEON, established in 1992, is a leading designer and manufacturer of industrial and embedded computing platforms. They provide innovative Industry 4.0 solutions, cutting-edge AI hardware, and IoT solution platforms. AAEON also offers customized services and is committed to advancing the industry. As a member of the ASUS group since 2011, AAEON has access to advanced technology and resources to offer diversified products. They are a Titanium member of the Intel® Internet of Things Solutions Alliance.

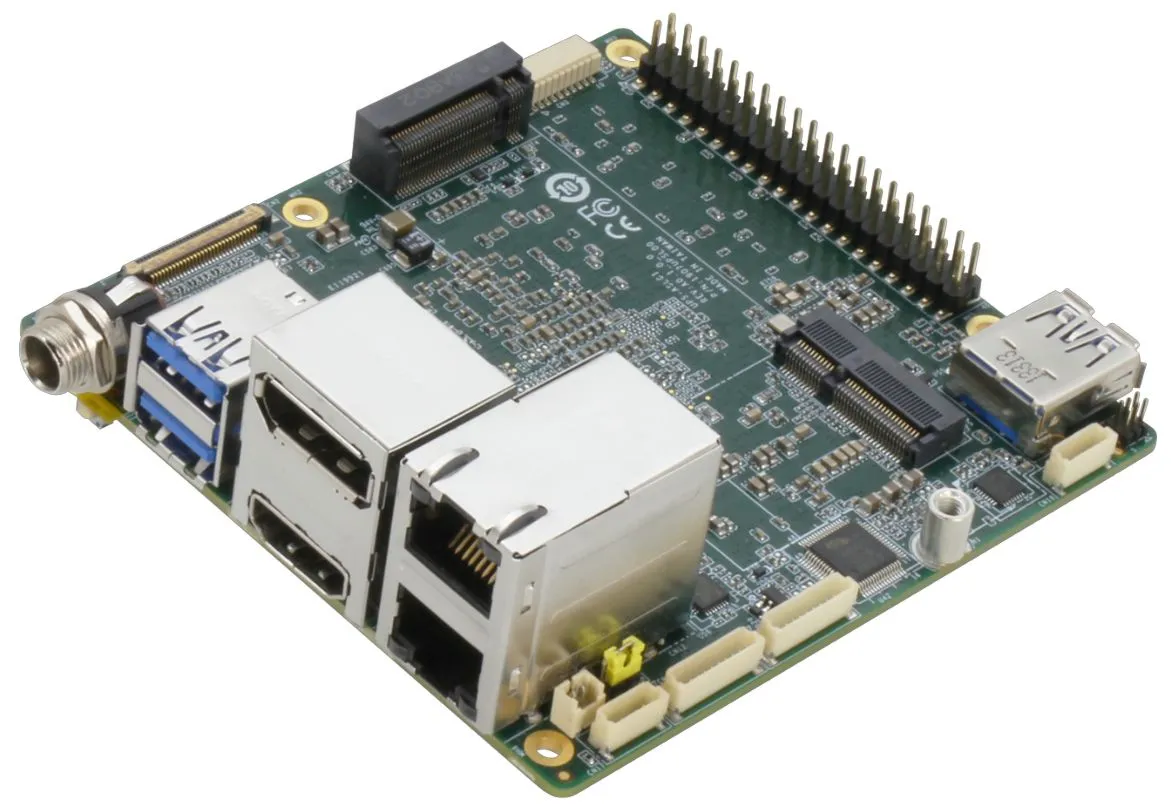

UP Squared 7100 Price and Availability
The base model, featuring 4GB of RAM and 32GB of eMMC storage, begins at an attractive price of $219. For those seeking enhanced performance, the upgraded version with 8GB of RAM and 64GB of eMMC flash is available for just $259. Please note that this pricing excludes optional accessories such as AI Acceleration, the LCD Kit, and the WiFi/BT card add-on.
Although the price may not be the lowest on the market, this board stands out as an ideal option for anyone seeking good specifications and dependable software support, making it perfect for building a mini server or a compact workstation.
