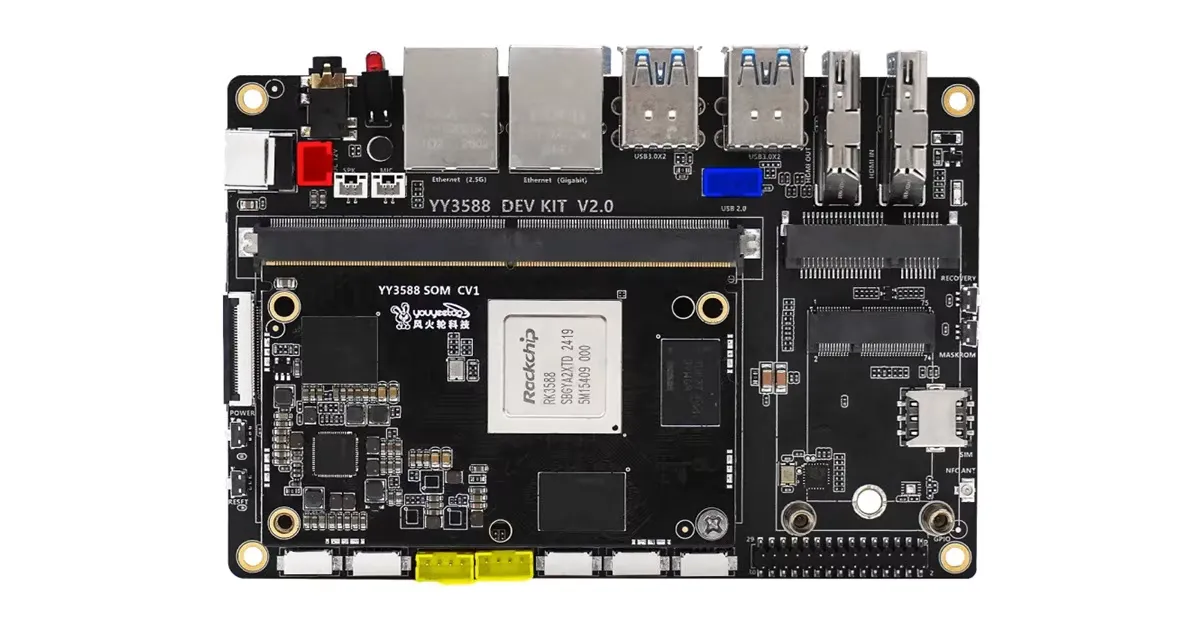

Youyeetoo has unveiled the YY3588 computer module, powered by the Rockchip RK3588 SoC and featuring a wide range of versatile interfaces.
The Youyeetoo YY3588 is new cutting-edge ARM-based embedded computing platform built for industrial automation, edge AI, and modern IoT applications. Equipped with Rockchip’s powerful RK3588 SoC and a modular core-board and carrier-board design, it provides flexible processing power, reliable connectivity, and quick setup, even in tight spaces.
The product’s main advantage lies in its upgradability through the System-on-Modules (SOM) board, which houses key components like memory, storage, CPU, and RAM. Powered by the Rockchip RK3588 SoC, it features an octa-core ARM CPU (4× Cortex-A76 and 4× Cortex-A55), a Mali-G610 MP4 GPU, and a 6 TOPS NPU for advanced AI tasks, making it perfect for edge computing, robotics, and industrial automation.
It supports up to 32GB LPDDR4/4X RAM, offers versatile storage options like NVMe, SATA, and microSD, and provides extensive connectivity with dual Ethernet (1GbE + 2.5GbE), Wi-Fi 6, Bluetooth 5.2, and optional 4G LTE. Additionally, it supports 8K video output, dual camera inputs, and a wide range of I/O interfaces such as GPIO, UART, SPI, and I2C, making it an adaptable choice for developers and engineers creating high-performance embedded systems.
A brief introduction to the product.
Key features
- High-end SoC: Powered by an RK3588 SoC.
- Fast and efficient CPU: Octa-core 64-bit processor featuring 4×Cortex-A76 cores and 4×Cortex-A55 cores.
- Tri-core NPU (6 TOPS) for AI acceleration.
- Modular design: Designed with a core and baseboard for rapid prototyping.
- Memory: Ranging from 4GB to 32GB LPDDR4/4X, with various storage configuration options available.
- Dual Display: HDMI2.1 (8K@60Hz / 4K@120Hz) + DP1.4 ports.
- Integrated SIM card: Cellular data connectivity through a 4G LTE module.
- M.2 M-Key slot: Expandable storage option for NVMe SSD.
- Rich I/O interfaces: HDMI 2.1, DP 1.4, MIPI, USB, CAN, UART, NFC, SATA, and more.
- Integrated NFC Support: Facilitates seamless data transfer with mobile phones equipped with an external antenna socket.
📋 Specifications
| Category | Details |
|---|---|
| Model | Youyeetoo YY3588 |
| Processor | Rockchip RK3588 octa-core ARM Cortex (4×A76 @2.4GHz + 4×A55 @1.8GHz) |
| RAM | LPDDR4/4X 4GB/8GB/16GB/32GB (option) |
| GPU | ARM Mali-G610 MP4 “Odin” GPU ✔ Compatible with OpenGL ES 1.1/2.0/3.1/3.2 ✔ OpenCL 1.1,1.2,2.0 ✔ Vulkan 1.1,1.2 450 GFLOPS |
| NPU | Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed |
| Video Decoding | 8K@60fps H.265/H.264/VP9/AVS2 8K@30fps H.264 AVC/MVC 4K@60fps AV1 1080P@60fps MPEG-2/-1/VC-1/VP8 8K@30fps H. 265/H.264 encoding (up to 32 channels can be implemented) 1080P@30fpsDecoding and 16 channels 1080P@30fps Encoding) |
| Memory & Storage | SPI flash:16MB(Default not pasted) eMMC 5.1: 32G/64G/128G/256GB (option) 1x SATA3.0: Expandable through FPC socket 1x M.2 M-Key, (PCIe 3.0 x4), SATA 3.0 1x NVMe 2280 SSD slot (PCIE3.0) 1x MicroSD Slot |
| Networking & Connectivity | 1x RJ45 1GbE port 1x RJ45 2.5GbE port 4G LTE module (Optional) M.2 E-key slot for WiFi 6 (802.11ax) & Bluetooth 5.2 |
| Integrated NFC support (ISO/IEC 14443 compliant) | ✔ External NFC antenna socket designed for seamless communication with mobile phones running on Android and iOS platforms. (youyeetoo.com provides examples tutorials and API) |
| I2C | 2x I2C (4pin 1.25mm) |
| Display(Multi screen) | 1 x HDMI2.1 (8K@60Hz, 4K@120Hz) 1x HDMI-IN(4K@60fps) ,Supports HDCP 2.3 1x DP1.4 (maximum 8K@30fps, output through Type-C interface) 1x EDP (FPC 0.5mm) 2 x MIPI-DSI (DSI0/DSI1 4K@60Hz) Default support for Wind and Fire Wheel MIPI7LCD (1024 * 600 |
| Camera | 2x MIPI CSI 4 lanes (MIPI_CPHY0/MIPI_CPHY1) |
| USB | 4x USB-A 3.0 1x USB-A:USB-A 2.0(4 pin header,4pin 2.0mm) 1x USB Type-C full functionality (DP1.4/OTG)) Audio Output |
| Audio Output | 3.5 headphone jack (4-wire with MIC AFSL CTIA) SPK Interface (4-ohm 2W output,2pin 1.25mm) SPDIF (in 30PIN) |
| Audio Input | MIC x1 MIC interface 2PIN:2pin header for MIC |
| Industrial I/O & Expansion | 5× UART (incl. DEBUG), CAN 2.0B, I2C, SPI GPIO (PWM, ADC, interrupt-driven) |
| 30PIN Socket | MIC in 3.5mm audio jack 30PIN Socket DC: 3x 5V,1x 3.3V 1x I2C 1xSPDIF 1x PWM (PWM15) 2x UART GPIO * 9 |
| UART | 1x UART DEBUG (4pin 2.0mm) 1x UART (4pin 2.0mm) 3x UART (4pin 1.25mm) |
| Key | Boot /Reset /Recovery /Power |
| Power | DC jeck : 12V(5.5×2.1mm,12V3A) Pin socket red: 2Pin 2.54 pitch |
| RTC | 1x RTC(2pin 1.25mm) |
| FAN | 1x FAN (2pin x1.25mm) |
| OS Support | ✔ Android 14 (kernel 6.10) ✔ Debian 12 (kernel 6.10) ✔ OpenHarmony 5.1 |
| Developer Tools | Yocto/Buildroot BSP (kernel 5.10 LTS) NFC API library (Android/Debian) NPU Support: TensorFlow/MXNet/PyTorch/Caffe RKNN |
| Target Applications | Industry 4.0: Vision, robotics, maintenance Edge AI: Object detection, voice, LLM Smart Infrastructure: Signage, kiosks, automation IoT Gateways: 4G/NFC/WiFi/CAN edge nodes |
| Certifications | CE/FCC (pending) |
| Documentation | Hardware schematics (NDA-based) Wiki guides (peripherals, OTA, thermal) |
| Environment | Operation temperature:-20℃ ~ 60℃ Storage temperature:-20℃~ 70℃ |
| Dimensions | Carrier Board: 131.5mm × 92mm x 26.5 mm Core Module: 81mm × 48mm (BGA-embedded) |
Youyeetoo YY3588 (Main carrier board)

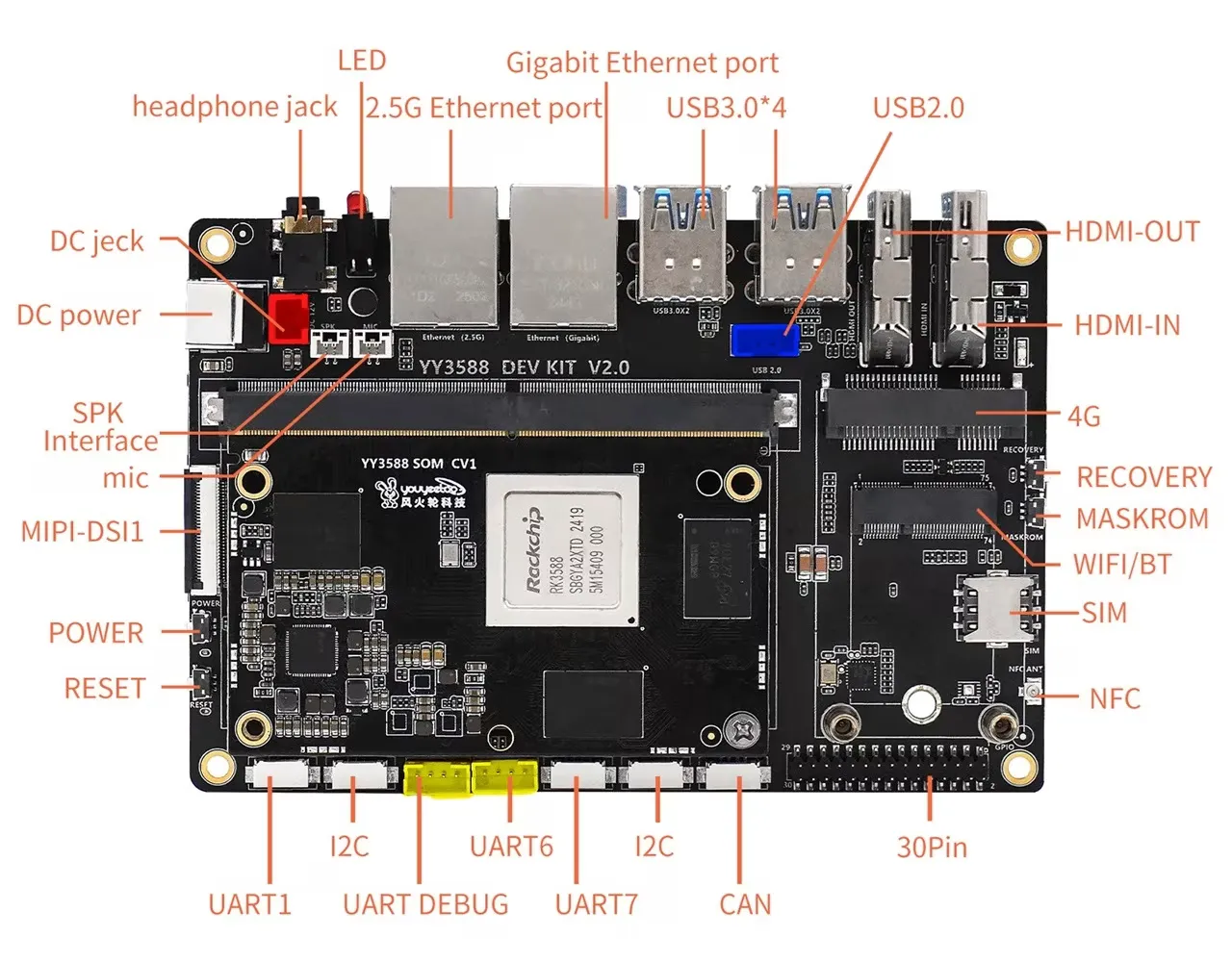

![Youyeetoo YY3588 Carrier-Board [Front]](https://cdn.androidpimp.com/q:i/r:0/wp:1/w:1/u:https://www.androidpimp.com/wp-content/uploads/2025/10/YY3588-Carrier-Board_1.jpg)

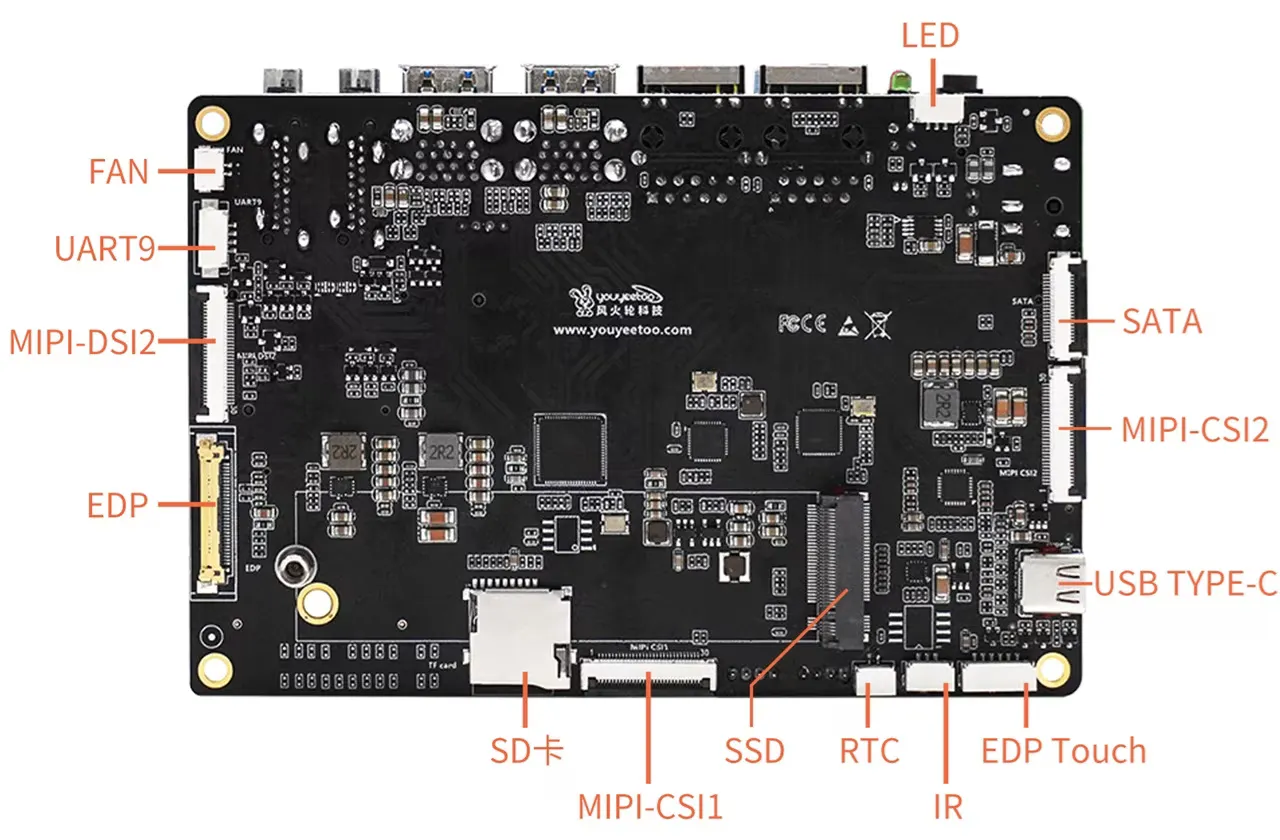

![Youyeetoo YY3588 Carrier-Board [Rear]](https://cdn.androidpimp.com/q:i/r:0/wp:1/w:1/u:https://www.androidpimp.com/wp-content/uploads/2025/10/YY3588-Carrier-Board_2.jpg)

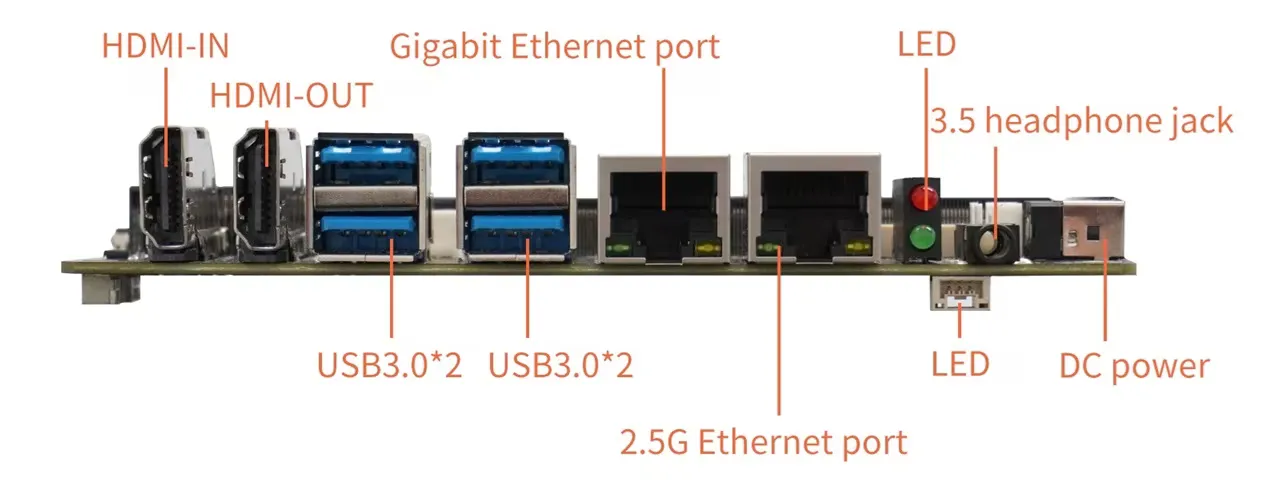

YY3588 carrier board interfaces (side view)

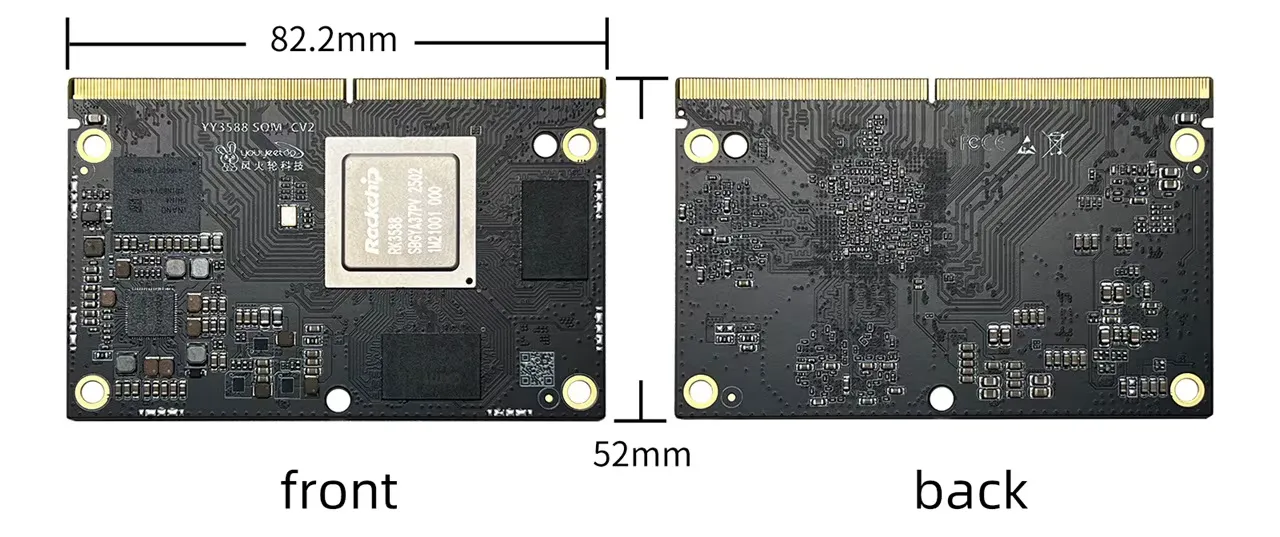

YY3588 System on Module (SoM) – A full view
The System on Module (SoM) is a small, ready-to-use computing module that houses the essential components of an embedded system which includes a processor (CPU), memory (RAM and storage), and more.

Software
The Rockchip RK3588 is a well-known SoC known for its impressive performance. It supports a variety of Linux distributions like Ubuntu (22.04 and 24.04), Debian, Buildroot, and experimental Armbian builds, with growing compatibility in mainline Linux kernels (6.7+). This versatility makes it an excellent choice for developers working on embedded systems, smart devices, and industrial applications.
Price and availability
The company offers a variety of kits designed to meet different user needs. The full standard kit starts at $211.98 for the 4GB RAM / 32GB model which and includes the main motherboard, core board, charger, UART serial adapter, and basic cabling. Additionally, there are options like a Wi-Fi kit, a 7-inch screen display kit, and a camera module kit, priced at $224.49 and above. Overall, the pricing is fair for premium hardware consisting of two separate boards. We will provide a purchase link in the Youyeetoo official store as soon as it becomes available.
Additional product information and purchasing choices.
- Product Page: Youyeetoo YY3588
- Official AliExpress Store: Smartfire store
- Official Amazon Store: Amazon store
- Product Page: Youyeetoo YY3588
- Official Wiki:
https://wiki.youyeetoo.com/YY3588
