Mini PCs

TechSpot A1-X58SH1: RK3588S Edge AI 4K/8K Digital Signage Player Launched

By androidpimpJune 15, 2025Updated:June 15, 2025No Comments4 Mins Read
Facebook Twitter Pinterest LinkedIn Tumblr Email
Follow Us
Google News Flipboard
Table of contents
  1. A1-X58SH1: Powerful Hardware in a Compact Slim Design
  2. A brief product overview.
  3. Interfaces and Ports
  4. Memory and storage options
  5. Hardware
    1. Equipped with Powerful Hardware
    2. Mali G610 MC4 GPU
  6. A closer look Inside the case.
  7. Key Highlights
  8. A6-N104P: Complete Specifications
  9. Concluding remarks.
  10. FAQ
    1. Is TechSpot a trustworthy company?
    2. Is it possible to utilize this device as a mini-PC/Workstation?
    3. Is the RK3588S ARM SoC regarded as a high-performance SoC?
    4. Does the A1-X58SH1 come with a SIM slot?
    5. Is the A1-X58SH1 case constructed entirely of metal?
  • Maybe you missed it? An overview of the MeLE Quie-HD3 fanless mini-PC.
  • Overview of the A1-X58SH1 Digital Signage Player: Key Specifications, Highlights, and Features.

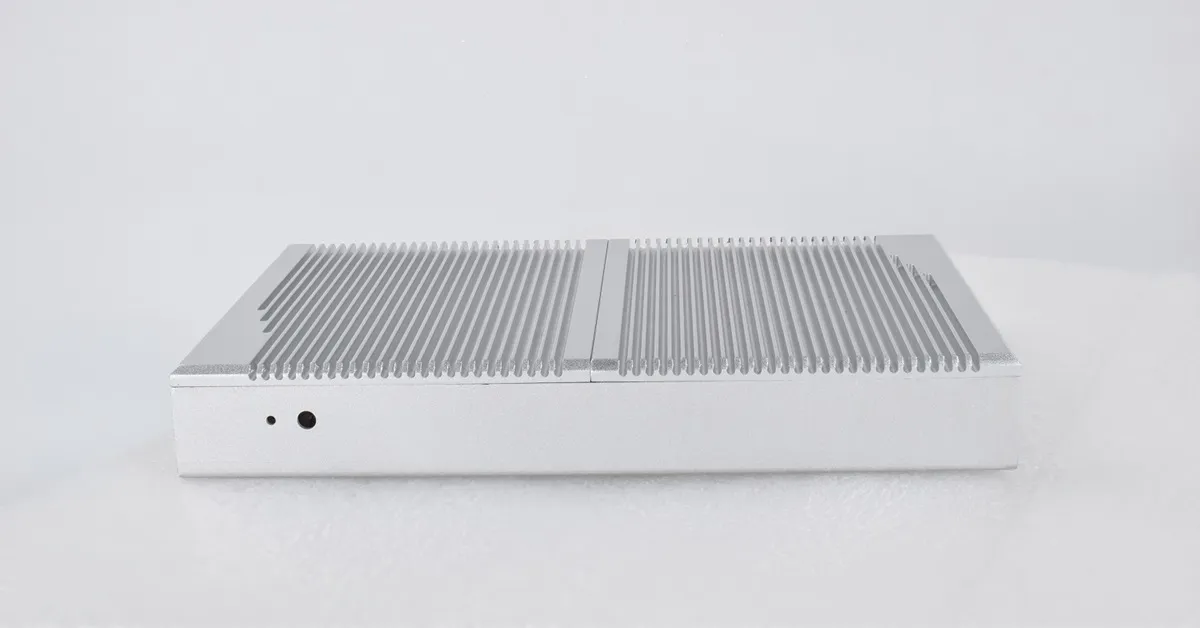

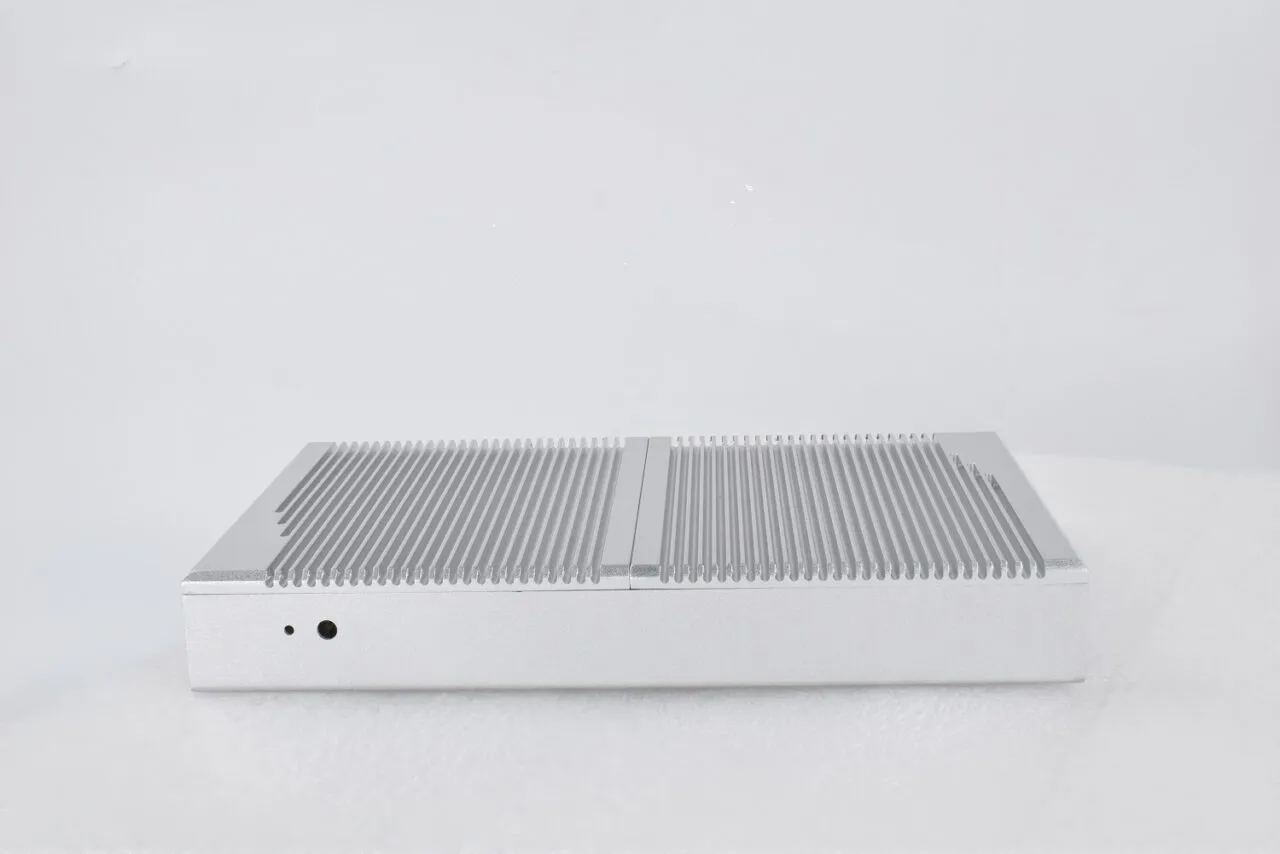

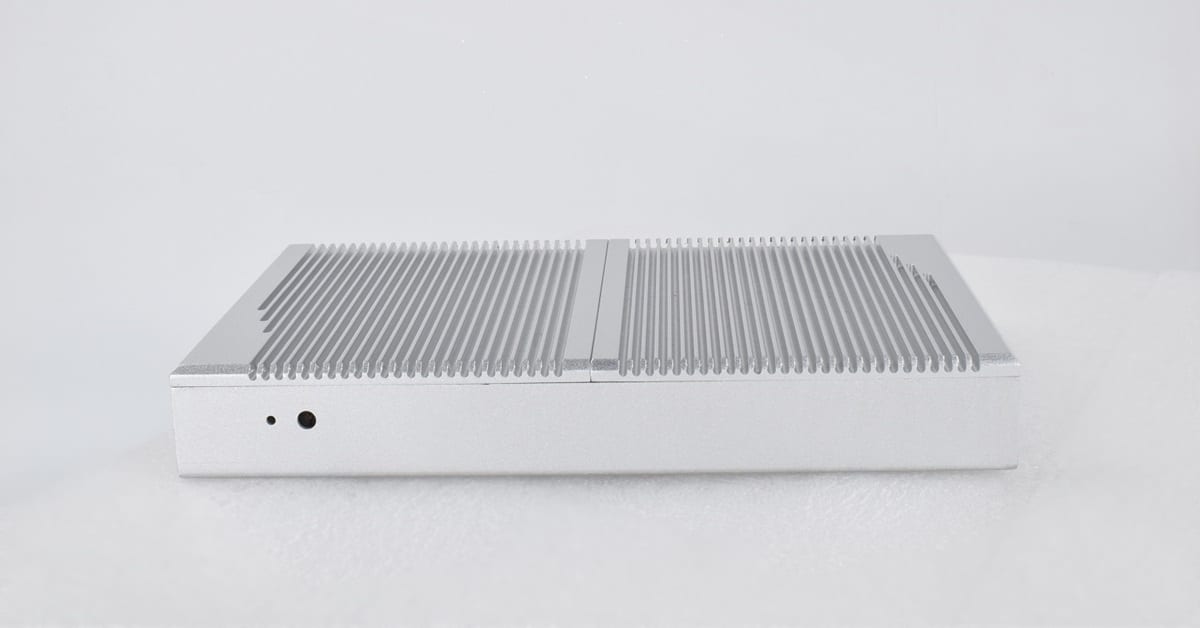

A1-X58SH1: Powerful Hardware in a Compact Slim Design

Shenzhen Shen Zhi Xuan Technology Co., Ltd. (aka TechSpot) has recently launched their new A1-X58SH1 Digital Signage Player, including their diverse range of products including mini-PCs, industrial embedded devices, and comprehensive electronic solutions. This interesting device boasts impressive hardware specifications, driven by an octa core RK3588S processor that delivers robust performance while maintaining a power consumption of approximately TDP 12W.

A brief product overview.


Interfaces and Ports

The device is equipped with several ports, including one USB 3.0 port, next to a second USB 2.0 port. It also features an HDMI 2.1 port, facilitating seamless connections to a range of peripherals and displays. Remarkably compact, it supports 8K video output, making it the perfect choice for high-resolution home entertainment setups or digital signage solutions. Its fanless design guarantees silent operation, a significant advantage for both office spaces and home theaters.


Memory and storage options

In terms of memory and storage, this device configured with 8GB RAM and 128GB of flash storage should provide very fast read/write speeds and quick access to frequently used applications. The ease of installation and setup makes it a great choice for both tech and Profesionales alike.


Hardware

Equipped with Powerful Hardware

The hardware specifications of the device are designed to accommodate the requirements of various users for daily applications, emphasizing intensive performance. The A1-X58SH1 can support one external display via its HDMI 2.1 port, making it applicable for digital signage and demonstration purposes that require robust hardware. In addition, Its ARM architecture enables compatibility with both Linux and Android operating systems as necessary.

Mali G610 MC4 GPU

The Mali-G610 MC4 is a mid-range GPU based on Arm’s Valhall architecture, featuring 4 execution units and 256 shading units for mobile gaming and AI applications. Built on 4nm lithography, it operates at 600 MHz and delivers a peak FP32 performance of 610.6 GFLOPS with a pixel fillrate of 48.0 GPixel/s. Supporting OpenGL ES 3.2, OpenCL 2.0, Vulkan 1.2, and DirectX 12, it ensures compatibility with modern graphics APIs. The Mali-G610 series is optimized for cost-effective premium devices, striking a balance between performance and efficiency while maintaining solid graphics rendering capabilities.


A closer look Inside the case.

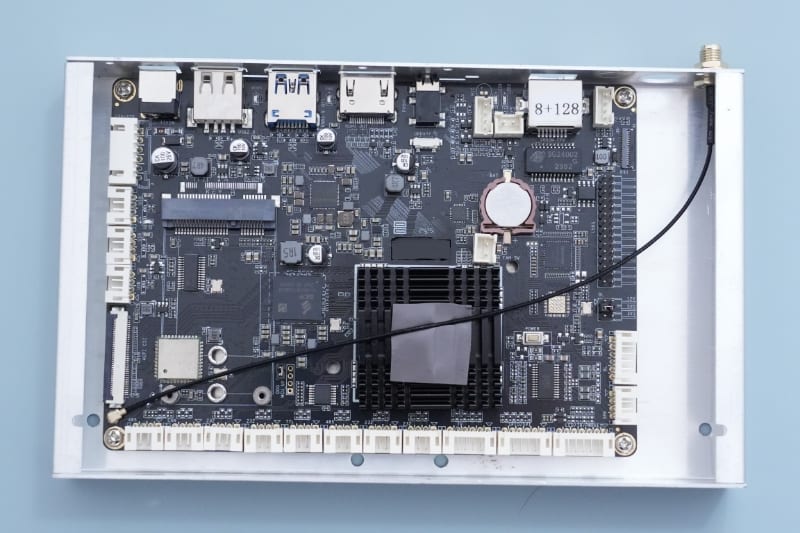

The photo below illustrates the internal components of the metal case, revealing that the board features passive cooling for the main chip. It also highlights both existing and optional interfaces, along with GPIO header pins and RTC interface.


A1-X58SH1 Digital Signage Player – Back view

(External Interfaces/Buttons/Ports).

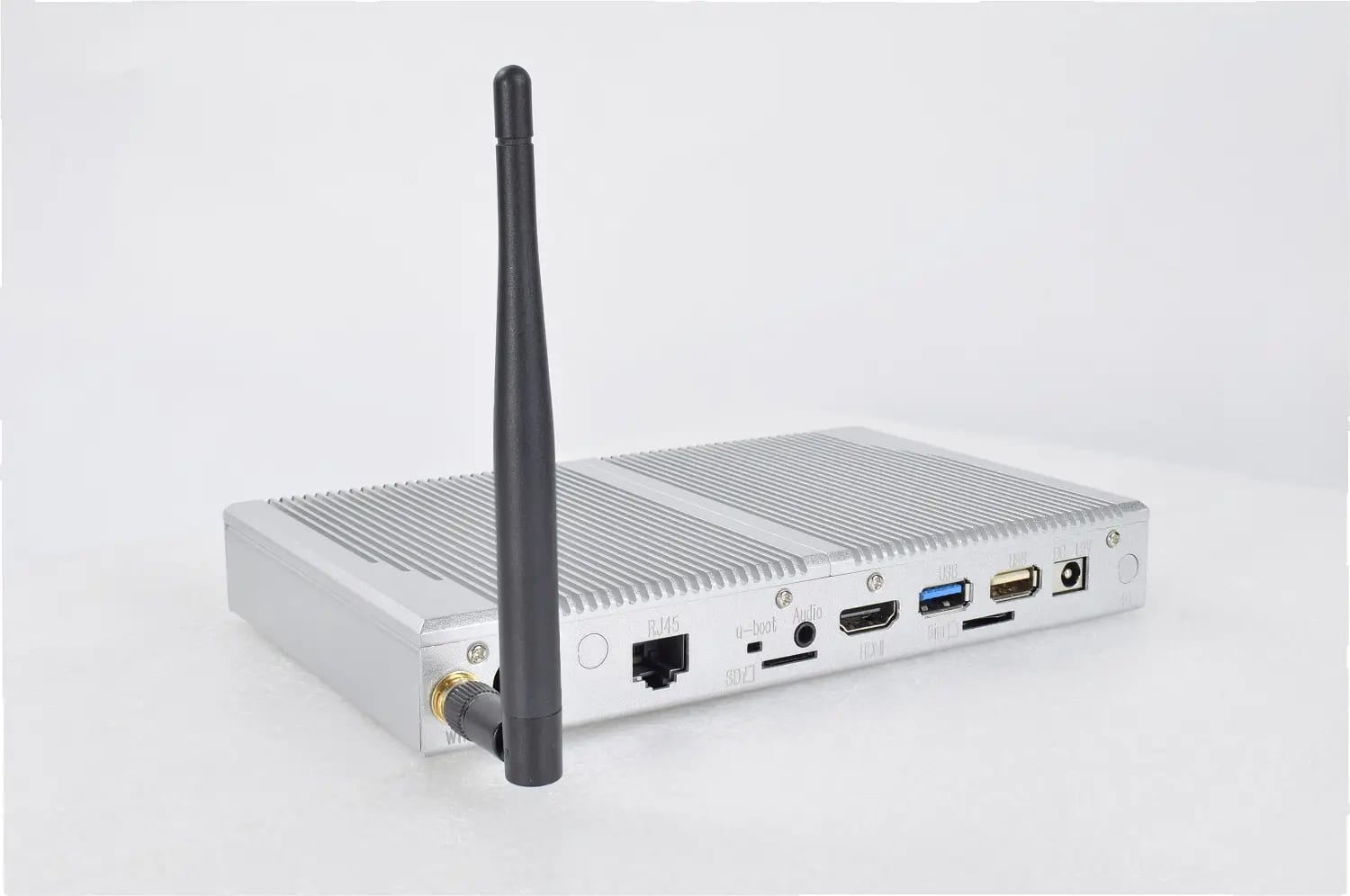

A1-X58SH1 Digital Signage Player – Rear view


Key Highlights

CategorySpecification
ProcessorRockchip RK3588S, up to 2.4Ghz
Cores8
NPU6 Tops
Ethernet1x Gigabit
Memory 8GB LPDDR4X
Internal Storage128GB eMMC Flash
External Storage USB2.0, USB3.0, TF Card
Audio3.5mm Audio jack
Wireless Connectivity1x Onboard 2.4GHz/5GHz Wi-Fi 5/BT5.0
1x Mini-PCIe for 4G-LTE modem with sim slot
1x External Antenna
Video1x HDMI 2.1 out (Max 8K/60Hz)
SystemAndroid 12.0 / Ubuntu Linux etc.
Supported FrameworksTensorFlow/PyTorch/ONNX
Application Markets• Education
• Digital Signage
• Office Computer/Server.
• Home Theater.
• IoT/Robotics.

A6-N104P: Complete Specifications

CategorySpecification
ProcessorRockchip RK3588S, up to 2.4Ghz
CoresQuad-core Cortex-A76 + Quad-core Cortex-A55
NPU6 Tops
GPUMali G610 MC4, OpenGL ES1.1/2.0/3.0/3.1/3.2, Vulkan 1.1, OpenCL 2.0
Memory 8GB LPDDR4X
Internal Storage128GB eMMC Flash
Audio3.5mm Audio jack
Network1x Gigabit (10/100/1000 Mb/s) LAN
Onboard 2.4GHz/5GHz Wi-Fi 5/BT5.0
1x Mini-PCIe for 4G-LTE modem with sim slot
Video1x HDMI 2.1 out (Max 8K/60Hz)
SystemAndroid 12.0 / Ubuntu Linux etc.
I/O (Back panel)1x DC in(12V)
1x USB3 Type-A (support OTG)
1x USB2 Type-A
1x HDMI 2.1 OUT
1x RJ45
1x 3.5mm Audio Jack,
1x Button (Power On/Off)
1x TF card slot, 1x SIM card slot Only with
3G/4G Module.
ChassisSize: 178mm x 109mm x 25.5mm
Color: Silver
Material: Metal
OtherPower in: DC in 12V 2.5/5.5mm DC Jack
Temp: Operating- 5°C~50°C, Storage: -20°C to 70°C
Humidity: Non-condensing 10%~90%

Concluding remarks.

The A1-X58SH1 features a compact design and strong hardware, providing a combination of power, versatility, and space efficiency. This may appeal to individuals seeking a small form factor computer that maintains solid capabilities.

Whether you’re engaged in work that involves delivering videos, images, and live feeds to digital signage displays, gaming, or streaming, this device has you covered—at least for most applications. If this product piques your interest, feel free to reach out using the contact information provided below.

Business inquiries contact info:

  • Company Name: Shenzhen Shen Zhi Xuan Technology Co., Ltd.
  • Name: Elaine Li
  • Title: CEO
  • WhatsApp: +86 13510640650
  • Website: http://www.sztechspot.com/
  • Email: [email protected]
  • WeChat: eillylee

The company product portfolio includes solutions that are tailored for various applications, such as:

• Mini PCs.

• OPS/SDM Modules.

• Android Media Player TV Boxes powered by ARM technology.

• Video Wall Controllers.

• Digital Signage Solutions.

• Interactive Learning Boards.

• Digital Signage at Airports.

• Power Interactive Kiosks.

• OPS/SDM Embedded Digital Signage & Pluggable Mini PCs.


FAQ

Is TechSpot a trustworthy company?

Based on our information its reliable.

Is it possible to utilize this device as a mini-PC/Workstation?

Absolutely, you can!

Is the RK3588S ARM SoC regarded as a high-performance SoC?

Yes, the Rockchip RK3588S ARM SoC is absolutely considered a high-performance chip for its class. It boasts a powerful octa-core CPU (Cortex-A76 and Cortex-A55), a robust Mali-G610 MP4 GPU for 4K/8K graphics, and a dedicated NPU for AI, making it ideal for demanding multimedia, AI, and edge computing applications.

Does the A1-X58SH1 come with a SIM slot?

Yes, it includes 4G cellular connectivity.

Is the A1-X58SH1 case constructed entirely of metal?

Absolutely, crafted from aluminum.
