Ugoos X5M Pro Android 14 TV Box with Amlogic S905X5M – 4K HDR, WiFi 6 & AI Upscaling

By androidpimpJuly 22, 2025Updated:July 22, 2025No Comments5 Mins Read
Facebook Twitter Pinterest LinkedIn Tumblr Email
Follow Us
Google News Flipboard
Table of contents
  1. Ugoos X5M Pro
  2. Ugoos X5M Pro Specifications
  3. Equipped with an Amlogic S905X5M SoC
  4. Interfaces
  5. Integrated AI Image Upscaling Engine
  6. Advanced Software Features
  7. Remote Control
  8. Package Contents
  9. Price and Availability
    1. UGOOS X5M Pro
  • Maybe you missed it? Ugoos AM9 Review.
  • Ugoos X5M Pro Unveiled: Key Features in Hardware, Performance, Software, and Pricing.

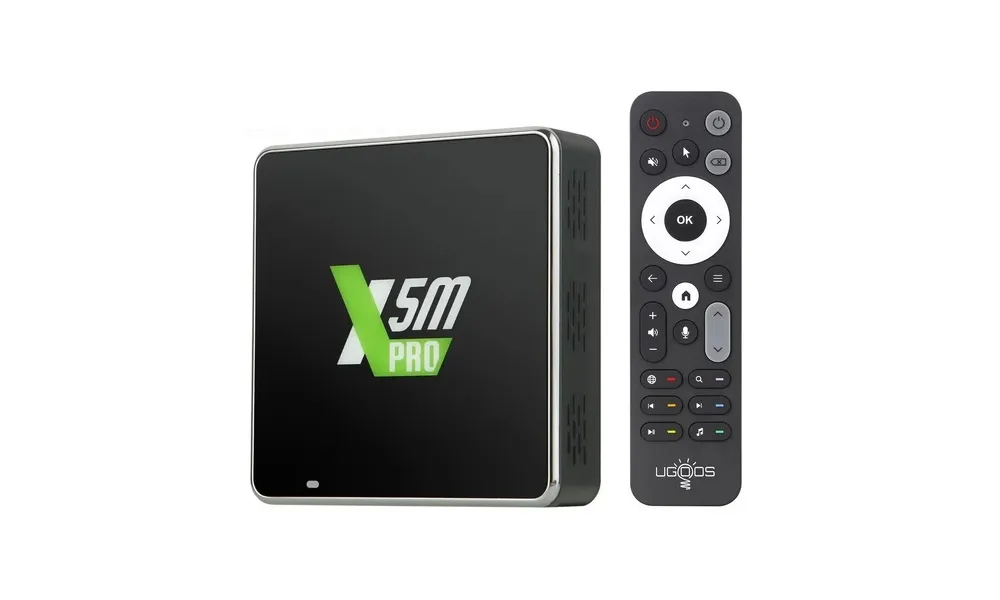

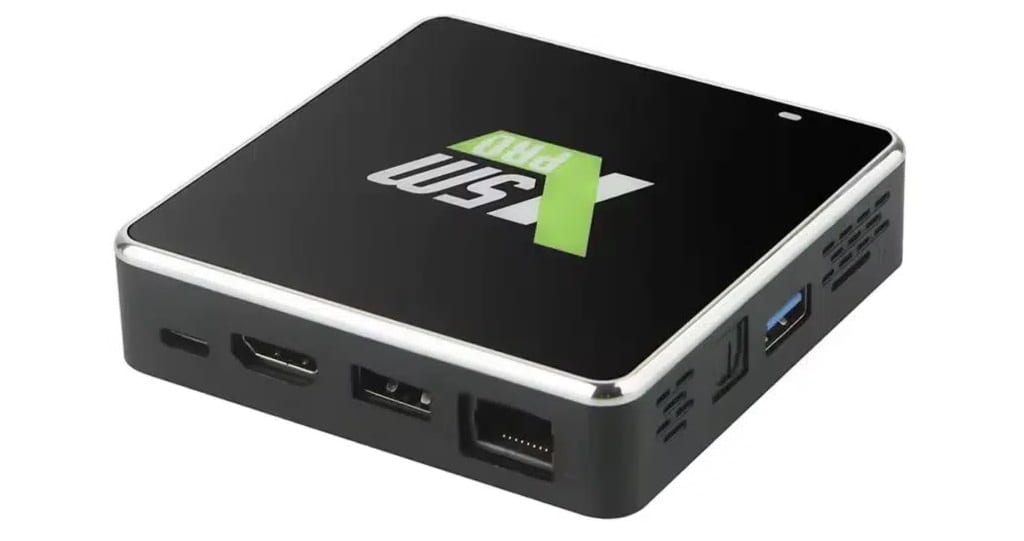

Ugoos X5M Pro

Just after the recent release of the AM8 model, Ugoos has unveiled its X5M Pro model, which also runs Android 14 AOSP. Basically, this device holds the same specifications but comes with a plastic enclosure and features one USB 2.0 OTG port next to a USB 3.0 host, while the AM9 model comes with three USB 3.0 ports. Other than these changes, this device is also powered by the next-generation Amlogic S905X5M processor and offers similar performance at a more lower price point.

On the product specifications side, this device is equipped with 4GB of RAM, 32GB of eMMC flash storage, and an HDMI 2.1 video output that supports up to 4K at 60 frames per second. It offers Gigabit Ethernet and cutting-edge WiFi 6 connectivity, along with optical S/PDIF audio output, a USB 3.0 port, and a USB 2.0 OTG port. Additionally, it comes with a Bluetooth remote control that features voice commands and an IR learning capability.


Ugoos X5M Pro Specifications

Category⚙️ Specification Details
SoCAmlogic S905X5M
CPUQuad-core ARM Cortex-A55 @ 2.5 GHz
GPUArm G310-V2 @ 850 MHz Supports OpenGL ES 3.2, Vulkan 1.0, OpenCL 2.0
VPU
▶️ Video Decoding– 4Kp60 10-bit: AV1, H.265, VP9, AVS2 4Kp30: H.264 1080p60: MPEG-4, VC1, AVS, MPEG-2, MPEG-1, MJPEG
🎥 Video Encoding1080p30 H.264
NPU (AI Engine)Inline AI-SR (AISR2): AI super resolution upscaling
RAM4GB LPDDR4
Storage– 32GB eMMC flash, microSD card slot
Video OutputHDMI 2.1b up to 4K @ 60Hz Supports HDCP 2.2, HDR, CEC
Audio– S/PDIF output, Digital audio via HDMI Audio formats: MP3, AAC, WMA, RM, FLAC, Ogg Programmable 7.1/5.1 Dolby/DTS
Connectivity– Gigabit Ethernet (RJ45), WiFi 6 (802.11ax) 2T2R, Bluetooth 5.4
USB Ports– USB 3.0 Type-A (host) — Note: not officially supported, but present, USB 2.0 Type-A (OTG)
MiscellaneousPower LED
Power Supply5V via USB-C
Dimensions88 × 88 × 22 mm
WeightTBD
CertificationsCCC, CE, FCC, Wi-Fi

Equipped with an Amlogic S905X5M SoC

Powering the X5M Pro is the Amlogic S905X5M SoC, a cutting-edge quad-core chip developed using a 6nm process. This advanced chip features Cortex-A55 CPUs that run at speeds up to 2.5GHz, achieving a remarkable performance level of over 30,000 DMIPS. Graphics rendering is managed by the Mali-G310 V2 GPU, which offers up to 130 percent improvement compared to the earlier Mali-G31. Additionally, the chip supports 4K video decoding at 75fps across modern formats like AV1 and H.265, alongside HDR10, HLG, Dolby Vision, and AVS2.

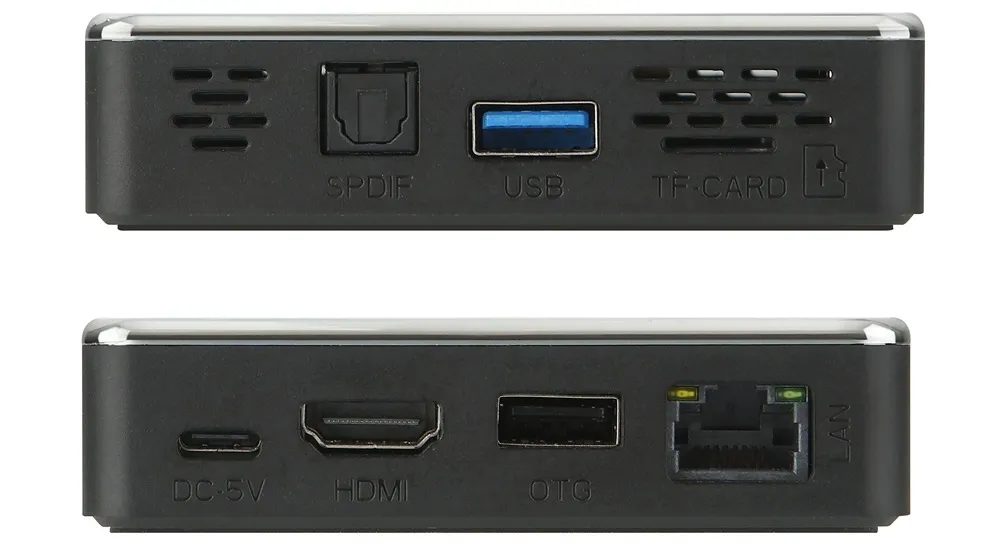

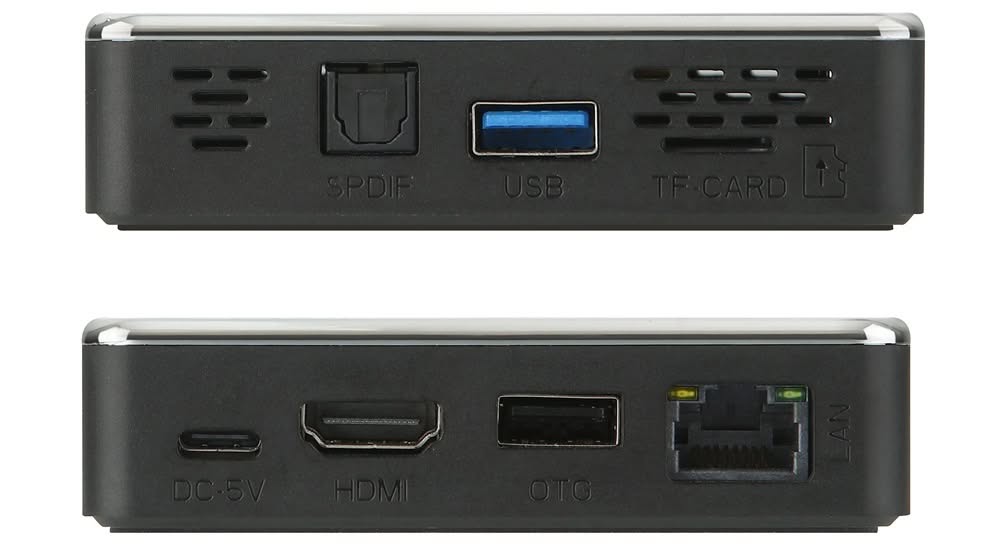

Interfaces

If you take a look at the image below, you can see that a bunch of these interfaces seem very similar to the AM9. It has a micro-SD card slot, HDMI, OTG, a 1GbE port, and a 5V Type-C power supply port, which are all pretty much the norm.


Integrated AI Image Upscaling Engine

The X5M Pro shines with its advanced NPU, which incorporates an Inline AI-SR (AISR2) that operates as an AI super-resolution upscaling engine, upgrading HD content to near-4K quality. AI image upscaling is the process of increasing the resolution of an image using artificial intelligence—without simply stretching pixels or making it blurry. Instead of just enlarging the image, AI models predict and generate new pixels that match the original content, resulting in sharper, more detailed visuals.


Advanced Software Features

The Ugoos X5M Pro runs on the latest Android 14 AOSP, featuring Google Play and a host of unique Ugoos software functionalities. Enhanced services such as the SAMBA server, paired with NFS and CIFS clients. Elevate user experience with the superuser function enabled by Magisk, allowing seamless management of the TV box through the Ugoos remote server directly from your smartphone. Users can also take advantage of a customizable control manager for both button and mouse operations. HDMI CEC Extended Control is also available, including an array of additional features worth checking out.

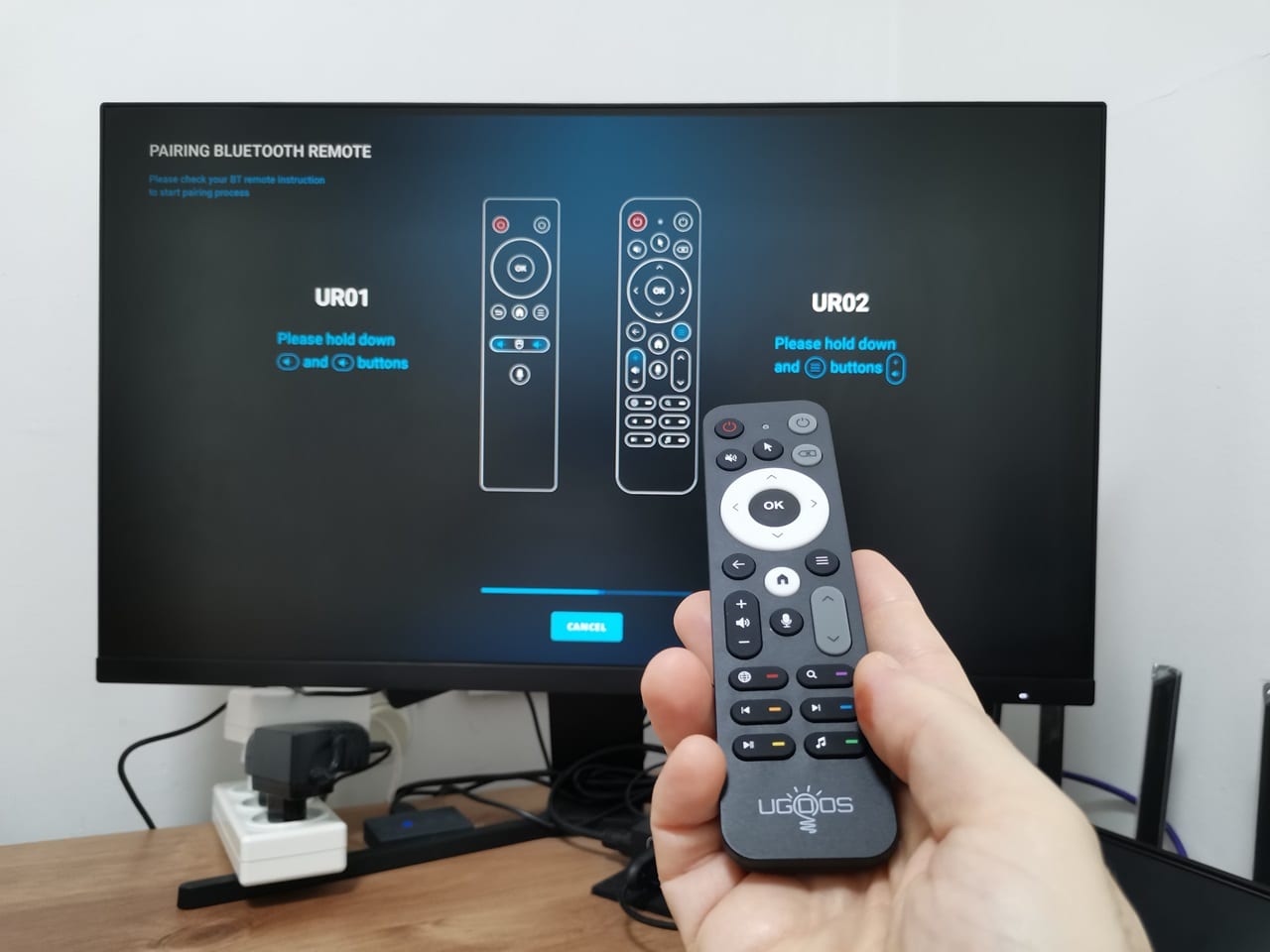

Remote Control

The X5M Pro included UR02 BT remote control which makes operation incredibly simple. With 24 button actions that include four directional keys and 10 infrared learning keys, it allows users to create tailored settings through the Ugoos Button Manager. Additionally, a built-in microphone enables voice control functionality in supported apps such as Google Play Store. And lastly, when switched to Bluetooth mode, this remote can serve as an air mouse due to its gyro sensor, making app navigation a breeze.

UR02 Remote Control Pairing

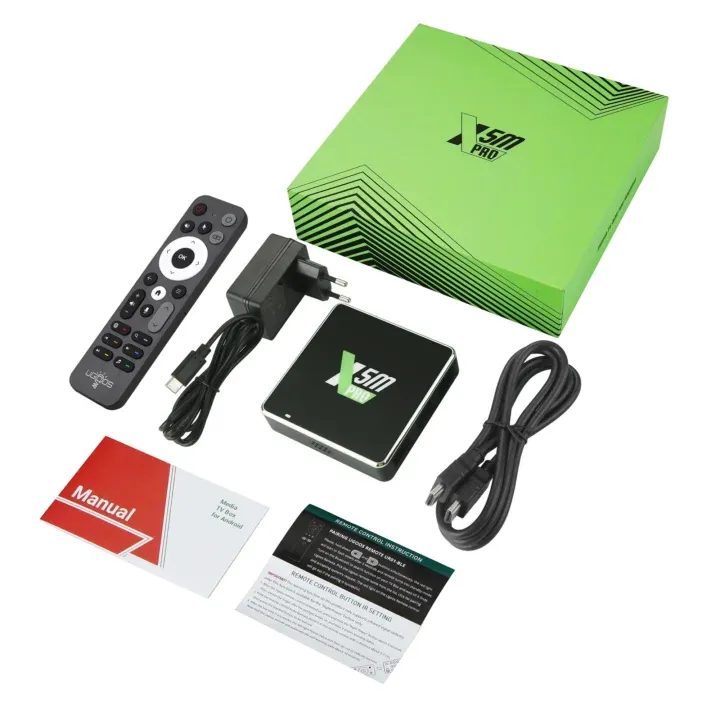

Package Contents

The Ugoos X5M Pro TV box comes equipped with a Bluetooth remote control, a USB power adapter, an HDMI cable, an instruction sheet for the remote control, and a user manual. For more info your welcome to visit the product page at Ugoos website.


Price and Availability

The UGOOS X5M Pro is currently accessible on AliExpress for around $98.90, which is roughly $40 cheaper than the previous AM9 model. Overall, this device delivers great performance at a more budget-friendly price, making it perfect for users seeking a high-quality Android TV Box powered by the efficient S905X5M chipset.

Just a heads up that the UGOOS X5M Pro isn’t certified for streaming services like Netflix in high res. It’s more of a great pick for things like playing your own media, IPTV, emulators, Kodi, and Stremio. If you are searching for a certified device that uses the S905X5M chipset, the Xiaomi TV Box S (3rd Gen) is our second great pick. But if you really care more about having that certification rather than the specific chipset, you might want to check out the UGOOS SK2 model based on the RTD (Realtek) 1325 SoC which also offers better GPU performance.

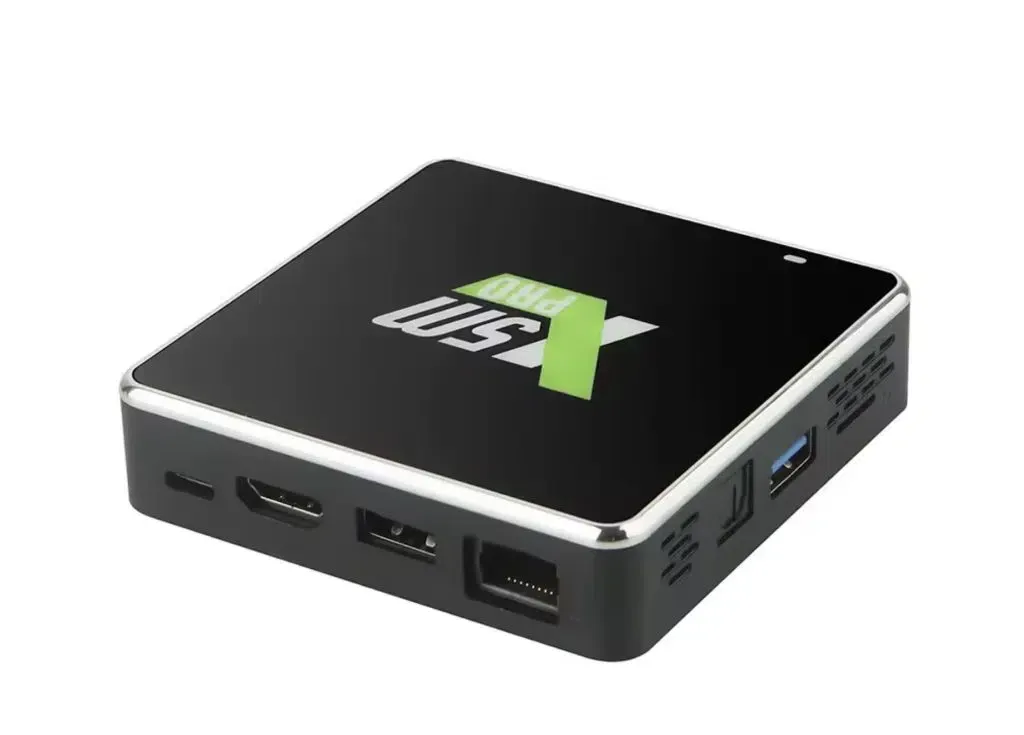

UGOOS X5M Pro

$98.90
This site contains affiliate links to products. We may receive a commission for purchases made through these links.
Buy this item
