Orange Pi 5 Max
The Orange Pi 5 Max is an exciting new single-board computer (SBC) recently unveiled. Featuring the powerful Rockchip RK3588 SoC, this cutting-edge SBC demonstrates the team’s commitment to innovation. What sets the Orange Pi 5 Max apart from its predecessors is its sleek and portable design, making it an appealing choice for tech enthusiasts.
Hardware
The Rockchip RK3588 SoC is a powerful processor, equipped with an Octa-core 64-bit architecture (4×Cortex-A76+4×Cortex-A55). It boasts an impressive 8 nm lithography process, allowing for efficient performance at frequencies of up to 2.4GHz.

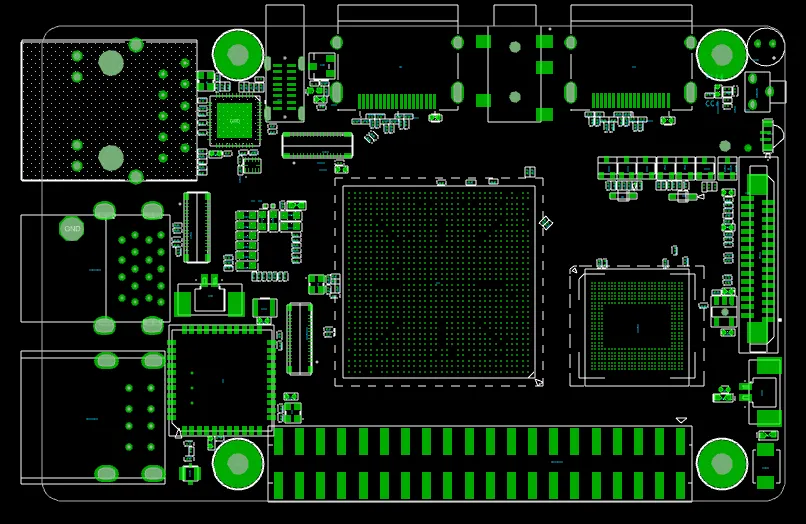

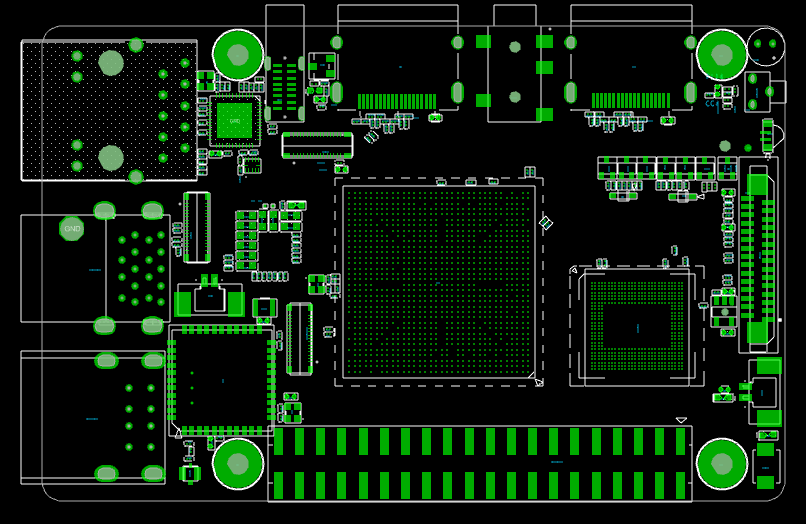

(Orange Pi 5 Max PCB Layout)

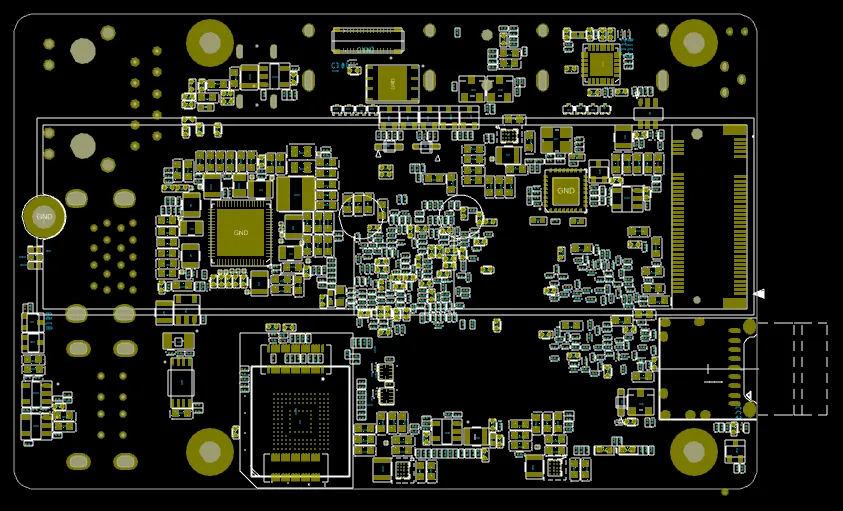

(Orange Pi 5 Max PCB Layout)
The board is capable of harnessing the power of a Mali-G610 MP4 quad-core GPU, providing a fantastic gaming experience with support for OpenGL ES3.2, OpenCL 2.2, and Vulkan1.1. In addition to that, this board takes performance to new heights by supporting up to 32 GB of high-speed LPDDR4 RAM. When considering the matter of connectivity, you won’t be disappointed. It offers two USB 3.0 ports and two additional USB V2.0 Host ports, as well as PCIe 3.0 and HDMI 2.1 options.

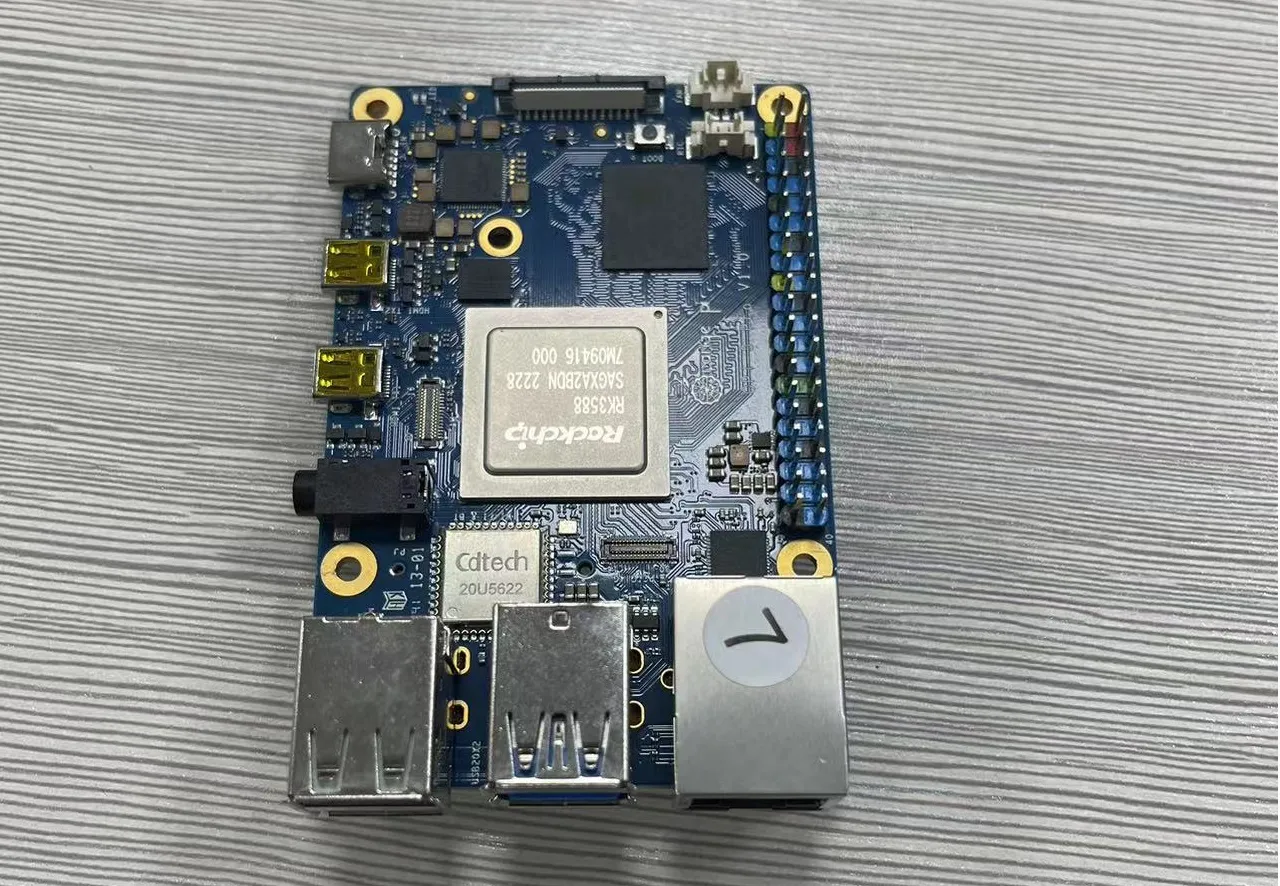

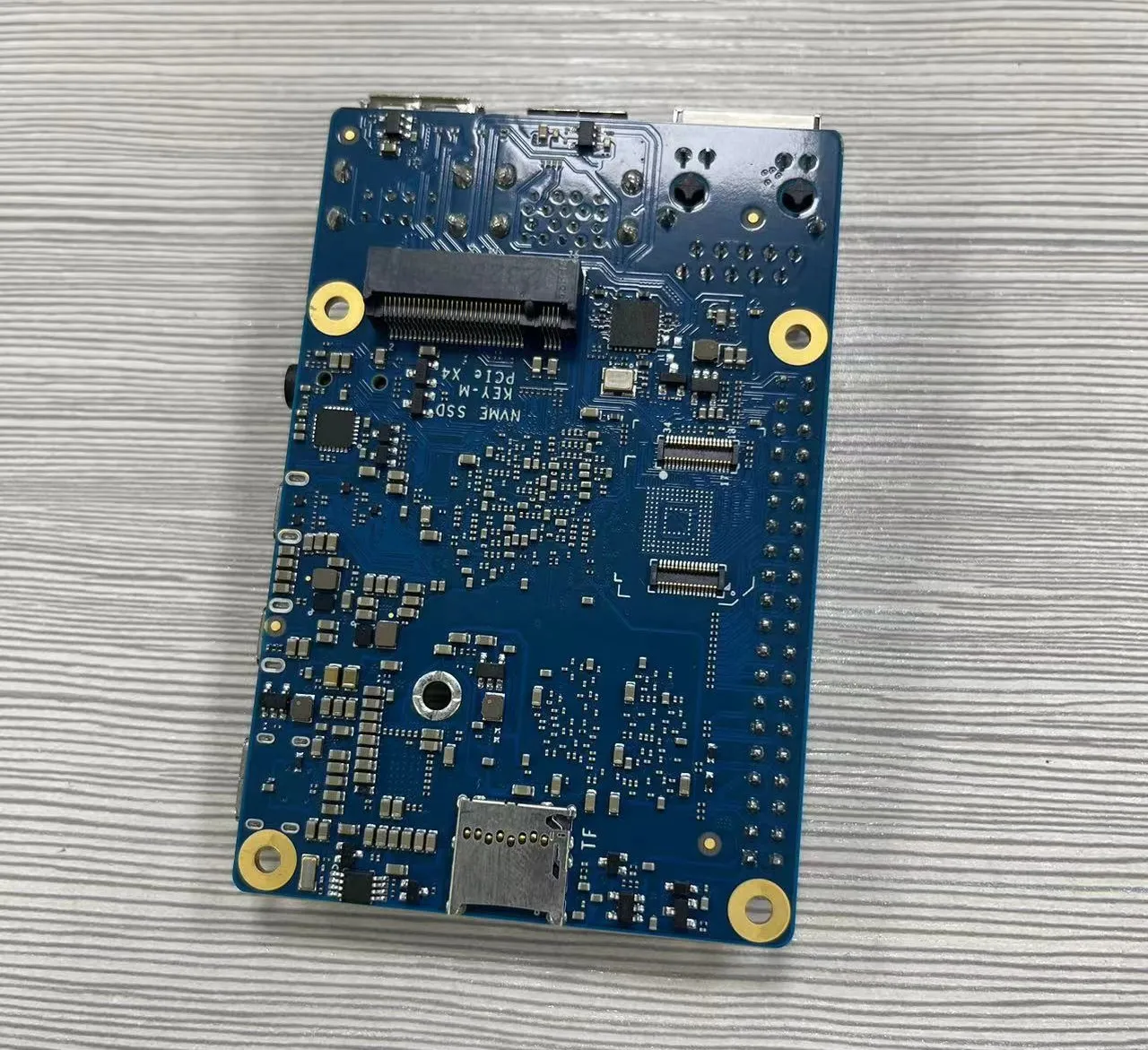

Check out these exclusive first look photos of the Orange Pi 5 Max!
Engineering Sample
Although specific board dimensions nor official specifications are yet to be revealed, rest assured that this incredible device is brimming with an impressive array of features. From lightning-fast 2.5 Gigabit Ethernet to cutting-edge Wi-Fi 6E and Bluetooth 5.3, this powerhouse effortlessly combines convenience and connectivity. Plus, with the ability to support M.2 NVMe SSDs, the Orange Pi 5 Max truly has it all.
In terms of display output, the Orange Pi 5 Max will support up to two HDMI 2.1 ports and can handle dual 4K displays at 60Hz or a single 8K display at 30Hz. It also features a USB Type-C port for power delivery and data transfer.
Compatible with different operating systems such as Android, Ubuntu, Debian, and other Linux distributions. The Max board’s Neural Processing Unit (NPU) outperforms the Raspberry Pi 5 in accelerating AI processes, making it an ideal choice for artificial intelligence-related tasks.
Final words
The Orange Pi 5 Max is an ideal choice for developers and enthusiasts craving remarkable high-performance capabilities. Featuring a wide array of connectivity options and top-notch AI acceleration, it is a versatile solution for an array of applications, ranging from media centers to cutting-edge IoT devices.
Although the pricing and availability details for the Orange Pi 5 Max have not been announced yet, we anticipate that it will be competitively priced, much like other Orange Pi models. Rest assured, we will keep you updated as soon as new information becomes available.
Disclaimer: The information provided in this article is accurate as of the time it was written and may be subject to change. For the most up-to-date information and details, please visit the official Orange Pi website.
