A closer look at the NE300-MB01 development board, the powerhouse behind the NeoEyes NE301 camera.

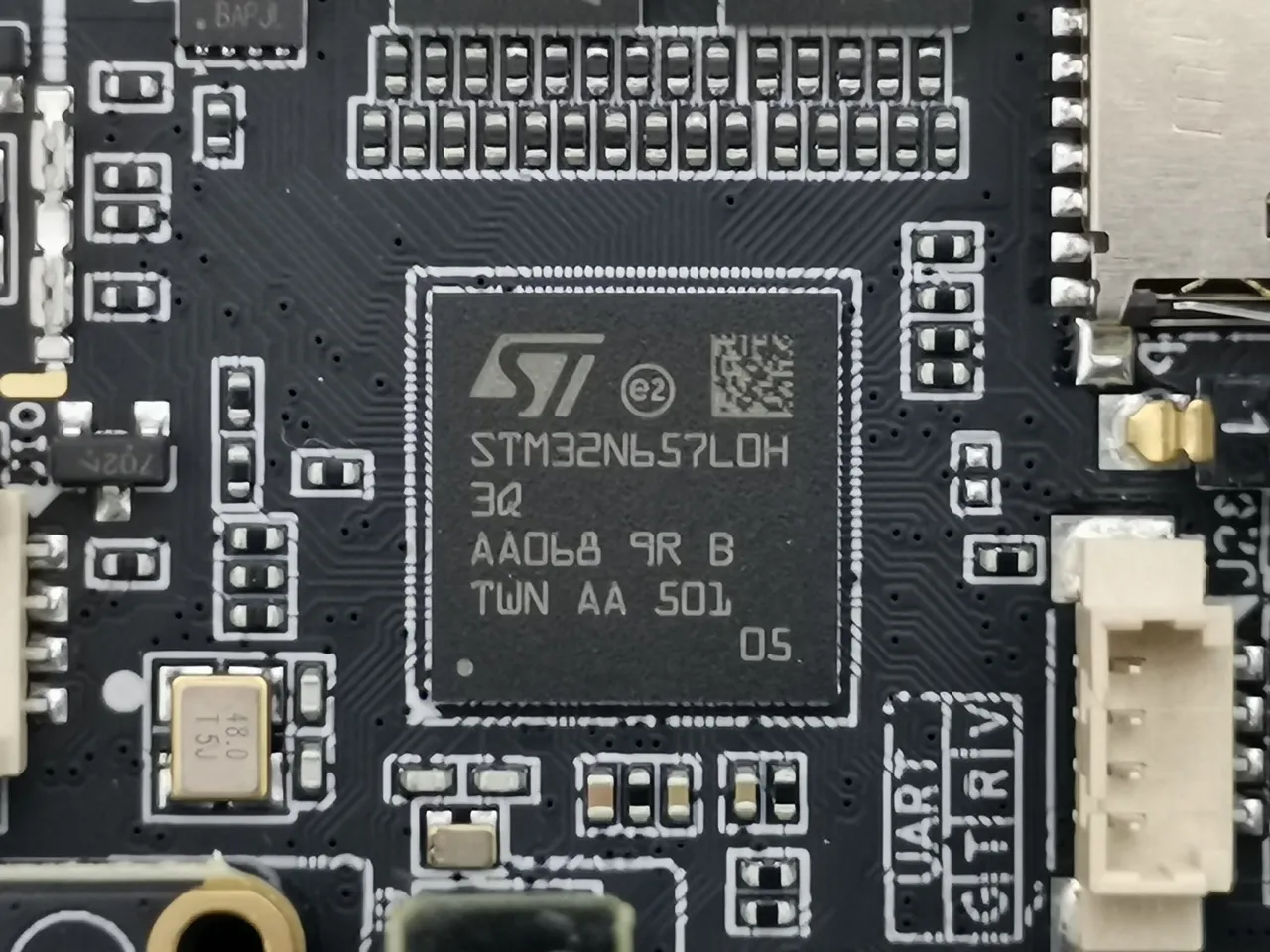

The NE301 main board (NE300-MB01) is powered by the STM32N657L0H, part of STMicroelectronics’ STM32N6 series—a high‑performance microcontroller family built around the Arm Cortex‑M55 core running at 800 MHz. It’s designed for edge AI, advanced graphics, and high‑performance embedded systems.

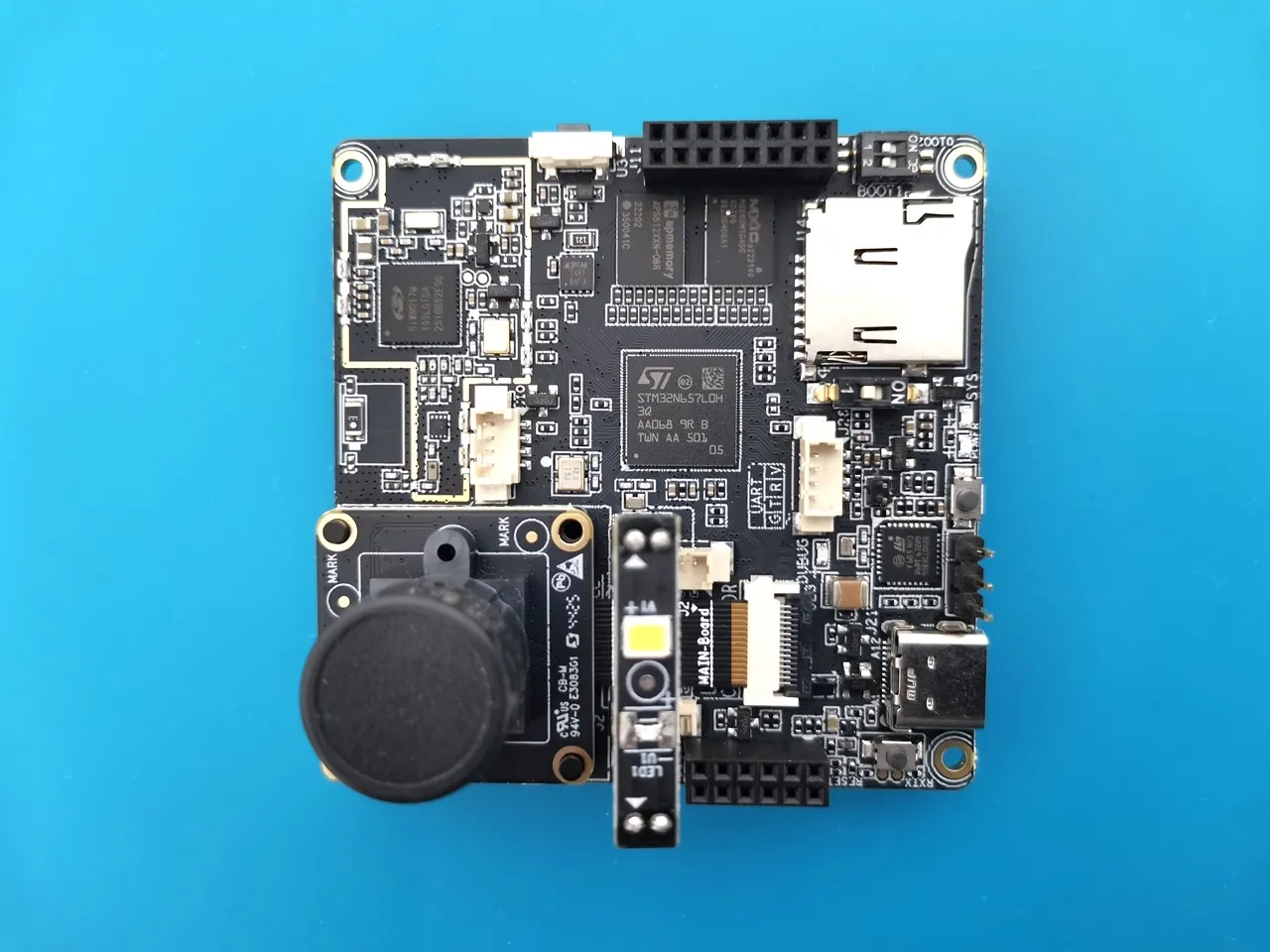

Along with its specs, the board features a replaceable camera module connected via a flat cable. The unit we received for review came with a protective cap, as shown in the photo below. The board also offers local storage in the form of a TF slot, which is not very user accessible, and can only be accessed by opening the case and disassembling the board.
