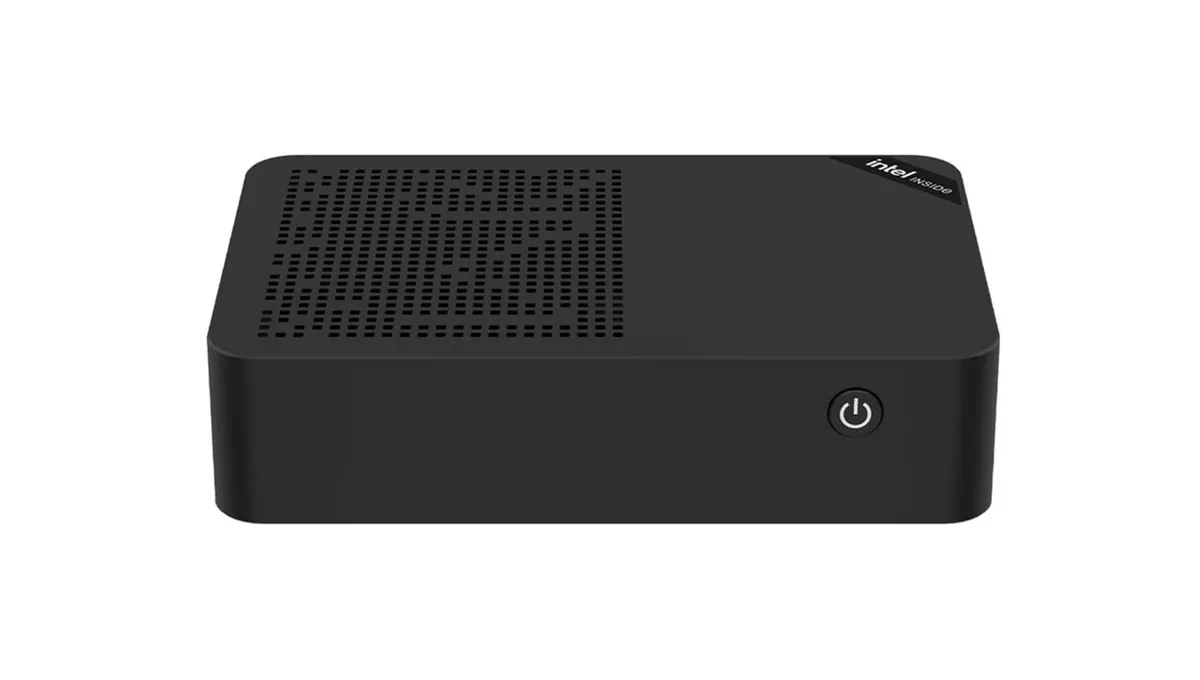

ELEBAO NAS Mini PC B10 is now available.
Shenzhen ELEBAO Technology Co., Ltd. is a pretty well-known name in the consumer electronics and digital solutions world. They’re based in Shenzhen, which is a big tech center in China. ELEBAO is also the company behind those popular Rocktek Android box series that many people know about.
The Company products include Android TV boxes, Intel-powered mini PCs, digital signage systems, and advanced audio-visual equipment. Recently the Company Showcased its latest B10 NAS Mini PC device based on Intel Alder-N chipset.

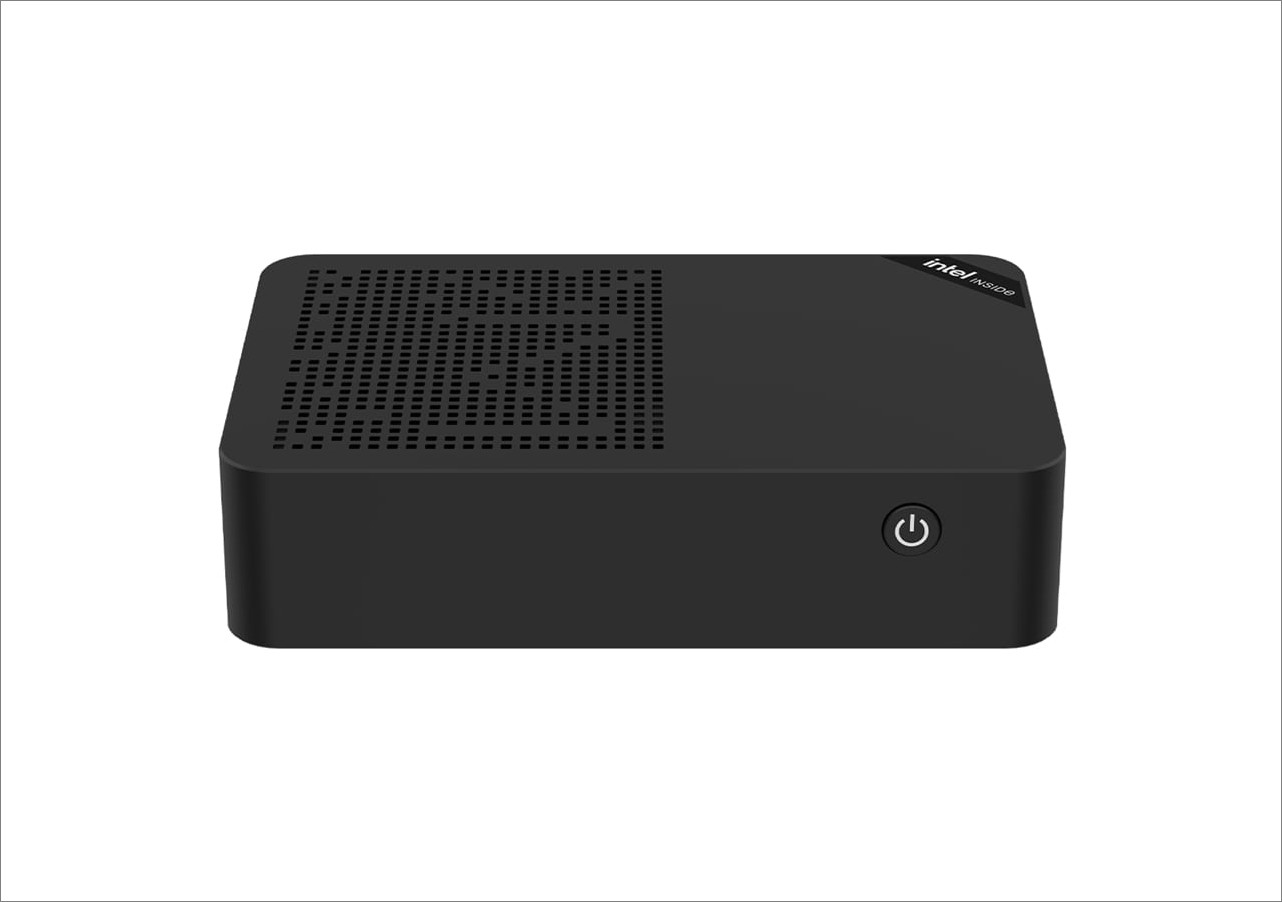

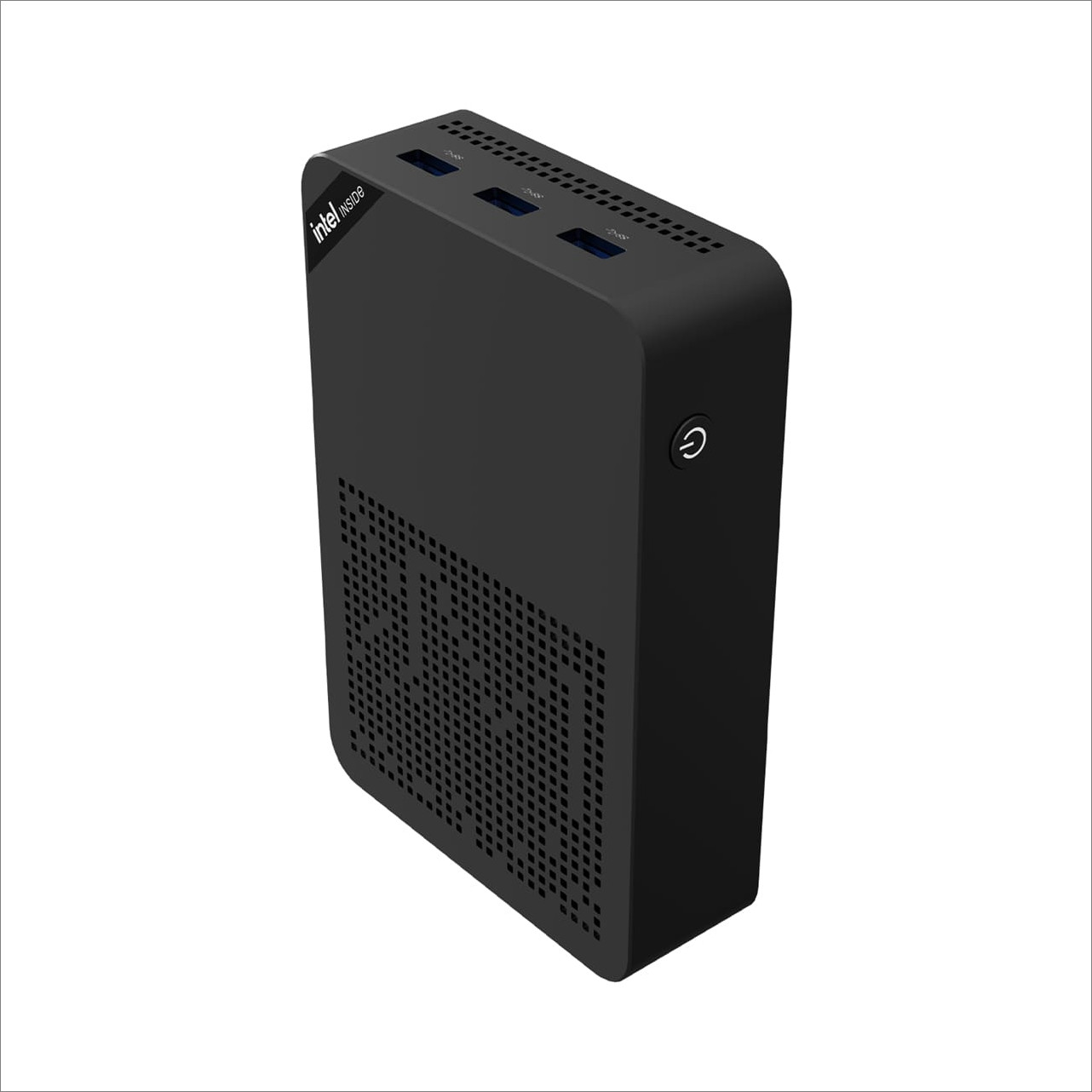

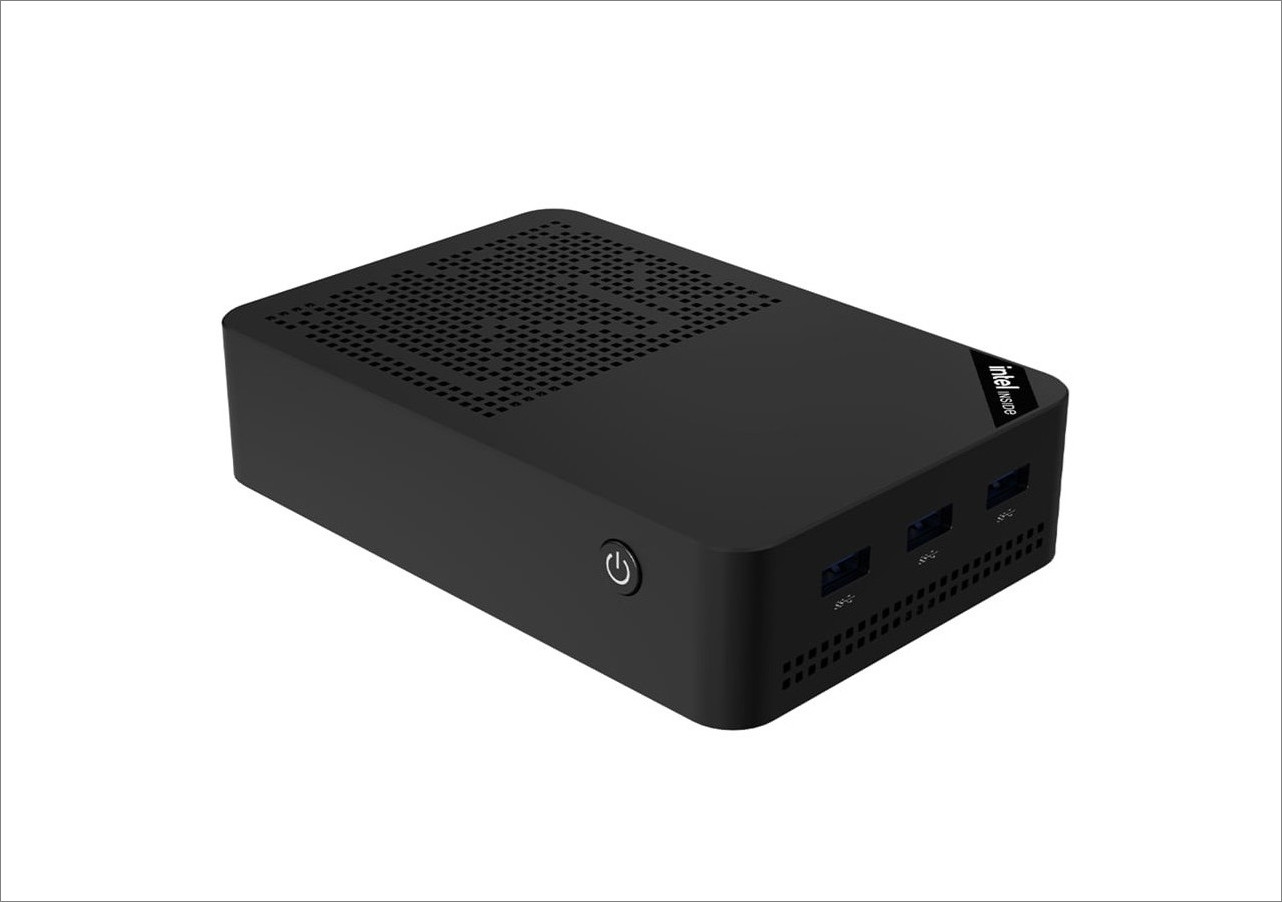

A Full View

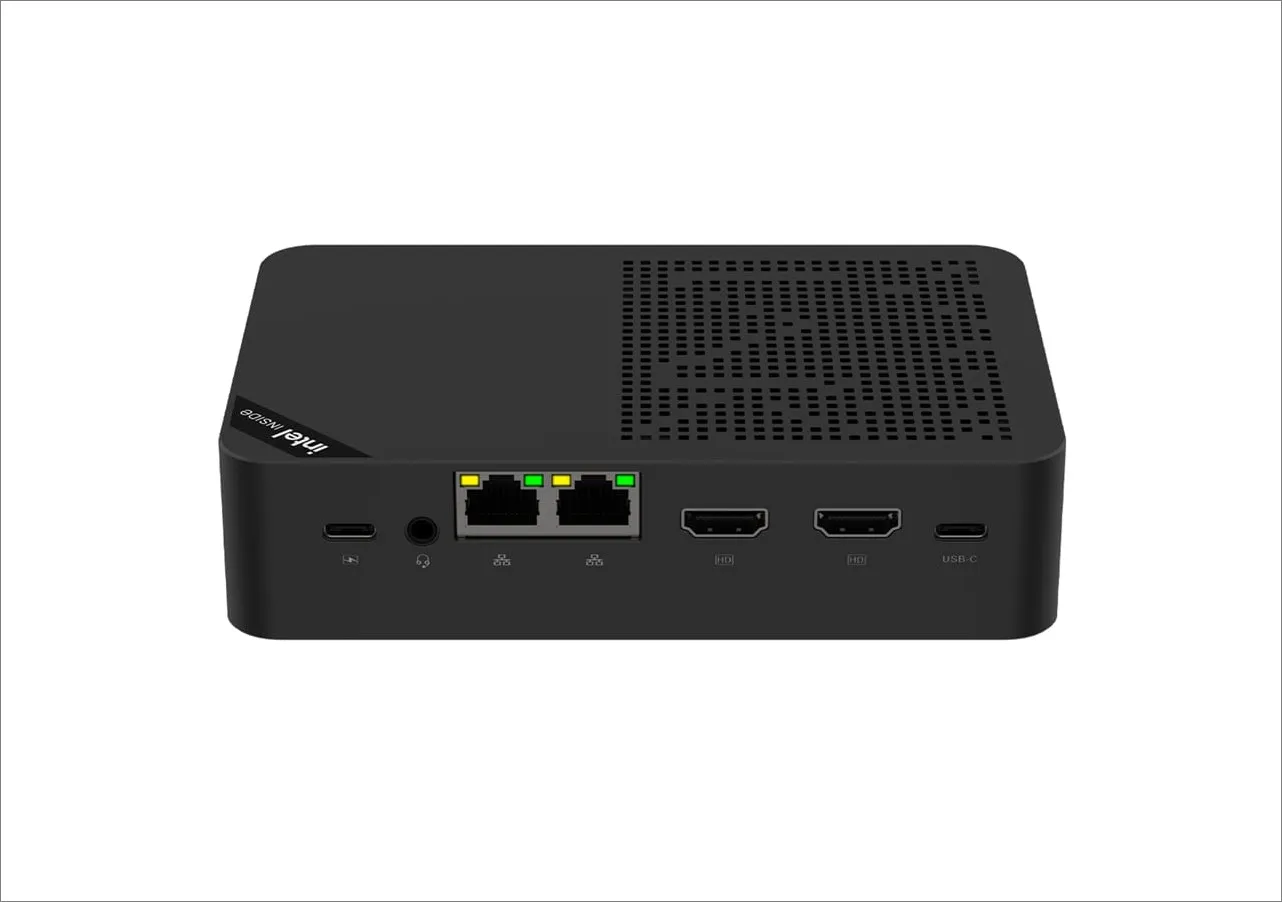

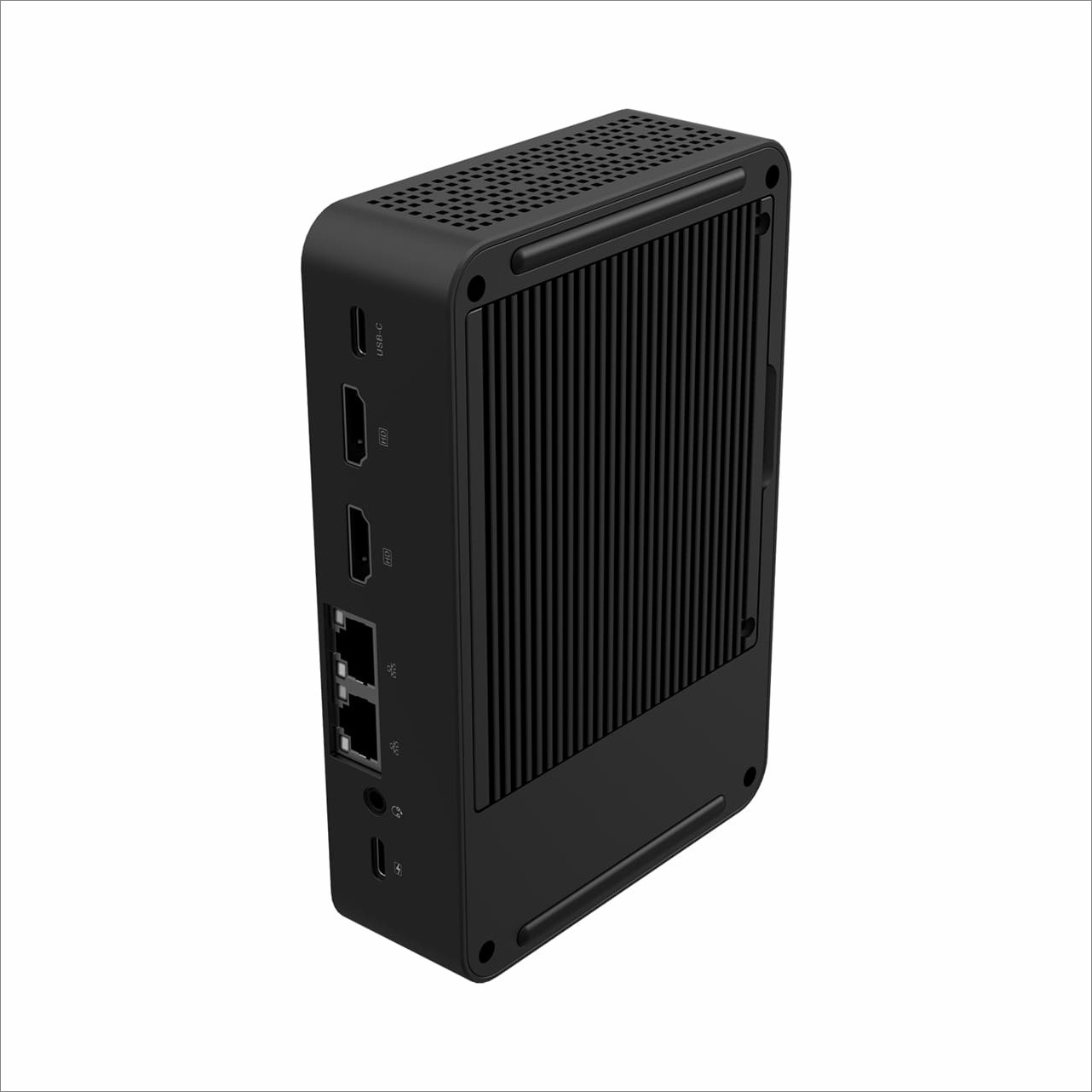

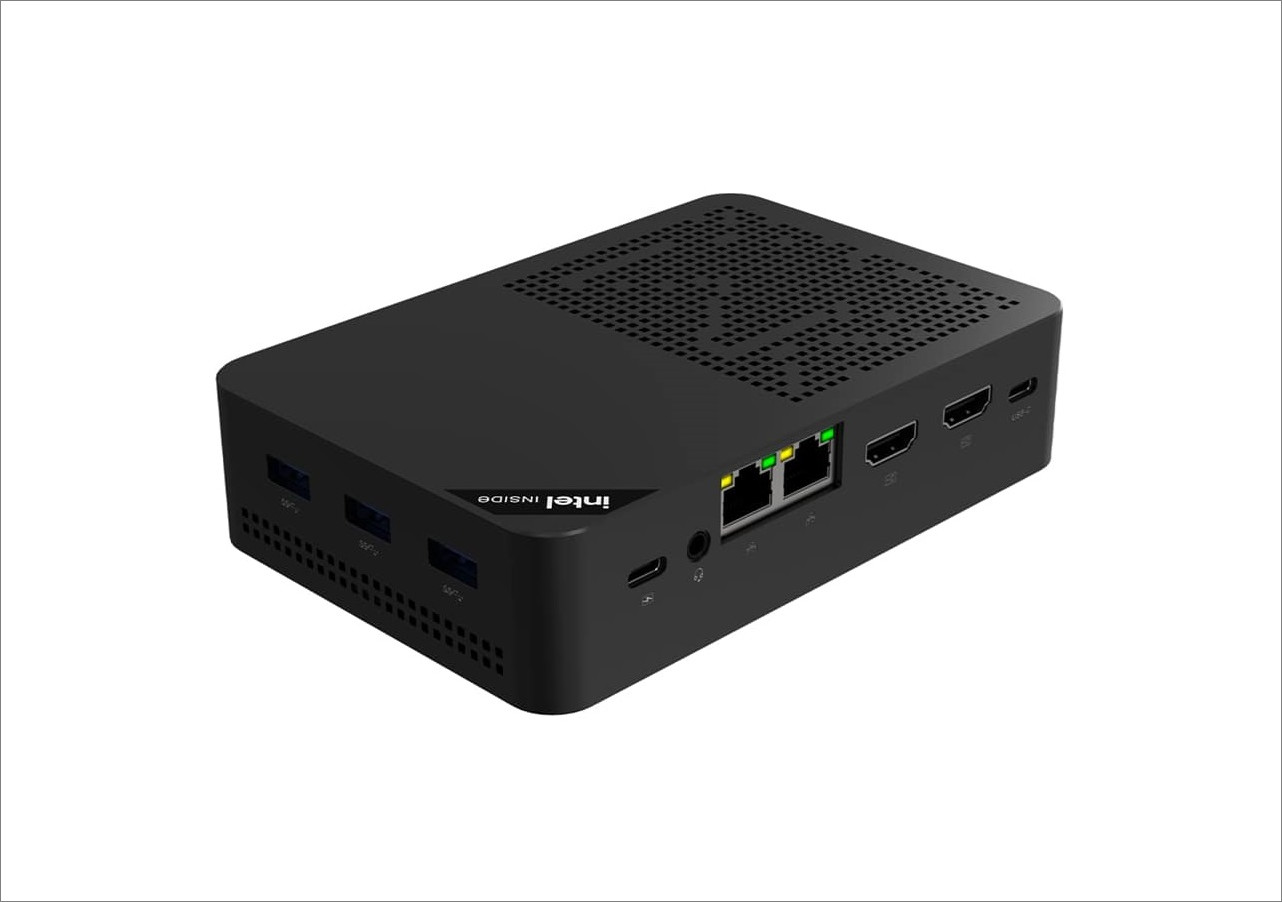

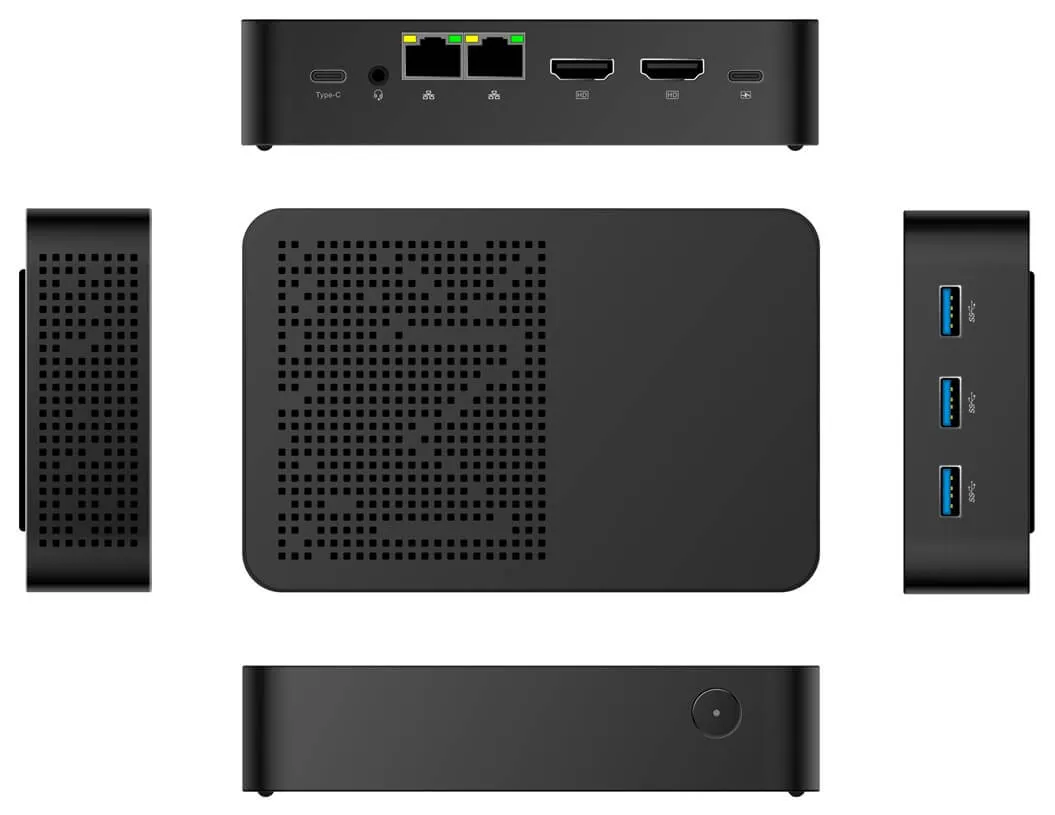

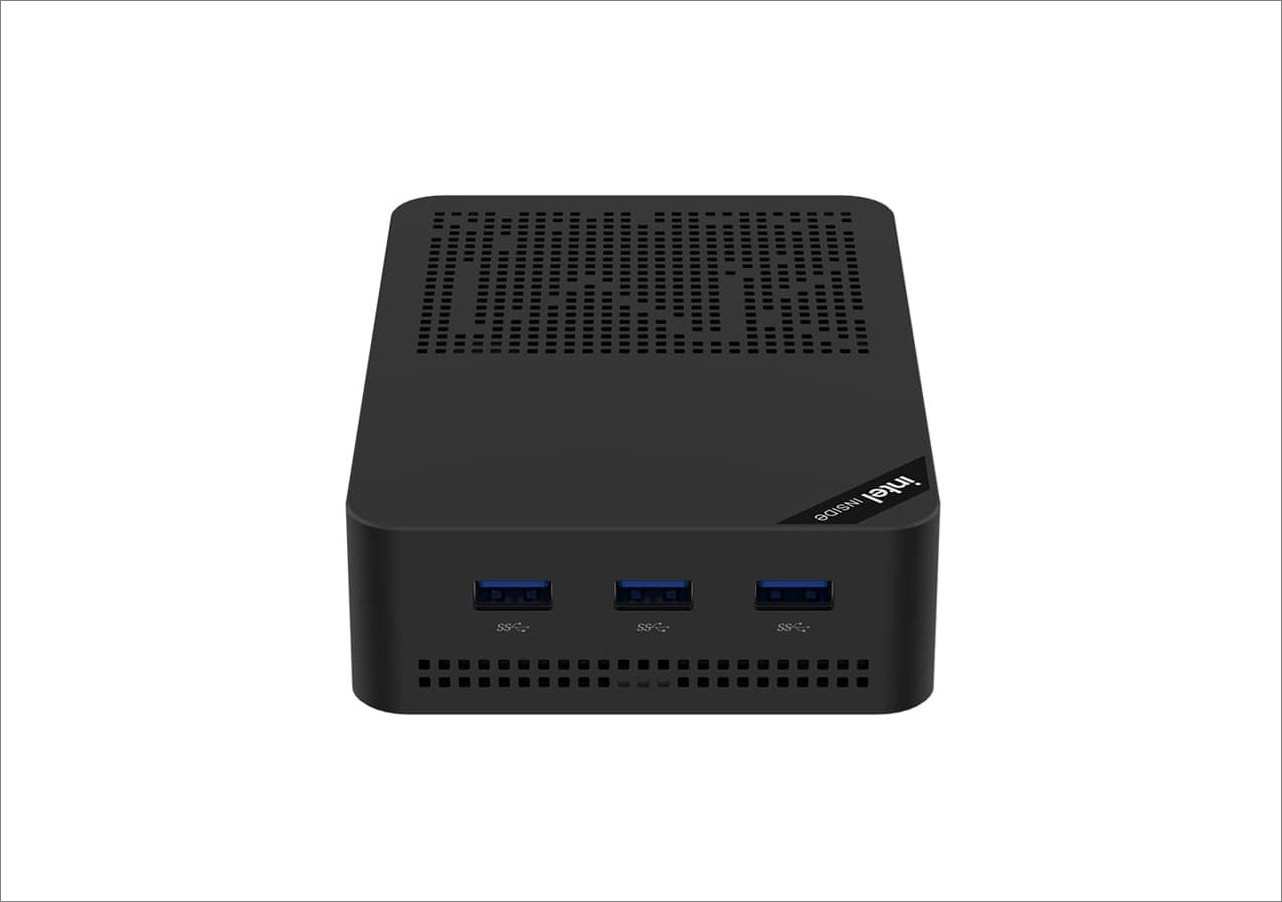

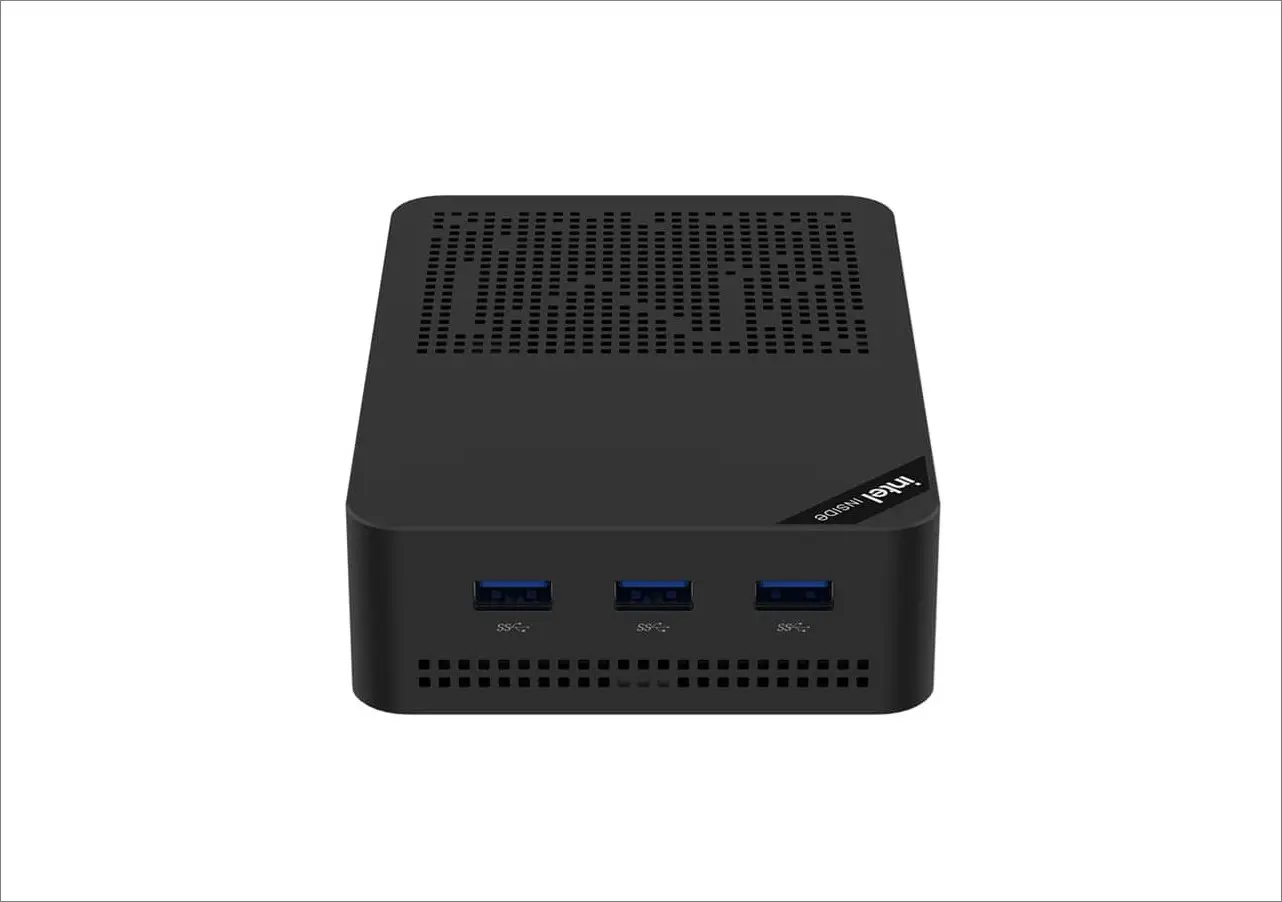

A Close View
💻 B10 4-Bay NAS Mini PC Specifications
| Component | Specification |
|---|---|
| CPU | Intel Alder Lake-N N150 up to 3.6GHz (Optional: N100 / N200 / N300 / N305) |
| GPU | Intel® UHD Graphics (up to 1GHz) |
| Memory | LPDDR5, up to 12GB (Options: 6GB / 8GB / 12GB) |
| SSD | 3× M.2 2280 NVME (PCIe 3.0×2), up to 4TB 1× M.2 2280 NVME & SATA (PCIe 3.0×2 & SATA3), up to 4TB |
| Internal fLASH Storage (eMMC) | eMMC 64GB (Optional: 128GB) |
| USB Ports | 3x USB 3.2 Gen 2 |
| Type-C Ports | Type-C (DP/DATA/PD) ×1, Type-C (PD) ×1 |
| Display Interface | HDMI 2.0 ×2 (Supports 4096×2160 @60Hz) |
| Wireless | Wi-Fi 6 (802.11 ax/ac/a/b/g/n, CNVIO only) / Bluetooth 5.2 |
| Network | 2× RJ45 ports (2500M/1000M/100M/10M) |
| Audio | 3.5mm Earphone Jack (CTIA standard) |
| Buttons | Power (White), LAN (Green/Orange indicators) |
| Material | Plastic |
| Cooling System | Fan |
| Operating System | Windows 11 / Linux |
| Dimensions | 146 × 97.5 × 32 mm |
| Operating Conditions | Temperature: -20°C to 70°C / Humidity: 5% to 95% RH |
| Power Supply | Type-C PD, 19V/3.42A |
Hardware: What’s Beneath the Surface
This device runs on the Intel Alder-N Lake N150 CPU, hitting speeds of up to 3.6 GHz. It also comes with plenty of RAM, using LPDDR5, and you can get it with options of up to 12GB (6GB/8GB/12GB).
with useful features, such as dual 2.5GbE ports, dual HDMI ports that support 4K at 60 fps, and three USB 3.0 Type-A ports. You can even hook up three screens to it! It also supports WiFi 6 and lets you add up to four M.2 2280 SSDs, making it an Excellent pick for a mini PC that can double as a NAS.
Improved cooling
According to ELEBAO company, the B10 mini PC employs a triple active cooling system, which incorporates multiple fans designed to effectively manage and regulate the temperature of all internal components. This innovative cooling solution is crucial for maintaining optimal performance and longevity, as it prevents overheating during intensive tasks, which is Especially important when handling four NVMe SSDs.
Let’s take a closer look at the internals of the B10 with its case opened.

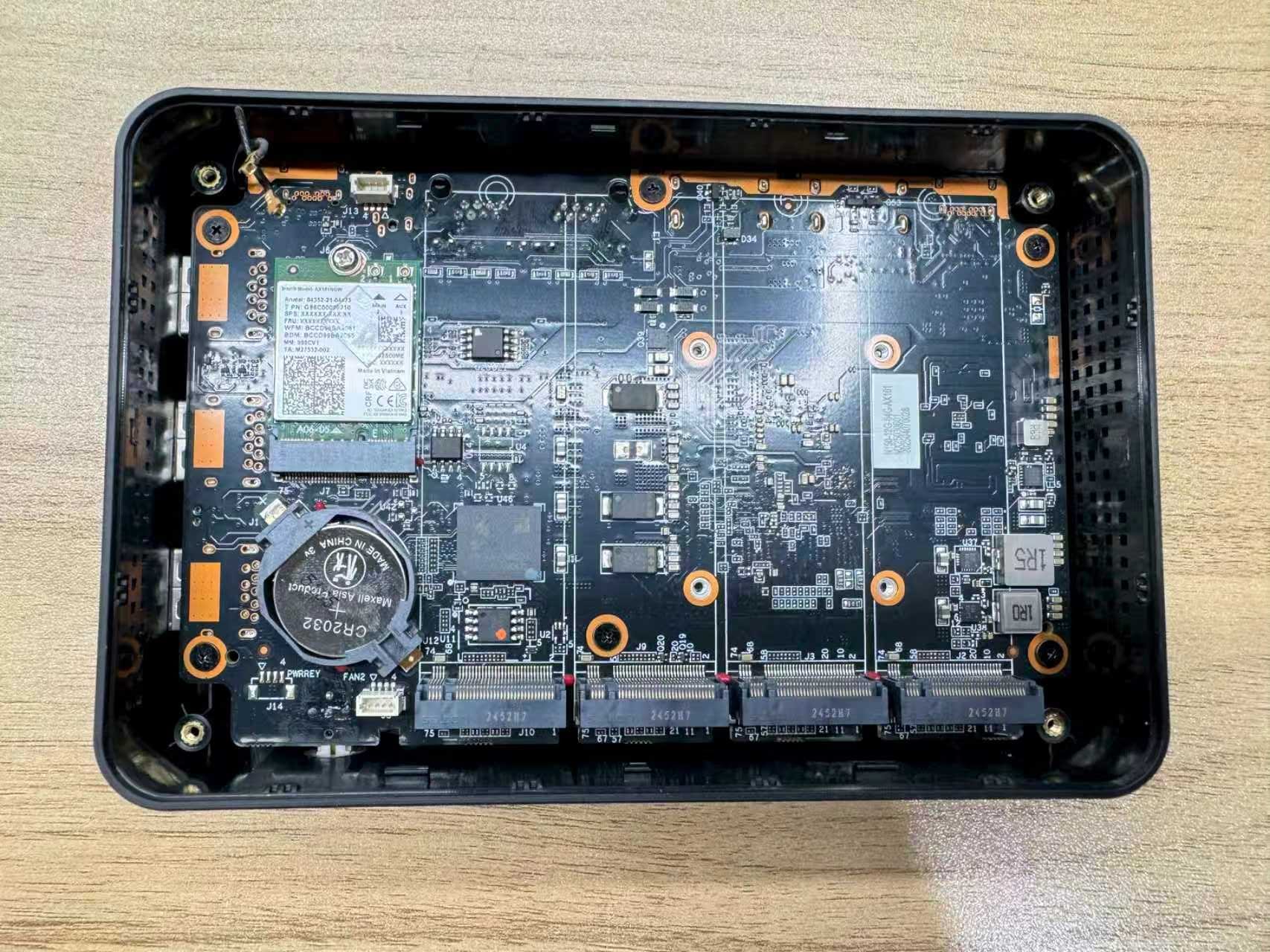

Check out the photo below! You’ll see that this device has four NVMe 2280 slots for storage. Plus, there’s a place for a Wi-Fi/Bluetooth card if you want to add that, too. And since each NVMe can support up to 4TB, so you can potentially expand your storage up to 16TB!
NAS Storage Option: Up to 4 NVMe SSD Cards.

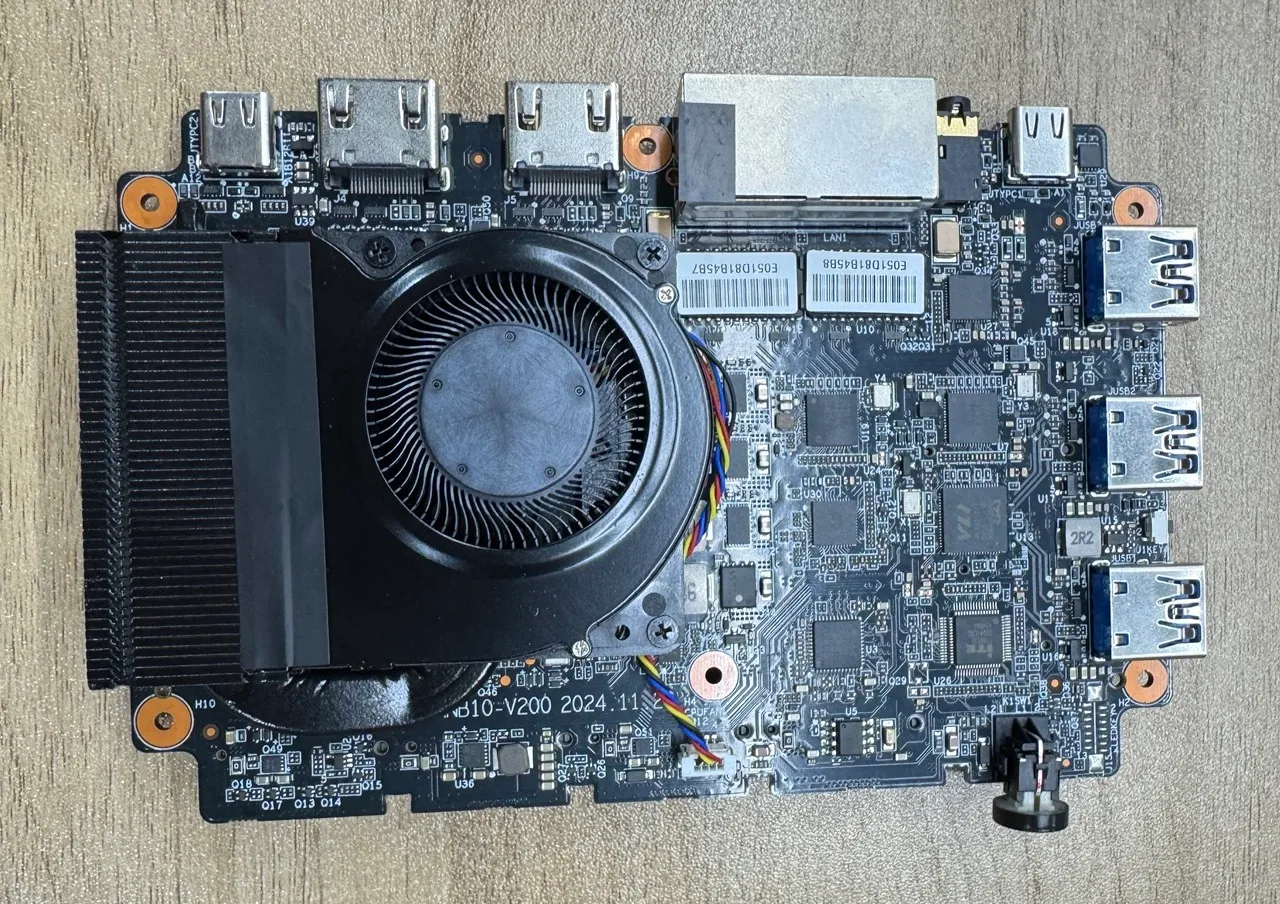

A quick peek at the PCB.
Price and Availability
The price for the ELEBAO B10 is around $129, which is quite affordable. Right now, the company is mainly focusing on B2B customers. But if you have any questions or want to get in touch, feel free to reach out to them using the contact info below.
🧾 Company Information for Questions and Business Inquires
Got questions or need to reach out for business stuff? Here’s the info you’ll need!
| Company Name | Shenzhen ELEBAO Technology Co., Ltd |
| Address | 3F, Tower A, Zhihuichuangxin Center Bldg, Qianjin Road, Xixiang, Bao’an District, Shenzhen, 518126 China |
| Contact Person | Ms. Selina |
| Website | www.elebaotec.com |
| [email protected] | |
| WhatsApp/Cell/WeChat | +86 15889676443 |
