Banana Pi BPI-WiFi6 Mini Router: Start your OpenWrt Mesh network for just $31

By androidpimpSeptember 1, 2024Updated:September 12, 2024No Comments13 Mins Read
Facebook Twitter Pinterest LinkedIn Tumblr Email
Follow Us
Google News Flipboard

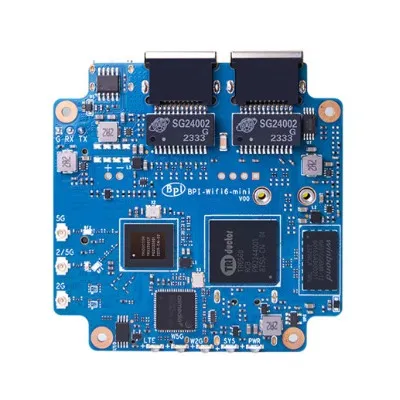

Banana Pi BPI WiFi6 Mini Router Board
Banana Pi BPI WiFi6 Mini Router Board
Table of contents
  1. Part I: Overview of Banana Pi BPI-WiFi6 Mini Router Board
  2. Hardware
  3. Enhanced Connectivity
  4. Banana Pi BPI-WiFi6 Mini: Main Features
  5. Banana Pi BPI-WiFi6 Mini: Interfaces
    1. 1. The device comes with integrated WiFi 6 and the EasyMesh feature.
    2. 2. Storage options and next to Key B interface with 4G LTE/5G NR capabilities.
  6. Part II: Banana Pi BPI-WiFi6 Mini Review
  7. Let’s take a deeper dive into the hardware of the Banana-Pi-BPI WiFi6 Mini board.
    1. How do the hardware specifications of the new model compare to its predecessor?
    2. What about storage space?
    3. What is the reason behind the limited memory on the Banana Pi BPI-WiFi 6 Mini?
  8. Unpacking all the items from the case kit.
    1. Taking a closer look at the design of the Case.
  9. Extra antenna holes for 4G LTE/5G modems.
    1. Cooling down the hardware components.
  10. Power Consumption
  11. Useful Applications
  12. Software
  13. Testing the WiFi connection
    1. WiFi 6 Connectivity
    2. Performing a throughput test using the Ookla Speedtest app.
  14. Price and Availability
  15. Where can I purchase?
    1. Banana Pi BPI-WiFi6 Mini

Software

Our WiFi 6 Mini came pre-installed with an OpenWrt snapshot version 22.03.0, running under Kernel Version 5.10.138. The has a total of 128GB of RAM, with only 48% currently in use. Although there is no Micro SD Card slot option available for expandable storage, it features a USB 3.0 Port for additional external storage options.

To update the board firmware, you will require a USB RS-232 cable. After connecting the RS-232 USB cable to the board’s 3 pin header and booting the device, you can update the firmware by following the detailed instructions provided on BananaPi Docs product page.


Testing the WiFi connection

Through our simple tests conducted within a proximity of 1 meter from the device, we have successfully optimized our ISP 1G fiber connection plan. However, it is important to consider that obstructions such as walls and doors may have an impact on the signal strength. Overall, our general impression was nothing short of excellent.

WiFi 6 Connectivity

By consolidating both SSIDs under a single, unified name, you can greatly enhance the overall bandwidth and achieve greater speed of approximately 2400Mbps. Furthermore, since both LAN ports on the board support a maximum speed of 1Gbps, you can undoubtedly utilize them to their full potential, making the absolute most out of your connection.

OpenWrt network info (Separated 2.4G & 5G SSIDs).

SSID NameEncryptionPower/SignalChannelBitrate
Triductor_2GApWPA2-PSKTx-Power: 24 dBm
Signal: -52 dBm | Noise: 0 dBm.
36 (5.180 GHz)965.2 Mbit/s
Triductor_5GAp WPA2-PSK
Tx-Power: 24 dBm
Signal: -37 dBm | Noise: 0 dBm
11 (2.462 GHz) 130.0 Mbit/s

Conducteding a network throughput test using the Xiaomi Poco F6 Pro with Fast.com at a distance of 1–2 meters.

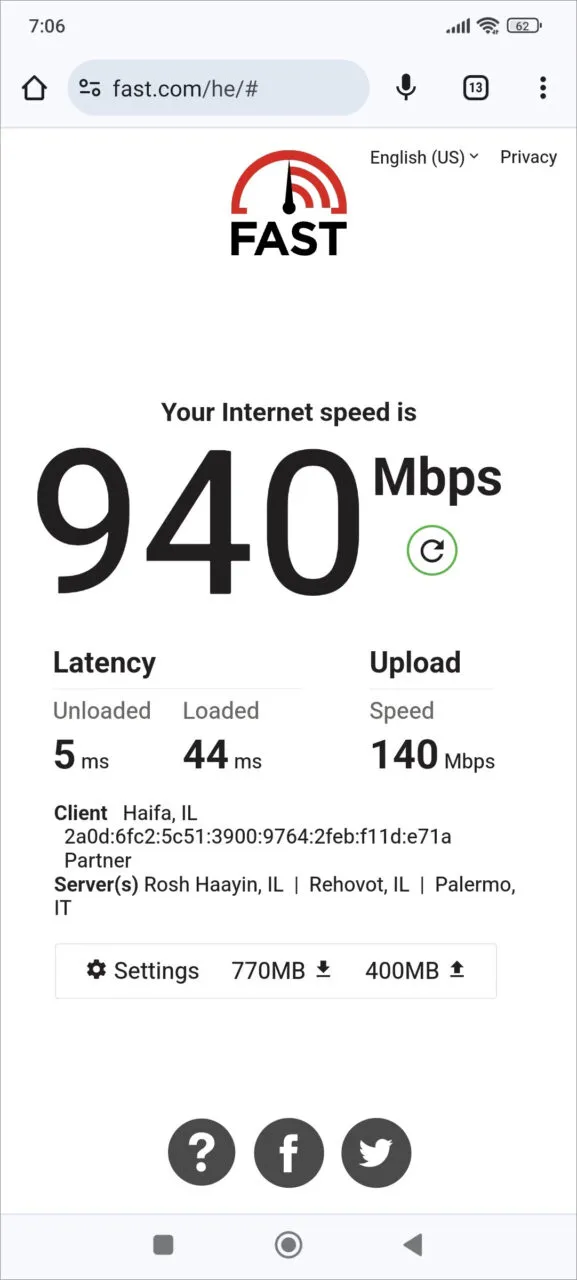

BPI WiFi6 Mini WiFi Test 1
BPI WiFi6 Mini – WiFi Test 1

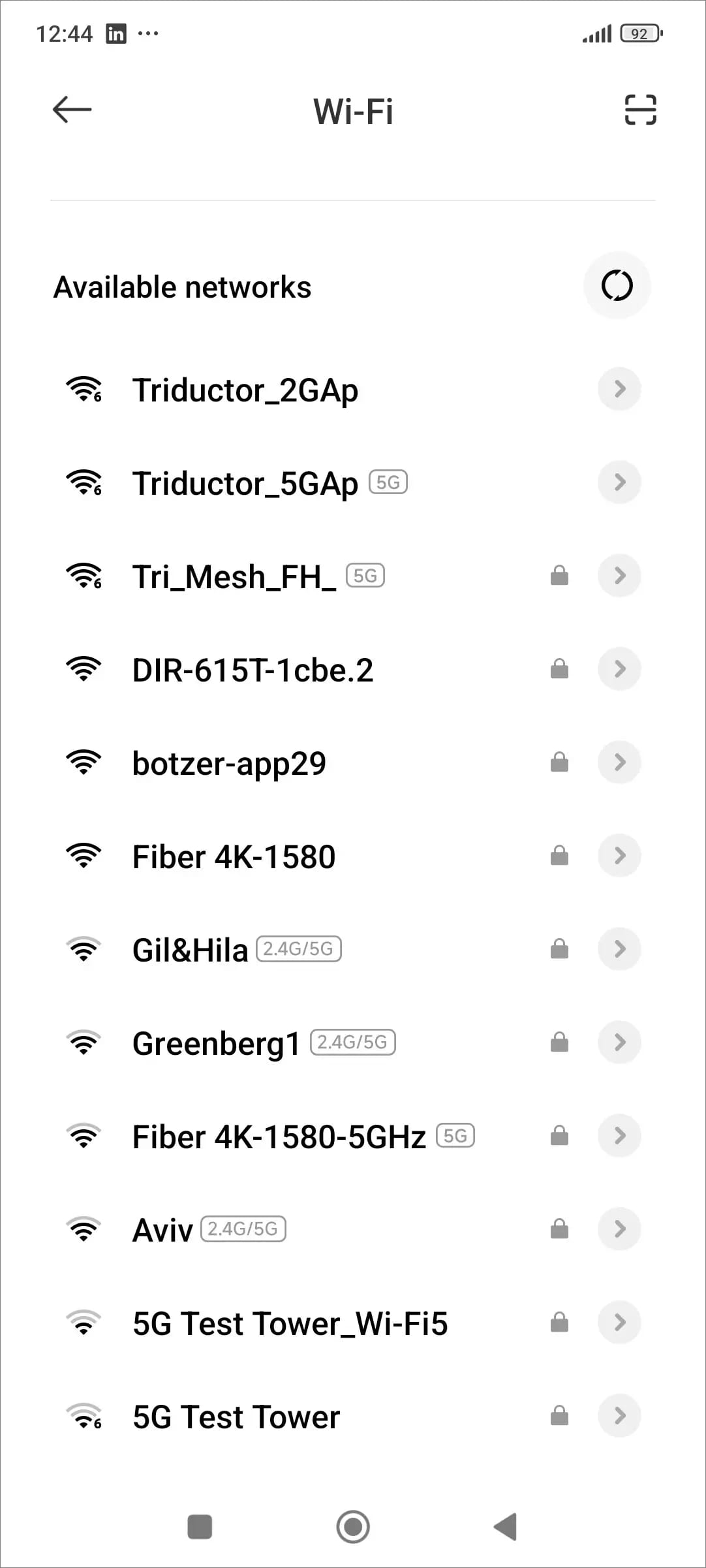

BPI WiFi6 Mini WiFi Test 2
BPI WiFi6 Mini – WiFi Test 2

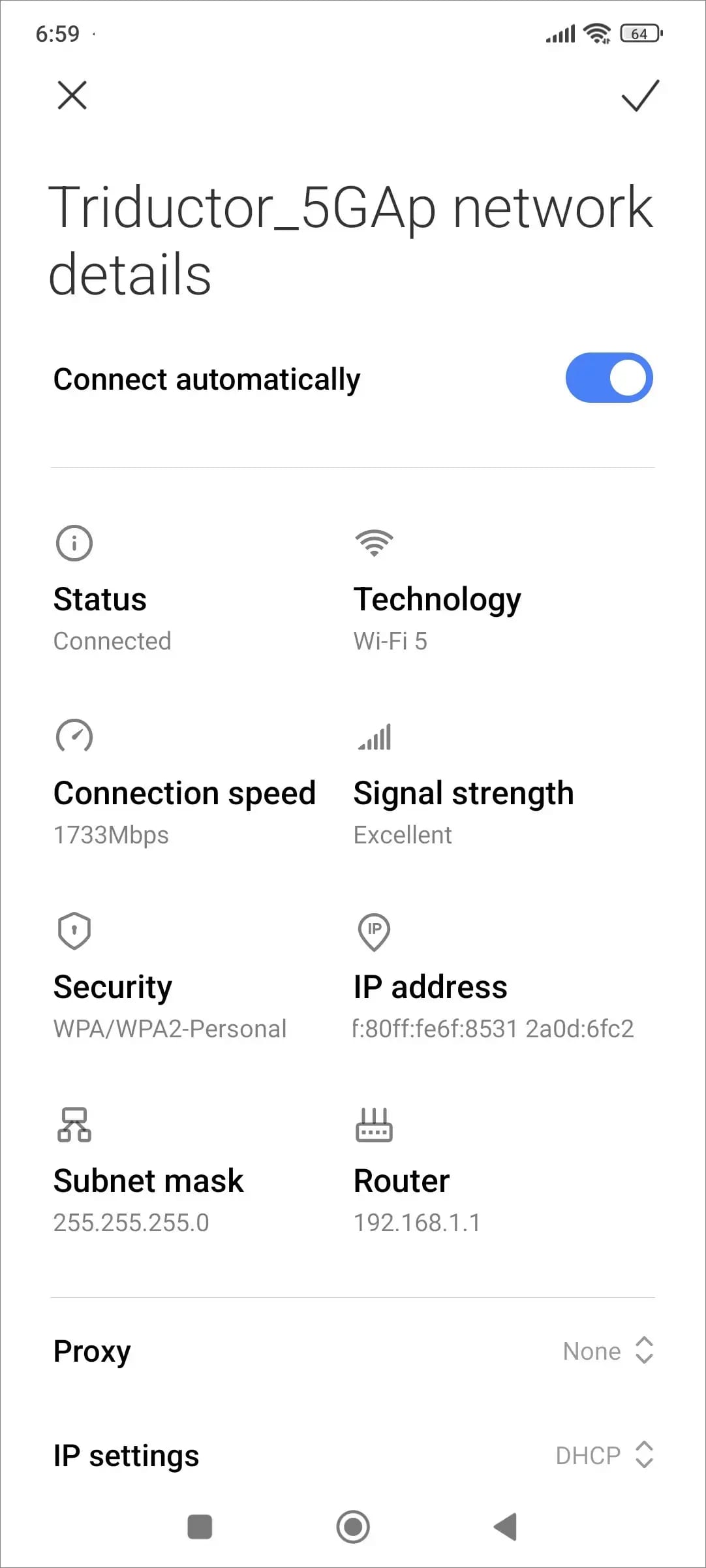

BPI WiFi6 Mini WiFi Test 3
BPI WiFi6 Mini – WiFi Test 3

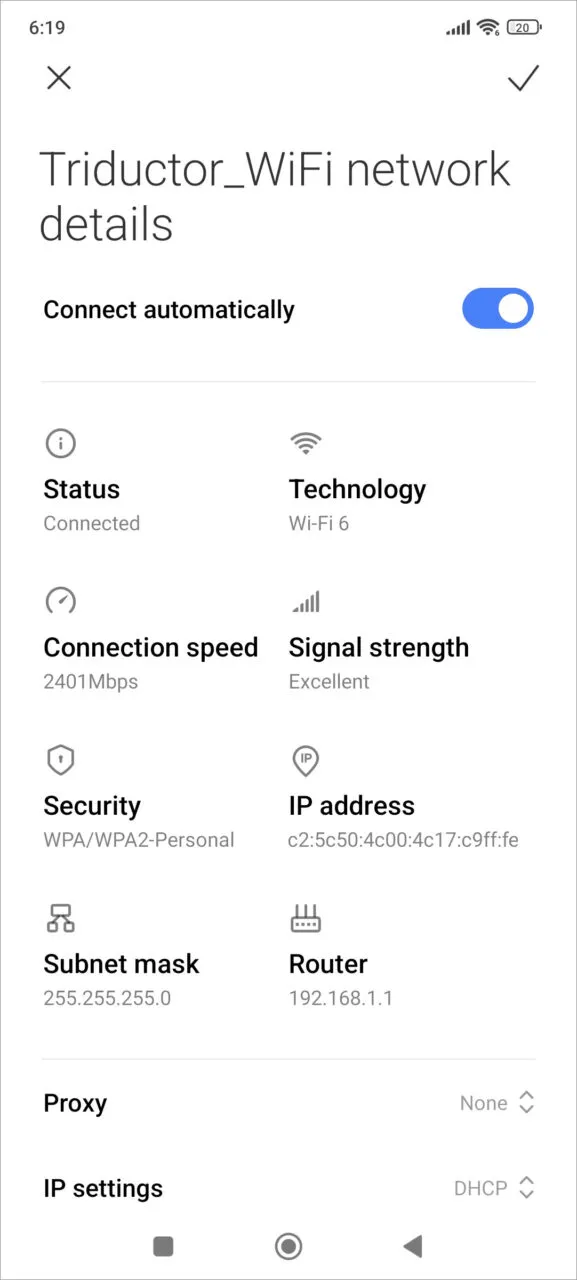

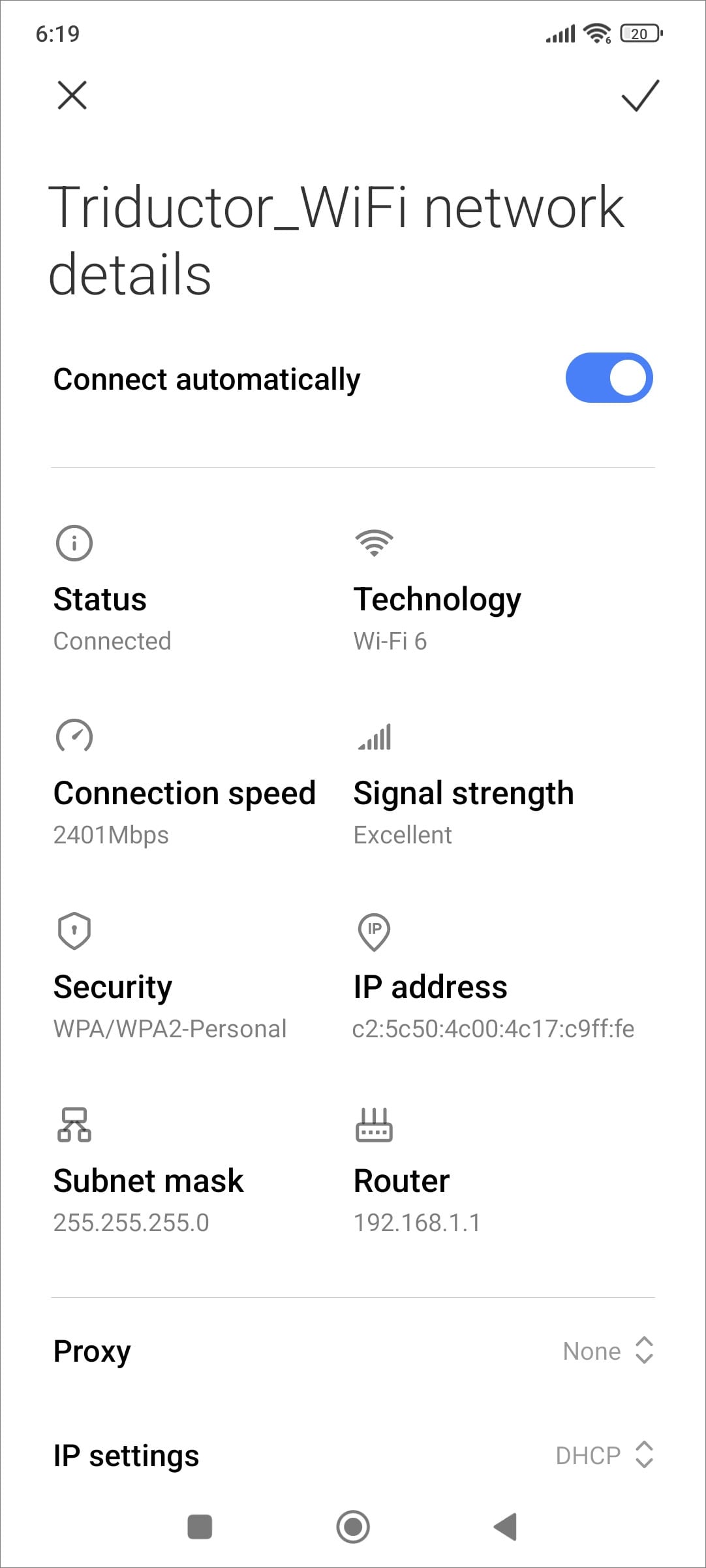

BPI WiFi6 Mini WiFi Test 5
BPI WiFi6 Mini WiFi Test 5

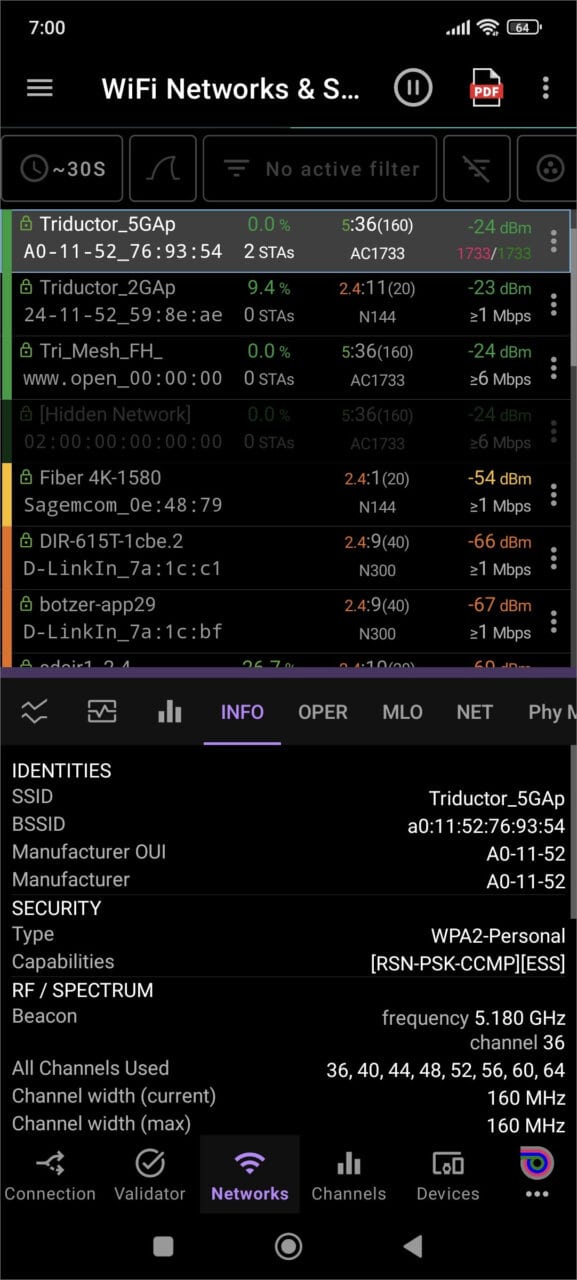

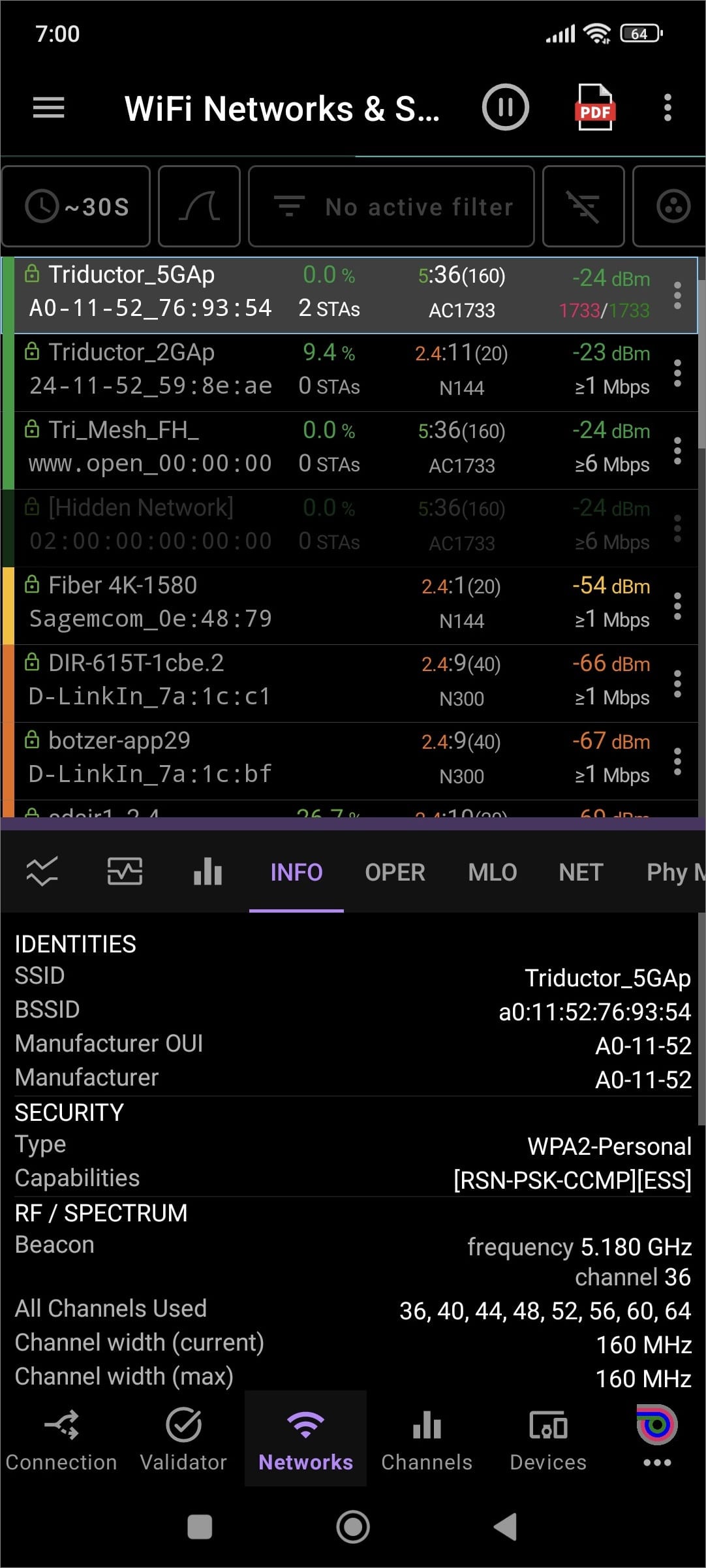

BPI WiFi6 Mini WiFi Test 4
BPI WiFi6 Mini WiFi Test 4

Performing a throughput test using the Ookla Speedtest app.

Our tests consistently yielded accurate results, showcasing the impressive performance of the Ookla Speedtest app, which reached an excellent peak speed of about 928Mbps.

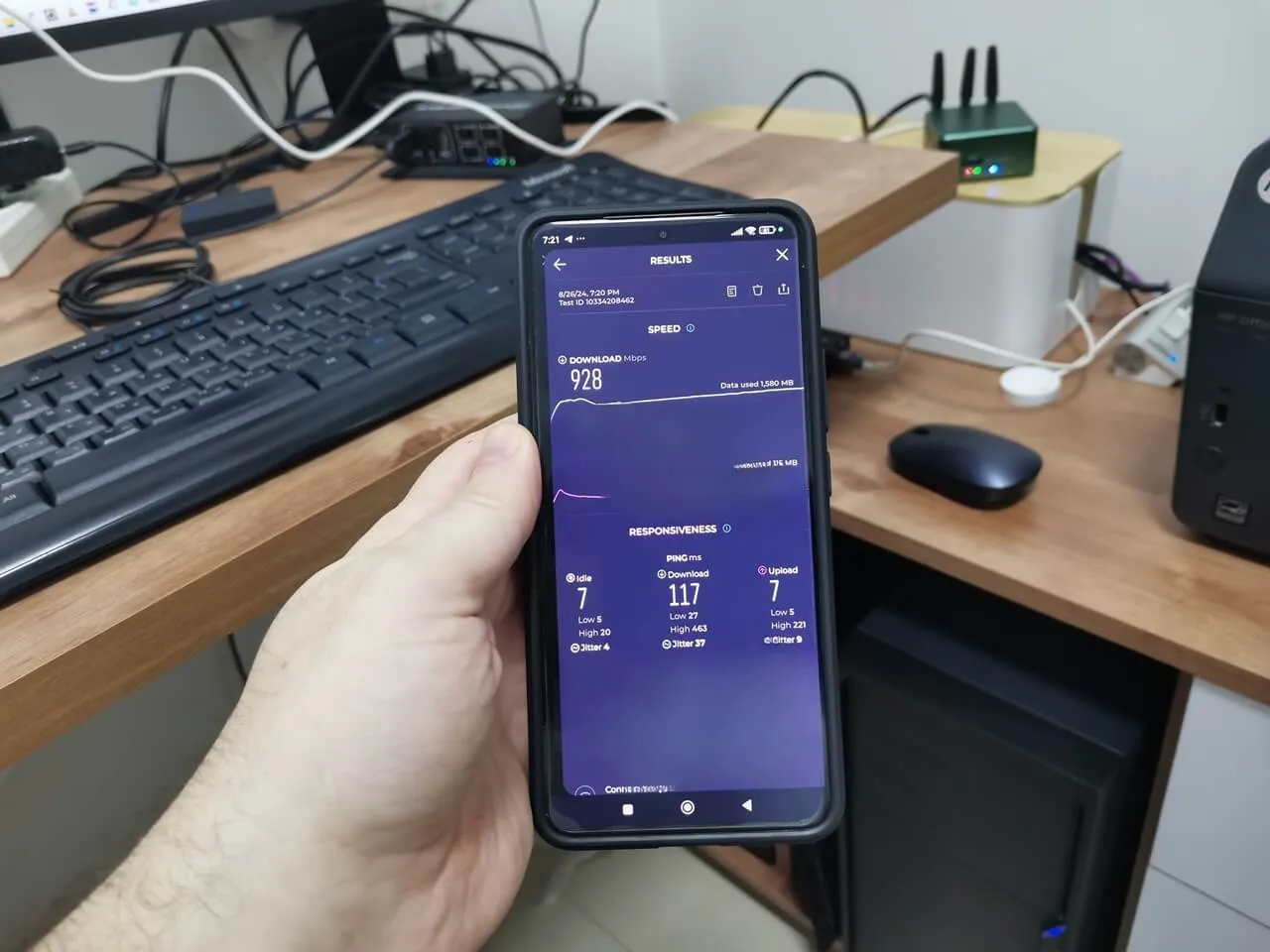

BPI WiFi6 Mini WiFi Speedtest
BPI WiFi6 Mini ( Ookla Speedtest)

Price and Availability

The board is currently priced at a highly appealing $31.00. Nevertheless, if you decide to buy a metal case for an extra $23.87-25.00, the overall price will rise. Thankfully, users have the option to save money on the extra cost of a case by either customizing their own 3D printed case or by purchasing a kit that includes both the case and the board. Whether you aspire to construct a compact mesh system or (AP) Access point based on OpenWrt, this product offers an exceptional and remarkably economical solution.

For more information about new and existing Banana Pi products, you are welcome to visit their website or contact our customer service team at Banana Pi official website.

Where can I purchase?

Feel free to visit the official Banana Pi store on AliExpress using the link provided below.

Banana Pi BPI WiFi6 Mini

Banana Pi BPI-WiFi6 Mini

$31.58
This site contains affiliate links to products. We may receive a commission for purchases made through these links.
Buy this item
* SinoVoip Co.,Limited Banana PI Store*
