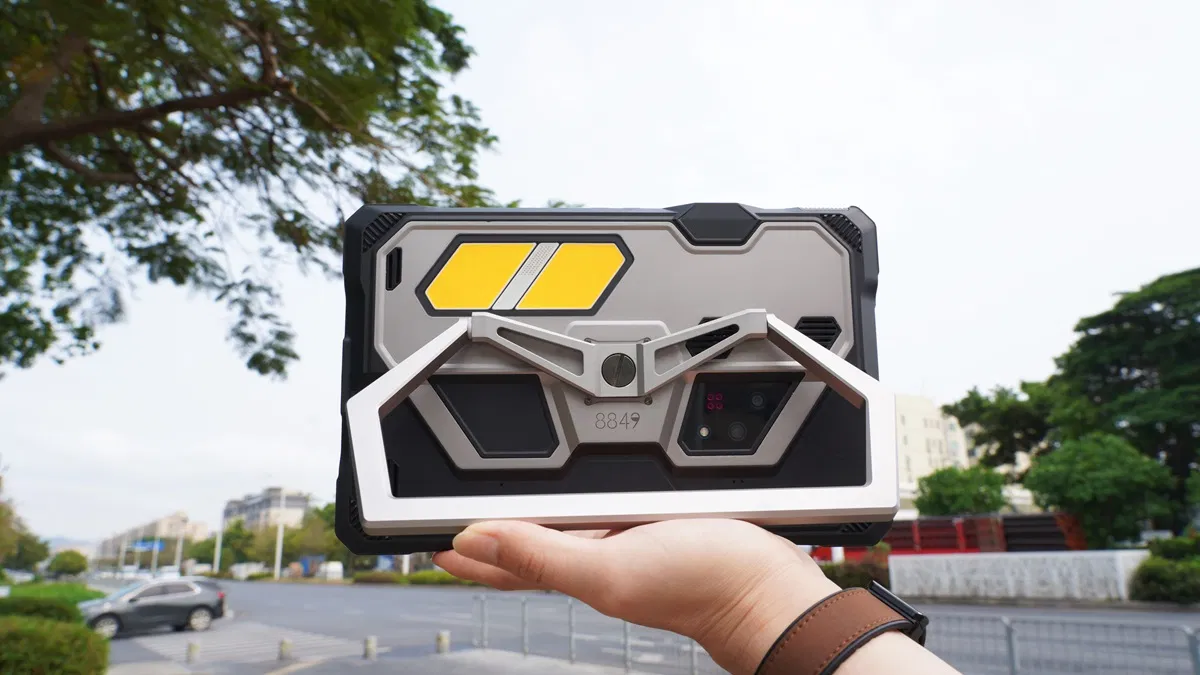

TANK Pad Ultra: Premium Performance in a Durable Tablet
The rugged device market has always been a niche area where durability, reliability, and all-weather performance are prioritized over sleekness or minimalism. However, within this challenging category, the new TANK Pad Ultra, set to launch by the well-known Chinese brand 8849, stands out as a device designed not only for survival but also for high-performance computing in the most demanding environments. Based on the detailed technical specifications provided by the company, this tablet is clearly intended for field professionals, adventurers, emergency responders, and industrial users who require a machine capable of much more than just enduring drops and dust.
This article explores the TANK Pad Ultra in depth—its hardware, connectivity, sensors, cameras, power systems, and unique features such as its built‑in projector and camping lamp. The goal is to paint a complete picture of what this device is, what it can do, and why it represents a new class of rugged tablet.
Product Introduction Video
8849 TANK Pad Ultra – Hardware Specifications
| Category | Specification |
|---|---|
| CPU | MT6896 (Dimensity 8200) |
| Memory | RAM 16GB + ROM 512GB |
| Display | 10.95” FHD 1200*1920 Resolution |
| OS | Android 15.0 |
| Front Camera | 32MP FF (IMX616), requires transfer FPC; No front flash LED |
| Rear Cameras | 1. 50MP AF (IMX766). 2. 64MP AF Night Vision (OV64B) |
| Rear Flash / IR | 1.5A max dual‑color temperature flash; Night vision with four infrared fill lights |
| Sensors | Gyroscope (hardware) Acceleration Sensor Compass Ambient Light Distance |
| Wired Charging | Fast charging: 66W max input Normal mode: 7.5W max input External onboard coulometer supported (Zhongying SH366003) |
| Reverse Charging (Wired) | Type‑C port with reverse charging (5V‑2A) |
| Integrated Projector | DLP projector Auto‑focusing 1080p resolution 260 lumens Focusing range: 0.5m–4.0m |
| Laser Ranging | Single‑point focusing Micro 4‑meter laser ranging |
| Camping Lamp | Supports red & blue warning lights (3‑way control circuit) |
| Battery | 23400mAh, 66W fast charging Built‑in board‑to‑board connector Max voltage: 8.9V Nominal voltage: 7.74V Temperature detection NTC |
| SIM + Memory Card | Dual Nano SIM + TF card (hot‑plug supported) |
| USB Interface | Type-C USB 2.0 |
| Speakers | Smart PA dual speakers 1134 speakers 3.5cc sound cavity 4Ω 2W output, 97 dB |
| Microphones | Dual analog silicon microphones with noise reduction |
| Receiver | Waterproof receiver, model 0809 |
| FM Radio | ✅ FM Support 65-108Mhz |
| Headphone Jack | ✅ |
| Fingerprint identification support | ✅ |
| Infrared remote control | ✅ |
| Bluetooth 5.3 | ✅ |
| NFC | ✅ ziguang THN31 controller |
| Vibration motor | ✅ 1027 flat motor |
| Network modes | GSM/WCDMA/C2K/LTE(FDD,TDD)/5G NR(FDD,TDD) |
| WiFi | Support for 802.11 a/b/g/n/ac/ax (dual mode: 2.4 GHz and 5 GHz). Support WI-FI direct connection, WI-FI Display. Transmission to other devices), WI-FI hotspot (V2.0); WIFI MIMO |
| GPS | Support GPS+Glonass+Galileo+Beidou, support L1+L5. |
| Operation Keys | Power on/off, volume+, volume-, 2xPTT key. |
| Dimentions | 170.3×268.3×23.6 mm |
| Weight | 1345 g |

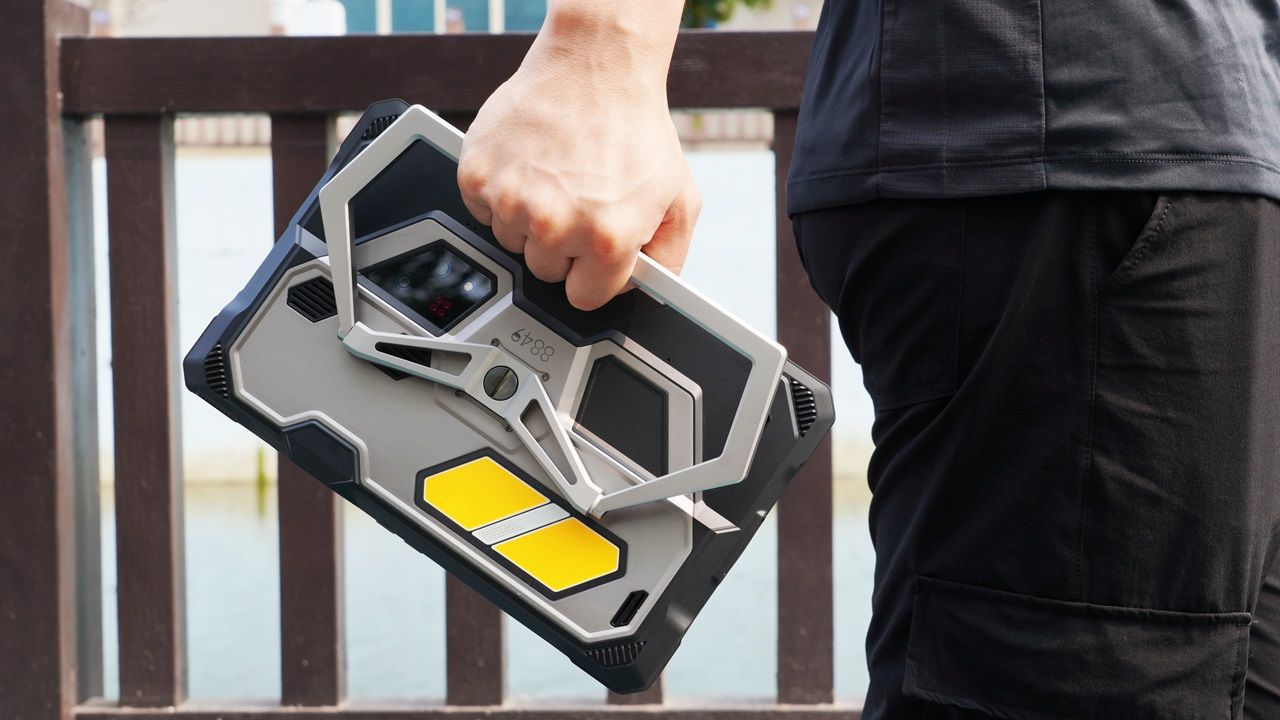

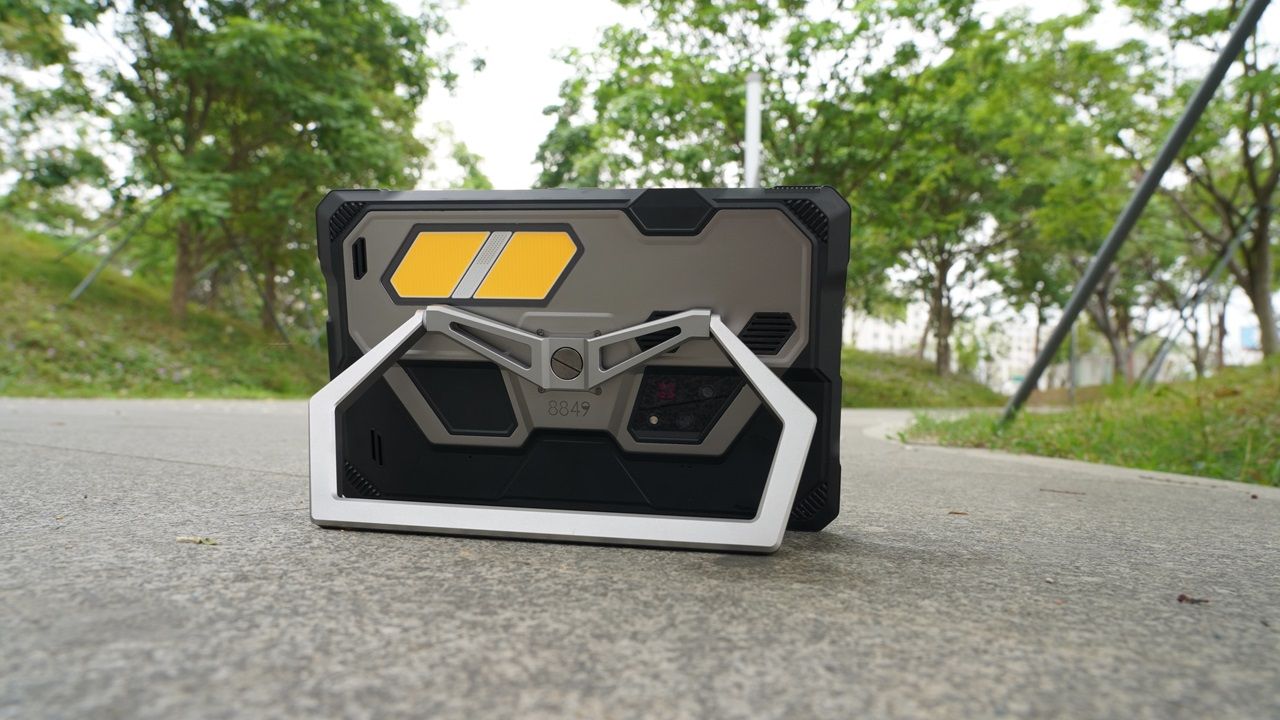

Durable Construction
The thickness and weight of the device are intentional design choices. Rugged tablets require reinforced frames, shock-absorbing materials, waterproof seals for interface protection, and internal structural supports. The TANK Pad Ultra PCB is built around a half-board, double-sided cloth mainboard powered by the MT6896 (Dimensity 8200) chipset. According to the specifications, the device measures 170.3×268.3×23.6 mm and weighs 1345 g. While this is not a lightweight consumer tablet, its weight is reasonable given that we are talking about a heavy duty rugged tablet.

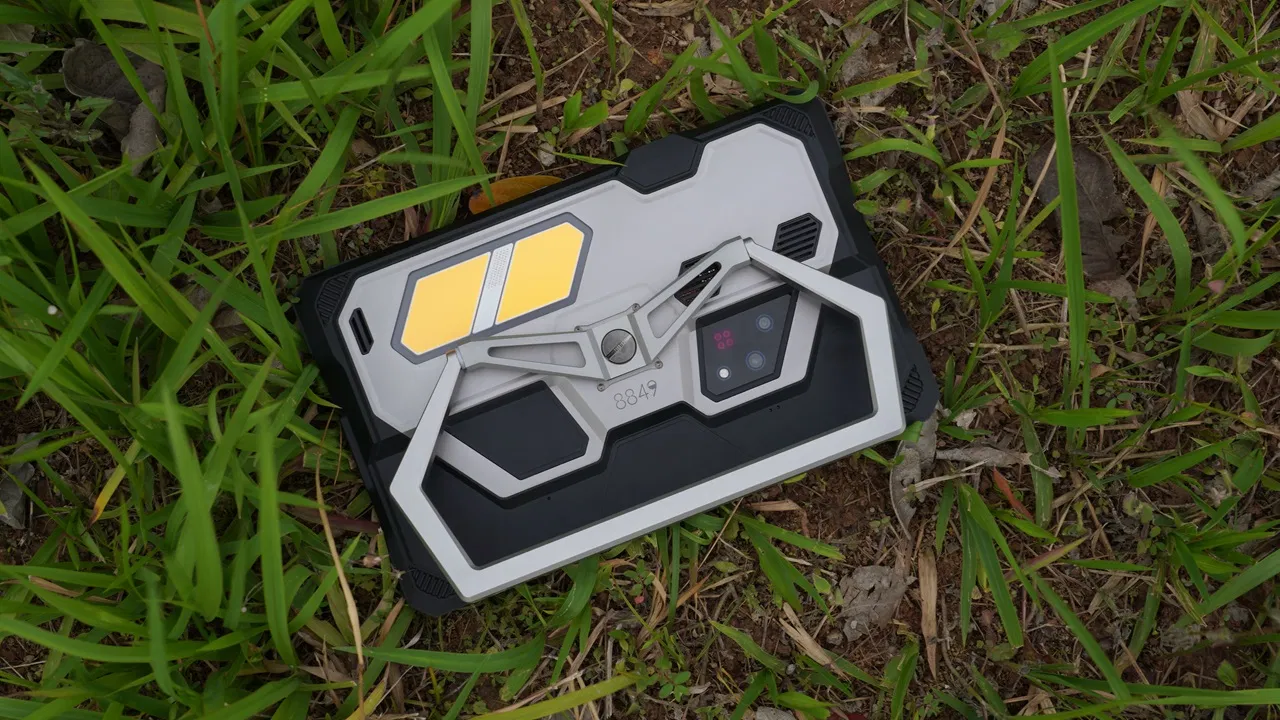

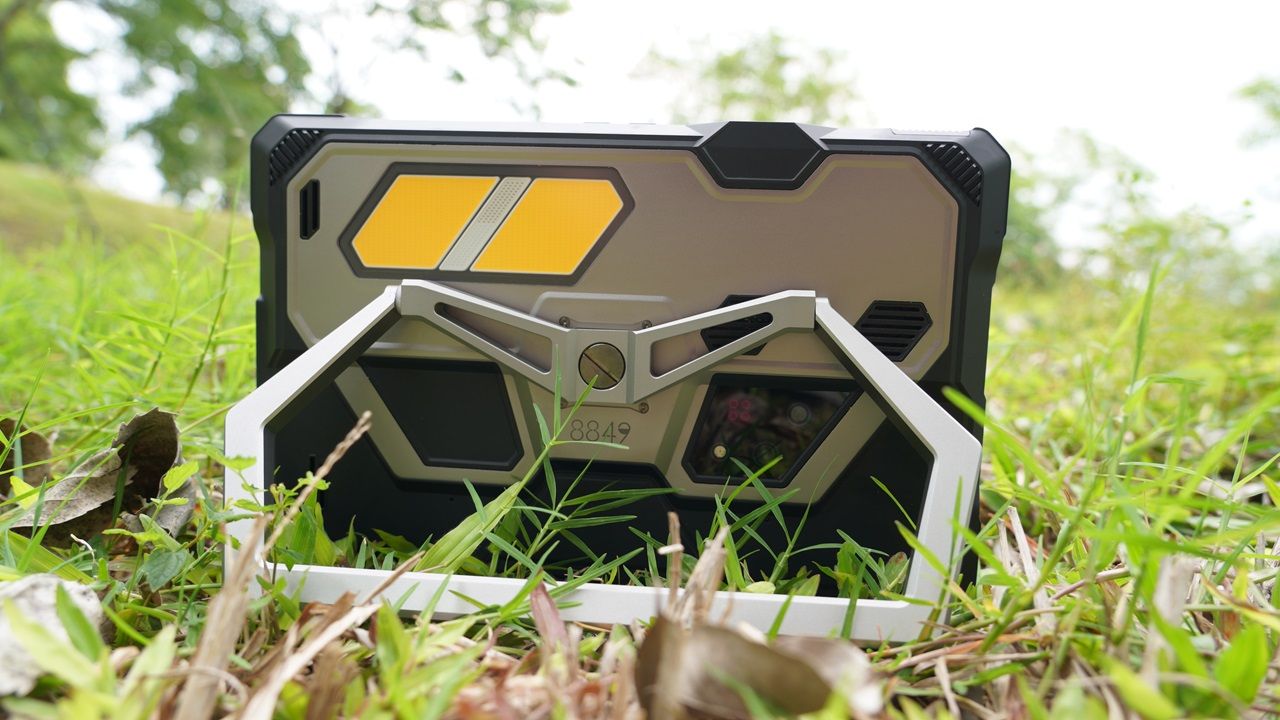

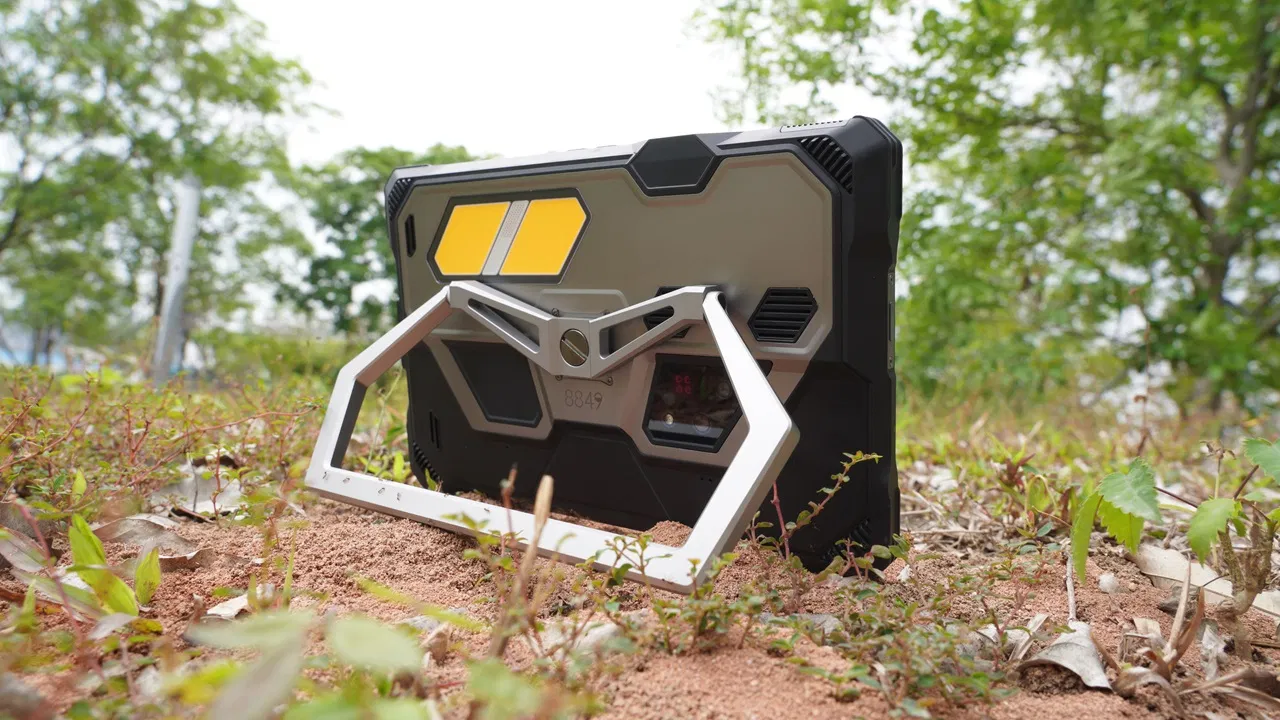

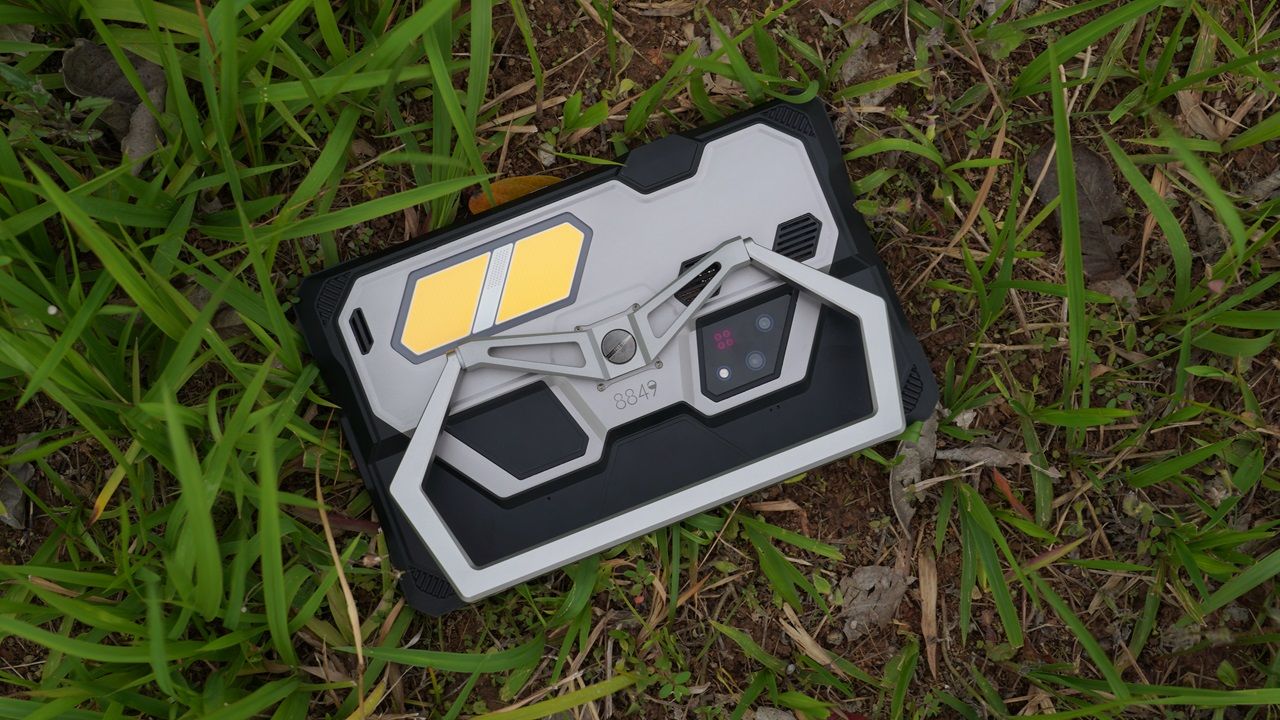

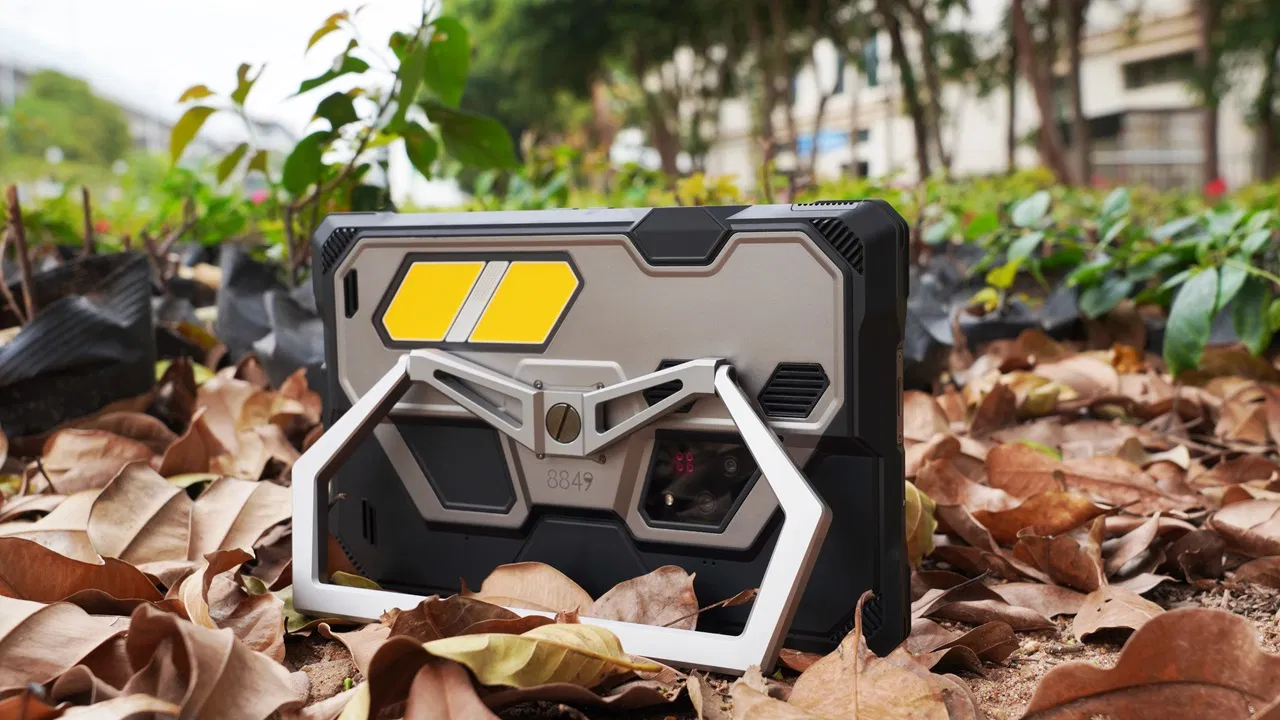

A Closer Look at the TANK Pad Ultra Design
Display
The tablet boasts a 10.95-inch FHD display with a resolution of 1200×1920 pixels. Although it does not have a high-end AMOLED panel, this resolution is perfect for outdoor visibility, battery efficiency, and suitability for rugged applications like mapping, surveying, and industrial dashboards.
Powered by a powerful heavy-duty battery.
The product specifications sheet we received confirms that the device is equipped with a substantial 23,400 mAh battery and features 66W fast charging capabilities. This capacity significantly surpasses that of typical tablets and even outperforms many rugged laptops, enabling multi-day operation in the field without access to power.
Reverse Charging Support
The tablet also supports reverse charging through USB-C (5V-2A), allowing it to function as a power bank for other devices. This feature is invaluable for field workers who may need to charge radios, phones, or sensors.
Performance: Dimensity 8200 and High Capacity Memory
At the core of the TANK Pad Ultra is the MT6896 (Dimensity 8200), a high-performance 5G chipset recognized for its efficiency and robust AI processing capabilities. Coupled with 16GB of RAM and 512GB of ROM, the device can manage:
- GIS and mapping software
- Industrial control systems
- High‑resolution imaging
- Multitasking and field data processing
- AR/AI‑enhanced applications
Connectivity: A True Global Communication Device
The TANK Pad Ultra supports a wide range of network bands across 2G, 3G, 4G, and 5G NR. The document lists dozens of supported bands, including GSM/WCDMA/C2K/LTE (FDD, TDD)/5G NR (FDD, TDD). This versatility makes the device suitable for global deployment, including in remote areas where older networks still operate.
Wi-Fi 6 Connectivity and Bluetooth
| User Group | Key Capabilities |
|---|---|
| WiFi 6 Support | (802.11 a/b/g/n/ac/ax) |
| Bluetooth | Ver 5.3 |
| Additional features | WiFi Direct, WiFi Display, WiFi Hotspot V2.0 |
GPS and Supported Navigation Systems
The TANK Pad Ultra supports GPS, Glonass, Galileo, and Beidou, featuring L1 + L5 dual-band positioning, which makes it ideal for:
- Surveying.
- Navigation in remote areas.
- Precision mapping.
- Search and rescue operations.
Camera System: High-End Sensor Camera Array
The tablet boasts an impressively advanced camera setup for a rugged device. The front sensor features a 32MP FF (IMX616) without flash support, while the main camera includes a 50MP IMX766 sensor, typically found in premium smartphones. Additionally, it has a 64MP OV64B night-vision camera equipped with IR fill lights for imaging in complete darkness, and the inclusion of a dual-color temperature flash further enhances its low-light performance.
Practical Applications for the Camera:
- Law enforcement.
- Wildlife monitoring.
- Night‑time inspections.
- Security operations.
Packed with Unique Features
This tablet includes several features rarely seen in rugged devices—or any tablets at all.

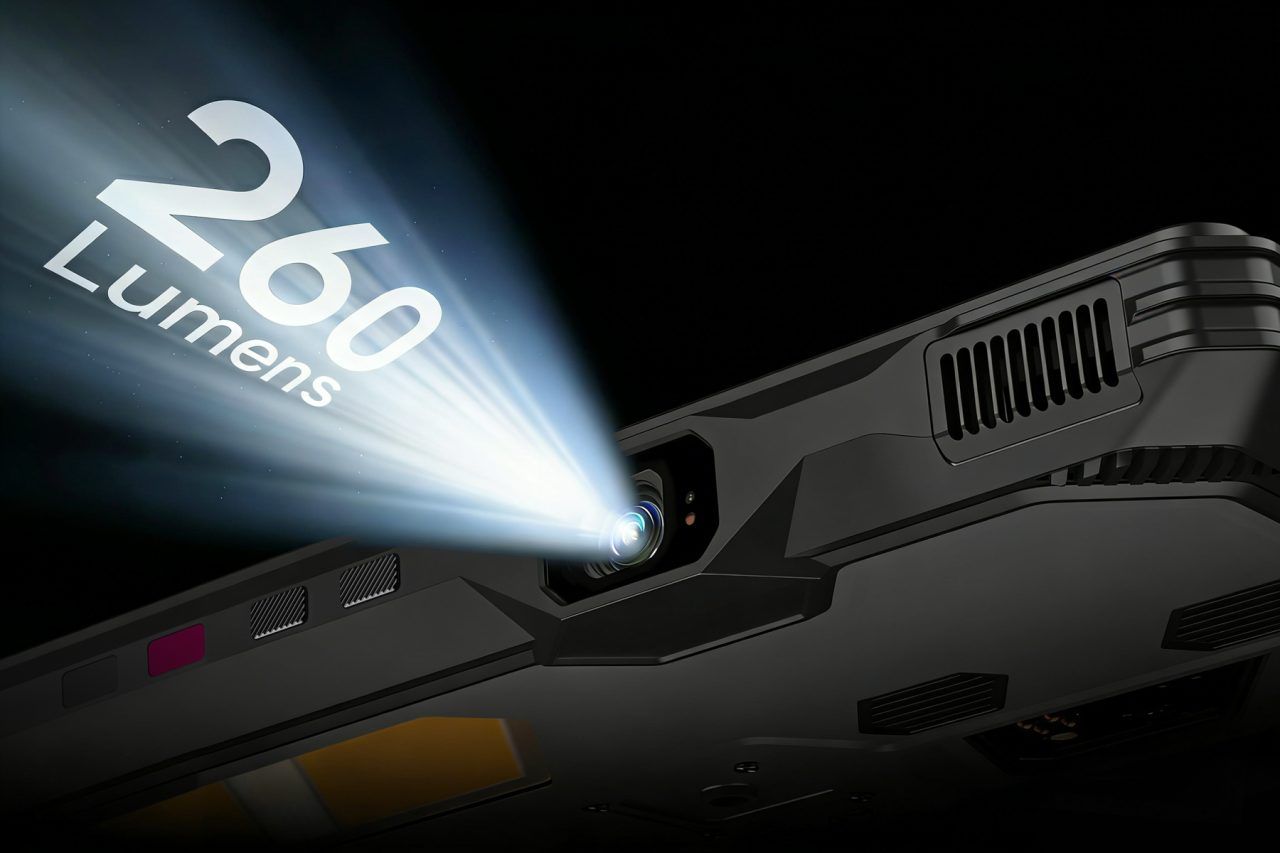

A. Built-In DLP Projector
Supports auto-focusing, with a resolution of 1080p, and 260 lumens, making this product suitable for the following applications:
- Field presentations.
- Emergency briefings.
- On‑site training.
- Projection of maps or schematics.
- Entertainment during expeditions.
- A focusing range of 0.5m to 4.0m makes it ideal for use in tents, vehicles, or open spaces.
B. Laser Ranging
The tablet has single-point focusing and can measure distances with a 4-meter laser. This makes it a handy tool for construction, surveying, and engineering.
C. Camping Lamp with Red/Blue Warning Lights
Support and enhance the design of red and blue warning lights (3-way control circuit). This is a multifunctional lighting system that can serve as:
- A camping lantern.
- An emergency beacon.
- A hazard warning light.
- A signaling device.
D. Infrared Remote Control
The tablet features an IR blaster, enabling it to control:
- TVs.
- Projectors.
- Air conditioners.
- Industrial equipment.
This is especially useful in field offices or remote workstations.
Use Cases: Who Is the TANK Pad Ultra Designed For?
Given the product’s capabilities, this tablet is ideal for the following applications, as shown in the table below.
| User Group | Key Capabilities |
|---|---|
| Industrial & Construction Workers | Laser ranging Rugged durability Long battery life Projector for on‑site presentations |
| Emergency Responders | Night‑vision camera Red/blue warning lights Multi‑network support High‑accuracy GPS |
| Outdoor Adventurers | Massive battery Camping lamp Offline mapping Rugged build |
| Military & Security Personnel | IR night vision Multi‑band global connectivity Strong encryption support via Android 15 |
| Field Engineers & Surveyors | Laser measurement Dual‑band GNSS High‑resolution display |
| Remote Researchers | Long battery life Projector for group briefings Expandable storage |
Final Thoughts
The 8849 TANK Pad Ultra does not aim to compete with consumer tablets such as the iPad or Galaxy Tab. Rather, it is designed for professionals who require a device capable of surviving and performing exceptionally in extreme conditions. Its combination of a powerful battery, top-tier cameras, global connectivity, a built-in projector, laser ranging, and durable construction makes it one of the most feature-rich rugged tablets available.
To sum it up, the product is not intended for casual users; instead, it functions as a tool, workstation, communication hub, measurement device, and even a portable projector-all in one. If your work or adventures lead you away from the comforts of an office, especially outdoors, then the TANK Pad Ultra could be an excellent choice.
Global launch
The new TANK Pad Ultra is expected to be available online on April 10, 2026. We will provide updates and additional news as soon as we receive more information from the company.
