- Overview of Orange Pi Zero 3W: A closer look at device specs, features and main interfaces.
The Orange Pi Zero 3W is a new, compact, and affordable development board that features multiple interfaces, including two video outputs.
Shenzhen Xunlong, the company behind the popular orange pi brand is preparing to launch a new product: the Orange Pi Zero 3W development board is a compact device featuring an Allwinner A733 octa-core processor, which includes a dual-core Arm Cortex-A76 and a hexa-core Arm Cortex-A55, all built on a 12nm process and utilizing a big-little architecture. The processor features a maximum clock speed of 2.0GHz and supports a 3 Tops NPU, making it ideal for edge AI acceleration applications.
Additionally, this board can accommodate up to 16GB of LPDDR5 memory and is capable of decoding video formats up to 8K at 24fps for H.265, VP9, and AVS2. It also supports video formats up to 4K at 30 frames per second for both H.265 and H.264, which is another significant advantage.
Interfaces
This board features a variety of interfaces, including PCIe 3.0, USB Type-C 3.0, UFS, MIPI-CSI, MIPI-DSI, and a 40-pin expansion interface, along with other commonly used functional interfaces. It is compatible with operating systems such as Ubuntu, Debian, and Android 13.
Applications
The Orange Pi Zero 3W offers a robust hardware foundation for the deployment of generative AI and artificial intelligence algorithms in specific scenarios. It can be applied widely in fields such as smart industrial control, intelligent commercial displays, retail payment systems, smart education, commercial robotics, in-vehicle terminals, vision-assisted driving, edge computing, smart distribution terminals, and more.
Orange Pi Zero 3W (Design/Interfaces)

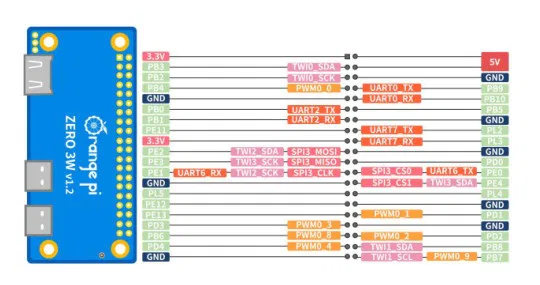

Orange Pi Zero 3W (Pins Diagram)

Hardware Specifications
| Category | Specification |
|---|---|
| Processor (CPU) | A733 SoC 2× Cortex‑A76 + 6× Cortex‑A55, up to 2.0 GHz |
| Coprocessor | RISC‑V E902 (200 MHz) |
| GPU | Imagination BXM‑4‑64 |
| NPU | 3 TOPS |
| Memory | Supports up to 16 GB LPDDR5. |
| Storage | Onboard eMMC or UFS |
| Wireless | WiFi 6 + Bluetooth 5.4 (BLE), WiFi/BT combo module |
| Display Interfaces | – 1× Mini HDMI 2.0 (up to 4K@60fps) – 1× MIPI‑DSI (4‑lane) – 1× DisplayPort 1.4 |
| Camera Interfaces | 2× MIPI‑CSI (4‑lane each) |
| USB | – 1× USB‑C (USB 3.0 Host) – 1× USB‑C (USB 2.0, Host & Device) |
| Buttons | BOOT (test point), PWR ON (test point) |
| Expansion Header | 40-pin GPIO header supporting GPIO, UART, I2C, SPI, PWM |
| Debug | 3-pin UART debug port |
| Power Input | USB‑C 5 V / 3 A DC‑IN |
| Supported OS | Ubuntu, Debian, Android 13, others |
| Weight | 14g |
| PCB Dimensions | 65 mm × 30 mm |
So, what’s truly new about this board?
If you are curious about what sets this tiny board apart from previous models, it includes Wi-Fi 6 connectivity with Bluetooth 5.4 support, as well as two video output interfaces: one Mini HDMI and one DisplayPort 1.4 output, both capable of decoding video up to 4K at 60 fps. Additionally, this board supports a variety of RAM configurations, with options ranging from 1GB to 8GB, and the potential for 12GB and 16GB.
Price and availability
Here is the initial early bird pricing for all models, which range from 1GB to 8GB of RAM. The pricing is quite flexible, especially given that RAM and flash chip prices have decreased over the past couple of months. The product is very fresh and is likely to be available for purchase soon in the official Orange Pi online stores at the URLs provided below:
Where can I buy?
Official Orange Pi Stores on AliExpress (Buying Links) | |
Description | Purchase Links |
Store No. 1 | ; |
Store No. 2 | ; |
Store No. 3 | ; |
This site contains affiliate links to products. We may receive a commission for purchases made through these links. AndroidPIMP.COM will not be liable or responsible for any loss or damage caused by improper wiring/assembly of the above components. | |
Pricing (excluding taxes and shipping fees)
| Configuration | Price |
|---|---|
| 1GB RAM | $25 USD |
| 2GB RAM | $35 USD |
| 4GB RAM | $50 USD |
| 8GB RAM | $80 USD |
