Ugoos AM6 Review: Powerful And Fast Android TV Box

By AndroidpimpJune 27, 2020Updated:March 28, 2023No Comments8 Mins Read
Facebook Twitter Pinterest LinkedIn Tumblr Email

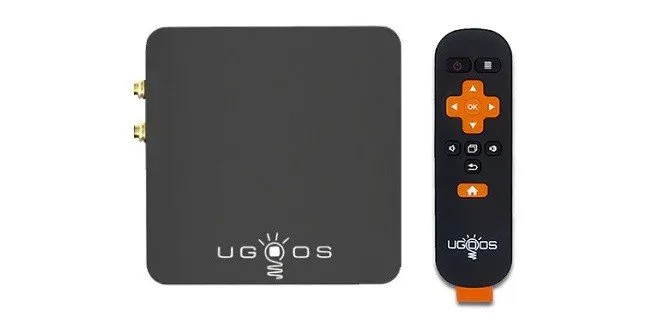

Ugoos am6 box
Ugoos am6 box
1Ugoos AM6 Review
2Specification
3Package
4Unboxing
5Package Contents
6Design
7Connectivity
8Performance
9Final verdict
10Price and Availability

Ugoos AM6 Review

The AM6 Android TV box is compact, portable, and can be placed next to your TV set. It includes a power adapter, an HDMI cable, a USB cable, and a USB adapter. It serves your internet and television needs, allowing you to enjoy online activities and viewing using a single gadget.

There are a lot of choices when it comes to Android TV boxes. Ugoos Industrial  Co., Ltd. specializes in designing, R&D, manufacturing, and marketing Android HD Media Players with a self-owned factory in Shenzhen, China. The company is mainly focused on RockChip and Amlogic SoC solutions and was the first company on the market to create Dual-core and Quad-core TV dongles.

Jumping to their newest AM6 model, based on Amlogic S922X, you will find significant hardware improvements such as a powerful Hexa Core (6) CPU and a six-cores Mali G52 GPU you will significantly boost your streaming and gaming experience.

A few other new hardware enhancements worth mentioning are the fast Gigabit Ethernet Port, Bluetooth 5.0 connectivity support, and the dual WiFi connectivity that comes with a pair of external antennas; with them, you can theoretically reach transfer speeds up to 867Mbps.

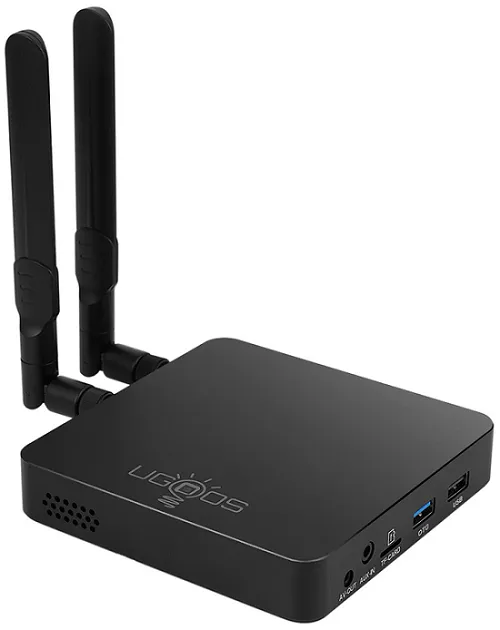

Ugoos am6 tv

Ugoos AM6 Android TV Box | Case Colors

Ugoos am6 android tv box colors

Ugoos AM6 Android TV Box | Full view

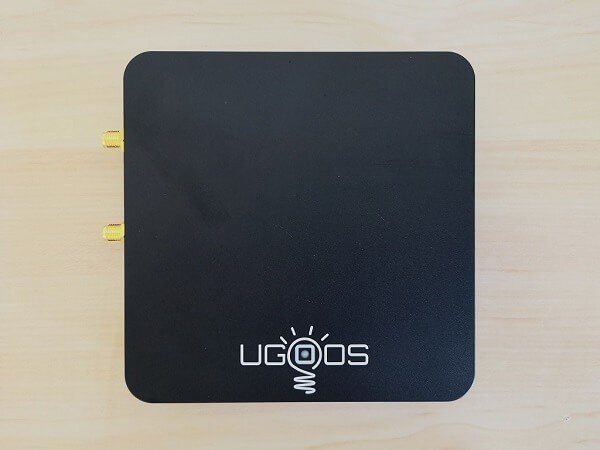

  • Ugoos am6 p2
    Ugoos AM6
  • Ugoos am6 p3
    Ugoos AM6 | Antennas Rearview
  • Ugoos am6 p4
    Ugoos AM6 | Rearview
  • Ugoos am6 p5
    Ugoos AM6 | Top view

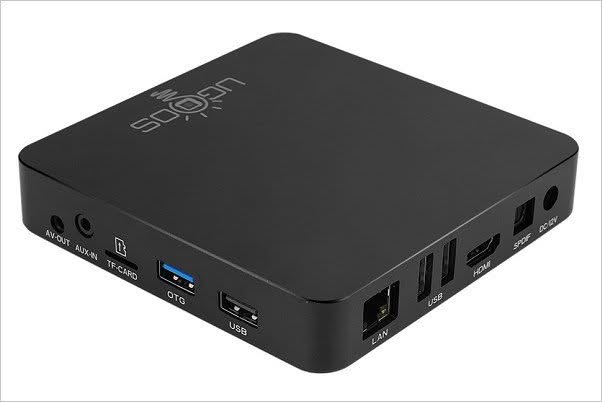

  • Ugoos am6 p1

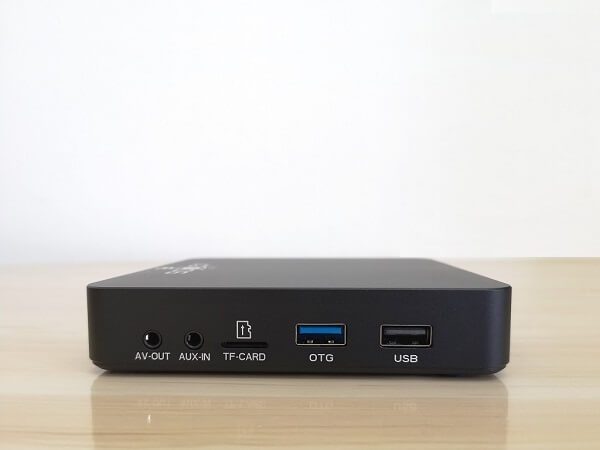

    Ugoos AM6 | Interfaces
  • Ugoos am6 p6
    Ugoos AM6 | PCB


Specification

  • Android 9.0 operation system
  • Color: Black, Blue (Other colors are optional).
  • CPU – Amlogic S922X, Quad core, ARM Cortex-A73, 1.8GHz + Dual-core ARM Cortex A53 1.7GHz.
  • GPU – ARM Mali-G52 MP6 ( 6ppc )
  • RAM – 2GB LPDDR4 RAM (4Gb optional for OEM orders)
  • 16GB EMMC ROM (8GB/32Gb/64Gb optional for OEM orders)
  • Support H.265 decoding
  • Support 4K ultra-high definition
  • Power Supply – 12V/2A via DC power barrel jack
  • External storage – 1x USB 3.0 OTG/Host port, 3x USB 2.0 ports , TF Card x1
  • Internal Storage: 16GB eMMC (8GB/32Gb/64Gb optional for OEM orders).
  • HDMI – HDMI 2.1 Type-A 4Kx2K@60fps max resolution
  • Video Output:  Built-in HDMI 2.1 transmitter including both controller and PHY with CEC, Dynamic HDR, and HDCP 2.2, 4Kx2K@60 max resolution.
  • AV output – AUX+CVBS 480i/576i
  • IR receiver Included – Yes
  • SPDIF Support – Yes

Connectivity:

  • Support Bluetooth 5.0
  • 2.4GHz + 5GHz dual-band WiFi, IEEE 802.11 a/b/g/n/ac and 2×2 MIMO
  • 1000M Ethernet Integrated IEEE 802.3 10/100/1000M Ethernet MAC with
  • Dual-band WiFi: 2.4G+5G the wireless module complies with IEEE 802.11 and can achieve up to a speed of 867Mbps.
  • External Antennas – x2 WiFi Antennas

Package

  • Ugoos am6 box p1
    Ugoos AM6 Package - PIC 1 of 8
  • Ugoos am6 box p2
    Ugoos AM6 Package - PIC 2 of 8
  • Ugoos am6 box p3
    Ugoos AM6 Package - PIC 3 of 8
  • Ugoos am6 box p4
    Ugoos M6 Package - PIC 4 of 8
  • Ugoos am6 box p5
    Ugoos AM6 Package - PIC 5 of 8

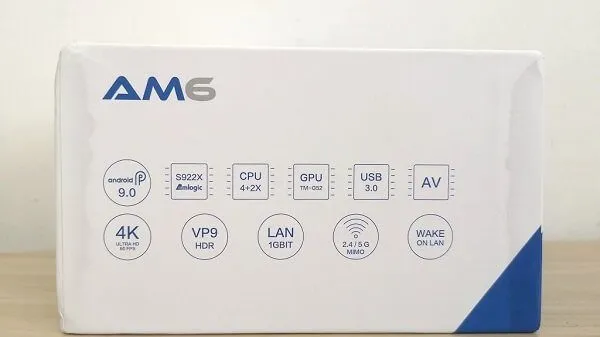

  • Ugoos am6 box p6
    Ugoos M6 Package - PIC 6 of 8

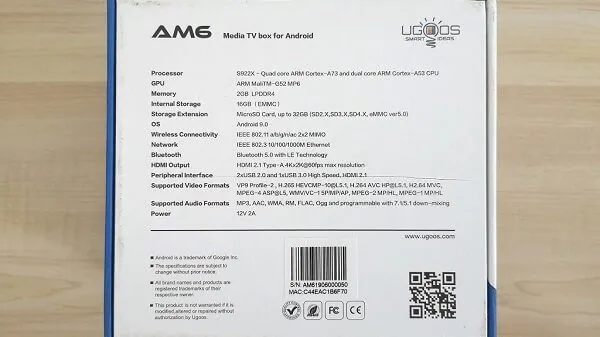

  • Ugoos am6 box p7

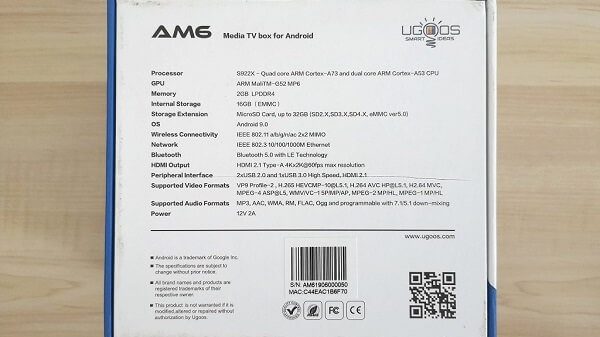

    Ugoos AM6 Package - PIC 8 of 8

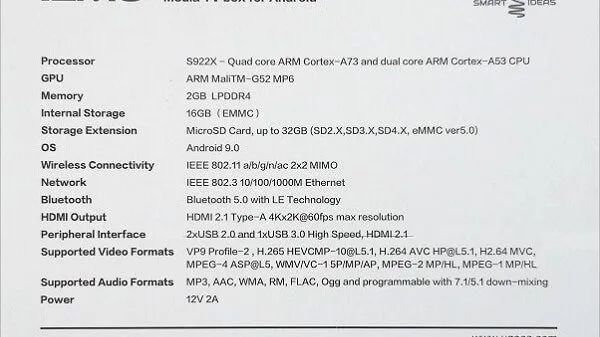

  • Ugoos am6 box p8
    Ugoos AM6 Package - PIC 8 of 8


Unboxing

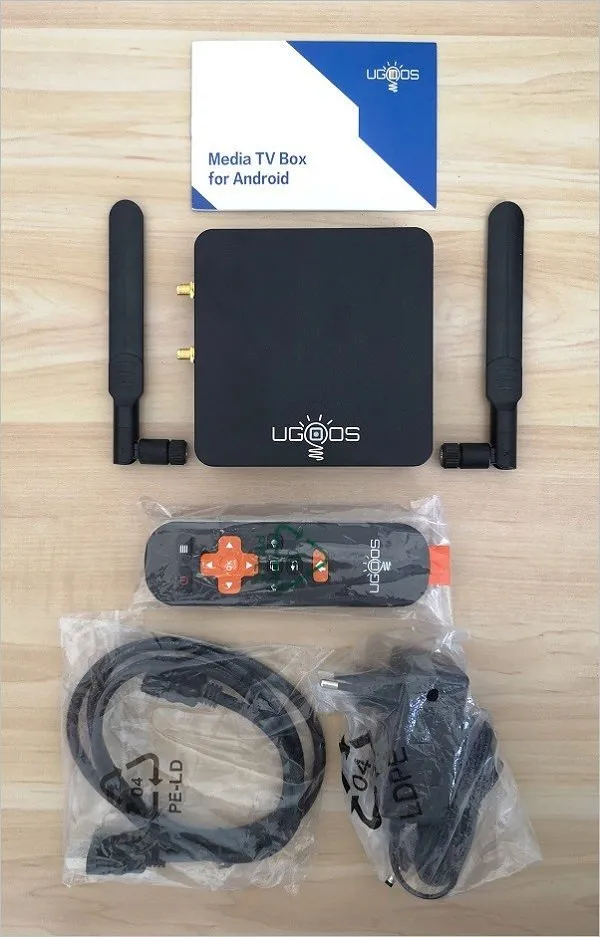

Ugoos m6 pkg

Package Contents

  • Ugoos m6 unbox p1

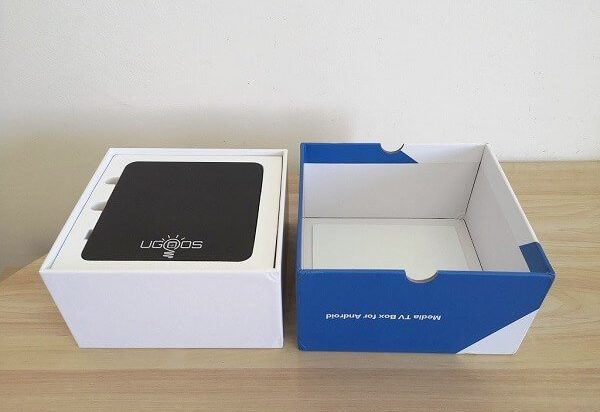

    Ugoos M6 Unboxing - PIC 1 of 12

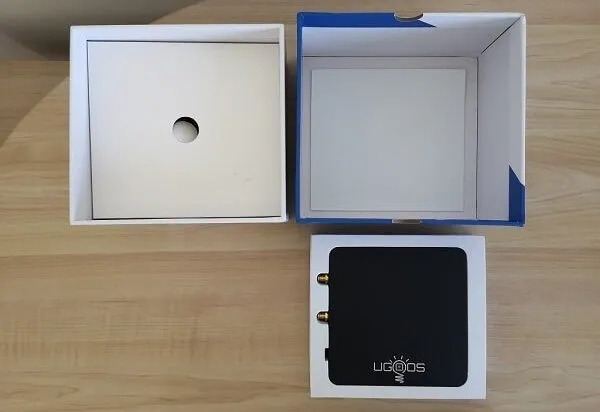

  • Ugoos m6 unbox p2
    Ugoos M6 Unboxing - PIC 2 of 12
  • Ugoos m6 unbox p3

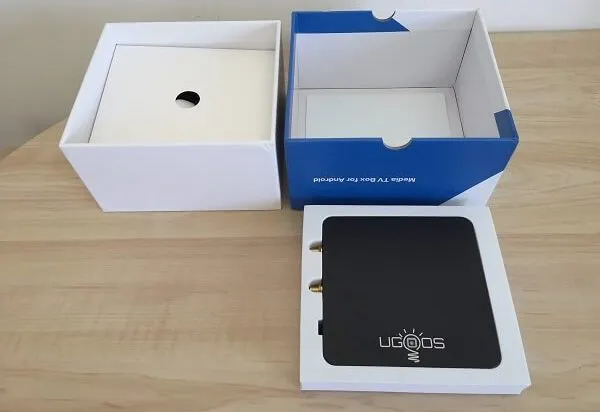

    Ugoos M6 Unboxing - PIC 3 of 12
  • Ugoos m6 unbox p4

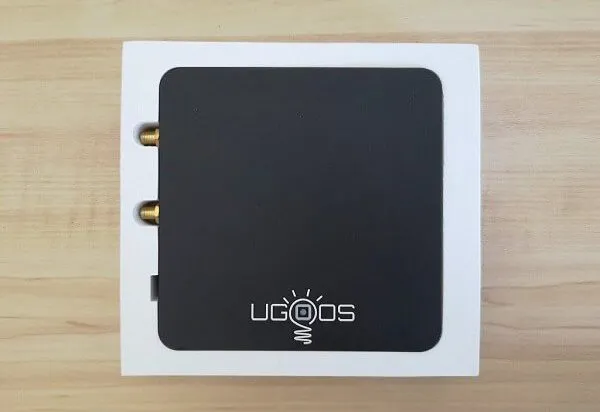

    Ugoos M6 Unboxing - PIC 4 of 12
  • Ugoos m6 unbox p5
    Ugoos M6 Unboxing - PIC 5 of 12

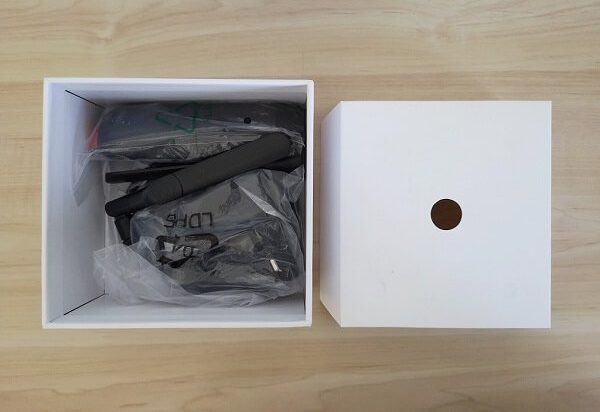

  • Ugoos m6 unbox p6
    Ugoos M6 Unboxing - PIC 6 of 12

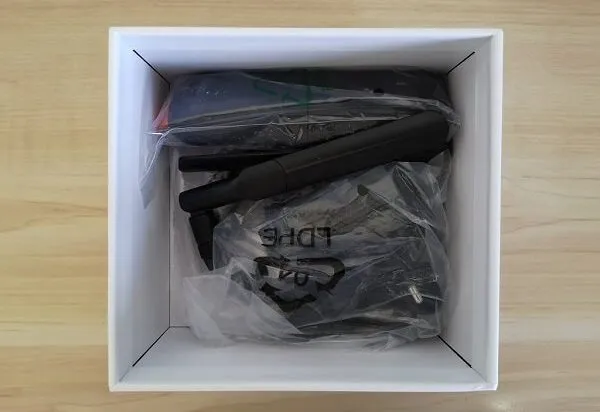

  • Ugoos m6 unbox p7
    Ugoos M6 Unboxing - PIC 7 of 12
  • Ugoos m6 unbox p8
    Ugoos M6 Unboxing - PIC 8 of 12

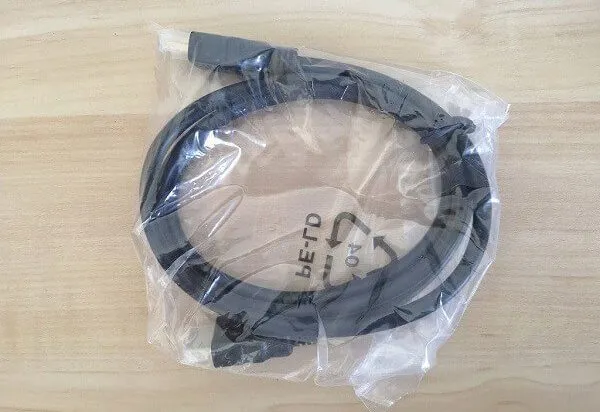

  • Ugoos m6 unbox p9
    Ugoos M6 Unboxing - PIC 9 of 12

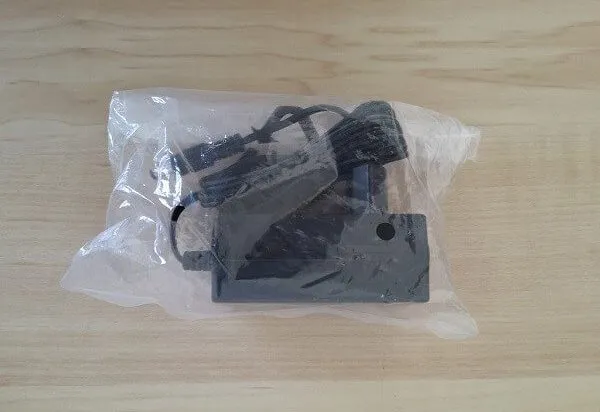

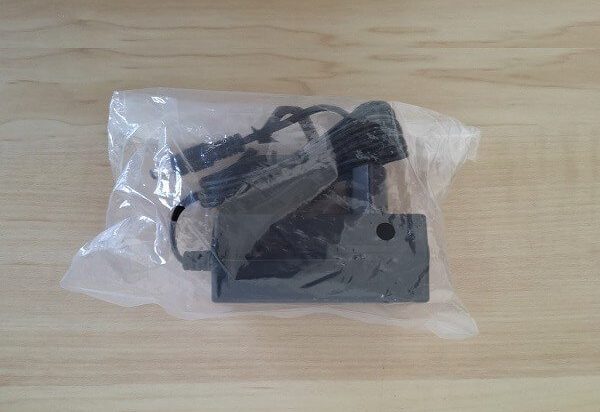

  • Ugoos m6 unbox p10
    Ugoos M6 Unboxing - PIC 10 of 12

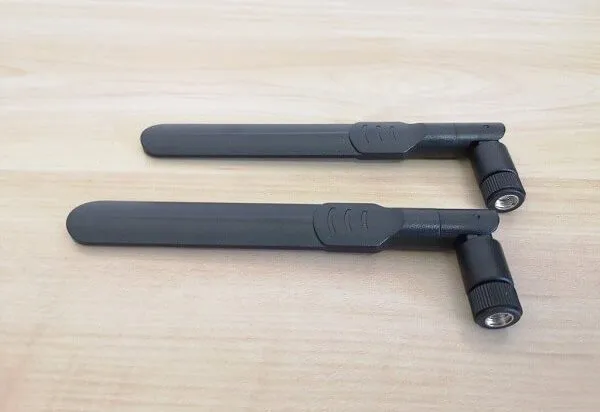

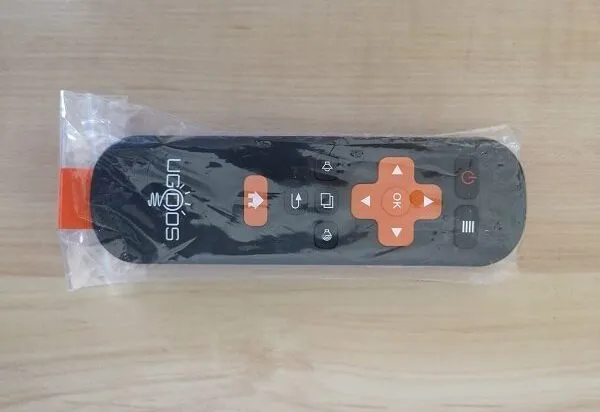

  • Ugoos m6 unbox p11
    Ugoos M6 Unboxing - PIC 11 of 12
  • Ugoos m6 unbox p12
    Ugoos M6 Unbox P12

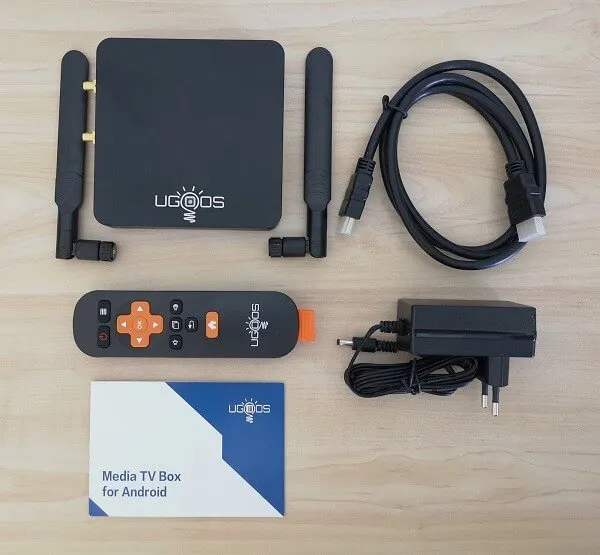

Items inside the package:

  • 1x Ugoos AM6 Box
  • 2x External Wifi Antennas
  • 1x HDMI Cable
  • 1x IR Remote Control
  • 1x DC 12V/2A Power Adapter
  • 1x User Guide
Ugoos am6 items

Design

With a size of just (L x W x H): 11.5 x 11.5 x 2.3 cm with an aluminum material-made case and a weight of ~298gr, the Ugoos AM6 case delivers top-notch build quality. You can find the Ugoos brand name print on the upper cover of the issue. The LED operation indicator light is located inside one of the brand “O”  letters giving it a nice design touch and changing colors according to different operating modes. For example, the blue color switches on sleep power-saving mode, the rose/pink for normal operation mode, and the purple color indicate the device is under a booting process.

As for cooling. The case shell, excluding the on/off button made from plastic, is entirely made from aluminum alloy material, most likely manufactured in the CNC machining process. Venting/cooling slots were also added at the bottom and the left side of the case. Overall, my impression of building quality was excellent.

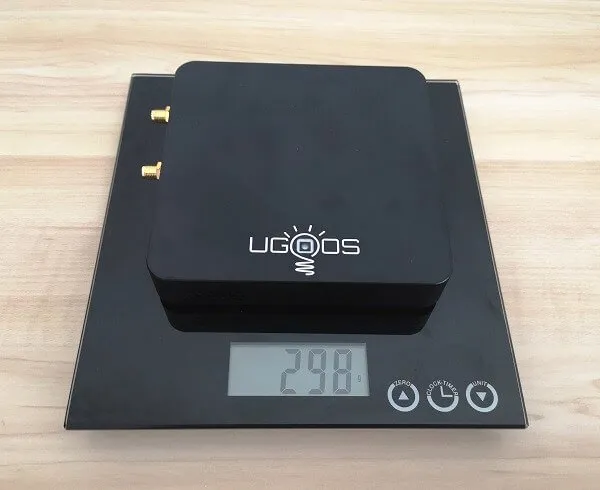

Ugoos AM6 Weighting (Excluding External Antennas)

Ugoos am6 checking weight

Ugoos AM6 TV Box | Full view

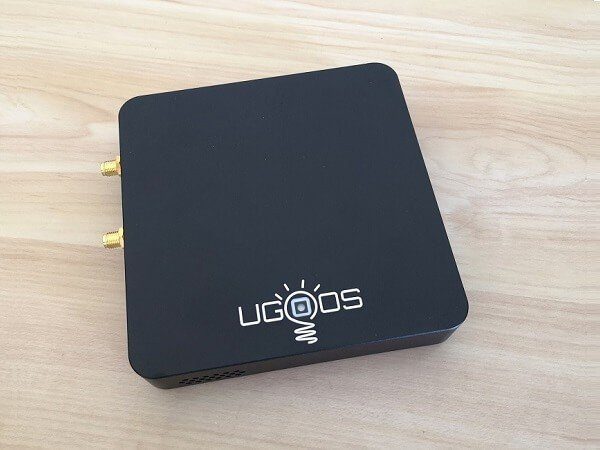

  • Ugoos am6 p1
    Ugoos AM6 - Full View
  • Ugoos am6 p2
    Ugoos AM6 - Top View

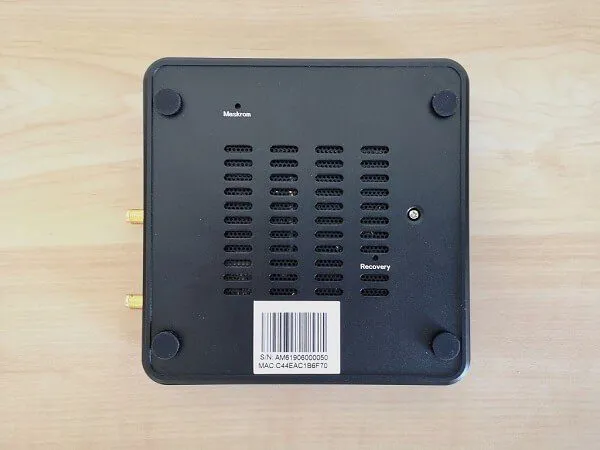

  • Ugoos am6 p3
    Ugoos AM6 - Bottom View
  • Ugoos am6 p4

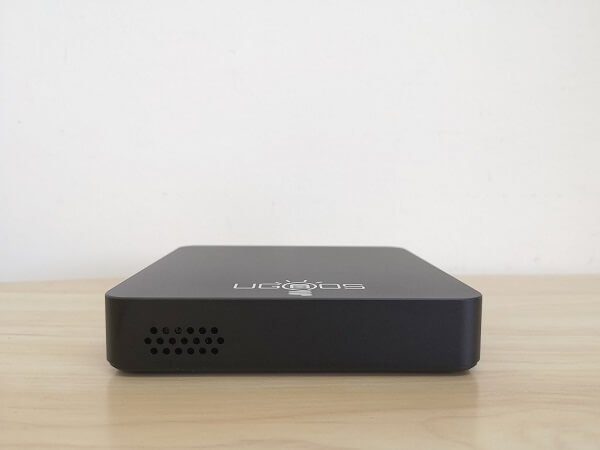

    Ugoos AM6 - Front View

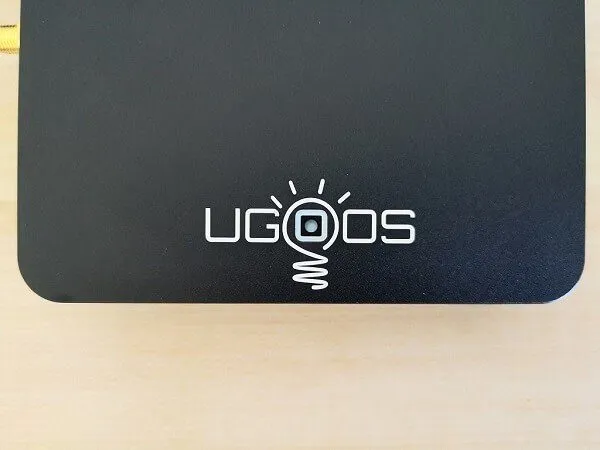

  • Ugoos am6 p9
    Ugoos AM6 - LED status indicator

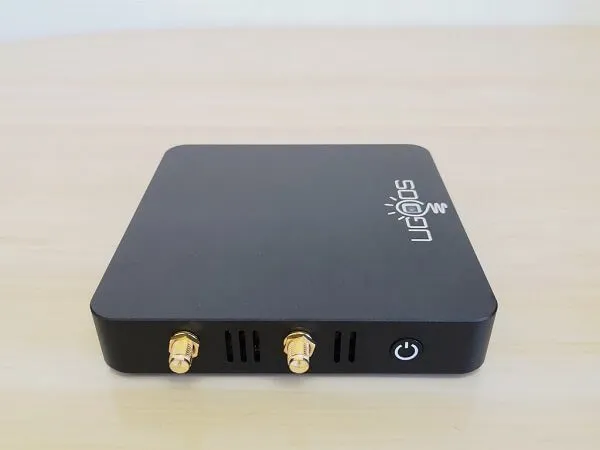

  • Ugoos am6 p8
    LED status indicator - Left view
  • Ugoos am6 p6
    LED status indicator - Right view

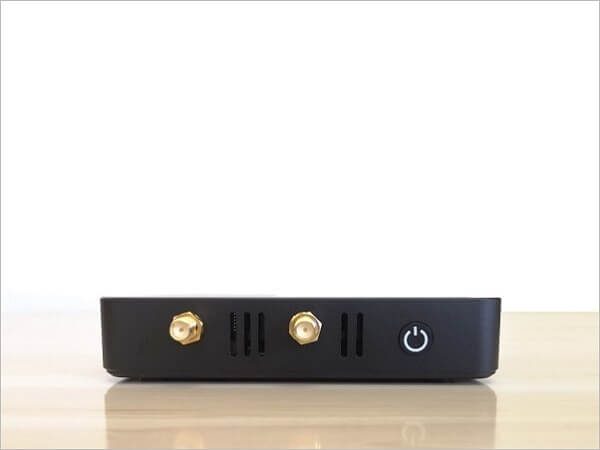

  • Ugoos am6 p7
    LED status indicator - Left view

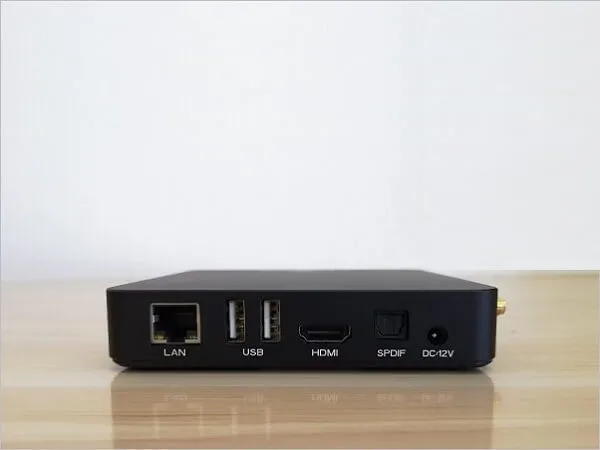

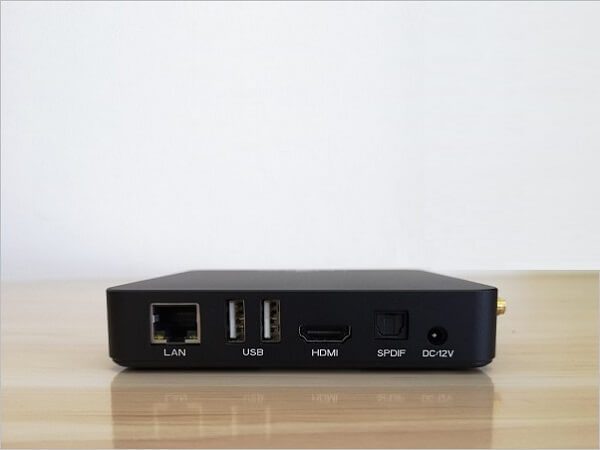

  • Ugoos am6 p5
    LED status indicator - Rearview

First-time Operation

The operation of the Ugoos AM6 was straightforward. To turn the unit on, use the simple IR Remote control provided with the package or the power button next to the external WiFi antennas. The remote control design was good and very young regarding color usage and button layout design.

As with most TV boxes, the default provided remote is essential and offers minimal functionality, especially in cursor navigation mode, where it’s prolonged and not very responsive. To use and operate this product effectively, you will need to buy a wireless keyboard, preferably with a Touchpad. You can check the excellent Rii i4 mini wireless keyboard with a good responsive small-size Touchpad that will not burn a hole in your pocket.

Hardware

The Ugoos AM6 comes in two main variations (editions). The standard edition is equipped with 2GB RAM, mainly designed for the end-user consumer, and a more high-level model with 4GB RAM (64-bit) for special OEM orders. Both editions are powered with the same snappy Amlogic S922X processor with six cores (Hexa).  The processor incorporates two CPU clusters.

The first cluster incorporates a quad-core (4) ARM Cortex-A73 cores capable of operating frequencies up to 1.7 GHz, along with a secondary dual-core ARM Cortex-A53 cluster that can run at clock speeds up to 1.8GHz. According to ADIA64 Hardware information, the quad-core clusters are overlooked to a higher frequency (2.2GHz) and the secondary to 1.8GHz. Those settings were probably adjusted to “squeeze” some extra performance.

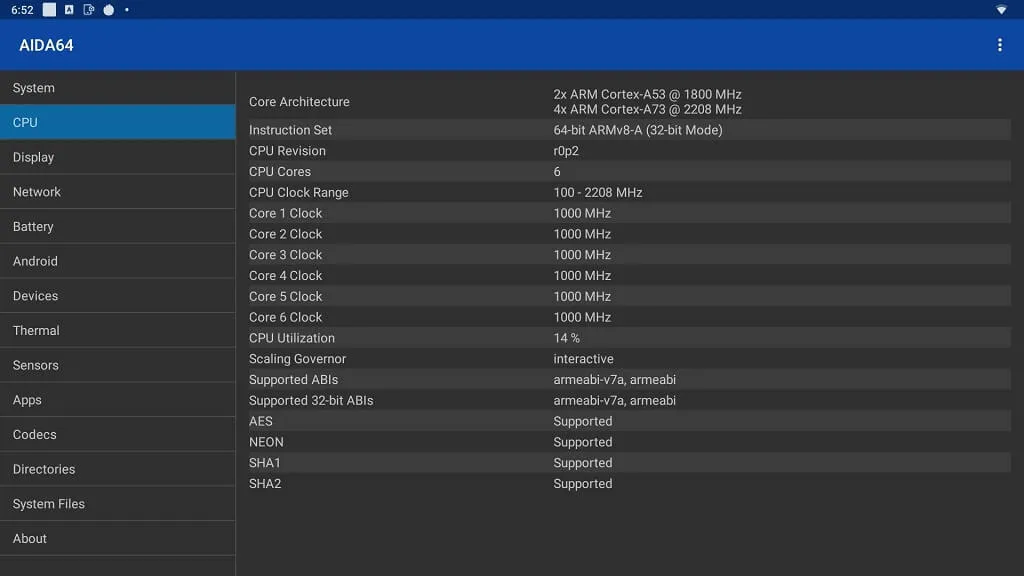

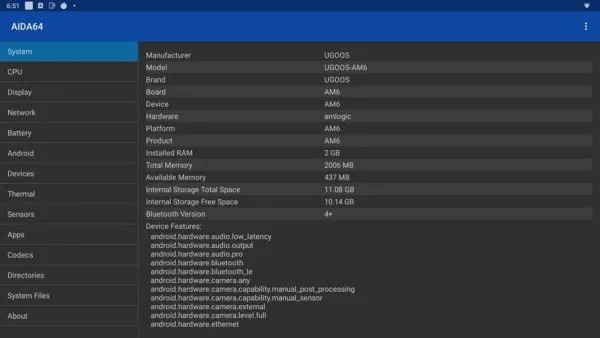

AIDA64 Hardware Information

Ugoos am6 performance p1
Ugoos AM6 Performance P1
Ugoos am6 performance p2
Ugoos AM6 Performance P2

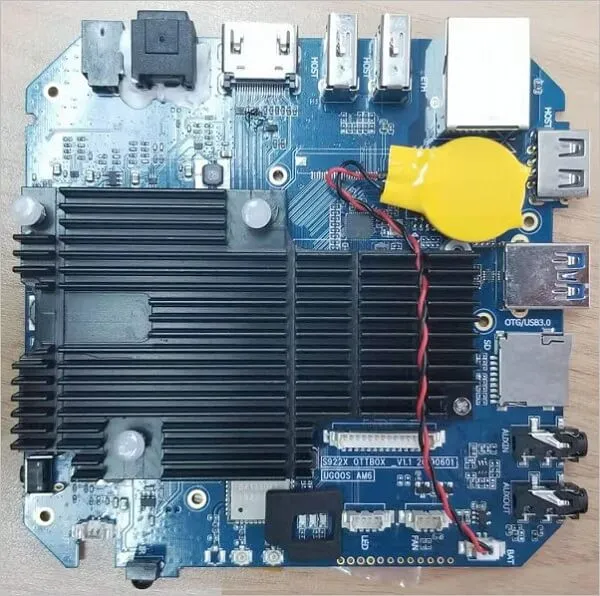

Ugoos AM6 PCB

Ugoos am6 pcb

System (Software)

Running under the latest Android 9.0 Operating system, the Ugoos AM6 comes with a clean app-free ROM with the default Android UI, except for a few standard pre-installed apps, including the google play store service.

Suppose you are a user seeking a more attractive interface with a better user experience. In that case, you can try an unofficial customized ROM based on Android 9.0 OS, developed by a software guy named sasvlad which offers an Android TV interface that can be downloaded through the freaktab.com forum.

According to Ugoos, a team of independent software developers is also working on making new OS images for Armbain, LibreElec, CoreElec, and perhaps more.

Unique Features List:

Additional unique features integrated inside the Ugoos AM6 firmware can be found under the ‘Ugoos settings’ option:

  1. ROOT – One-Click Installation for gaining instant root access.
  2. Automatic/manual frame rate adjustment.
  3. Device keys Remapping – Let your map and set up key functionality for different controls (vendors/manufacturers).
  4. File Server/client functionality.

Remote Control

The Ugoos M6 has a generic remote control unit suitable for basic operations such as navigating, powering, or turning off the device.

Ugoos AM6 IR Remote Control

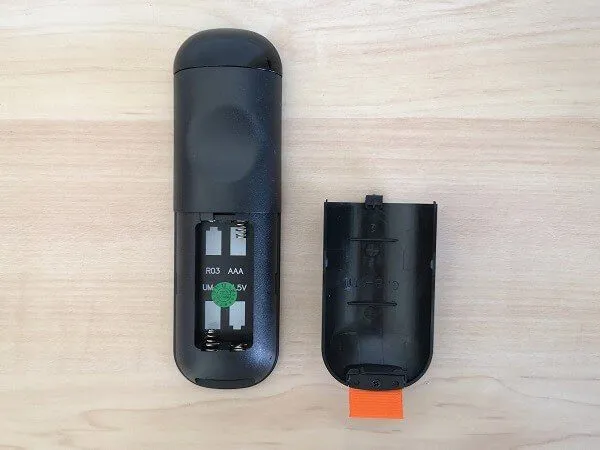

  • Ugoos am6 remote p7
    Ugoos AM6 Remote P7

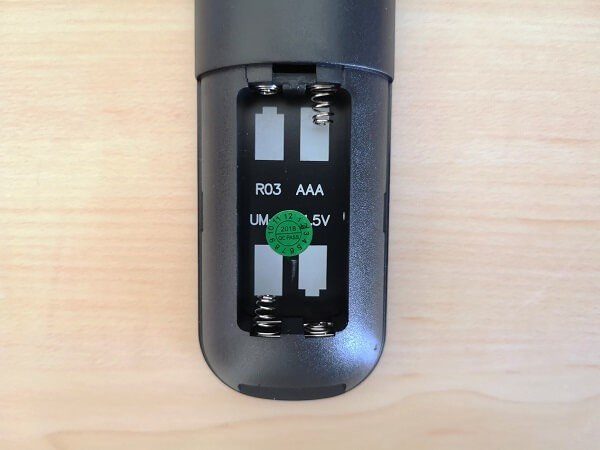

  • Ugoos am6 remote p6
    Ugoos AM6 Remote P6

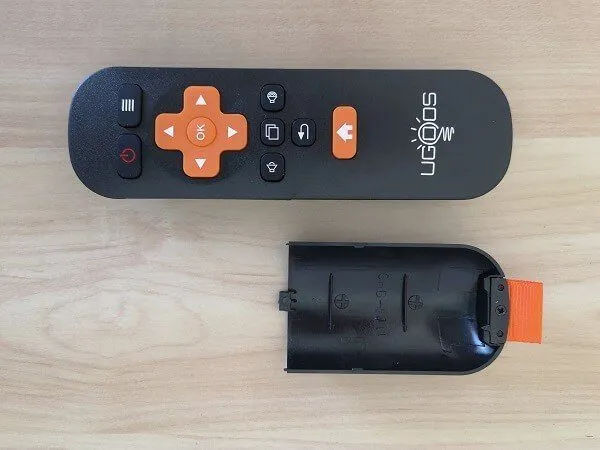

  • Ugoos am6 remote p5

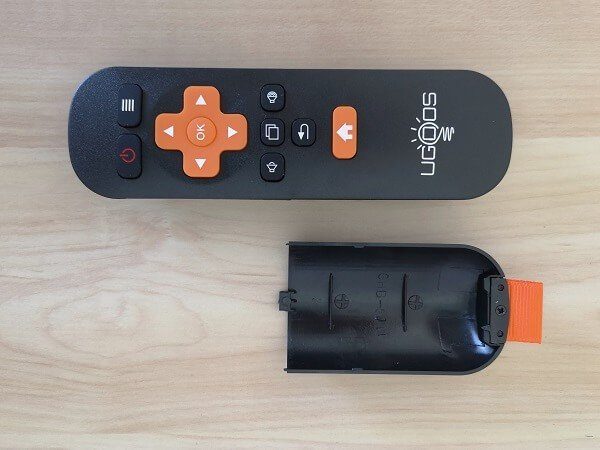

    Ugoos AM6 Remote P5

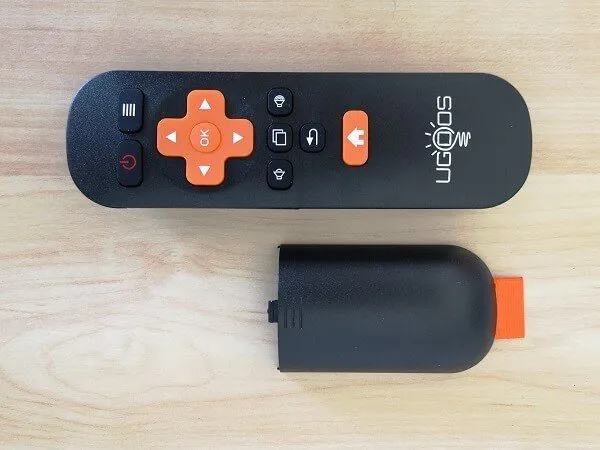

  • Ugoos am6 remote p4
    Ugoos AM6 Remote P4

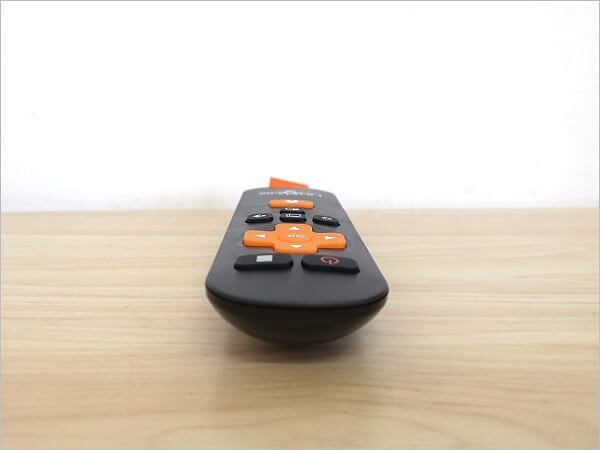

  • Ugoos am6 remote p3 1
    Ugoos AM6 Remote P3 1

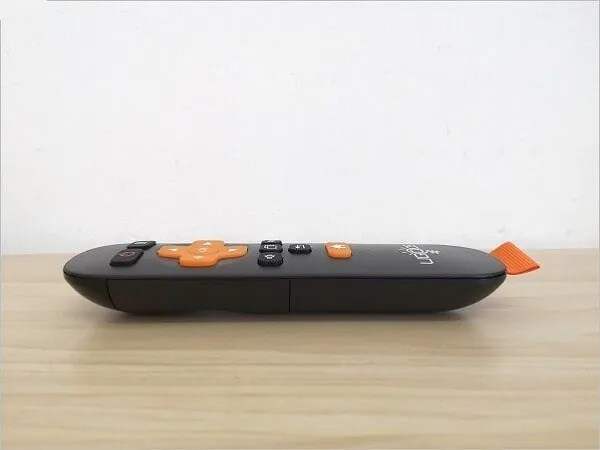

  • Ugoos am6 remote p2 1

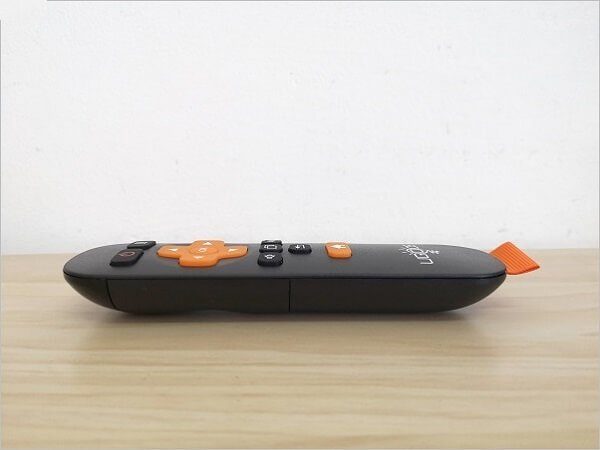

    Ugoos AM6 Remote P2 1

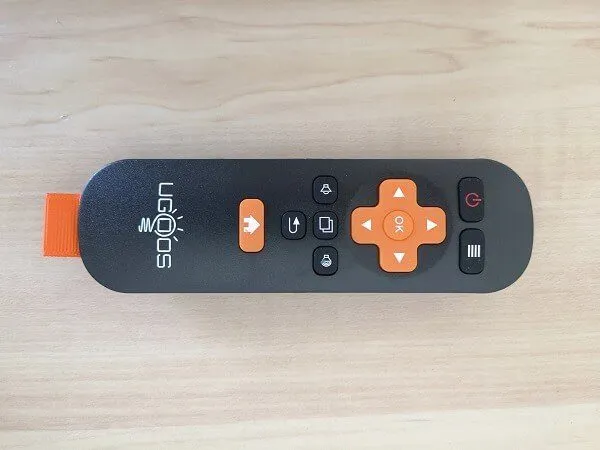

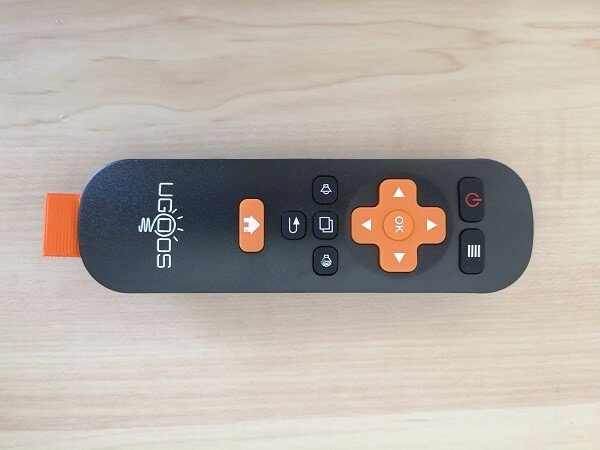

  • Ugoos am6 remote p1 1
    Ugoos AM6 Remote P1 1

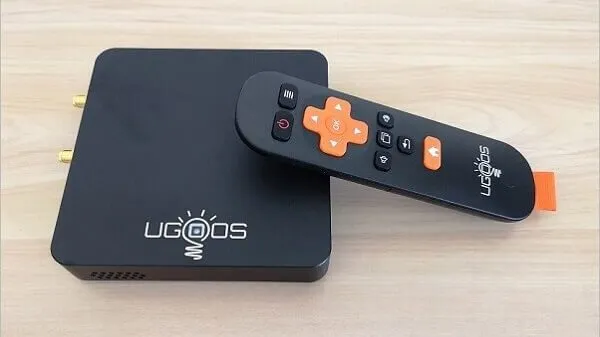

AM6 Box + Remote Control:

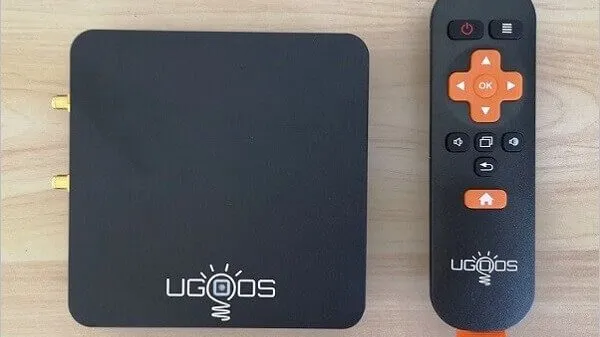

  • Ugoos am6 remote p1
    Ugoos AM6 Remote P1
  • Ugoos am6 remote p2
    Ugoos AM6 Remote P2

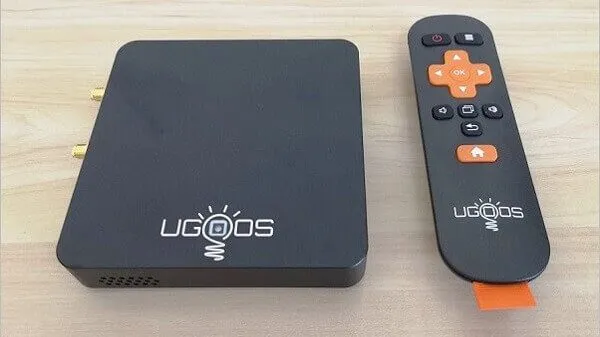

  • Ugoos am6 remote p3

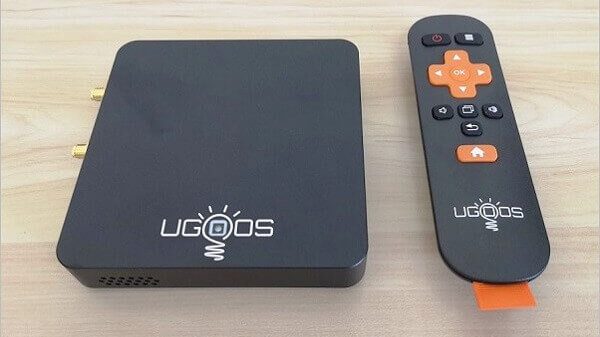

    Ugoos AM6 Remote P3


Connectivity

In the video streaming arena, you are pretty much covered. The Ugoos AM6 package includes a pair of external WiFi antennas. Capable of connecting to dual-band broadband routers that support 2.4 GHz and 5 GHz channels. In my test, placing my Huawei P20 handset close to the box and testing connection speed, I received similar transfer speeds of ~70 Mbps, indicating everything was working correctly.

Ethernet (LAN) connectivity was also performed with zero problems. With a standard 200Mbps connection, I could reach up to speeds of 130-150Mbps.

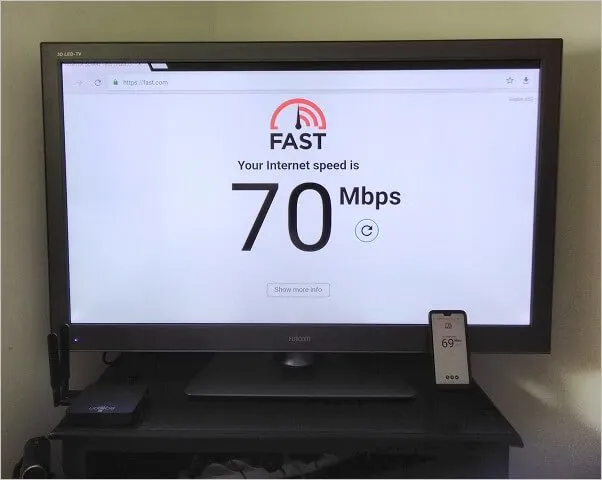

Huawei P20 Next to The Ugoos AM6

Ugoos am6 wifi test

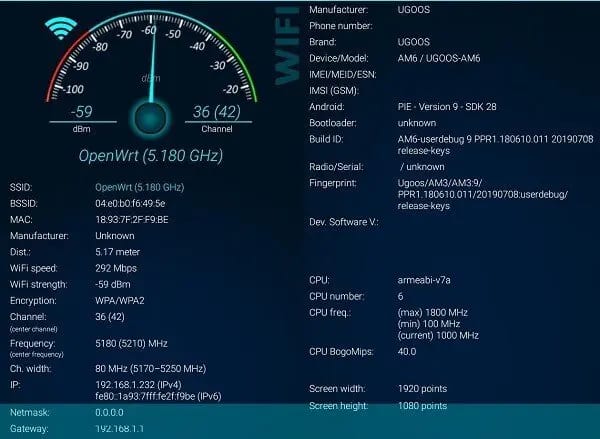

Connection Information

Ugoos am6 wifi signal

Connection Information:

  • SSD: OpenWrt
  • Encryption: WPA/WPA2
  • Frequency: 5180 (5210) MHz
  • WiFi strength: -59 dBm
  • Distance: ~5 meter
  • WiFi Speed: 292 Mbps
  • Channel 36 (42)

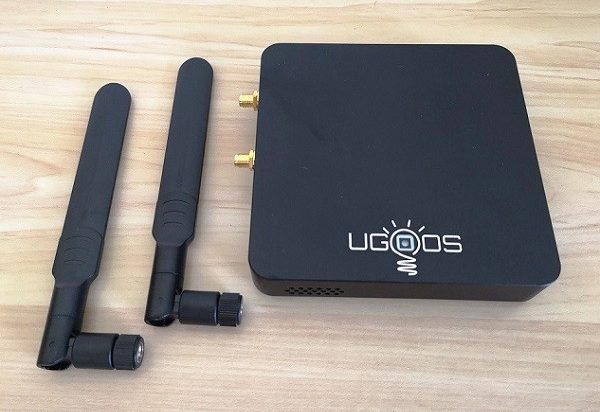

 Ugoos AM6 + WiFi Antennas

  • Ugoos am6 antennas p1

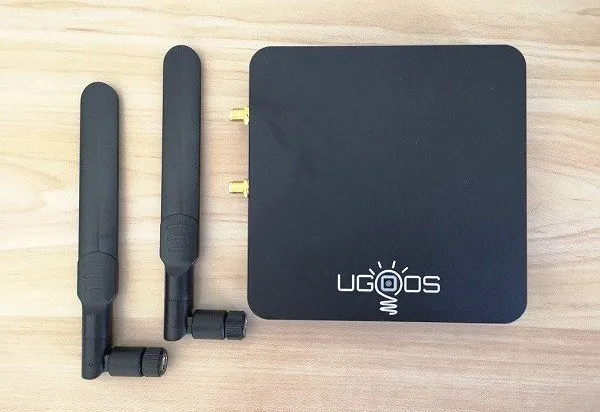

    Ugoos AM6 Antennas P1
  • Ugoos am6 antennas p6
    Ugoos AM6 Antennas P6
  • Ugoos am6 antennas p2
    Ugoos AM6 Antennas P2

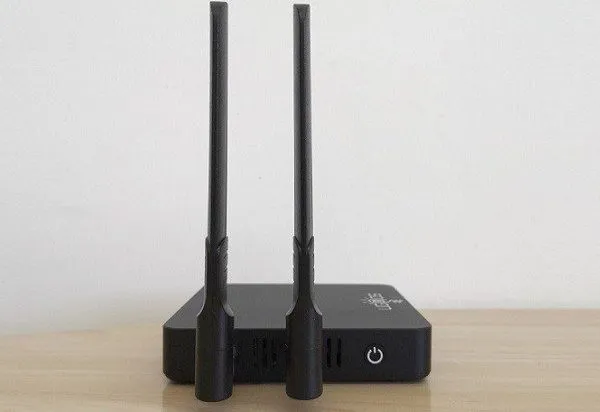

  • Ugoos am6 antennas p5
    Ugoos AM6 Antennas P5

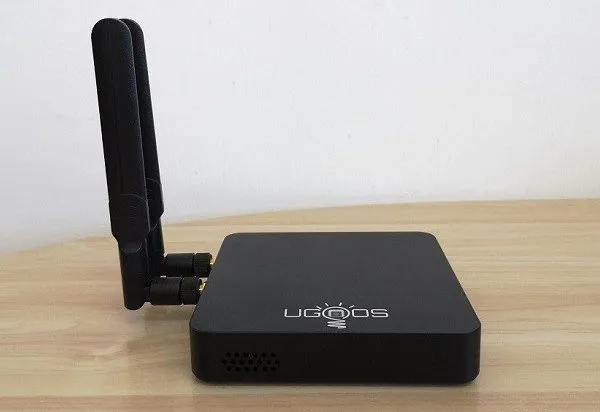

  • Ugoos am6 antennas p3
    Ugoos AM6 Antennas P3

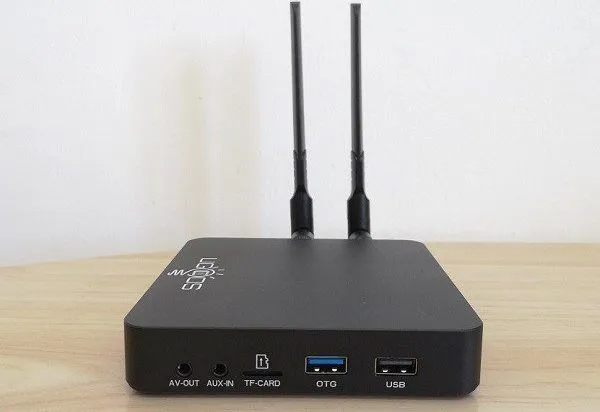

  • Ugoos am6 antennas p4
    Ugoos AM6 Antennas P4
  • Ugoos am6 antennas p1
    Ugoos AM6 Antennas P1
  • Ugoos am6 antennas p4
    Ugoos AM6 Antennas P4
  • Ugoos am6 antennas p8

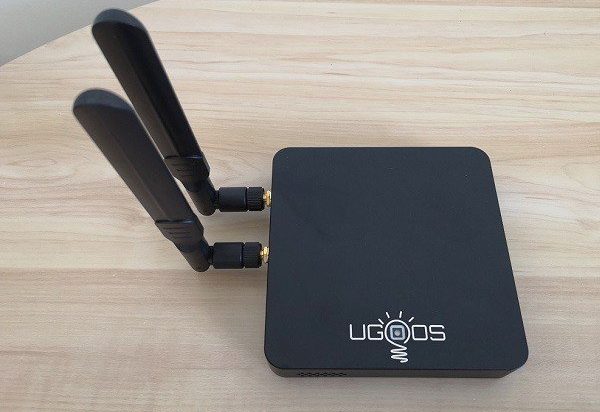

    Ugoos AM6 Antennas P8
  • Ugoos am6 antennas p8
    Ugoos AM6 Antennas P8
  • Ugoos am6 antennas p5
    Ugoos AM6 Antennas P5
  • Ugoos am6 antennas p9

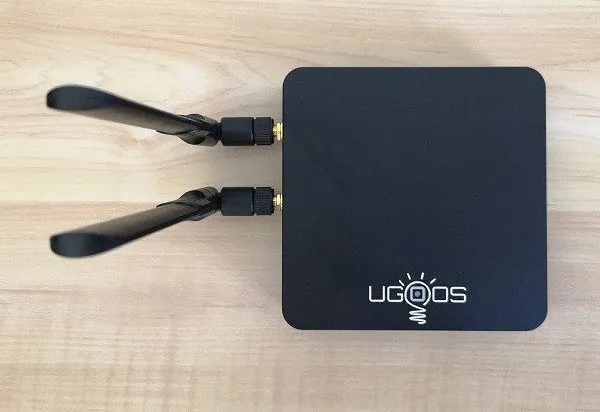

    Ugoos AM6 Antennas P9

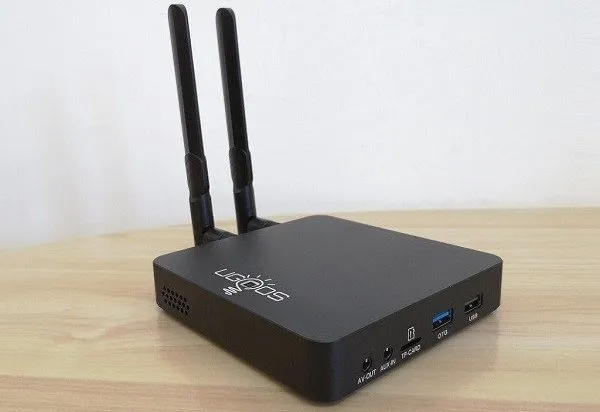

  • Ugoos am6 antennas p7
    Ugoos AM6 Antennas P7
  • Ugoos am6 antennas p3
    Ugoos AM6 Antennas P3
  • Ugoos am6 antennas p2
    Ugoos AM6 Antennas P2
  • Ugoos am6 antennas p7
    Ugoos AM6 Antennas P7
  • Ugoos am6 antennas p9
    Ugoos AM6 Antennas P9

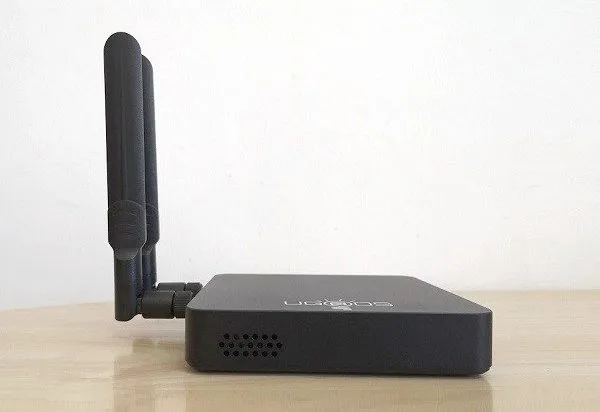

  • Ugoos am6 antennas p6
    Ugoos AM6 Antennas P6


Performance

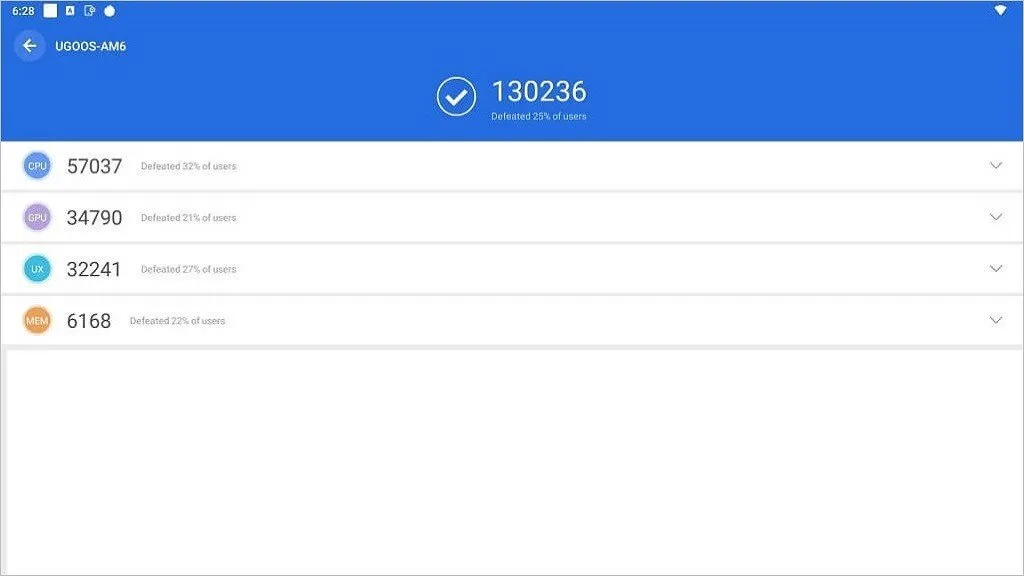

Based on the AnTuTu Benchmark test result, the Ugoos AM6 hardware performance compared to Xiaomi’s Mi S Box is approximately %25 faster with an AnTuTu score of 130236 compared to Xiaomi Mi Box, which ranks 31669.

AnTuTu Benchmark 7.3.1 Results

Ugoos am6 antutu p2
Ugoos AM6 AnTuTu P2

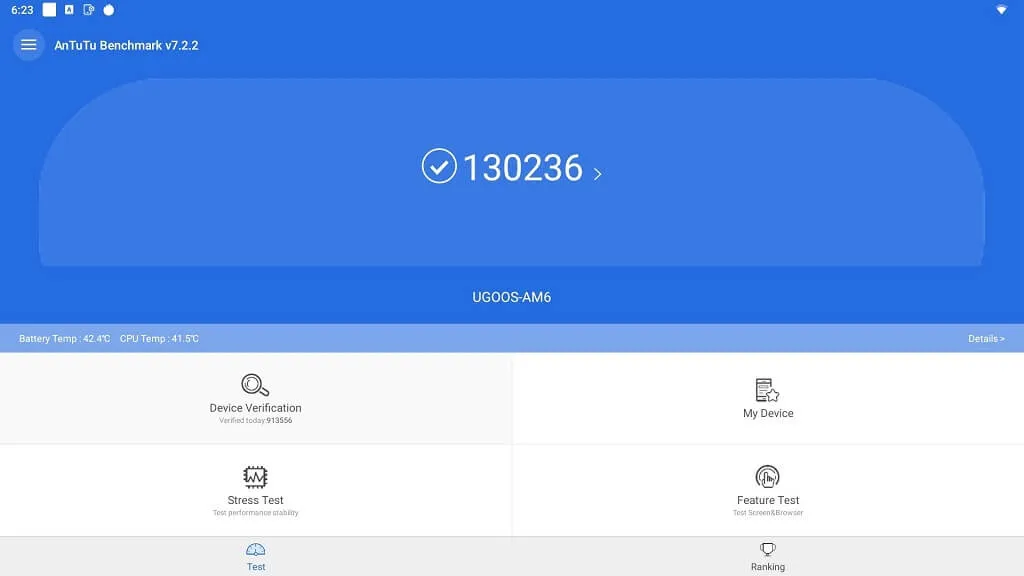

Ugoos am6 antutu p1

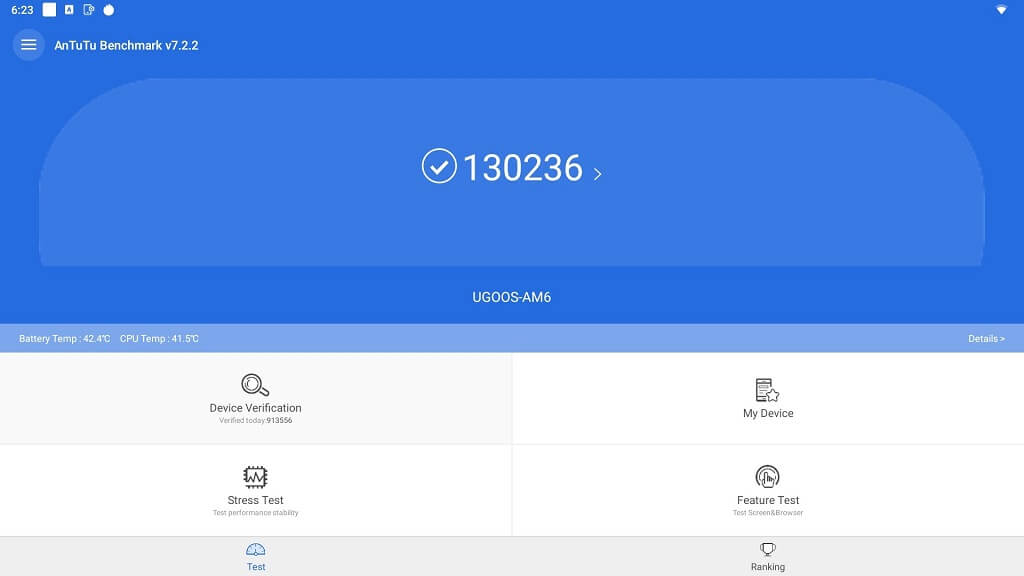

Ugoos AM6 AnTuTu P1
Ugoos am6 performance p2
Ugoos AM6 Performance P2
Ugoos am6 performance p1
Ugoos AM6 Performance P1

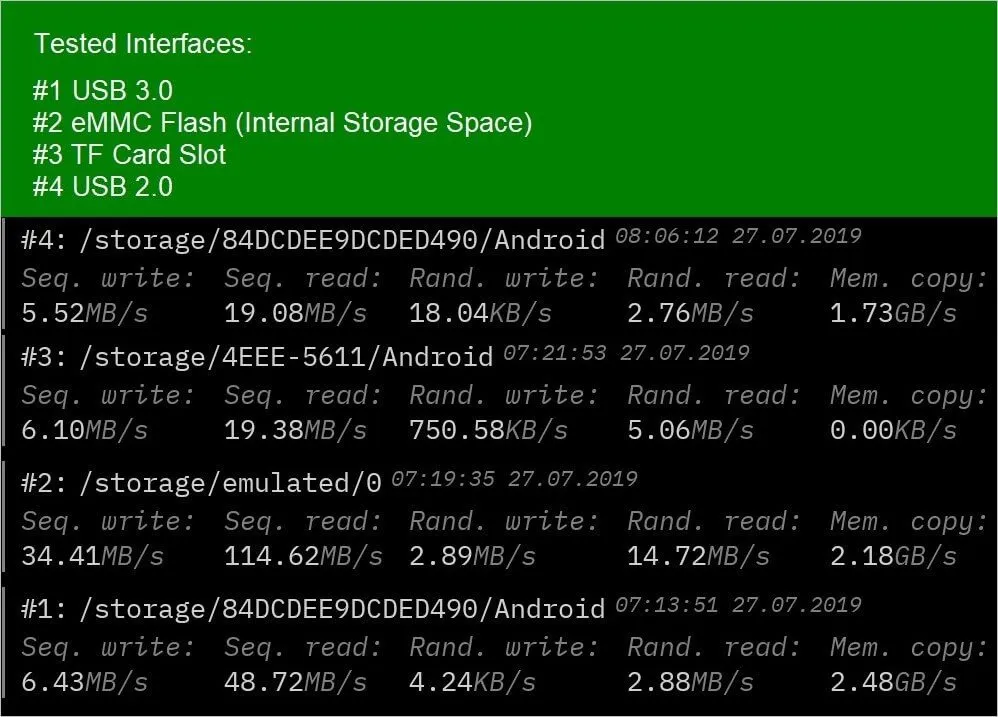

CPDT Benchmark Testing

Tested Storage Media:

  1. Kingsoft DT50 32GB.
  2. 16GB eMMC (Internal Storage).
  3. SanDisk Ultra 16GB (Class 10).
  • Test Software: CPDT (Cross Platform Disk Test).
  • Tested File Size: 1GB.
Cpdt bench ugoos m6

Test Results

Interface NameInterfaceStorage MediaSequential Read (MB/s)Random write (Kb/s)Random Read (MB/s)
USB.2#4Kingsoft DT50 32GB19.0819.08
2.76
TF Card Slot#3 SanDisk Ultra 16GB19.38750.585.06
Internal Storage#216GB eMMC114.622.8914.72
USB.3#1Kingsoft DT50 32GB48.724.24 2.88

Video playback and streaming

General experience playing UHD videos with Kodi “Leia” 18.3 (32-bit) was excellent. Kodi utilized about 50-52% of 2GB of RAM.

Kodi “Leia” 18.3

Cr18 tv box kodi storage
CR18 TV Box Kodi Storage
T96 pro plus kodi storage
T96 PRO Plus Kodi storage

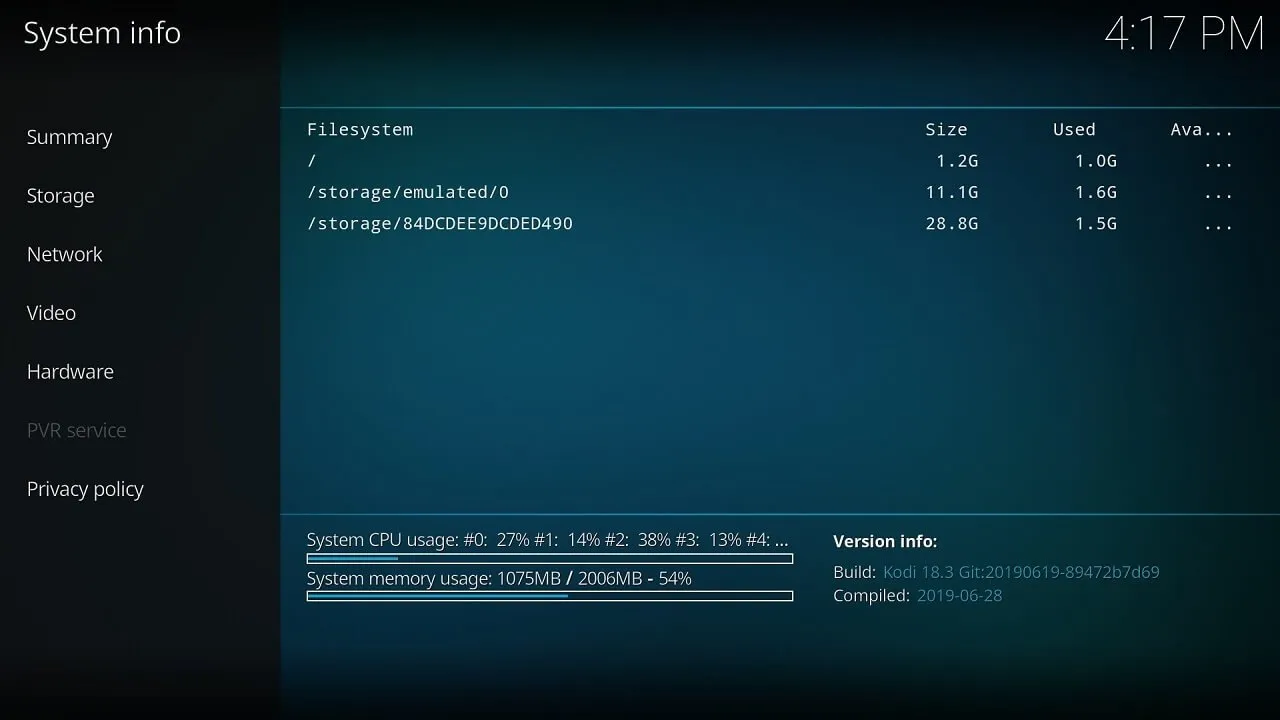

Ugoos am6 kodi storage
Ugoos AM6 Review: Powerful And Fast Android TV Box 1

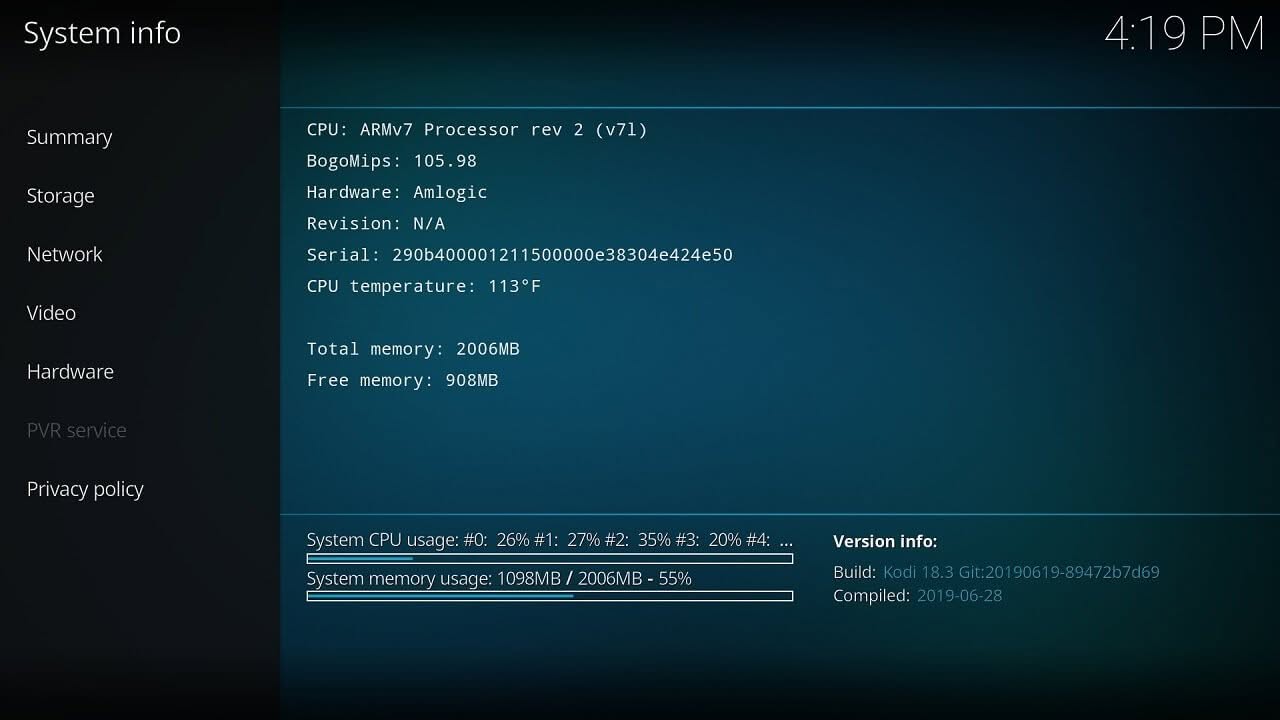

Ugoos am6 kodi hardware
Ugoos AM6 Review: Powerful And Fast Android TV Box 2

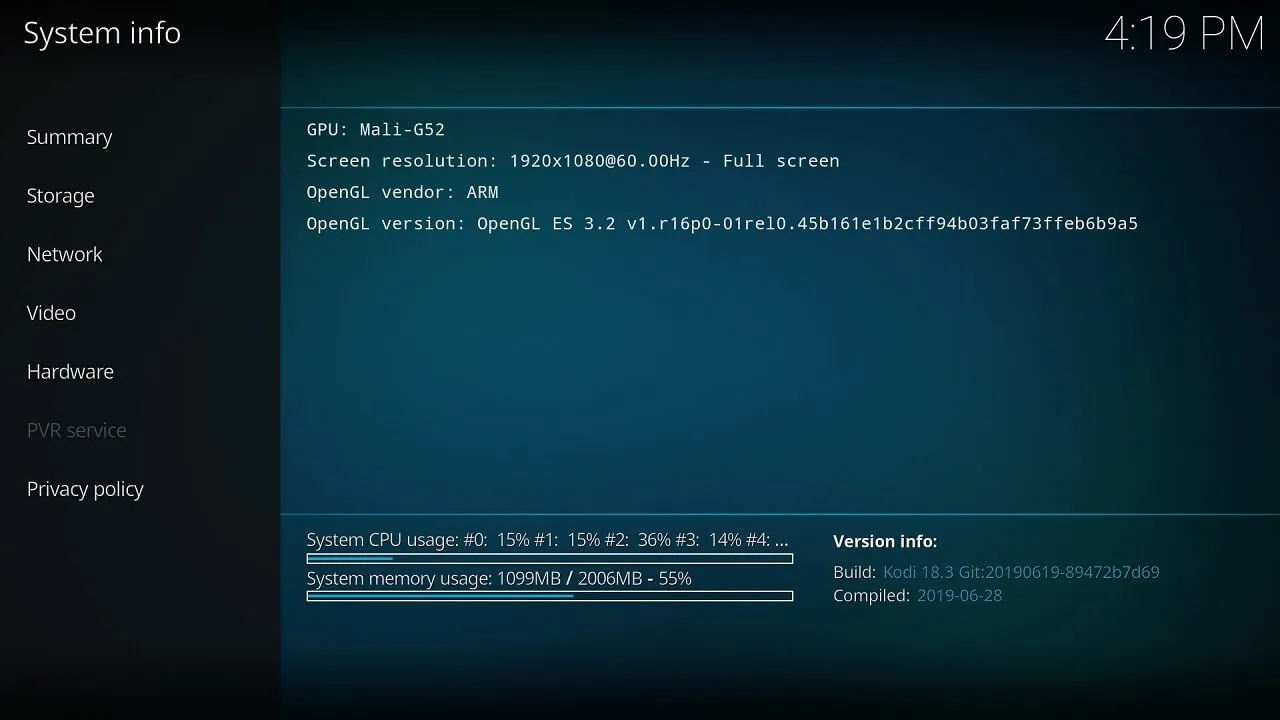

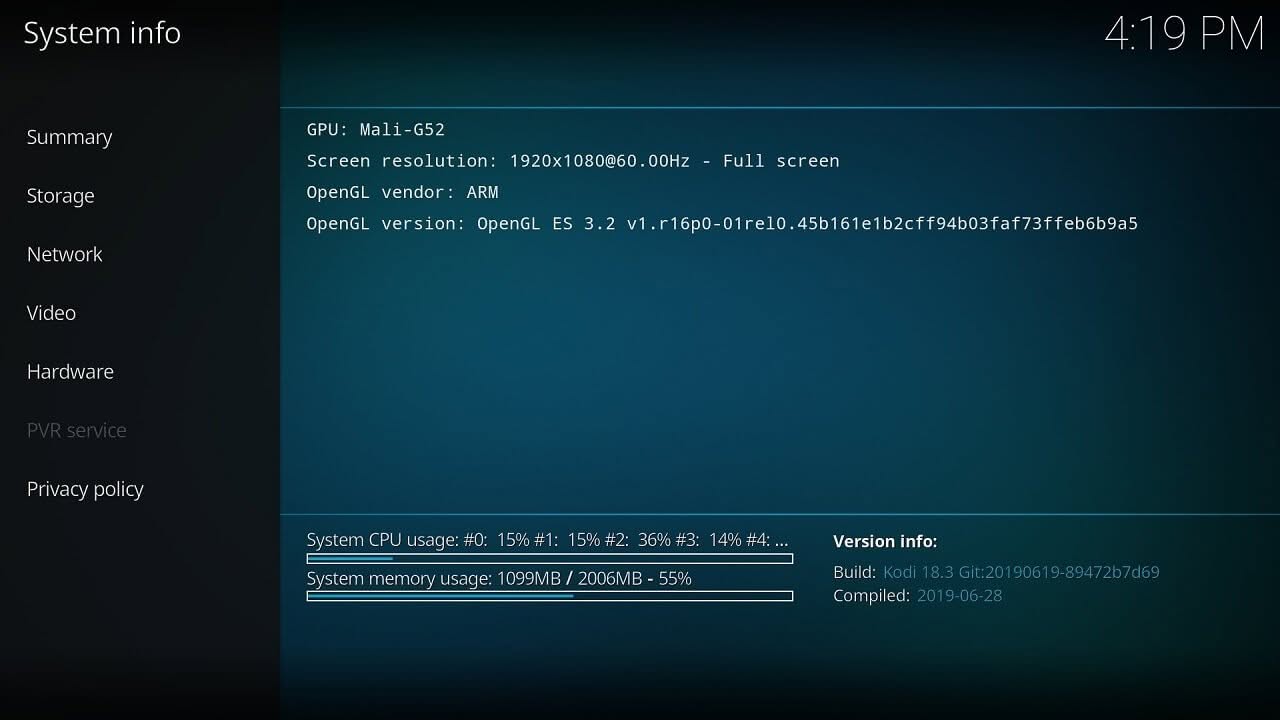

Ugoos am6 kodi video
Ugoos AM6 Review: Powerful And Fast Android TV Box 3

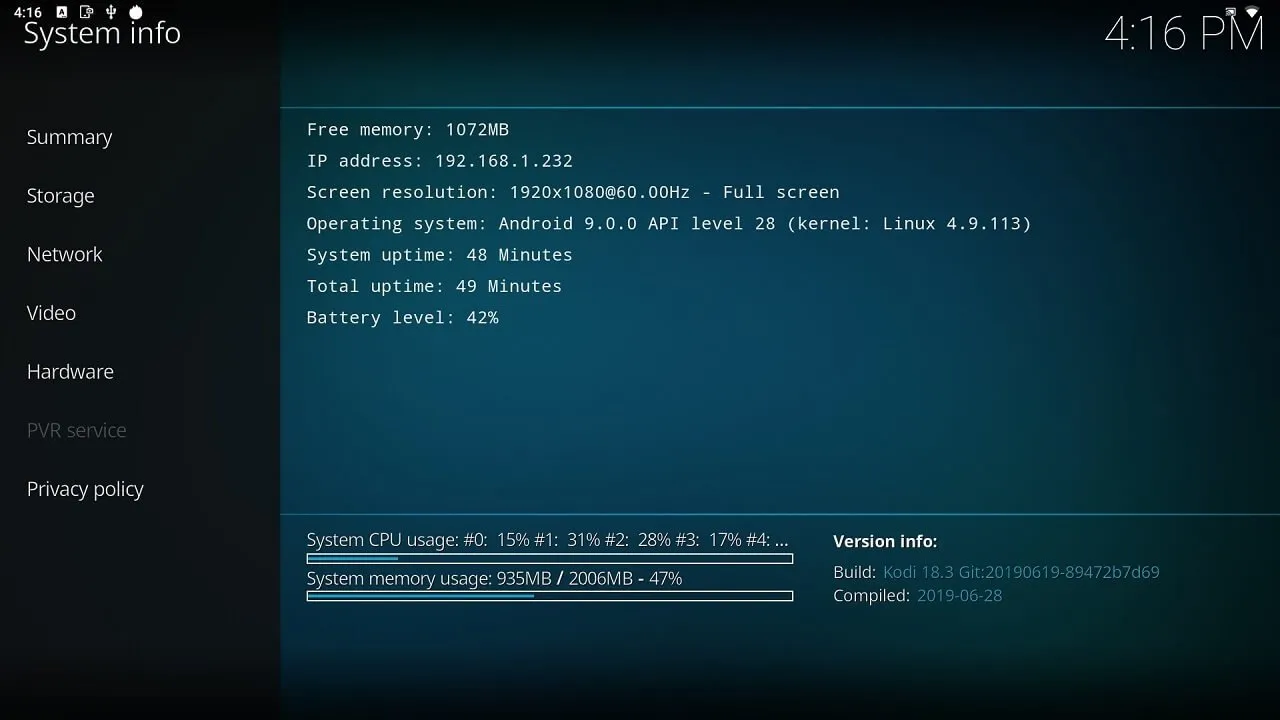

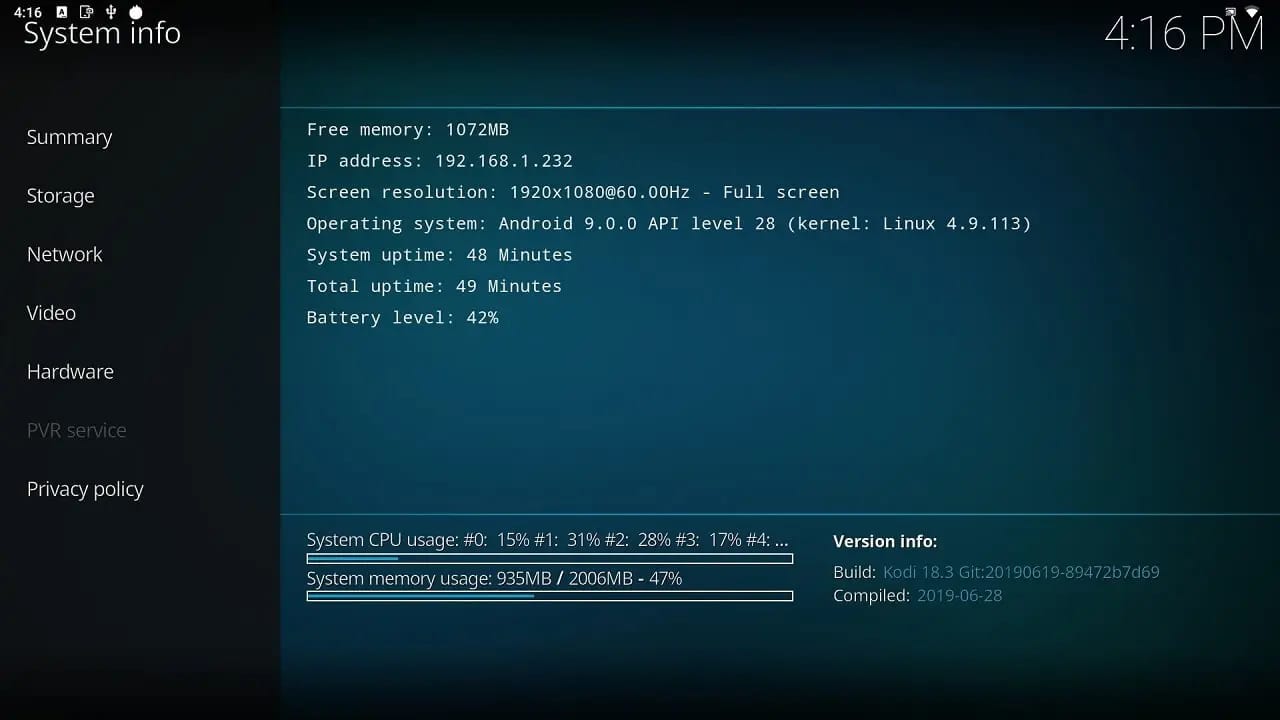

Ugoos am6 kodi summary
Ugoos AM6 Review: Powerful And Fast Android TV Box 4

Video Playback Performance Testing (Kodi)

Sample Name

 Video Codec

Audio

Container

        FPS

Resolution

    File size

Result

Hometown

HEVC

128 kbps, 48kHz, 2 Channels, AAC LC

MP4

25.00

1920x1080

458 MB

passed

AT007 ULTRA HD 4K - UHD AUSTRIA TRAVEL GUIDE GRAZ

HEVC

126 kbps, 44.1kHz, 2 Channels, AAC LC

MP4

24.00

3840x2160

533 MB

passed

BIRDS OF PREY 4K

HEVC

126 kbps, 44.1kHz, 2 Channels, AAC LC

MP4

29.97

3840x2160

      197MB

passed

The Curvature, Earth from Space in 4k

HEVC

192 kbps, 44.1kHz, 2 Channels, AAC LC

MP4

29.97

3840x2160

568 MB

passed

LaLaLand cafe

HEVC

3 399 kb/s, 48kHz, 8 Channels (Dolby TrueHD with Dolby Atmos)

MKV

29.97

3840x2160

425 MB

passed

COSTA RICA IN 4K

HEVC

125 kbps, 44.1kHz, 2 Channels, AAC LC

MP4

29.97

3840x2160

578 MB

passed

bbb_sunflower

HEVC

126 kbps, 48kHz, 2 Channels, AAC LC

MP4

30.00

3840x4320

785 MB

passed

Panasonic LUMIX GH4 'Light of the Yucatan' in 4K by Bryan Harvey

HEVC

125 kbps, 44kHz, 2 Channels, AAC LC

MP4

29.97

3840x2160

417 MB

passed

Honey Bees

HEVC

191 kbps, 44.1kHz, 2 Channels, AAC LC

MP4

24.00

3840x2160

417 MB

passed

Sony_4K_HDR_Camp

HEVC

192 kbps, 48kHz, 2 Channels, AAC LC

MP4

59.94

3840x2160

417 MB

passed


Test Conditions:

  • Storage: Kingston 32GB DT50 (System: NTFS)
  • Interface: SATA 3.0
  • Software: Kodi “Leia” 18.3

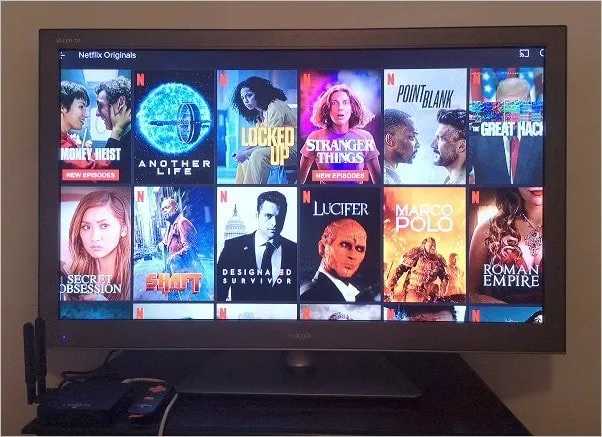

Netflix Support

Netflix compatibility is a subject rarely discussed in tv box reviews. You will be able to install and use Netflix without issues. Because this product is not officially listed as a certified Netflix device, it will most likely not play in UHD resolution if you are a Netflix premium plan subscriber. Having said that, most of the content on the Netflix platform is not UHD. Therefore, it’s not a big issue but still important to mention.

Netflix running on the Ugoos AM6

Ugoos am6

                                      Ugoos AM6 vs. Xiaomi Mi Box S – Hardware Comparison

BrandUgoos AM6

(Basic Model)

Xiaomi Mi Box S
OSAndroid 9.0Android 8.1
CPUAmlogic S922XAmlogic S905X
GPUARM MaliTM-G52 MP6Mali-450
Memory2GB DDR42GB DDR3
Case MaterialAll MetalPlastic
EthernetGigabit EthernetNone
External AntennasYesNo
Storage:16GB eMMC8GB eMMC
HDMIHDMI 2.1HDMI 2.0A
video resolutionmaximum 4K with 60 FPSmaximum 4K with 60 FPS
BluetoothBluetooth 5.0Bluetooth 4.2
802.11a/b/g/n/ac 2.4GHz/5GHzYesYes
External USB Storagex1 USB HOST 3.0
x3 USB HOST 2.0
x1 USB HOST 2.0

Final verdict

Ugoos AM6 is a great Set-Top Box with excellent design and above-average software support. The small essential features, such as the one-click root function and Linux images, distinguish it from other tv box brands, so we highly recommend buying it!


Price and Availability

Ugoos am6 p1

Ugoos AM6 TV Box

$129.99
This site contains affiliate links to products. We may receive a commission for purchases made through these links.
Buy this item
*Geekbuying Official Store*

Ugoos contact
Androidpimp
  • Website

Related Posts

X96 mini android tv box

Best Android TV Box 4K Smart WiFi TV Box | Vissontech X96

June 14, 2019 Amlogic Soc
Mk06 tv box review

Rikomagic MK06 Review: Low Cost Kodi/XBMC Mini PC

December 21, 2016 Amlogic Soc
Unuiga t96 pro plus review

Unuiga T96 Pro Plus Review: Amlogic S912 Powered Android Mini PC

December 15, 2016 Amlogic Soc
Unuiga u1ֹ mini pc review

Unuiga U1 Mini PC Review: Remix 2.0 OS Powered TV Box

June 1, 2016 Amlogic Soc
Droidbox t8s tv box review

DroidBOX T8-S Kodi TV Box Review

August 9, 2015 Amlogic Soc
Cxs806 s812 android tv box review

CXS806 Amlogic S812 TV Box Review

June 12, 2015 Amlogic Soc
Add A Comment

Comments are closed.

Categories
Vyprvpn Banner 496x310
Ivacy Vpn Deals 450x300
Recent Posts
  • Banana Pi BPI-R3 Mini: 2.5GbE embedded router board
  • Orange Pi 5: Affordable & Powerful 8 CPU Cores ARM SBC
  • Best Deals 2023: Unveiling the Hottest Spring Deals at Geekbuying
  • Banana Pi M5: A Cheaper Raspberry Pi 4 Alternative for $63
  • Xiaomi Redmi Note 12 Pro Price and Specs Revealed
  • Orange Pi 5B Unveiled with Wi-Fi 6 starting at low as $89
Facebook Twitter Instagram Pinterest Vimeo YouTube
Copywrite © 2023 AndroidPIMP - All rights reserved AndroidPIMP.

Type above and press Enter to search. Press Esc to cancel.
