Cooling and Temperatures
Idle temperature range
Based on our findings, under light workloads with an ambient temperature of approximately 27°C, we observed idle temperatures ranging from 42°C to 44°C. During more intensive tasks, temperatures can exceed 50°C.

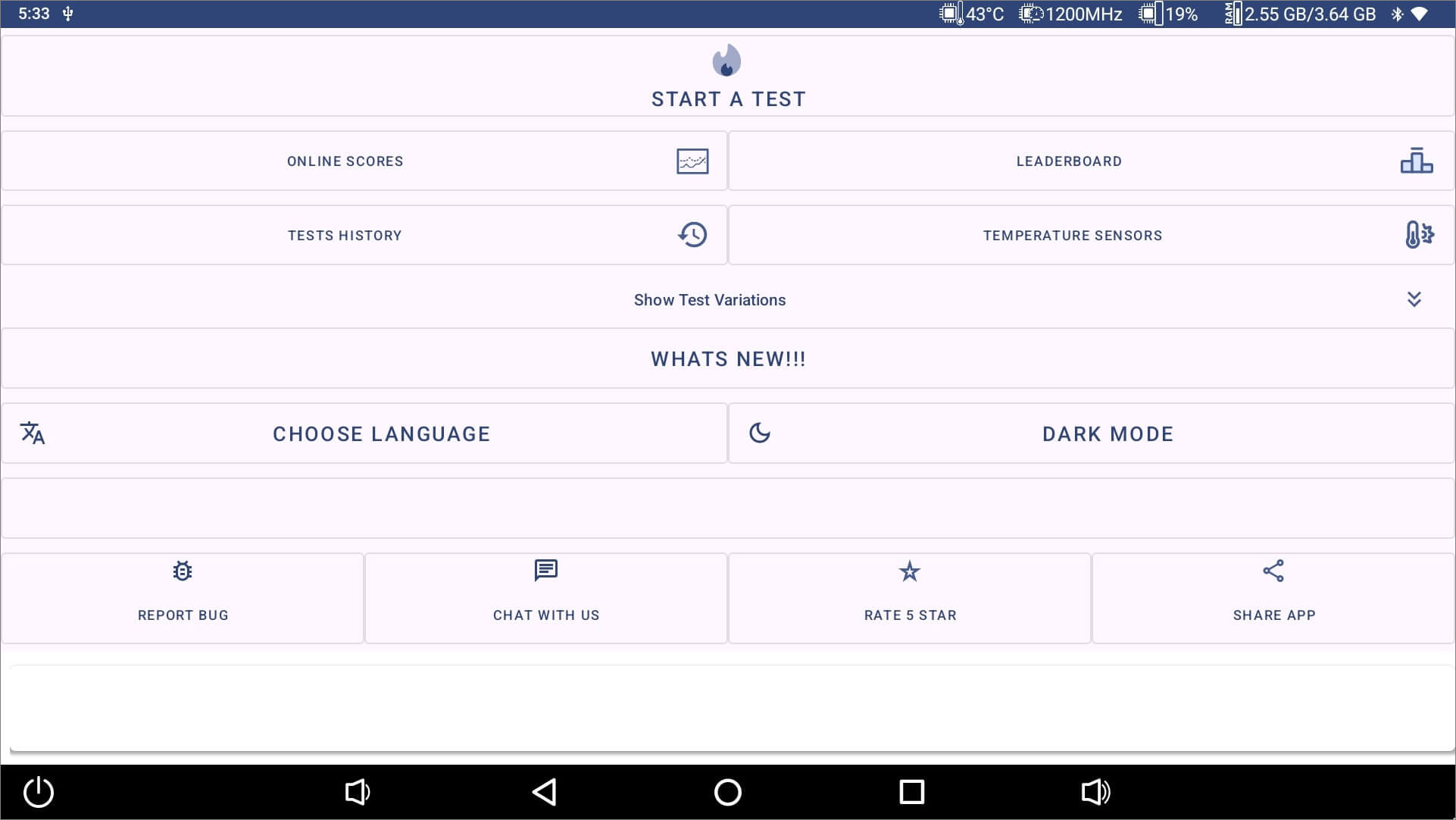

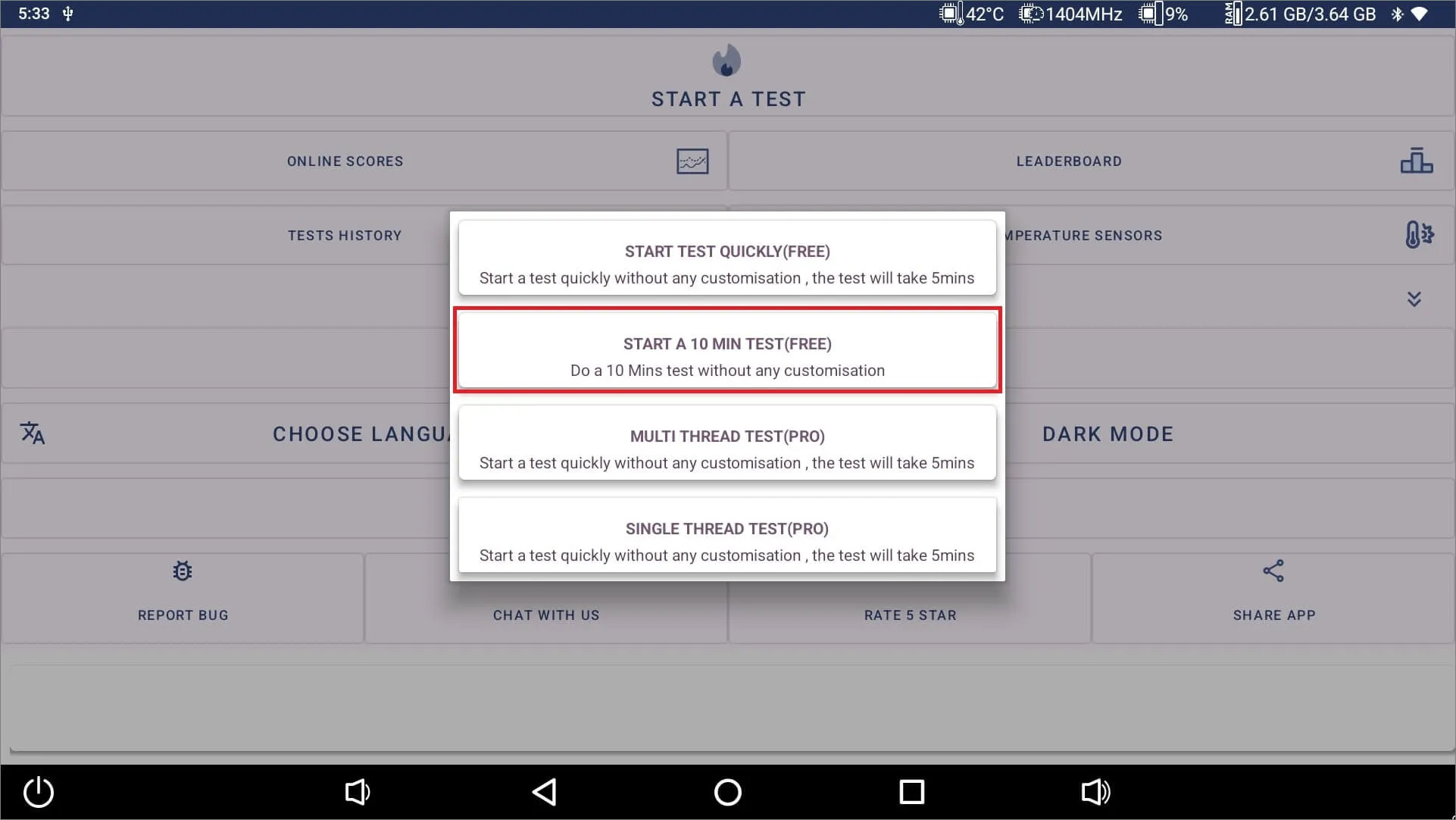

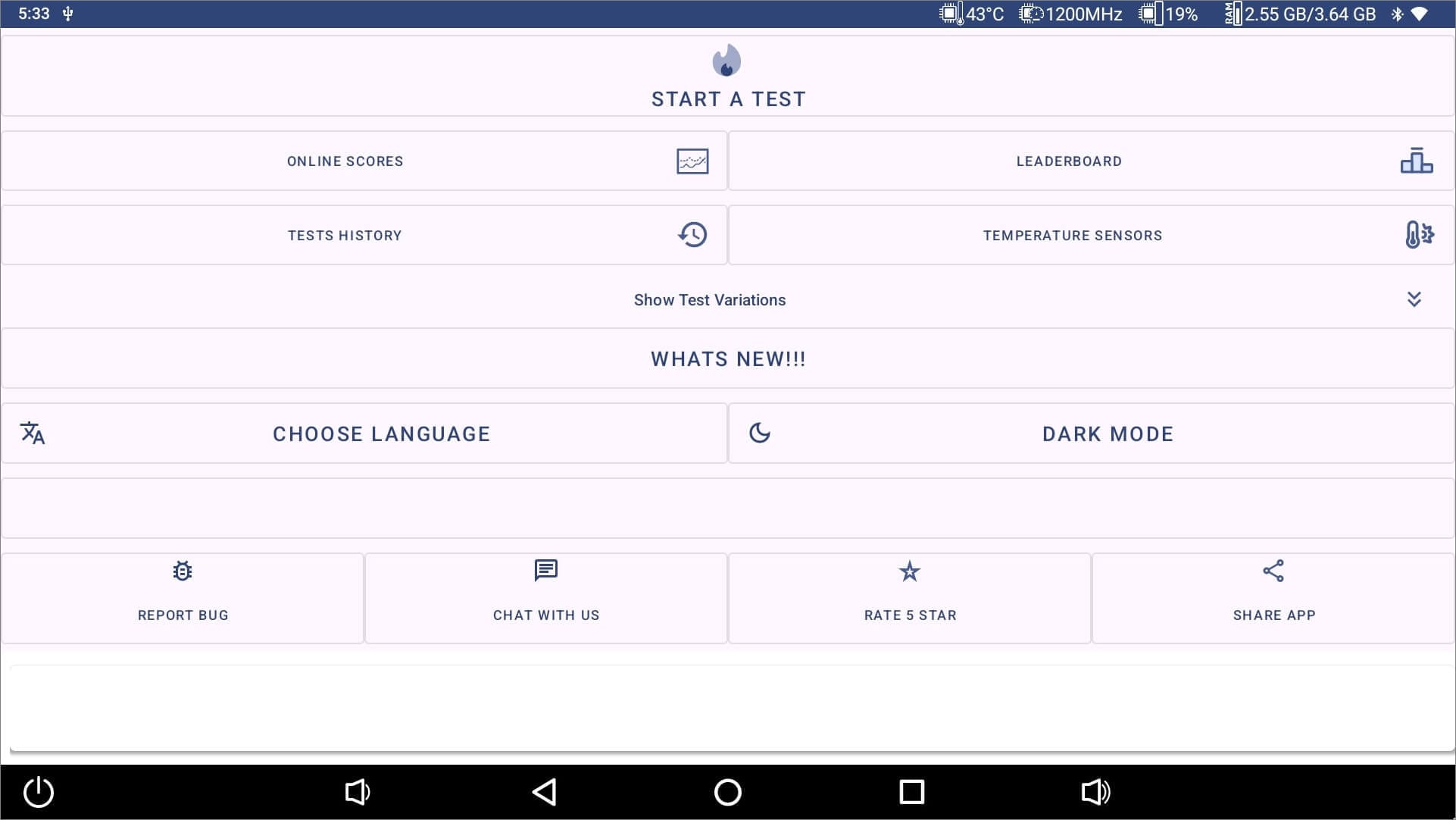

CPU Throttling Test

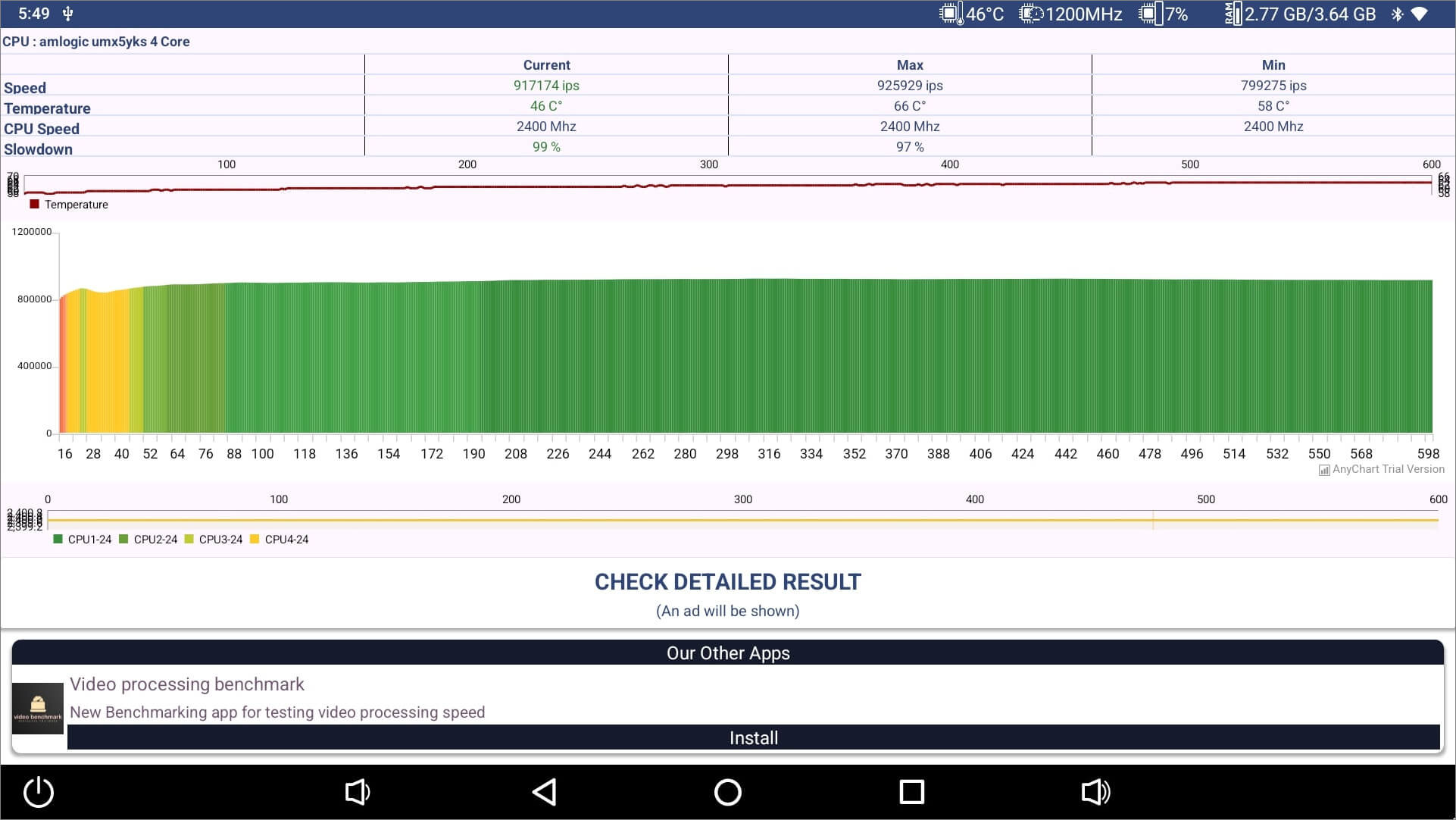

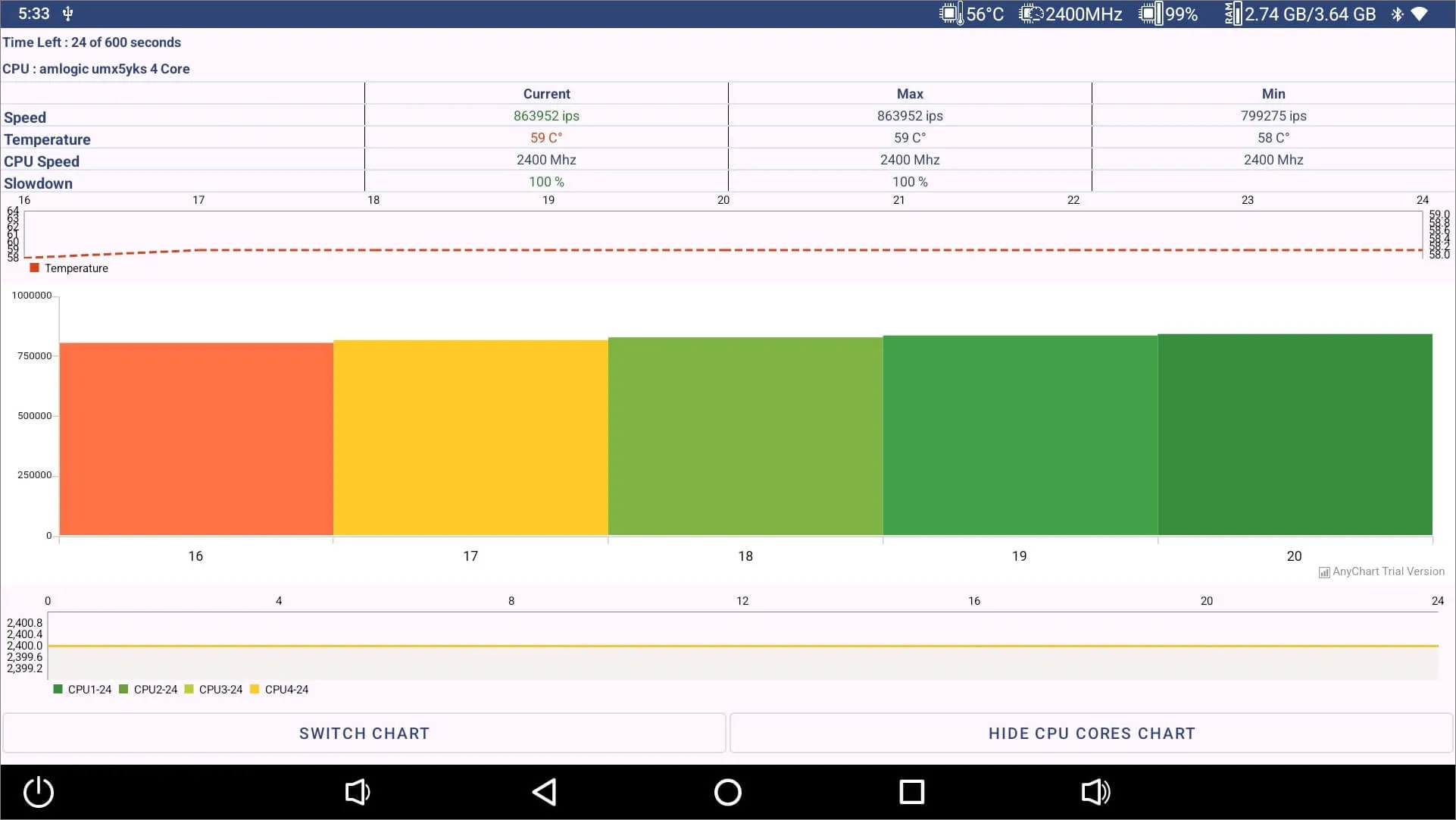

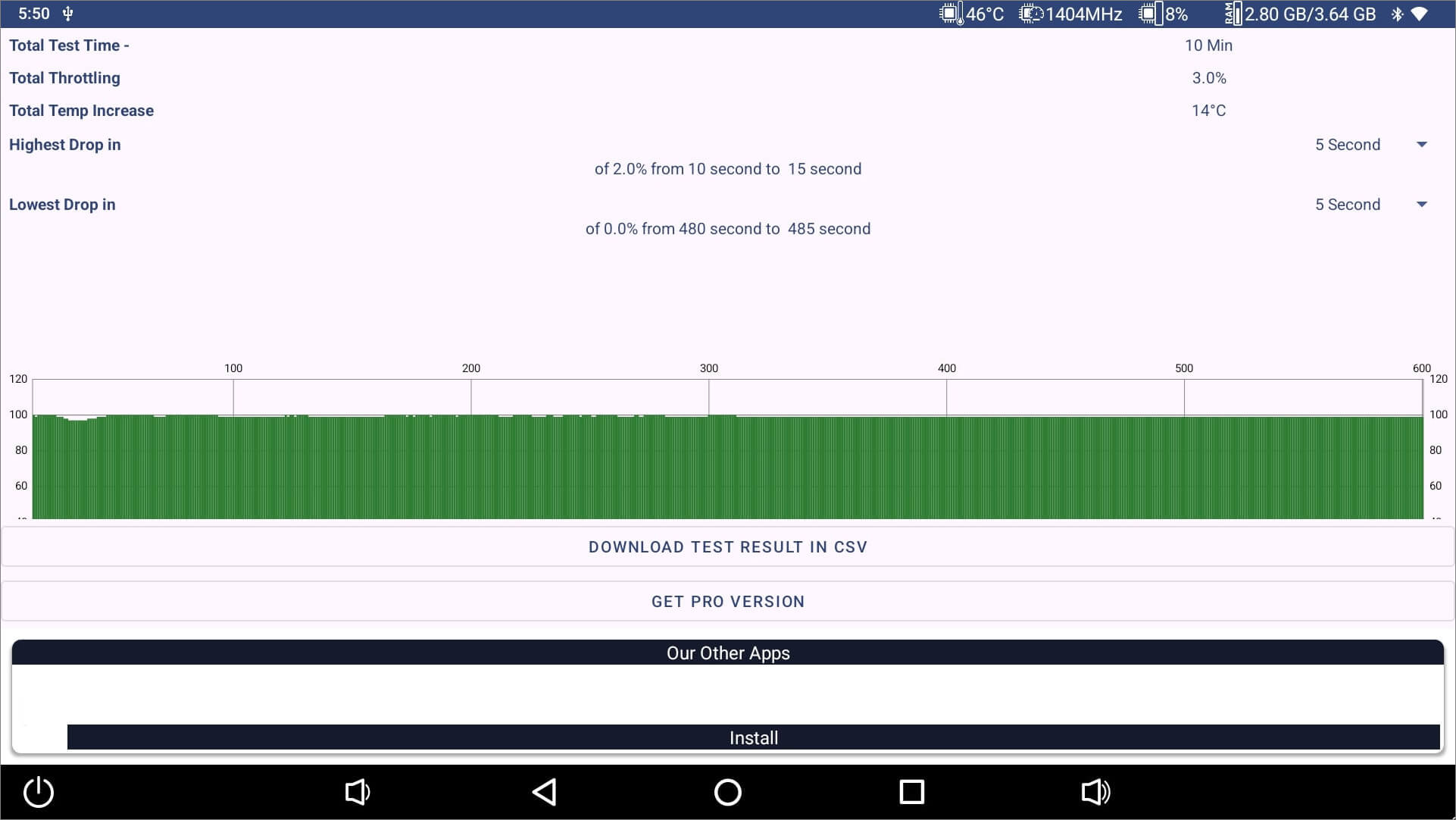

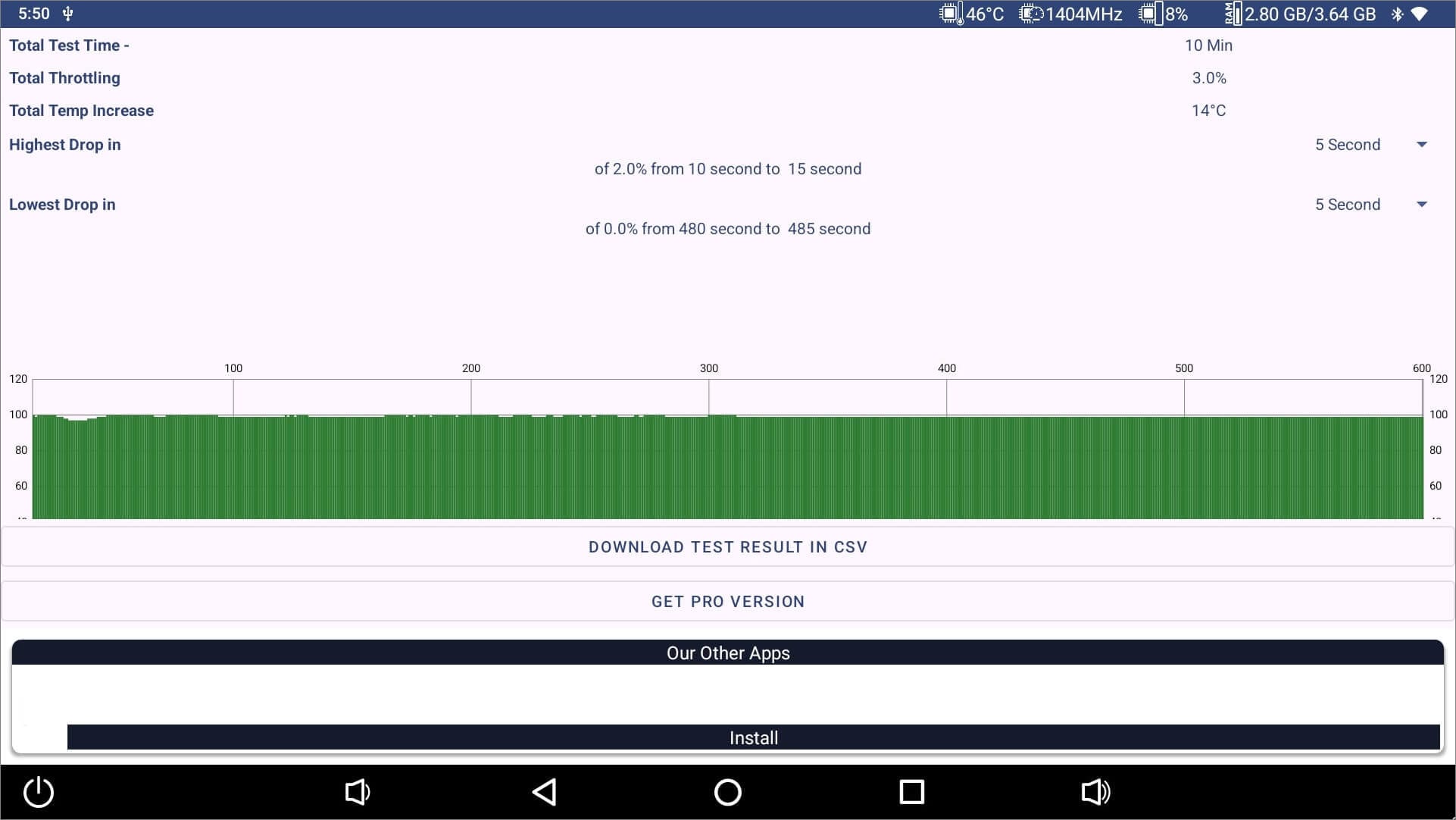

In this test, we maximized the CPU cores at 2,400 MHz for about 10 minutes in an ambient temperature of 27°C. We started with an initial temperature of approximately 46°C. The highest temperature achieved during the test was 59°C, significantly below the maximum limit of 66°C. Notably, the metal case stayed relatively cool, which is a highly favorable result.
CPU Throttling Test
Metal enclosure
This device not only looks great, but it’s also way tougher than those typical plastic ones that break easily. Like the earlier models. Also, Ugoos has put some ventilation holes on the bottom of the case to help let out any extra hot air. For those that are still worried about its efficiency under strenuous conditions, integrating a cooling fan at the base of the unit can significantly expedite the cooling process.
Heatsink Design

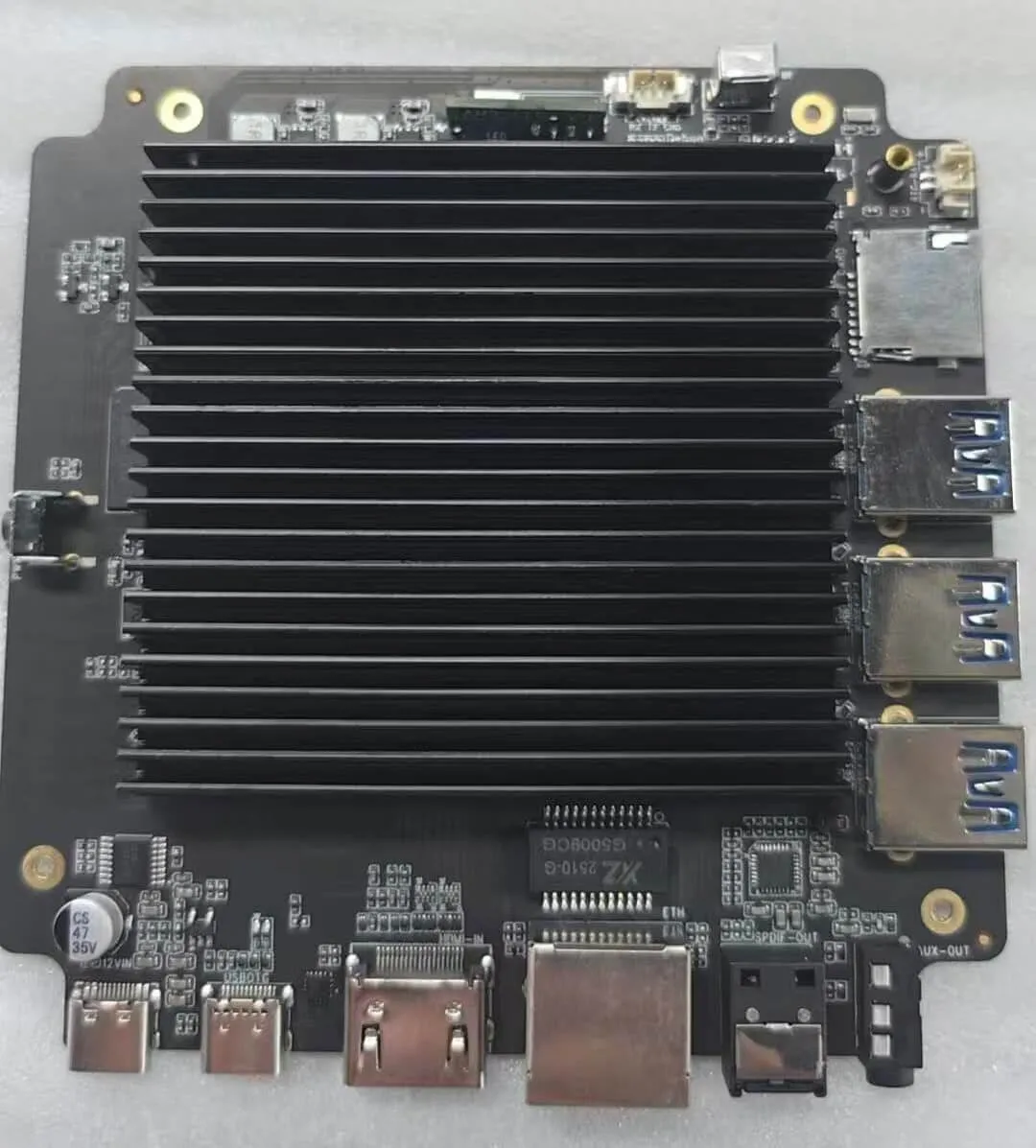

Ugoos has once again integrated a substantial passive heatsink into the chipset of the AM9 model, guaranteeing optimal temperatures and flawless performance, even during intense usage. Instead of taking the device apart, we contacted Ugoos for a photo of the PCB featuring the installed heatsink (see picture below). The image reveals that the majority of the electronic components are concealed beneath the heatsink unit.
A closer look at PCB cooling
