GPU Performance
The Amlogic S905X5M chip isn’t all about winning benchmarks; it’s designed to stream smoothly and reliably without using too much power. It comes with the Mali-G310 V2 GPU, which is a decent mid-range graphics chip. It’s actually three times faster than the older Mali-G31 MP2 that you’d find with the Amlogic S905X4 SoC. So, if you want solid performance along with better picture quality thanks to its NPU, a device powered by the S905X5M chip is definitely the way to go!
GPU Features Comparison: Amlogic S905X5M vs. S905X4-J
Feature | S905X5M (Mali-G310 V2) | S905X4-J (Mali-G31 MP2) |
---|---|---|
GPU Architecture | Mali-G310 V2 (Next-gen Valhall) | Mali-G31 MP2 (Older Bifrost) |
Execution Units | 1 Execution Unit, 64 Shading Units | 2 Execution Units, 16 Shading Units |
Clock Speed | 1,000 MHz | 850 MHz |
FP32 Performance | 52 GFLOPS | 20.8 GFLOPS |
API Support | OpenGL ES 3.2, Vulkan 1.2 | OpenGL ES 3.2, Vulkan 1.1 |
AI Acceleration | Dedicated NPU for AI-SR (4 TOPS) | None (relies on CPU/GPU) |
HDR & UI Enhancements | HDR UI, Dolby Vision, SBTM, QMS | Basic HDR10/HLG |
Gaming Features | VRR, ALLM, QFT (HDMI 2.1) | Only ALLM |
Video Upscaling | AI Super-Resolution (AI-SR) | Traditional algorithms |
Thermal Design | 6nm process (50% more efficient) | 12nm process (higher power draw) |
3DMark
3DMark scored 1993 in the 3DMark Sling Shot Extreme (OpenGL ES 3.1) benchmark putting the AM9 device in a respectable mid-range category compared to popular Android TV boxes.

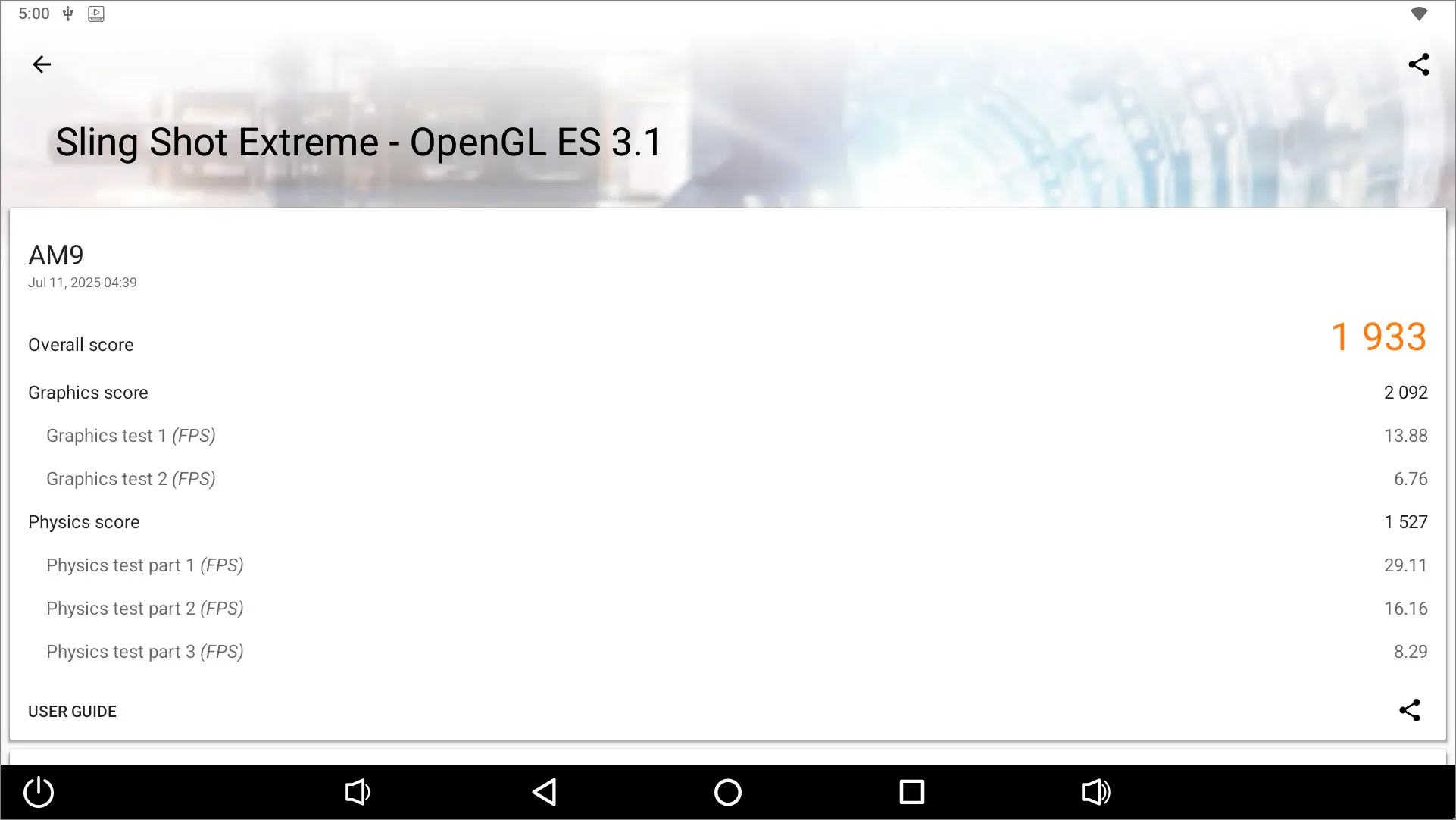

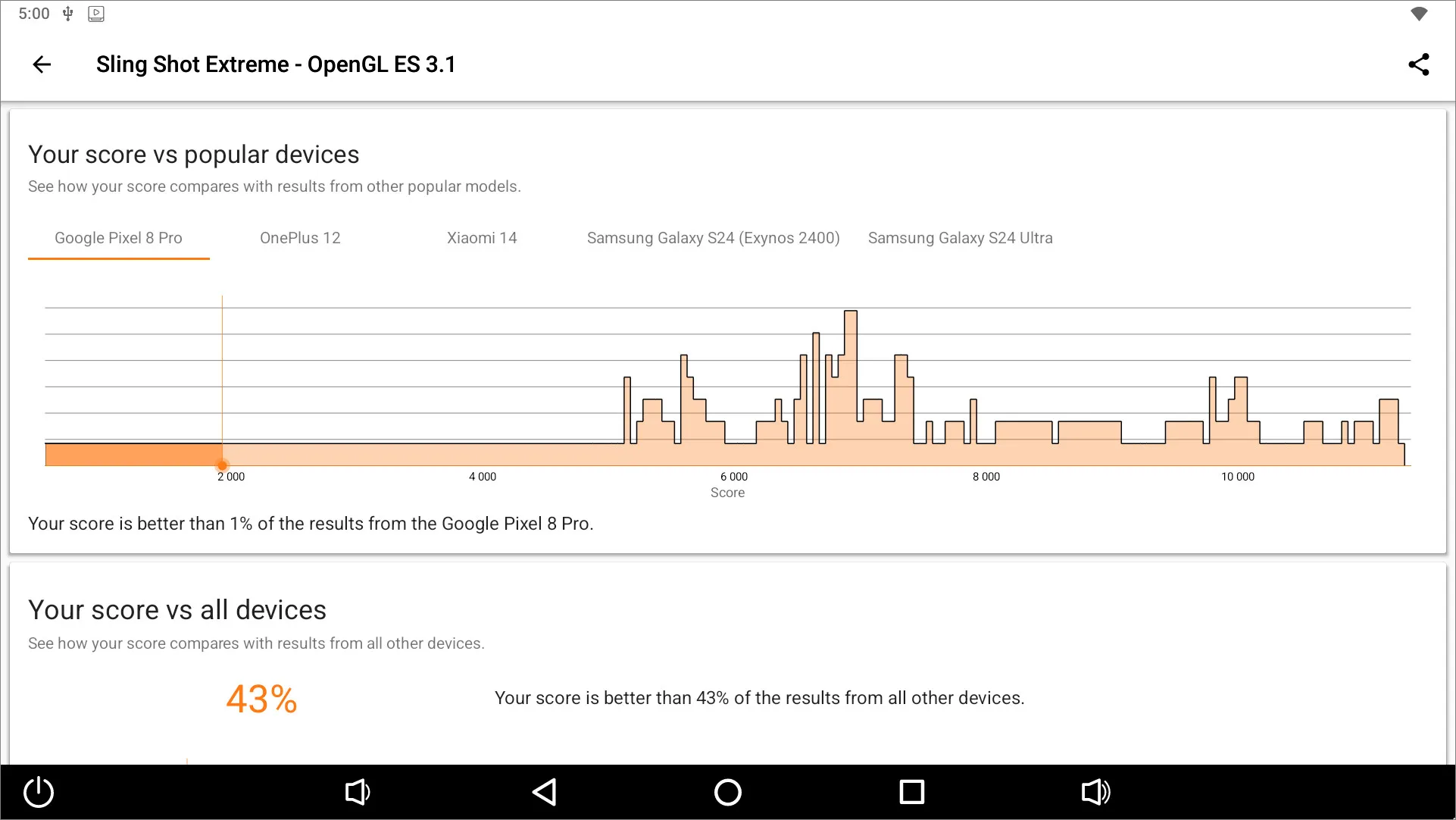

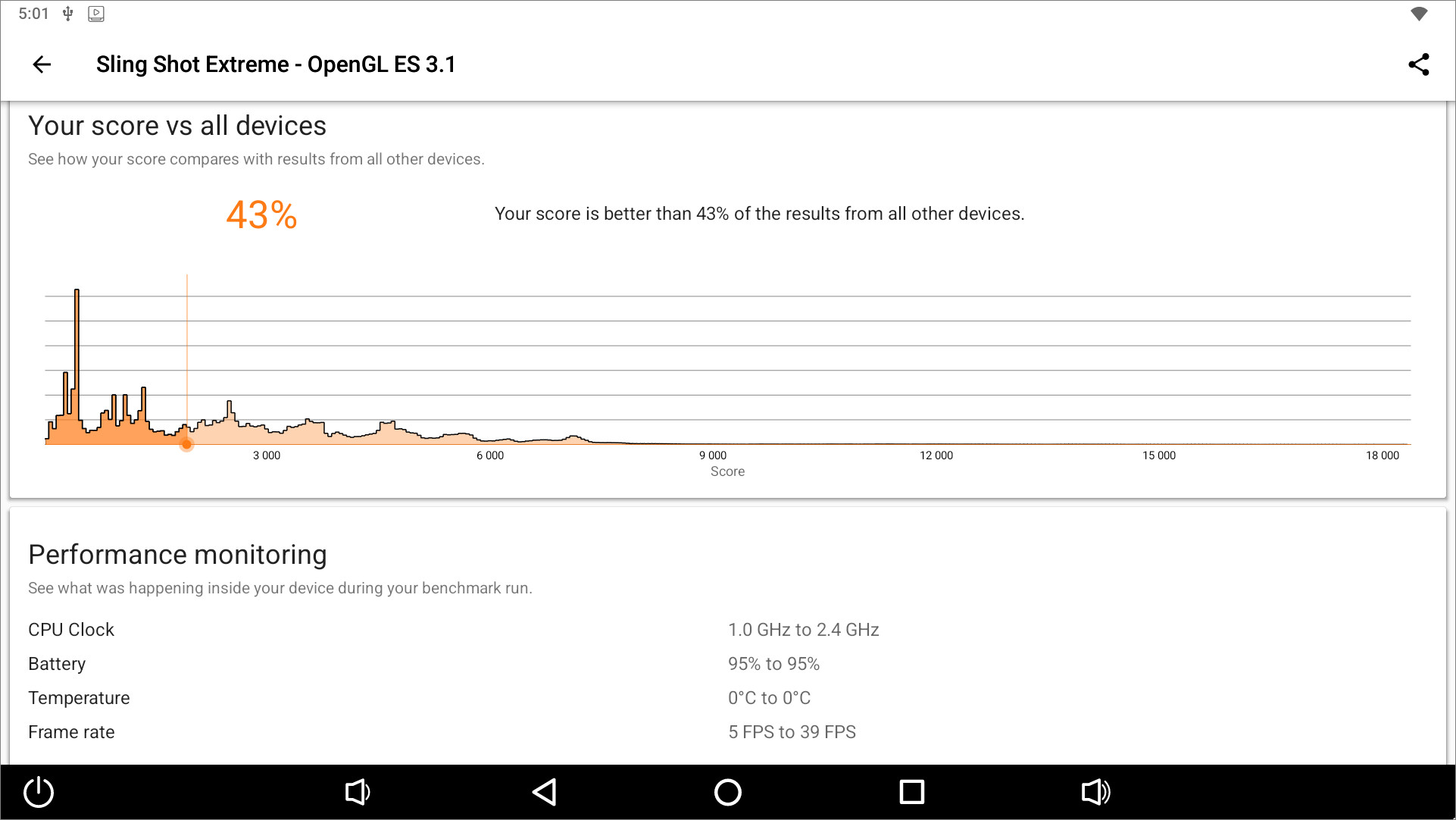

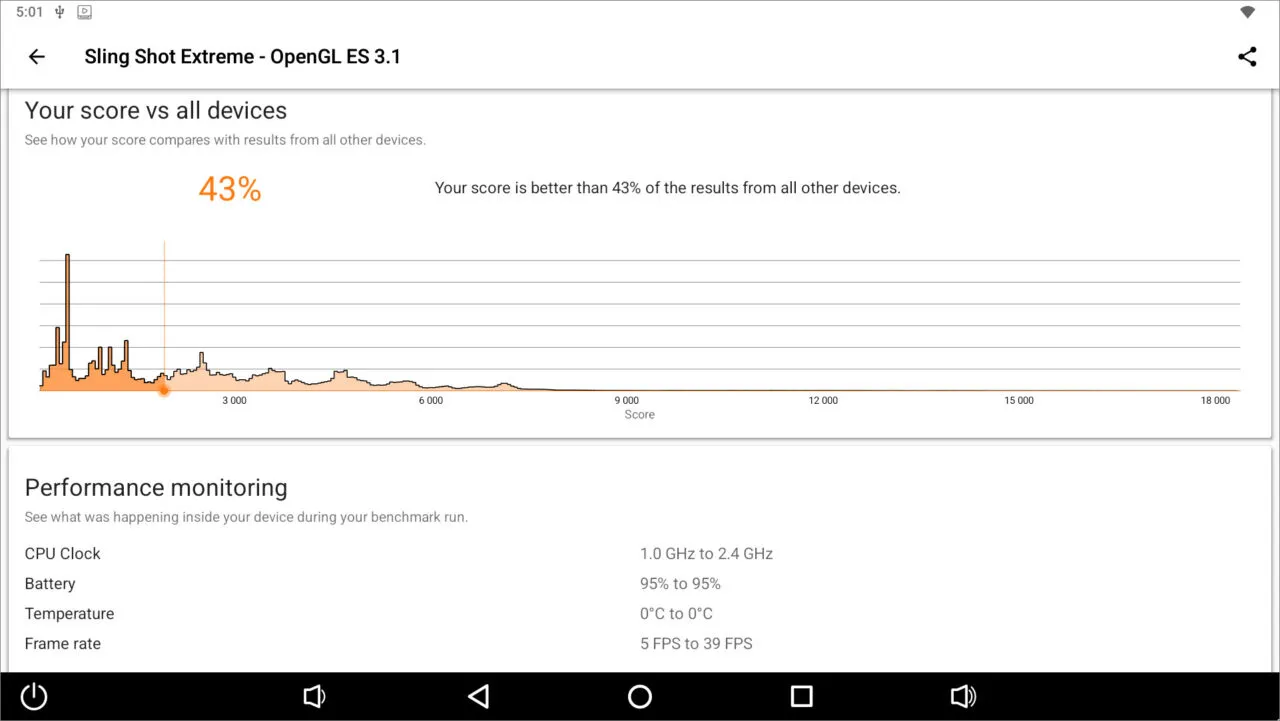

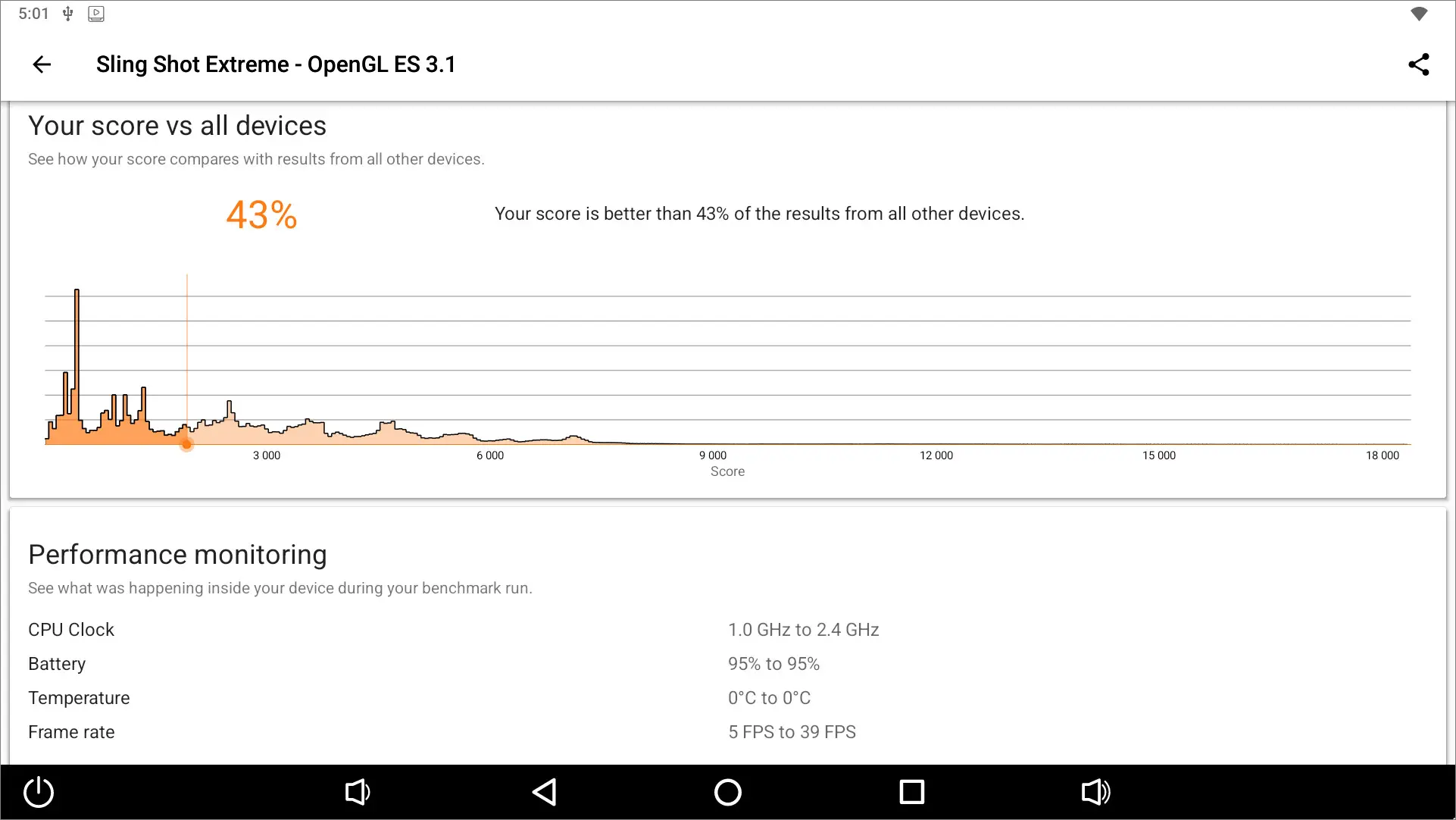

3DMark Test (Screenshots)



Here’s how it stacks up compared to other popular devices:
Device | Typical Score (OpenGL ES 3.1) | Performance Tier |
---|---|---|
NVIDIA Shield TV (2019) | ~2100–2200 | High-end |
Xiaomi Mi Box S | ~1100–1300 | Entry-level |
Amazon Fire TV Stick 4K Max | ~1400–1600 | Mid-range |
Google Chromecast with Google TV | ~1800–2000 | Upper mid-range |
AM9 Device | 1993 | Upper mid-range |
The data presented above were obtained from Microsoft Copilot and cross-referenced with our device results.
Excellent article. Probably the best review for this player out there.
Thanks for your kind feedback.
Very informative and helpful review, I have been considering the AM9 for a few weeks now, my only concern is that it’s running Android 14.
I have read a few times that kodi isn’t good on A14, however your review states kodi runs fine.
I am not a tec person so rely on reviews like yours, if there are problems I assume newer versions of kodi will resolve this.
At present I am using firestick 4k max, it most certainly struggles with 4k movies so want a newer better upgrade.
Thanks for your comment! I can’t promise it will support every video format out there, but it handles my large video file samples just fine. If you’re less constrained by budget and interested in more powerful hardware specifications, consider checking out the Ugoos SK1.Both devices are compatible with Kodi.
Thank so much for your advice, it’s much appreciated, have a great day…soph
You’re welcome. Thanks.
