About Fanxiang
Shenzhen Fanxiang Information Technology Co. LTD. Fanxiang, which is short for “Fanxiang International”, was established in 2015. The company focuses on creating and producing storage solutions like USB flash drives, SD and Micro SD cards, SATA and NVMe SSDs, external SSDs, RAM, and more. The company employs more than 100 people and sells over $660,000 worth of SSDs on Alibaba alone.

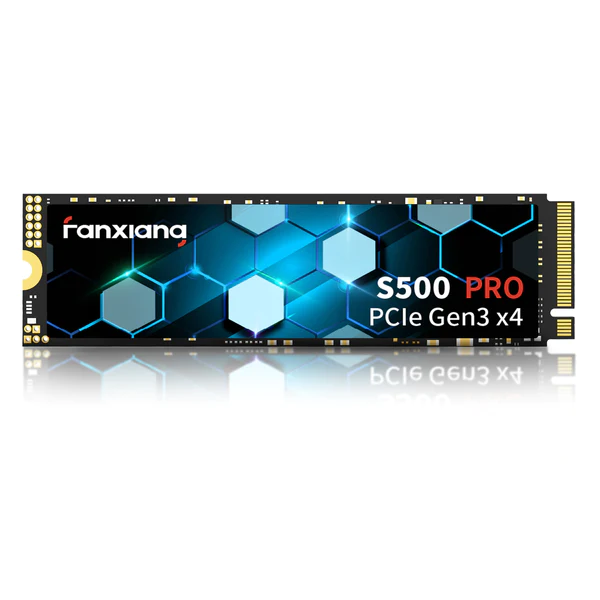

Fanxiang S500 Pro: Best Budget NVMe SSD 2023 Pick
In today’s data-driven world, storage capacity and speed are crucial. Chinese tech brand Fanxiang has introduced an affordable and high-performance NVMe card series. Throughout this article, we will examine the features, benefits, and performance of the snappy S500 pro model that we ordered from Factory Direct Collected AliExpress. This can be considered an ideal storage solution for users seeking high quality storage for their laptop or desktop computers.
Speculations
- Model Name: PCIe 3.0 NVMe M.2 SSD
- Storage Capacity: 256GB/512GB/1TB/2TB
- Storage Type: Internal
- Caching Type: 3D NAND
- Max Sequential Read Speed: 1000-3500MB/s
- Max Sequential Write Speed: 500-3050MB/s
- Interface: M.2@PCIe 3.0 x4
- Compatibility: Desktop, Notebook
- Product Dimensions (WxHxD): 80*22*2.2mm
- Product Weight: 8.1g
- Product Warranty: 3-year limited warranty
Enhanced Performance and Speed
The Fanxiang S500 Pro offers impressive performance and speed compared to traditional storage options. Utilizing Non-Volatile Memory Express (NVMe) technology supporting Gen3x4.
So what’s “x4” stands for?
The designation clearly signifies that the PCIe slot or connection has the capacity to support four lanes. Each lane is a separate data pathway that allows for simultaneous bidirectional communication. The Gen3 and x4 combination creates a powerful interface for handling large amounts of data at faster speeds. It is ideal for demanding tasks such as high-resolution gaming, multimedia editing, and data-intensive operations.
Gen3x4 is important when talking about NVMe solid-state drives (SSDs) because they use this interface to maximize the faster data transfer rates and higher bandwidth. read and write speeds, reducing loading times, improving system responsiveness, and enhancing overall performance.
It’s worth noting that newer PCIe generations, such as Gen4 and Gen5, have since been introduced, offering even higher speeds and increased bandwidth. However, Gen3x4 remains a popular and widely supported configuration, especially in older systems or those with limited compatibility for newer PCIe generations.
Gen3x4 refers to the third generation of the PCI Express interface. It has a four-lane configuration, which enables faster and more efficient communication between components. This includes high-speed storage devices such as NVMe SSDs, resulting in improved data transfer rates and increased bandwidth.
A Closer Look (Peak)
Reliable Storage and Durability
Reliability and durability are crucial factors when considering any storage device. Fanxiang understands this well and has integrated advanced features into their NVMe Drives to ensure data integrity and longevity. Equipped with error correction algorithms and wear-leveling technology, this drive provides an optimized lifespan and maintains consistent performance over time. Users can confidently store their valuable data, including high-resolution media files, applications, and documents, without worrying about data loss or drive failure.
Cost-Effective Solution
The Fanxiang NVMe SSD series features a budget-friendly price point. With an excellent balance between performance and affordability, Fanxiang’s NVMe drive provides an excellent option on the market. Budget-conscious users can enjoy the benefits of the technology without straining their wallets. It serves as a great upgrade option for those looking to increase their system’s storage capabilities without investing much money.
Installation and Testing
Installing and configuring the S500 Pro is a hassle-free process. With a user-friendly manual, users can effortlessly set up the drive and start enjoying the enhanced storage performance. It is compatible with various operating systems and supports plug-and-play functionality, ensuring a seamless experience for users across different platforms.
Using the popular CrystalDiskMark app, we checked the general performance of the S500 Pro card in our Dell Latitude 7490.
Testing Performance
As shown in the photos above. CrystalDiskMark performance test results corollate with the label printed on the product package declaring read speed of up to 3500 MB/s. In our test we reached the peak of 3533.82 MB/s in the SEQ1M Q8T1 sequential speed test. As for the write speed, we also reached a respectable speed of 3049.33 MB/s.
CrystalDiskMark: Sequential read / write performance test results
| Test type | Read (MB/s) | Write (MB/s) |
| SEQ1M Q8T1 | 3533.82 | 3049.33 |
| SEQ1M Q1T1 | 2404.16 | 2747.77 |
| RND4K Q32T1 | 532.65 | 344.55 |
| RND4K Q1T1 | 68.08 | 172.90 |
AS SSD Benchmark 2.0

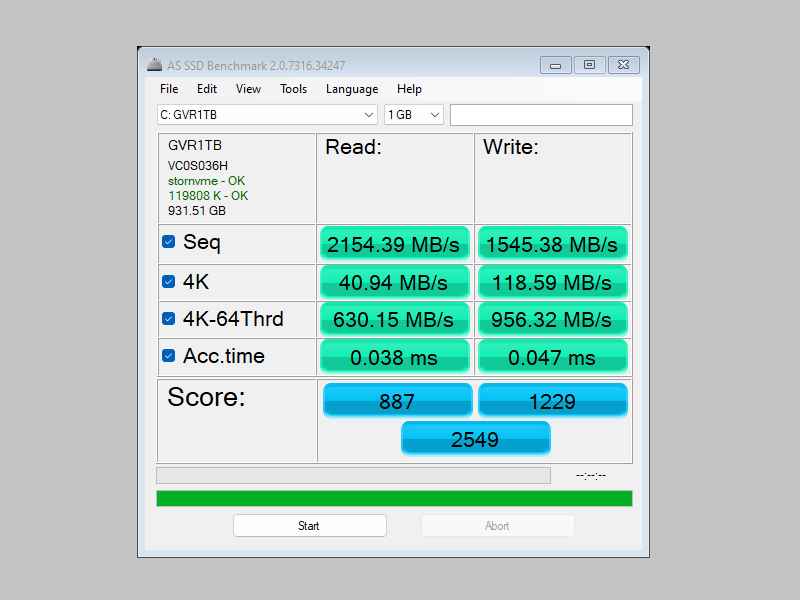

AS SSD Benchmark Tool- 1G Test Sample (Read & Write)
Test results:
| Test type | Score | Acc. time |
| Read Score | 887 | 0.038 ms |
| Write Score | 1229 | 0.047 ms |
| Total Score | 2549 | – |
AS SSD Benchmark Tool – 3GB Test Sample (Read & Write)
Test results:
| Test type | Score | Acc. time |
| Read Score | 891 | 0.0040 ms |
| Write Score | 1292 | 0.145 ms |
| Total Score | 2625 | – |
AS SSD Benchmark Tool – 5GB Test Sample (Read & Write)
| Test type | Score | Acc. time |
| Read Score | 857 | 0.042 ms |
| Write Score | 1173 | 0.520 ms |
| Total Score | 2458 | – |

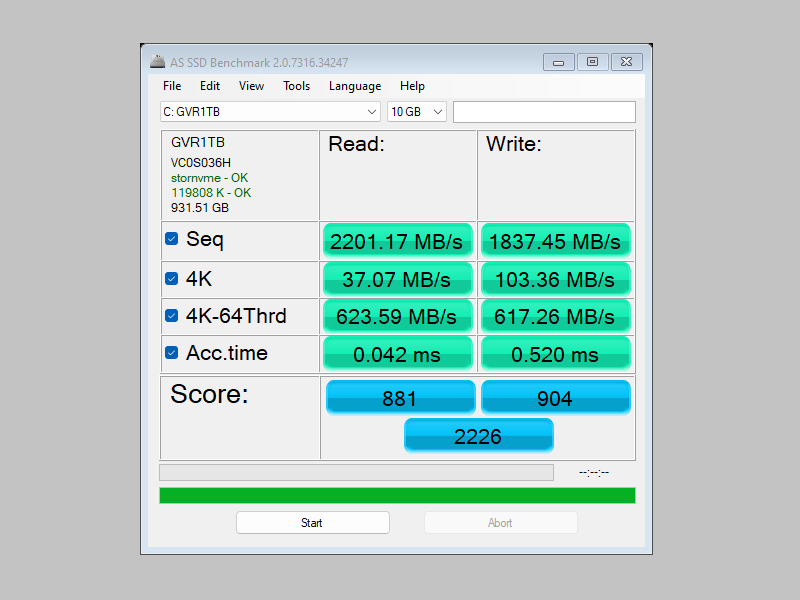

AS SSD Benchmark Tool – 10GB Test Sample (Read & Write)
Test results:
| Test type | Score | Acc. time |
| Read Score | 881 | 0.042 ms |
| Write Score | 904 | 0.520 ms |
| Total Score | 2226 | – |
CrystalDiskinfo
We divided the 2TB space into two separate partitions. Based on CrystalDiskinfo app information, the Fanxiang S500PRO NVMe temperature was stable at 38 °C.
Conclusion
The S500 Pro NVMe Drive provides an optimal storage solution for budget-conscious users who seek enhanced performance, reliability, and durability at a reasonable price of ~$60 for the 2TB edition. With its cost-effective price point and impressive features, it stands as a worthy investment for individuals looking to upgrade their storage capacity without compromising on speed and quality.
Price and Availability
You can find the S500 Pro 2TB model on Factory Direct Collected Store (Link post below) at $60 or purchase it directly from the Official Fangxiang company store which ship internationally and also accepts PayPal payment option.
Purchase on Official Store (Under updating)
1  |
Brand: Fanxiang Up to 3500MB/S Reading Speed. Up to 3000MB/S Reading Speed. Storage Capacity: 256GB/512GB/1TB/2TB Gen3x4 M.2 2280 |
|
2  |
Brand: Fanxiang Up to 2150MB/S Reading Speeds. Up to 4200MB/s write speeds. Storage Capacity: 500GB/1TB/2TB Gen3x4 M.2 2280 |
|
3  |
Brand: Fanxiang write speeds reaching up to 7300/6800MB/s. Storage Capacity: 1TB/2TB/4TB PCIe 4.0 M.2 2280 |
|
4  |
Brand: Fanxiang Read and write speeds up to 7300/6600MB/s. Storage Capacity: 1TB/2TB/4TB PCIe 4.0 M.2 2280 |
|
5  |

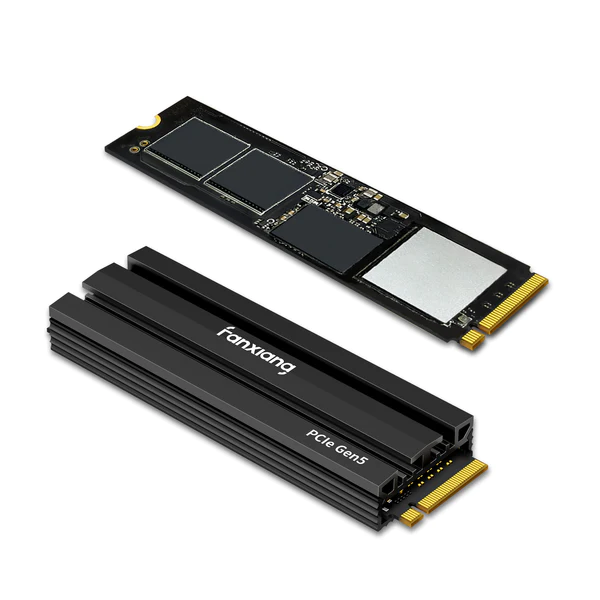

Brand: Fanxiang Read and write speeds of up to 10,000MB/s. Storage Capacity: 1TB/2TB PCIe 5.0 M.2 2280 |
