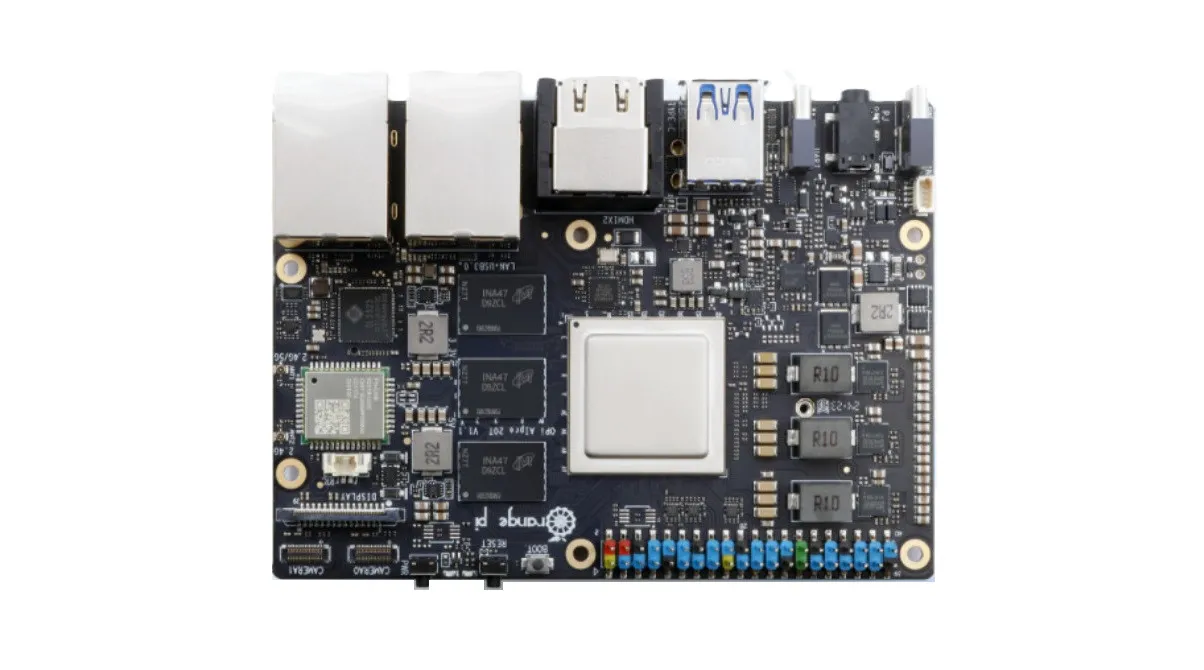

Orange Pi Alpro 20T
After the successful launch of the Orange Pi AIpro in China, the Orange Pi Alpro (20T) stands out as a new cutting-edge single-board computer, boasting a potent Huawei AI chip and a collaboration with Shenzhen Xunlong Software Co., Ltd. Boasting a 4-core 64-bit processor enhanced with an integrated AI processor, this SBC offers exceptional graphics and AI support. Featuring options of 12GB or 24GB of LPDDR4X memory, expandable with external eMMC modules up to 256GB, it delivers an impressive multimedia experience with dual 4K HD outputs.
The Orange Pi Alpro (20T) is equipped with two 2.5 Gigabit Ethernet ports and dual-band Wi-Fi, ensuring Swift and dependable connectivity options. Moreover, it boasts numerous USB ports, allowing for flexible peripheral connections. This makes it an ideal choice for a plethora of projects, particularly those revolving around AI applications such as robotics, cloud computing, VR/AR, and edge computing.
Key Takeaways
- 4-core 64-bit processor + AI processor
- Powerd by TAISHANV200M Processor
- DaVinciV300 AI core, clocked at 1.224GHz
- RAM: LPDDR4X 12GB/24GB
- Supports M.2 2280 SATA
- Processing power: 20 TOPS
OrangePi Alpro 20T Specifications
| Specification | Details |
|---|---|
| Processor | 4-core 64-bit processor 1 DaVinchiV300 AI 4 TASIHANV200M Processor cores |
| Computing power | 20 TOPS |
| Main Frequency | Up to 1.6GHz |
| RAM | 12GB/24GB (LPDDR4/4X) |
| Storage | SPI Nor FLASH 32MB Support eMMC module (32/64/256GB) MicroSD (TF) Card Slot M.2 2280 M-KEY Socket |
| USB Ports | 3xUSB 3.0 1x USB Type-C 3.0 Host/device 1x Type-C serial port printing function |
| Display | 2x HDMI TX 2.0 outputs, support up to AK@60FPS 1x MIPI DSI 4-Lane output |
| Wireless Connectivity | Wi-Fi 5 dual-band + BT 4.2, BLE |
| Ethernet | Dual 2.5GbE |
| Camera | x2 MIPI CSI 4-Lane |
| Audio | 3.5 mm headphone jack audio in/out |
| 40 Pin | Supporting the following Types of Interfaces: GPIO. UART. I2C. SPI, 12S. PWM |
| PCB size | 115.23×83.26×1.6 mm |
| PCB size Weight | About 82g |
| Power supply | Type-C PD 20V IN, standard 65W |
| Fan connector | ✅ |
| Software | Ubuntu, openEuler operating system |

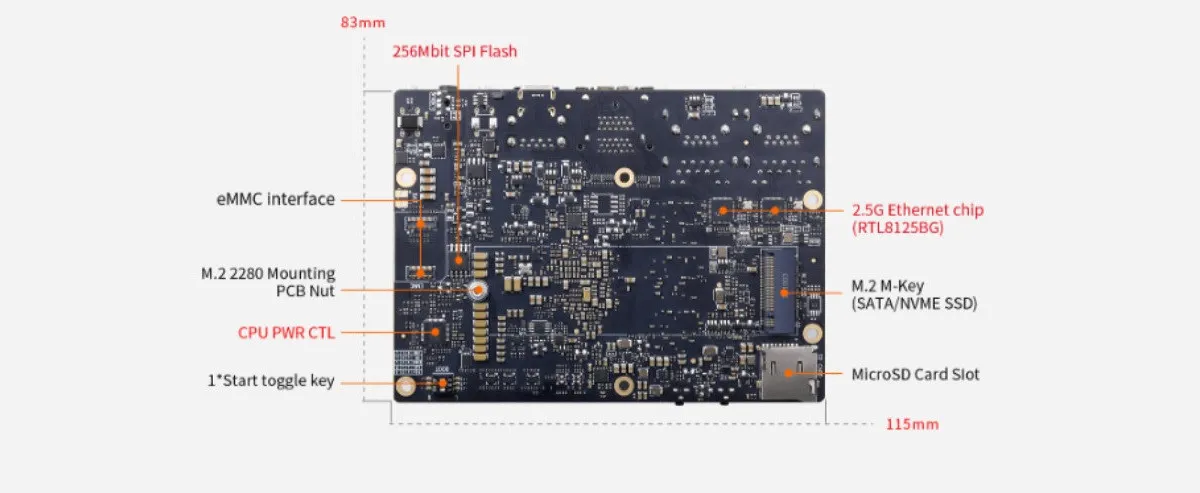

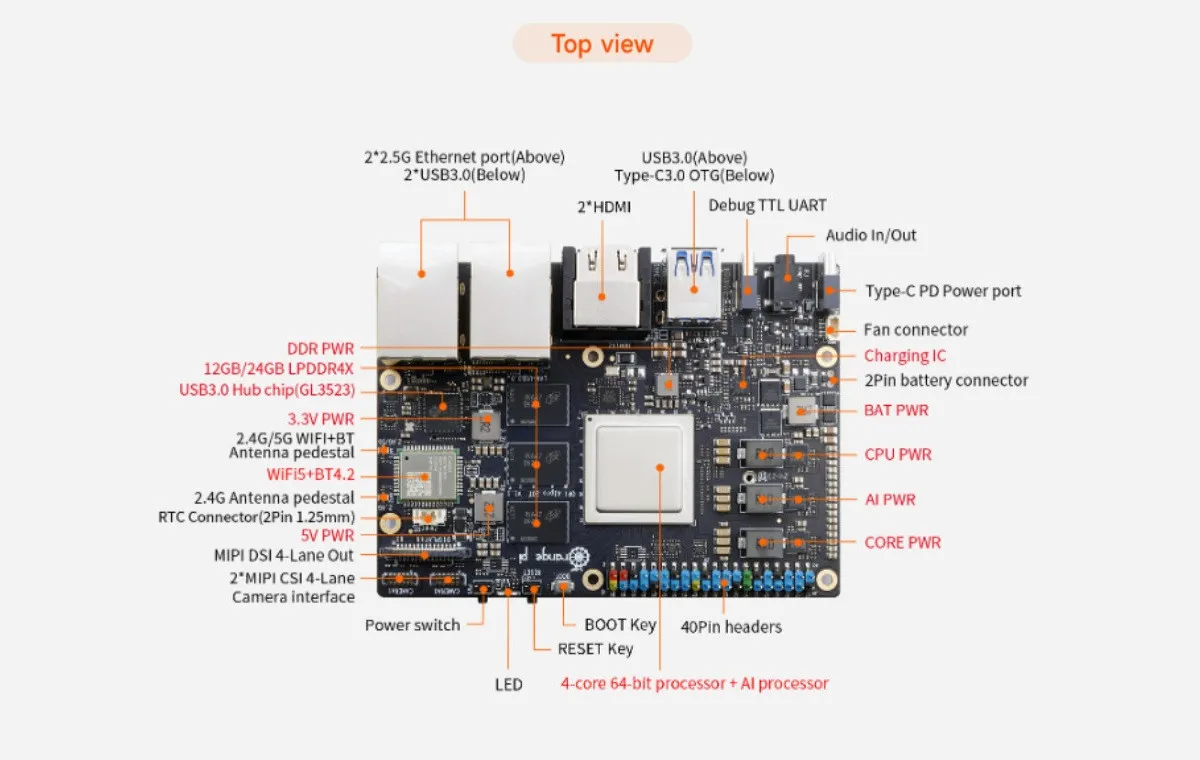

Design and interfaces

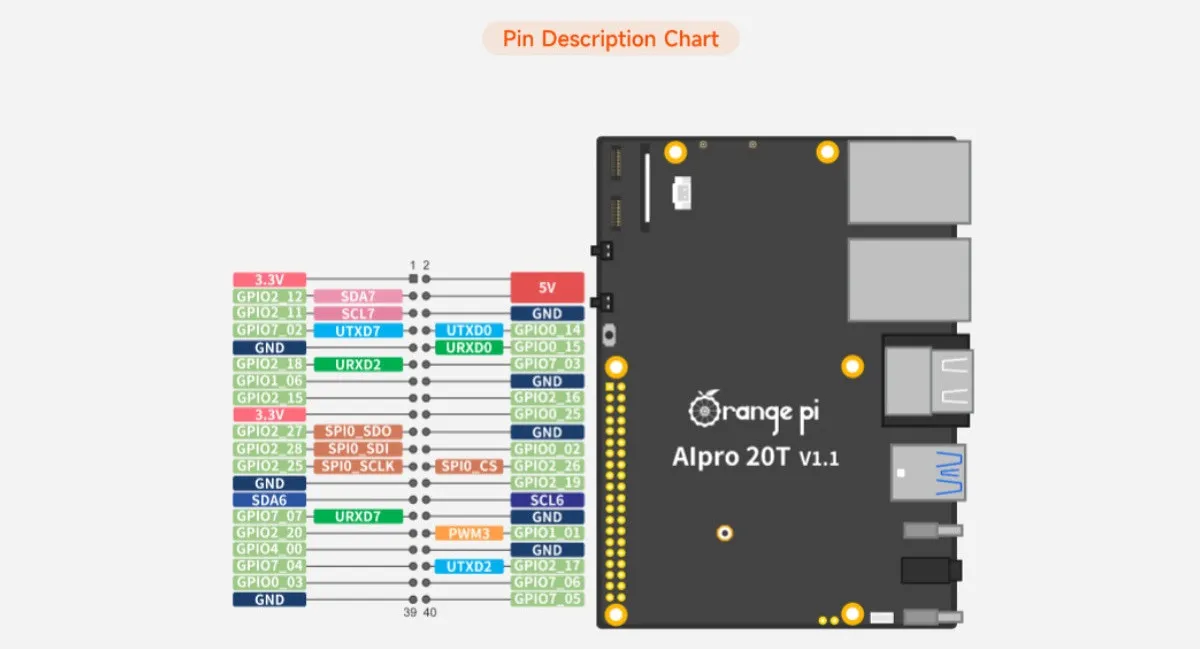

Orange Pi Alpro 20T Pinout Diagram
Orange Pi, established in 2005, stands as a prominent worldwide supplier of open source hardware and software. Our mission is to empower tech enthusiasts, creators, and electronics aficionados with affordable, top-notch technology products from China. By fostering extensive social collaboration, we strive to contribute to the advancement of a prosperous information-driven society.
