- Ugoos AM8 Review: assessing its features and pricing options.
Part I: Ugoos AM8 TV Box – Introduction and features
The Ugoos AM8 is the latest addition to their lineup rollout in August 2023, and it comes with some impressive features. One of the standout features of the AM8 is its built-in Wi-Fi 6E support thanks to an AP6276P chip designed by Ampak Technology. It includes Wi-Fi 6E, also known as 802.11ax, is the latest wireless standard that offers faster speeds, increased capacity, and improved performance in crowded areas.
With Wi-Fi 6E support, the AM8 can deliver faster and more stable internet connections, making it ideal for streaming high-definition content or playing online games. It also supports dual-band Wi-Fi, allowing you to connect to both 2.4GHz and 5GHz networks for maximum flexibility.
Another notable feature of the Ugoos AM8 is its Dolby Atmos support. Dolby Atmos is an advanced audio technology that creates a three-dimensional sound experience, immersing you in the action. With Dolby Atmos support, the AM8 can deliver rich and immersive audio, enhancing your viewing experience.
Featuring an awe-inspiring hardware configuration, the AM8 stands out with its powerful Amlogic S922X-J processor. This remarkable device takes performance to the next level with its robust Penta-Core (5 cores), including four additional Cortex-A55 cores and a single Cortex-A76 core.
In addition, it is equipped with a Mali G57 MC2 GPU to ensure seamless graphics performance. The AM8 comes with 4GB of DDR4 RAM and 32GB of eMMC storage for the basic model, providing plenty of free space for apps, games, and media files.
The AM8 stands out as one of the leading options in the Android TV box market. It offers excellent performance and features for streaming movies, playing games, and listening to music.

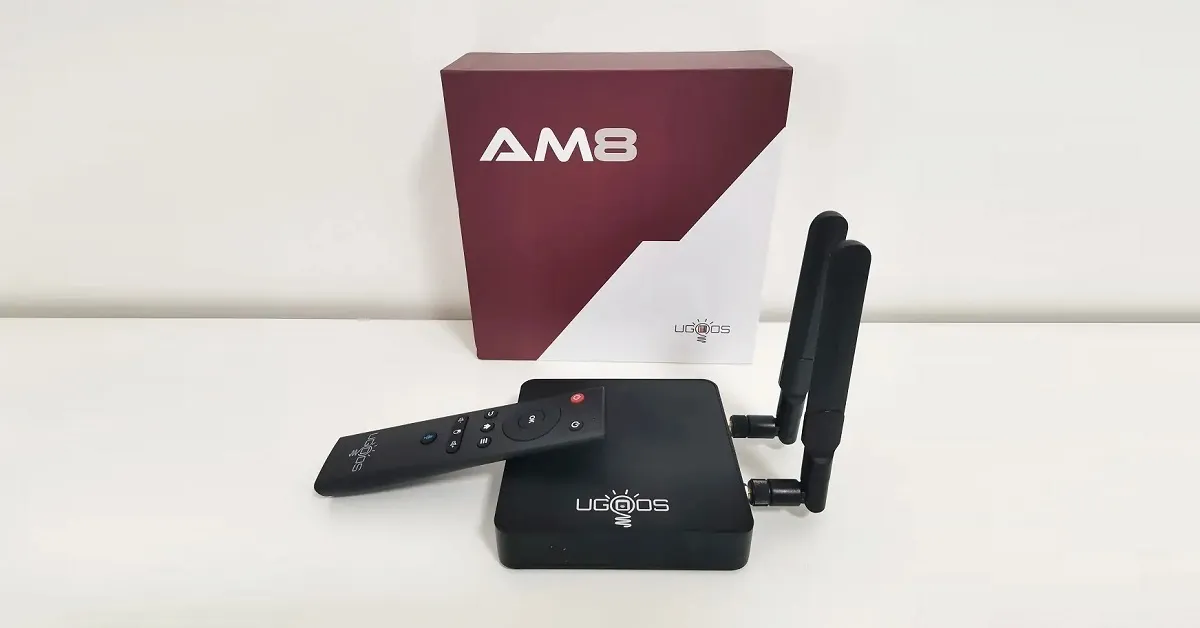

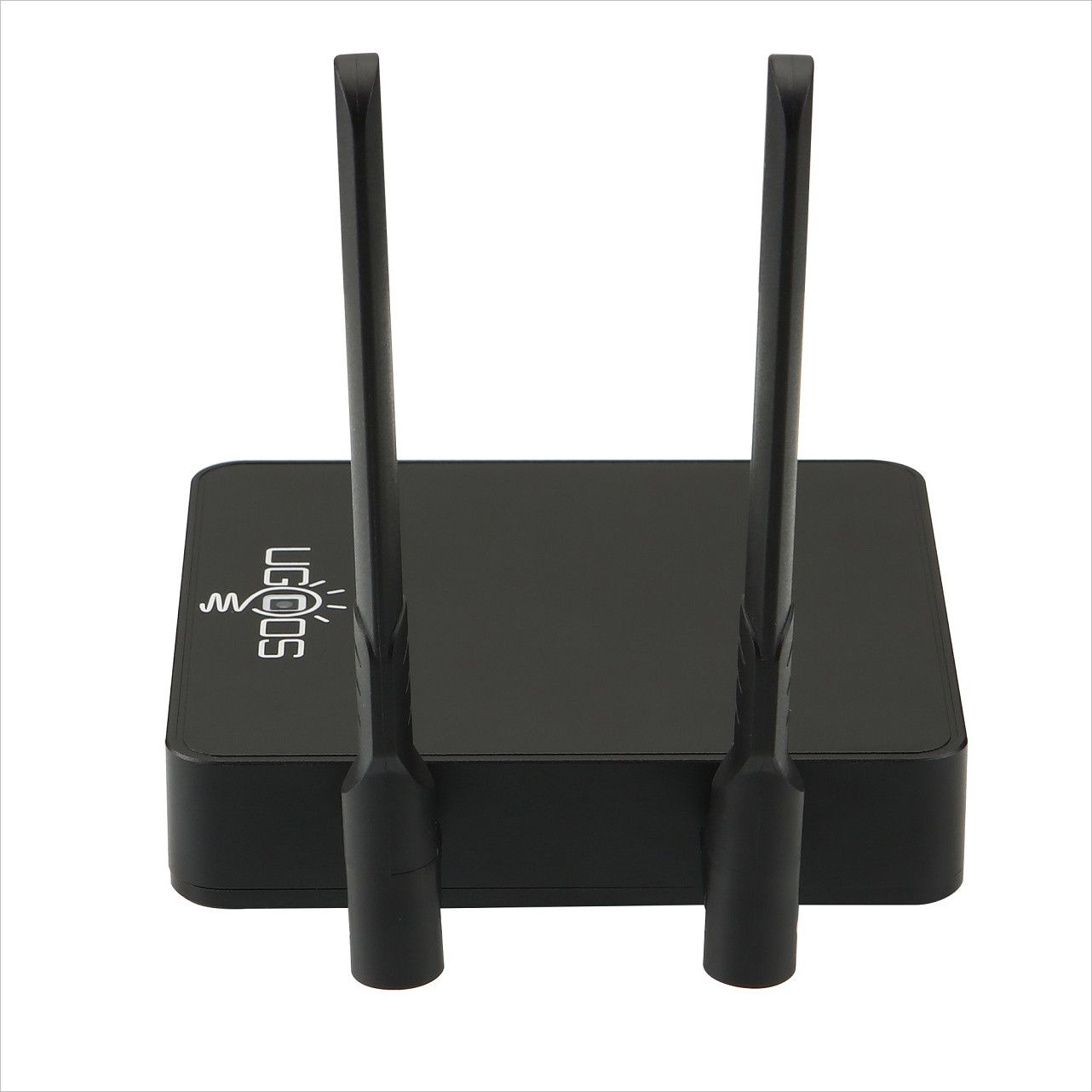

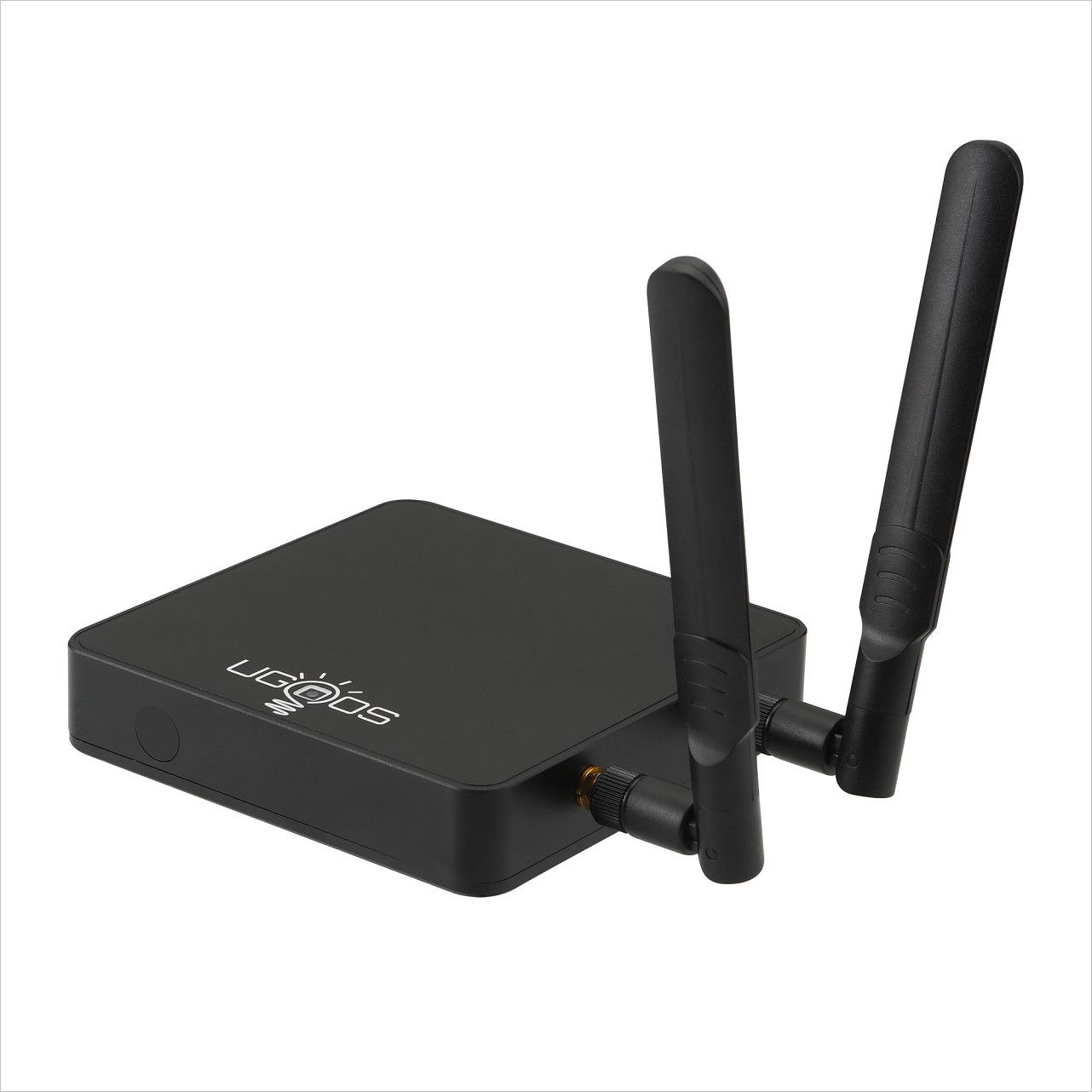

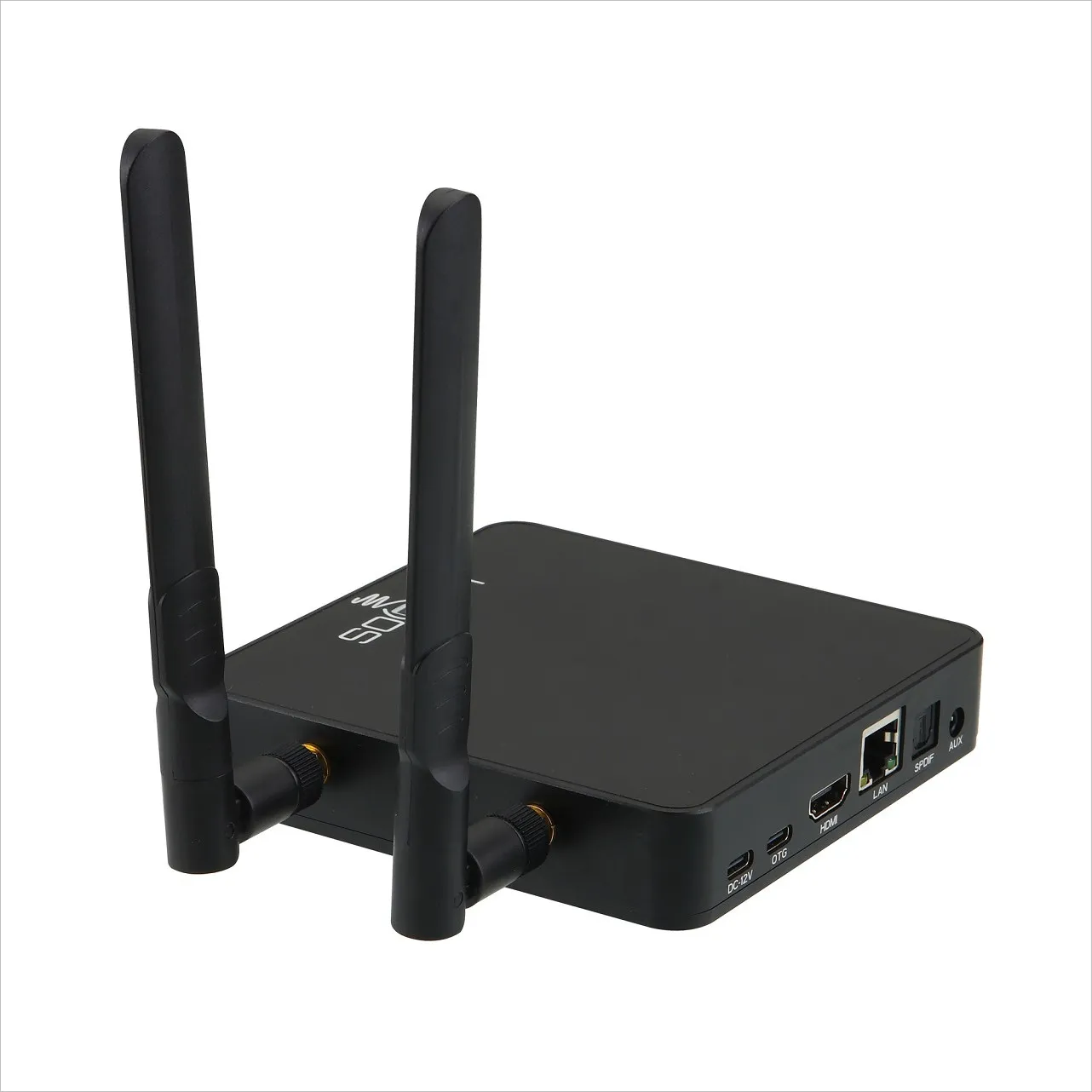

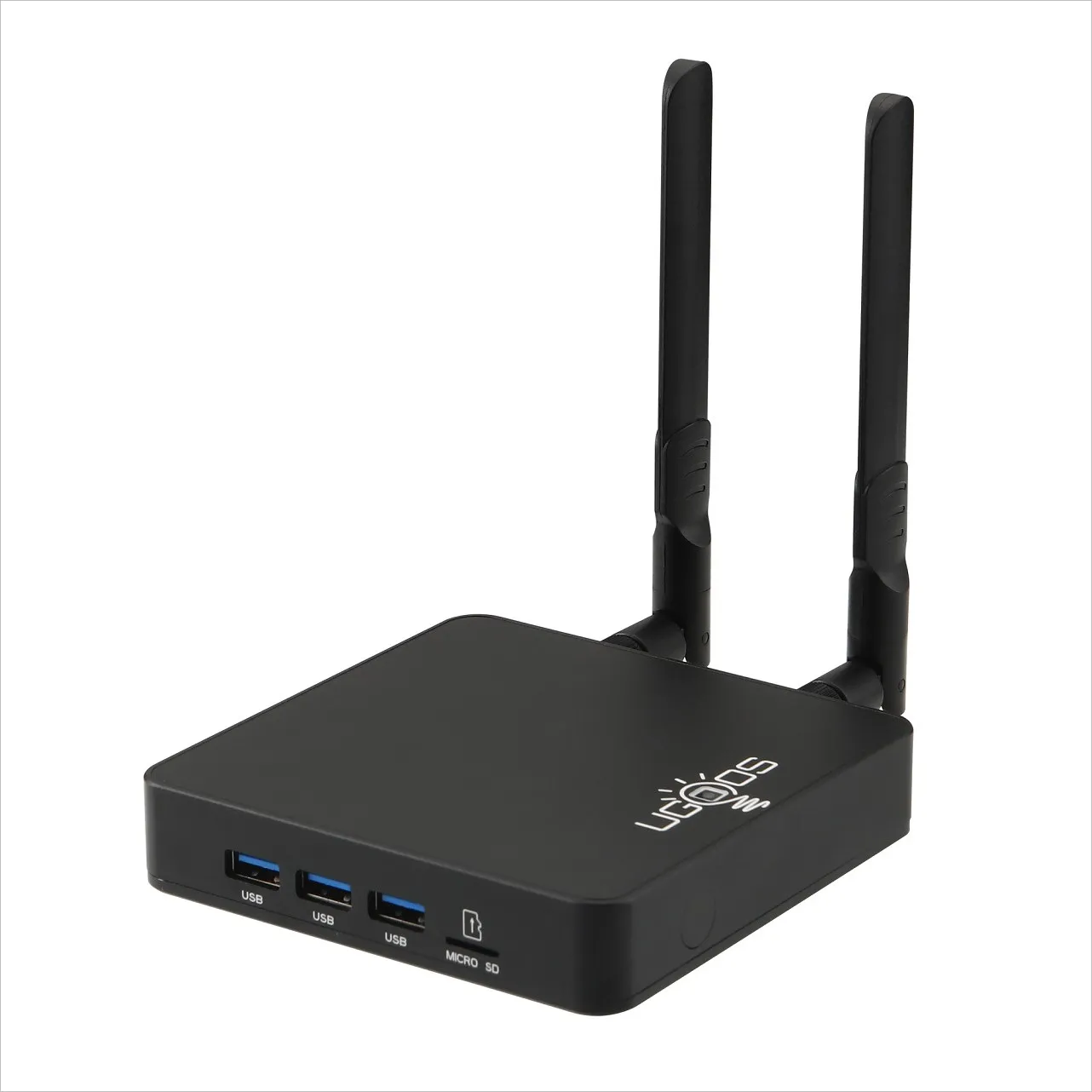

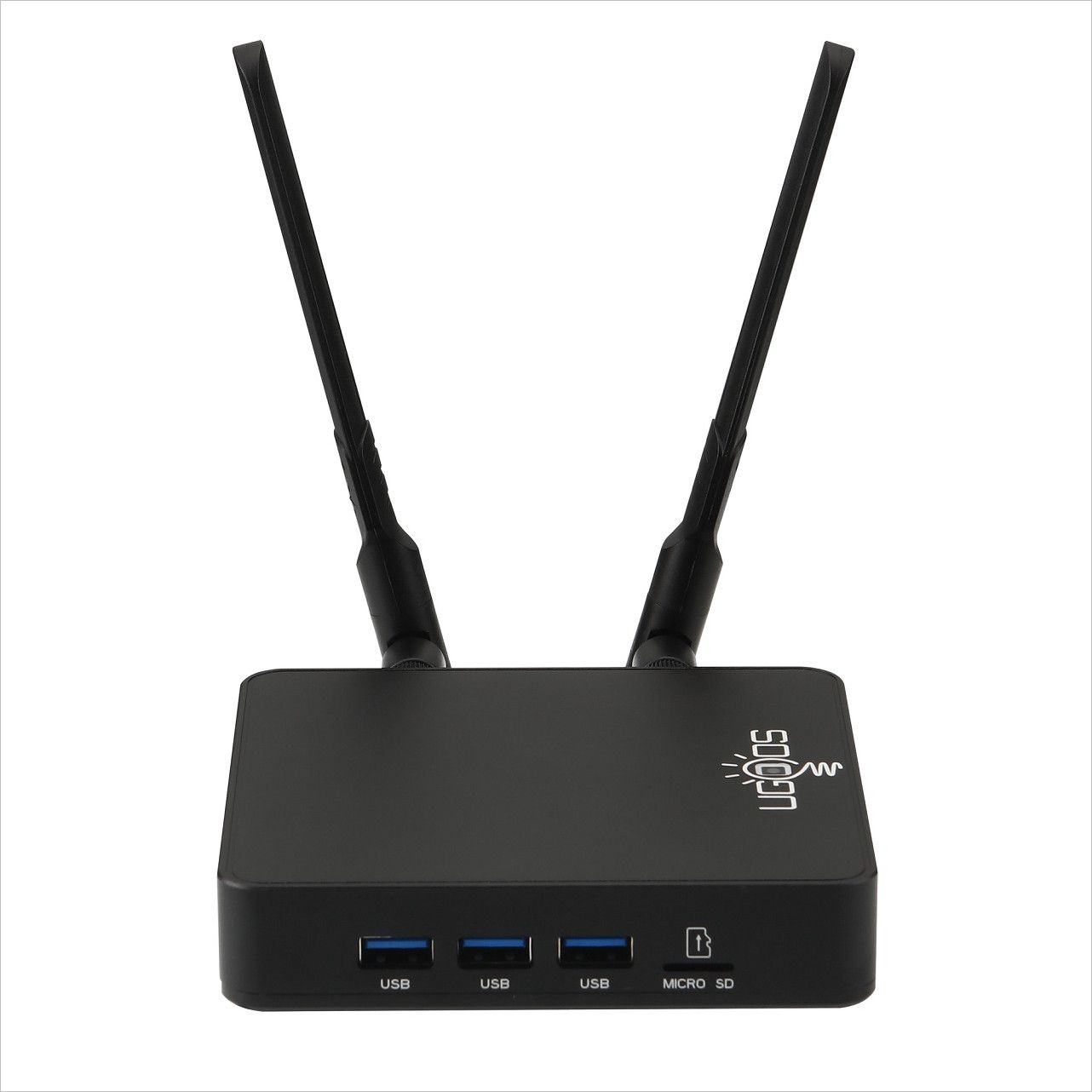

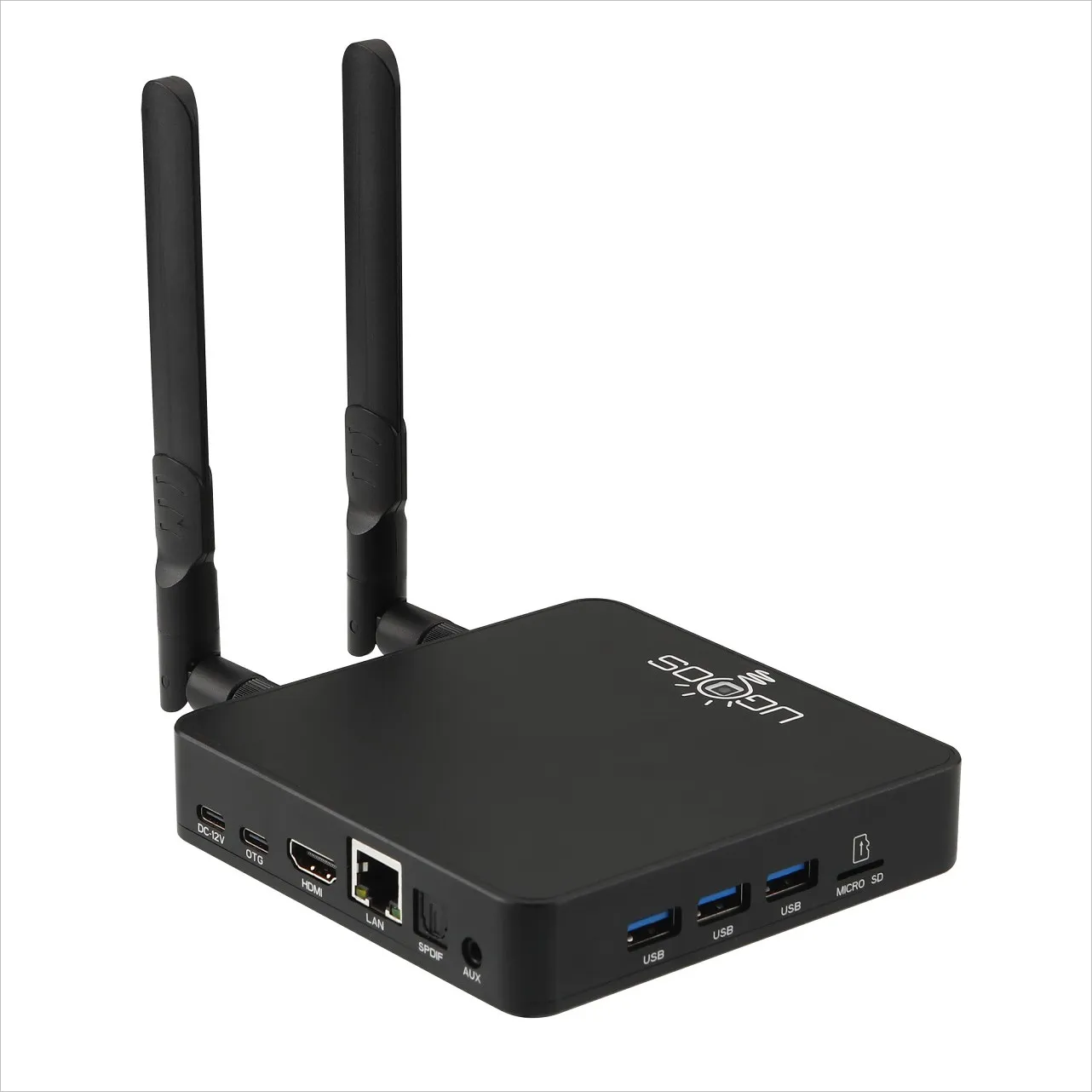

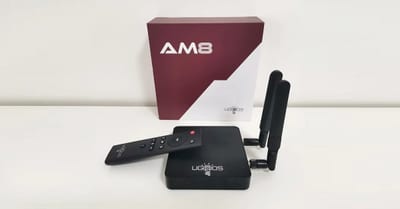

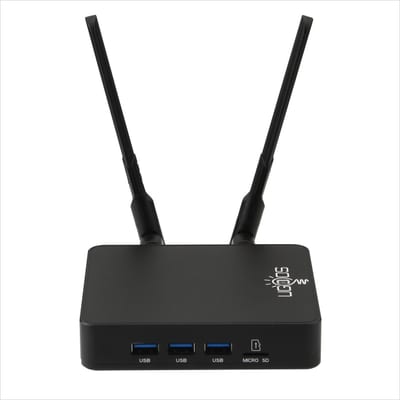

Ugoos AM8
Ugoos AM8 Specifications
HardWare Specification of Ugoos AM8 | |
Model | Ugoos AM8 |
SoC | Amlogic S928X-J (12nm) |
CPU Architecture | 1x Arm Cortex-A76 core |
CPU | 5 cores, 5 threads, a maximum frequency of 2.0GHz |
GPU | Mali G57 MC2 GPU |
Operating system | Android 11 (Red Velvet Cake) |
RAM | 4GB LPDDR4 (2Gb optional for OEM orders) |
Dolby Audio/Dolby Vision |  |
SPDIF | |
CEC | |
RTC | |
HDR | |
Wi-Fi 6E | |
OTA Firmware Updates | |
On Board Storage (eMMC Flash memory) | 32GB eMMC (8GB/16Gb/64Gb optional for OEM orders) |
HDMI | HDMI 2.1a Type-A 8Kx4K@60fps max resolution |
AV decode | Audio：Supports MP3, AAC, WMA, RM, FLAC,Ogg Vorbis, Opus, SRS Truvolume, Dolby AudioOptional , DTSOptional and programmable with 7.1/5.1 down-mixing |
Video/Picture | − AV1 [email protected] up to 8Kx4K@60fps |
Video Output | −Built-in full-feature HDMI 2.1a transmitter including both controller and PHY supporting CEC, Dynamic HDR and HDCP 2.2/2.3, 8Kx4K@60 max resolution output |
Wi-Fi | AP6276P(wifi6E) 2.4G+5G+6G the wireless module complies with IEEE 802.11. a/b/g/n/ac/ax 2×2 Access Points with MIMO standard and can accomplish |
Antenna | 2 Extra Antennas |
Bluetooth | Bluetooth 5.3 |
On board Network | 10/100/1000M Ethernet MAC with RGMII |

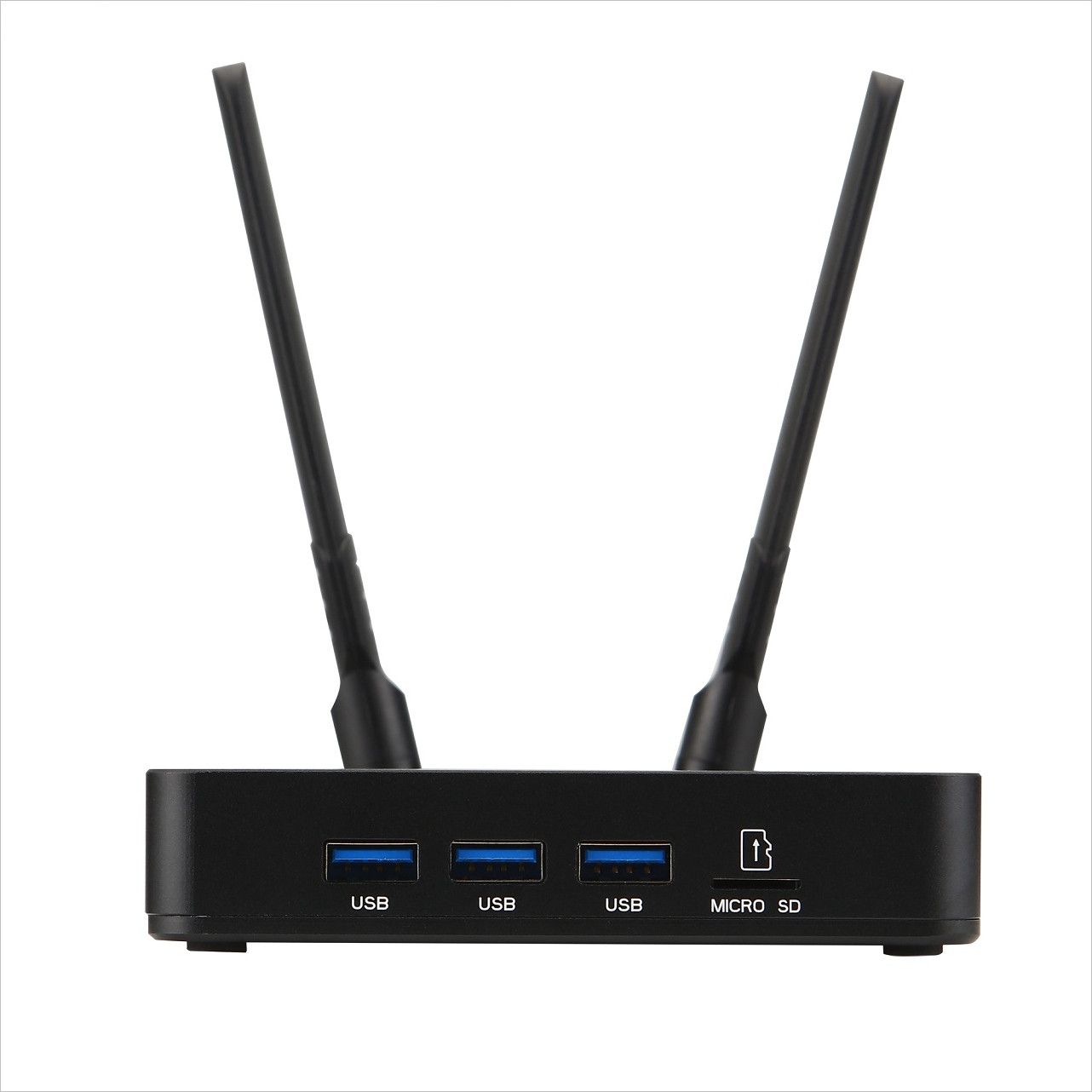

External storage | 3x USB A HOST 3.0 |
Buttons | Power button |
Power Supply | TYPE-C 12V/1.67A DC |
Size | 11.6×11.6×2.8CM |
Weight | 300g |
The key highlights of the product.
The company provides different models to meet customers’ needs. Models vary in terms of design quality, ranging from mid-range to high-end options. Here are 14 reasons to check out this product.

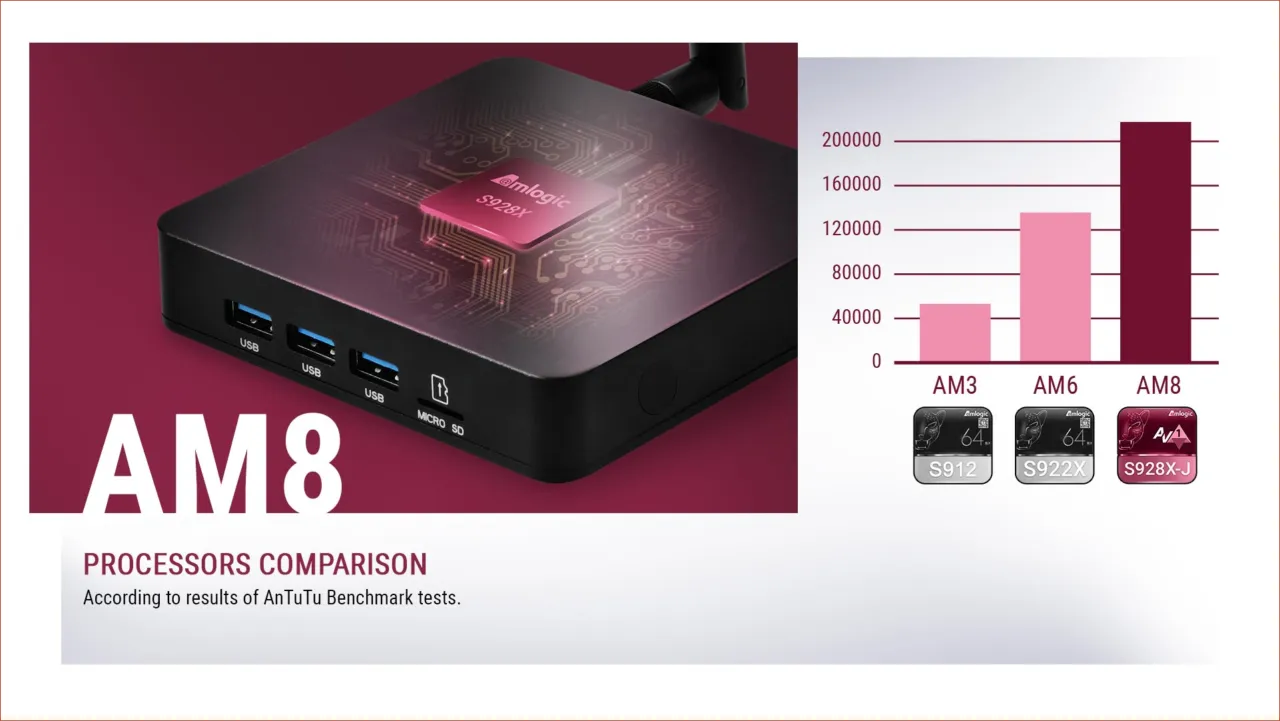

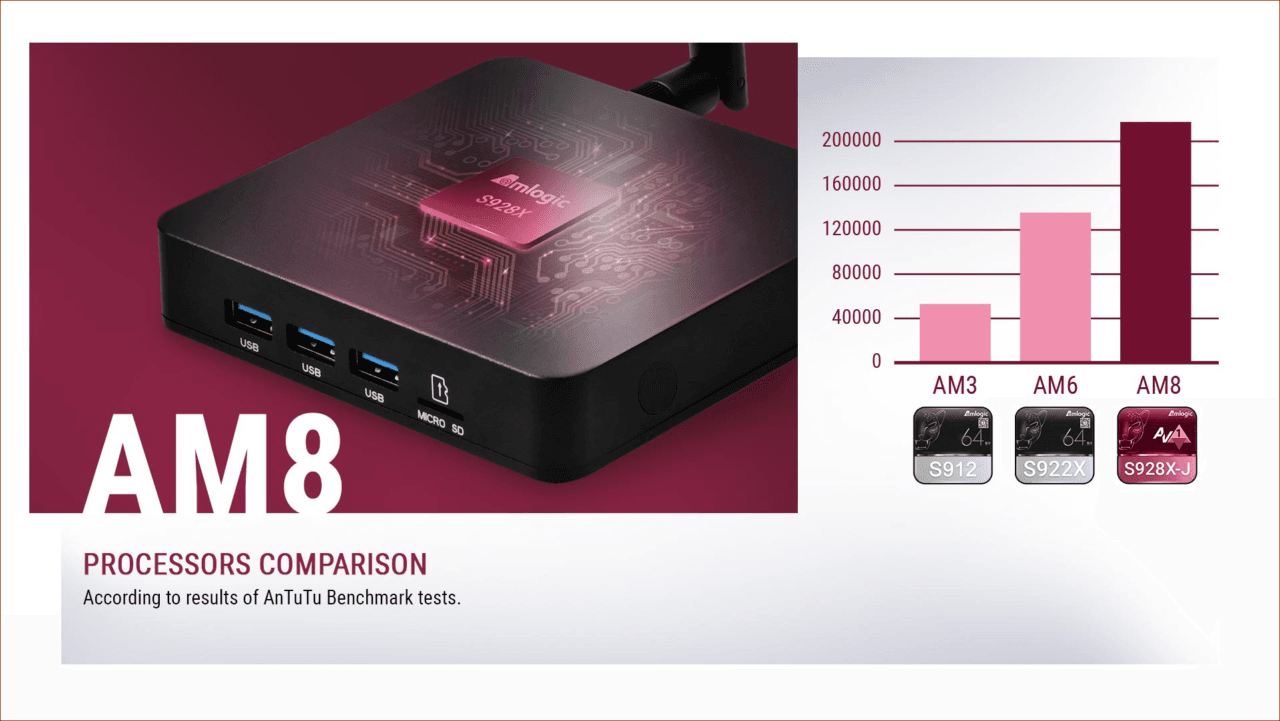

Powered by Next-Gen Chipset
The latest Amlogic S928X-J is a powerful processor that offers enhanced performance and capabilities for a wide range of applications. It features a quad-core ARM Cortex-A55 CPU next to a big core ARM Cortex-A76 cluster operating at a maximum clock speed of up to 2.0GHz, which allows for fast and efficient processing of tasks.
The S928X-J also includes a powerful Mali G57 MC2 GPU, which provides excellent graphics performance and supports 4K and 8K video playback. This makes it ideal for streaming high-quality content and playing demanding games.
In addition to its processing power, the S928X-J also supports advanced features such as HDR and HLG video decoding, Dolby Vision and Dolby Atmos audio decoding, and HDMI 2.1a with HDCP 2.2 support. This ensures that users can enjoy the latest multimedia content with stunning visuals and immersive audio.

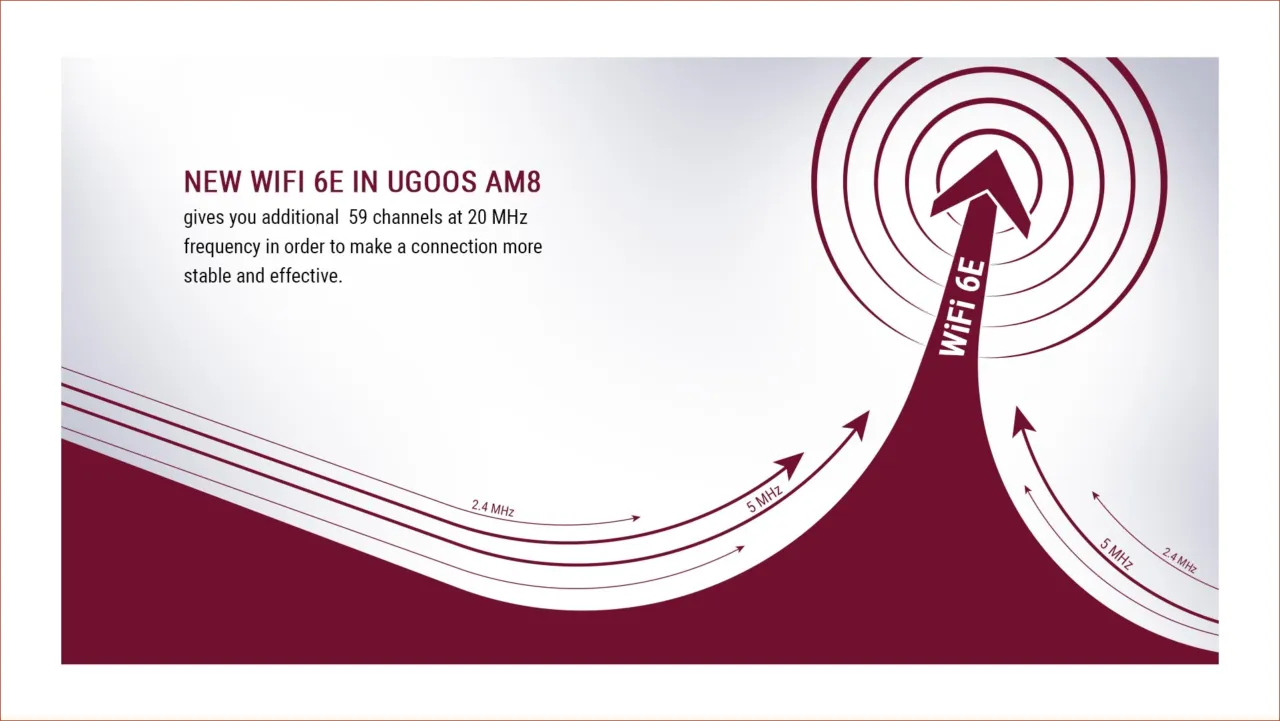

Enhanced Connectivity

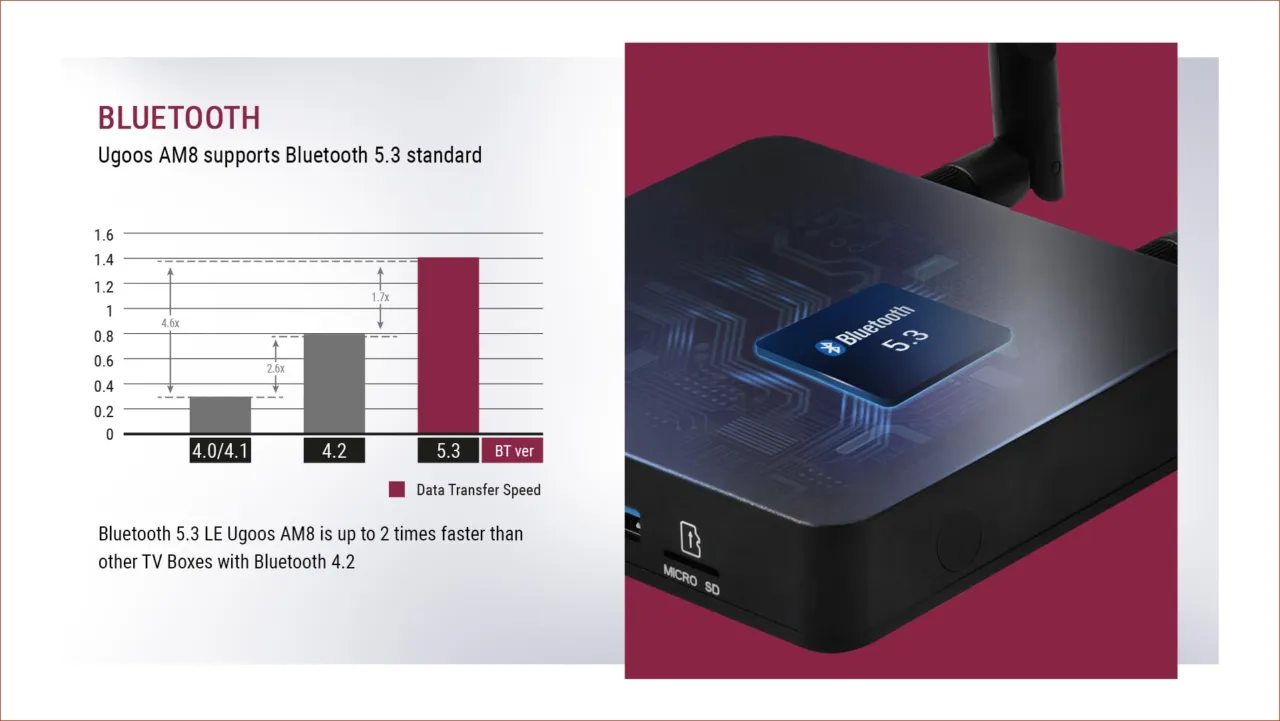

The Ugoos AM8 is equipped with Wi-Fi 6E and Bluetooth V5.3, ensuring top-notch connectivity for all your wireless needs. Wi-Fi 6E offers faster speeds, lower latency, and increased capacity compared to previous Wi-Fi standards, making it perfect for streaming, gaming, and other bandwidth-intensive activities. Bluetooth V5.3 provides improved range and stability for seamless connections with your favorite devices.
With Wi-Fi 6E, you can enjoy ultra-fast download and upload speeds, allowing you to stream 4K content without buffering and download large files in seconds. The increased capacity of Wi-Fi 6E means that multiple devices can connect simultaneously without experiencing any slowdowns or interruptions.
Bluetooth V5.3 offers a longer range compared to previous versions, allowing you to connect your Ugoos AM8 to Bluetooth speakers, headphones, and other devices from a greater distance. The improved stability of Bluetooth V5.3 ensures that your connections remain strong and reliable, even in crowded environments with multiple wireless devices.
Whether you’re streaming movies, playing online games, or connecting to wireless peripherals, the Ugoos AM8’s Wi-Fi 6E and Bluetooth V5.3 capabilities ensure that you’ll have a seamless and high-quality wireless experience.

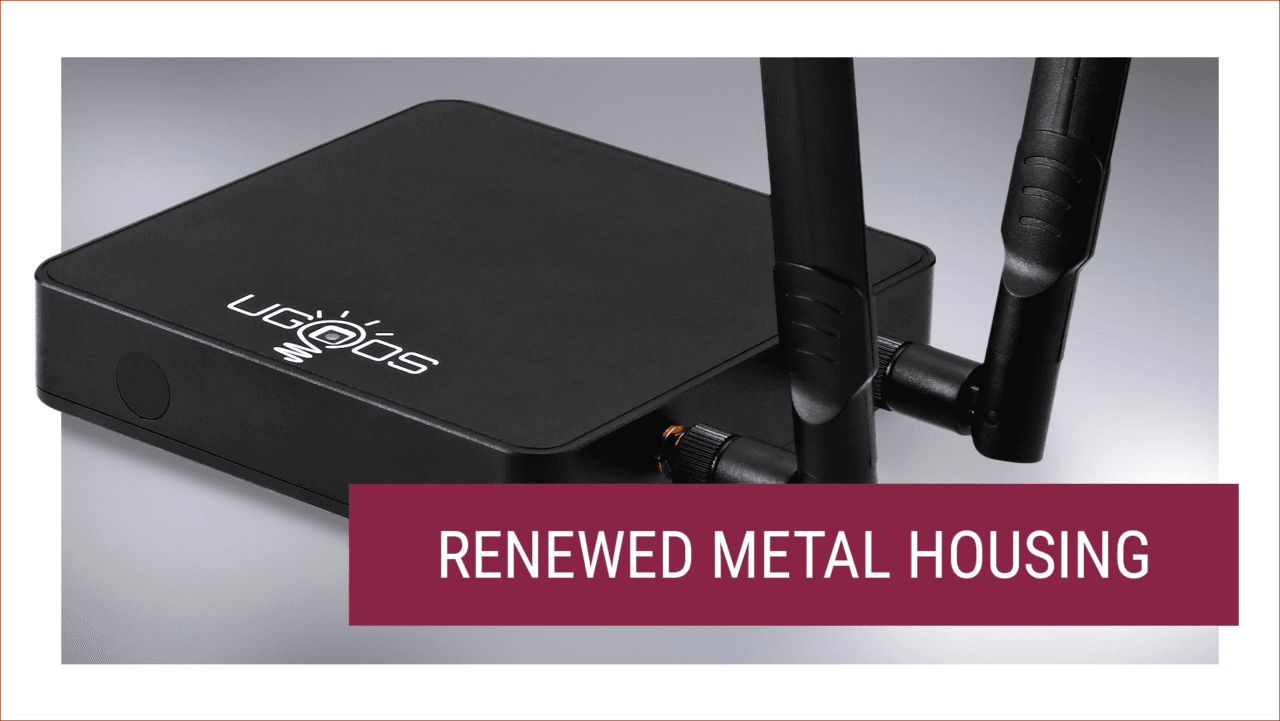

Metal Case Design
The Ugoos AM8 Metal housing has a design that focuses on cooling efficiency and durability. The metal housing acts as a heat sink, allowing for better heat dissipation and preventing the device from overheating.

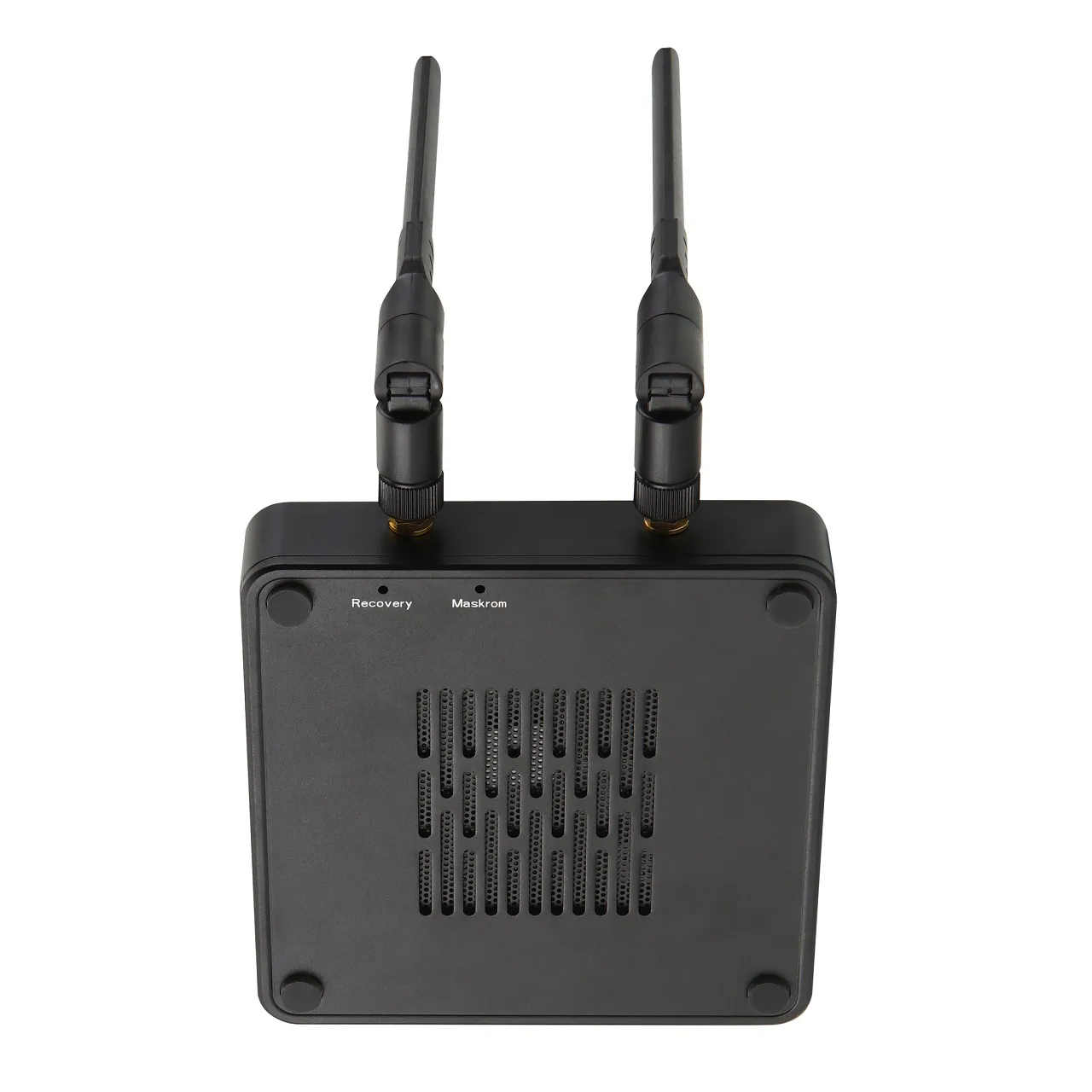

The design also includes ventilation holes on the bottom of the housing, which further enhances the cooling efficiency by allowing air to flow through and cool down the internal components.
In addition to its cooling capabilities, the metal housing provides excellent durability and protection for the device. It is resistant to scratches, dents, and other physical damages, ensuring that the Ugoos AM8 can withstand daily use and last for a long time.
Overall, the design of the Ugoos AM8 Metal housing not only enhances its cooling efficiency but also provides durability and protection for the device, making it a reliable and long-lasting option for users.
Passive Cooling
The Ugoos AM8 uses passive cooling technology, which means it does not have any fans or moving parts to cool the device. Instead, it relies on a heat sink and thermal pads to dissipate heat generated by the internal components.
Passive cooling is generally quieter and more reliable than active cooling methods, as there are no fans that can fail or make noise. However, it may not be as effective at cooling the device under heavy load or in hot environments compared to active cooling methods.
Overall, the passive cooling system of the Ugoos AM8 should be sufficient for most everyday tasks and moderate usage. However, if you plan on using the device for demanding tasks such as gaming or running resource-intensive applications, you may want to consider additional cooling options such as a fan or external cooling solution.

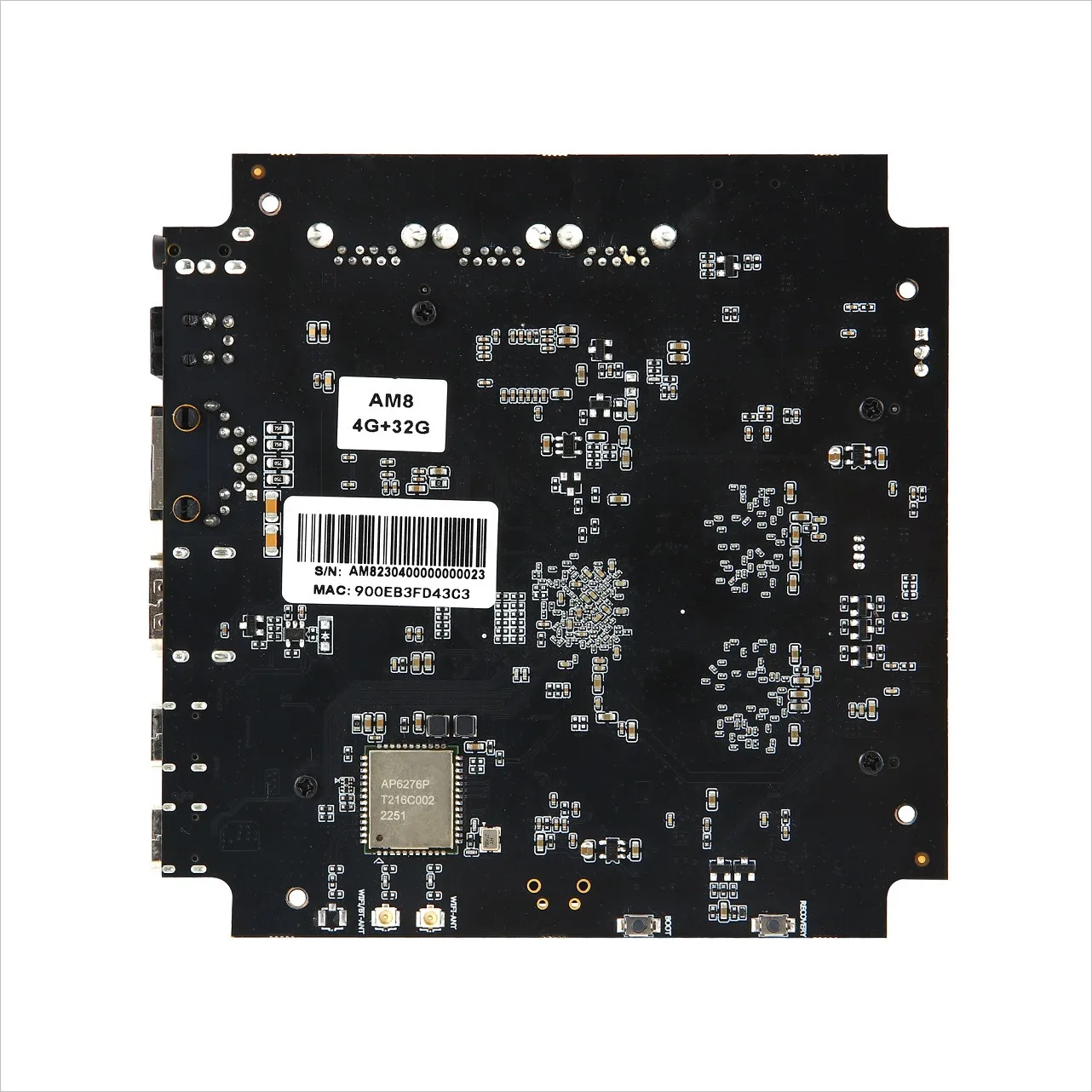

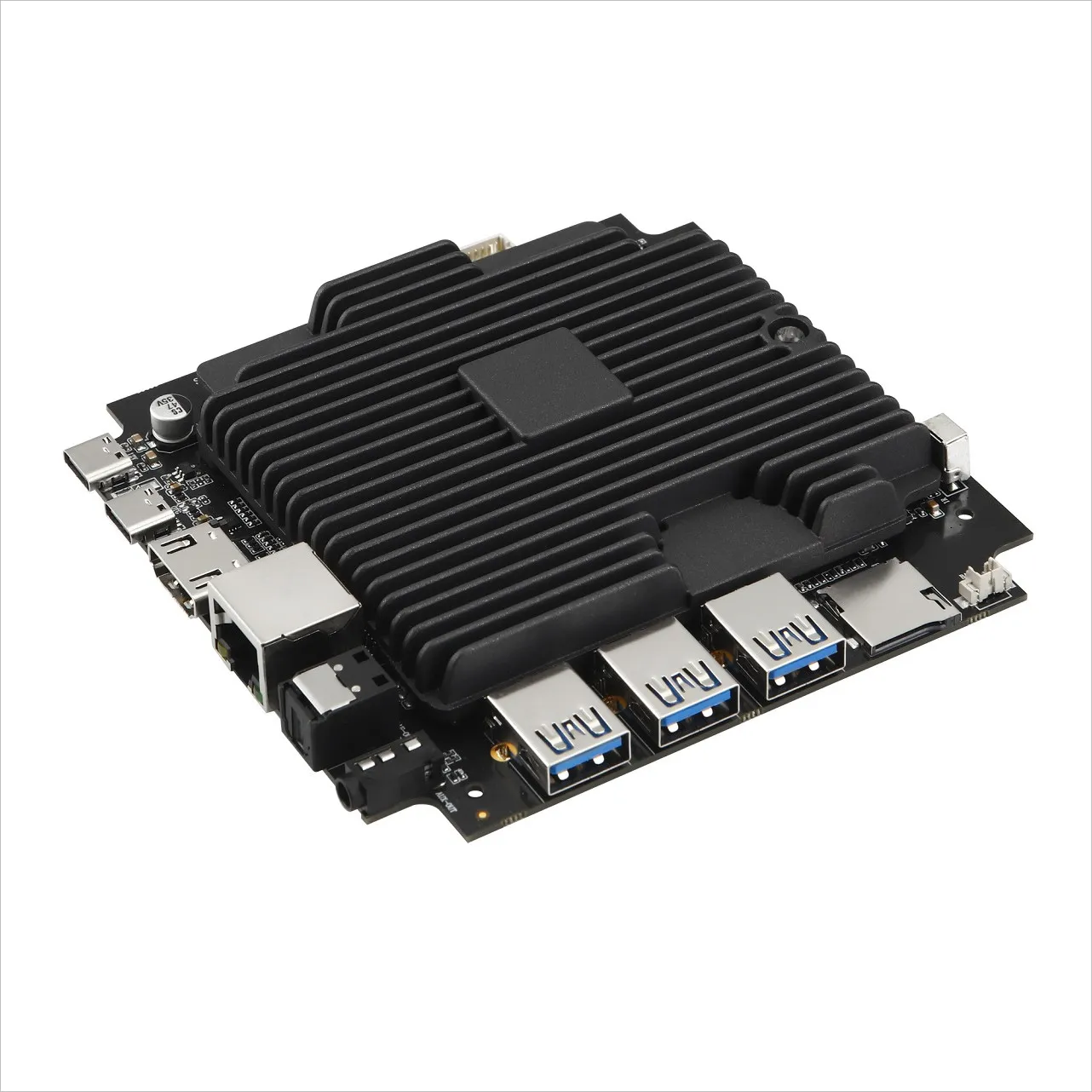

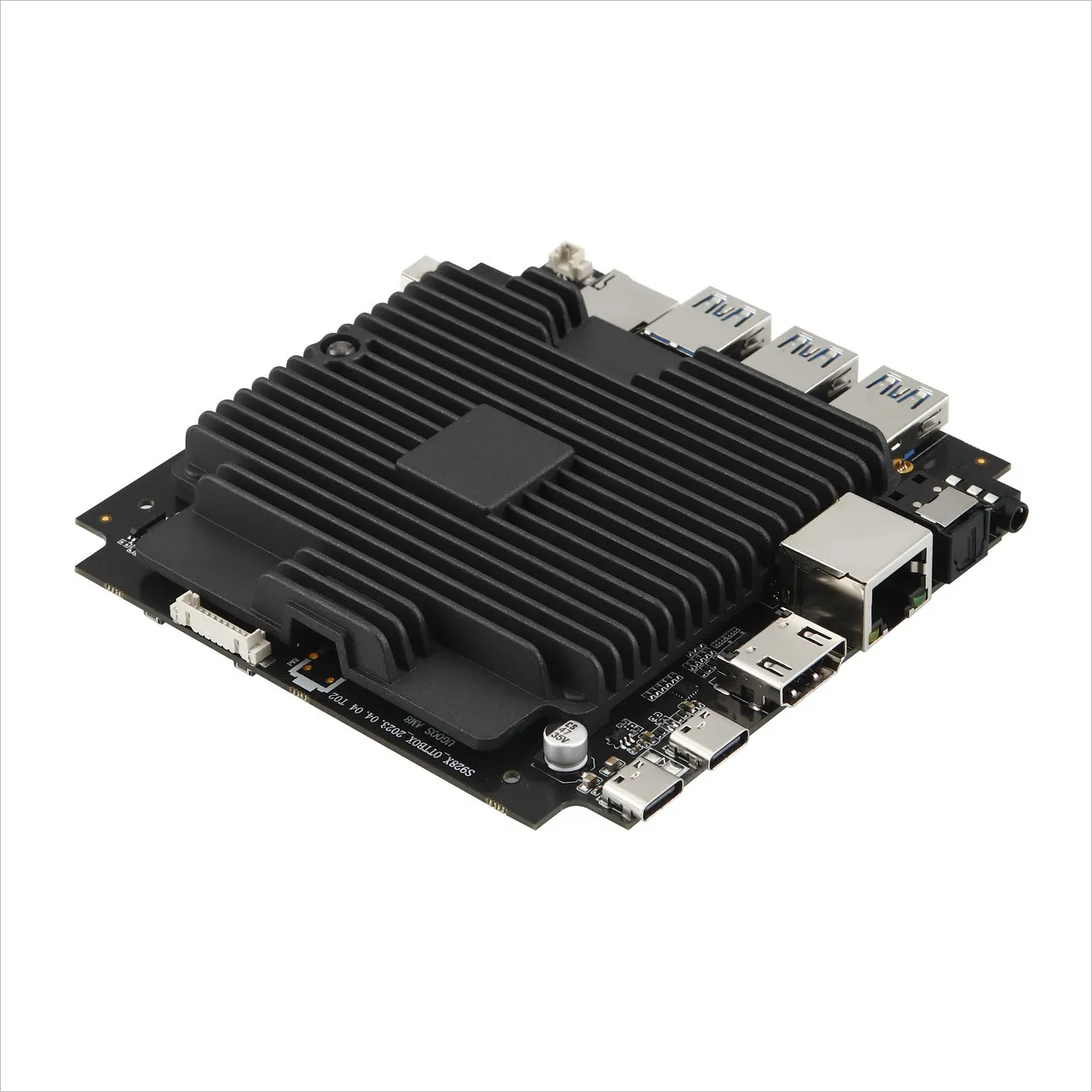

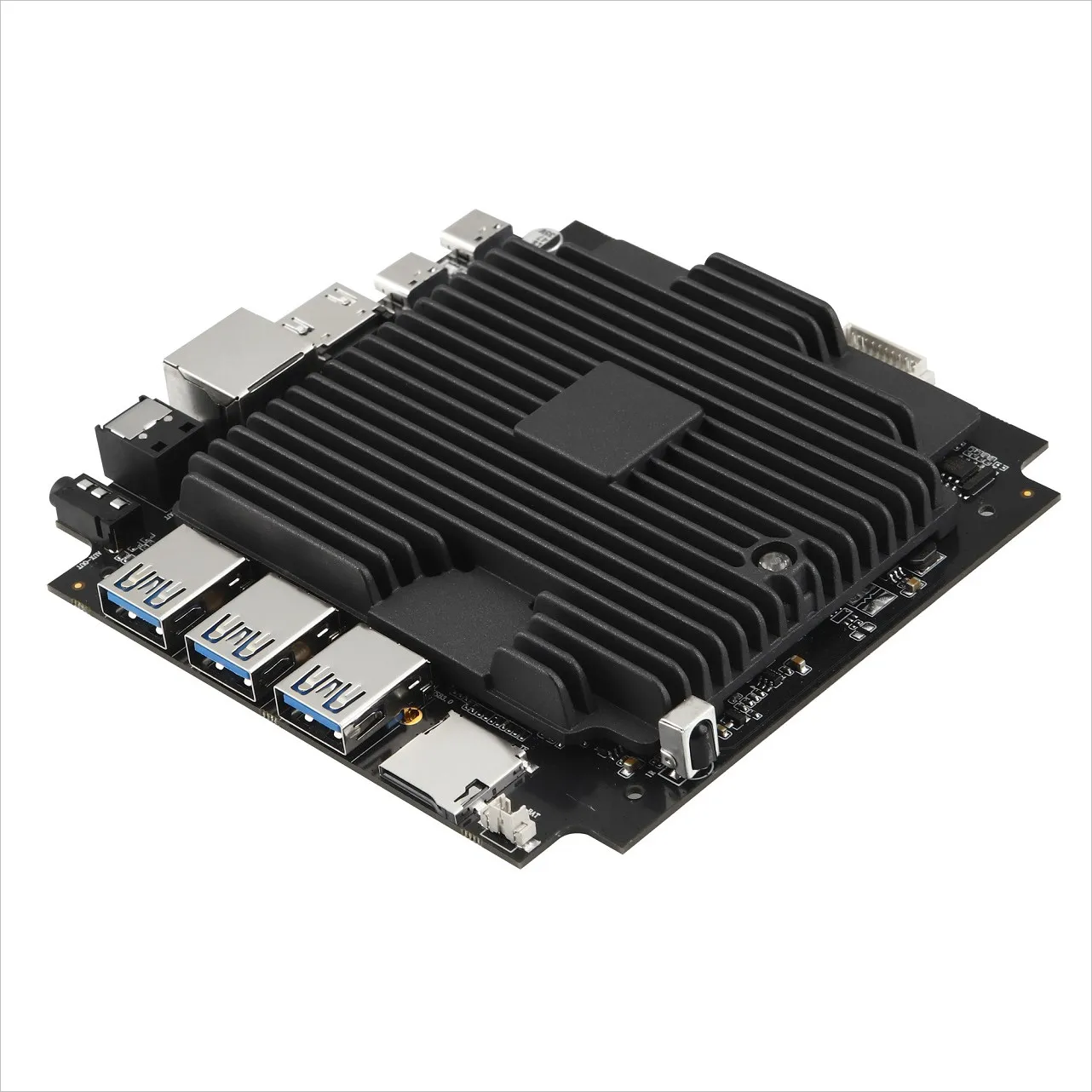

Design of Ugoos AM8 Heat Sink
8K Playback Support
The Ugoos AM8 TV Box is a powerful media player that supports 8K playback. With its advanced hardware and software capabilities, it can deliver stunning visuals and immersive audio for an enhanced viewing experience. Whether you’re streaming online content or playing local media files, the Ugoos AM8 can handle it all with ease. Its high-performance processor and ample storage ensure smooth playback and quick loading times. Additionally, it supports various video and audio formats, allowing you to enjoy your favorite movies, TV shows, and music in the highest quality possible.
A1 Coding Support
AV1 is a new video codec for video streams. It provides remarkable benefits compared to the more commonly used AVC (H.264) and HEVC (H.265) codecs that are currently in use. One advantage of AV1 is that it is both royalty-free and open source, unlike other options. It originates from the Alliance for Open Media (AOMedia), which was established in 2015 with the specific goal of developing an open alternative.

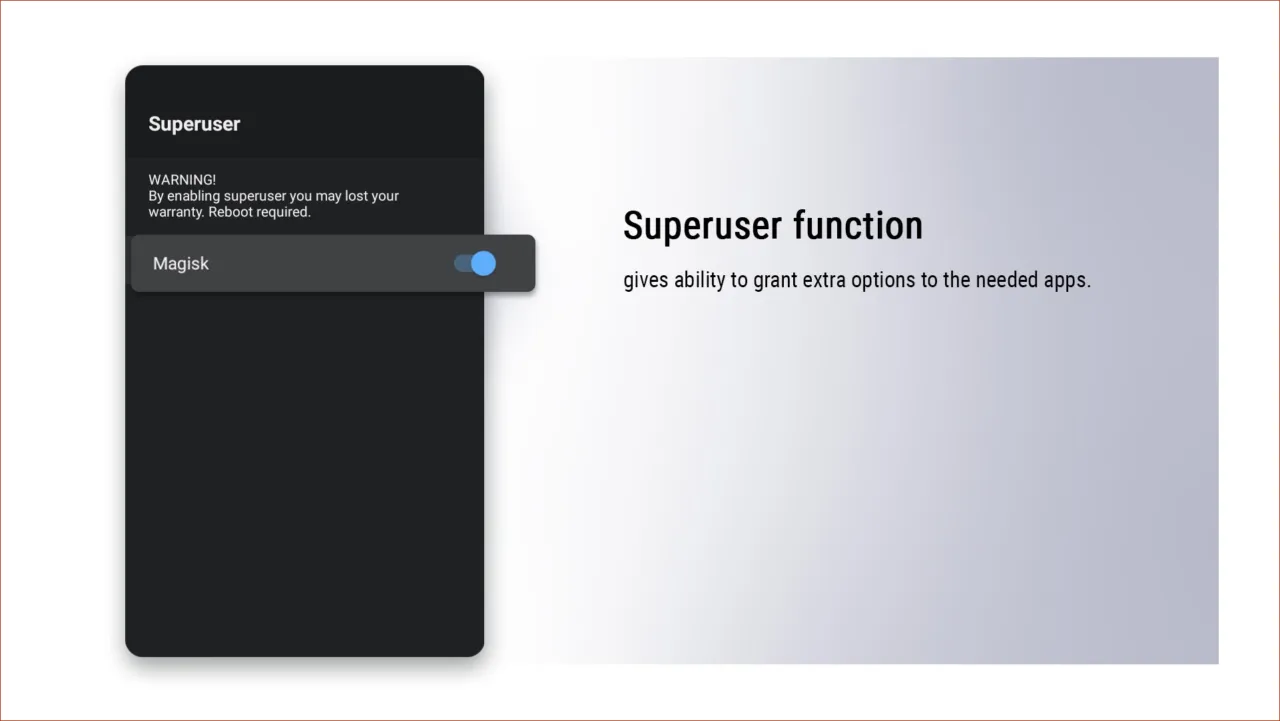

Superuser mode
All Ugoos devices come with a pre-installed feature called “Ugoos Settings”. The “Superuser” feature is a main setting that allows the installation of silent root or SuperSu app for manual operations. Users are fully responsible for using this special root feature.

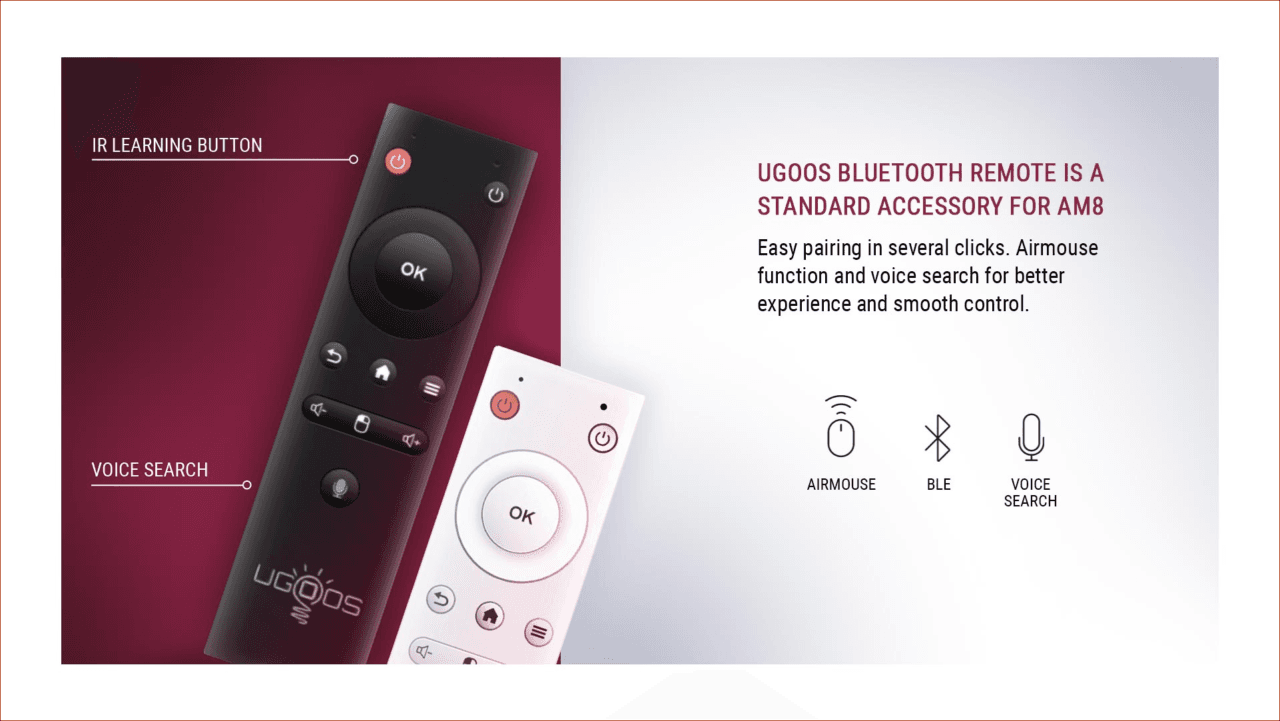

Voice-Enabled IR Learning Remote Control
The Ugoos AM8 IR Learning Remote Control is a remote control device that allows you to control your Ugoos AM8 Android TV box. It features a built-in infrared receiver that can learn and replicate the functions of other remote controls, such as your TV or DVD player remote. In addition, you also have a voice search function. To use the voice search feature on your Android TV box, simply press the dedicated voice search button on the remote control. With this feature, you can effortlessly search for content across various apps and platforms by simply using voice commands on your remote control. This eliminates the need for typing or navigating through menus, making it quicker and more convenient to find what you’re looking for.

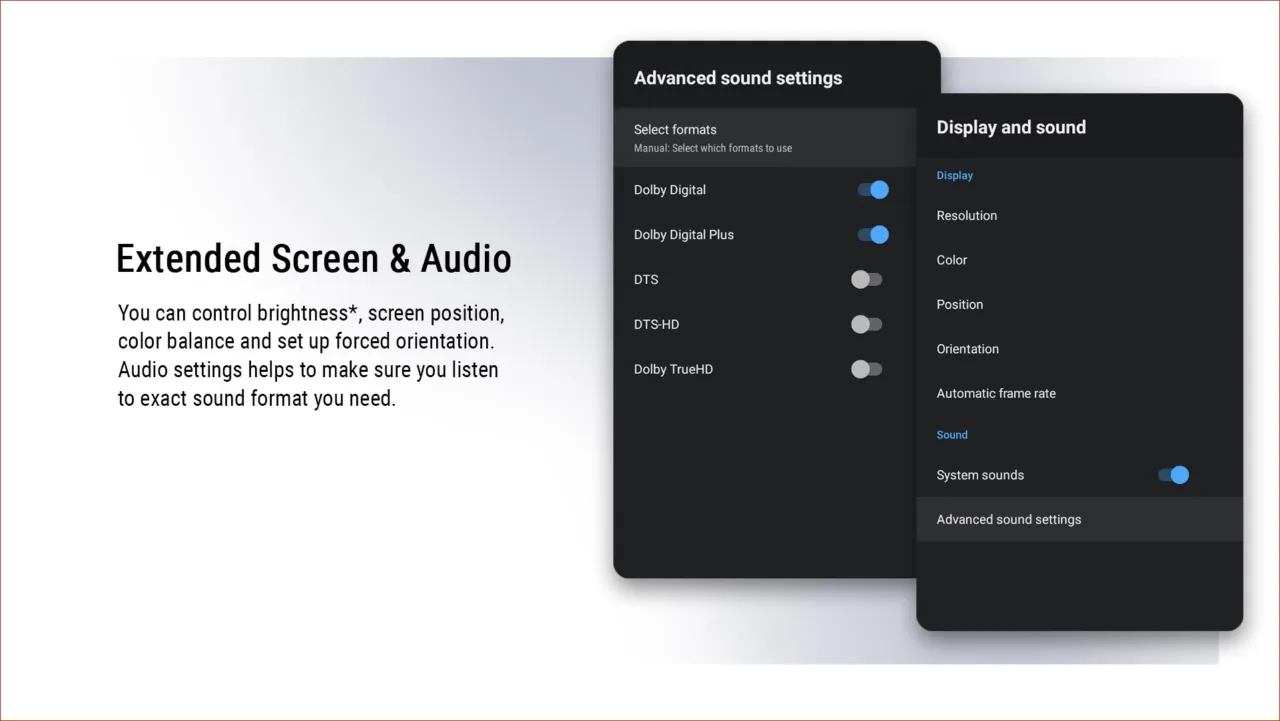

Advanced Audio and Display Settings
In Advanced Audio Settings, you can choose your preferred digital audio formats. You have the freedom to enable or disable them as you please. In addition, you have the option to customize various aspects such as display position, colors, resolution, and more. These settings can be found under the Display and Sound section.

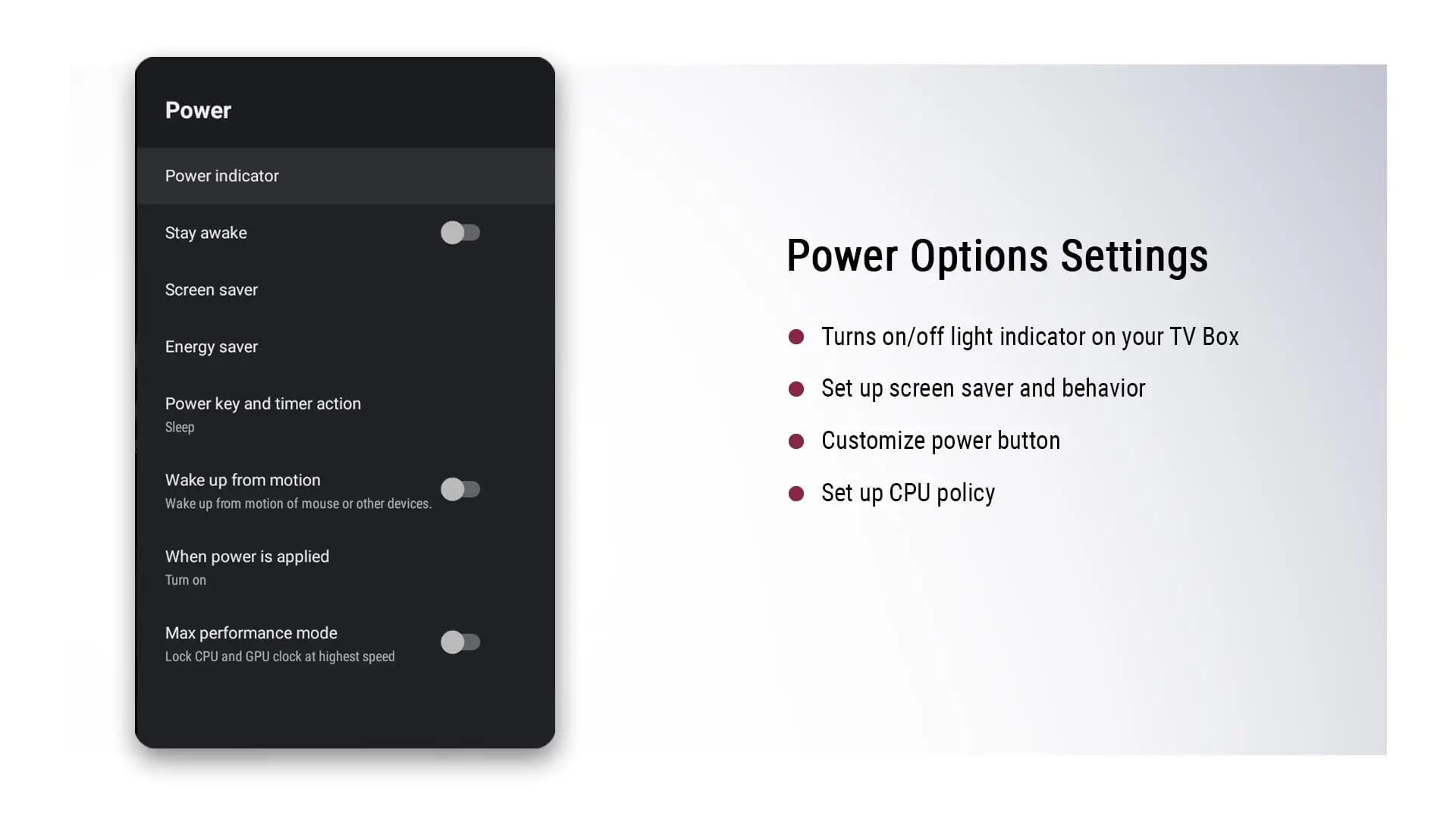

Advanced Power Settings

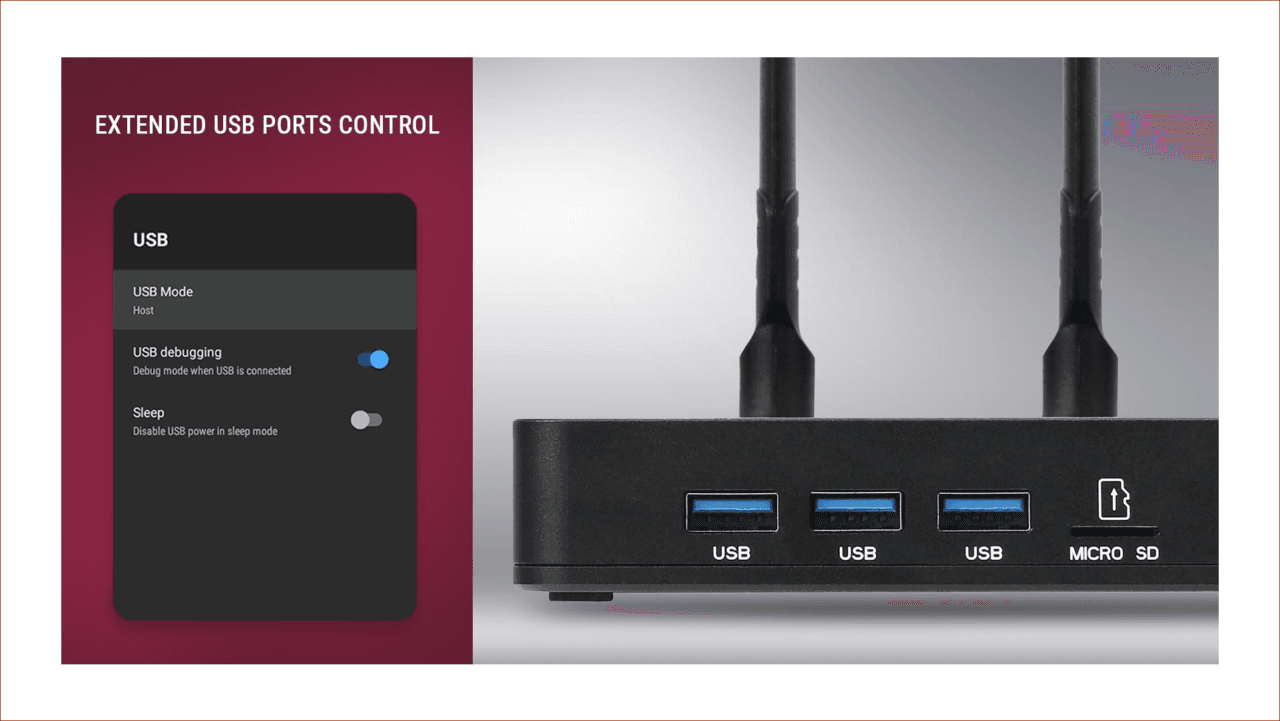

Extended USB Ports Control

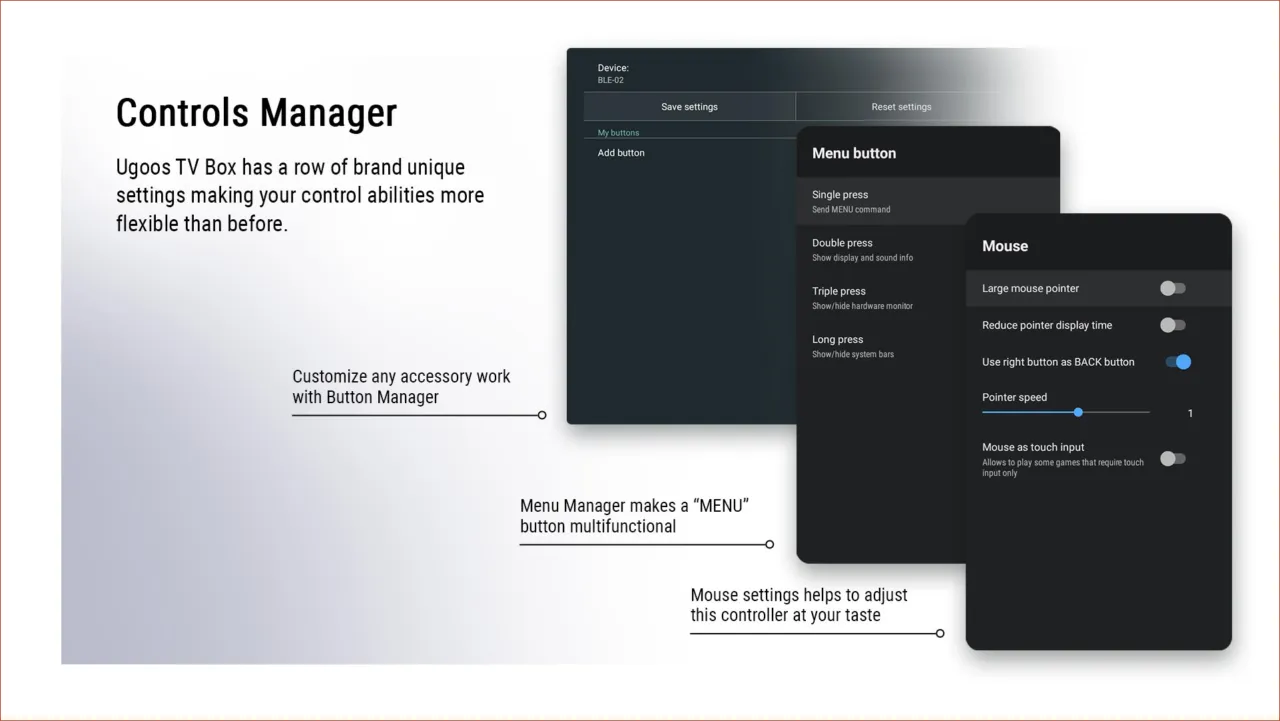

Control Manager
By accessing the control manager settings, you have the power to fine-tune your cursor speed, the size of the pointer, and the way you interact with objects on the screen.

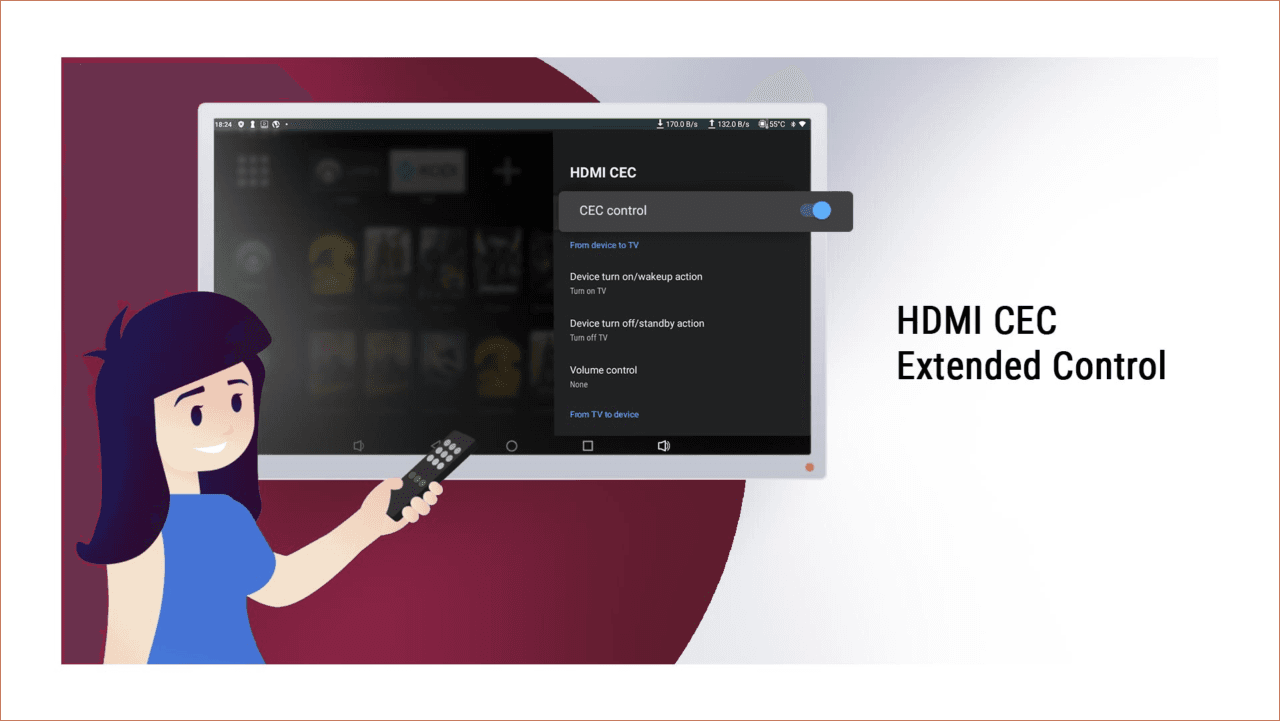

CEC control
The CEC control of the Ugoos AM8 makes it incredibly easy to manage all your HDMI-connected devices on an Android box.
Optical Out port Interface (SPDIF)
Easily link your AM8 to your home theater system, audio receivers, and any other audio equipment you possess using an optical cable.
