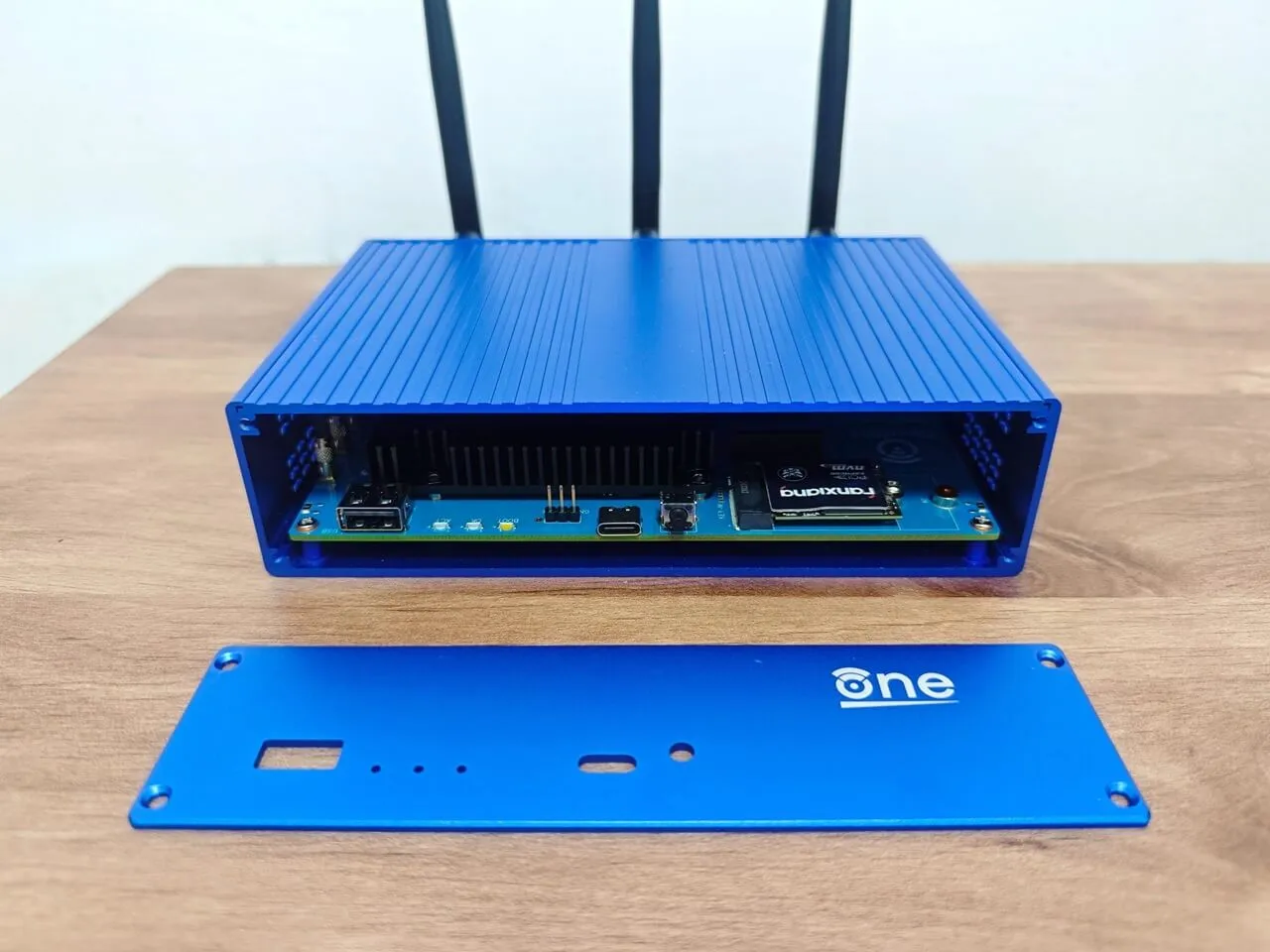

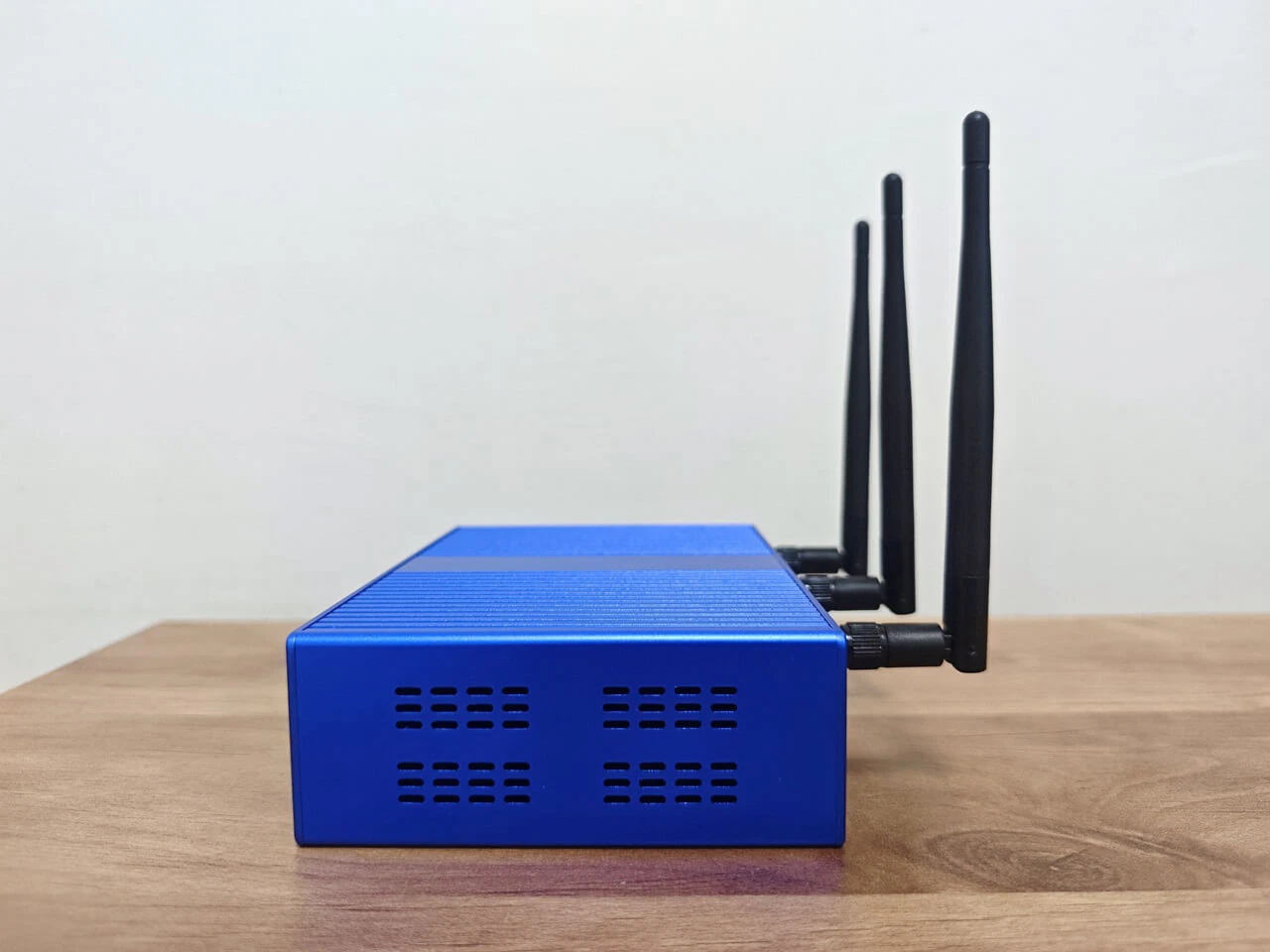

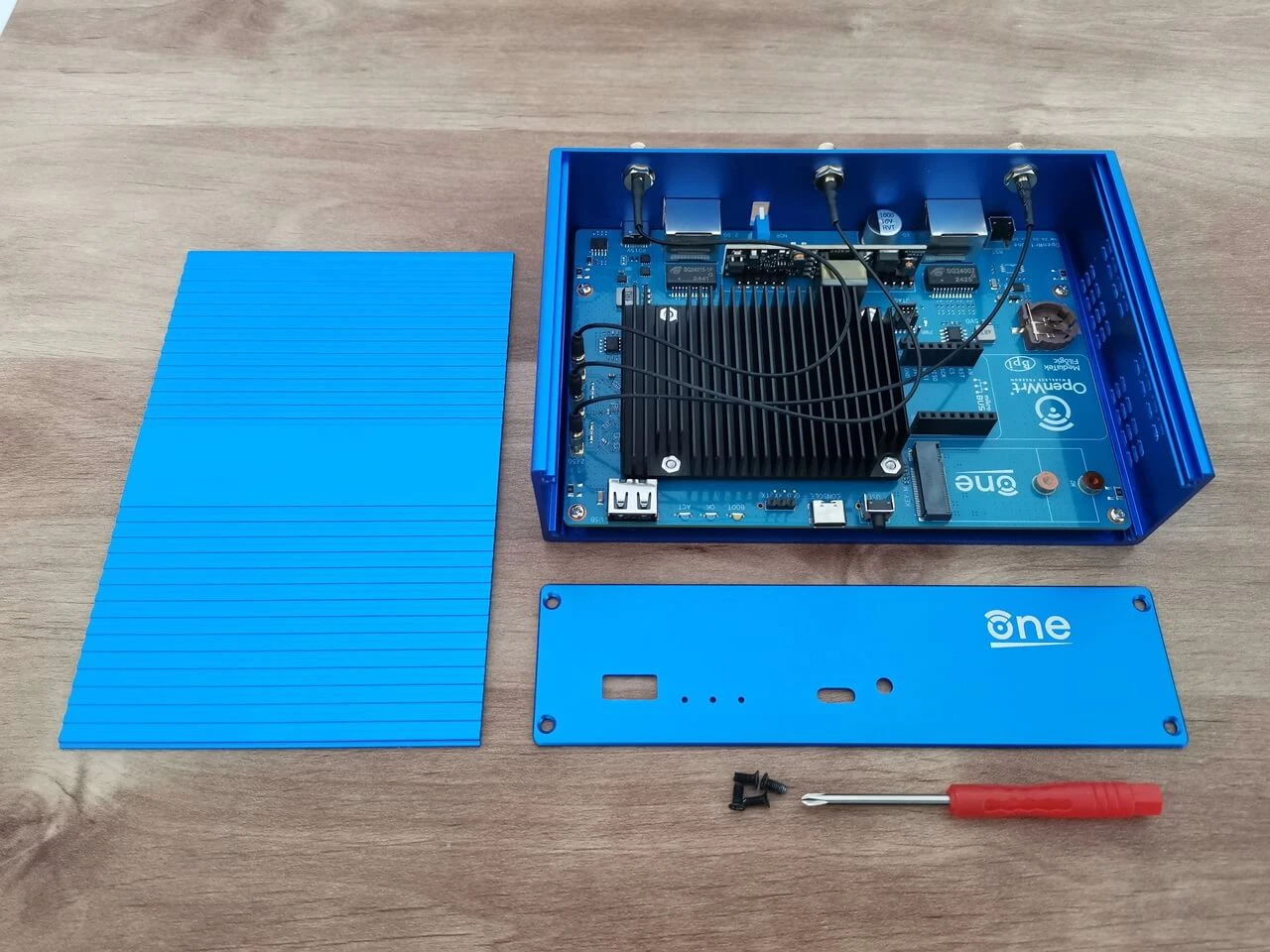

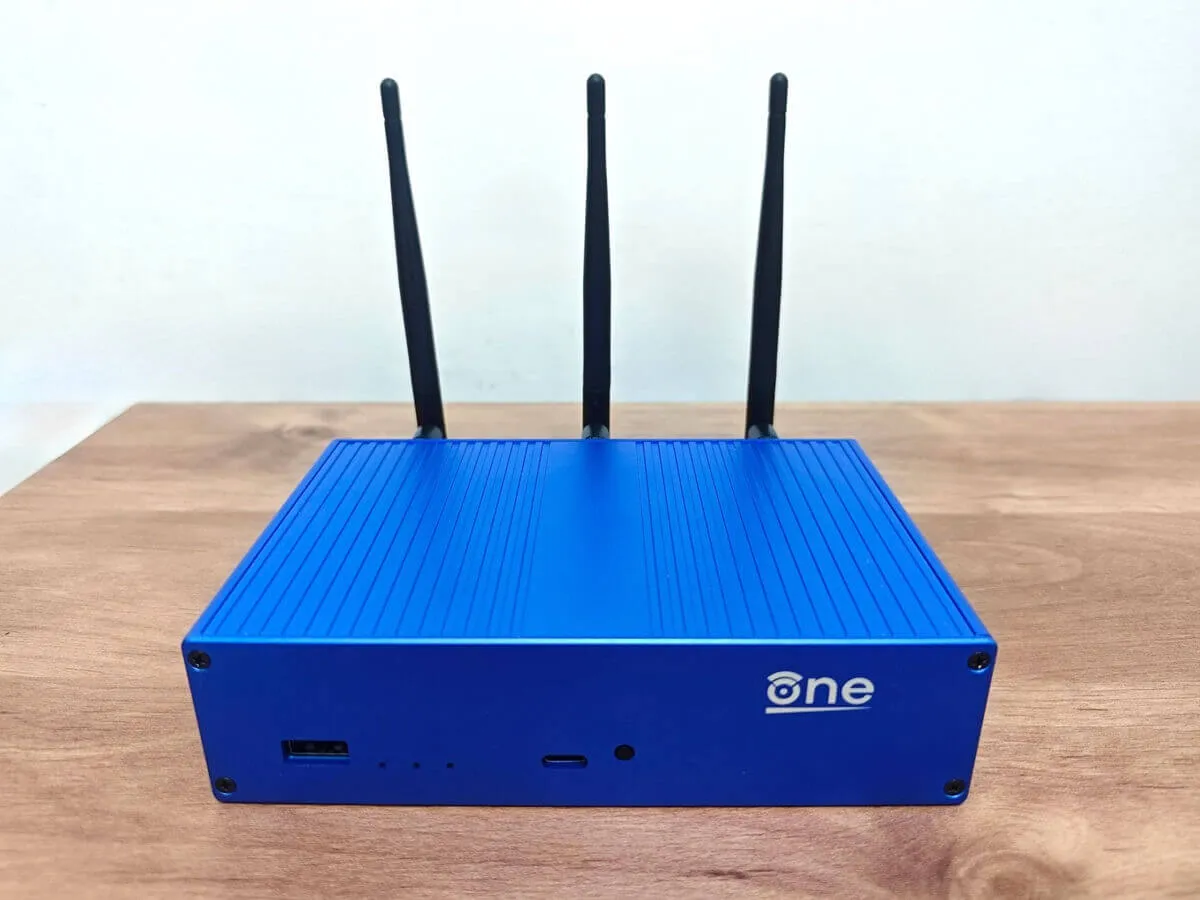

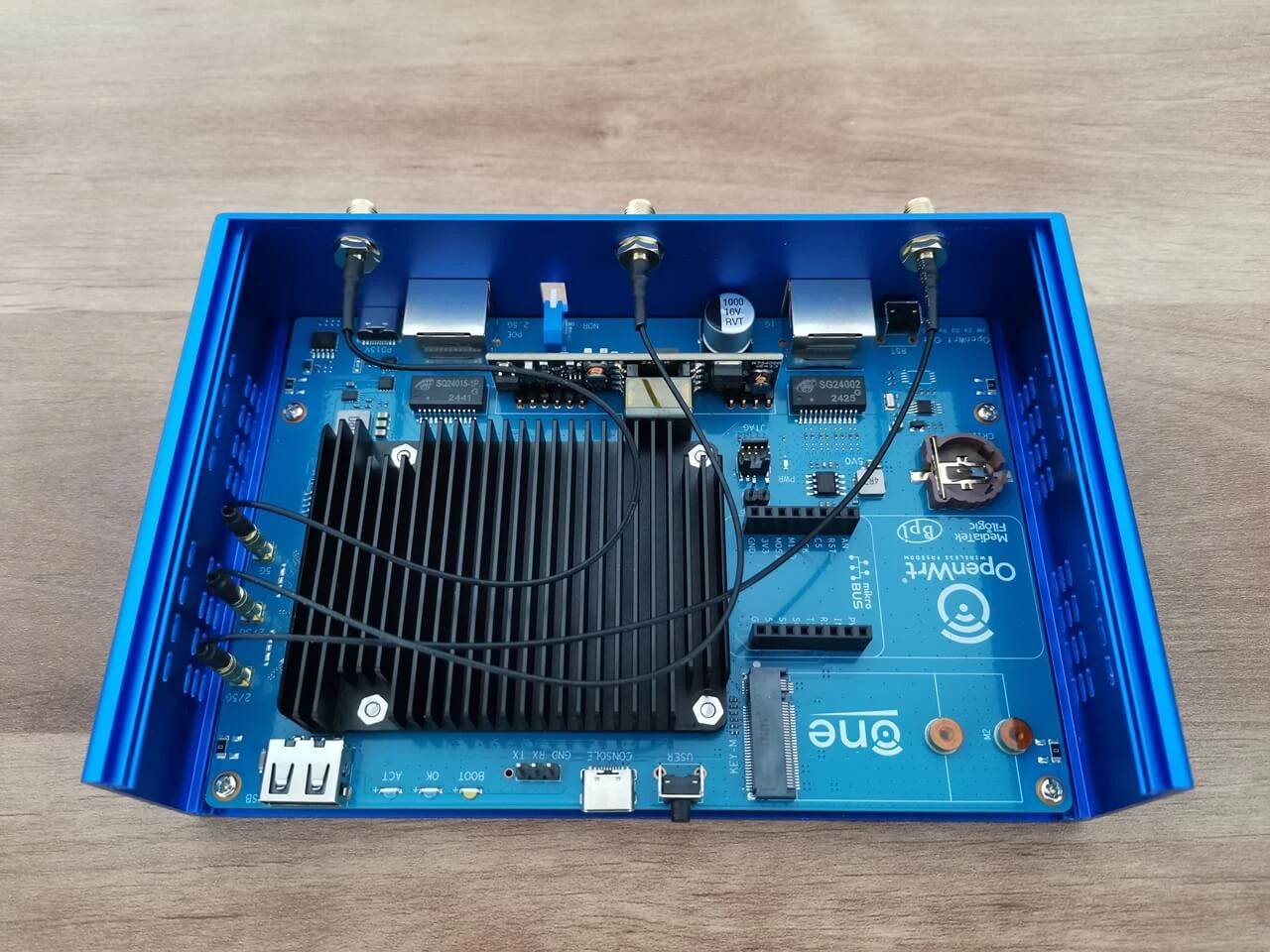

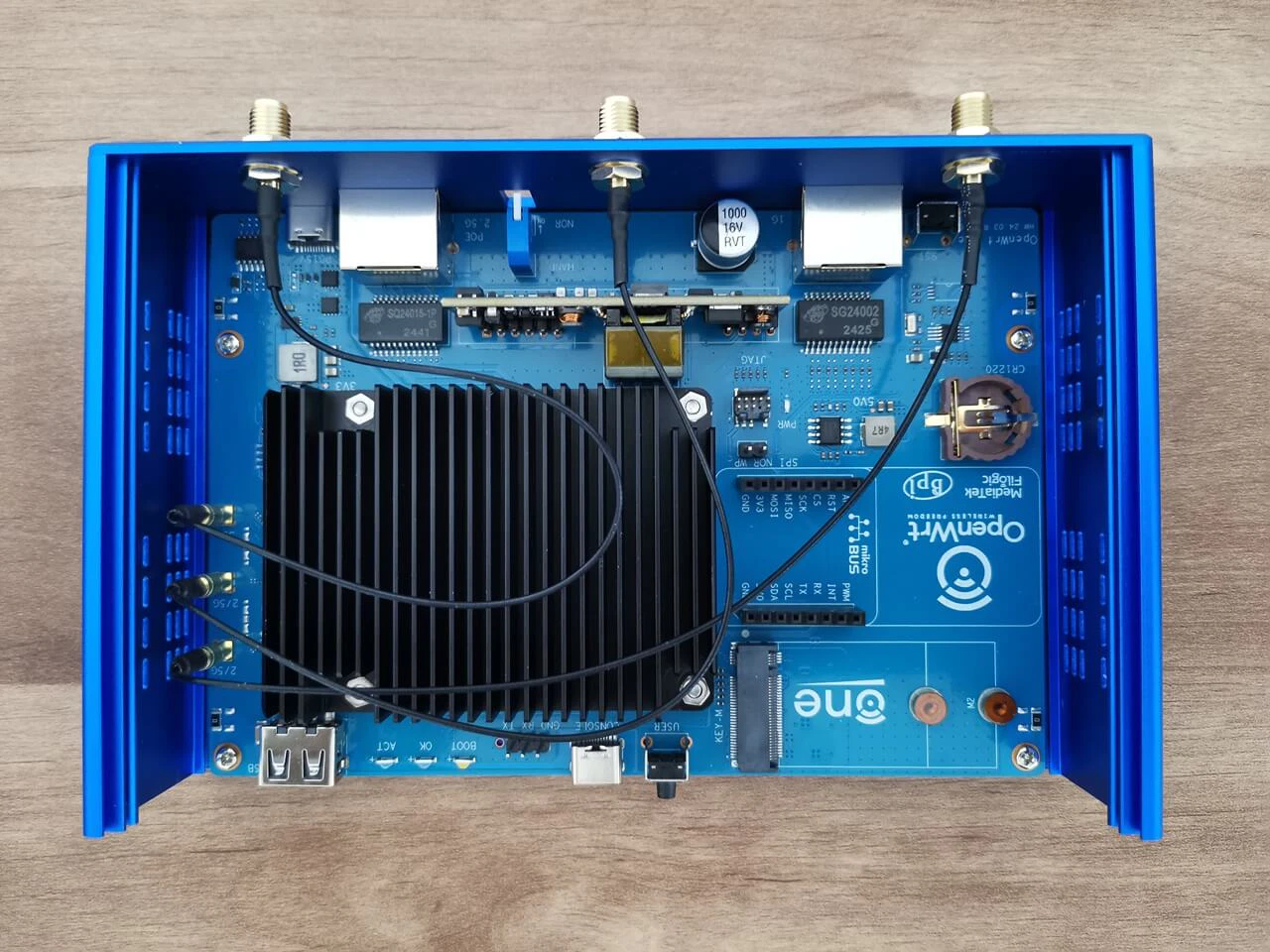

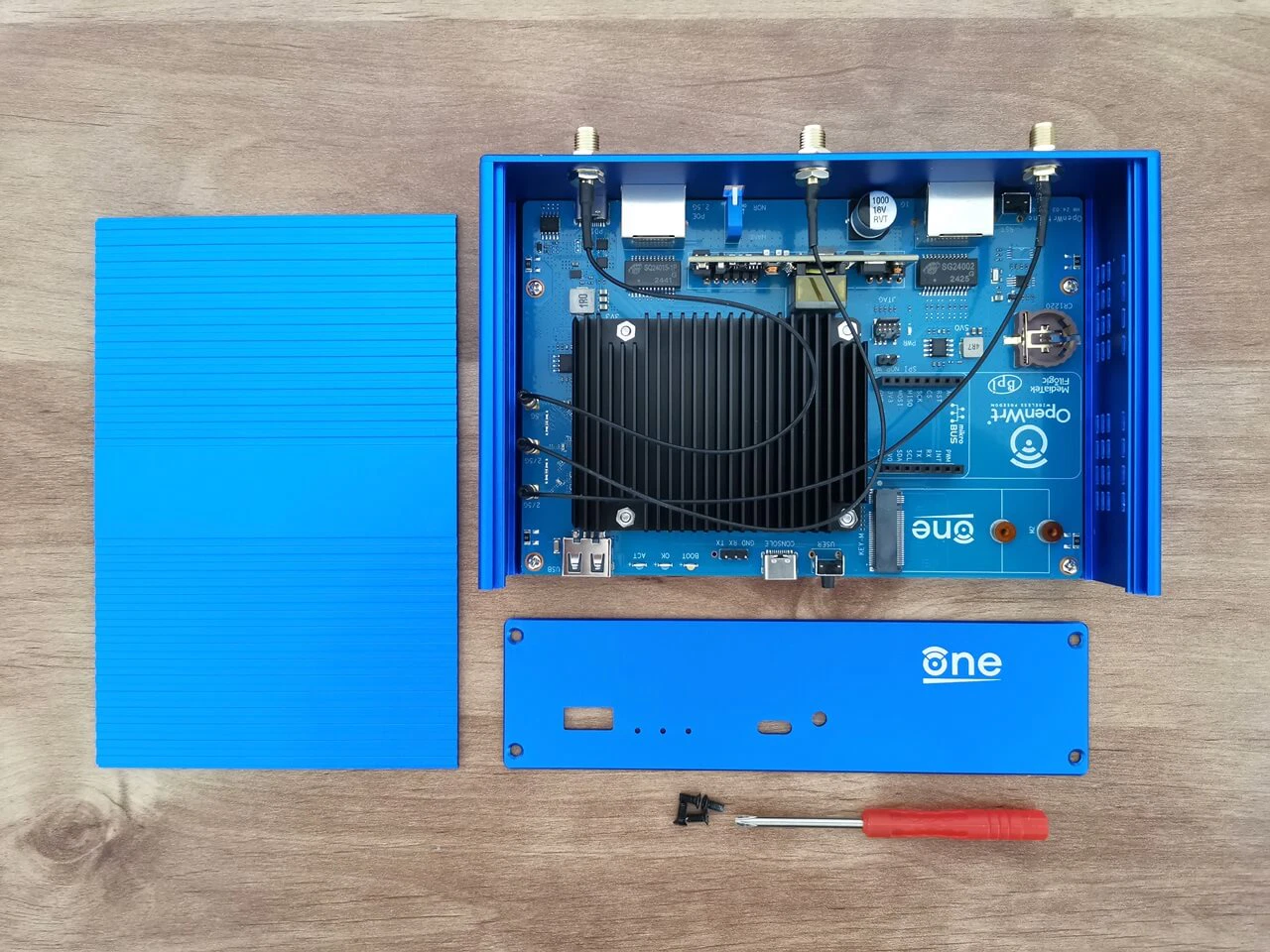

A Closer Look at the Design: Both Internal and External
The Good and the Bad!
The overall external design is impressive; however, there are a few issues to address. For instance, incorporating a small wide cut in the rear cover would facilitate the passage of extra cables, particularly for users who wish to connect a microcontroller or sensor to the mikroBUS socket.
Having three LAN ports offers greater advantages than having only two!
For some unknown reason, OpenWrt team missed an opportunity to enhance the rear panel of the case by adding an extra square cutout with screw holes for a third 2.5GbE LAN port. It’s important to note that in this type of configuration the M.2 socket would be utilized for the LAN controller expansion card, preventing the addition of an NVMe SSD. However, if NVMe support isn’t a priority for you, a high-quality Micro SD card can be a viable alternative.

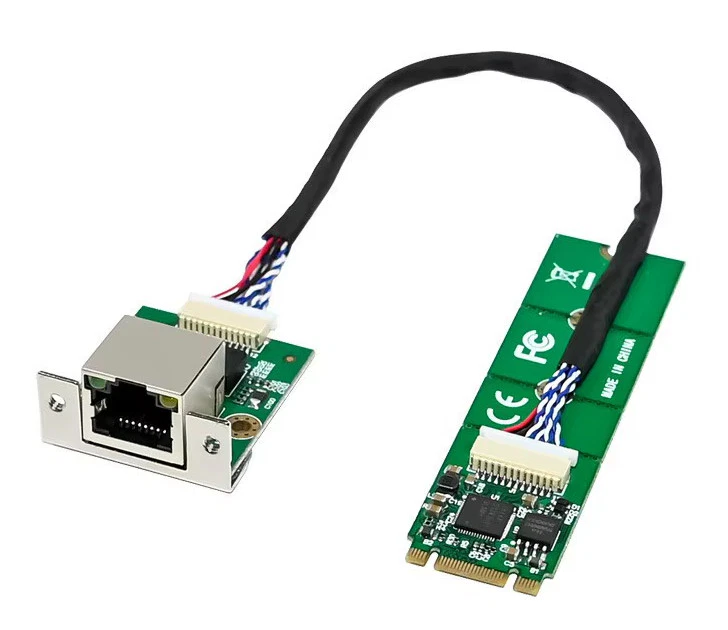

The M.2 B/M Key 2.5Gb Ethernet Card is equipped with an Intel I225 chipset for its RJ45 LAN Controller and boasts compatibility with the OpenWrt kernel. Should you decide to undertake this installation, proceed cautiously. Additionally, achieving the appropriate fit for the Ethernet port will require precise cutting, which can be achieved through milling, water cutting, or a punch machine.

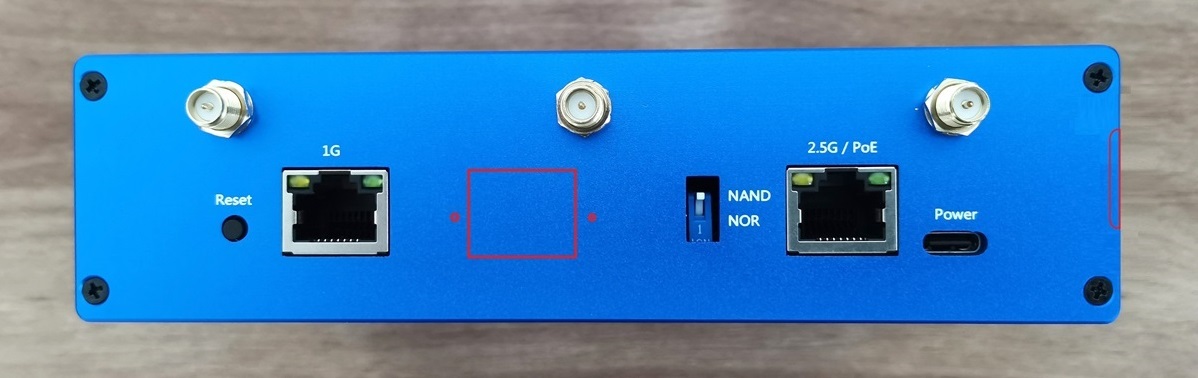

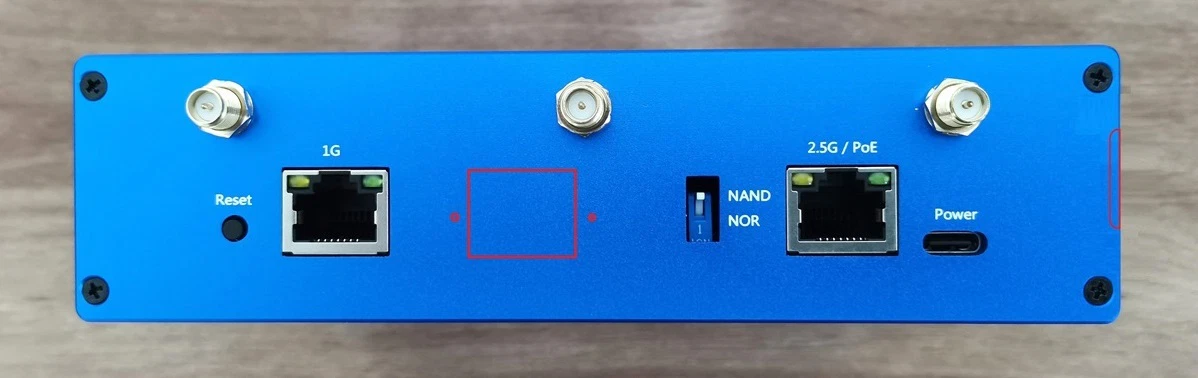

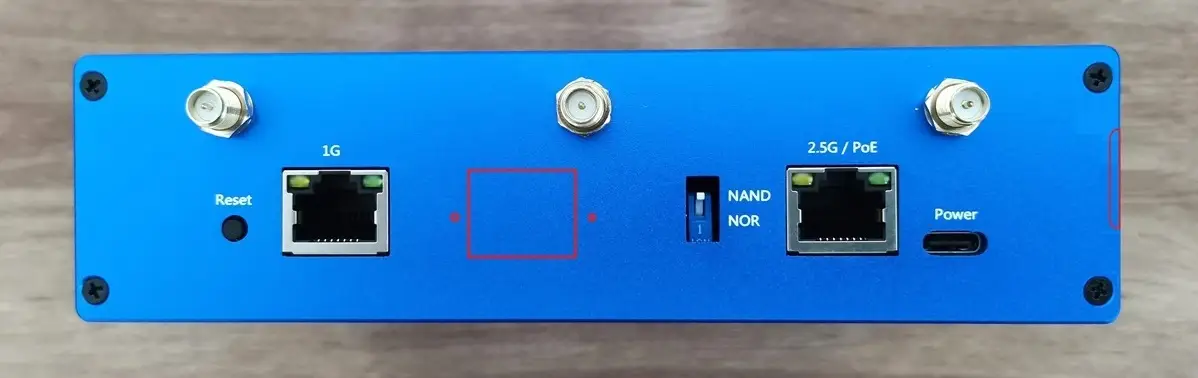

The opening on the right is designed to accommodate a flat cable and other wiring, enabling them to exit the case smoothly. The photo below shows the redesigned back cover case, which includes marked sections in red indicating areas to be cut.
M.2 B/M Key 2.5Gb Ethernet Card RJ45 LAN Controller Card | ||||
Item No’ | Item Photo | Description | QTY | Buy Link |
1 |  | M.2 B/M Key 2.5Gb Ethernet Card RJ45 LAN Controller Card | 1 | |
AndroidPIMP.COM will not be liable or responsible for any loss or damage caused by improper wiring/assembly of the above components. | ||||
