Single Board Computer Powered with Allwinner H5 | Orange Pi PC2

0
By androidpimp on November 16, 2016 Embedded Computers

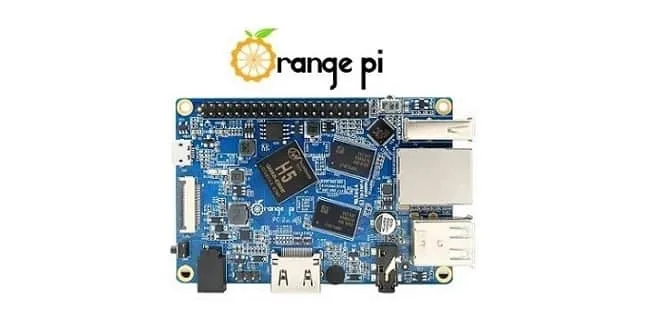

Orange Pi PC2 Review
Orange Pi PC2 Review
Share
Facebook Twitter LinkedIn Pinterest Email

Home • Embedded Computers • Single Board Computer Powered with Allwinner H5 | Orange Pi PC2

Product Introduction

Orange pi pc2, designed by Shenzhen Xunlong Software CO., Limited offers new improved hardware specs compared to previous generation All Winner H3 SoC series. This single board computer is equipped with an Allwinner H5 bit Quad-core Processor. On paper, it can support 4K@60fps but because it comes with the HDMI 1.4 interface, it’s actually limited to 4K@30fps. Nerveless, the board comes with a newer generation ARM Cortex-A53 64Bit processor and its on-board 8MB NOR flash.

The board features a more powerful GPU, with a six cores Mali-450 MP4 that should provide improved processing power when running 3D applications, running games and playing video files sampled in 1080P up to 2K with the KODI Media Player Software. That being said, The Orange Pi PC2 is available at AliExpress for $19.98. More information can be found in Orange Pi PC2 product page.

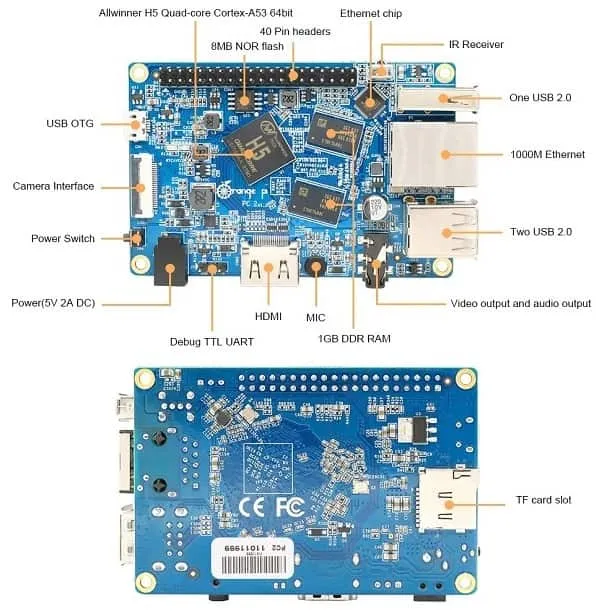

orange-pi-pc2-development-board

Orange Pi PC 2 Specification:

  • GPU – ARM Mali-450 MP4 (6x cores)
  • Processor – Allwinner H5 (4x Cortex-53); 512 KB L2 cache
  • Other features – power & status LEDs; power button
  • System Memory – 1GB DDR3 SDRAM (Shared with GPU)
  • Storage: 8MB NOR flash; micro-SD slot (up to 64GB)
  • Expansion – 40-pin header compatible with Raspberry Pi B
  • On board IR receiver
  • Debug UART header (TTL level)
  • GPIO connector with 3x GPIO lines
  • Micro USB 2.0 OTG port (does not support DC power input)
  • Host ports – 3x USB 2.0
  • Networking – 10/100/1000 Mbps Ethernet (RJ45)
  • Power – DC barrel jack; +5V @ 2A (max.)
  • Dimensions – 85 x 55mm
  • Weight – 38gm
  • Supported OSes – Android, Lubuntu, Debian, Raspberry Pi Image

Multimedia:

  • HDMI output –  HDCP, CEC, 30 function, and integrated CVBS (simultaneous output of HDMI and CVBS)
  • A/V output on 3.5 mm audio jack
  • Mic input
  • Camera interface – CSI input supports 8-bit YUV422 CMOS sensor interface, CCIR656 protocol for NTSC and PAL, SM pixel camera sensor, and video capture at up to 1080p@30fps
