Addon Boards & Modules

NanoPC T4 Metal Case Review, Assembly & Thoughts

By androidpimpDecember 11, 2018Updated:February 22, 2022No Comments3 Mins Read
Facebook Twitter Pinterest LinkedIn Tumblr Email

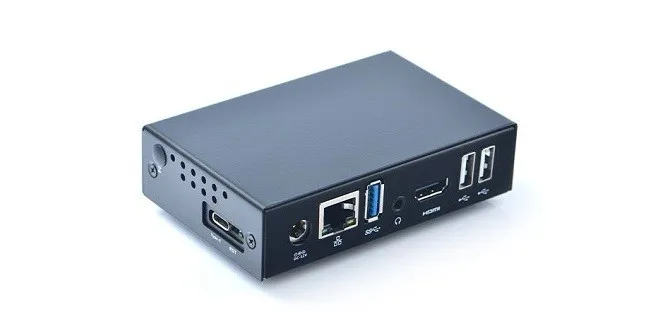

NanoPC T4 Case
NanoPC T4 Case

NanoPC T4 Metal Case

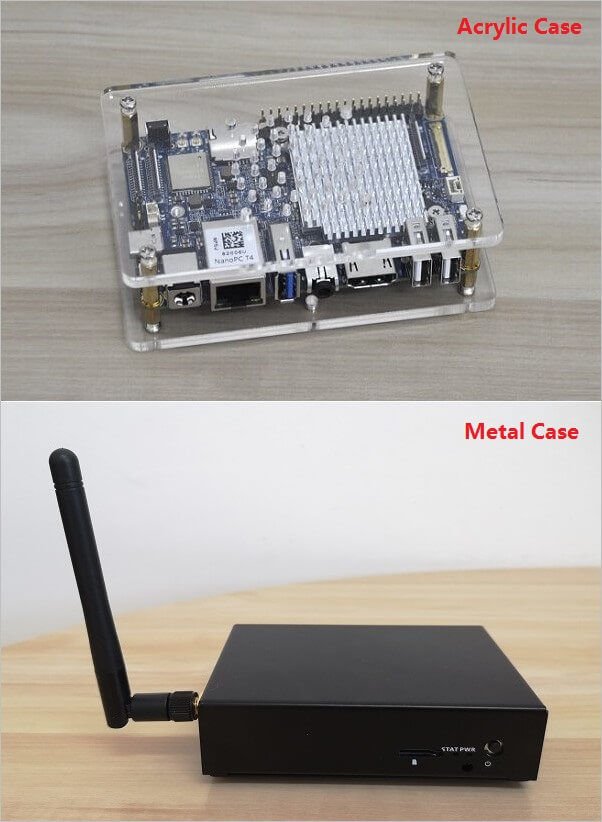

The NanoPC T4 is definitely one of the best high-end SBC (Single board computer) I recently tested and reviewed. With the default acrylic plastic case users may expect partial cover for all the board interfaces. If you need a closed type of case and not a semi-closed acrylic, composed of just two plates I suggest checking FriendlyElec metal priced at $6.99. This cool and well-designed case will not only protect the T4 board from dust and dirt but also assures the heat dispersion will be optimal. Having said that, you are welcome to check more information about this recommended product on the link posted below:

Buy it On FriendlyElec (Official Website)

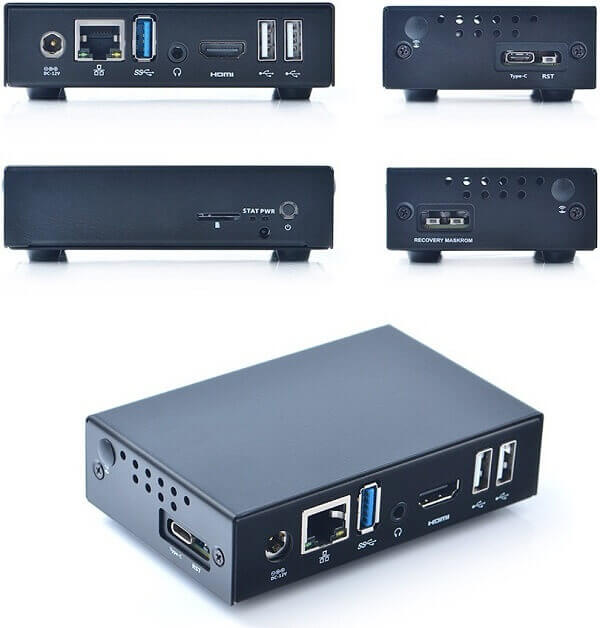

NanoPC-T4 Metal Case full view

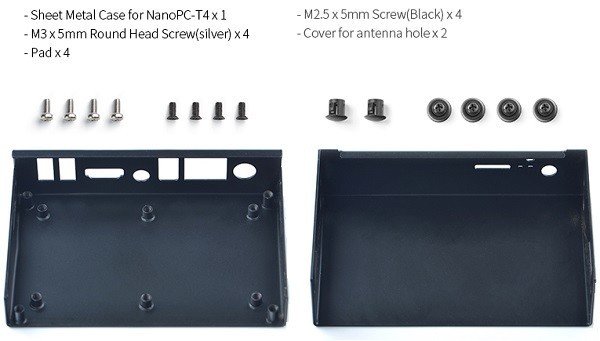

Package Contents

Items:

  • x1 NanoPi-T4 Sheet metal case
  • x4 Rubber legs
  • x4 x5mm round head screw (For PCB mounting).
  • x4 M2.5 x 5mm (For Case Assembly).
  • x2 Antennas Plugs (Cover for antenna holes)

Unboxing All Items

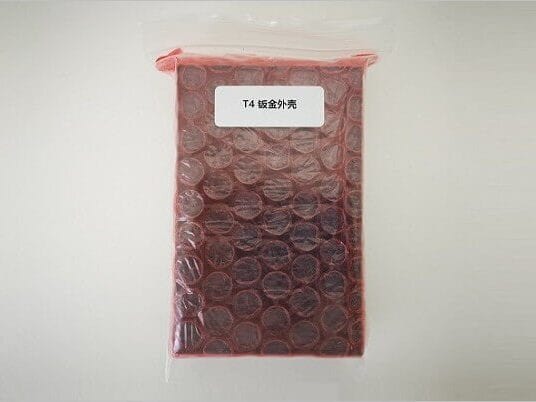

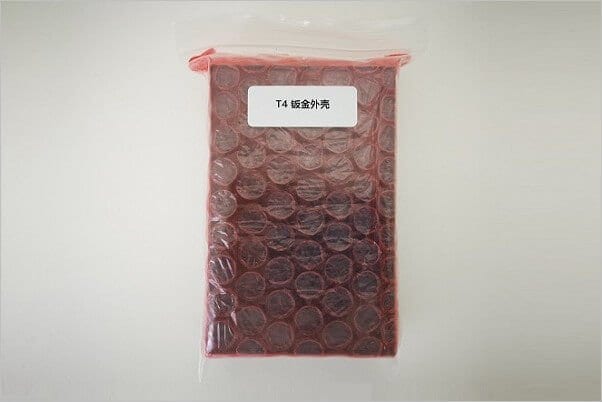

  • NanoPC T4 Unboxing 01
    NanoPC T4 Unboxing 01

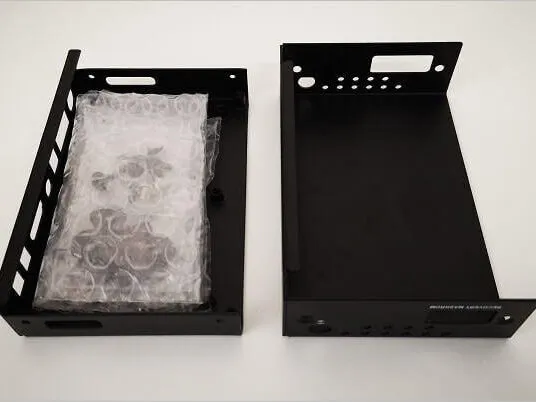

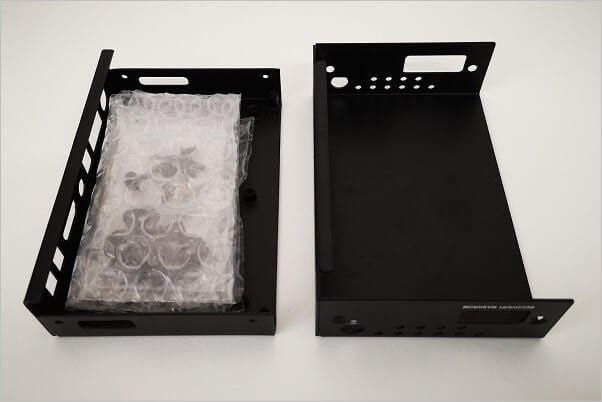

  • NanoPC T4 Unboxing 02
    NanoPC T4 Unboxing 02

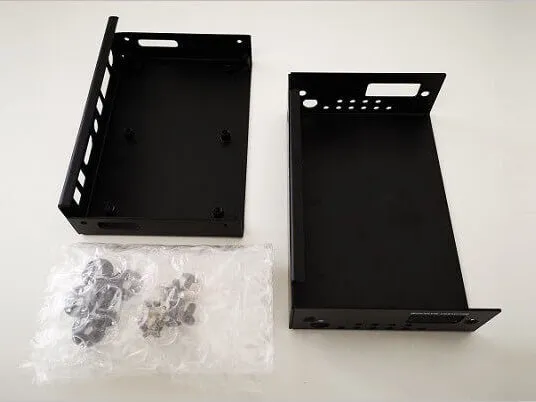

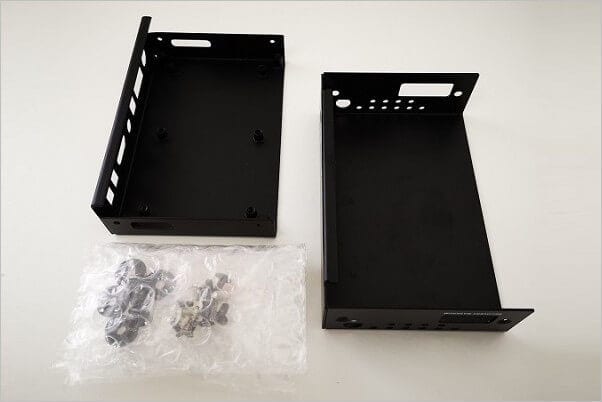

  • NanoPC T4 Unboxing 03
    NanoPC T4 Unboxing 03

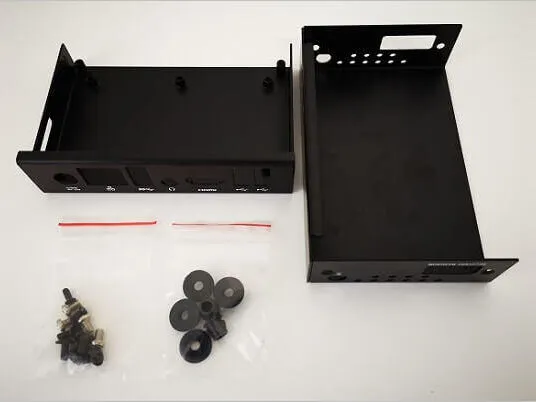

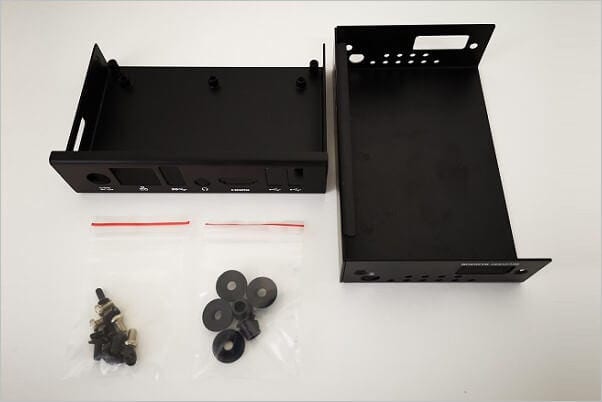

  • NanoPC T4 Unboxing 04
    NanoPC T4 Unboxing 04

Part #1 | Base Unit

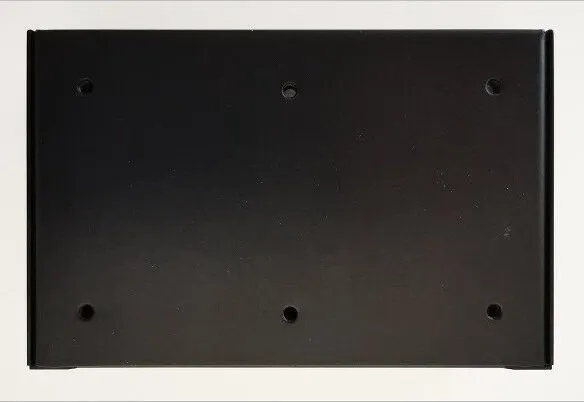

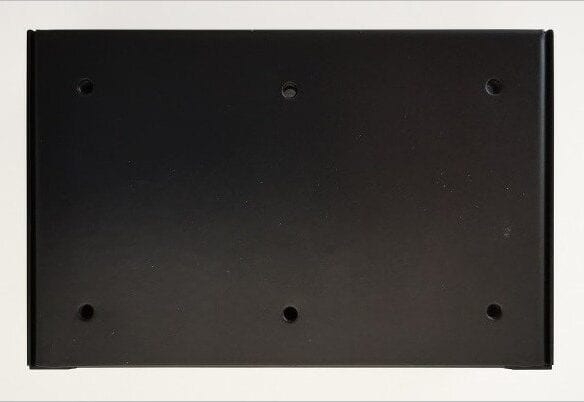

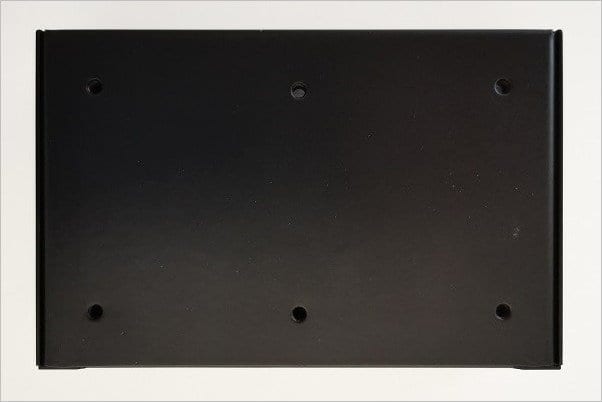

  • NanoPC T4 Case Base 02
    NanoPC T4 Case Base 02
  • NanoPC T4 Case Base 03
    NanoPC T4 Case Base 03

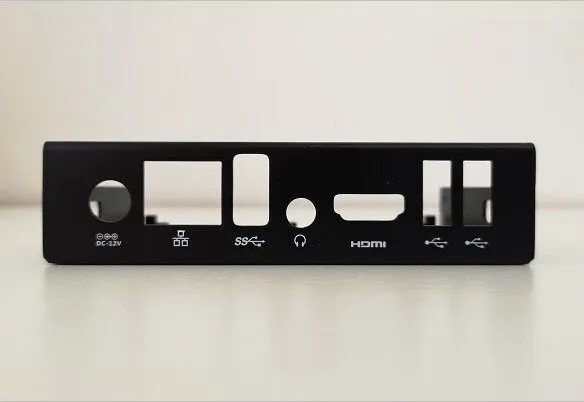

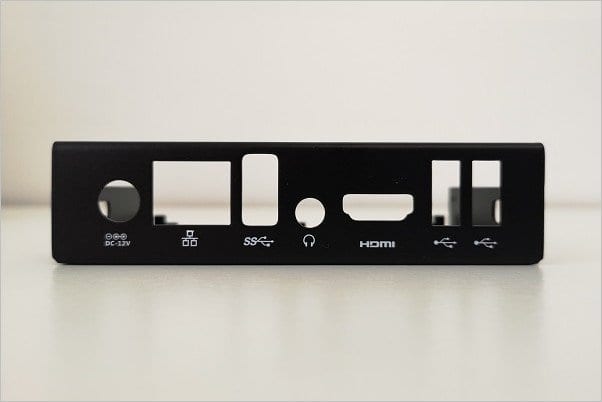

  • NanoPC T4 Case Base 04
    NanoPC T4 Case Base 04

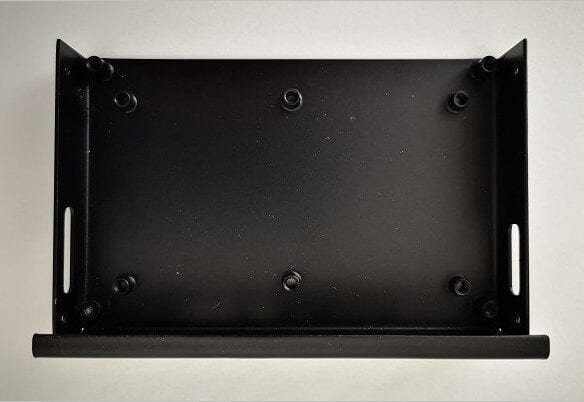

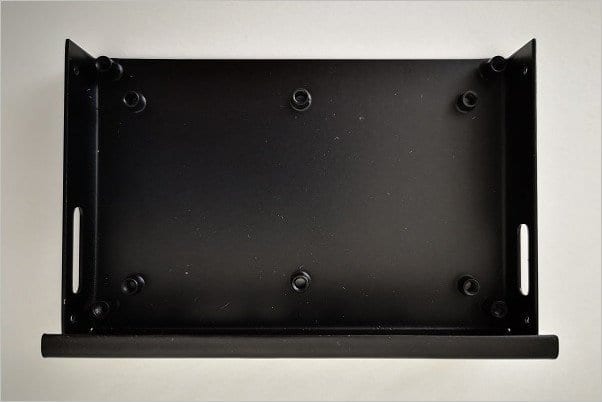

  • NanoPC T4 Case Base 01
    NanoPC T4 Case Base 01

Part #2 | Upper Cover

  • NanoPC T4 Case Base 02
    NanoPC T4 Case Base 02
  • NanoPC T4 Case Base 03
    NanoPC T4 Case Base 03
  • NanoPC T4 Case Base 04
    NanoPC T4 Case Base 04
  • NanoPC T4 Case Base 01
    NanoPC T4 Case Base 01

The Case

The assembly of the case parts is very simple and straightforward. It’s composed of two main parts made from bending sheet metal connected together with 4 screws.  In this case, compared to the one made from acrylic plastic that is open on all sides, you will get better heat dispersion as well as a closed type of case. If you are planning on connecting an NVMe SSD card it will be very tight and the card will contact the case, lower part to improve heats disruption through the case envelope. So keep in mind that there will not be extra space for adding an extra heatsink on top of the NVMe SSD

Adding Antennas

A pair of Wi-Fi & BT antennas are not included in this kit. You will probably need one antenna if you are planning only to use a wireless connection to get a better signal reception. If both a are not a real necessity, and only a LAN wired connection is required, FriendlyElec included two plastic plugs/covers to seal the holes/cuts located on the case upper cover.

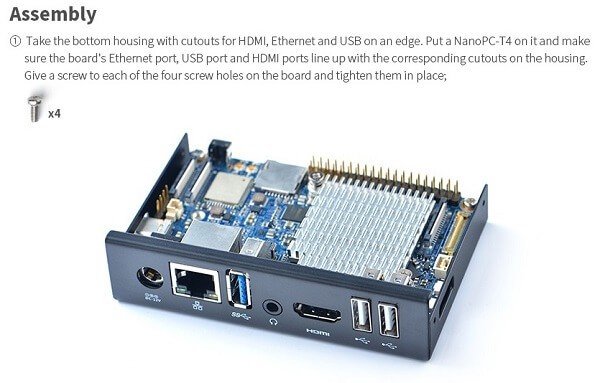

Assembling all Items

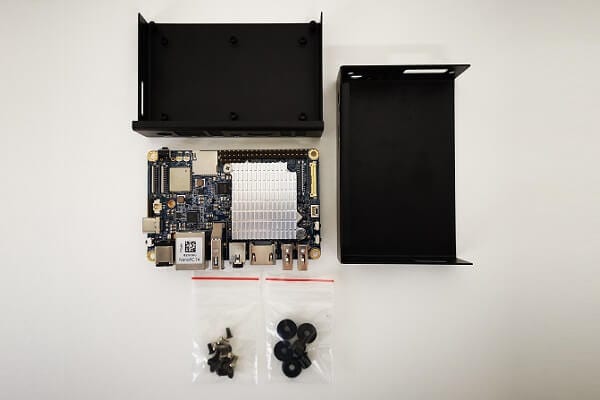

  • NanoPC T4 Case ASM 01
    NanoPC T4 Case ASM 01

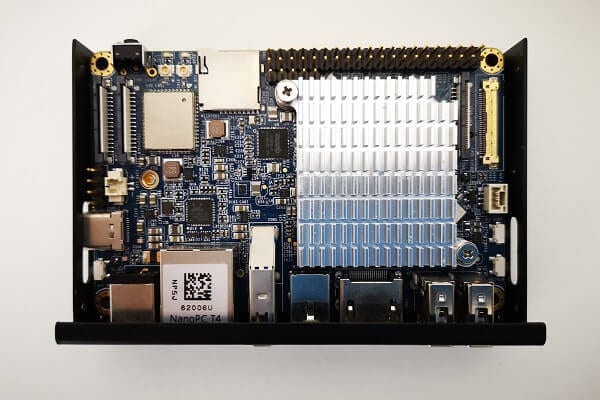

  • NanoPC T4 Case ASM 02
    NanoPC T4 Case ASM 02

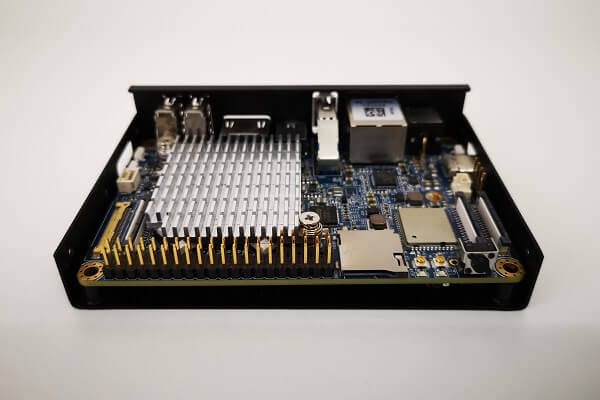

  • NanoPC T4 Case ASM 03
    NanoPC T4 Case ASM 03
  • NanoPC T4 Case ASM 04
    NanoPC T4 Case ASM 04

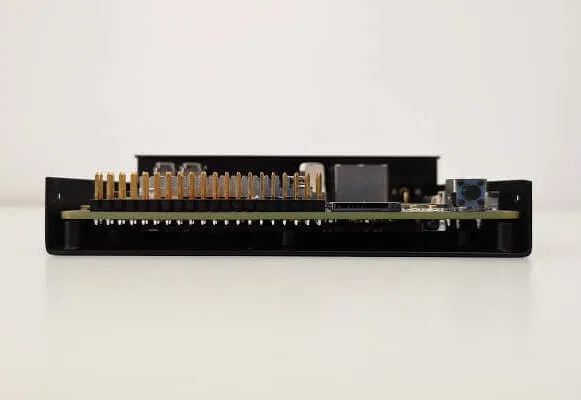

  • NanoPC T4 Case ASM 05
    NanoPC T4 Case ASM 05

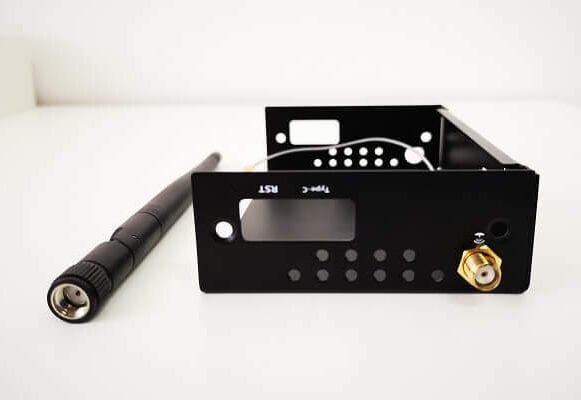

  • NanoPC T4 Case ASM 06
    NanoPC T4 Case ASM 06

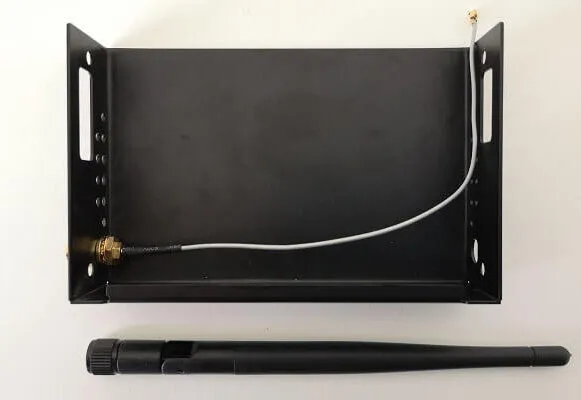

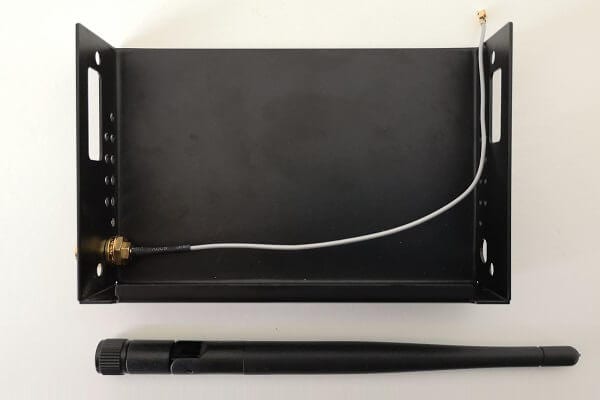

  • NanoPC T4 Case ASM 07
    NanoPC T4 Case ASM 07

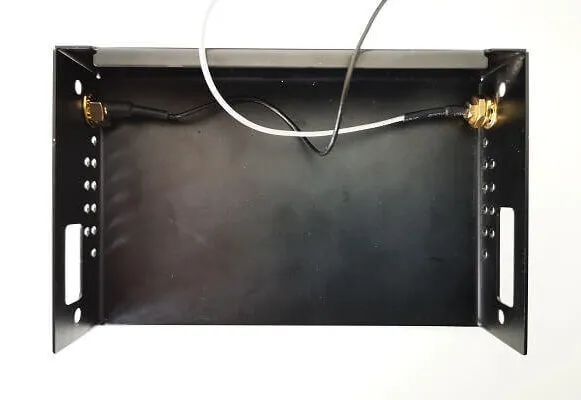

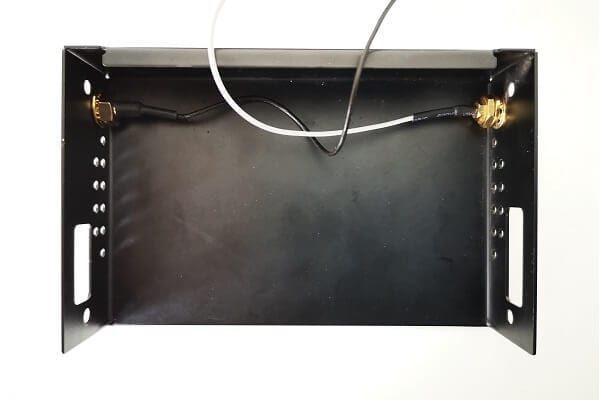

  • NanoPC T4 Case ASM 08
    NanoPC T4 Case ASM 08

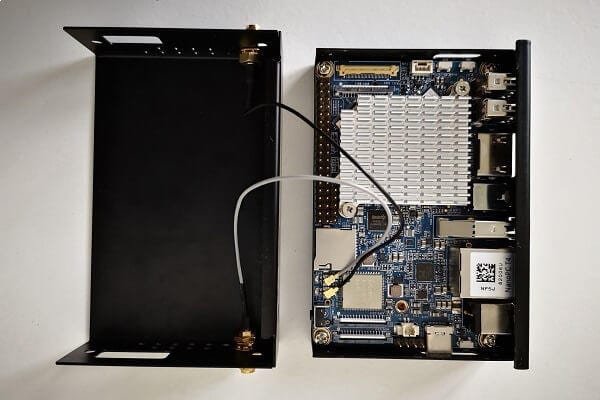

  • NanoPC T4 Case ASM 09
    NanoPC T4 Case ASM 09

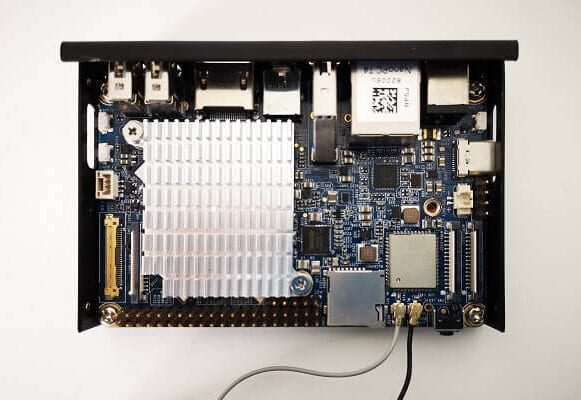

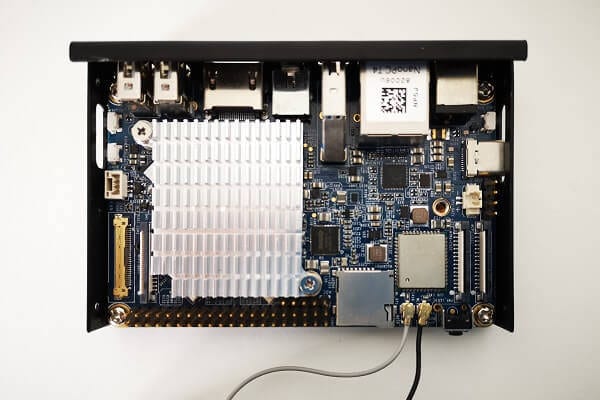

  • NanoPC T4 Case ASM 010
    NanoPC T4 Case ASM 010

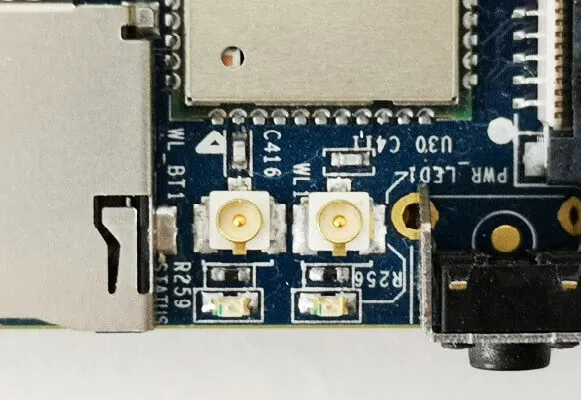

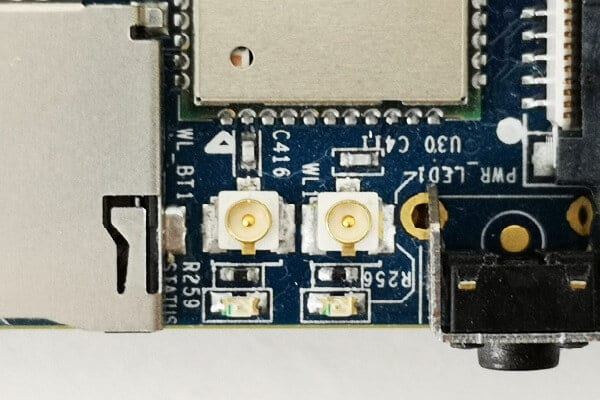

  • NanoPC T4 Case ASM 011
    NanoPC T4 Case ASM 011

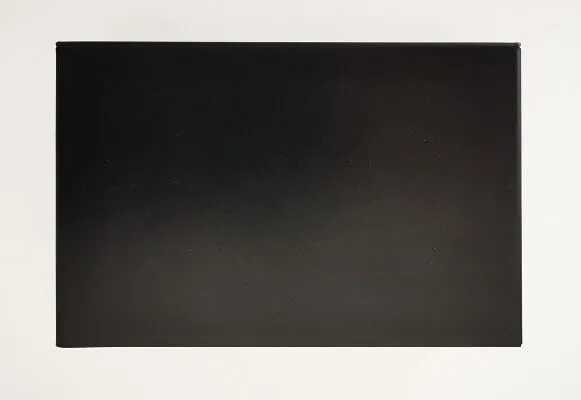

  • NanoPC T4 Case ASM 012
    NanoPC T4 Case ASM 012

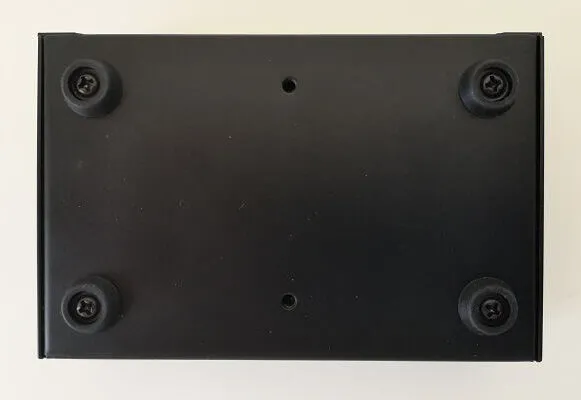

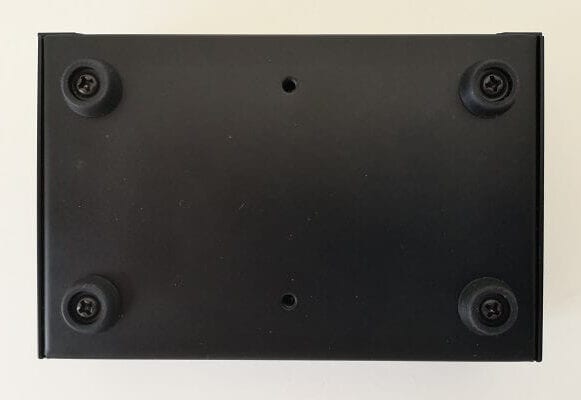

  • NanoPC T4 Case ASM 013
    NanoPC T4 Case ASM 013

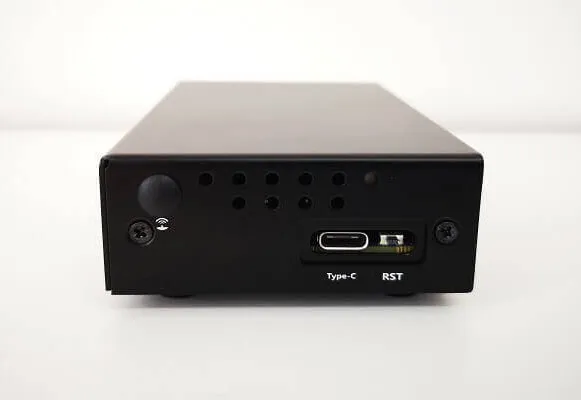

  • NanoPC T4 Case ASM 014
    NanoPC T4 Case ASM 014

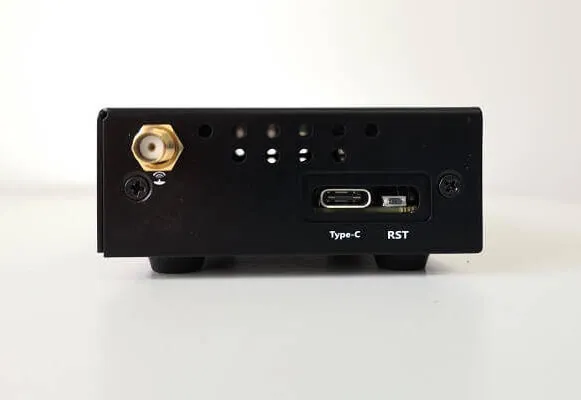

  • NanoPC T4 Case ASM 016
    NanoPC T4 Case ASM 016

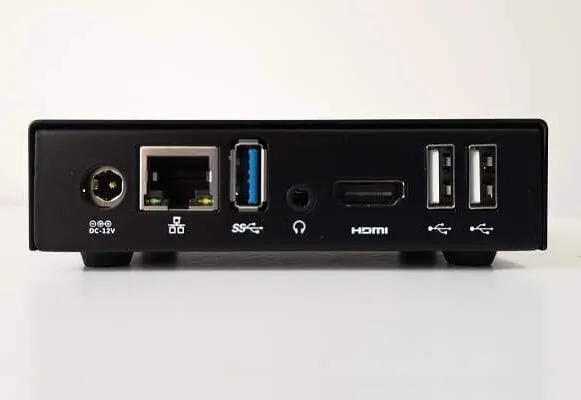

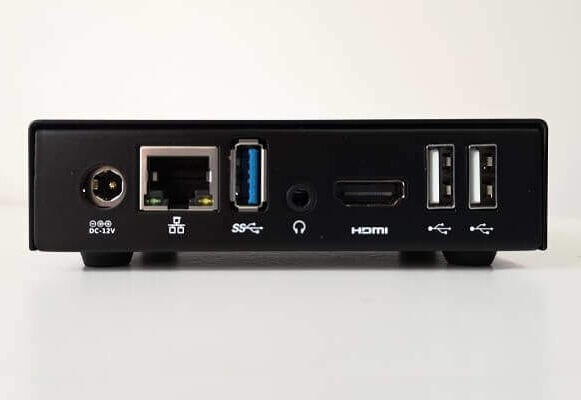

  • NanoPC T4 Case ASM 017
    NanoPC T4 Case ASM 017

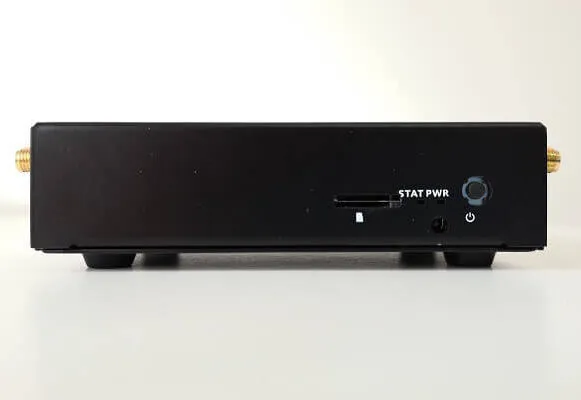

  • NanoPC T4 Case ASM 018
    NanoPC T4 Case ASM 018

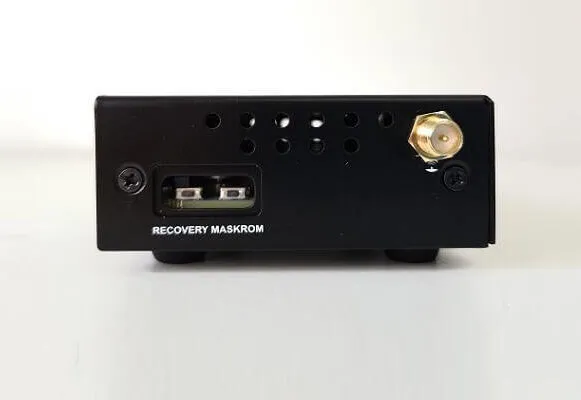

  • NanoPC T4 Case ASM 019
    NanoPC T4 Case ASM 019

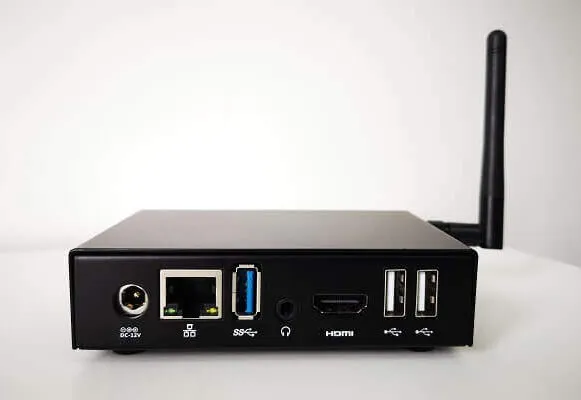

  • NanoPC T4 Case ASM 020
    NanoPC T4 Case ASM 020

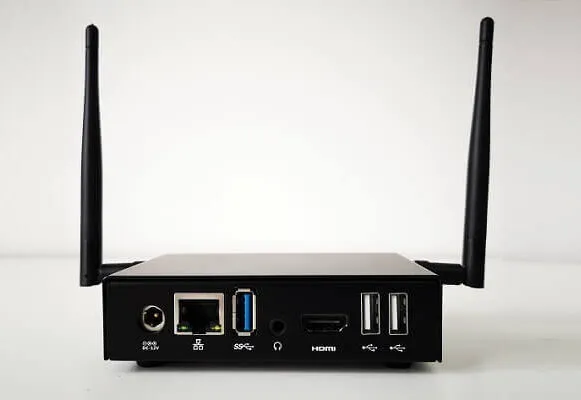

  • NanoPC T4 Case ASM 021
    NanoPC T4 Case ASM 021

Design & Personal impressions

Although the NanoPi T4 case design is excellent, I really needed the option to add a small fan to the case itself. FriendlyElec could have added a series of holes in a circular pattern with four holes for fan screws. As mentioned previously, there was no extra space inside the case to add a heatsink to the NVMe SSD card (if you are using one).

Final words

Overall, the case design is excellent and cheap ($6.99). If you need a solid metal case to protect the NanoPi T4 board in an industrial environment or for home applications, then this case is a superb option to keep the board dirt free and well protected.
