    NanoPC-T4 Gets the fastest storage space with a Powerful NVMe SSD Drive

    By androidpimpDecember 6, 2018Updated:November 26, 2019No Comments3 Mins Read
    Facebook Twitter Pinterest LinkedIn Tumblr Email

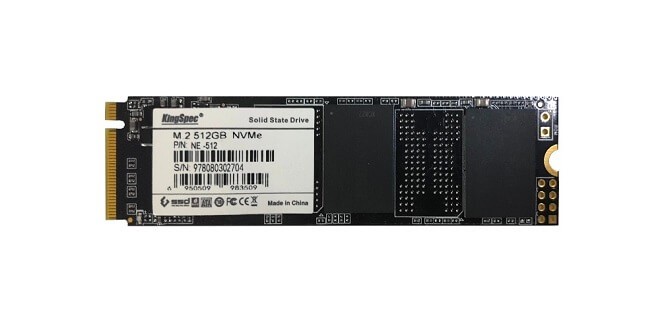

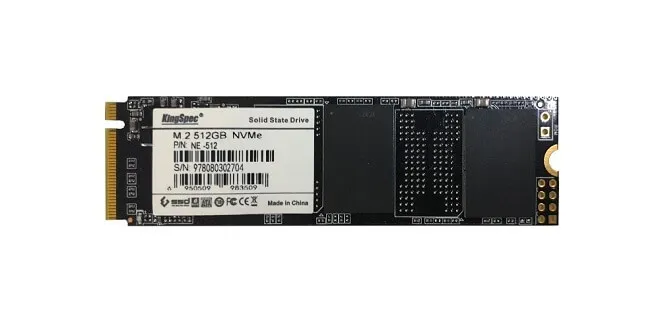

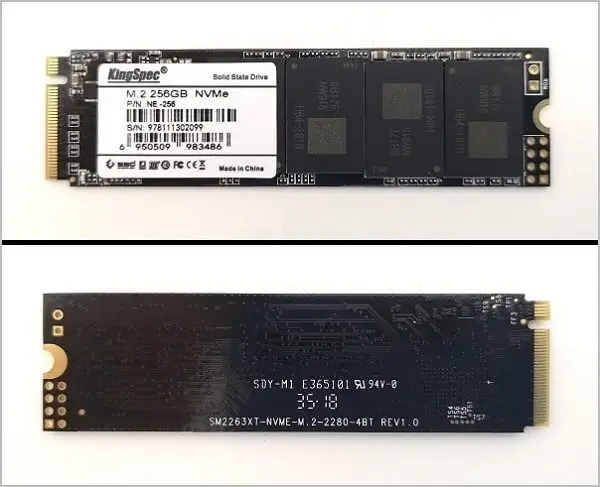

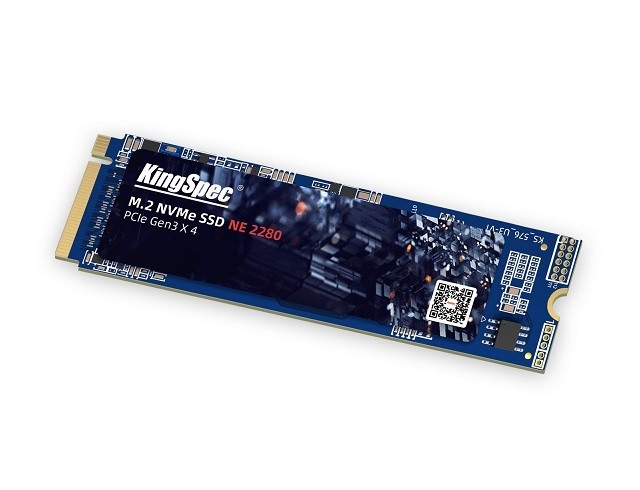

    KingSpec NVMe256GB
    KingSpec NVMe256GB
    Share
    Facebook Twitter LinkedIn Pinterest Email

    Quick Introduction

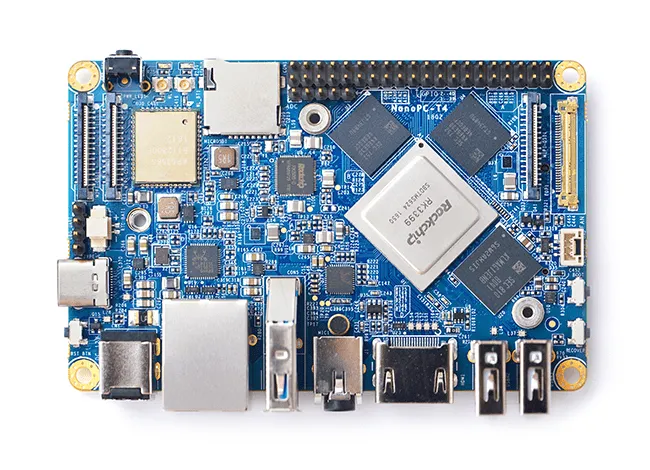

    After reviewing the NanoPC-T4 SBC (Single board computer) that comes with a basic configuration with 16GB eMMC internal storage I decided to test it with a 256GB NVMe SSD card purchased on Aliexperss. Users that really need extra storage space adding such card is a great solution, especially if you are planning on installing additional software packages that occupy more space. In this test, I have installed a 256GB Card in the T4 M.2 PCIe socket/slot, located on the back side of the T4 Board and run some performance checks. having said that, for more detailed information you are welcome to check links posted below:

    NanoPC-T4 (FriendlyElec Official Website)

    KingSpec M.2 SSD 128GB/ 256GB/ 512GB



    Review – TOC

    1. Quick Introduction
    2. Package
    3. Unboxing
    4. Package Content
    5. How to Install
    6. Testing & Benchmark



    Specification:

    • Model: NE-256
    • Brand Name: KingSpec
    • Style:SSD
    • Type:Internal
    • Size: PCI-E
    • Nand Flash Type:TLC
    • Application:Server,Desktop,Laptop
    • Package:Yes
    • Item Condition:New
    • Read/Write Speed:Read Max speed Up to 2400MB/s,Write Max speed Up to 1700mb/s
    • Model Number:NE-XXX
    • Controller: SM2263XT
    • Interface Type:PCI Express
    • Type:Internal SSD
    • Interface:M.2 PCI-e
    • Capacity: 256GB
    • Operating temperature: 0~70 degree
    • S.A.M.R.T:Support
    • Dimensions: 80mm length*22.0mm wide*3.5mm height(error +/-0.5mm)
    • Warranty:3 years

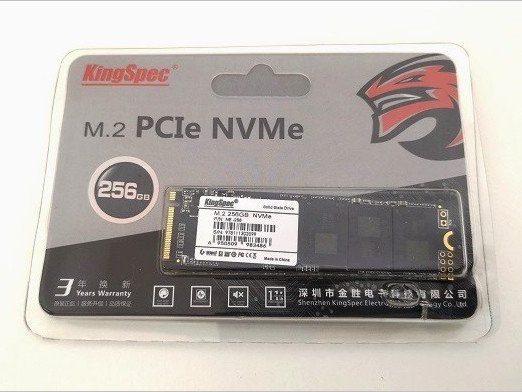

    KingSpec NVMe NE-256 Package

    • KingSpec NVMe Pkg 1
      KingSpec M.2 256GB NVMe | Package - PIC 1 of 3

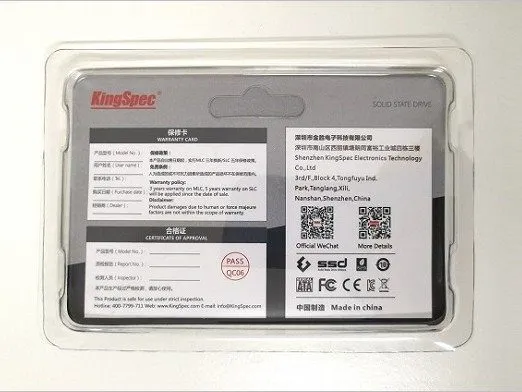

    • KingSpec NVMe Pkg 2
      KingSpec M.2 256GB NVMe | Package - PIC 2 of 3

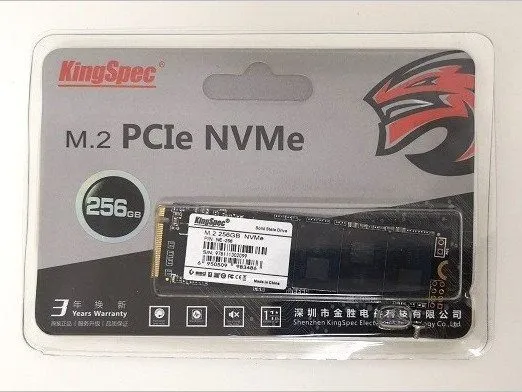

    • KingSpec NVMe Pkg 3
      KingSpec M.2 256GB NVMe | Package - PIC 3 of 3

    Package Content

    The package came with KingSpec NVMe NE-256 Card and a small Philips type screw that is used to mount it to a PCB. In this case, the screw didn’t fit the thread on the NanoPC-T4 thread, so I used a larger one.

    Checking Drive information

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    sudo apt install smartmontools

    sudo smartctl -i /dev/nvme0n1

    smartctl 6.6 2016-05-31 r4324 [aarch64-linux-4.4.161-rk3399] (local build)
    Copyright (C) 2002-16, Bruce Allen, Christian Franke, www.smartmontools.org

    === START OF INFORMATION SECTION ===
    Model Number:                       NE-256
    Serial Number:                      978111302087
    Firmware Version:                   R0629A0
    PCI Vendor/Subsystem ID:            0x126f
    IEEE OUI Identifier:                0x000000
    Controller ID:                      1
    Number of Namespaces:               1
    Namespace 1 Size/Capacity:          256,060,514,304 [256 GB]
    Namespace 1 Formatted LBA Size:     512
    Local Time is:                      Thu Dec  6 16:02:42 2018 UTC

    More Detailed Drive information

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    $ sudo smartctl -t short -a /dev/nvme0n1
    smartctl 6.6 2016-05-31 r4324 [aarch64-linux-4.4.161-rk3399] (local build)
    Copyright (C) 2002-16, Bruce Allen, Christian Franke, www.smartmontools.org

    === START OF INFORMATION SECTION ===
    Model Number:                       NE-256
    Serial Number:                      978111302087
    Firmware Version:                   R0629A0
    PCI Vendor/Subsystem ID:            0x126f
    IEEE OUI Identifier:                0x000000
    Controller ID:                      1
    Number of Namespaces:               1
    Namespace 1 Size/Capacity:          256,060,514,304 [256 GB]
    Namespace 1 Formatted LBA Size:     512
    Local Time is:                      Thu Dec  6 16:09:05 2018 UTC
    Firmware Updates (0x06):            3 Slots
    Optional Admin Commands (0x0006):   Format Frmw_DL
    Optional NVM Commands (0x005f):     Comp Wr_Unc DS_Mngmt Wr_Zero Sav/
    Maximum Data Transfer Size:         64 Pages
    Warning  Comp. Temp. Threshold:     70 Celsius
    Critical Comp. Temp. Threshold:     80 Celsius

    Supported Power States
    St Op     Max   Active     Idle   RL RT WL WT  Ent_Lat  Ex_Lat
    0 +     9.00W       -        -    0  0  0  0        0       0

    Supported LBA Sizes (NSID 0x1)
    Id Fmt  Data  Metadt  Rel_Perf
    0 +     512       0         0

    === START OF SMART DATA SECTION ===
    SMART overall-health self-assessment test result: PASSED

    SMART/Health Information (NVMe Log 0x02, NSID 0x1)
    Critical Warning:                   0x00
    Temperature:                        54 Celsius
    Available Spare:                    100%
    Available Spare Threshold:          10%
    Percentage Used:                    0%
    Data Units Read:                    19 [9.72 MB]
    Data Units Written:                 0
    Host Read Commands:                 382
    Host Write Commands:                0
    Controller Busy Time:               0
    Power Cycles:                       5
    Power On Hours:                     0
    Unsafe Shutdowns:                   4
    Media and Data Integrity Errors:    0
    Error Information Log Entries:      0
    Warning  Comp. Temperature Time:    0
    Critical Comp. Temperature Time:    0

    How to Install

    Assembling the NE-256 SSD card is very easy. you need to open the bottom cover of the case, Spot the PCIe socket and genteelly insert it into the socket and finally tighten it using the screw and the built-in thread located on the NanoPC-T4 Board. After accomplishing this step, you will need to format the SSD Card so it will be recognized by the OS. You can create and format the partition in CLI (Command line) mode which is the less user-friendly method, or alternatively use ‘GNOME Disks‘ tools that come with a graphical front-end GUI, used for partitioning, monitoring, benchmarking that makes the task of preparing and formatting partitions a lot simple.

    If for some reason the disk management tool is not included in your Linux distribution. To install ‘Gnome Disks‘ software package under any Debian / Ubuntu based distribution you will need to execute the following commands:

    1
    2
    $ sudo apt-get update
    $ sudo apt-get install gnome-disk-utility

    After the process is done you can find the tool under ‘Settings -> Disks’.



    Testing & Benchmark

    For the test, I installed Armbian Bionic Linux distribution, especially design for ARM Boards along with the NE-256 that was formatted to NTFS.

    READ benchmark (Average value)

    1
    2
    3
    4
    $ hdparm -t /dev/nvme0n1

    /dev/nvme0n1:
    Timing buffered disk reads: 2032 MB in  3.00 seconds = 676.95 MB/sec



    Write benchmark | Creating a 1GB file

    1
    2
    3
    4
    $ dd count=1k bs=1M if=/dev/zero of=/media/NVMe/test.img
    1024+0 records in
    1024+0 records out
    1073741824 bytes (1.1 GB, 1.0 GiB) copied, 20.8364 s, 51.5 MB/s

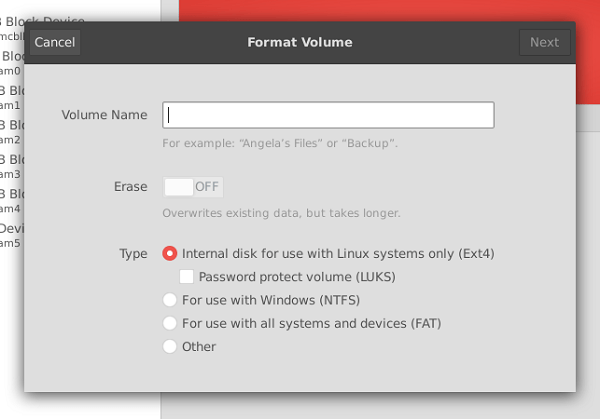

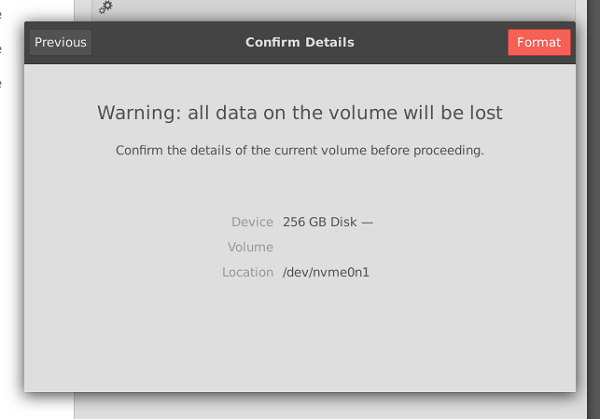

    KingSpec 256GB NVMe | Formatting the Drive

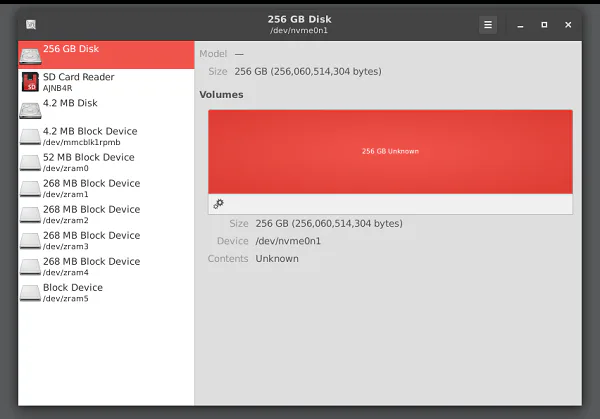

    • KingSpec NVMe Format P1
      KingSpec NVMe Format P1

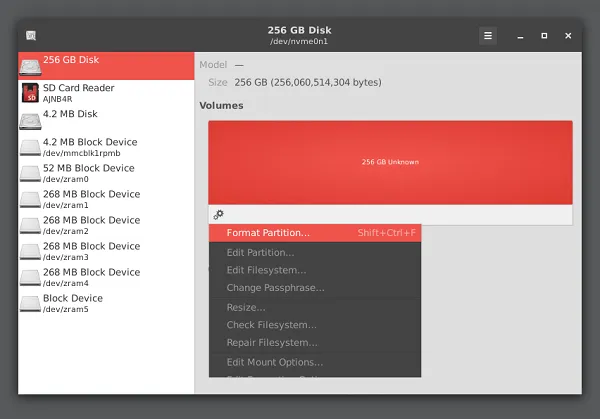

    • KingSpec NVMe Format P2
      KingSpec NVMe Format P2

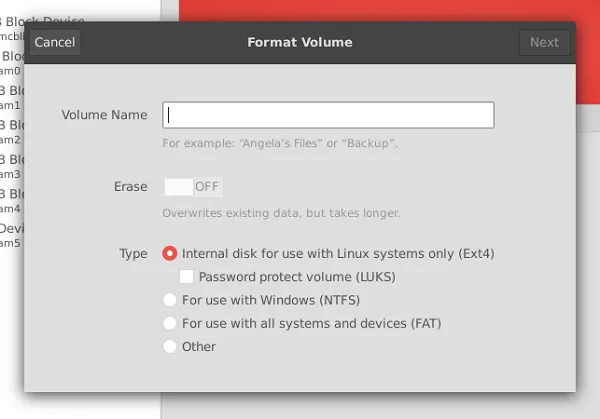

    • KingSpec NVMe Format P3
      KingSpec NVMe Format P3

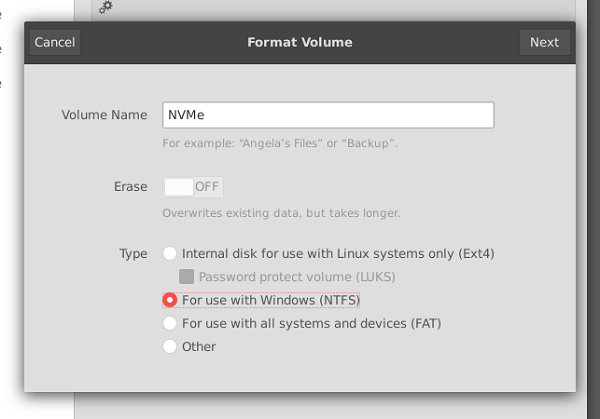

    • KingSpec NVMe Format P4
      KingSpec NVMe Format P4

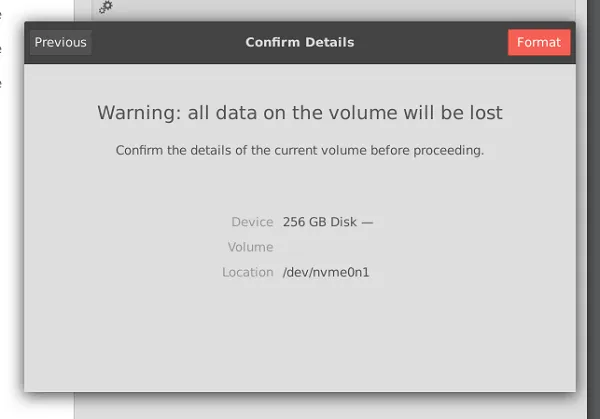

    • KingSpec NVMe Format P5
      KingSpec NVMe Format P5

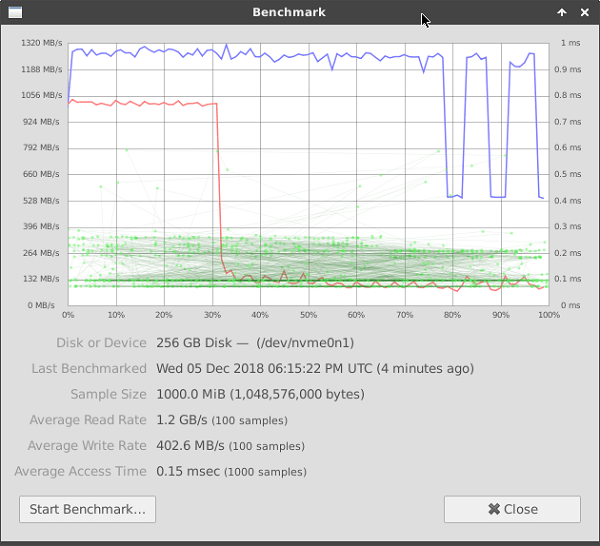

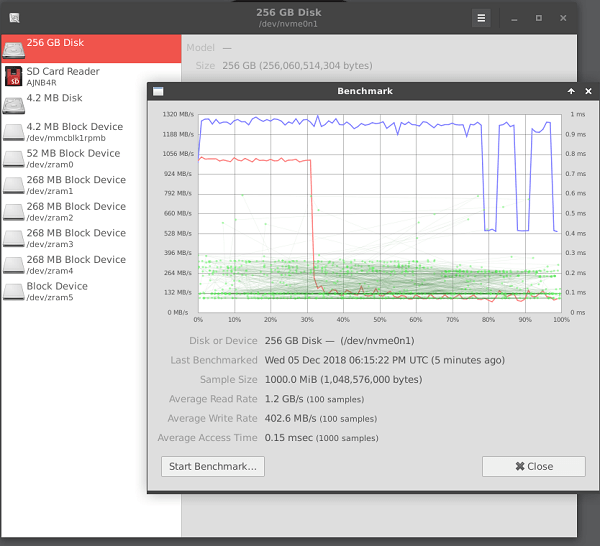

    KingSpec 256GB NVMe | Benchmark Test

    • KingSpec NVMe Bench P1
      KingSpec NVMe Bench P1

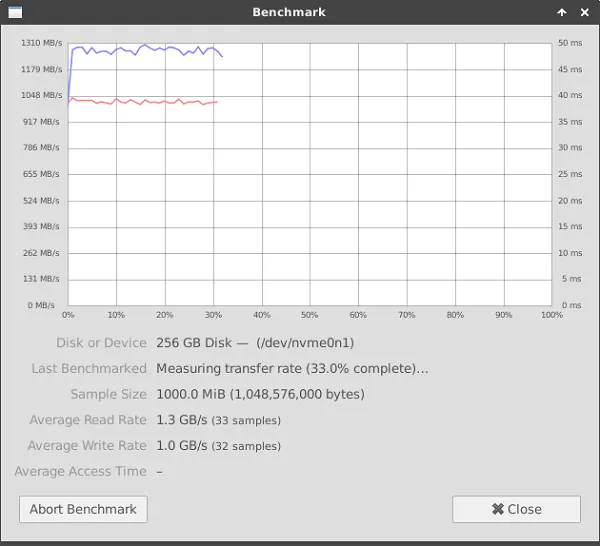

    • KingSpec NVMe Bench P2
      KingSpec NVMe Bench P2
    • KingSpec NVMe Bench P3
      KingSpec NVMe Bench P3
    • KingSpec NVMe Bench P4
      KingSpec NVMe Bench P4

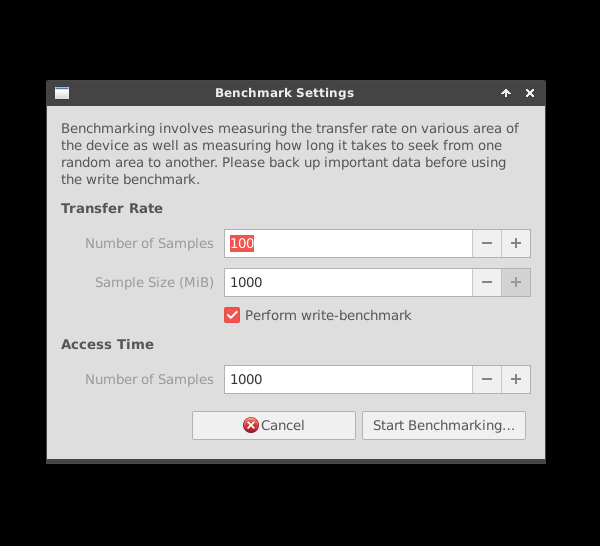

    Benchmark Settings:

    For measuring read/ write transfer rate I have set the numbers of Samples to 100 with a sample Size of 1GB  running 1000 samples to get a proper reading about how this flash drive performs.



    Gnome Disks Test Results:

    According to the NE-256 specifications, the flash memory is capable of reaching up to 2400MB/s with Write Max speed Up to 1700mb/s. In real-world tests, according to my personal tests, the read the transfer rate reached a peak of 1.3 GB/s while in reading test slightly below with 1.0 GB/s. Overall, pretty good results for a $40 NVMe SSD Card.
