Next-Gen Computer Vision: CamThink Unveils NeoEyes NE503 Edge AI Smart Camera Powered by Hailo-15H
The edge artificial intelligence market is undergoing a massive architectural shift. Historically, implementing enterprise-grade visual analytics meant building a disjointed pipeline: deploying high-resolution IP cameras on the perimeter, running expensive cabling back to a central network video recorder (NVR), or streaming massive volumes of raw video data to public cloud infrastructure. This model introduces severe vulnerabilities, including high latency, massive bandwidth consumption, ongoing subscription fees, and profound data privacy risks.

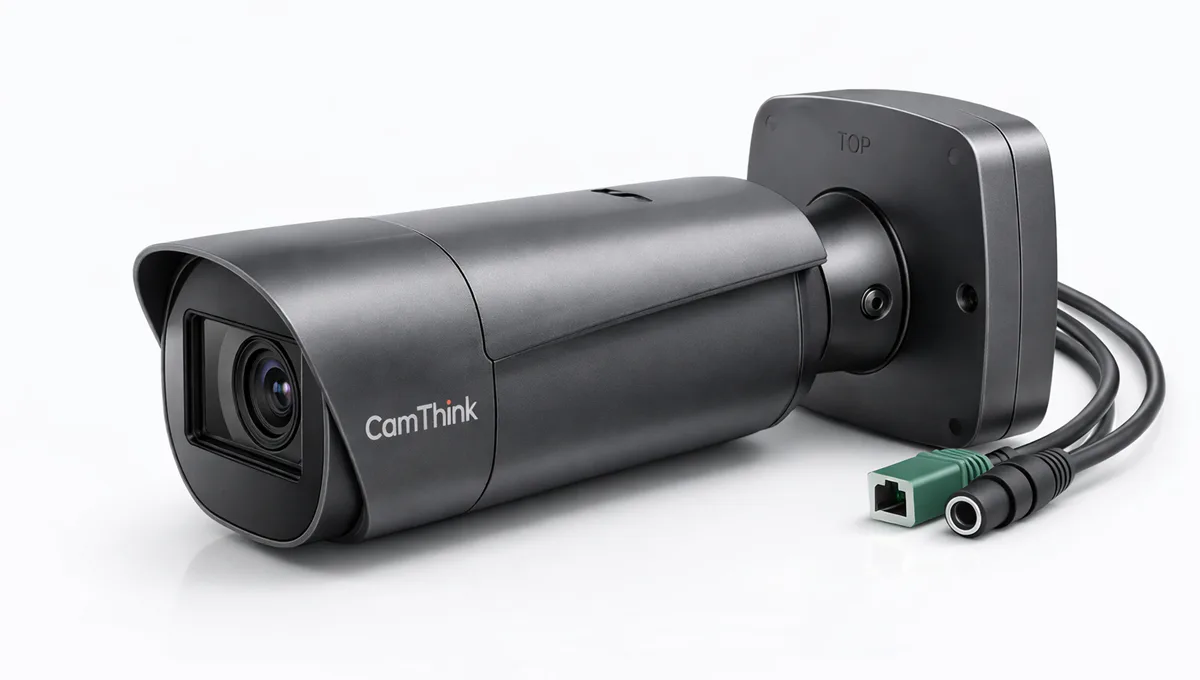

To address these challenges, CamThink has officially launched its flagship commercial hardware product, the NeoEyes NE503 Series Edge AI Smart Camera. By integrating professional 4K UHD optics with advanced neural processing hardware, the NE503 creates a complete and self-contained closed loop for image capture, AI inference, event processing, and the output of industrial business logic directly at the network edge.
Built on the Hailo-15H System-on-Chip (SoC), this ruggedized hardware unit is designed to transform the way system integrators, algorithm developers, and enterprise end-users design, deploy, and scale vision-based automation.
Product introduction video

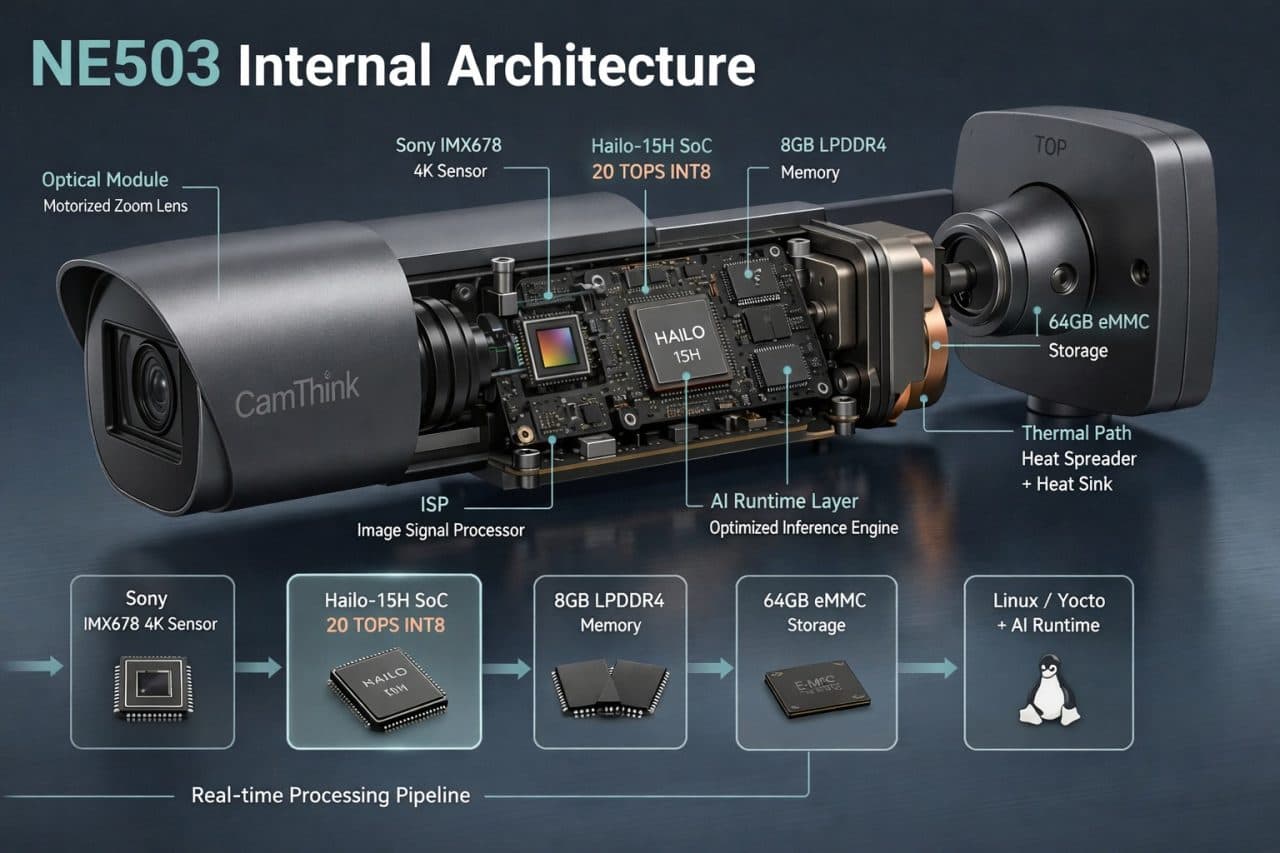

Technical Specs: A Close Look Inside
The NeoEyes NE503 is more than just an IP camera equipped with basic analytic scripts: it is a comprehensive, low-power edge computing device specifically designed for concurrent multi-model machine learning. The baseline hardware specifications showcase a balance between computing power and industrial reliability:
| Hardware Category | System Component | Detailed Technical Specification |
|---|---|---|
| Core Processing Board | System‑on‑Chip (SoC) | Hailo‑15H AI SoC with Quad‑Core ARM Cortex‑A53 @ 1.3 GHz |
| NPU | Hailo NPU delivering 20 TOPS @ INT8 | |
| CPU | Quad‑core ARM Cortex‑A53 @ 1.3 GHz | |
| DSP | 350 GOPS digital signal processing | |
| Memory | 8 GB LPDDR4 | |
| Storage | 64 GB eMMC | |
| Storage Expansion | TF Card slot; hardware‑ready for future M.2 SSD | |
| Video Encoding | Hardware H.264/H.265 up to 4K @ 30 fps | |
| Power Architecture | Typical 5–6 W under multi‑model AI workloads | |
| Interface Board | MCU | Arm Cortex‑M0+ @ 64 MHz |
| Communication | UART0 link to core board | |
| Power Management | Integrated input & distribution circuits | |
| SoC Interfaces | Ethernet PHY & TF card routed via connectors | |
| Advanced Imaging Subsystem | Optical Sensor | Sony IMX678 (1/1.8″) BSI Starvis 2 CMOS |
| Resolution | 4K UHD (3840 × 2160) | |
| Lens Assembly | 8–32 mm AF motorized vari‑focal, F1.6 | |
| ISP | Hailo Gen2 AI‑ISP with <0.01 LUX neural night vision | |
| Networking & Communications | Physical Interfaces | 100M Ethernet with PoE 802.3at |
| Streaming Protocols | RTSP multi‑stream | |
| Messaging Backbones | MQTT, Event Bus, planned RTMP | |
| Industrial Protection & Environment | IP Rating | IP67 dustproof & waterproof |
| Temperature Range | −40 °C to +60 °C | |
| Industrial I/O | 2× alarm inputs + 2× alarm outputs (relay + level) | |
| Serial Bus | RS‑485 + fill‑light driver | |
| Software Execution Environment | OS | Yocto‑based Embedded Linux |
| Container Runtime | containerd with OCI isolation | |
| Management Tools | Web UI, SSH, REST APIs, aipc‑cli | |
| External Interface | Alarm I/O | 2 inputs + 2 outputs (relay + level) |
| RS‑485 | Serial communication bus | |
| Ethernet | 100M LAN with PoE 802.3AT | |
| TF Card | UHS‑I high‑speed memory card | |
| Fill Light | Infrared / white‑light interface | |
| MCU Management | MCU | Arm Cortex‑M0+ @ 64 MHz |
| Scope | AF lens, fill light, IR‑CUT, heater, fan, Alarm IO, RS‑485, photosensitive sampling | |
| Temperature Control | 12 V fan + 12 V heater (reserved) | |
| RTC | Farad capacitor backup | |
| Power Supply | Method | DC 12 V adapter or PoE 802.3AT |
| Consumption | 5–6 W typical |
20 TOPS On-Device AI Inference Engine
The Silicon Engine: Unleashing 20 TOPS with the Hailo-15H SoC
The capabilities of the NeoEyes NE503 are fundamentally built upon its silicon architecture, which is centered around the Hailo-15H SoC. It features a quad-core Arm Cortex-A53 CPU operating at 1.3 GHz, alongside a high-performance Hailo NPU. This NPU offers an impressive 20 TOPS of INT8 computational power, providing the necessary strength to execute complex deep-learning algorithms directly on the device. Additionally, a dedicated Digital Signal Processor (DSP) with a capacity of 350 GOPS manages all pre-processing and post-processing tasks, allowing the main CPU to focus on other operations.
Utilizing Direct Memory Access (DMA) and Shared Memory (SHM) technologies.
However, raw compute power is only part of the equation; data movement often proves to be the real bottleneck in edge devices. CamThink has cleverly addressed this issue with its “Zero-copy Pipeline.” By utilizing Direct Memory Access (DMA) and Shared Memory (SHM) technologies, the system transfers image data directly from the sensor to the ISP, then to the NPU for inference, and finally to the video encoder, completely bypassing the main CPU and system memory.
This highly efficient data pathway removes the overhead of memory copying, allowing the NE503 to support concurrent inference from multiple models with exceptional efficiency. The ISP, H.265 hardware encoder, and AI Runtime simultaneously access this identical pointer, reducing target end-to-end inference latencies to under 50 milliseconds.
Developed for a diverse array of AI tasks
Developers can now simultaneously execute a variety of AI tasks, including object detection, Optical Character Recognition (OCR), facial recognition, Re-Identification (ReID), human pose estimation, and complex behavioral analytics, without any loss in performance. This level of multitasking was once limited to large, power-hungry edge servers.
The main value proposition of the NE503 is its ability to completely bypass cloud environments during live inference. By employing the integrated Hailo-15H NPU, the camera delivers 20 TOPS (Trillions of Operations Per Second) of mathematical performance at INT8 precision. This deep learning acceleration engine is complemented by a dedicated 350 GOPS Digital Signal Processor (DSP), which manages high-speed image pre-processing tasks such as color space conversion, resizing, and pixel normalization. This setup ensures that the NPU can operate at maximum capacity.
Zero-copy pipeline
To enhance structural efficiency and reduce latency, CamThink’s engineers have implemented a zero-copy pipeline. In traditional edge hardware, when a video frame is pulled from the sensor, it must be copied multiple times across different memory addresses so the operating system, the hardware encoder, and the neural network software can interact with it.
Multi-Model Pipeline and Low-Bandwidth Edge Telemetry
This hardware foundation allows the camera to run multiple models simultaneously. A single device can run a human object detection model, such as the factory pre-installed YOLOv8n network, pass the bounding boxes to an auxiliary facial landmarking model, and simultaneously process the background using a Contrastive Language-Image Pre-training (CLIP) text-image alignment encoder.
The output from these parallel models is compiled locally into a well-structured data stream. Instead of sending gigabytes of video over wireless or cellular networks, the NE503 utilizes its internal Event Bus to publish lightweight JSON packets that contain precise object coordinates, tracking IDs, timestamps, and classification attributes via MQTT.
Superior Optics Reengineered, incorporating a Sony IMX678 and Hailo Gen 2 AI ISP.
An AI model is only as effective as the data it receives. If a camera sensor produces noisy, blurred, or blown-out frames in difficult lighting, the accuracy of object classification plummets. CamThink addresses this visual bottleneck by pairing the 1/1.8-inch Sony IMX678 sensor with the Hailo Gen2 AI-ISP (Image Signal Processor).
The Sony IMX678 is a back-illuminated Starvis 2 CMOS sensor that delivers true 4K Ultra HD resolution (3840×2160 pixels). It offers high near-infrared sensitivity and utilizes digital overlap/dual-gain High Dynamic Range (HDR) techniques. This enables the camera to effectively capture high-contrast environments—such as indoor warehouse bays that open directly into bright, sunlit loading docks—without losing details in dark shadows or overexposing highlights.
The defining feature of this optical setup is the integration of the AI-ISP. Instead of relying on traditional, hardcoded contrast-stretching algorithms that introduce severe color distortion and digital grain in dark environments, the NE503 processes raw sensor data through a deep learning denoising model embedded directly within the ISP pipeline.
This neural network dynamically adapts to changing light conditions without the need for manual calibration or model retraining. As a result, it provides full-color night vision in light levels below 0.01 LUX. Even in near-total darkness, the camera captures rich, chromatically accurate data, enabling object detection and license plate recognition models to operate around the clock.
+-----------------------------------------------------------------------------+
| NE503 OPTICAL COMPONENT MAP |
+-----------------------------------------------------------------------------+
| |
| +-------------------+ +-----------------------+ +-----------+ |
| | MOTORIZED LENS |======>| SONY IMX678 CMOS |====>| HAILO GEN2| |
| | 8-32mm Vari-focal| | 1/1.8" Target Area | | AI-ISP | |
| +-------------------+ +-----------------------+ +-----------+ |
| || || || |
| \/ \/ \/ |
| Motorized Auto-Focus 4K Resolution Base Sub-0.01 LUX |
| F1.6 Max Aperture Digital Overlap HDR Neural Denoise |
| |
+-----------------------------------------------------------------------------+
Advanced imaging system
This imaging system is supported by a premium electromechanical lens module featuring an 8–32mm vari-focal zoom range. This gives field technicians ultimate installation flexibility: a single camera model can be adjusted via software to serve as a wide-angle perimeter monitor (Horizontal Field of View of 45.1 degrees) or focused down as a long-range recognition camera for narrow access choke points (Horizontal Field of View of 14.7 degrees).
The lens assembly includes integrated P-Iris precision aperture control, motorized auto-focus capabilities, an electromagnetic IR-Cut filter switch, and a high-accuracy internal gyroscope that feeds an Electronic Image Stabilization (EIS) engine to neutralize building vibrations and wind sway.
| Category | Parameter | Specification |
|---|---|---|
| Sensor | Sensor Model | Sony IMX678, 1/1.8″ CMOS |
| Effective Pixels | 3840 × 2160 (4K UHD) | |
| HDR Mode | Digital Overlap / Dual Gain HDR | |
| Lens | Focal Length | 8 mm (Wide) – 32 mm (Telephoto) |
| Max Aperture | F1.6 | |
| Field of View (Horizontal) | 45.1° (W) / 14.7° (T) | |
| Field of View (Vertical) | 24.6° (W) / 8.4° (T) | |
| Field of View (Diagonal) | 52.8° (W) / 16.8° (T) | |
| Electromechanical | Autofocus / Zoom | AF autofocus and auto‑zoom |
| Aperture Control | P‑Iris auto aperture | |
| IR Filter | IR‑Cut electromagnetic switching |
Open Platform Architecture: Containerization Using Containerd
A longstanding challenge in commercial physical security and industrial automation is software vendor lock-in. Traditionally, purchasing a smart camera restricted users to the closed software ecosystem offered by that particular manufacturer. The NeoEyes NE503 disrupts this norm by presenting itself as an open edge computing platform, built on a custom Embedded Linux distribution compiled using the Yocto Project.
The software environment features the containerd container runtime. By adhering to Open Container Initiative (OCI) standards, the NE503 can host fully sandboxed and isolated software applications directly on the camera. Algorithm vendors, internal enterprise development teams, and system integrators can develop custom vision applications in standard environments (such as Ubuntu or Alpine Linux), package their weights, binaries, and post-processing scripts into a Docker-compatible image, and deploy them to the camera over the air.
This containerized approach delivers clear operational advantages:
- True Modular Isolation: The camera’s core firmware, the imaging system driver, and individual AI analytics containers run in completely separate user-space sandboxes. If a third-party custom retail analytics container suffers a memory leak or runtime crash, the underlying camera platform, RTSP streams, and security monitoring loops remain completely unaffected.
- Agile Model Upgrades: Field upgrades no longer require flashing massive, high-risk monolithic system firmwares. Machine learning teams can push updated model weights or modified business logic scripts to a specific container independent of the primary operating system.
- Multi-Vendor Environments: End-users can run a license plate extraction container from Vendor A right alongside an asset-tracking container developed internally by their own software engineers, maximizing the return on investment of the physical hardware.
Developer Toolchain and Integration Ecosystem
CamThink has created a developer-centric environment for the NE503 to facilitate the transition from a laboratory desktop setup to scalable field hardware. The platform offers a comprehensive full-stack developer toolchain with various integration options:
- Native Python SDK & RESTful APIs: For engineers focused on rapid application development, the camera includes a comprehensive Python SDK. This enables developers to pull raw or processed frame buffers, interact with model inference tensors, adjust optical zoom positions, and toggle hardware alarm pins with clean, readable Python code. A comprehensive RESTful API exposes these same diagnostic and configuration parameters over standard HTTP protocols, allowing easy remote management via enterprise IT dashboards.
- The
aipc-cliCommand-Line Tool: System administrators and DevOps engineers can utilize a powerful terminal utility namedaipc-cli. Operating directly over secure SSH links, this CLI tool allows developers to monitor real-time NPU thermal performance, inspect memory allocations, manage running application containers, hot-reload model binaries, and view live pipeline performance statistics. - Hardware Abstraction Layer (HAL): To protect software investments, the NE503 software environment is decoupled from the underlying silicon via a modular Hardware Abstraction Layer. Applications written for the NE503 interact with generalized vision and inference APIs rather than low-level registers. If future deployment requirements dictate migrating to a different SoC generation or cross-platform hardware substrate, the application codebase can transition smoothly with minimal refactoring.
Enterprise Ingress Protection and Dual-Board Reliability
Commercial and industrial deployment environments can be challenging. Cameras installed on factory walls, busy intersections, or remote utility substations face extreme temperature fluctuations, moisture, electrical surges, and mechanical stress. The NE503 is specifically designed to withstand these harsh conditions.
The entire system is contained within a rugged cast-aluminum industrial enclosure that has a verified IP67 ingress protection rating. This certification guarantees complete protection against dust, dirt, and airborne particles, as well as water immersion protection up to a depth of 1 meter for 30 minutes.
The hardware operates reliably in unconditioned environments, from minus 40 degrees Celsius to plus 60 degrees Celsius, making it suitable for sub-zero northern winters and high-heat desert industrial plants, all without the need for external cooling fans or heating elements.
+-----------------------------------------+
| NE503 DUAL-BOARD TOPOLOGY |
+-----------------------------------------+
| |
| +-----------------------------------+ |
| | PROCESSOR BOARD | |
| | - Hailo-15H SoC - 8GB RAM | |
| | - 20 TOPS NPU - Sony IMX678 | |
| +-----------------------------------+ |
| || |
| BOARD-TO-BOARD CONNECTOR |
| || |
| +-----------------------------------+ |
| | INTERFACE BOARD | |
| | - Independent MCU - PoE Power | |
| | - RS-485 Serial - Alarm I/O | |
| +-----------------------------------+ |
| |
+-----------------------------------------+
From an electronic perspective, the NE503 uses a reliable dual-board internal architecture. The hardware is split into a Processor Board and an Interface Board, linked together via high-density, vibration-resistant board-to-board connectors. The Processor Board houses the high-frequency components: the Hailo-15H SoC, memory arrays, eMMC storage, and the sensitive optical sensor assembly.
The Interface Board isolates the power regulation modules (accepting both standard DC 12-Volt input or PoE 802.3at Power over Ethernet), the physical RS-485 serial communications bus, and the optically isolated 2-in/2-out digital alarm lines.
This design creates a robust hardware safety layer. The Interface Board functions with its own independent, low-power Microcontroller Unit (MCU), allowing the camera to maintain critical physical functions even if the main processor experiences a high-load software crash or is undergoing a scheduled application container reboot. The lower-level MCU continues to monitor the physical alarm lines, maintain lens zoom coordinates, and control external infrared or white-light fill illuminators, ensuring seamless operation.
Robust build quality and long-lasting durability
Enclosed in a robust IP67-rated housing, the NE503 is completely dust-tight and safeguarded against powerful water jets. It functions efficiently in temperatures ranging from -40°C to +60°C, making it ideal for environments that vary from freezing outdoor highways to hot manufacturing facilities. Power and data are seamlessly transmitted through a single PoE 802.3AT Ethernet cable, with a typical system power consumption of just 5 to 6 watts.
Targeting a broad range of industrial applications
The NeoEyes NE503 stands out as a versatile asset across various high-value industrial sectors due to its unique combination of 20 TOPS processing power, 4K resolution, and an open container framework.
1. Intelligent Transportation Systems (ITS) & Smart Cities
Traditional traffic monitoring systems require streaming high-resolution video streams back to central traffic management servers to detect accidents, calculate lane occupancy, or execute Automatic Number Plate Recognition (ANPR).
The NE503 handles this entirely inside the camera housing. Mounted on highway gantries or intersection mast arms, the 8–32mm vari-focal lens can zoom in on distant toll lanes. The 20 TOPS NPU runs real-time vehicle detection, tracking, speed estimation, and multi-national license plate reading simultaneously.
The camera outputs only the final structured traffic data (such as vehicle counts, average speeds, or anomaly alert codes) via MQTT over cellular modems, minimizing network overhead.
2. Smart Retail Analytics & Foot Traffic Mapping
For modern brick-and-mortar retail groups, understanding customer behavior is critical to optimizing floor layouts and product placement. By deploying the NE503, retail integrators can run advanced consumer heatmaps, cross-store path tracking, queue duration analysis, and demographic profiling directly on the edge.
Because the containerd runtime isolates data, the raw video never leaves the device enclosure, ensuring full compliance with strict global consumer privacy mandates like GDPR.
3. Industrial Automation, Safety, and Asset Tracking
In heavy industrial manufacturing plants, chemical refineries, and logistics hubs, the NE503 functions as an automated safety inspector. The camera can simultaneously operate specialized neural network models that assess compliance with Personal Protective Equipment (PPE) by verifying that workers are wearing hard hats, high-visibility vests, and safety glasses, all while tracking asset IDs on moving forklifts.
If a worker enters a hazardous zone, the camera can detect the violation in less than 50 milliseconds and immediately sends a physical shut-off command to nearby machinery through its integrated hardware relay outputs.
Conclusion: Setting a New Standard for Vision at the Edge
The CamThink NeoEyes NE503 Series represents a significant advancement in smart camera technology. By incorporating a 20 TOPS NPU, a high-quality 4K Sony Starvis 2 sensor, and an open, containerized application platform, it elevates the hardware from a simple, passive recording device to a dynamic, intelligent edge computing node.
For enterprise organizations looking to implement modern computer vision solutions without raising cloud computing budgets, compromising data privacy, or risking vendor lock-in, the NeoEyes NE503 provides a production-ready, industrial-grade hardware foundation. It effectively connects complex artificial intelligence research with reliable, real-world deployment.
For in-depth code documentation, quick-start software deployment guides, and complete hardware migration resources for the NeoEyes series, visit the official CamThink Wiki Knowledge Base.
