    Home»Embedded Computers»Orange Pi Zero Plus2 Review: Cheap & Small Form Factor SBC
    Embedded Computers

    Orange Pi Zero Plus2 Review: Cheap & Small Form Factor SBC

    By androidpimpMay 18, 2017Updated:January 21, 2021No Comments8 Mins Read
    Facebook Twitter Pinterest LinkedIn Tumblr Email

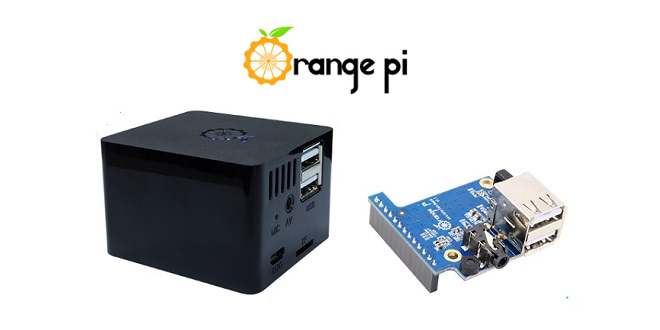

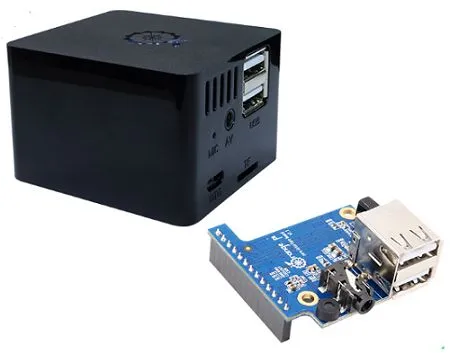

    Orange Pi Zero SET7 Kit
    Orange Pi Zero SET7 Kit
    Share
    Facebook Twitter LinkedIn Pinterest Email

    Orange Pi Zero Plus2 Review

    Orange Pi Zero boards series is sold in various such configurations, where the H5 is the newer one with the same board dimensions and layout as previous H2+ and H3 boards. The new Pi Zero Plus 2 H5 Board features the latest quad-core Cortex A53 64-bit processor with faster processing capabilities, also improved high-performance Mali-450MP4 GPU, compared to previous boards that were equipped with the less advanced Mali-400MP2 which only had two shader cores. This board also features Onboard WiFi + BT AP6212 chip, 8GB Onboard EMMC Storage as well as 512 MB DDR3 SDRAM, IPEX socket, UART debug interface, CSI, 26 PIN header, Micro SD Card slot and additional 13 pin interface that can be used to gain more functions.

    Important to mention that the Orange Pi Zero Plus2 H5 isn’t included in the Kit, therefore you need to buy one separately or alternatively pick a suitable kit available in the Orange Pi StoreU.FL antenna connector and external antenna. That said, the package contains a compact plastic cube-shaped case, available in white/black colors and an expansion add-on board that fits inside the case that connects directly to the zero plus2 13 pin header, and provides two USB 2.0 Hosts, IR Sensor, Onboard microphone and Analog composite video port.

    Hardware Specifications are more than decent if you are planning on building a low-cost small home NAS Server or a media player streaming device. As for software support, the board currently supports Android 5.1, Ubuntu, Arch, and Debian Linux distributions. We are not talking about a Raspberry Pi 3 killer, but more of a Raspberry Pi Zero Competitor in terms of hardware specifications and functionality, providing a great value specs cost ratio. For more information and different kit configurations you are welcome to check Orange Pi official Aliexpess store links posted below:

    Orange Pi Offical Store

    Orange Pi Zero SET7 Kit

               Orange Pi Zero Plus 2 H5 Board


    Product overview / Review

    Orange Pi Zero Plus 2 Review focus:

    1. Product Introduction
    2. Product Overview/Review (Video)
    3. Main Highlights & Specifications.
    4. Package Content
    5. A Closer Look at the Orange Pi Zero Plus2
    6. Optional Accessories
    7. Software Support
    8. CPU Load and Stress Test
    9. Final Words
    10. Pros / Cons

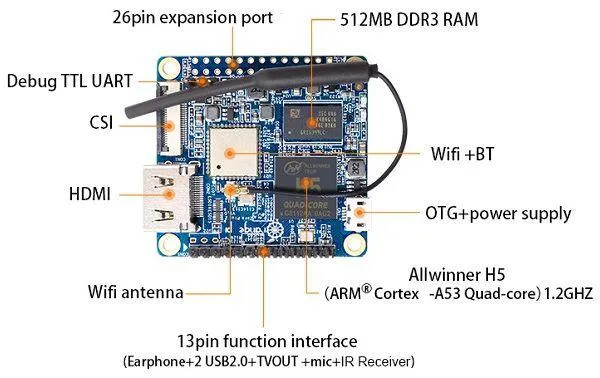

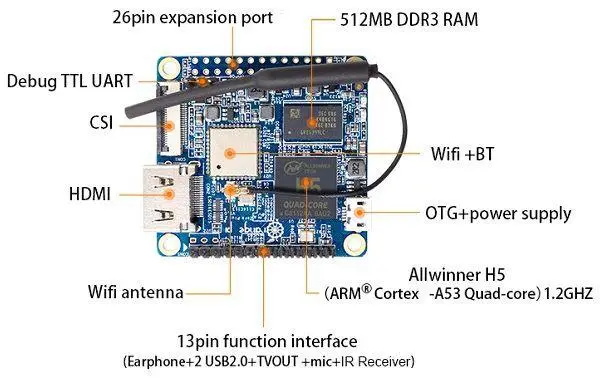

    Orange Pi Zero Plus 2 H5 specifications:

    • SoC – Allwinner H5 quad-core Cortex A53 processor
    • GPU – 4 core Mali-450MP4 GPU
    • System Memory – 512 MB DDR3 SDRAM

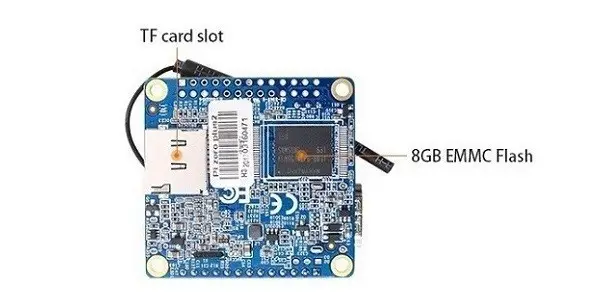

    • Storage – 8GB eMMC flash + micro SD card slot
    • Video Output – HDMI port
    • Camera – MIPI CSI port
    • USB – 1x micro USB OTG port
    • Debugging – 3-pin serial console header
    • Misc – 2x LEDs for power and status
    • Expansion headers – Unpopulated 26-pin “Raspberry Pi B+” header + 13-pin header with headphone, 2x USB 2.0, TV-out, microphone and IR receiver signals
    • Connectivity – 802.11 b/g/n WiFi + Bluetooth 4.0 LE (Ampak AP6212) with u.FL antenna connector and external antenna.
    • Power Supply – 5V via micro USB port
    • Dimensions – 48 x 46 mm
    • Weight – 20 grams

    Package

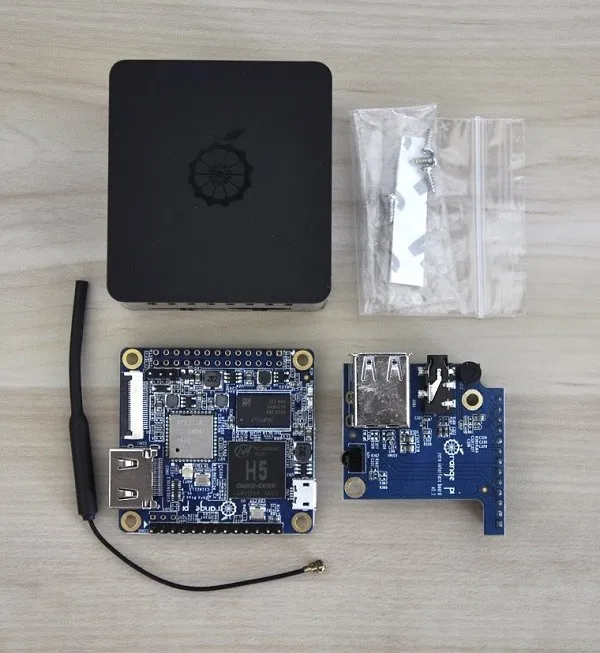

    The Kit came with a high-quality plastic case, 6 screws, Small round shape rubber stickers, simple wire type WiFi Antenna, Orange Pi Zero Plus2 H5, and the Zero Board Expansion Card. If you want to use the 26 header pin interface, you would most like need to buy on and solder it to the board. That said, from the first impression all items were of high quality and well packed.

    Orange Pi Zero Plus2 H5 & Accessories

    Orange Pi Zero Plus2 H5 Open Source Kit

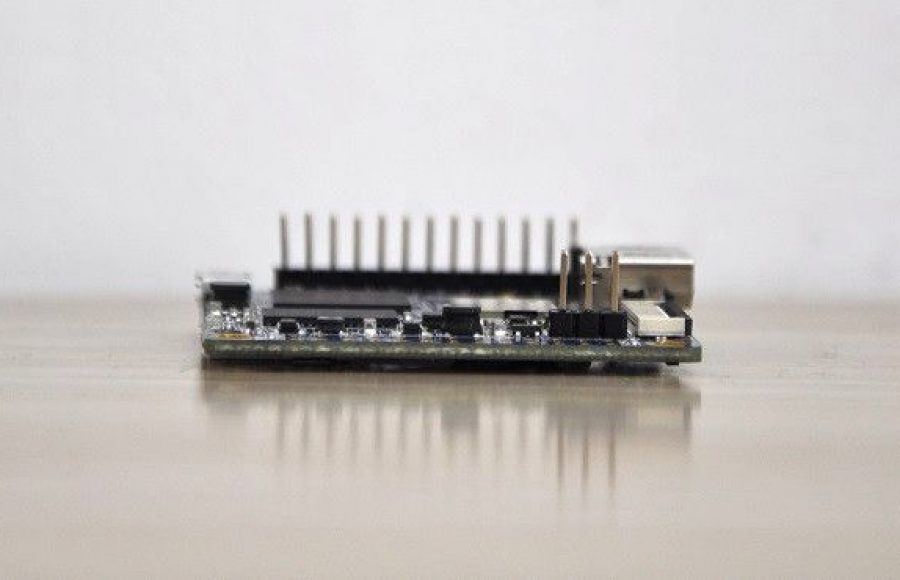

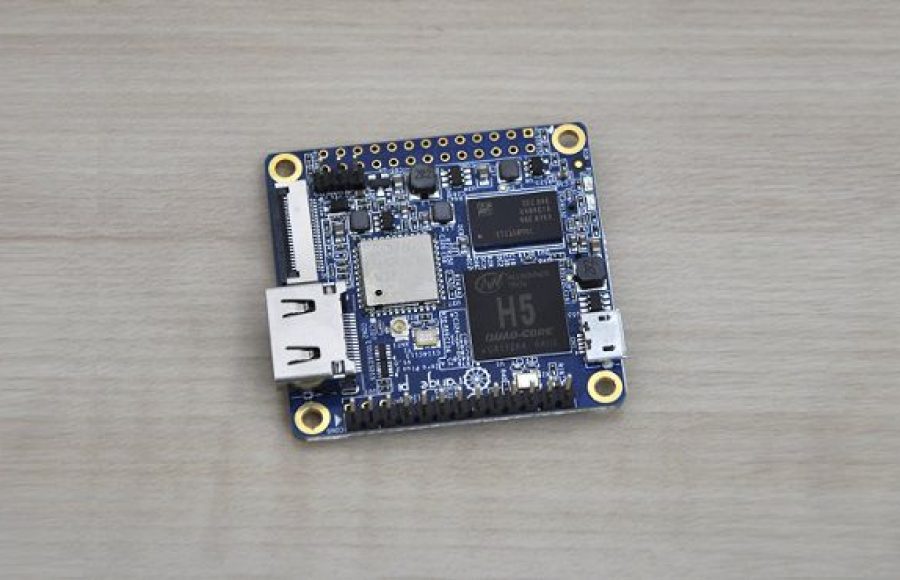

    A Closer Look at the Orange Pi Zero Plus2

    The Pi Zero Plus2 dimensions are small and compact, measuring  48 x 46 mm making this device very portable and easy to carry. Also, its compact design makes it an idealistic choice for DIY projects. For example, building an open source-based IP Camera, NAS or a Mini streaming player with decent hardware specifications.

    If you’re planning on using it as a mini PC it also works reasonably well with 512MB RAM, but don’t expect it to be powerful as high-end single board computer boards sold in higher price tag. In terms of graphics and video performance, This board should perform much better compared to previous Orange Pi Zero H2+ and H3 SoC 32-bit boards, where H5 is a 64 Bit SoC with a newer Mali450 MP4 GPU equipped with a total of four cores.

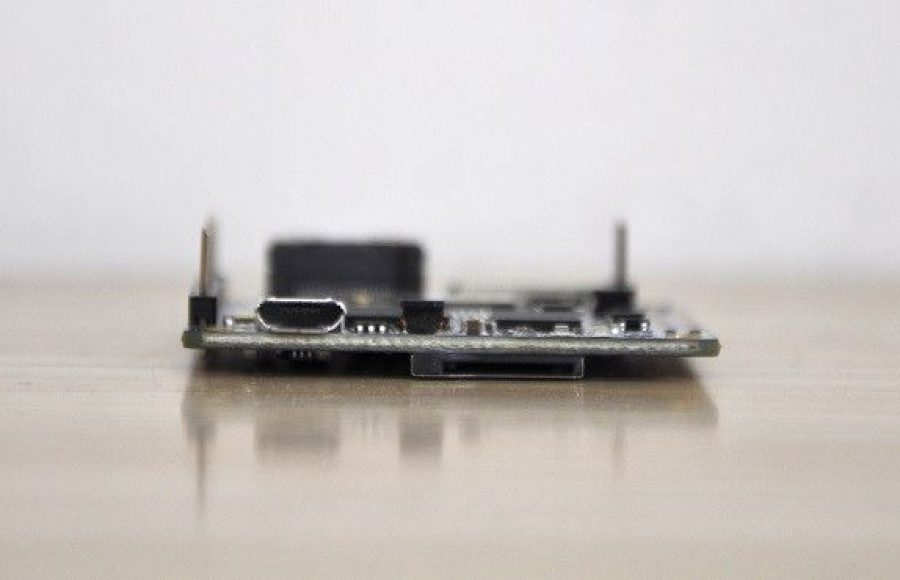

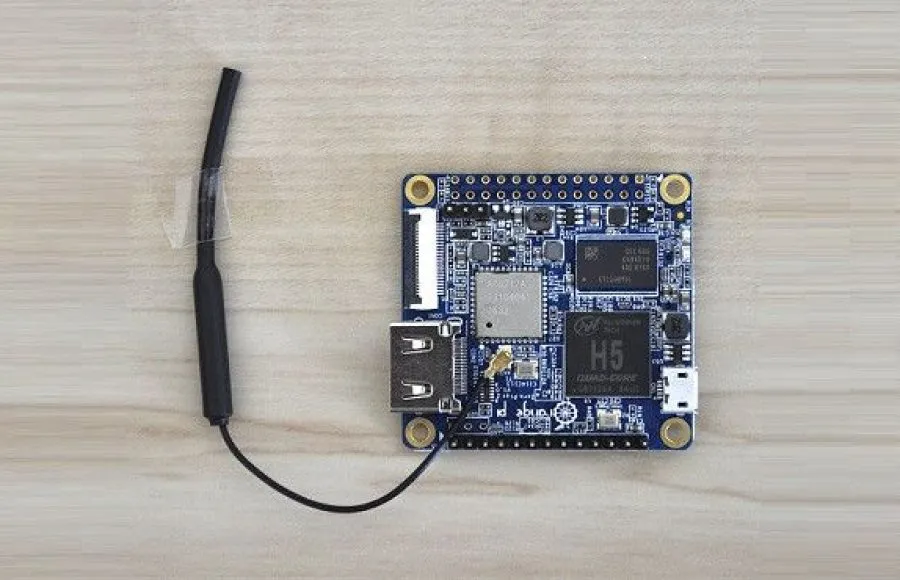

    Orange Pi Zero Plus2 | Full view

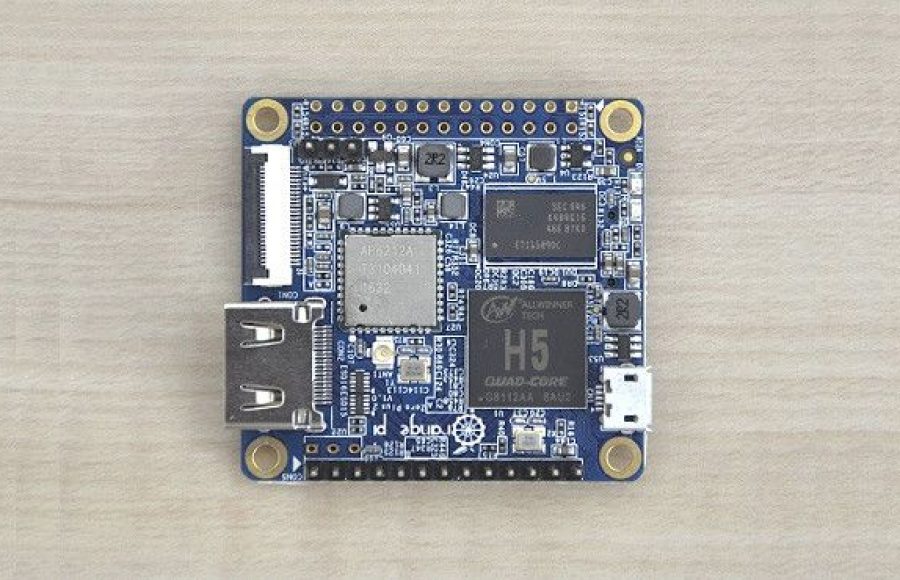

    • Orange Pi Zero Plus2 H5 01

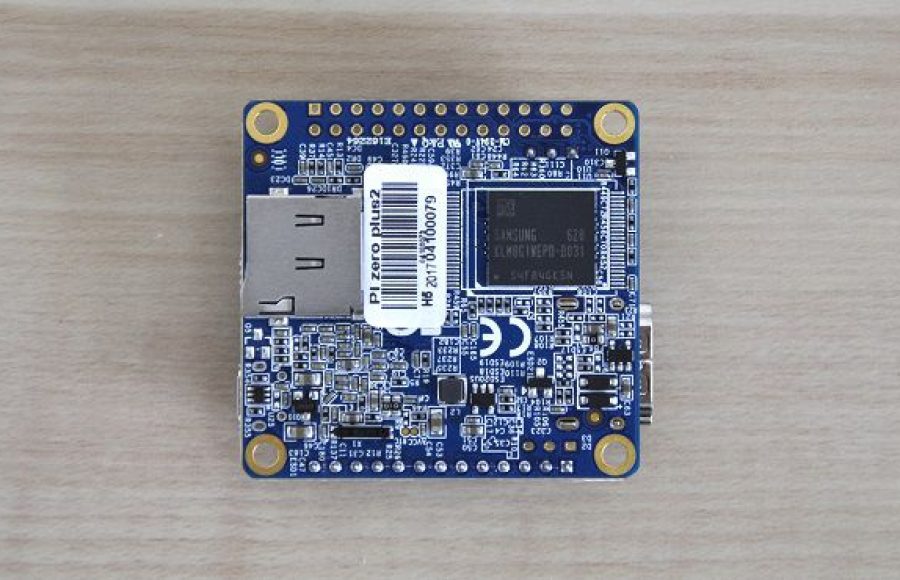

    • Orange Pi Zero Plus2 H5 02
    • Orange Pi Zero Plus2 H5 03

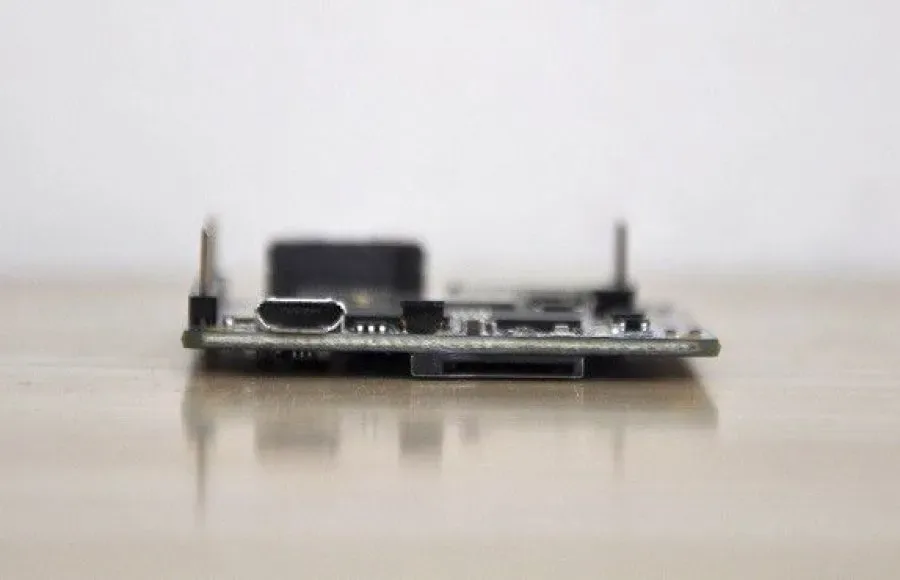

    • Orange Pi Zero Plus2 H5 04

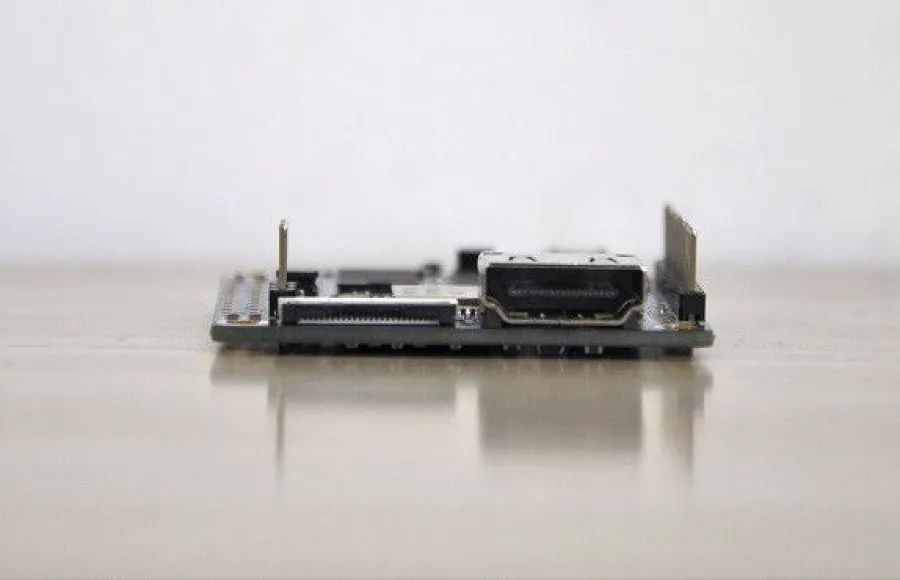

    • Orange Pi Zero Plus2 H5 05

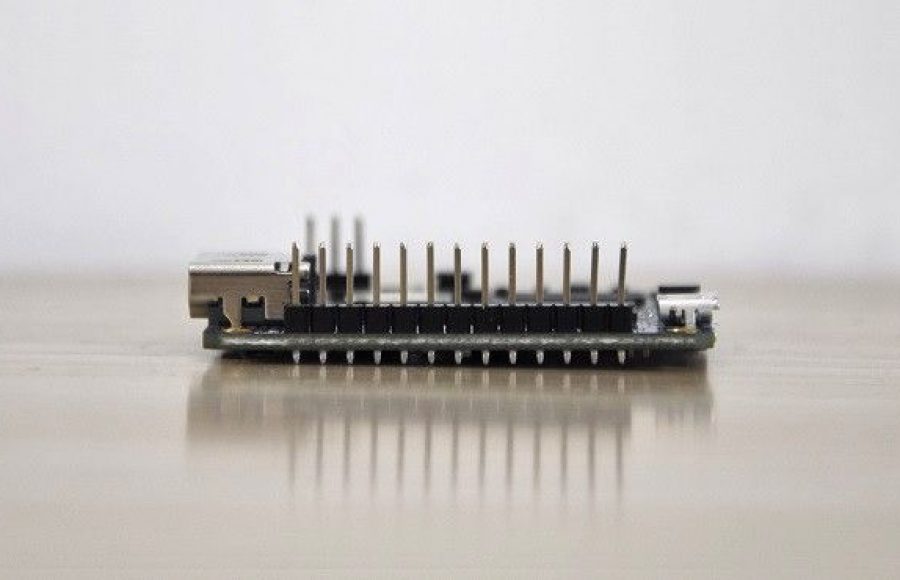

    • Orange Pi Zero Plus2 H5 06
    • Orange Pi Zero Plus2 H5 07
    • Orange Pi Zero Plus2 H5 08

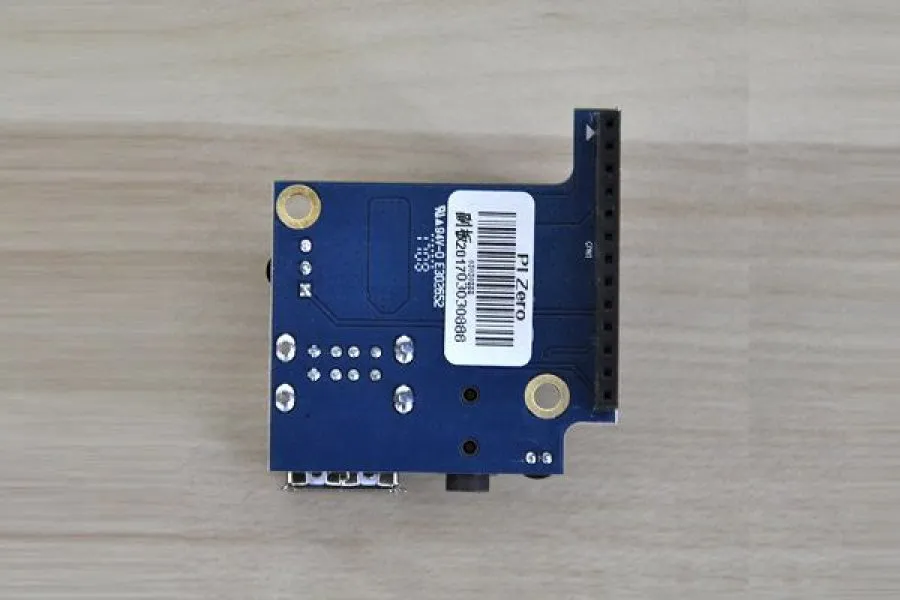

    Expansion Card

    By default, the board comes with few interfaces, including the HDMI port. If additional interfaces are needed such as the microphone, IR receiver, earphone and analog video/audio port you can solder/connect wires directly to a 13 pin header, or alternatively buy the Zero board expansion card which makes life much easier and simple without a need for extra wiring.

    Expansion Card | Full view

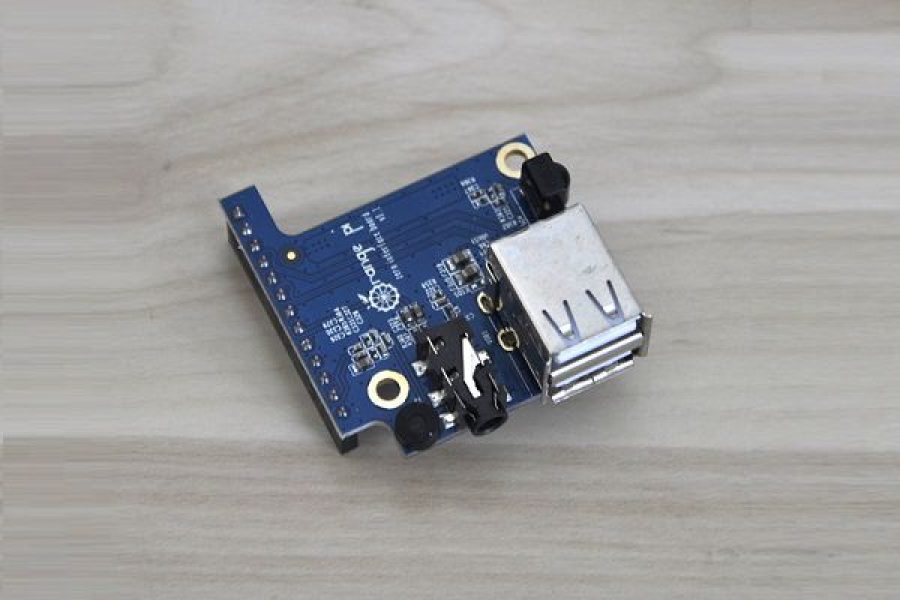

    • Orange Pi Zero Expansion Card 1

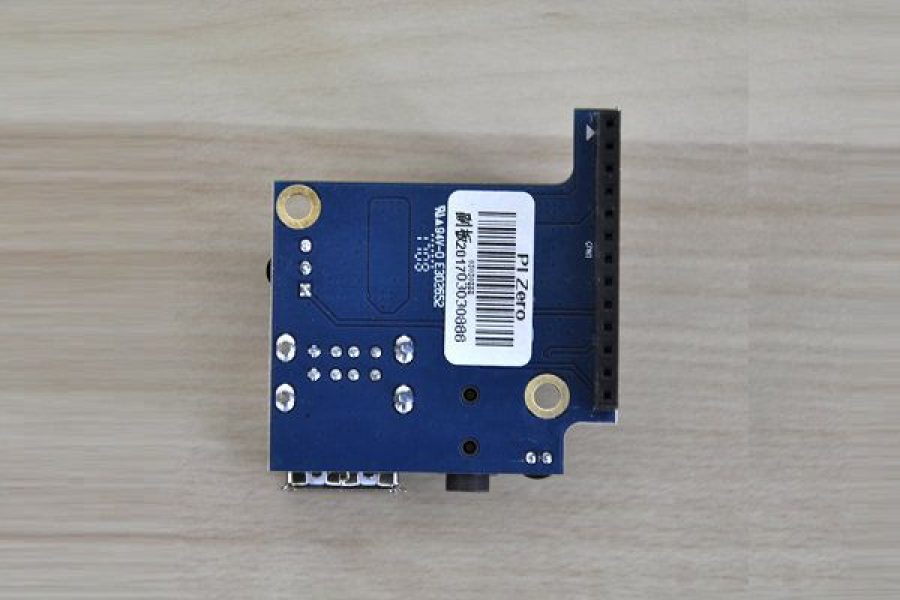

    • Orange Pi Zero Expansion Card 2

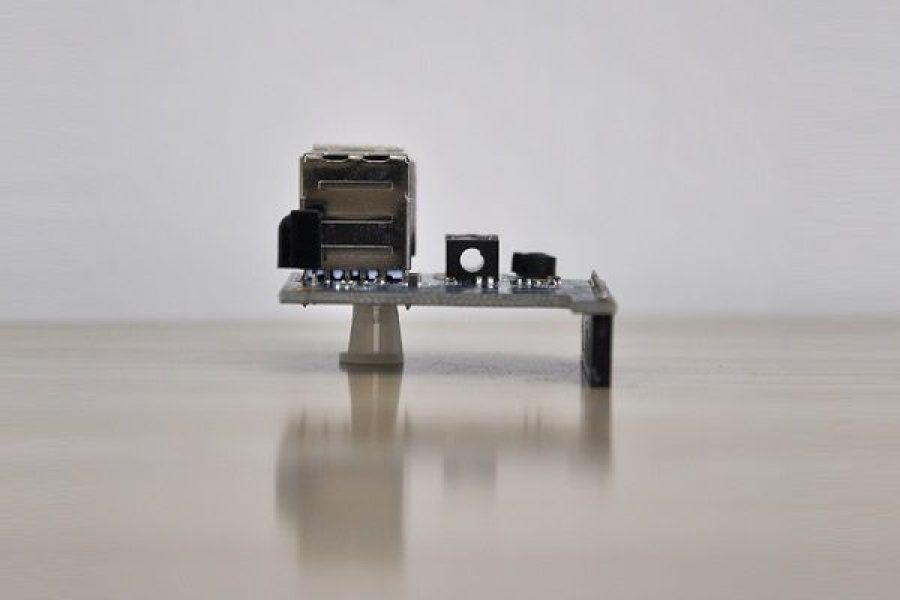

    • Orange Pi Zero Expansion Card 4

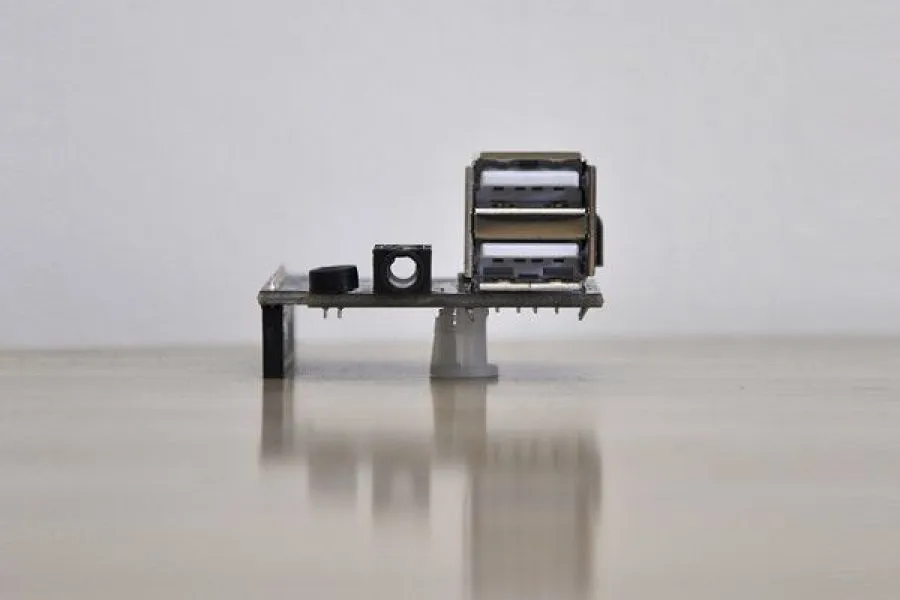

    • Orange Pi Zero Expension Card 3

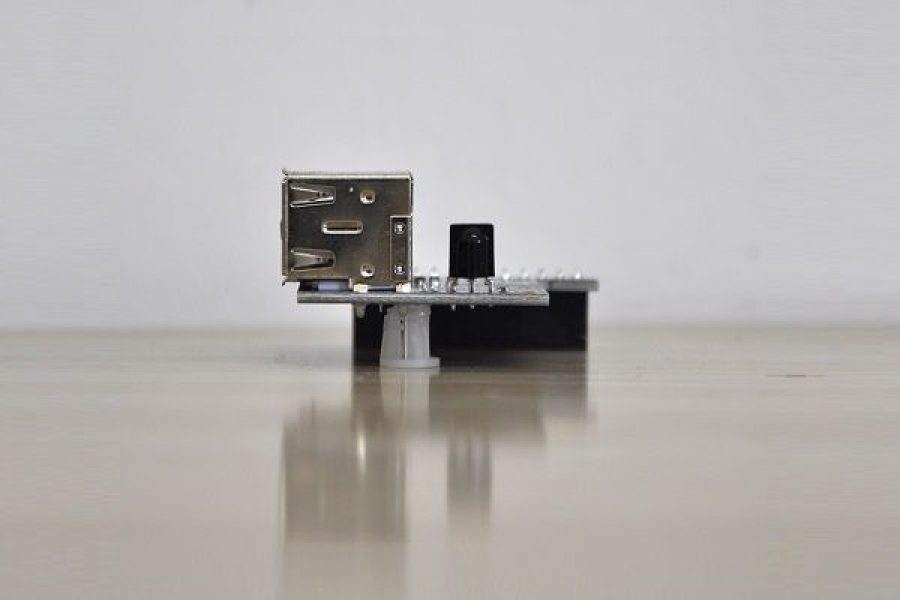

    • Orange Pi Zero Expansion Card 5

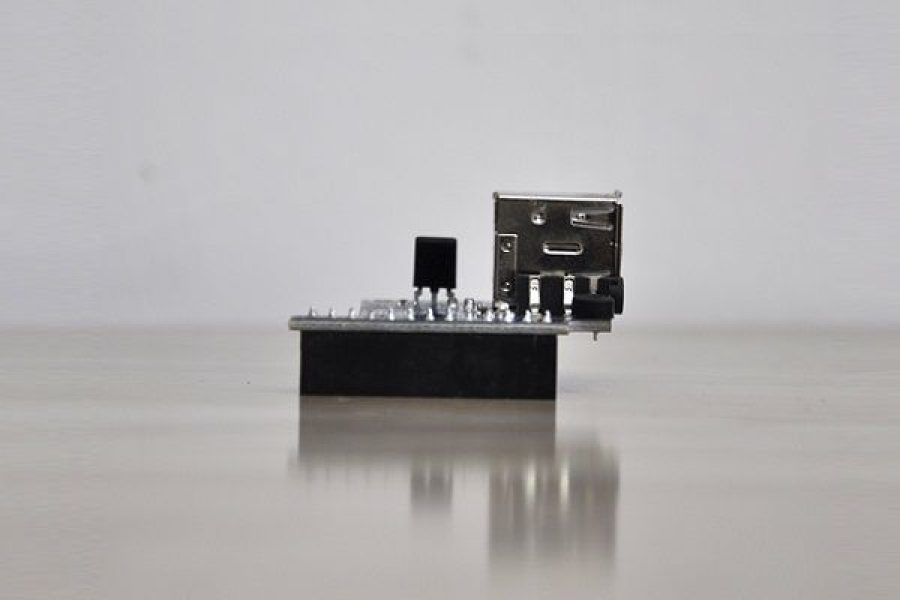

    • Orange Pi Zero Expansion Card 6


    Accessories:

    Heatsinks

    Heatsinks and thermal pads are not included in this package,  so you will need to buy them separately. The one that would fit the H5 Chip dimensions measures: 14 x 14x 7 mm. If you are planning on buying a higher heatsink more than 7 mm, keep in mind that the expansion card is positioned right above the H5 chip, therefore there is a height limitation and choosing a higher type can “touch’ the board and may cause a short circuit.

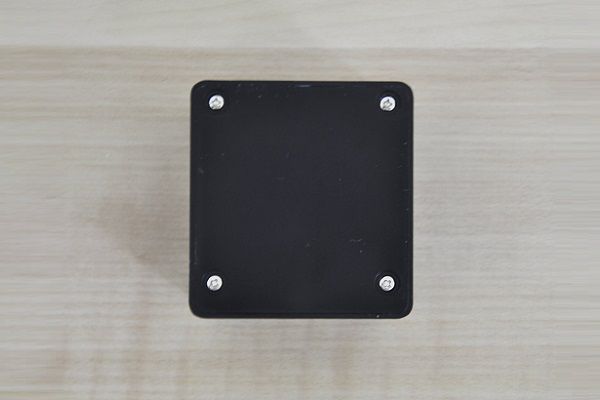

    Case

    Not a “must-have” accessory to buy. For those who like to save a few extra dollars and spend some time in designing and building a case, it’s also an option. This ABS plastic case is specifically designed for the Orange Pi Zero Plus/2 and expansion boards assembled together. If you are not planning on buying the expansion card,  it can’t be used. That said, based on my personal impression. Both the quality and design of the case where good with venting slots located on the front and rear along with all the external interfaces of both boards.

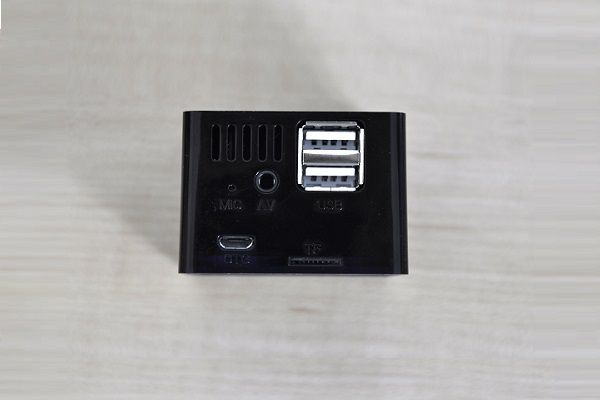

    Orange Pi Zero Case | Full View

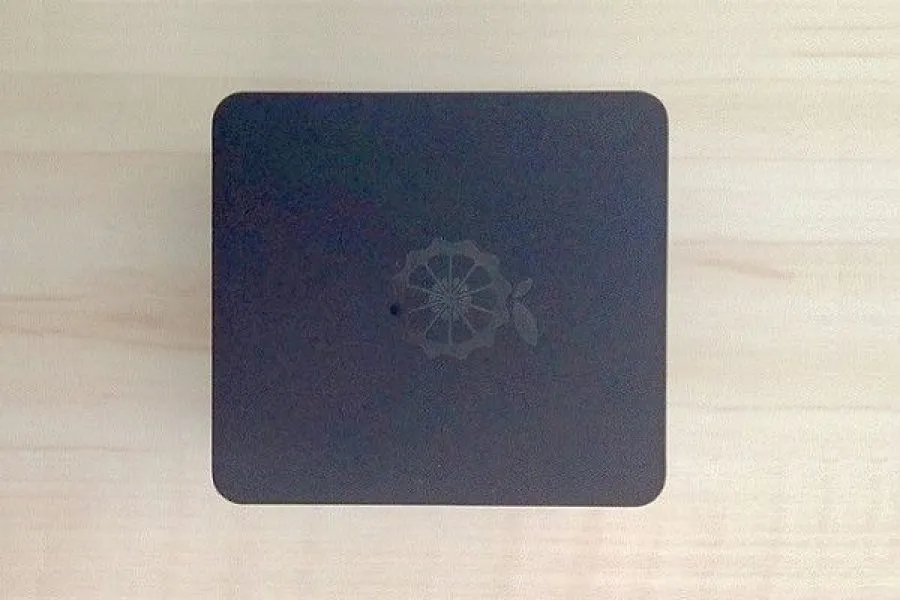

    • Orange Pi Zero Case 1

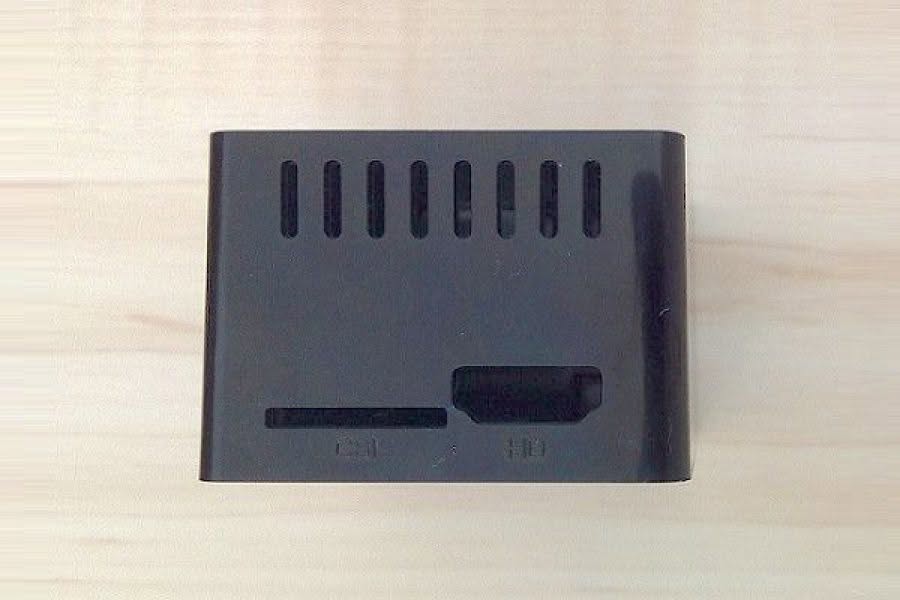

    • Orange Pi Zero Case 2

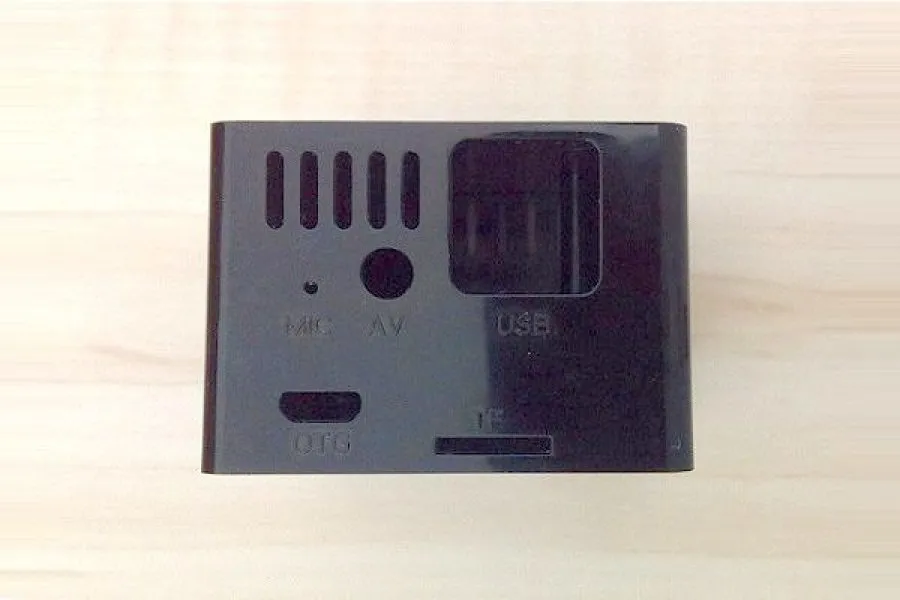

    • Orange Pi Zero Case 3

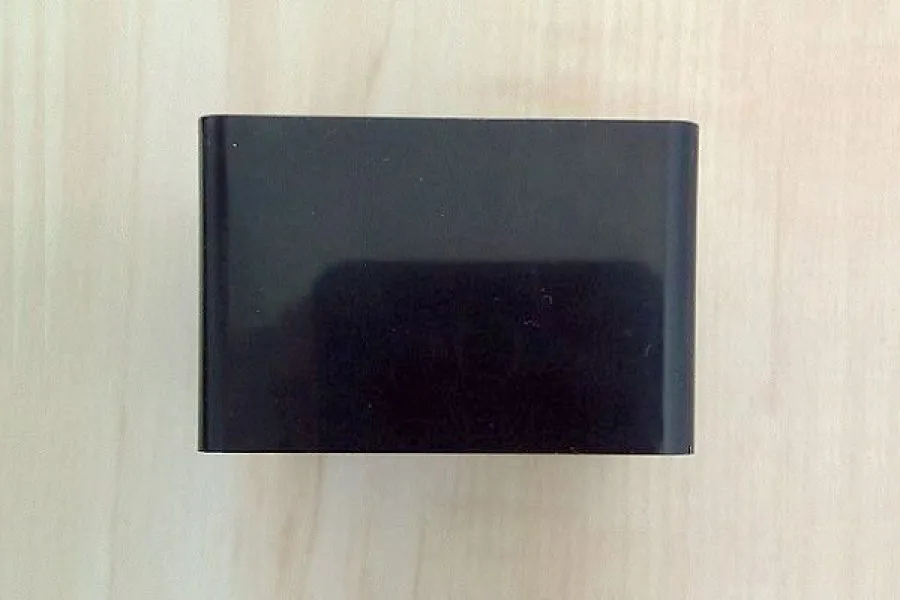

    • Orange Pi Zero Case 4

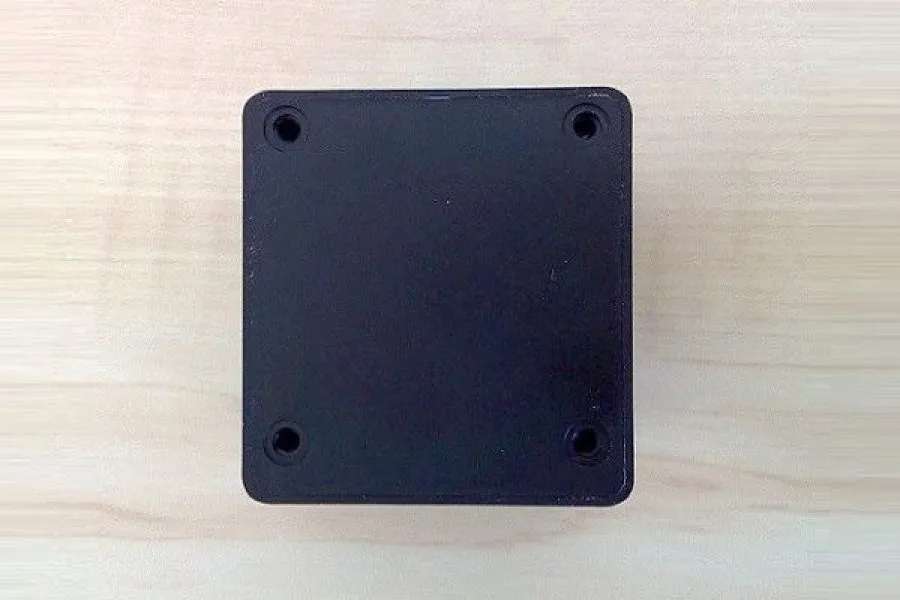

    • Orange Pi Zero Case 5

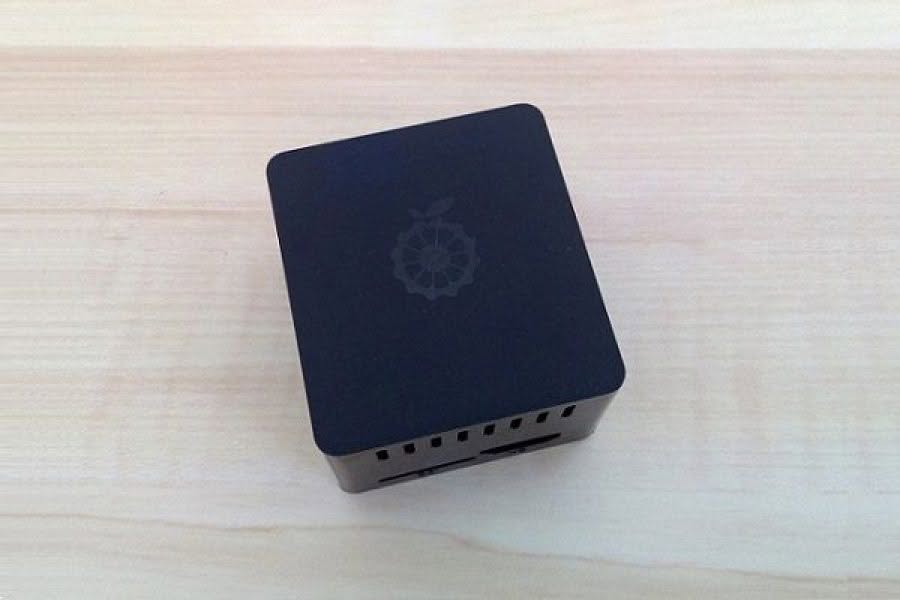

    • Orange Pi Zero Case 6

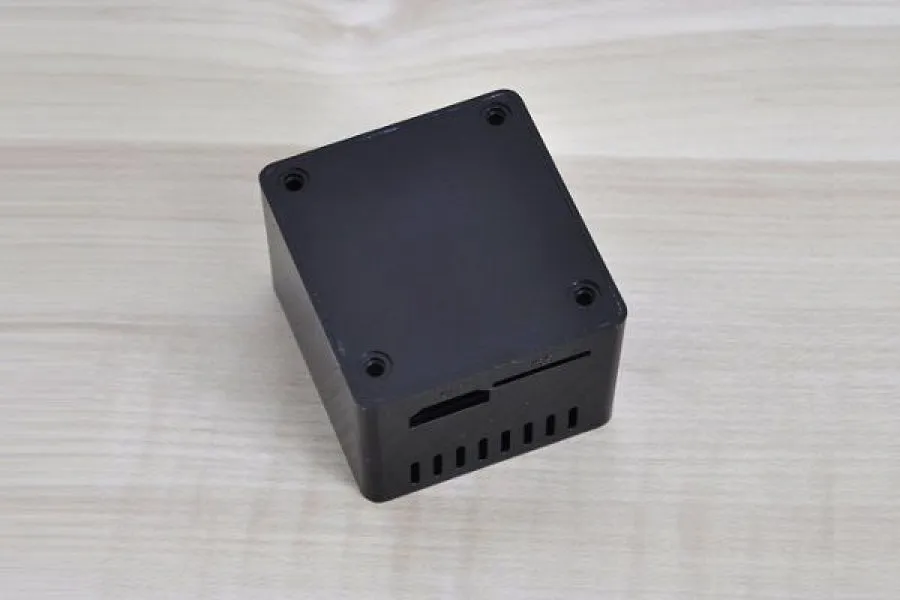

    • Orange Pi Zero Case 7

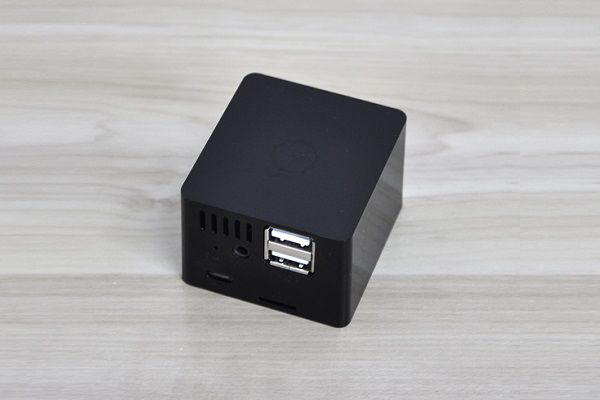

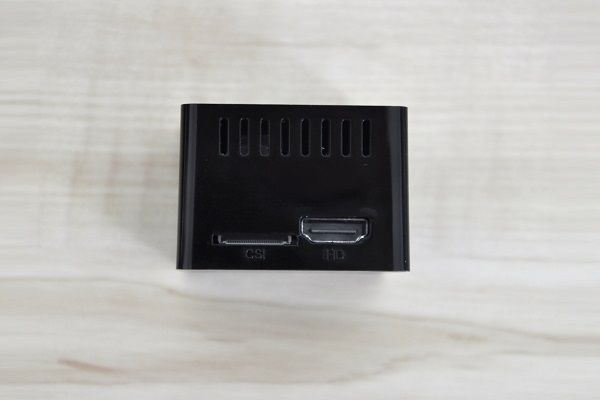

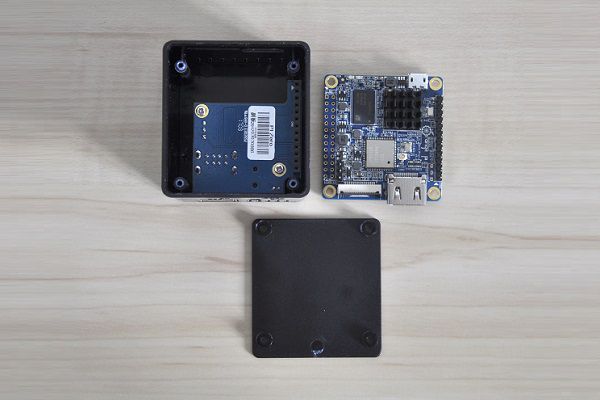

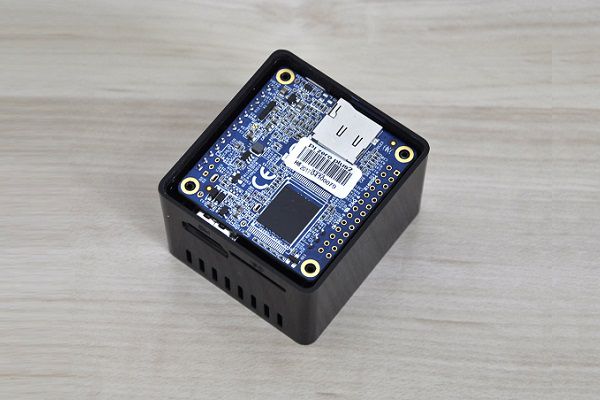

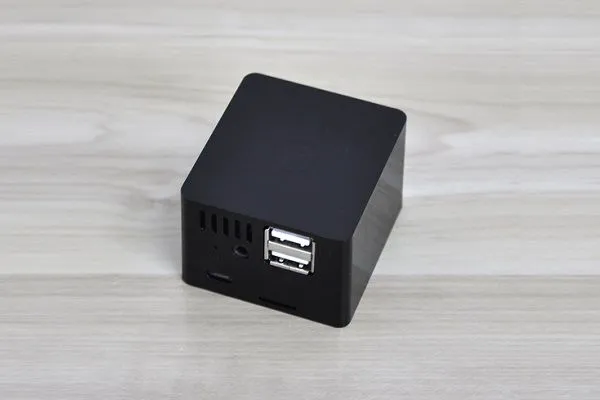

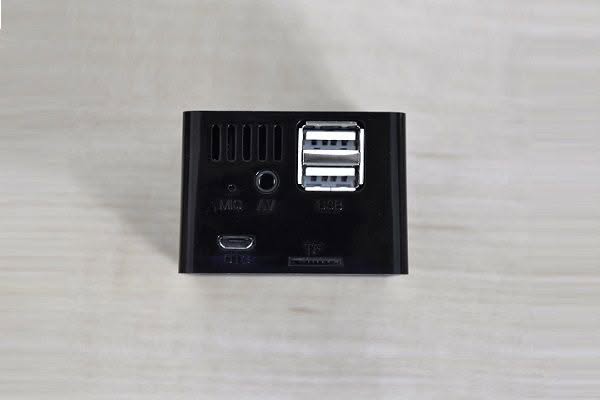

    Pi Zero Plus2 H5 & Expansion Card inside The Case

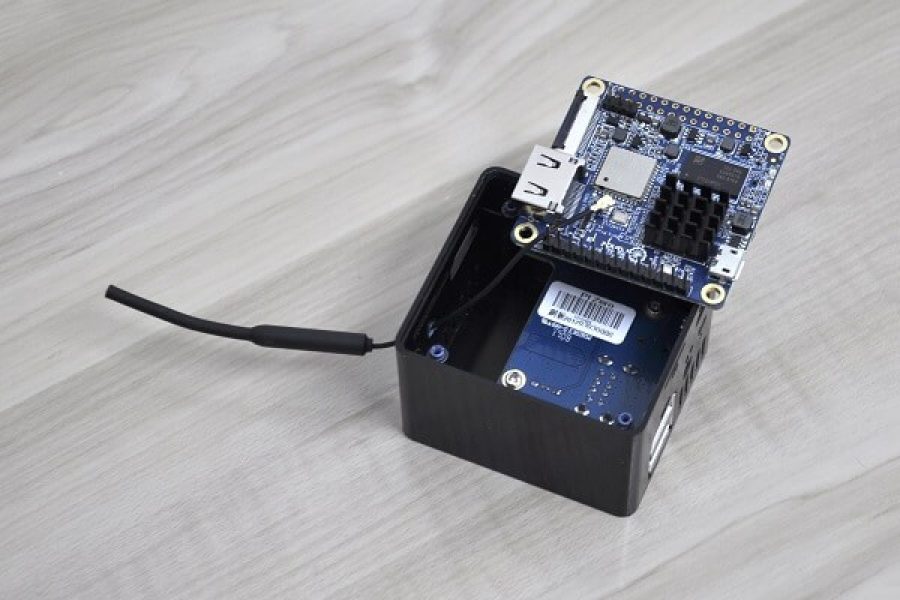

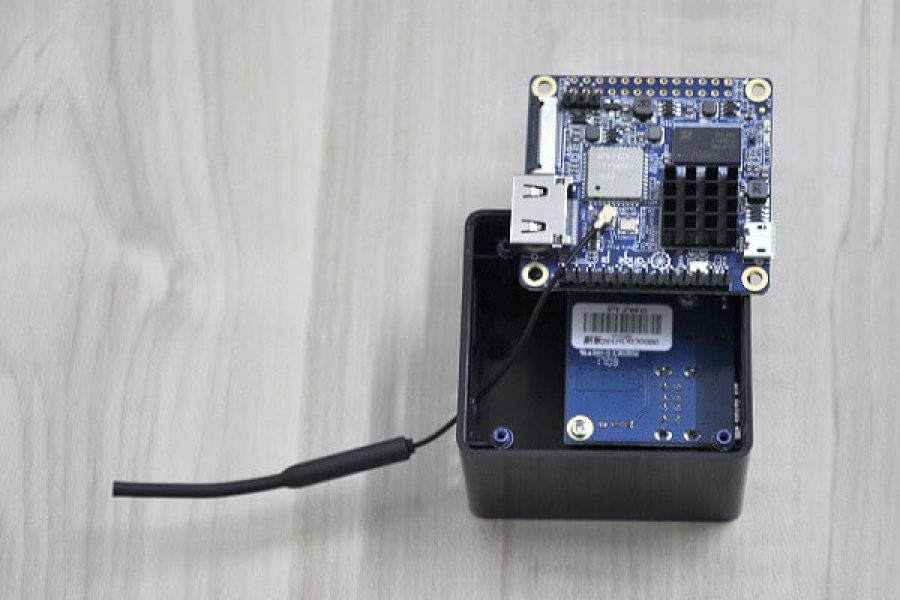

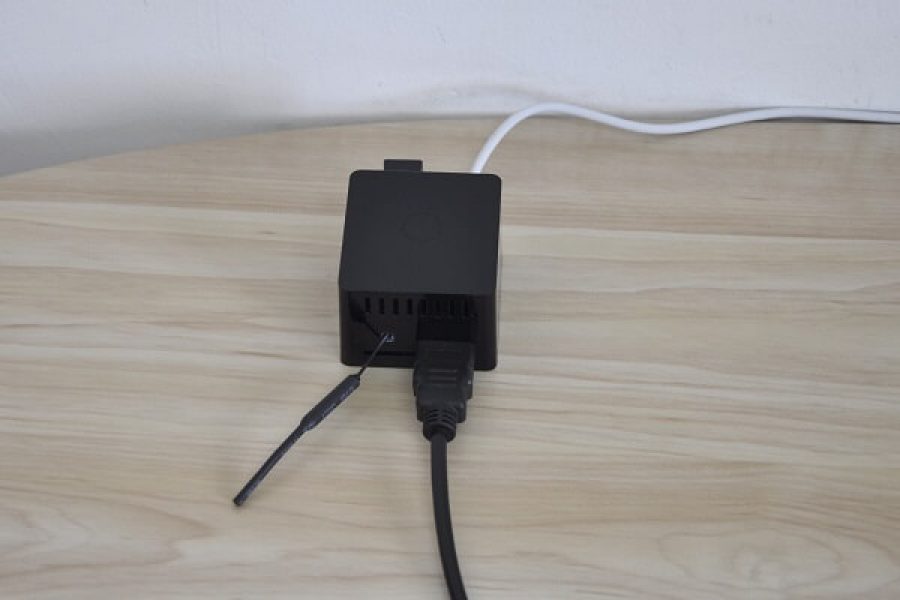

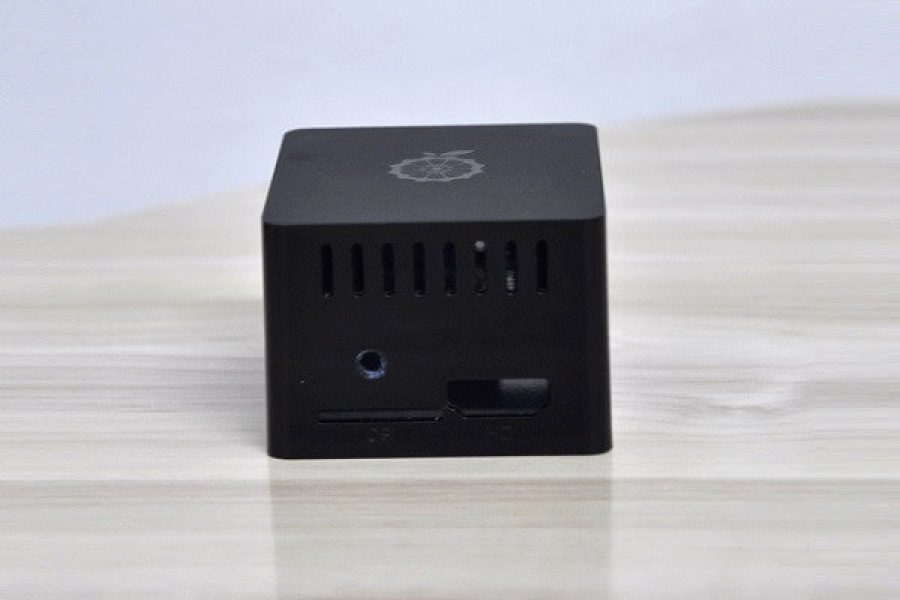

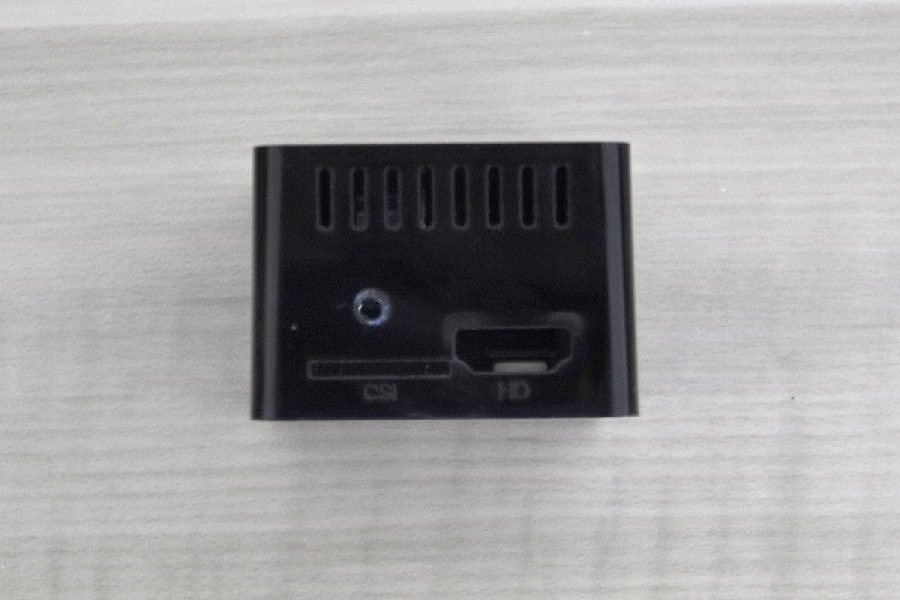

    Antenna

    A simple wire type WiFi antenna connected by default to the board Ipex Socket is included with the board. When both boards were assembled inside the case without it, the WiFi single was weak. For some reason, Xunlong company forgot to add a hole in the case to pass the wire through. In this case, the solution was to heat a screwdriver and melt the plastic until a 3-5 mm hole was formed. Once the antenna wire was connected to the board everything worked well and the WiFi signal reception improved.

    Beard  Connected to External WiFi Antenna

    • Pi Zero Plus2 Antenna 1

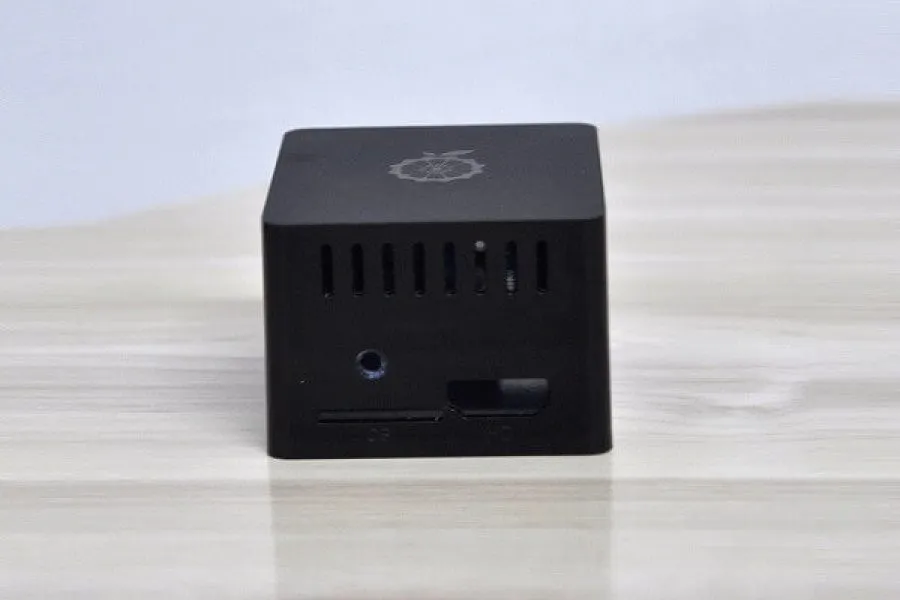

    • Pi Zero Plus2 Antenna 2

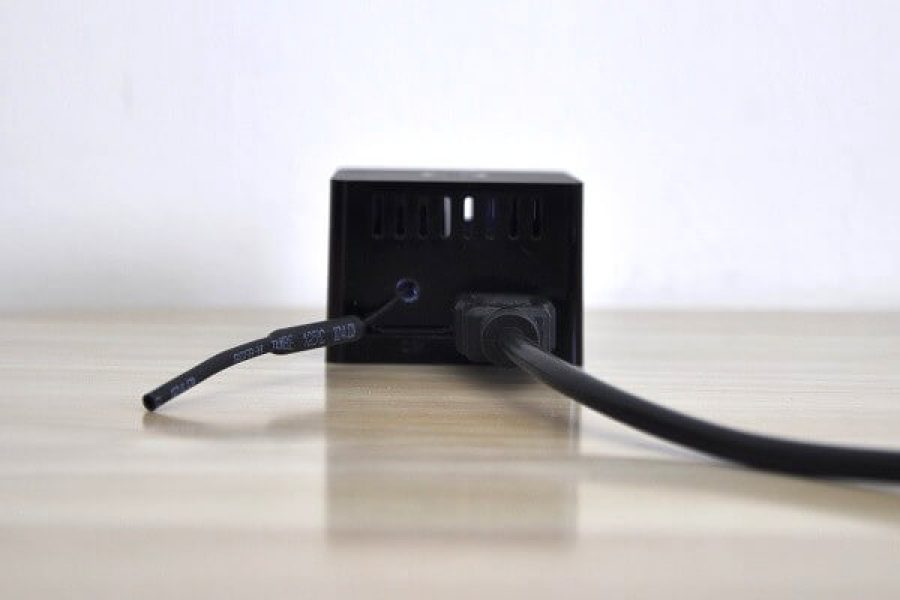

    • Pi Zero Plus2 Antenna 4

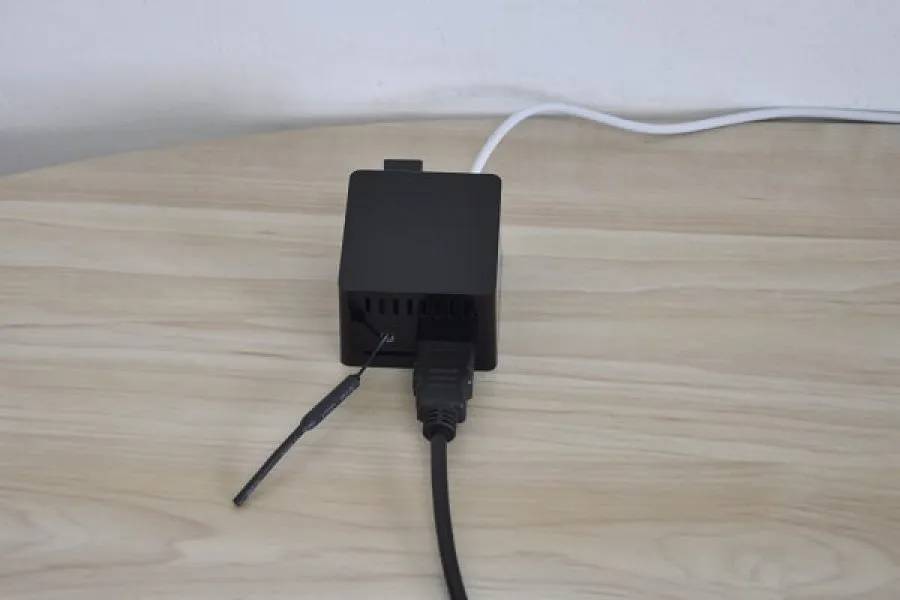

    • Pi Zero Plus2 Antenna 3
    • Pi Zero Plus2 Antenna 5
    • Pi Zero Plus2 Antenna 6

    Software Support

    The Orange Pi Zero Plus2 H5 supports five types of OS images: Debian, Ubuntu, Android 5.1, ArchLinux and Armbianֹ Ubuntu (Dev Build). From my general impression running and playing with most of them, they worked well. Android 5.1 OS image was missing Google Play store and worked much slower compared to the Linux distributions. This is because of the low 512MB RAM limitation that is basically is lower than required by Google to run a smooth and stable system.


    Debian Jessie (Xfce desktop environment)

    It worked pretty well. Sound and network settings were properly configured without issues. Although the CPU maximum frequency is 1.5GHz with Debian Jessie it was clocked to 1GHz. From a total of 512MB of RAM system, I was left with about ~37M of free memory. With limited physical memory available a swap partition will be needed, at this point, a minimum of 1GB should have been a better pick, but again this board is not intended to be high-end hardware, just a good alternative to the raspberry pi zero in terms of hardware specifications so it’s understandable.

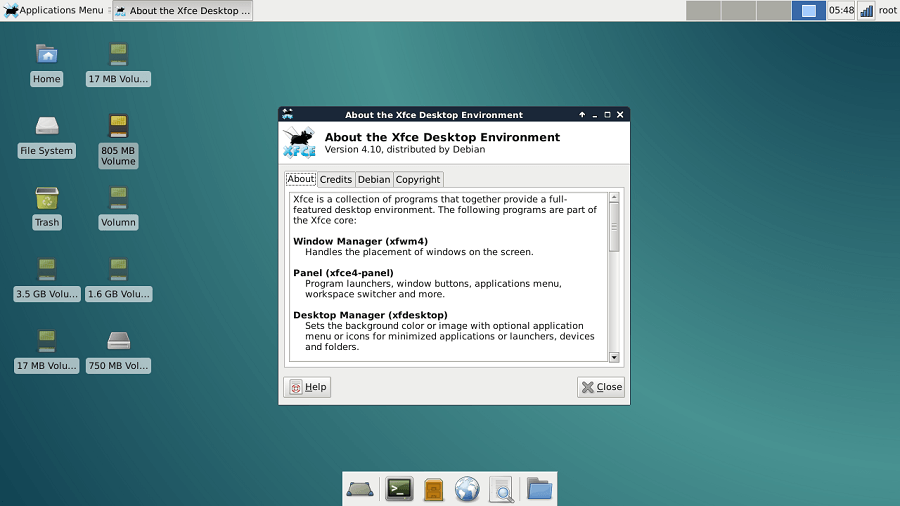

    Debian OS

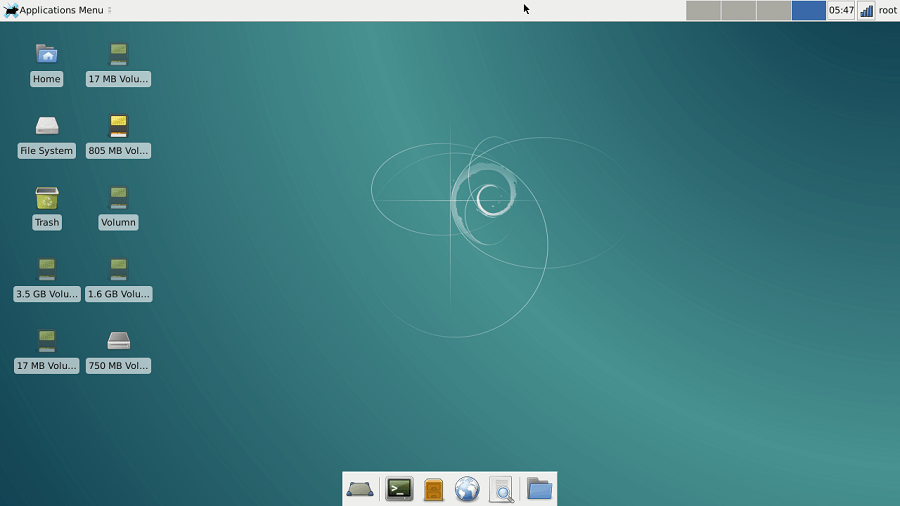

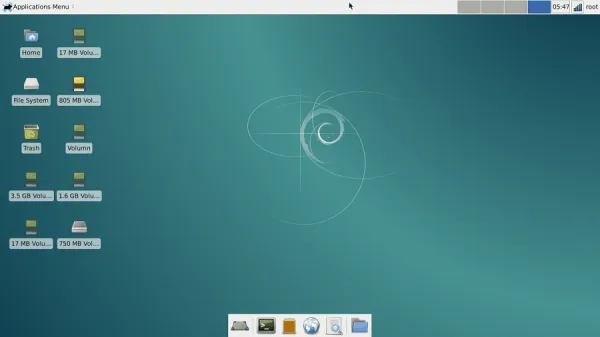

    Pi Zero Plus2 Debian 1
    Pi Zero Plus2 Debian 1

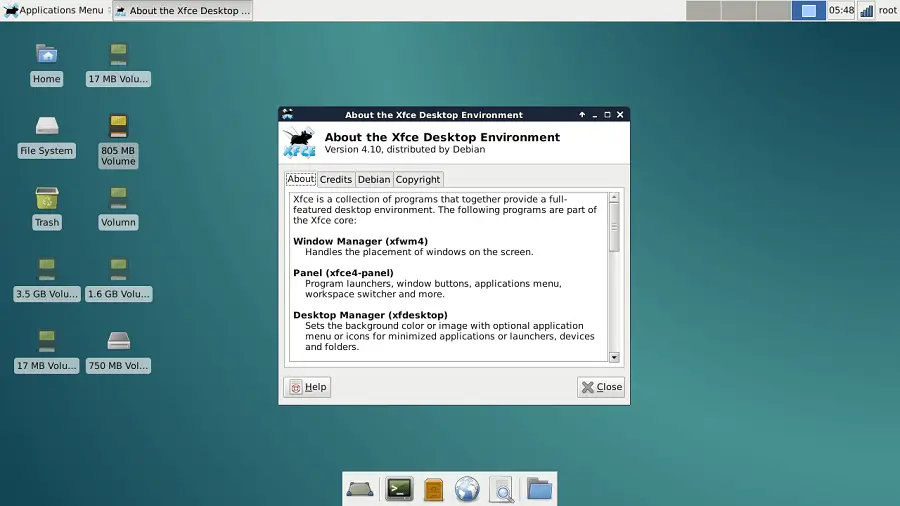

    Pi Zero Plus2 Debian 2
    Pi Zero Plus2 Debian 2

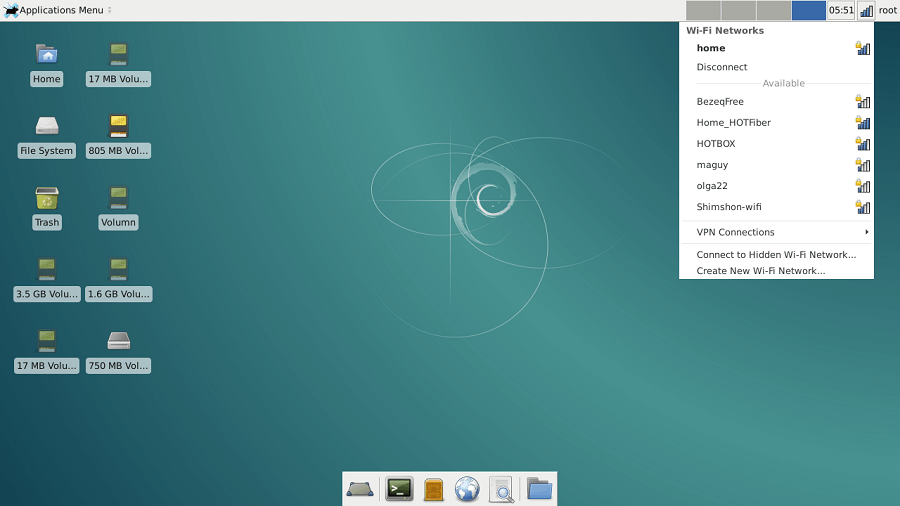

    Pi Zero Plus2 Debian 3
    Pi Zero Plus2 Debian 3

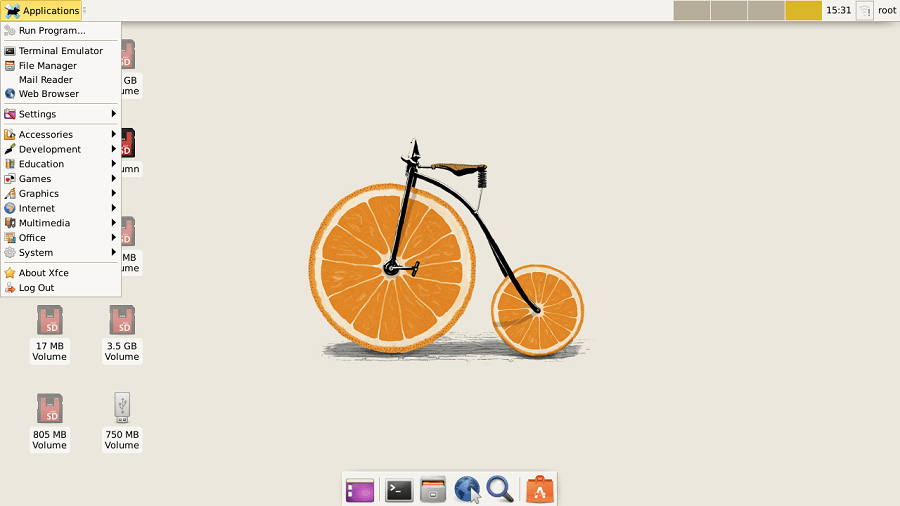

    Ubuntu OS

    Pi Zero Plus2 Ubuntu 3
    Pi Zero Plus2 Ubuntu 3

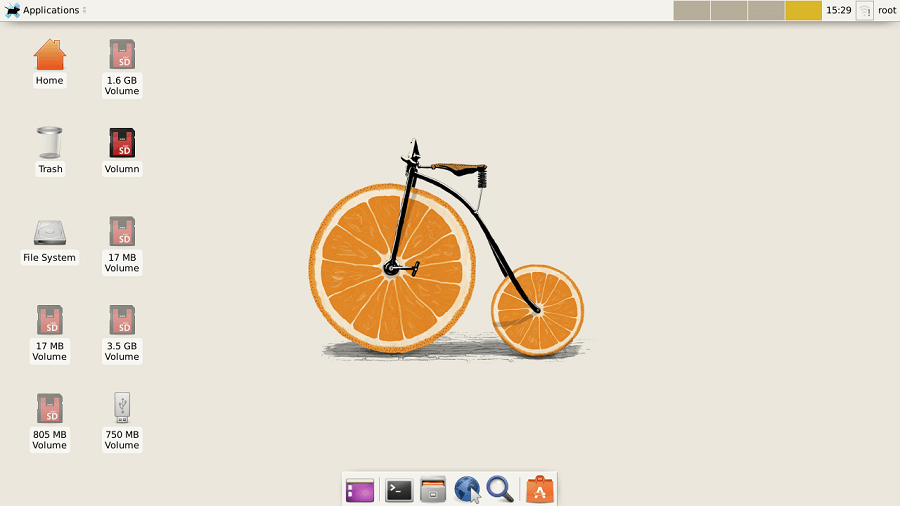

    Pi Zero Plus2 Ubuntu 1
    Pi Zero Plus2 Ubuntu 1

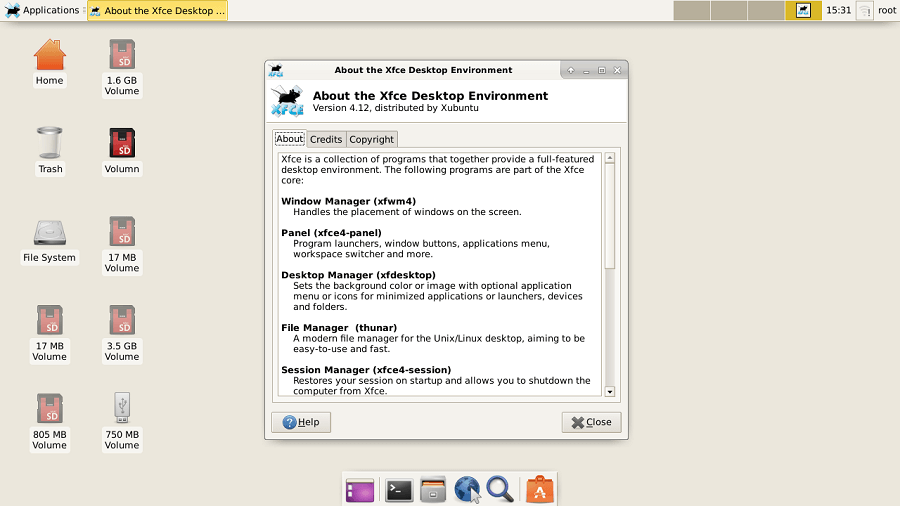

    Pi Zero Plus2 Ubuntu 2
    Pi Zero Plus2 Ubuntu 2

    System OS information:

    1
    2
    3
    orangepi@Orangepi:~$ uname -a
    Linux Orangepi 3.10.65+ #4 SMP PREEMPT Wed Mar 22 18:36:57 CST 2017 aarch64
    GNU/Linux

    Debian Jessie – Memory information:

    1
    2
    3
    4
    5
    orangepi@Orangepi:~$ free -h
                 total       used       free     shared    buffers     cached
    Mem:          468M       431M        37M       8.0M        16M       229M
    -/+ buffers/cache:       184M       283M
    Swap:           0B         0B         0B

    Ubuntul – Memory information:

    1
    2
    3
    4
    5
    orangepi@Orangepi:~$ free -h
                 total       used       free     shared    buff/cache     available
    Mem:          468M       162M        41M       8.9M        264M       266M
    -/+ buffers/cache:       184M       283M
    Swap:           0B         0B         0B

    CPU Architecture Information:

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    orangepi@Orangepi:~$ cat /proc/cpuinfo
    Processor       : AArch64 Processor rev 4 (aarch64)
    processor       : 0
    processor       : 1
    processor       : 2
    processor       : 3
    Features        : fp asimd aes pmull sha1 sha2 crc32
    CPU implementer : 0x41
    CPU architecture: AArch64
    CPU variant     : 0x0
    CPU part        : 0xd03
    CPU revision    : 4

    Hardware        : sun50iw2
    Serial          : 34005035c2004814064c

    CPU Frequency Information:

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    orangepi@Orangepi:~$ clear
    orangepi@Orangepi:~$ lscpu
    Architecture:          aarch64
    Byte Order:            Little Endian
    CPU(s):                4
    On-line CPU(s) list:   0-3
    Thread(s) per core:    1
    Core(s) per socket:    1
    Socket(s):             4
    CPU max MHz:           1536.0000
    CPU min MHz:           480.0000

    Temperature

    In a normal operation mode without overloading system resources under Debian Jessie OS, the CPU temperature measured between 40-50C.

    1
    2
    orangepi@Orangepi:~$ cat /sys/devices/virtual/thermal/thermal_zone0/temp
    47

    CPU Load and Stress Test:

    Measuring Power Consumption & Temperature

    1
    2
    3
    4
    5
    orangepi@Orangepi:~$ sudo stress --cpu 50 --timeout 60
    stress: info: [21242] dispatching hogs: 50 cpu, 0 io, 0 vm, 0 hdd
    stress: info: [21242] successful run completed in 60s
    orangepi@Orangepi:~$ cat /sys/devices/virtual/thermal/thermal_zone0/temp
    57<b> </b>

    In standard operation mode, without overload system resources and CPU, both boards consume 4.2-4.4W. After stressing the CPU to the max for 60 seconds using stress tool power consumption raised to 5.4W  measuring temperature of 57C.

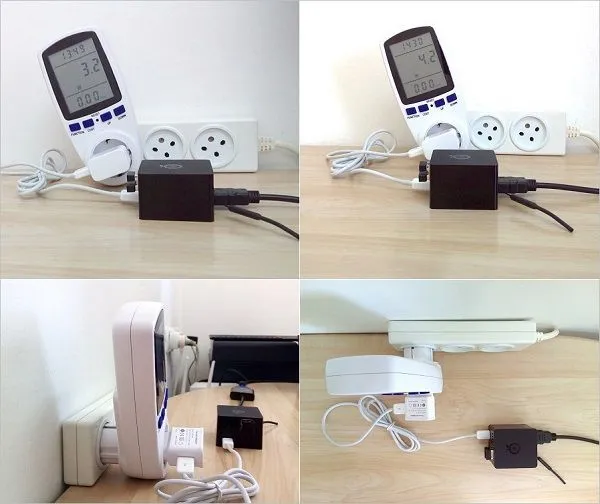

    Orange Pi Zero Plus2 Power measuring

    Measured Power Consumption:

    • When turned off –> 3.2W
    • During Boot –> 5-6.2W
    • Standard operation –>  4.0-4.4W

    Final Words

    Based on personal experience playing with the product, it works reasonably well and stable, except the Android OS Image that performed very slow. I doubt users will use it as an android mini PC with such low physical memory. The 8GB eMMC and additional external interfaces are a definitely a big advantage, my experience with the Linux images was good and I recommend buying and using this kit mainly for “light” open-source DIY projects that don’t consume much memory or CPU power.
