The Orange Pi 4A is a good single-board computer that offers excellent low- to mid-range performance, equipped with a wealth of useful interfaces, making it a compelling choice for those seeking an exceptional device at an affordable price point. Let’s take a closer look at its pros and cons:
- High value for the buck
- M.2 slot support for NVMe SSDs
- Supports 2 TOPS NPU
- Interfaces: DSI, CSI, eDP, HDMI 2.0
- Doesn’t heat too much
- Headphone jack.
- Dedicated DSP (enhanced audio capabilities).
- M.2 supports 1-lane PCIe.
- USB Type-A 2.0 HOST
Part 1: Product Introduction
Orange Pi 4A: A more robust and affordable RISC-V single-board computer.

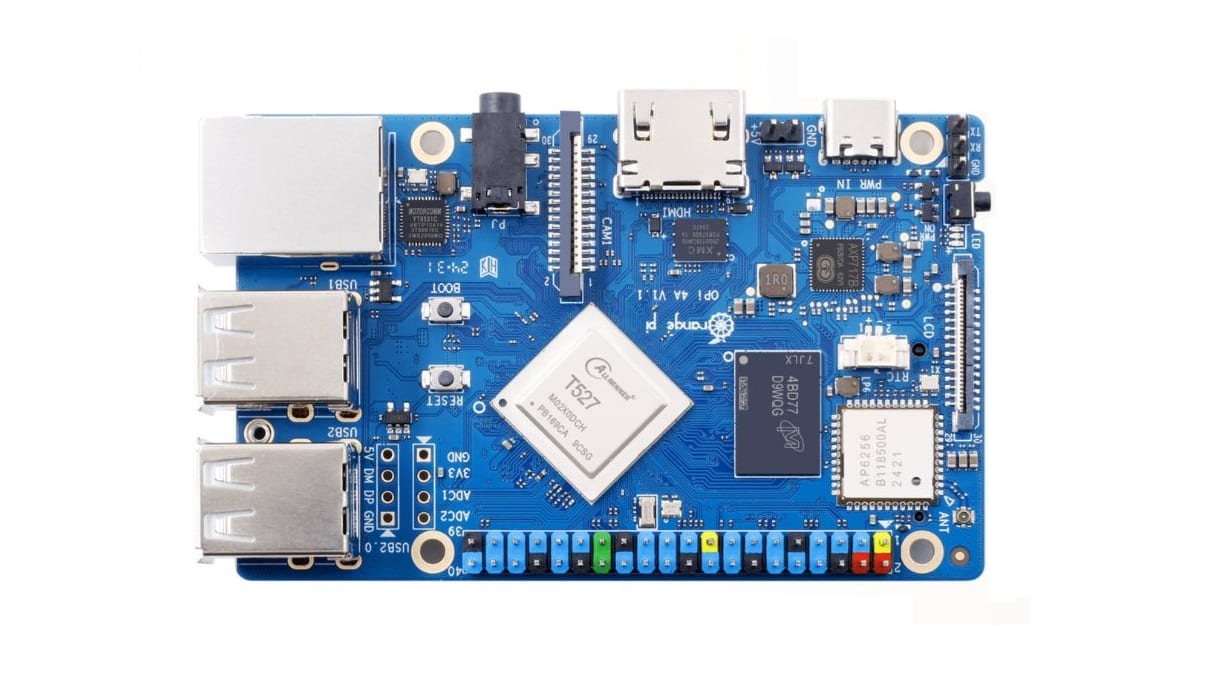

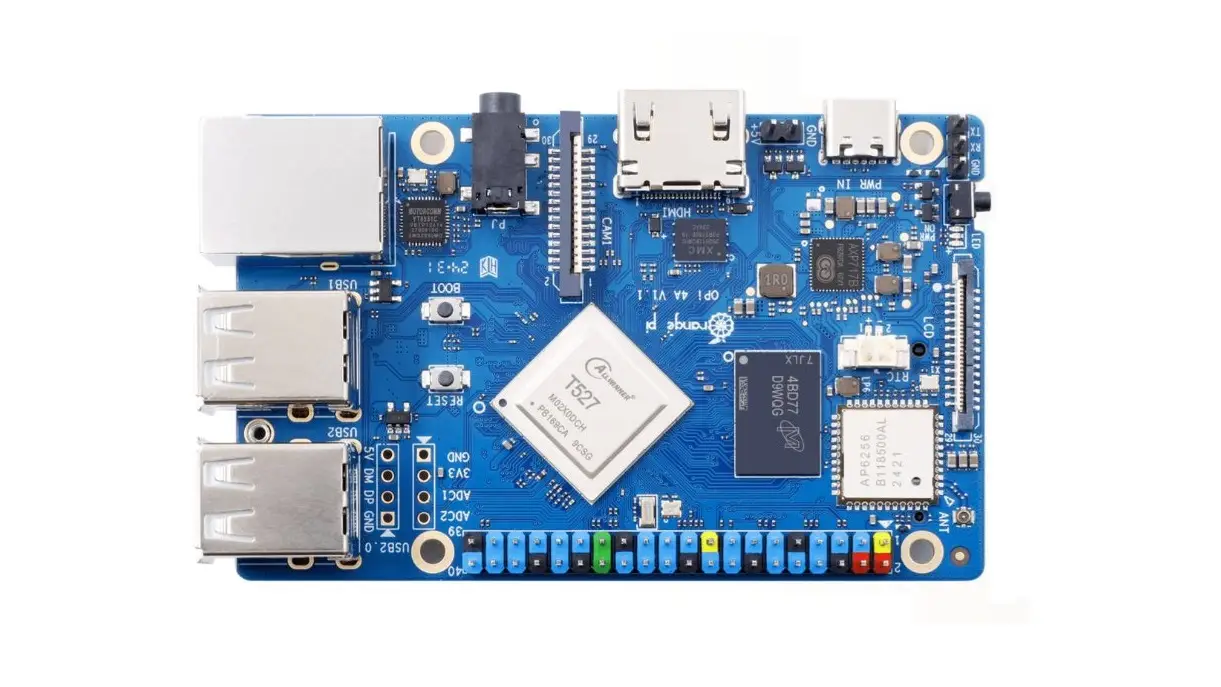

Following the previous Orange Pi RV release, a new Orange Pi 4A SBC (Single-Board Computer) is launched, powered by the robust Allwinner T527 octa-core Cortex-A55 processor, complemented by a HiFi4 DSP and a multicore RISC-V processor, making it ideally suited for industrial-grade applications. It features an impressive 2-TOPS NPU for advanced AI acceleration, with options for either 2GB or 4GB of LPDDR4/4X RAM. This device excels in video performance, capable of H.265 and H.264 video decoding at 4K@60fps and H.264 encoding at 4K@25fps. Furthermore, it offers a diverse range of connectivity options, including Gigabit Ethernet, PCIe 2.0, USB 2.0, MIPI-CSI, MIPI-DSI, and a flexible 40-pin expansion interface, fully compatible with operating systems such as Ubuntu, Debian, and Android 13.
Orange Pi 4A Specifications
| Processor | T527, 8-core ARM [email protected] HIFI4 Audio DSP@600MHz RISC-V@200MHz GPU:G57 MC1 VPU:H.265 4K@60fps decoding, H.264 4K@60fps decoding, H.264 4K@25fps encoding NPU:2TOPS |
| Memory | LPDDR4/4X: 2GB/4GB (optional) |
| Storage | eMMC module (optional): (optional)：16GB/32GB/64GB/128GB (optional) SPI flash：128Mb(default)、256Mb (optional) M.2 M-KEY socket：PCIe2.0 NVMe SSD uSD card slot：supports up to 128GB uSD card |
| Wi-Fi + Bluetooth | Wi-Fi + Bluetooth 2-in-1 module Wi-Fi 5.0+BT 5.0, BLE |
| Ethernet | 10/100/1000Mbps Ethernet |
| Display | 1* HDMI TX 2.0 interface up to 4K@60fps 1* 4-lane MIPI-DSI 1* eDP1.3 |
| Camera | 1* 2-lane MIPI-CSI camera interface 1* 4-lane MIPI-CSI camera interface |
| USB | 1*USB Type-A 2.0 3*USB Type-A 2.0 HOST 1*USB 2.0 HOST, reserved for customer expansion |
| ADC | Reserved 4Pin connector, can access 2-lane ADC, maximum input 1.8V |
| Audio | 3.5mm headphone jack audio input/output |
| Buttons | 1* BOOT，1*RESET，1 *PWR ON |
| RTC | 2Pin spare battery connector (Pitch=1.27mm) |
| 40Pin | 40Pin function expansion interface supports the following interface types: GPIO、UART、I2C、SPI、PWM |
| Debug | 3Pin debug serial port |
| Power supply | Type-C 5V 5A DC Input |
| Supported OS | Ubuntu, Debian, Ubuntu、Debian、Android13 |
| PCB | 89mm*56mm*1.6mm |
| Weight | 52g |
Examining Board Design and Layout

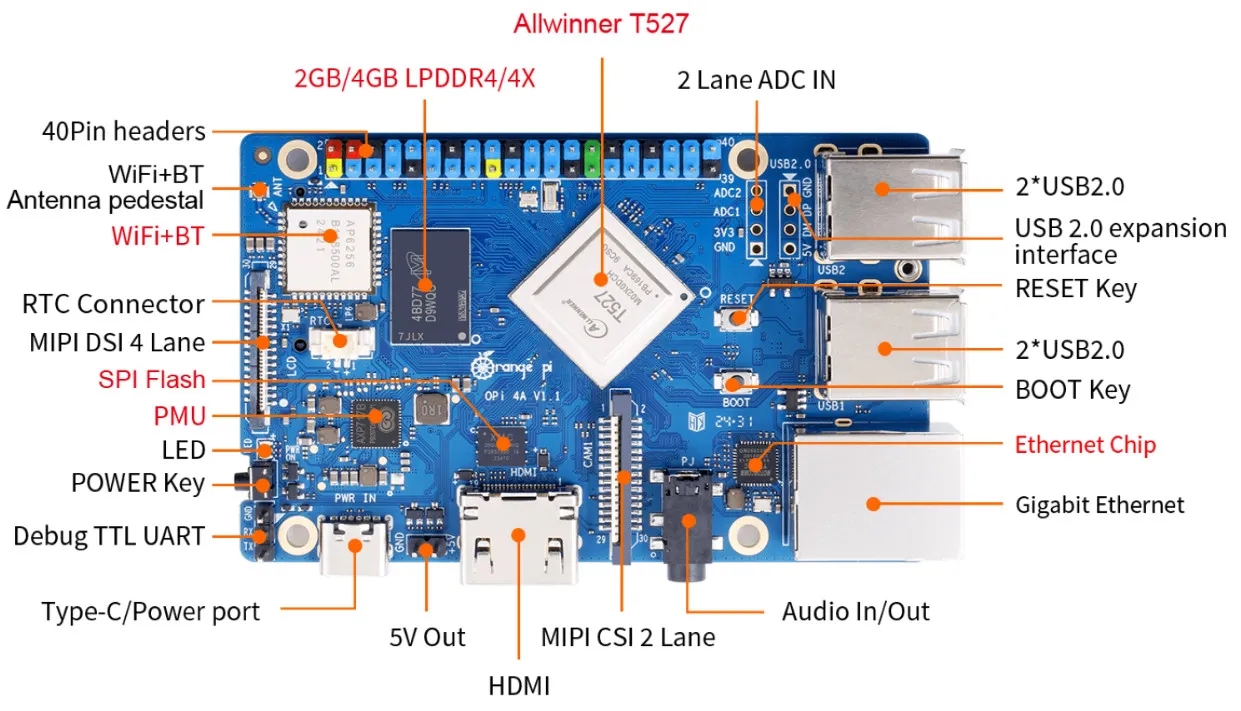

The Orange Pi 4A, as depicted in the photo below, provides an impressive array of interfaces for seamless connectivity. Orange Pi has also incorporated four USB 2.0 host ports. Is this a dealbreaker? Likely not for a single-board computer powered by an 8-core processor. Additionally, the company has equipped the Orange Pi 4A with three display interfaces—HDMI, MIPI DSI, and eDP—along with two camera interfaces and a color-coded 40-pin “Raspberry Pi” header.

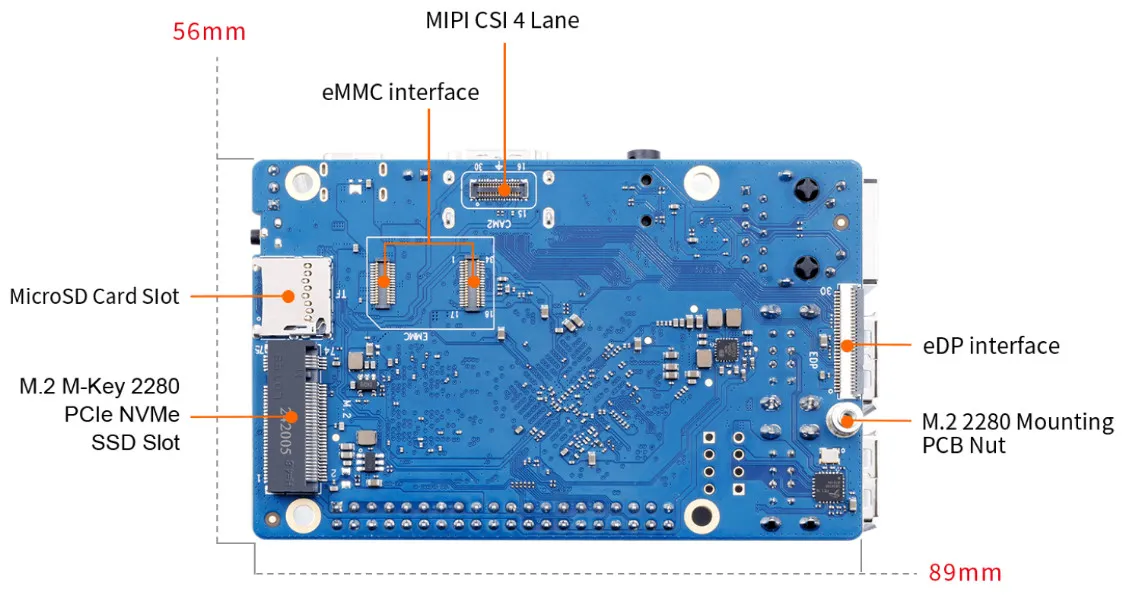

An M.2 2280 socket has been added for installing NVMe SSD cards, providing expansion options. Additionally, there is an eMMC socket on the back of the board for different detachable eMMC chips, although a high-speed read/write SD card is usually sufficient in most situations.
Powered by an Allwinner T527 SoC (System on chip)
The Allwinner T527 is a cutting-edge System on a Chip (SoC) that integrates a hybrid architecture with both ARM and RISC-V cores. It boasts an octa-core ARM Cortex-A55 CPU capable of reaching speeds of up to 1.8 GHz, alongside an E906 RISC-V microcontroller-class processor developed by T-Head, a subsidiary of Alibaba Group. The additional E906 RISC-V core operates at speeds of up to 200 MHz. This powerful combination provides exceptional processing efficiency and versatility for a wide range of applications.
Applications Across Multiple Industries
The Orange Pi 4A E906 microprocessor is an exceptional choice for control systems in manufacturing, robotics, and industrial machinery, delivering the precise control and real-time processing required for optimal performance.
- Internet of Things (IoT): Its energy efficiency and robust data management make it ideal for IoT devices, such as smart sensors, home automation systems, and wearable technology.
- Motor Control: Its advanced digital signal processing and excellent floating-point performance make it perfect for motor control applications like electric vehicles and industrial motors.
- Navigation Systems: The E906’s advanced floating-point unit and DSP capabilities play a crucial role in enhancing the precision and efficiency of navigation systems, including drones, autonomous vehicles, and robotics.
- Embedded Systems: It is useful in small devices like medical tools, electronics, and communication gear that need efficient processing.
- Security Systems: Its encryption makes it ideal for secure communication and data protection.
Enhanced thermal management
In addition, the Allwinner T527 processor utilizes advanced heat dissipation strategies to uphold exceptional performance and reliability, particularly in challenging automotive settings. It features an efficient power management system designed to minimize heat generation by optimizing power consumption. These innovations guarantee that the T527 operates seamlessly without overheating, even in high-performance scenarios.
Equipped with a 2TOPS NPU (Neural Processing Unit)
The 4A board is equipped with a powerful NPU (Neural Processing Unit) that boasts an impressive 2 TOPS (trillions of operations per second). This capability allows it to effectively manage a diverse range of AI and machine learning tasks. Here are some practical applications:
- Image and Video Processing: Object detection, facial recognition, and video analytics.
- Speech Recognition: Transcribing speech, voice commands, and language translation.
- Predictive Maintenance: Predicting equipment failures in industry using sensor data analysis.
- Autonomous Vehicles: Processing data from cameras and sensors for navigation and obstacle detection.
- Smart Home Devices: Improving smart speakers, security cameras, and other IoT devices.
- Healthcare: Analyzing medical images, monitoring vitals, and supporting diagnostics.
Suited for audio-related applications.
The board features a HiFi4 Audio DSP, a cutting-edge digital signal processor (DSP) specifically engineered for exceptional audio, voice, and speech processing applications. Here are some key features and advantages of the HiFi4 Audio DSP:
Key Features
- Performance: Operates up to 600 MHz for high processing power in demanding DSP applications.
- Architecture: Supports 32-bit fixed-point and floating-point operations for complex audio processing.
- Applications: Ideal for multichannel audio processing, digital assistant front-end processing, neural network ASR, and wake word detection.
- Codec Support: Handles the latest object-based codecs for TVs, STBs, and soundbars efficiently.
- Safety: Compliant with ISO 26262 standards for automotive safety.
Advantages
- High DSP Performance: Doubles HIFI 3z DSP performance for intensive tasks like FFT and FIR filters.
- Neural Network Capabilities: Combines high DSP and neural network performance, ideal for reliable far-field voice assistants.
- Software Compatibility: Compatible with 300+ HiFi-optimized audio codecs and enhancement software.
- Power Efficiency: Power-efficient design provides high performance for battery-powered devices.
The HiFi4 Audio DSP is perfectly designed for use in smart speakers, home entertainment systems, automotive infotainment, and various other audio-rich settings.
