- Introducing Photonicat: Explore the features, design, specifications, and pricing details.
A portable multifunctional router and mini PC.
In a time when connectivity is increasingly important, the small Chinese company Photonicat has introduced a portable router that combines advanced technology with versatility. Suitable for personal and professional applications, this device offers features that extend beyond traditional routers.
A brief introduction video showcasing the product

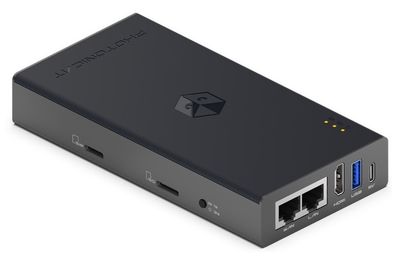

Designed for portability
Its compact design allows for easy transportation, making it ideal for travelers and remote workers alike. Furthermore, the device supports multiple connections, enabling users to connect several devices without compromising speed or reliability.
Hardware: Designed with Wi-Fi and cellular networks connectivity in mind.
Equipped with an onboard Wi-Fi AC module, the router also supports 4G and 5G networks, ensuring that users can enjoy fast and reliable internet access wherever they go. Additionally, the device features an expandable PCI-E slot that allows for the integration of a Wi-Fi 6 module, further enhancing its capabilities as a mobile hotspot. This flexibility makes it an ideal solution for travelers, remote workers, and anyone in need of robust internet access on the move.
The device also boasts a variety of rich interfaces that can be extended to accommodate various wireless systems such as GPS. This versatility allows users to customize their connectivity experience according to their specific needs. Whether you are navigating through unfamiliar territories indoors.
Key Highlights
- Processor: Rockchip RK3568, quad-core A55 2.0GHz with NPU AI accelerator.
- MCU: Renesas RA2E1 M23 MCU, Power management.
- Memory: 1GB LPDDR4 memory and 8GB eMMC onboard.
- Storage: Onboard internal 8GB eMMC, 1x SD card slot, 1x USB3.0
- Software: Debian, Ubuntu, Android, OpenWrt.
- Low energy: Impressive energy efficiency: just 25 Wh.
- Silent functionality: Fanless design (Passive Cooling).
- Case: CNC manufactured with magnesium aluminum alloy + polymer material design.
- Video: 1x HDMI port.
- Wireless Connectivity: WIFI AC, optional 4G/5G, Bluetooth, hobby antennas/modules.
- Wired Connectivity: 2x 1GbE RJ45 LAN Ports.
- Cellular network support: 1x SIM card slot (Via 4G/5G Modem module card).
- Portable: equipped with a built-in rechargeable battery that provides an uninterruptible power supply (UPS) and features a delayed shutdown function for added convenience.
Model Specification Comparison
Photonicat offers four unique product variants. The table below offers a comprehensive comparison of the specifications across these different device versions. It delivers a straightforward comparison of various models, each designed to cater to specific user requirements.
Name | Home Edition | Cell (Base) | Cell (4G) | Cell (5G) |
|---|---|---|---|---|
CPU | RK3568 (4x Cortex®-A55 @ 2.0GHz) | |||
Memory | 2GB LPDDR4,4GB LPDDR4. | |||
GPU | ARM Mali-G52 | |||
NPU | 0.8 Tops | |||
eMMC | 16GB eMMC / 64GB eMMC | |||
Network Interfaces | SGMII + RGMII，YT8521 PHY x 2 | |||
Top I/O | USB 3.0, HDMI 4K, 1Gbps RJ45 x 2 | |||
Side I/O | USB 3.0, HDMI 4K, 1Gbps RJ45 x 2 | |||
Built-in WIFI | All series come standard with Qualcomm QCA1023 B/G/N/AC (2.4G/5G) | |||
Built-in Wi-Fi Antenna | Standard: Full Band x 1, Expandable: MIMO Full Band x 3, GPS Antenna x 1 | |||
Built-in M.2 B-key | N/A | M.2 B-Key (for extending other WWAN devices) | ||
Built-in M.2 E-key | N/A | M.2 E-Key expands Wi-Fi modules; M-Key adapter needed for M2 hard drive, supports PCI-E Gen3 X4. | ||
Power | DC5V @ 3A (Max) | |||
Power consumption | Home version ~2W Mobile version 2~5W, 4G 2.5~6W, 5G 2.5~10W | |||
Battery | N/A | Mobile version: 7000mAh @ 3.7v, 25.9Wh (18650 * 2) | ||
4G module | N/A | N/A | Full Netcom (occupies M.2 B-key interface) | N/A |
5G module | N/A | N/A | N/A | Full Net/Ball Pass, (occupies M.2 B-key interface) |
Built-in 4G/5G antenna | N/A | MIMO Full Band x 2 | MIMO Full Band x 2 | MIMO Full Band x 4 |
Optimal battery life | N/A | 6 hours | 5 hours | 4 hours, RM520N-GL 5 hours |
Shutdown and full charge time | N/A | 3 hours | 3 hours | 3 hours |
The time it takes to fully charge the power-on | N/A | 3–4 hours | 4-5 hours | 4-6 hours |
Weight | 180g (without battery) | 280g (4/5G module + battery) | ||
Size | 150mm x 76.5mm x 25mm | |||
Dual LAN Connectivity
One of the standout features of this product is its two 1GbE LAN ports, making it a top choice for tech enthusiasts, particularly those who favor OpenWrt. This device can serve a variety of versatile roles, including acting as a portable firewall, access point, and much more. In addition, the company also offers Ubunu images, so the device can also be used as a portable mini pc.

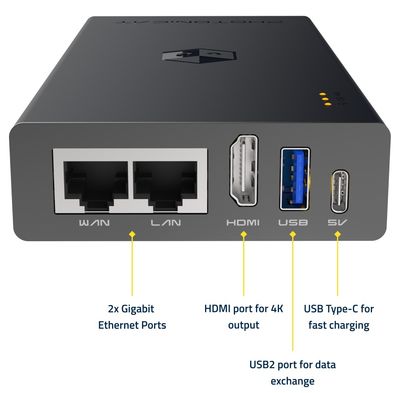

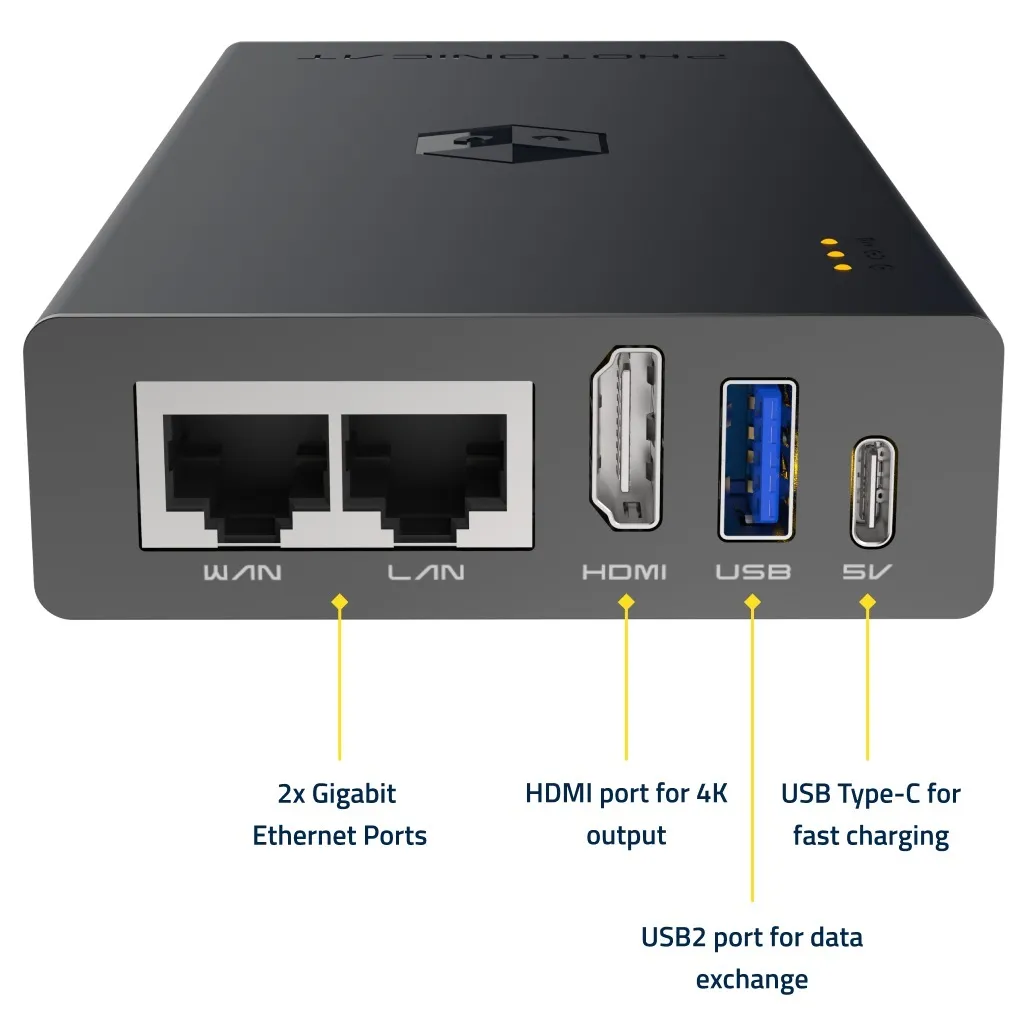

A closer look at the interfaces on the device’s back.
What about running Android OS?
Furthermore, the company provides Android images ranging from version 11.0 to 12.0 This extensive support for Android represents a major benefit, enabling users to effortlessly run a wide array of applications, enjoy smooth gameplay, and stream content flawlessly, all without interruptions or compatibility challenges.

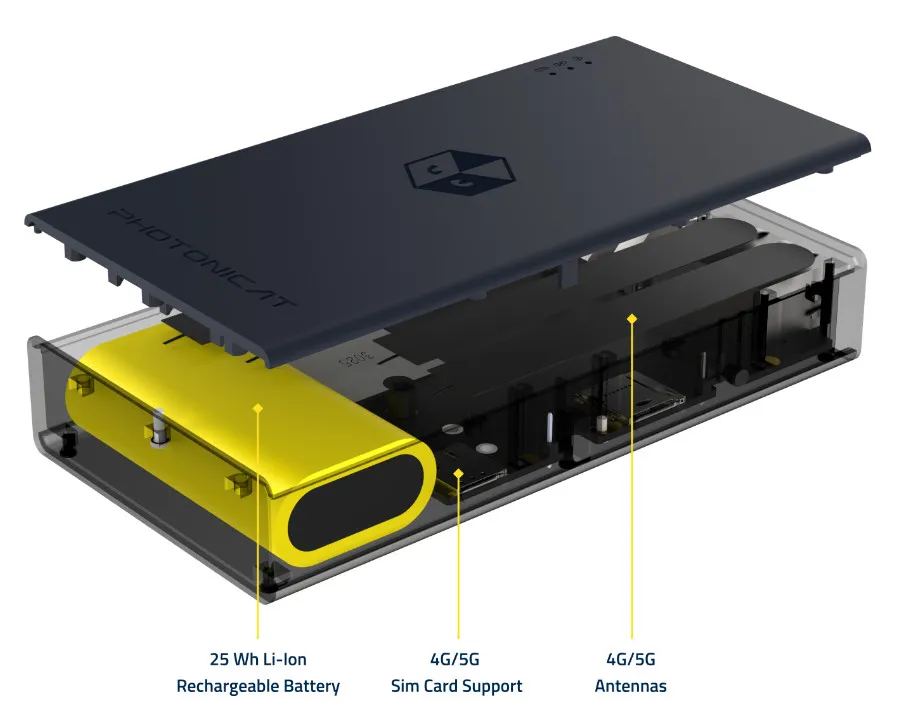

Integrated Internal Battery
The device is equipped with an internal battery that boasts a capacity of 7000mAh, which is quite substantial. This powerful battery allows for an operational timeframe that ranges from 3 to 6 hours, depending on the intensity of use and the tasks being performed. Therefore, users can expect a decent amount of usage time before needing to recharge, making it suitable for various activities. Overall, this battery capacity provides a reasonable balance of longevity and performance for the device’s operations. The battery can be conveniently recharged through a USB Type-C port, allowing users to utilize either a power bank or a power adapter for easy power access.
Useful Applications:
Experience seamless internet connectivity on the go—Whether working from home, traveling, or stationed in a remote office, individuals can access the necessary tools and resources to complete their tasks efficiently. Ultimately, this capability enhances overall work-life balance and fosters a more adaptable work environment.
Additionally, this device can serve as the perfect dedicated access point for vehicles, eliminating the hassle of turning your mobile device into one and preserving your phone’s battery life.
Software Support
Out of the box, the router comes pre-installed with eMMC/SD OpenWrt firmware, providing users with a powerful platform for customization and expansion. The firmware supports various plugins that can be easily added, allowing users to tailor their router experience to suit their unique requirements. This level of customization ensures that the product remains relevant in an ever-evolving technological landscape.
Prices and availability
The launch of Photonicat marks a significant advancement in portable networking solutions. With its combination of speed, flexibility, and user-friendly features, it stands out as an essential tool for anyone seeking reliable internet access on the go.
As previously stated, there are four configuration options available. The Home edition is priced at approximately ¥449 ($62), while the cellular base model retails for ¥569 ($79). For those seeking advanced connectivity, the 4G model is available for ¥769 ($106), and the cutting-edge 5G model is priced at ¥1299 ($180).
For the most accurate and up-to-date information on where to purchase Photonicat products, we suggest reaching out directly to the company’s team. By contacting them, you can inquire about the various locations that stock their product and possibly get insights into different sales channels.
Alternative ways to get in touch.
- Business inquiries contact info:
- Email: info@photonicat.com
- Website: https://photonicat.com
- Wiki: photonicat.com/wiki
- Tech Support on Telegram: https://t.me/+IATZElRYPydkM2Rl
