Rock Pi X Intel SBC/ Mini PC Powerd By Windows & Linux!

Rock Pi X 1
Written by androidpimp

The Rock Pi X is an X86 single board Computer that runes Windows 10.

The Rock Pi X

ROCK Pi X is the first X86 SBC (Single Board Computer) by Radxa. It can run Windows and Linux distributions.

ROCK Pi X features an Intel Cherry Trail quad-core processor Z8350, 64bit dual channel 1866Mb/s LPDDR3, up to [email protected] HDMI, 3.5mm jack with mic, 802.11 ac WIFI, Bluetooth 4.2, USB Port, GbE LAN, 40-pin color expansion header, RTC. Also, ROCK Pi X supports USB PD and QC powering.

ROCK Pi X comes in two models, Model A and Model B, each model has 1GB, 2GB, or 4GB ram options. for the detailed difference between Model A and Model B, please check the Specifications.

With given hardware specifications, the Rock Pi X should perform reasonably well running Windows 10 and various Linux distributions. The 2GB RAM model with 16GB eMMC flash storage is currently priced at $59. If you need a second zoom workstation for remote educational purposes, then the Rock Pi X can be used as a mini PC home solution at a very affordable price.

Rock Pi X
Rock Pi X

Read more:


Interfaces

A single USB 3.0 port was also added for external storage. The remaining three USB ports are USB 2.0, are best used for keyboard and mouse. The USB C port provides power and OTG support. A single HDMI 1.4 port offers 4K at 30 Hz. Unlike the Raspberry Pi, the Rock Pi X has no CSI (Camera) or DSI (Display) ports with 40 pin GPIO, which is compatible with the Raspberry Pi.

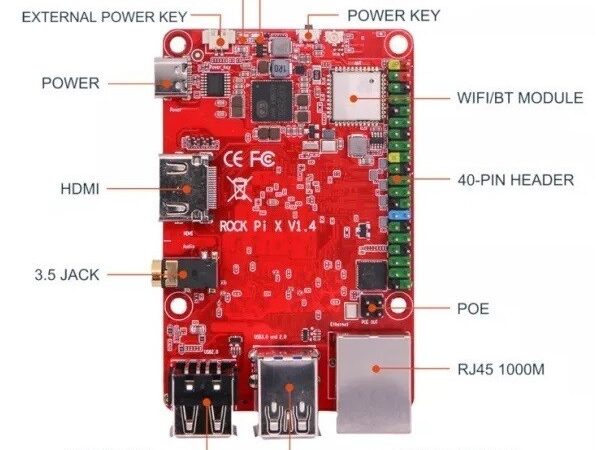

  • Rock Pi X x86 Computer P1

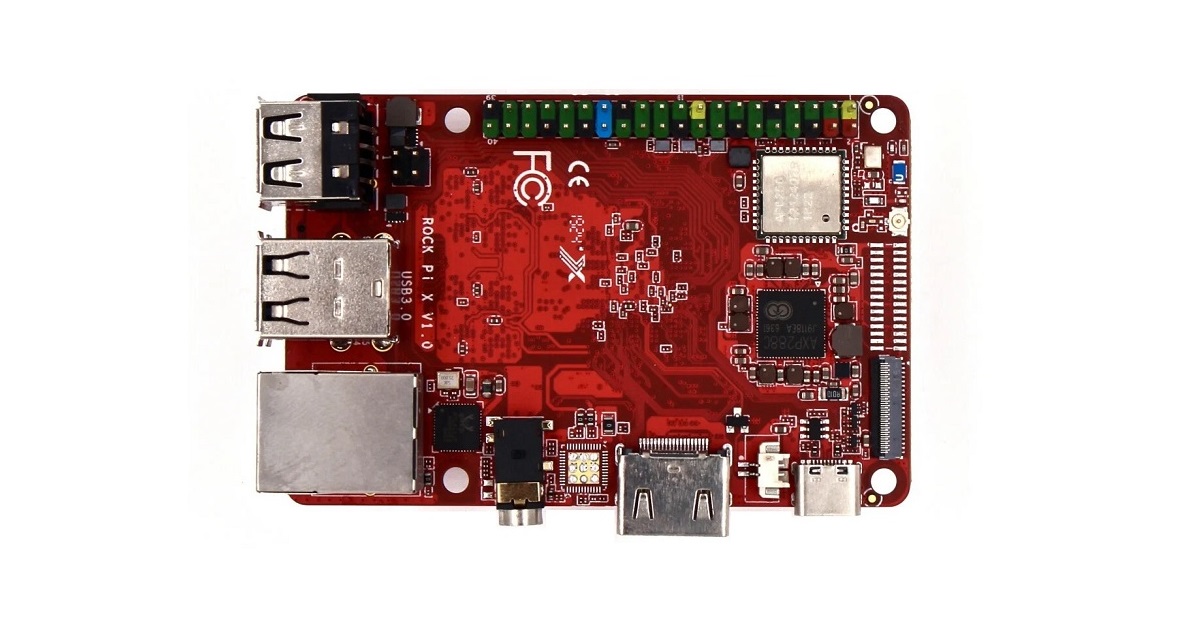

    Rock Pi X | Front-view

Specification

  •     SoC – Intel Atom x5-Z8350 “Cherry Trail” quad-core processor @ 1.44 GHz / 1.92 GHz (Turbo) with Intel Gen8 HD graphics @ 500 MHz
  •     System Memory –  1 GB, 2 GB. or 4GB LPDDR3-1866
  •     Storage – 8GB, 16GB, 32GB, 64GB or 128GB eMMC flash , MicroSD card socket
  •     Video Output – HDMI 1.4 port up to 4K @ 30 Hz
  •     Audio I/O – Via HDMI, 3.5mm audio jack
  •     Gigabit Ethernet with PoE support (additional PoE HAT required),
  •     802.11 a/b/g/n/ac WiFi 5 and Bluetooth 4.2 Classic + LE with u.FL antenna connector
  •     USB – 1x USB 3.0 port, 3x USB 2.0 host ports, 1x USB OTG Type-C port
  •     Expansion – 40-pin Raspberry Pi compatible header with 6x GPIOs, 2x UART, 2x SPI, 2x I2C, 1x PCM/I2S, 1x SPDIF, 2x PWM, 1x ADC, and power signals (5V, 3.3V and GND)
  •     Misc – Power button, LED, RTC with battery connector
  •     5V-20V up to 3A/1A Via USB-C port with QC and PD fast charging support;
  •     AXP288C PMIC
  •     PoE support via additional HAT
  •     Dimensions – 3.3 x 2.1 inches (85 x 54 mm)

Where to Buy?

Rock X SBC is currently available on the official AllNet China company website Here, at a starting price tag of $59 for the 2GB RAM model. You can also pick your personal preferred configuration based on the amount of RAM and eMMC storage.
