- Lattepanda 3 Delta Review, Price, and Features.

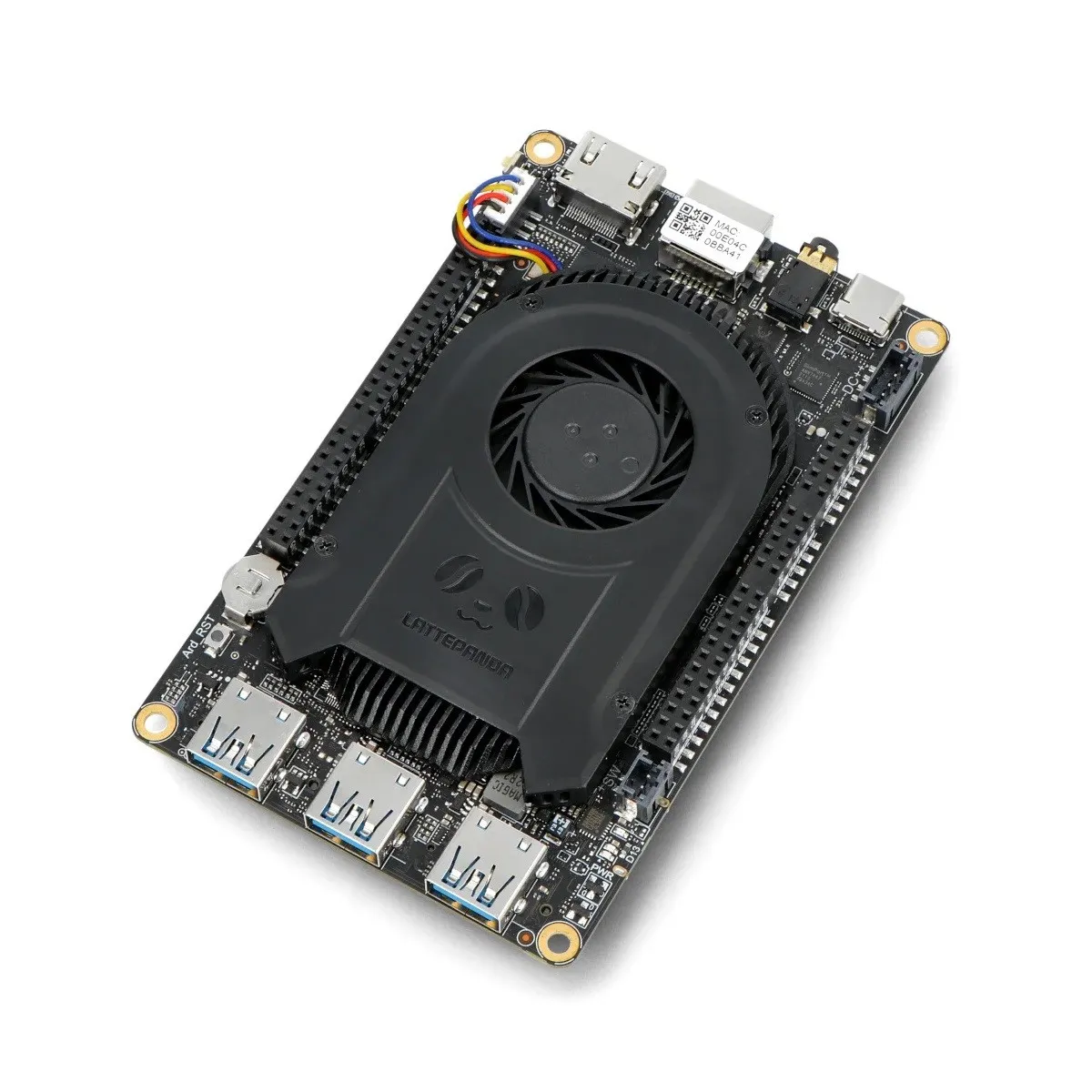

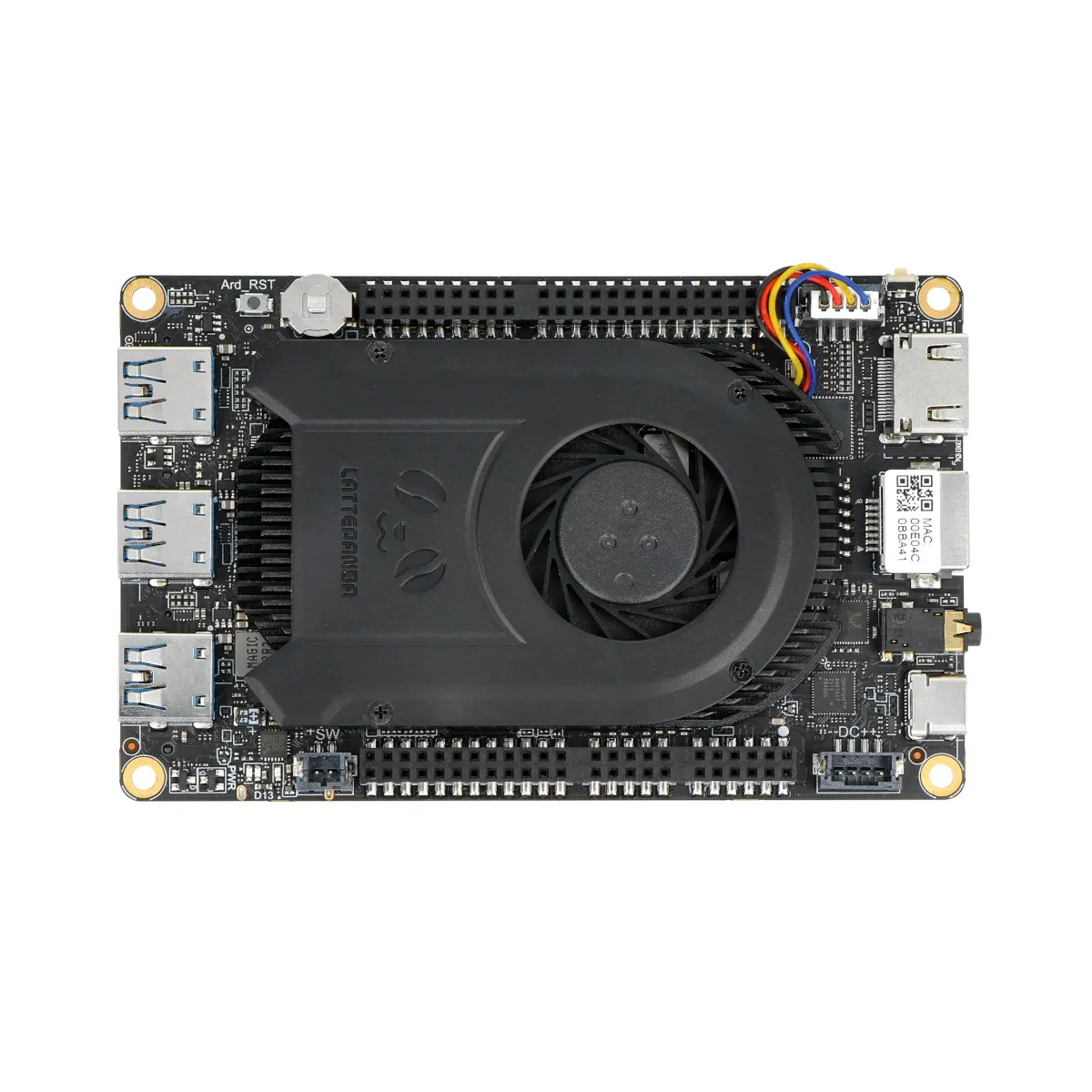

LattePanda 3 Delta
DFRobot 3rd Gen pocket-sized powerful windows 10/11 single board computer named LattePanda 3 Delta is an advanced SBC that offers ultra-low power with an integrated Arduino functionality all-in-one single product.
Retaining the previous generation’s overall form factor and feature set, the v3 Delta received a performance upgrade powered with a new 11th-generation Intel Celeron N5105 processor – this might not be the first pick for a top-of-the-line gaming rig. It’s enough for running most apps smoothly and can function as a full-size Desktop PC. DFRobot company also offers its own onboard Arduino extension module board equipped with an ATmega32U4 coprocessor, similar to what you can find in the Leonardo board series.

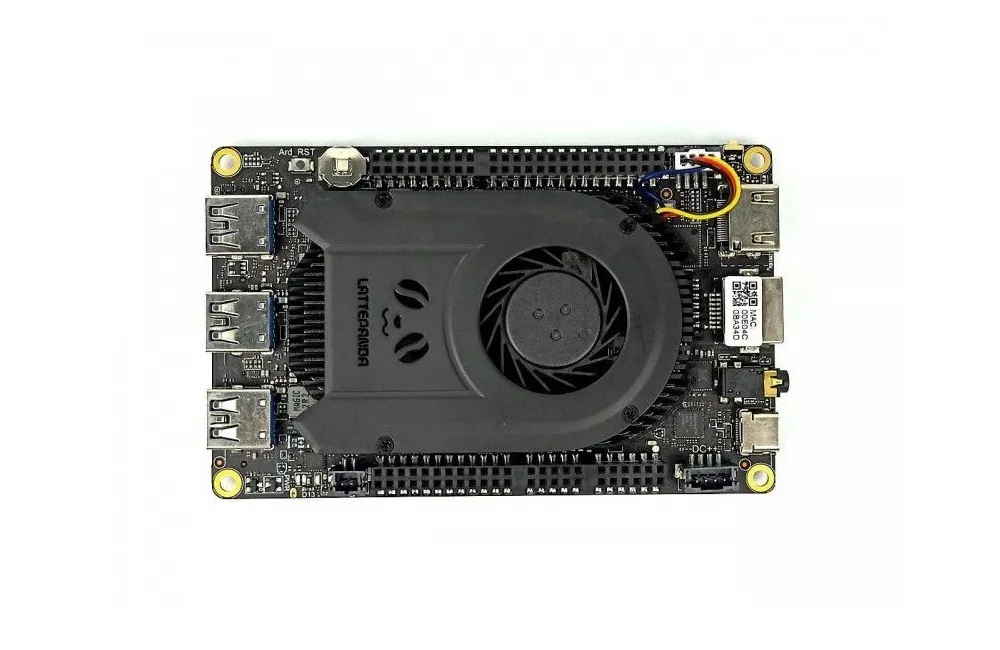

LattePanda 3 Delta
Features and Specifications
- CPU: Intel Celeron N5105 @2.0-2.9GHz, 4 Core and 4M Cache
- 8GB LPDDR4 @2933MHz RAM
- 64GB eMMC
- M.2 M key (support NVMe SSD), M.2 B key (support SATA SSD,4G & 5G Module)
- Wi-Fi 6 @2.4Gb/s
- Bluetooth 5.2
- 2x USB 3.2 Gen1
- USB 3.2 Gen2
- USB Type C
- USB 2.0 (pin header)
- HDMI 2.0b, DisplayPort 1.4 via USB-C, DP
- Dimensions: 125mm × 78mm × 16mm
- Operating System: Windows 10, Windows 11, or Linux
- Rich IOs and Integrated Arduino Coprocessor ATmega32U4, compatible with 200+ sensors and actuators.
Product Intro Video

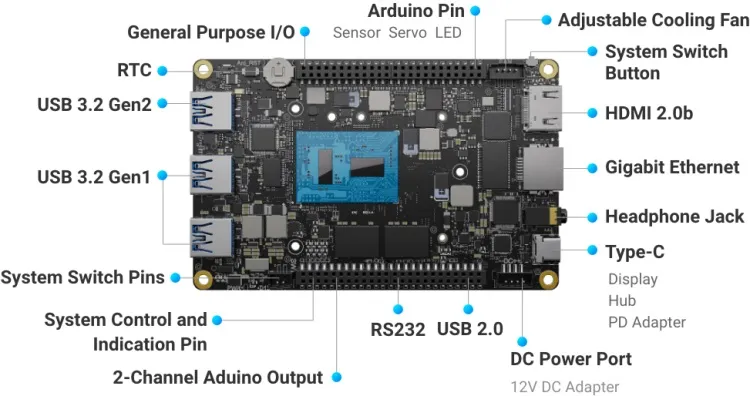

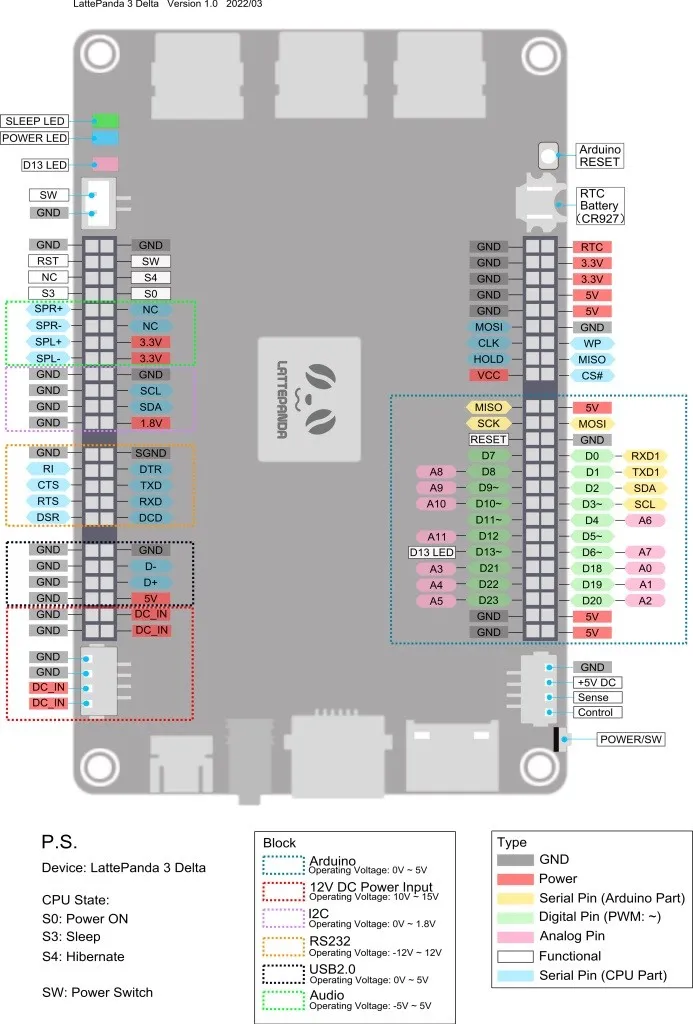

Interfaces
The Board has 8GB of LPDDR4 RAM and 64GB of eMMC onboard storage. If it’s not enough, there is also an option to add an SSD via M.2 interface, including 4G/5G Modules. In addition to storage options, you got onboard built-in Wi-Fi 6 support, Bluetooth 5.2, 1 GbE, USB Gen 3.2 Type-C, HDMI, and DisplayPort. The 3 Delta board also comes with 12 analog inputs and up to 23 digital inputs/outputs, UART, I2C, SPI, and RS232 interfaces, making it a perfect fit for IoT, Edge Computing, and Open Source DIY project.
More Memory & Storage Space
You got more available memory for more efficient multitasking. LattePanda 3 Delta uses 2933MHz high-frequency LPDDR4 RAM — supporting up to 8GB. Double than the previous generation model — for a superfast, smooth performance whether you’re loading many web pages in Chrome or running multiple virtual machines. Internal storage was also doubled up to 64GB — for more software and data could be installed without external storage.
Connectivity
Built-in Wi-Fi 6 Support
LattePanda 3 Delta uses WIFI 6, whose transfer speed is 2.7 times faster than WIFI5. It is also equipped with a USB 3.2 gen2 x1 port that has an ultra-high bandwidth, delivering up to 10Gb/s of throughput, which is twice faster as USB3.2 gen1 x1 (previously known as USB3.0). Besides, LattePanda 3 Delta has a Gigabit Ethernet port, which can connect to the Internet at extremely high speed.

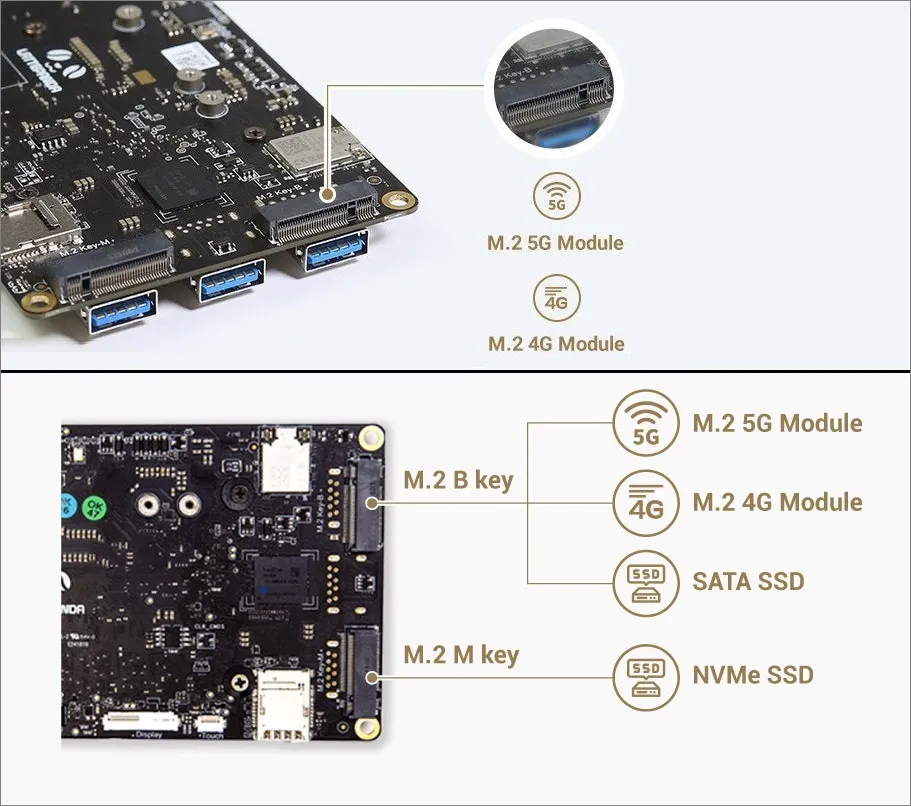

M.2 Interfaces
Equipped with an M.2 B key interface, you can add cellular network connectivity by connecting with a 4G or 5G Module. In addition, you have another M.2 M key to add more storage space with an NVMe SSD.
Software
The SBC is X86 Architecture based and supports Windows 10 Pro 21H2, Windows 10 IoT Enterprise 2021 LTSC, Windows 11, and Ubuntu 22.04.
Price and Availability

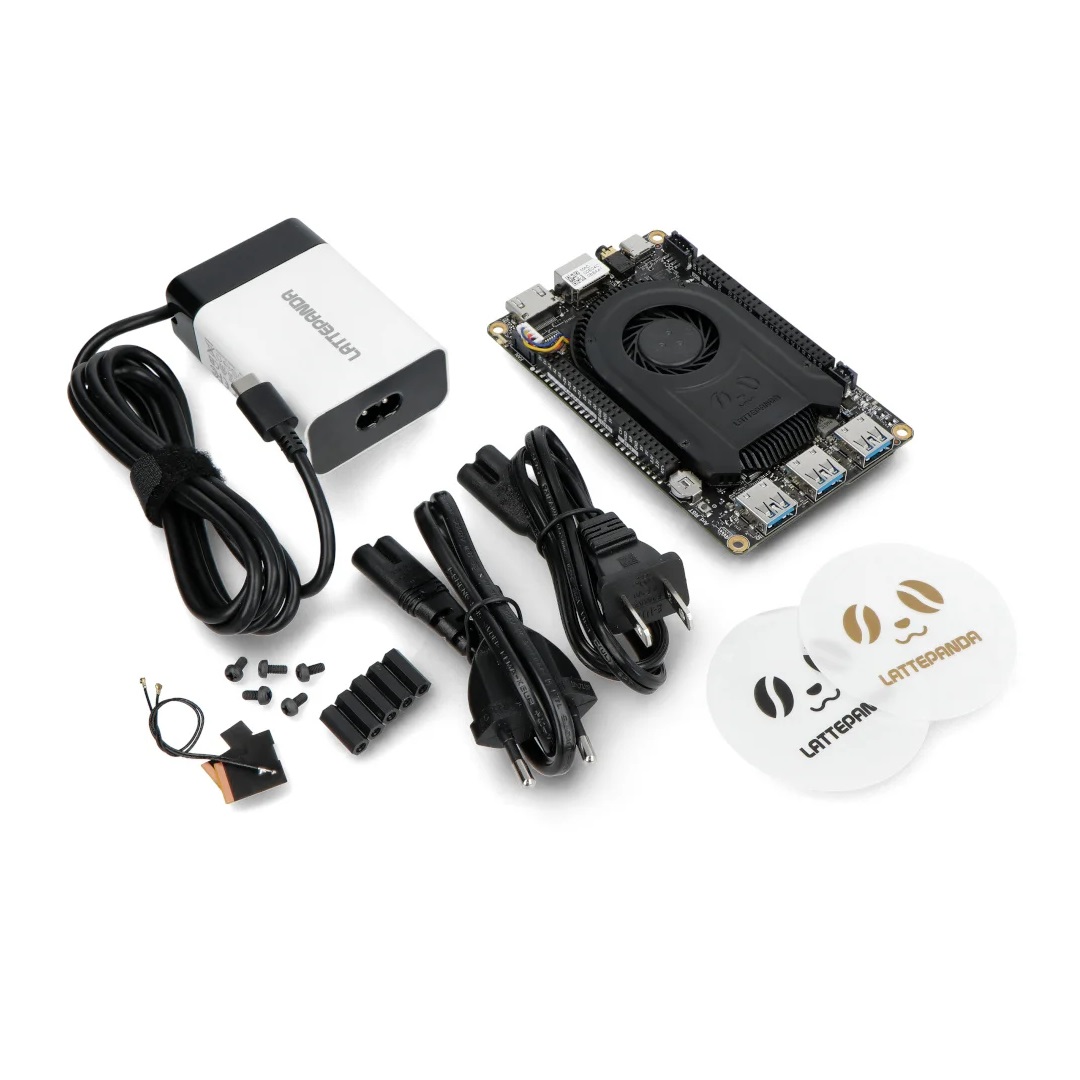

The LattePanda 3 Delta package includes a cooling fan (assembled), a 45W USB PD power adapter, an EU & US power cord, two dual-band antennas, an RTC battery, and a user manual.
