Raspberry Pi 3 Model B+
The new Raspberry Pi 3 Model B+ is the latest predecessor of the popular Raspberry Pi 3 Model B SBC. in this edition; the Pi 3 gets a few new hardware announcements and improvements worth considering before buying a Pi 3 board. In this model, the CPU remains almost the same as the Broadcom quad-core, 64-bit processor based on Arm Cortex A53 architecture. Still, with few changes, such as the ability to overclock the chip frequency from 1.2GHz up to 1.4GHz, many DIY hobbies would like an option.
Compared to the previous Model B, which only supported 2.4GHz WiFi, this model has an improved WiFi chip that supports 5GHz 802.11 b/g/n/ac WiFi networks, capable of 100 Mb/s throughput which is more than enough for most home applications, including video streaming needs. In addition, the board comes with Bluetooth V4.2 compared to the older model that only supported Bluetooth standard v4.1.
On top of the WiFi and Bluetooth upgrades, the wired internet also has a speed improvement, courtesy of the board’s new Gigabit Ethernet over USB 2.0 bridge, which ups the maximum throughput to about 300Mbps. Another plus for those using the Pi with a wired Ethernet connection is the inclusion of support for a Power Over Ethernet [POE] Hardware Attached to the Top [HAT] board, which will add the ability for the Ethernet cable to power the board.
Raspberry Pi 3 Model B+ Product video

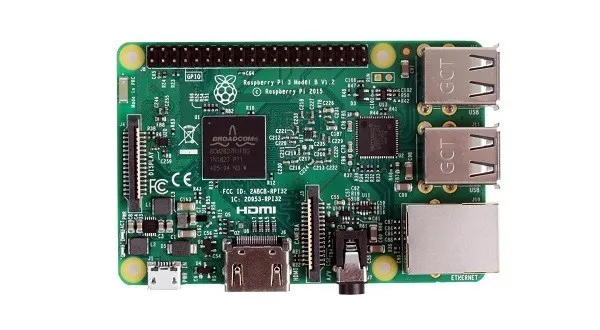

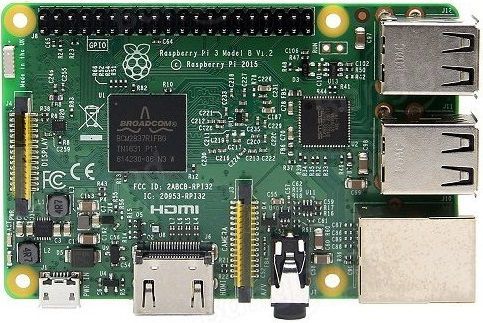

Raspberry Pi 3 Model B

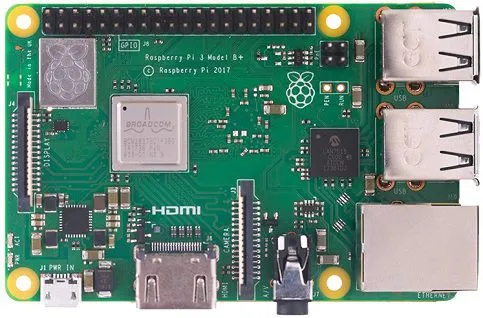

Raspberry Pi 3 Model B+ (New Model)
Raspberry Pi 3 Model B+ Specifications
- Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
- 1GB LPDDR2 SDRAM
- Dual-band wireless LAN – 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac
- Bluetooth 4.2, BLE
- CSI camera port for connecting a Raspberry Pi camera
- DSI display port for connecting a Raspberry Pi touchscreen display
- Gigabit Ethernet over USB 2.0 (maximum throughput of 300 Mbps)
- Micro SD port for loading your operating system and storing data
- 4-pole stereo output and composite video port
- The extended 40-pin GPIO header
- 5V/2.5A DC power input
- 4 USB 2.0 ports
- Full-size HDMI
The Raspberry Pi 3 Model B+ maintains the same mechanical footprint (Design) as the Raspberry Pi 2 Model B and the Raspberry Pi 3 Model B. You are welcome to check out the DFRobot website (Link posted below), world-leading robotics and open-source hardware provider.
