Raspberry Pi 3 / 2 Best Cooling Fan Kit

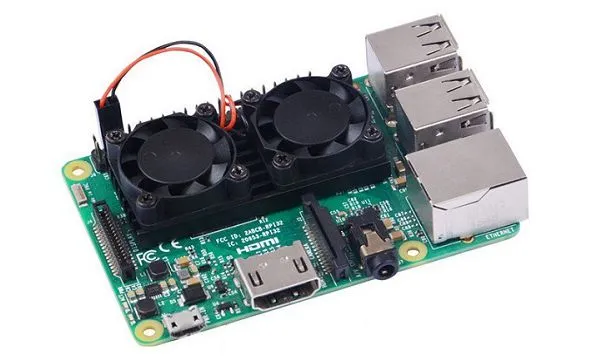

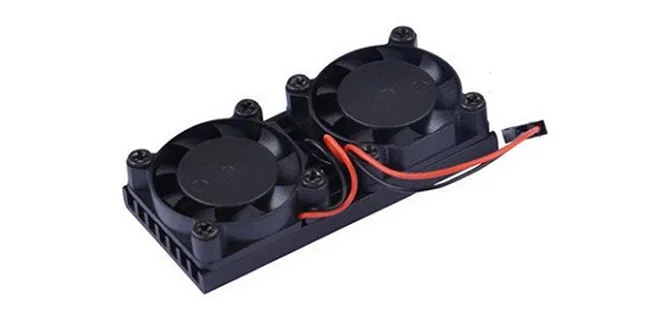

RaspberryPi CPU Cooling Fan1
Written by androidpimp

Raspberry Pi 3 / 2 Best Cooling Solution | All in One Fan Kit.

Product Introduction:

The Geeekpi unique Cooling solution is designed especially for the Raspberry Pi 3/2 board series. The dual fan Kit is composed of two fans mounted on one single cooler unit that is mounted on top of the main CPU chip and the network chip, those giving both chips proper cooling. Because there are no mounting holes in the Raspberry Pi boards, attaching the unit is done with thin thermal tape, also included with the kit.

To cool the back side of the Raspberry Pi board 52Pi company included a flat copper heating pad with a one side thermal sticker that helps with heat distribution and provides good cooling without occupying extra height when the board is assembled inside a case. 52Pi stated that their solution is capable of reducing overall temperature up to in 20 degrees compared to other existing solutions on the market, which can be ideal for users that are into Overclocking related projects. That said, you are welcome to check more details about the product in the following links posted below:

Official GeeekPi Amazon Store

Official GeeekPi Aliexpress Store



GeeekPi Raspberry Pi CPU Cooling Fan Kit

Main Features:

  • Fast Heat dissipation
  • Silence Fan without noise
  • Reduce temperature up to 20 degrees
  • It can be close to the heating chip for better heat dissipation
  • Used for Raspberry Pi 3/2 Model B/B+, Perfect fit for Retroflag Nespi NES Case, High Speed, and Low Noise.



Package Includes:

  • 1x User Manual
  • 1x Dual Fan
  • 1 x Thin Thermal Tape
  • 1x Thick Thermal Tape
  • 1x Copper Heatsink
  • 1x User Manual



If you need the acrylic case for Raspberry Pi 3/2 Model B, especially for Raspberry Pi Dual Fan, you are welcome to check the links below:



For more kits check:

1. https://www.amazon.com/dp/B076DY5RVX
2.https://www.amazon.com/dp/B076DWW8Y5



52Pi Cooling Fan Kit | Package

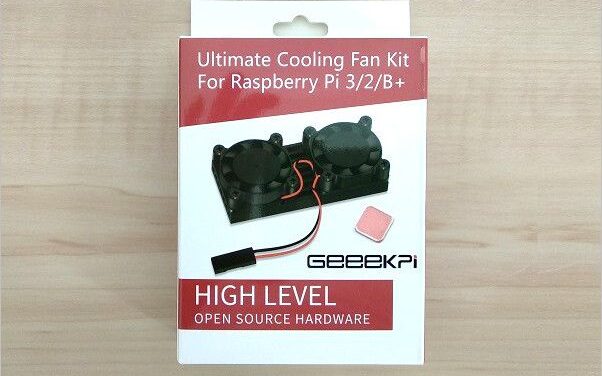

  • Dual Cooling Fan Kit Package 1
    52 Pi Dual Cooling Fan Heatsink Kit Package - 1 of 4
  • Dual Cooling Fan Kit Package 2
    52 Pi Dual Cooling Fan Heatsink Kit Package - 2 of 4
  • Dual Cooling Fan Kit Package 3
    52 Pi Dual Cooling Fan Heatsink Kit Package - 3 of 4
  • Dual Cooling Fan Kit Package 4
    52 Pi Dual Cooling Fan Heatsink Kit Package - 4 of 4

What’s included in Package?

The kit is composed of on heatsink with dual fans mounted on top, two thermal taps with different thickness with a sticker on each side. According to 52Pi if you pick the one with a thickness of ~0.5 mm it should be the best for optimal heat conductivity. The company also added a  very easy to understand user guide explaining how to connect the heatsink 5V power plug to the Raspberry Pi board GPIO header pins. and finally, an extra addition to this package is a copper-made heatsink with a one side sticker designed to be attached to the Raspberry Pi RAM chip.

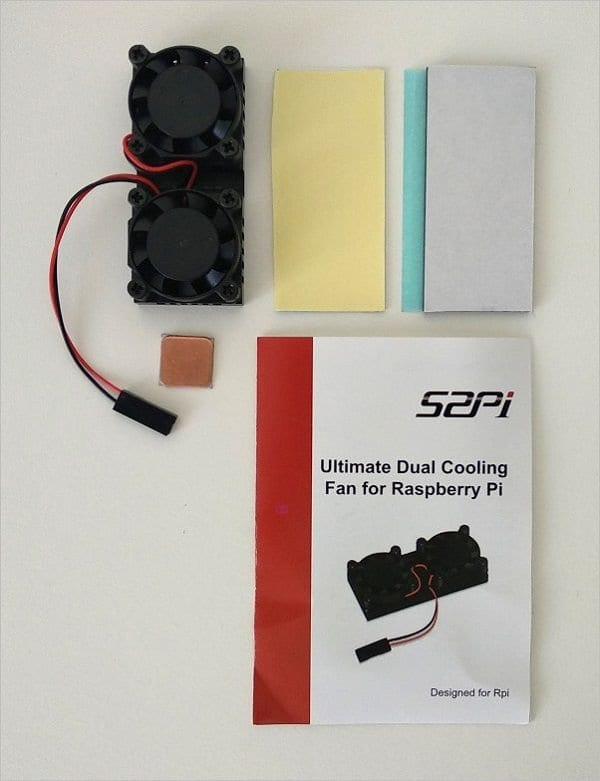

52Pi Cooling Solution | Unboxing

blank

52Pi Cooling Fan Kit | All Items

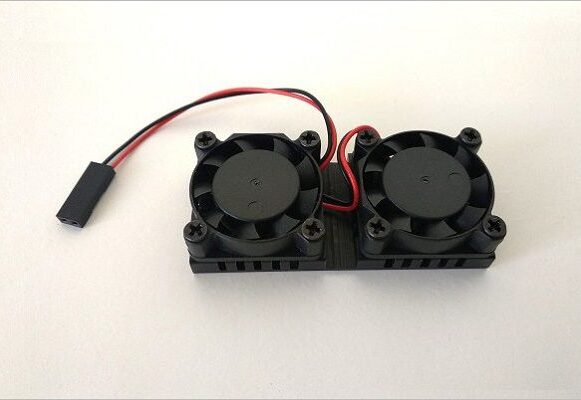

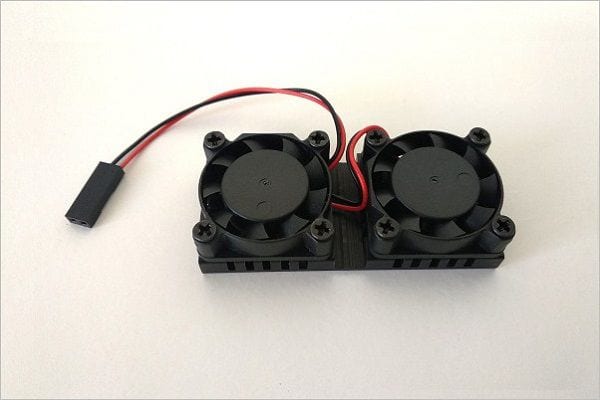

  • Dual Cooling Fan Kit Item1
    52Pi Dual Cooling Fan Cooling Kit - Heatsink Unit
  • Dual Cooling Fan Kit Item2
    52Pi Dual Cooling Fan Cooling Kit - Manual

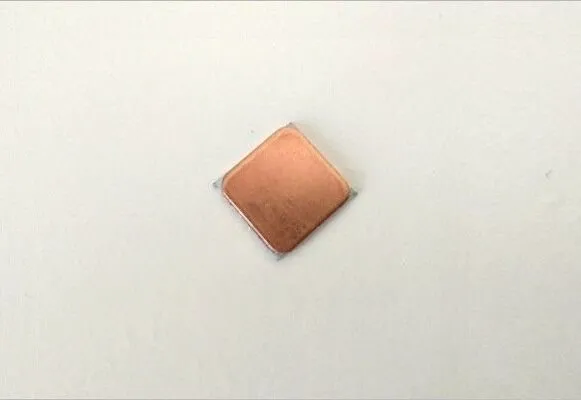

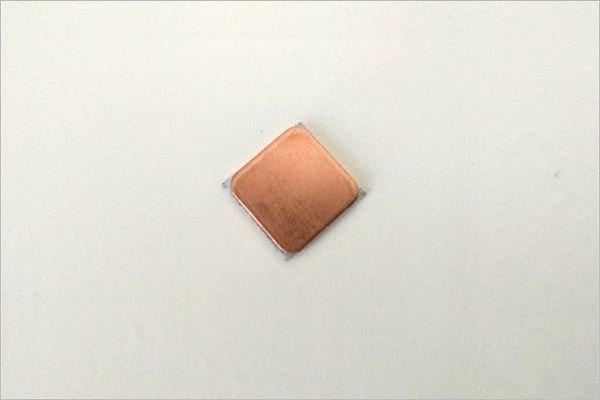

  • Dual Cooling Fan Kit Item3
    52Pi Dual Cooling Fan Cooling Kit - Copper Heatsink

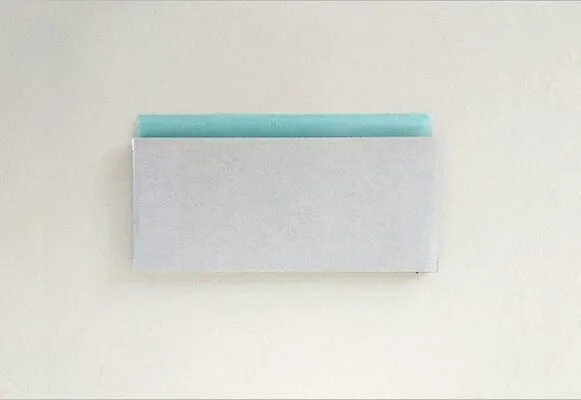

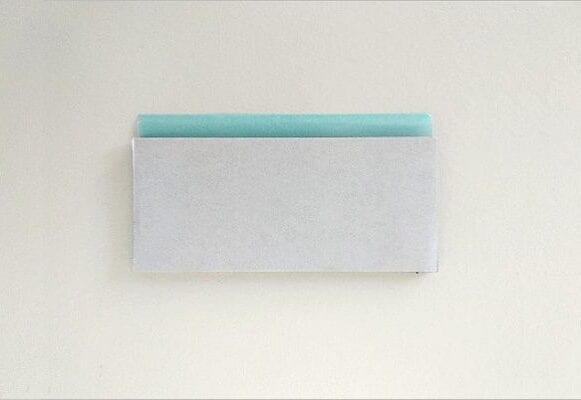

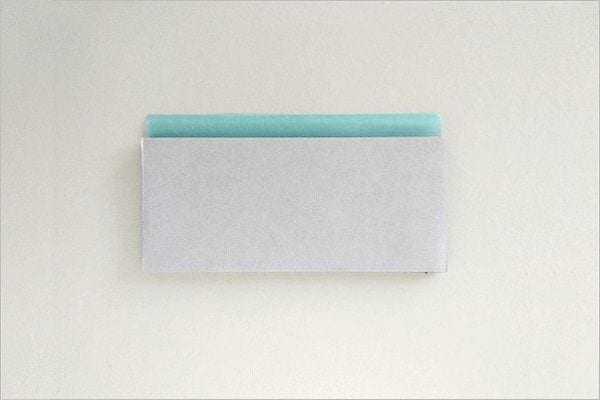

  • Dual Cooling Fan Kit Item4
    52Pi Dual Cooling Fan Cooling Kit - 3 mm Thermal tape (Sticker)

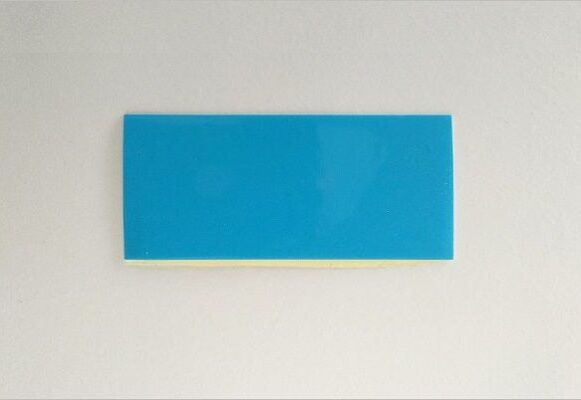

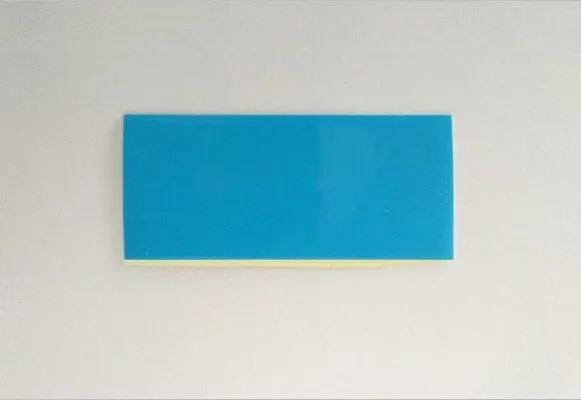

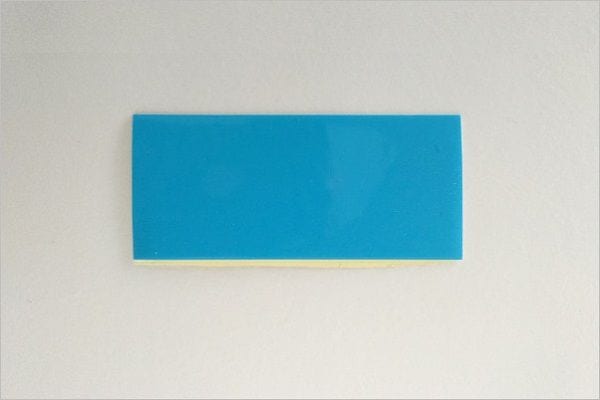

  • Dual Cooling Fan Kit Item5
    52Pi Dual Cooling Fan Cooling Kit - 1 mm Thermal tape (Sticker)

First-time Installation

Because the Raspberry Pi boards lake any mounting holes for heatsinks, therefore the thermal taps or using thermal conductive past are the only solution to attach the unit to the chips. Depending on the specific board design, if you place the heatsink unit Raspberry Pi 3 Board it will be mounted on top of the Broadcom CPU chip along with the ethernet Chip.



52Pi Heatsink Dual Fan Unit

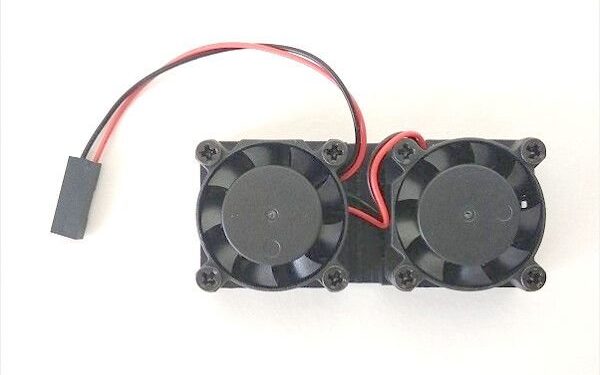

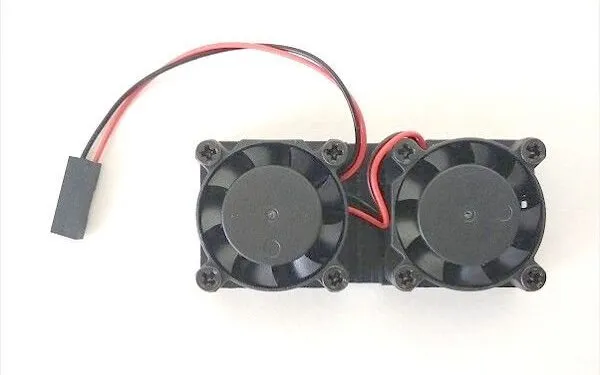

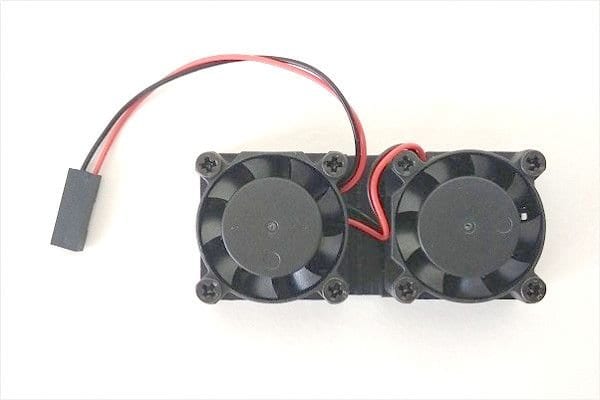

  • RaspberryPi CPU Cooling Fan 2
    52 Pi Dual Cooling Fan Heatsink - 1 of 4

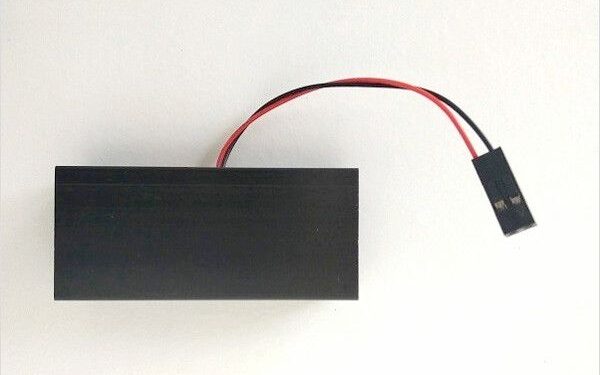

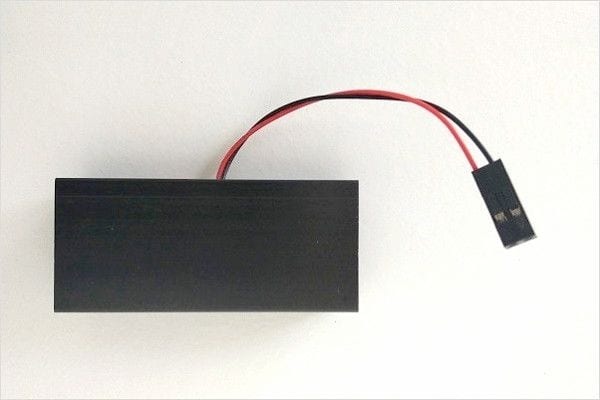

  • RaspberryPi CPU Cooling Fan 3
    52 Pi Dual Cooling Fan Heatsink - 2 of 4

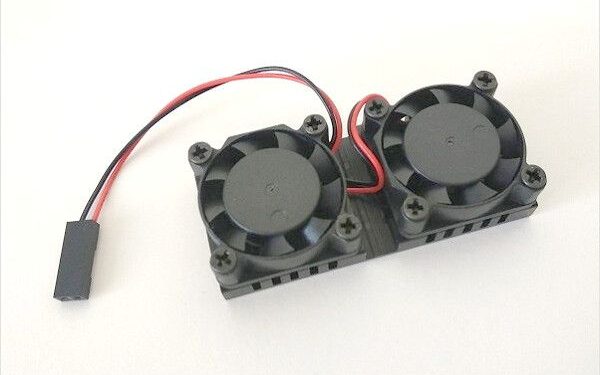

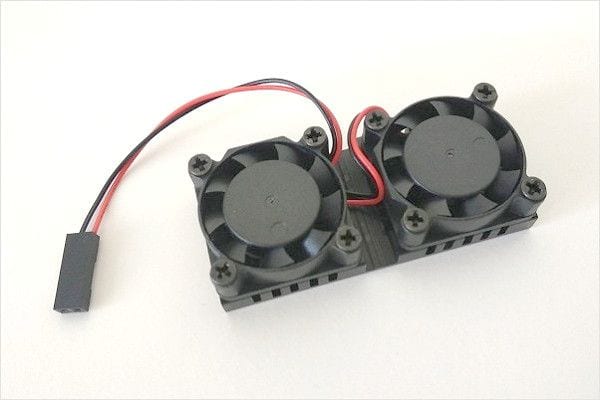

  • RaspberryPi CPU Cooling Fan 1
    52 Pi Dual Cooling Fan Heatsink - 3 of 4

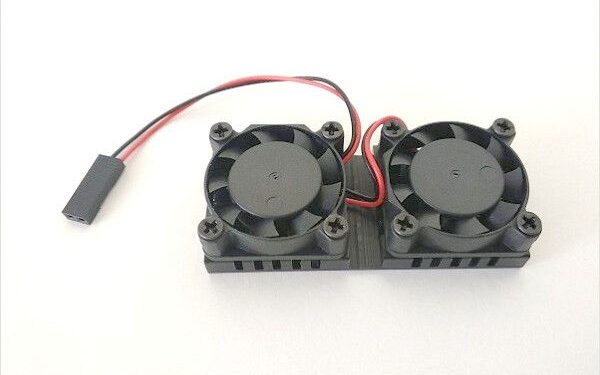

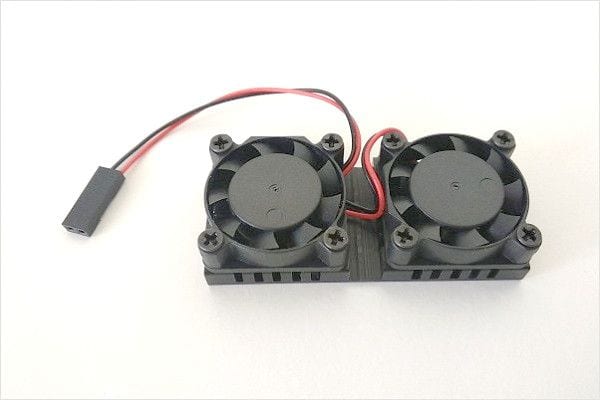

  • RaspberryPi CPU Cooling Fan 4
    52 Pi Dual Cooling Fan Heatsink - 4 of 4

52Pi Dual Fan Unit | Mounted on the Pi 3 Board

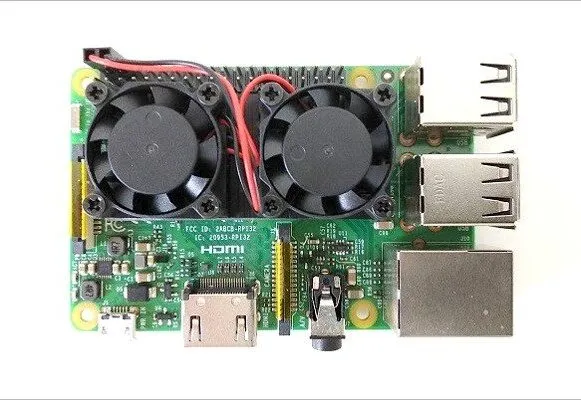

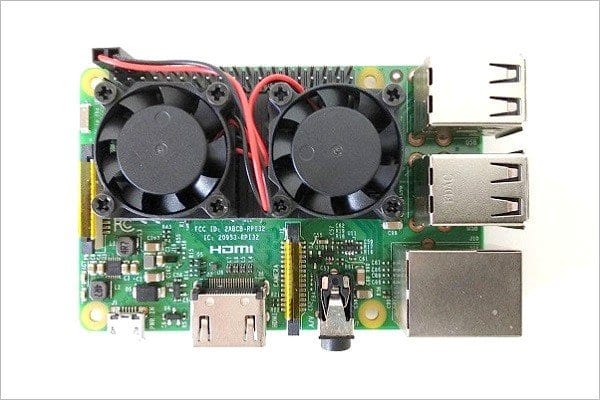

  • RaspberryPi CPU Cooling Fan Kit 1
    52Pi CPU Cooling Fan Kit With Pi 3 Board - Top view

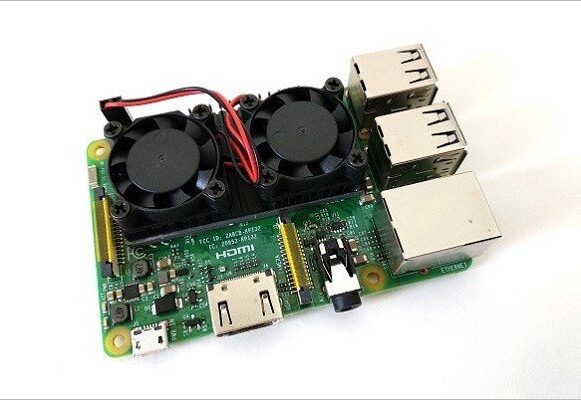

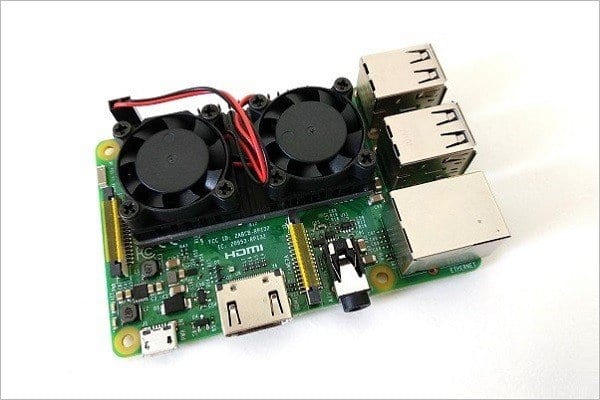

  • RaspberryPi CPU Cooling Fan Kit 2
    52Pi CPU Cooling Fan Kit With Pi 3 Board - Full view

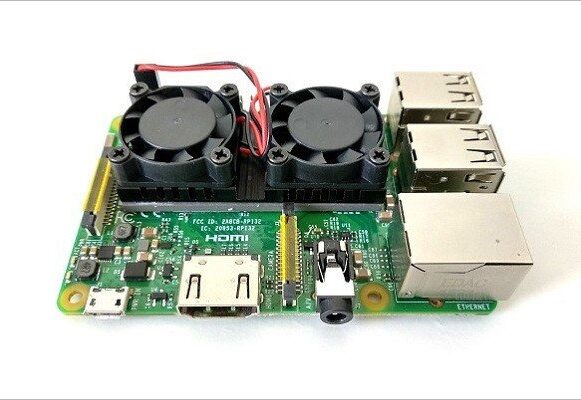

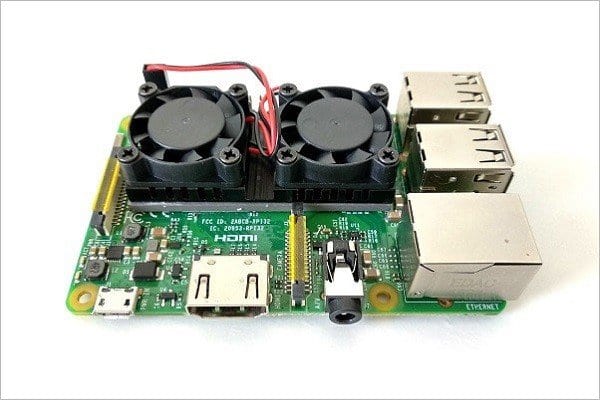

  • RaspberryPi CPU Cooling Fan Kit 3
    52Pi CPU Cooling Fan Kit With Pi 3 Board - Front view

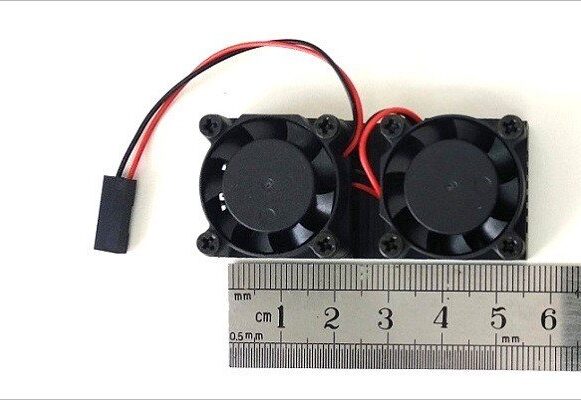

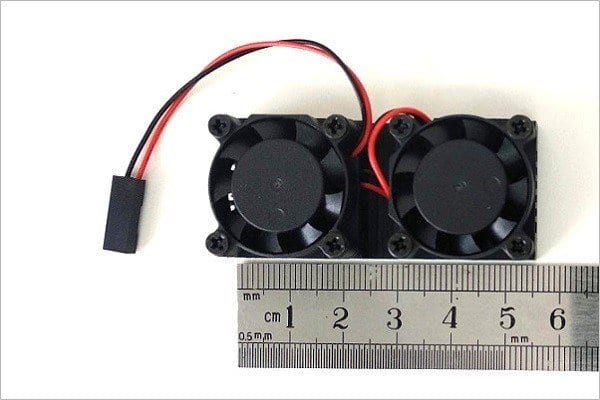

  • RaspberryPi CPU Cooling Fan Kit 4
    52Pi CPU Cooling Fan Kit With Pi 3 Board - Lenght

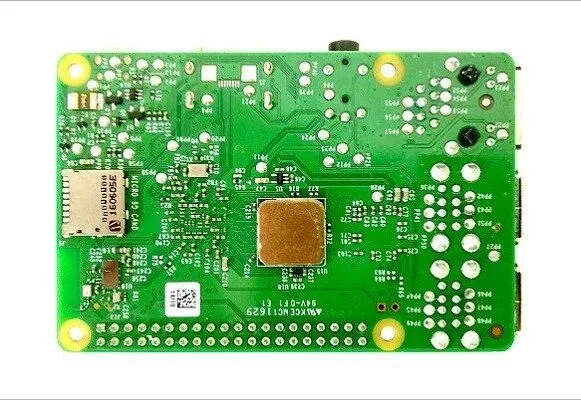

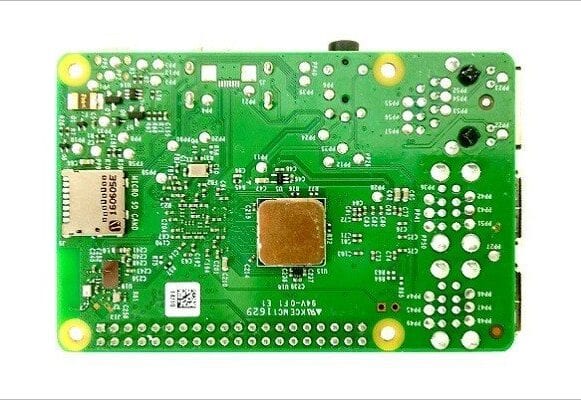

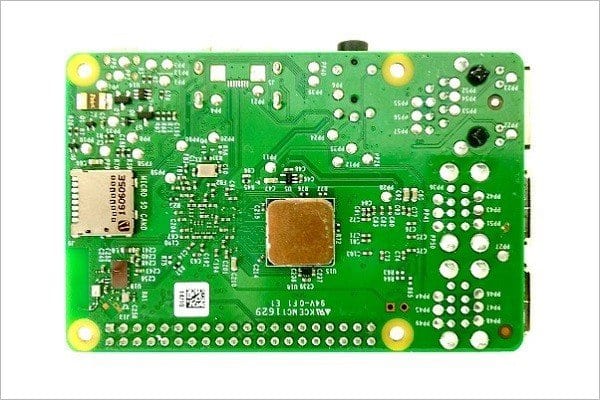

  • RaspberryPi CPU Cooling Fan Kit 5
    52Pi CPU Cooling Fan Kit With Pi 3 Board - Rear
