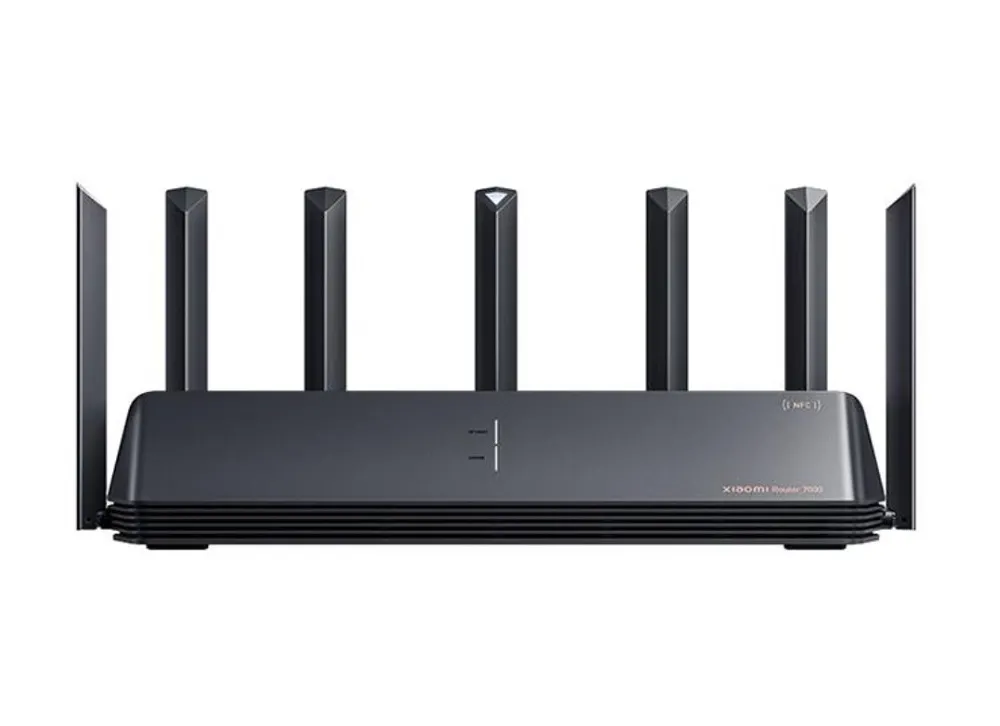

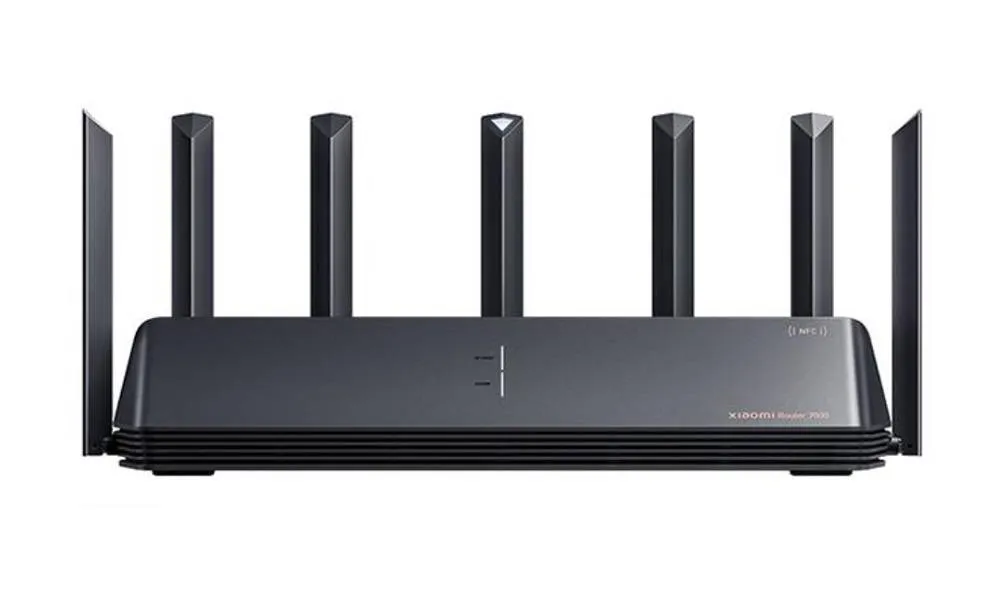

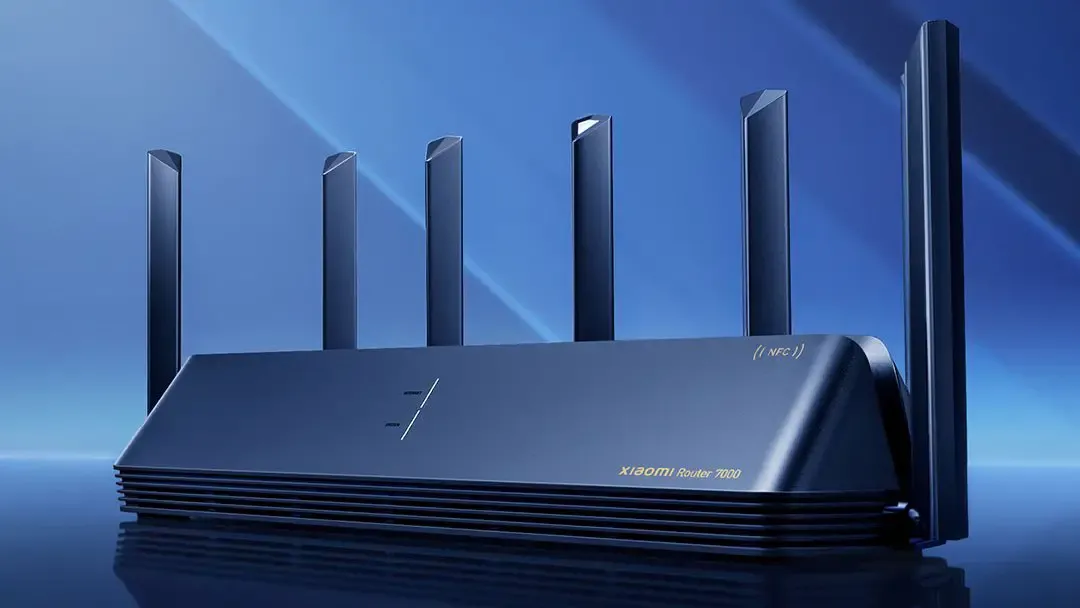

Xiaomi Router 7000
Xiaomi has recently expanded its range of routers with the Xiaomi Router 7000, a new model that is ready to support Wi-Fi 7, and also provides theoretical wireless performance of up to 7,000 megabits per second.
Hardware
The router boasts a Qualcomm Networking Pro 620 quad-core processor with a clock speed of up to 1.4 GHz, 1GB of working memory, and 128GB of operating system storage. It is equipped with another pair of internal antennas, a USB port for external devices, and 4 network inputs at 2.5 GHz.
Specifications
Xiaomi AX7000 | ![]() |
Product type | Gaming Router |
Model | Product Name |
Design Type | Horizontal |
CPU | Qualcomm IPQ 9554 processor, quad-core A73 |
Network acceleration engine | Dual core 1.0GHz NPU |
Network protocols | GB/T 9254.1-2021GB 4943.1-2022 |
Maximum wireless transmission speed | 2.4G Wi-Fi: 4x4 up to 1147.1Mbps 5G Wi-Fi: 4×4 up to 5764.8Mbps |
Frequency Range | Dual Band (2.4GHz, 5G, 5.8Hz) |
2.4G Wi-Fi Wireless Channels | 1-13 |
5G Wi-Fi Wireless Channels | 36,40,44,48,52,56,60,64,149,153,157,161,165 |
5.8G Wi-Fi Wireless Channels | 149, 153,157,161,165 |
5G Band bandwidth | 160/80/40/20MHz |
Network Interface | 4 x 10/100/1000/2500M adaptive WAN/LAN port |
USB 3.0 port | ![]() |
1GB Memory | |
128MB ROM | |
Antennas | x7 external high-gain Wi-Fi antennas x1 internal high-gain Wi-Fi antenna x1 internal NFC antenna |
Port aggregation | ? |
Signal amplifiers | 8 independent signal amplifiers |
Wi-Fi 5/6 | |
MU-MIMO | |
OFDMA | |
Wi-Fi Mesh | |
OFDMA support | |
OAM technology | |
MU-MIMO | |
MESH networking | Support up to 10 units |
Can connect up to 256 devices at the same time (Theoretically) | |
Management method: APP management, WEB page | Mijia APP |
Network management | Support Web, Android, iOS |
Wireless security | WPA-PSK/WPA2-PSK/WPA3-SAE encryption, wireless access control (black and white list), SSID hiding, intelligent anti-rubbing network |
Operating system | MiWiFi ROM (based on OpenWrt deep customization) |
Other Paramaters | |
LED indicator | 7 (SYSTEM indicator x 1, INTERNET indicator x 1, network port indicator x 4, AloT status indicator x 1) |
Environmental Standard | Working Temperature: 0-40℃ |
Working Humidity | 10%-90%RH (non-condensing) |
Storage Temperature | -40-70℃ |
Storage Humidity | 5%-90%RH (non-condensing) |
Button | System Reset button /Mesh button: 1 |
Voltage | 12V/2A Power |
Product Size | length 408mm; width 133mm; height 177mm |
Gross Weight | 1.86kg |
Packing list | x1 Xiaomi AX7000 |
Starting Price | $190 |
What’s New?
The Xiaomi Router 7000 has 7 external antennas and 2 internal antennas, 4 of which are 2.4G single-frequency antennas, while the other 4 are 5G single-frequency antennas, including an NFC antenna, making it easy to pair with other devices The Xiaomi Router 7000 is the successor of the AIoT AX6000 , which also received a similar design capable of reaching an impressive data rate with up to 5764.8 megabits per second for 5/6 GHz networks and another 1147.1 megabits per second for 2.4 networks for the work of up to 600 devices simultaneously.

Wi-Fi 7 Ready
The Xiaomi Router 7000 has hardware support for Wi-Fi 7. It can be enabled through a software update when it becomes available. Wi-Fi 7 manufacturers are using draft specifications because the final version will not be released until 2024.
Price and availability
The Xiaomi Router AX7000 is currently selling for $179 on the MiMate AliExpress shop. It should be noted that the browser user interface only supports Chinese. However, it can be operated through the multi-language Mi Wi-Fi mobile application, available in Google Play and Apple Store.
