Maybe you missed it? Banana Pi BPI-R3


Banana Pi BPI-W3

BananaPi BPI-W3 is another new upcoming Rockchip RK3588 SBC with different features. In particular, in addition to the presence of two Gigabit Ethernet ports, a PCIe x4 slot, and a SATA port, there are more common dual HDMI outputs, HDMI inputs, and USB. 2.0 / 3.0 port etc. The board layout is similar to the company’s BPI-RK3588-SBC but with system-on modules instead.

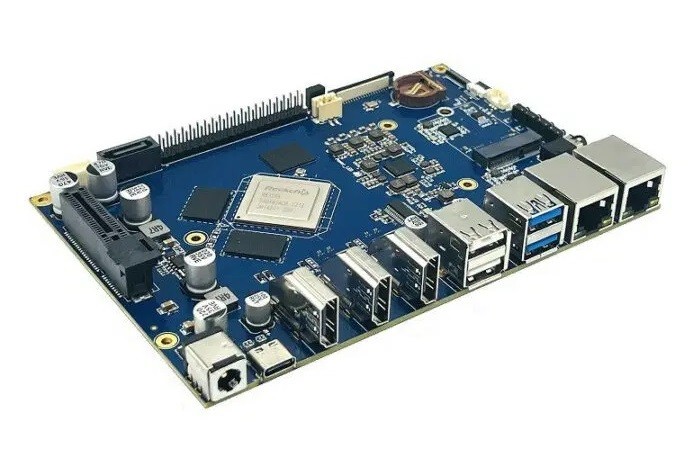

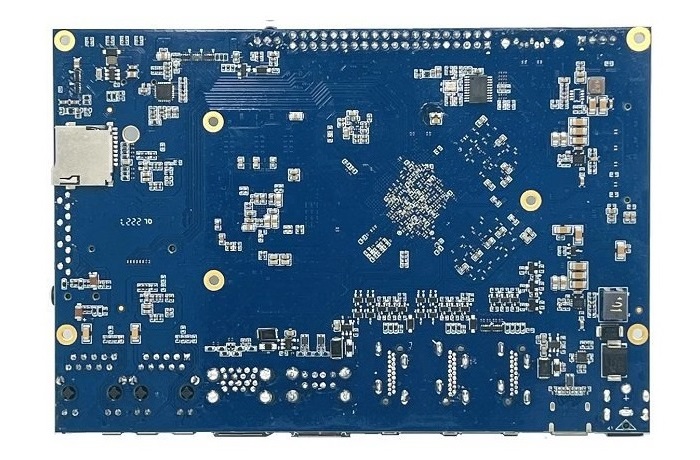

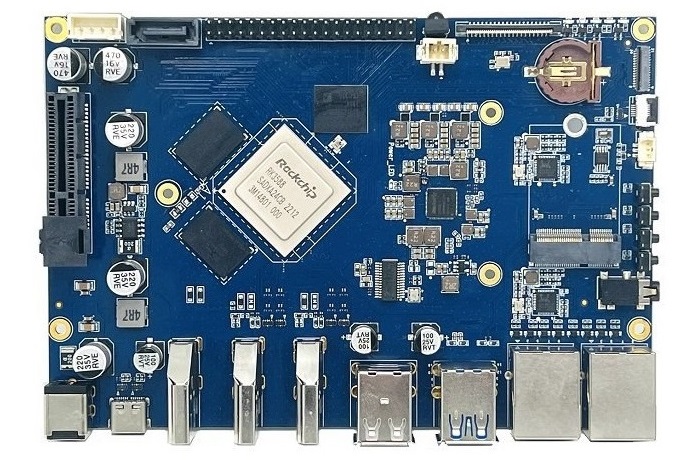

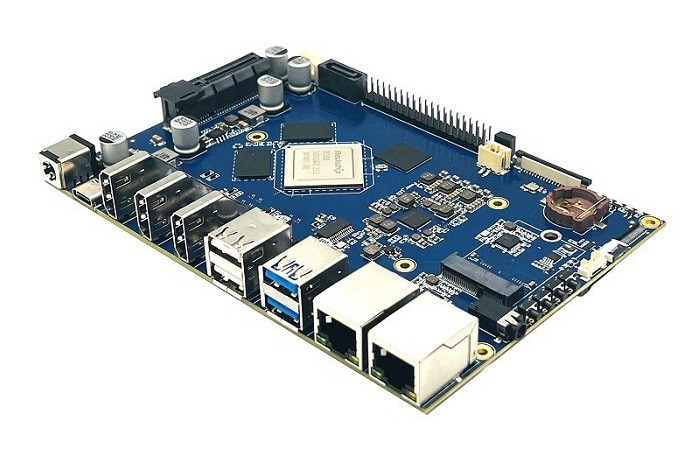

Board view


Main Features

  1. Eight-core CPU – Rockchip RK3588 quad x2 ARM Cortex-A76 + x2 quad ARM Cortex-A55
  2. ARM Mali-G610 MP4,
  3. NPU for AI: 6Tops@INT8
  4. 8G RAM and 32G eMMC flash onbord
  5. 2x 10/100/1000Mbps Ethernet
  6. support HDMI in and HDMI out
  7. Initial specification on Banana Pi Offical Wiki Page

Specification

Banana Pi BPI-W3

(Product specification)

Brand

Banana Pi

Model

Banana Pi BPI-W3

SoC

RockChip RK3588

CPU

• 8-core (Quad) 64-bit processor
• Big.Little Architecture: 4xCortex-A76 and 4xCortex-A55, Big core cluster is 2.4GHz, and Little core cluster is 1.8GHz.

GPU

• Arm Mali-G610 MP4 “Odin” GPU
• Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2


• Max resolution: 8192x8192 source, 4096x4096 destination

NPU

Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation

System Memory

8GB LPDDR4 , 16GB, or 32GB (TBC) LPDDR4/4x

Storage

Storage

32GB eMMC flash, MicroSD card slot

Video Input

1x HDMI 2.1

Video Output

2x HDMI 2.1 up to 8Kp60

Mini PCIe interface

WiFi Generation Wi-Fi 6

RTC Battery Interface

M.2 Key Slot

SATA

Full-size PCI Express slot

IR

External Display Interface

2x 4-lane MIPI DSI connector up to 4Kp60

Camera Interfaces

• 1x MIPI CSI 4Lane

USB

• 2x USB 3.0 ports

• 2x USB 2.0 ports

Audio

• ES8388 audio codec

• 3.5mm audio jack - headphone & microphone
• Support for HDMI 2.1 eARC

Networking / Connectivity

Gigabit Ethernet RJ45 port via YT8531B GbE transceiver.

Bluetooth 5.0 with  BLE support via Ampak AP6275P (PCIe module)

Dual-band Wi-Fi 6 802.11a/b/g/n/ac/ax 2T2R,

GPIO

40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, and I2S.

Debugging

3pin UART header for serial console

Buttons

?

Software Support

• Caffe/TensorFlow/TFLite/ONNX  PyTorch/Keras/Darknet.

• Android 12.0 Linux support.

Power Supply

• 12V/2A via DC jack

Dimensions

148mm * 101mm


Under the Hood

Powered by a Rockchip RK3588 processor. The Banana Pi BPI-W3 board features 8GB of LPDDR4 and 32GB of eMMC flash soldered to the PCB. SoC-Rockchip RK3588 octa-core processor with a 4xCortex-A76 core at up to 2.4 GHz (YMMV), 4xCortex-A55 core at 1.8 GHz, Arm Mali G610MC4 GPU, 6 TOPS NPU, 8K 10 Bit Decoder, 8K Encoder System There is a SATA III port, two HDMI outputs, and one HDI input interface. You can also find dual Gigabit Ethernet, SATA, and PCIe x4 slots.


Price & Availability

There is no official final price for the Banana Pi BPI-W3 board. We will update this post section as soon as we have fresh news and updates.
