Connectivity
The OPi 6 Plus board comes with two 5Gbps Ethernet ports, which is a huge upgrade for single-board computers that usually have 2.5Gbps. This makes it an excellent choice for running as a small mini server in a home or office. Also, the Wi-Fi is upgradable via an M.2 E-Key slot (socket), which is a big advantage from a user’s standpoint.
The Orange Pi’s WiFi card features the Realtek RTL8852BE chipset, which works perfectly with Linux in a plug-and-play manner and supports the Wi-Fi 6 standard. However, it does cap your data rate at a maximum of 1201 Mbps. Having said that, if you’re looking for a better option with greater bandwidth, it’s a good idea to research and find out which Wi-Fi cards are fully compatible with Linux OS.

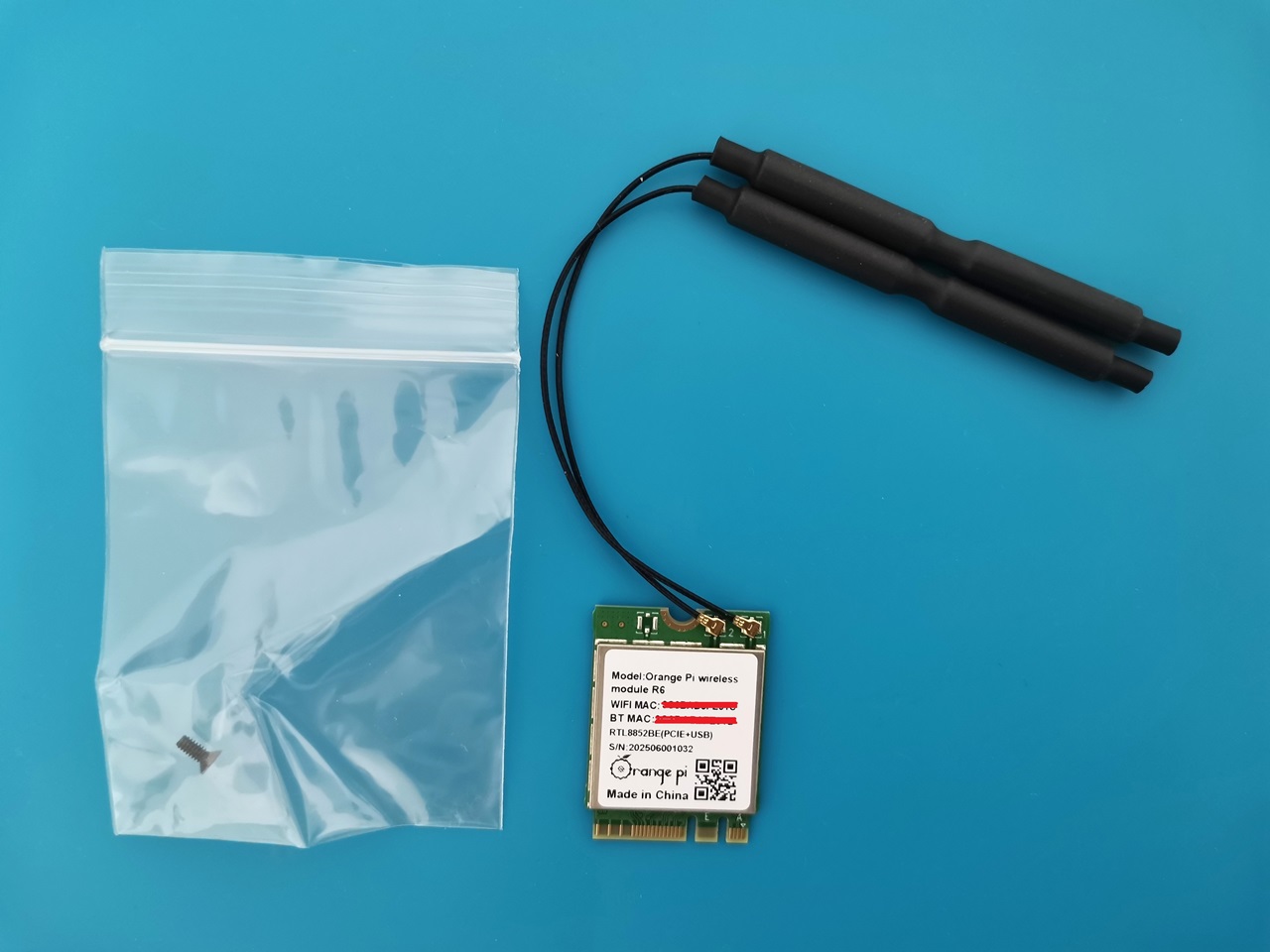

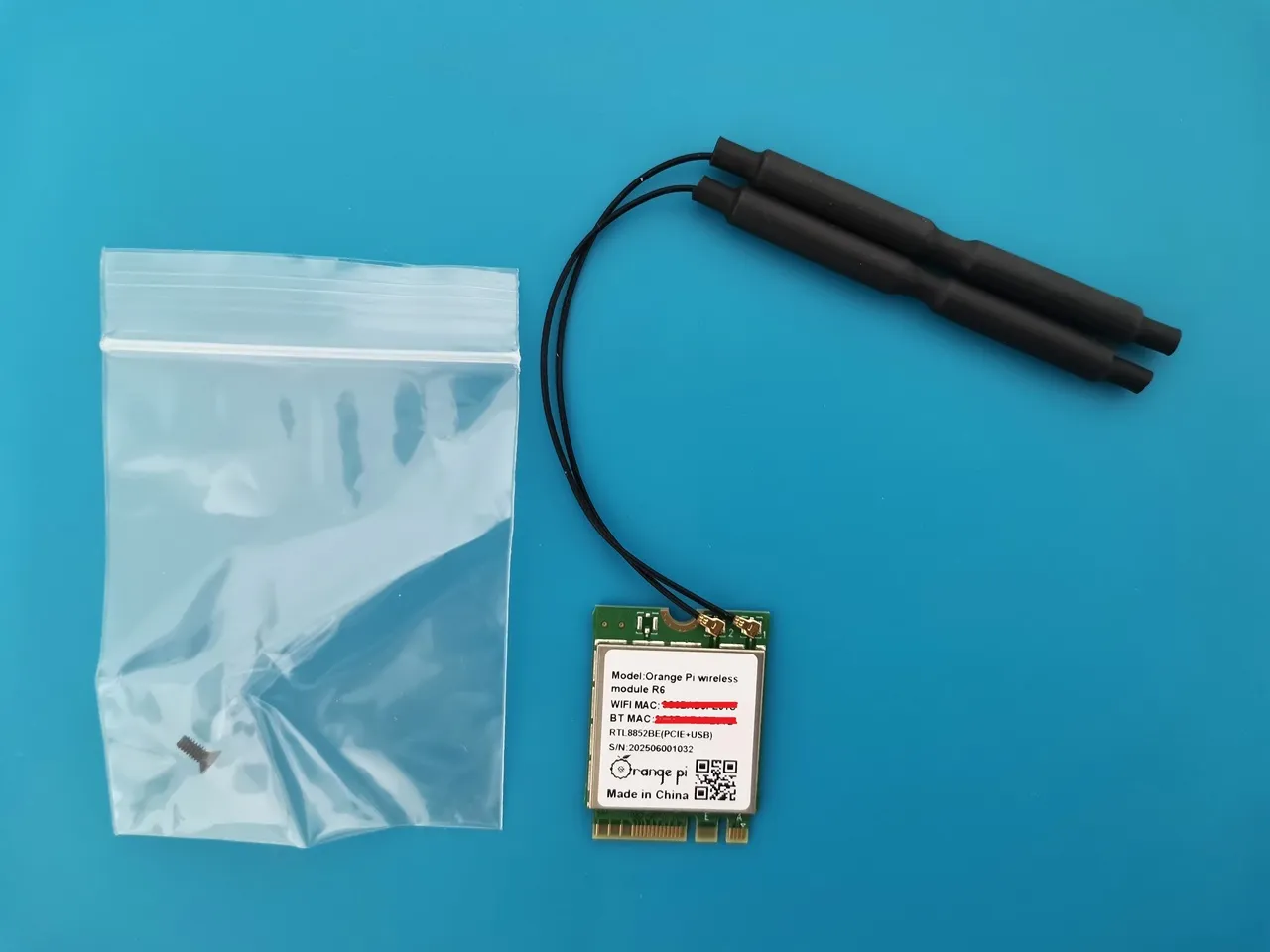

A closer peek at the Orange Pi’s WiFi/BT M.2 E-Key card
Dual Ethernet 5Gbps LAN ports
Once again, a significant upgrade offers a clear advantage in achieving higher throughput speeds in a single-board computer. A third or fourth LAN port might be an even better addition, but hey, we can’t complain.
Checking network devices
root@orangepi6plus:~# ethtool eth0
Settings for eth0:
Supported ports: [ TP ]
Supported link modes: 10baseT/Half 10baseT/Full
100baseT/Half 100baseT/Full
1000baseT/Full
2500baseT/Full
5000baseT/Full
Supported pause frame use: Symmetric Receive-only
Supports auto-negotiation: Yes
Supported FEC modes: Not reported
Advertised link modes: 10baseT/Half 10baseT/Full
100baseT/Half 100baseT/Full
1000baseT/Full
2500baseT/Full
5000baseT/Full
Advertised pause frame use: Symmetric Receive-only
Advertised auto-negotiation: Yes
Advertised FEC modes: Not reported
Link partner advertised link modes: 10baseT/Half 10baseT/Full
100baseT/Half 100baseT/Full
1000baseT/Full
Link partner advertised pause frame use: Symmetric Receive-only
Link partner advertised auto-negotiation: Yes
Link partner advertised FEC modes: Not reported
Speed: 1000Mb/s
Duplex: Full
Auto-negotiation: on
Port: Twisted Pair
PHYAD: 0
Transceiver: internal
MDI-X: on
Supports Wake-on: d
Wake-on: d
Current message level: 0x00000033 (51)
drv probe ifdown ifuproot@orangepi6plus:~# ethtool eth1
Settings for eth1:
Supported ports: [ TP ]
Supported link modes: 10baseT/Half 10baseT/Full
100baseT/Half 100baseT/Full
1000baseT/Full
2500baseT/Full
5000baseT/Full
Supported pause frame use: Symmetric Receive-only
Supports auto-negotiation: Yes
Supported FEC modes: Not reported
Advertised link modes: 10baseT/Half 10baseT/Full
100baseT/Half 100baseT/Full
1000baseT/Full
2500baseT/Full
5000baseT/Full
Advertised pause frame use: No
Advertised auto-negotiation: Yes
Advertised FEC modes: Not reported
Speed: Unknown!
Duplex: Unknown! (255)
Auto-negotiation: on
Port: Twisted Pair
PHYAD: 0
Transceiver: internal
MDI-X: Unknown
Supports Wake-on: d
Wake-on: d
Current message level: 0x00000033 (51)
drv probe ifdown ifup
Link detected: no
