Banana Pi BPI-M7 Review: A slim yet powerful RK3588 SBC development Kit

• Maybe you missed it? Banana Pi BPI-R3 Mini.
• Banana Pi BPI-M7 Review, Presenting Exciting Features and Cutting-Edge Hardware.

Part I: Banana Pi M7 Introduction

Introducing the Banana Pi BPI-M7 Single Board Computer: A cutting-edge single board computer crafted and manufactured by Sinovoip, the renowned company responsible for the widely acclaimed Banana Pi brand.

This year, we’ve witnessed the arrival of quite a few new single board computers based on Rockchip hardware: the Banana Pi BPI-M7 isn’t extraordinary in the SBC segment, but the board layout looks more “clean” and very organized in terms of location of components, interfaces and buttons.

Powered by the state-of-the-art RK3588 processor, this single board computer offers an unrivaled blend of blazing-fast processing speed and optimized power management. With its impressive 8-core processor, this hardware surpasses the performance of the Raspberry Pi 5 board, ensuring an extraordinary level of power and performance.

Hardware

The RK3588 is a powerful processor that possesses four Cortex-A76 CPU cores operating at an impressive speed of 2.4 GHz. Complementing these are four Cortex-A55 cores with a slightly lower frequency at 1.8 GHz. However, what truly sets the RK3588 apart is its exceptional Mali-G610 MP4 GPU and cutting-edge NPU, boasting a theoretical capability of 6 TOPS. With this combination, the RK3588 truly shines in the realm of AI and deep learning implementations.

The BPI-M7 measures 92 x 62 mm. It boasts a range of eMMC storage and RAM configurations, providing you with options to suit your specific needs. With a maximum memory capacity of up to 32 GB of LPDDR4X RAM, it ensures efficient and smooth operations. Additionally, it features an M.2 2280 slot that supports PCIe 3.0 x4 NVMe SSDs. This capability enables you to take advantage of lightning-fast storage speeds, making the BPI-M7 perfect for a wide array of applications.

Additionally, the SBC boasts Bluetooth 5.2 and Wi-Fi 6 capabilities, along with two high-speed 2.5 Gigabit Ethernet connections. Impressively, Banana Pi has integrated HDMI and USB Type-C ports into their design, offering users the convenience and flexibility they desire. The remarkable pair of 8K video outputs, capable of delivering stunning visuals at 60 Hz and 30 Hz, respectively, further elevates the device’s appeal. It’s worth noting that the BPI-M7 is fully compatible with Android 12, Debian Buster, and Linux 5.10 kernel, ensuring seamless compatibility and optimal performance across different operating systems.

Triple display with HDR support

The M7 Board’s support for up to 3 video output interfaces makes it suitable for a wide range of multimedia and signage player applications, offering versatility and flexibility in display options. The M7 Board is ideal for a wide range of visual communication needs, whether it’s for captivating multimedia experiences or dynamic signage displays.

Key advantages:

• Optimal PCB Design Layout – The key distinction of this board, in comparison to other popular SBCs, lies in its layout design. This specific design ensures that there are sufficient distances between all the board’s electrical components, effectively preventing overheating and facilitating improved heat transfer through convection.

• Integrated Wi-Fi/Bluetooth chip – The device also boasts an integrated Wi-Fi/Bluetooth chip, as well as an M.2 socket. This allows you to add an NVMe drive without having to give up the option to install an M.2 Wi-Fi 6 card module which might be important for most users.
• Two 2.5G Ethernet ports – for high-speed networking capabilities, allowing for faster data transfer and more efficient use of network resources. This makes it ideal for environments requiring high bandwidth and low latency.
• Triple display Support – Increase the number of display interfaces.

Key Features

• PI-co ITX form factor (2.5 inch, 92 x 62mm)
• RK3588 powered, 8nm manufacturing process
  • Quad A76 2.4Ghz + Quad A55 1.8Ghz
  • Mali G610MC4 GPU (up to 5 channels 4K UI)
  • 6T NPU
  • 8K 10bit decoder, 8K encoder
• Support Wi-Fi 6 and BT5.2
• Support PCIe 3.0 x4 NVMe SSD
• Triple display support (with HDR)
  • One HDMI 2.1 up to 8K@60FPS
  • One USB C with DP up to 8K@30FPS
  • One MIPI DSI up to 4K@60fps
• Two 2.5G Ethernet
• 2x USB 3.0 interface
• 2x MIPI CSI camera interface
• Offer 8GB/16GB/32GB (LPDDR4x) ram options.
• Linux kernel 5.10
• Debian Buster/Android 12

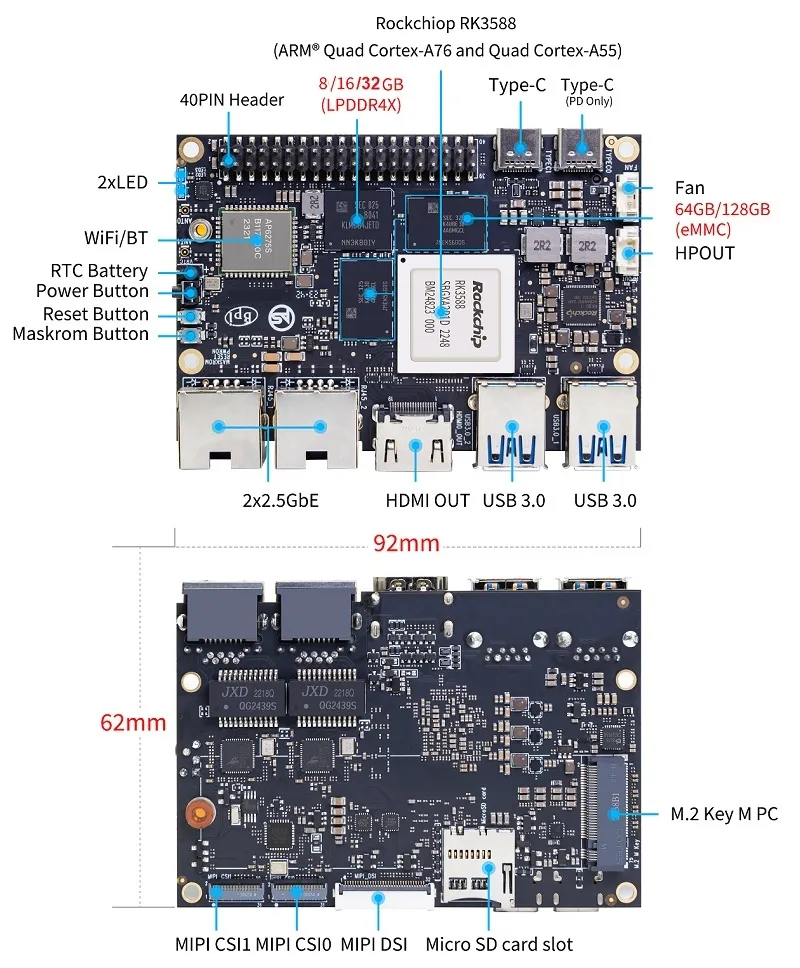

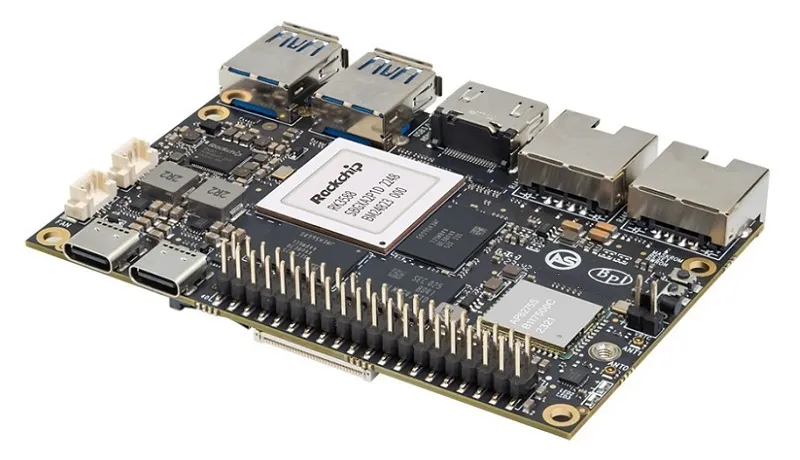

Connections and components of hardware

Software Support

The Banana Pi BPi-M7 officially supports Android 14, Debian 11, and Buildroot through Rockchip. Additionally, third-party Armbian Ubuntu and Debian images are also supported. You can find detailed documentation on both the Banana Pi and ArmSom websites.

The highlights

The Banana Pi BPI-M7 board is specifically crafted to meet the requirements of contemporary users who crave flawless connectivity and lightning-fast data transfers. Equipped with cutting-edge Wi-Fi 6 support, this remarkable single-board computer guarantees rapid and reliable wireless connections. Whether you’re indulging in high-definition video streaming or transferring hefty files, rest assured that the Banana Pi BPI-M7 will effortlessly deliver an uninterrupted and seamless experience.

Additionally, the integrated Wi-Fi 6 support and Dual 2.5GbE ports is a big advantage for users who require fast and reliable internet connectivity. This allows for seamless streaming, online gaming, and file transfers at incredibly high speeds. The Dual 2.5GbE ports also provide flexibility for users who need to connect multiple devices or set up a high-speed network.

Featuring HDMI 2.1 (8K@60FPS) along with two dedicated Type-C ports, each serving a distinct purpose: one for power, and the other supporting (DP) DisplayPort, enabling output video signal at an astounding 8K@60fps (Maximum). The BPI-M7 is equipped with two MIPI CSI camera interfaces, making it an excellent choice for connecting to an external display module with support for resolutions up to 4K.

The storage space expansion options of this board are also convenient, featuring two USB 3.0 ports and a back-mounted M.2 Key M interface. Users can effortlessly enhance their storage capacity by effortlessly installing an NVMe SSD.

The expandability of this board is relatively good, even when compared to higher-priced alternatives. However, the key question that remains is whether the price of this new SBC will be competitive compared to other existing brands.

Part II: Banana Pi BPI-M7 Review

• Item Reviewed: Banana Pi BPI-M7 / Configuration: 32 GB RAM + 128 GB Flash (eMMC).
• [Metal case and board are sold separately or as a Kit]

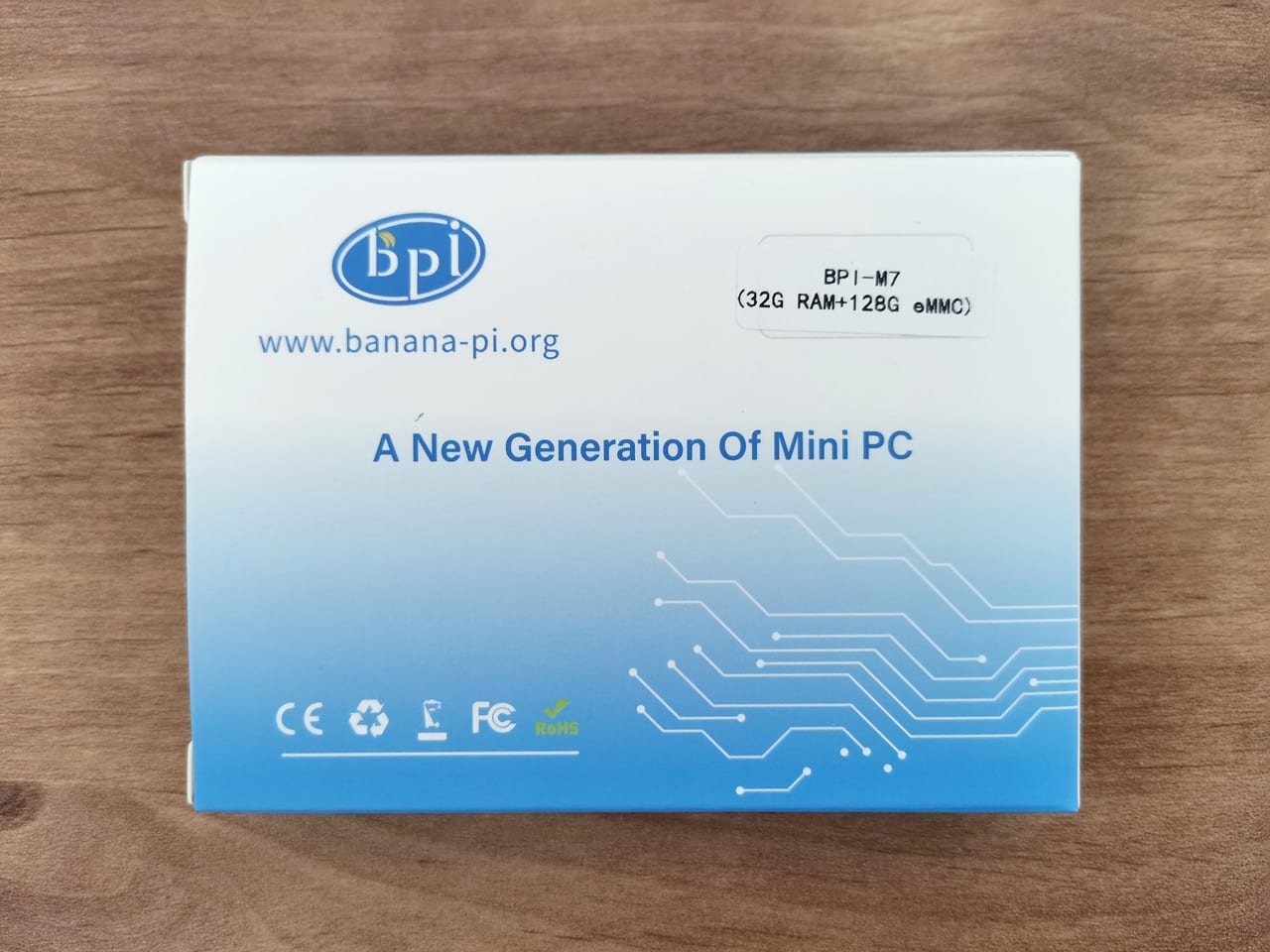

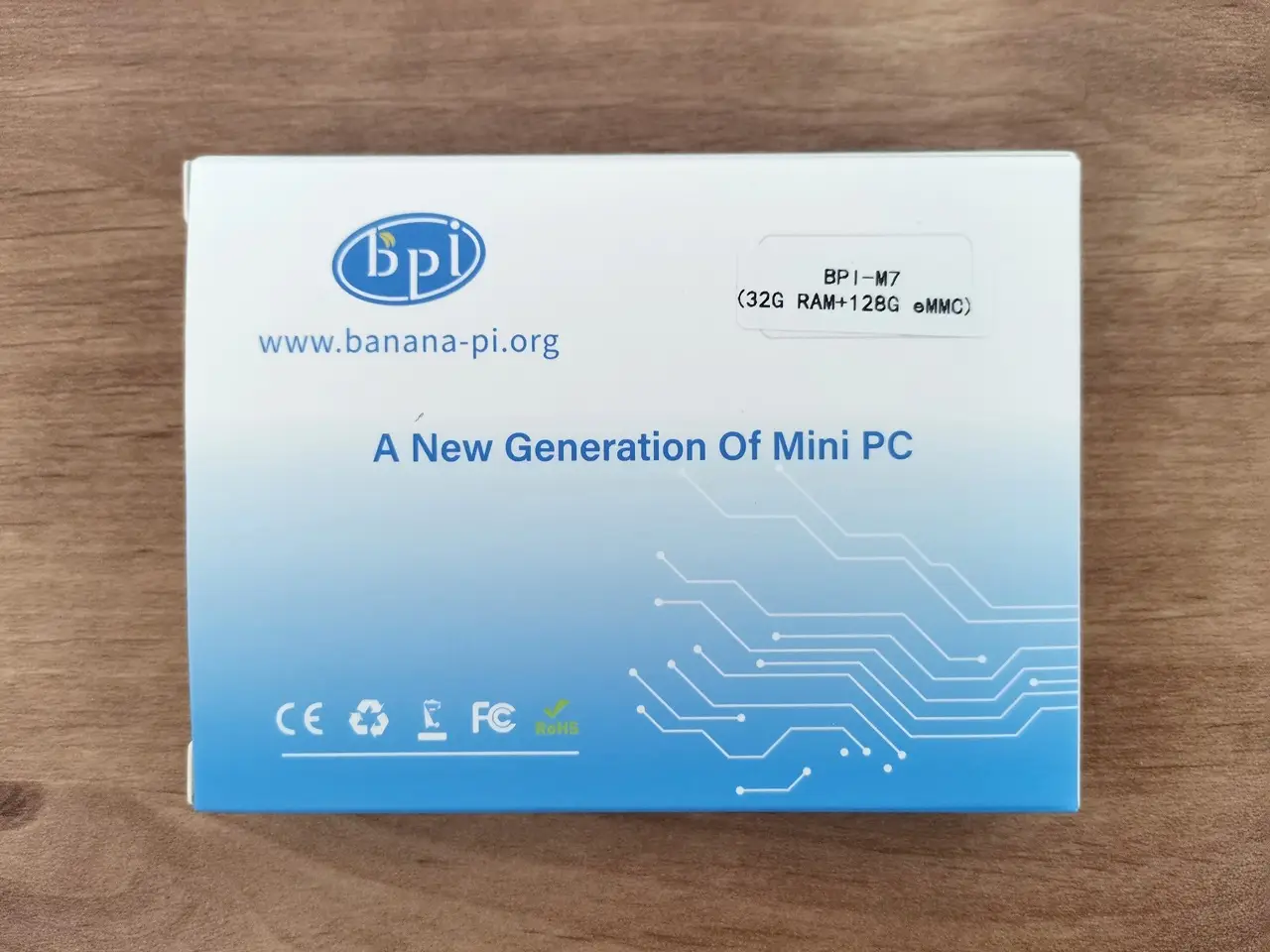

The Package(s):

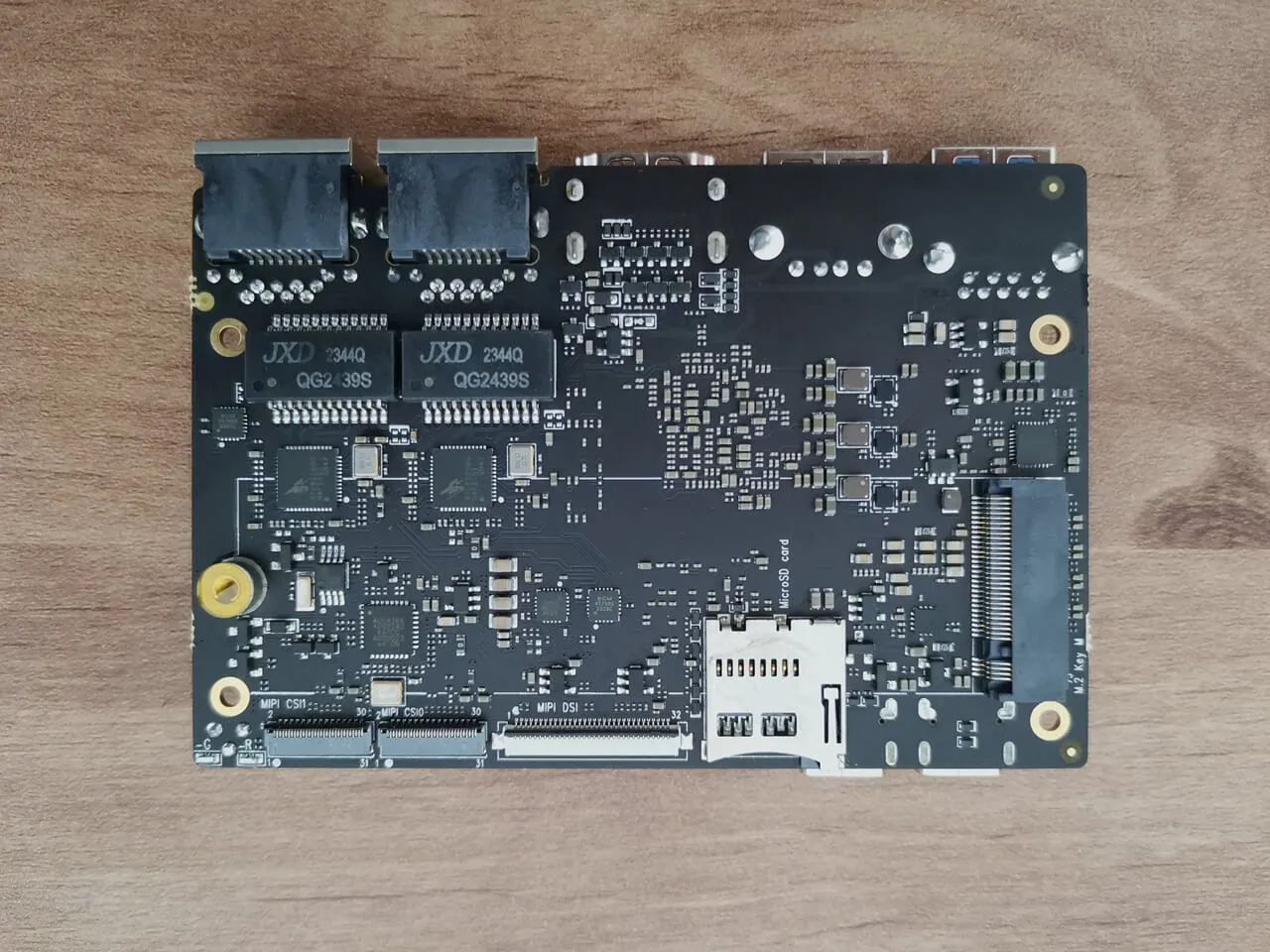

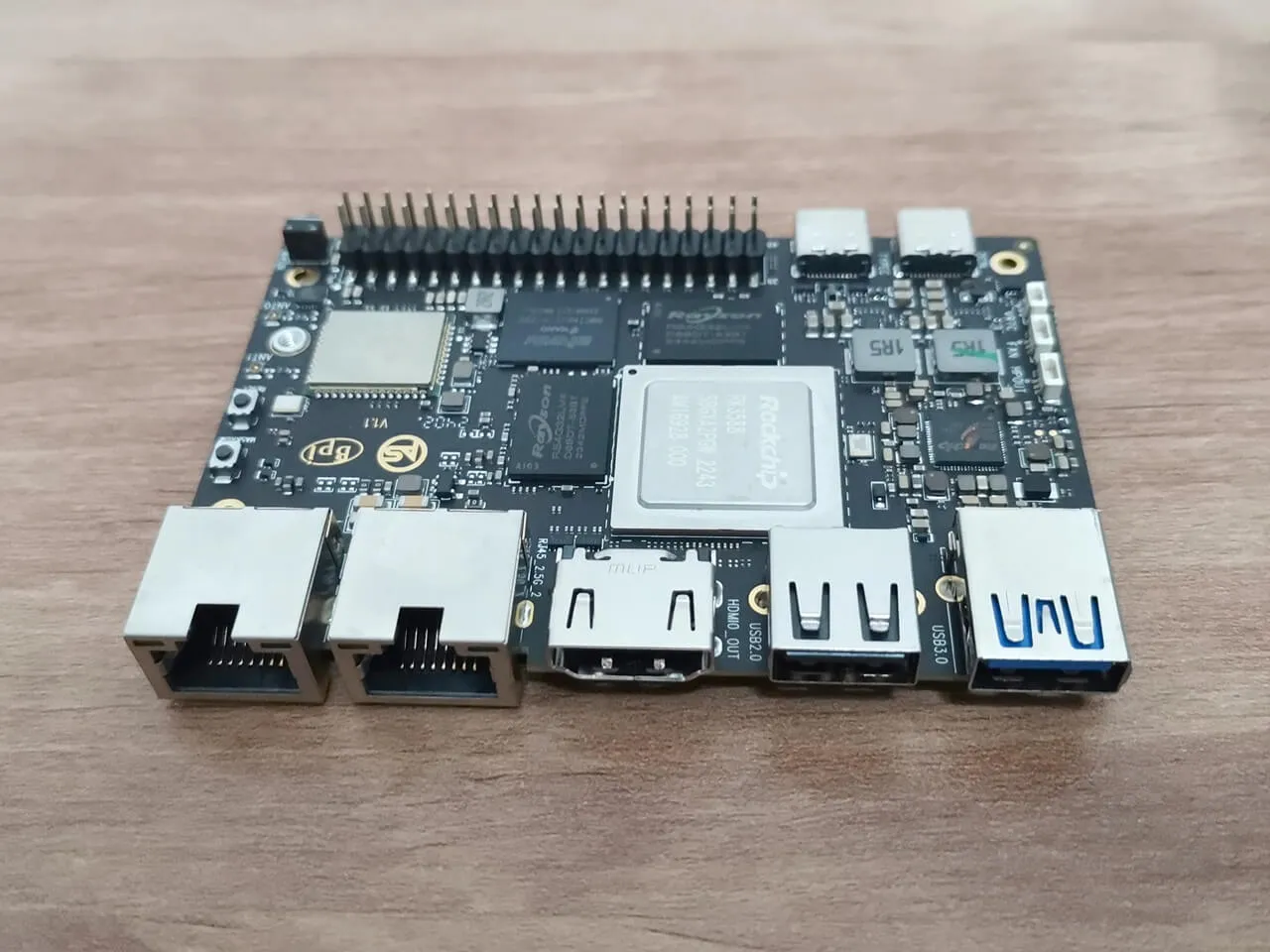

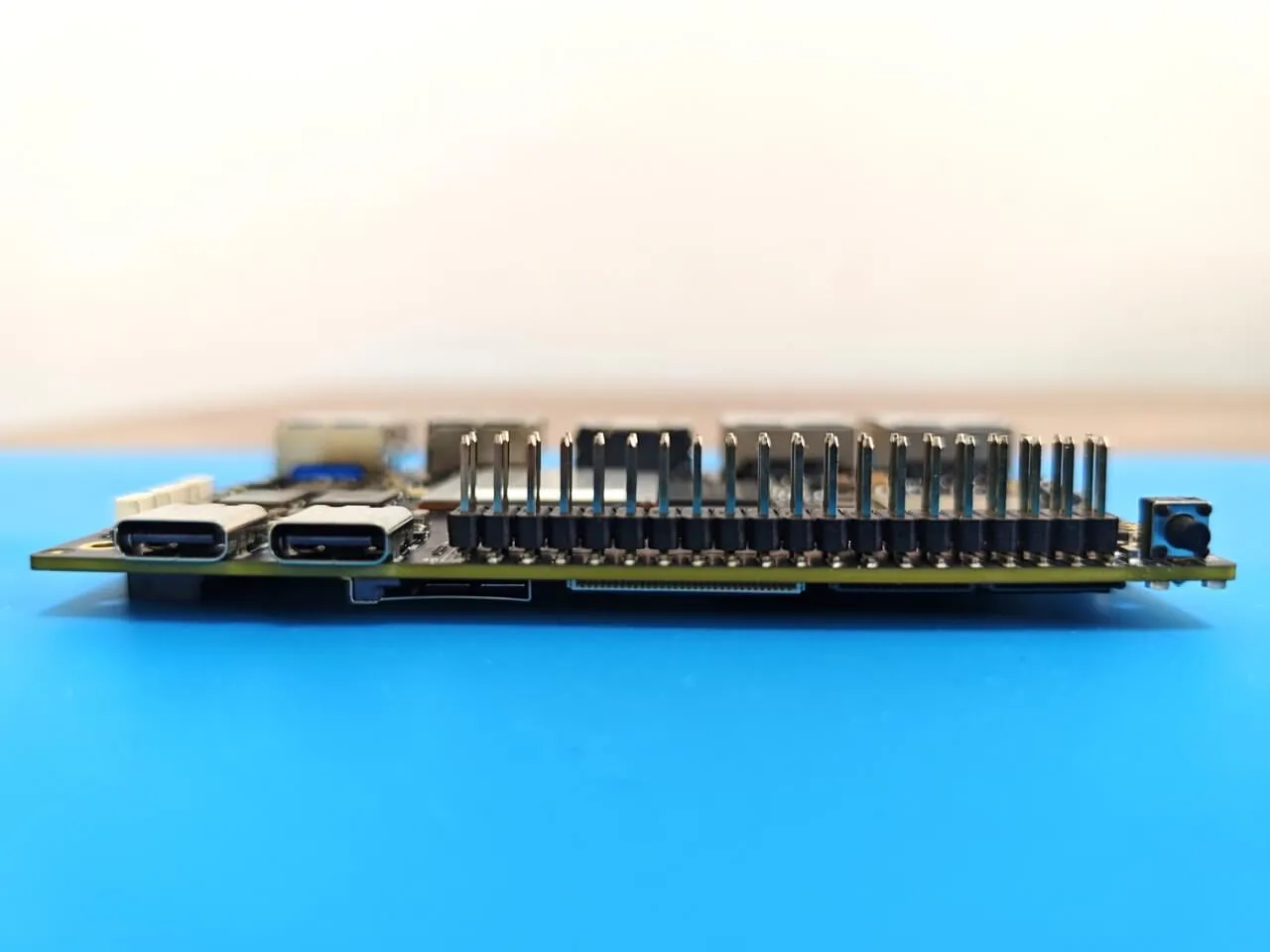

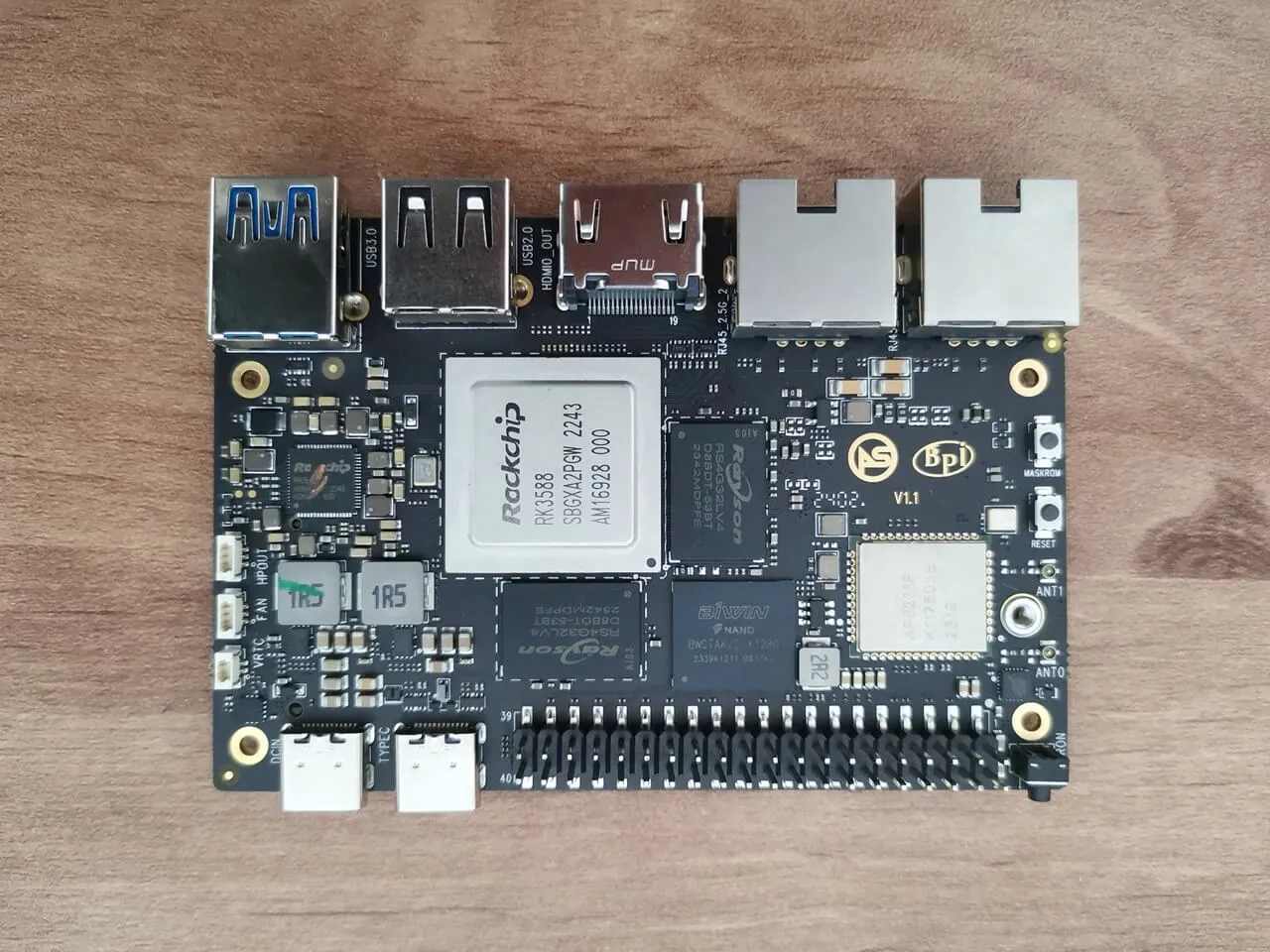

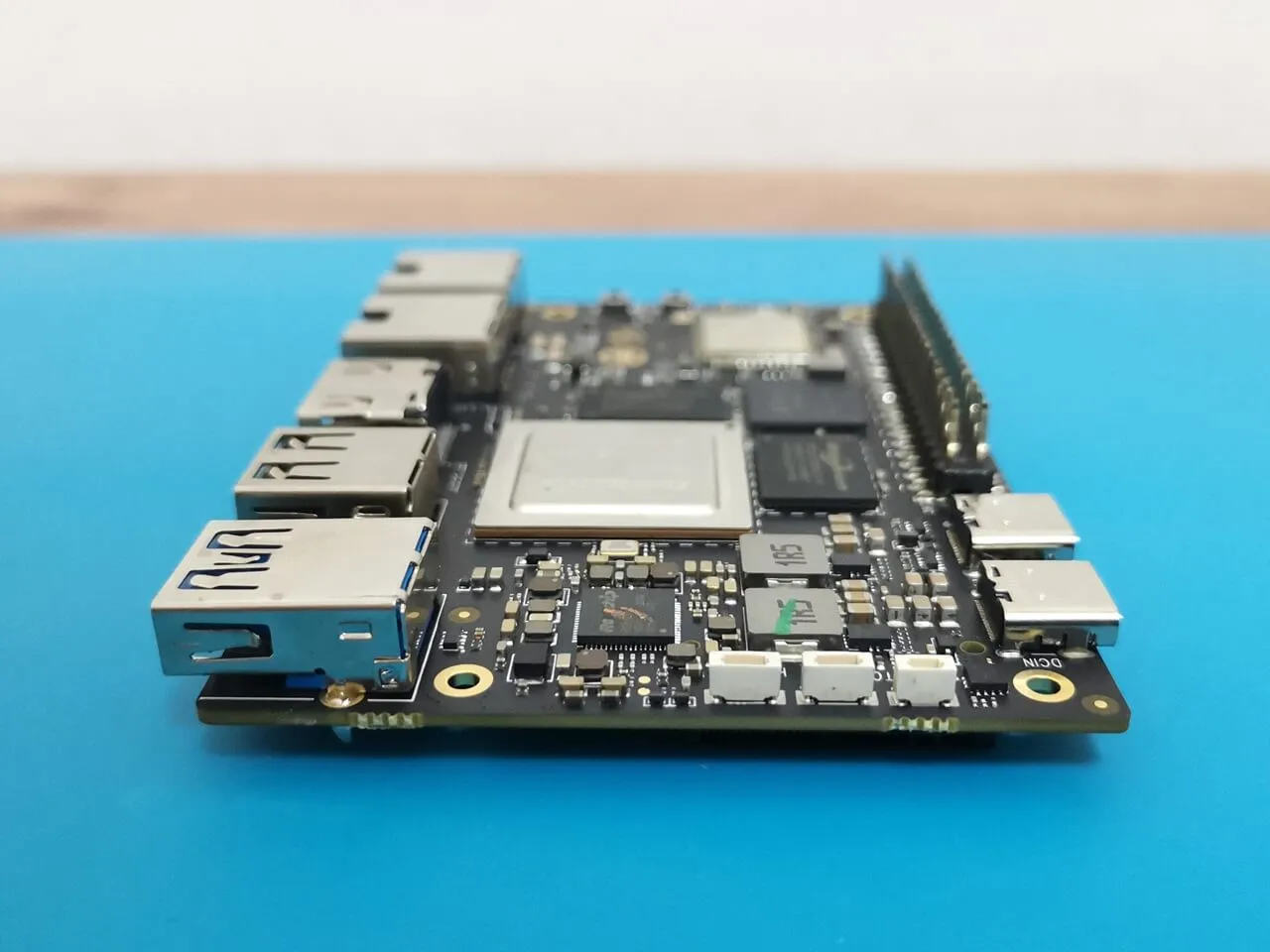

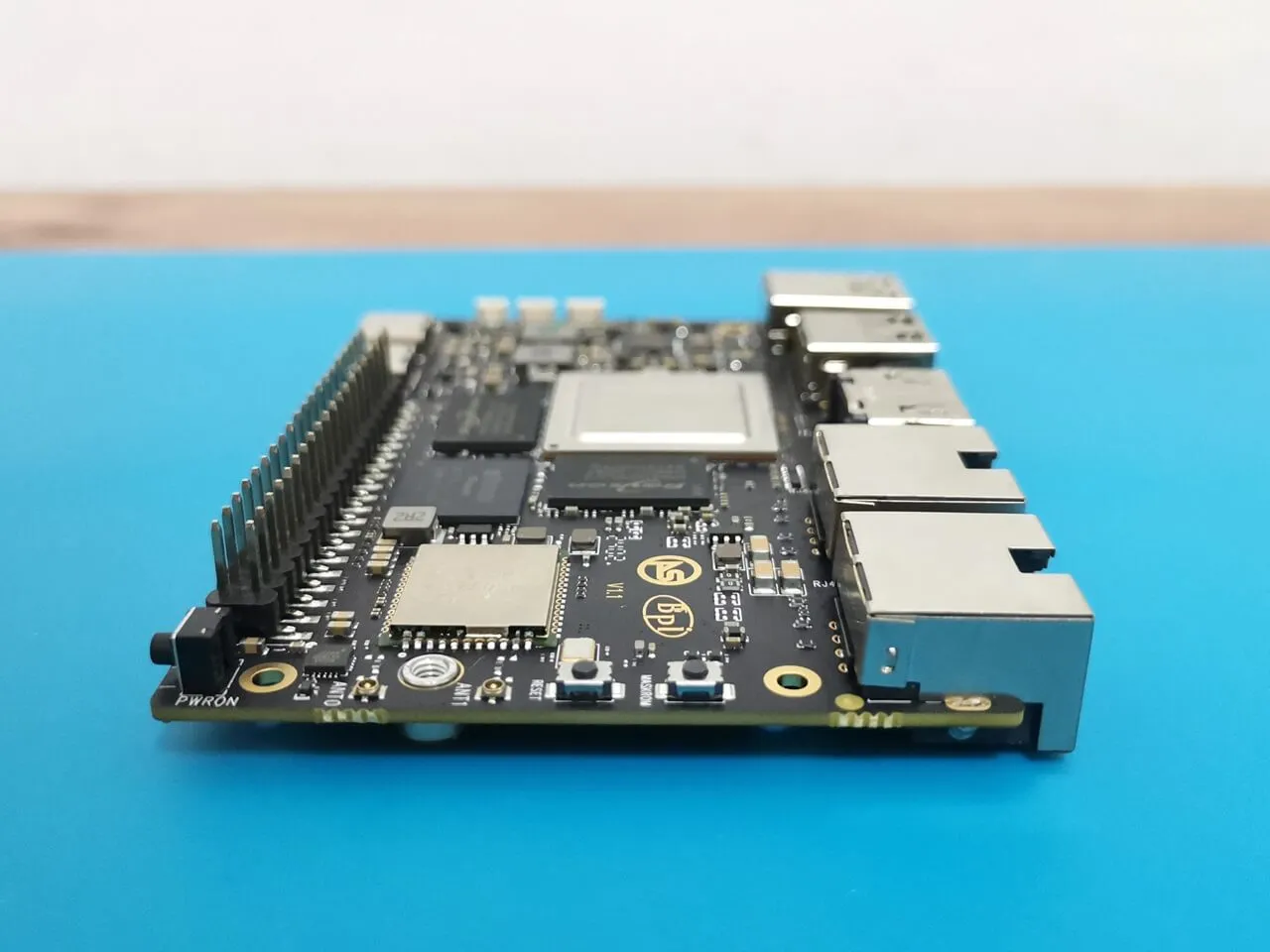

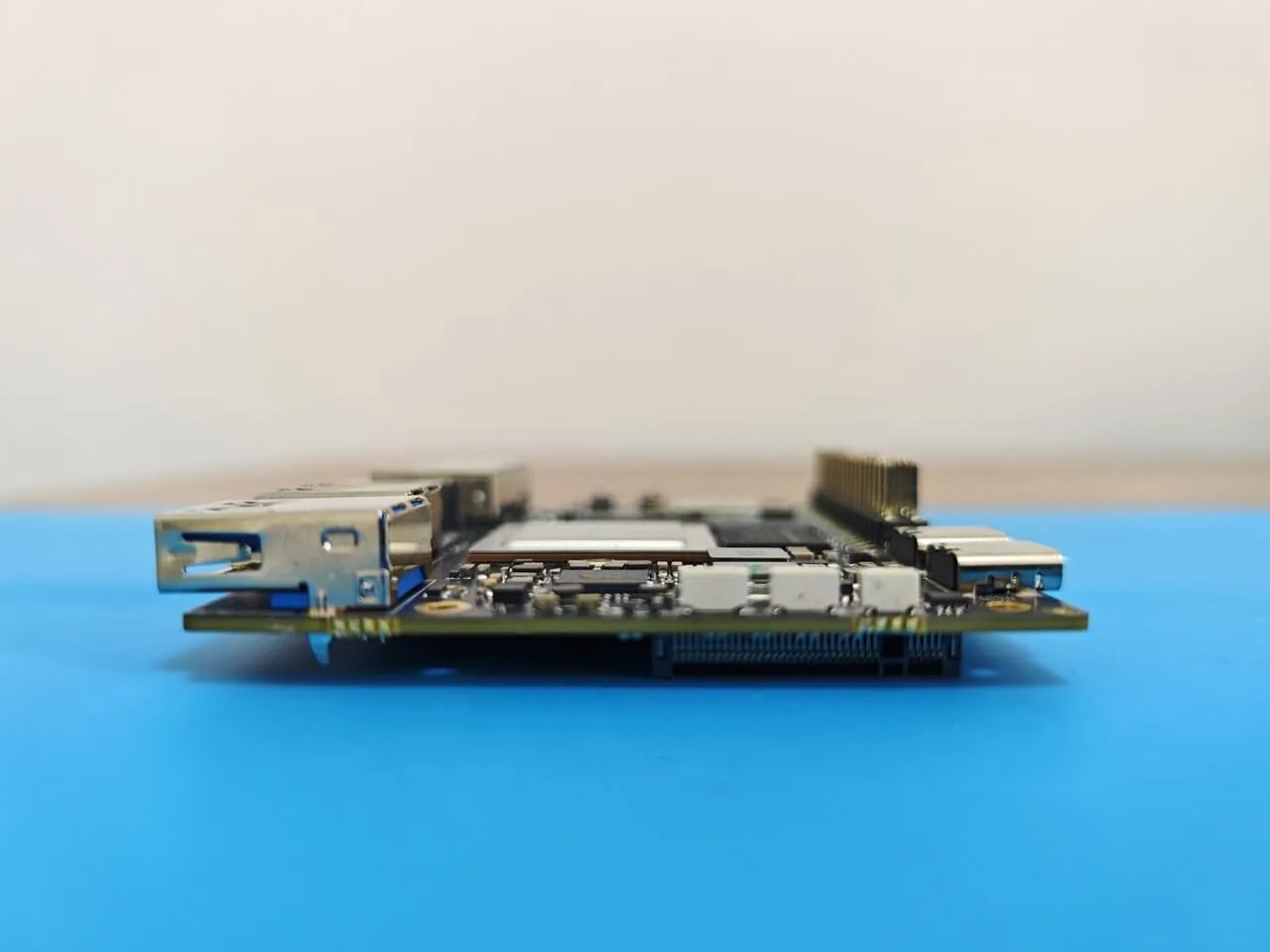

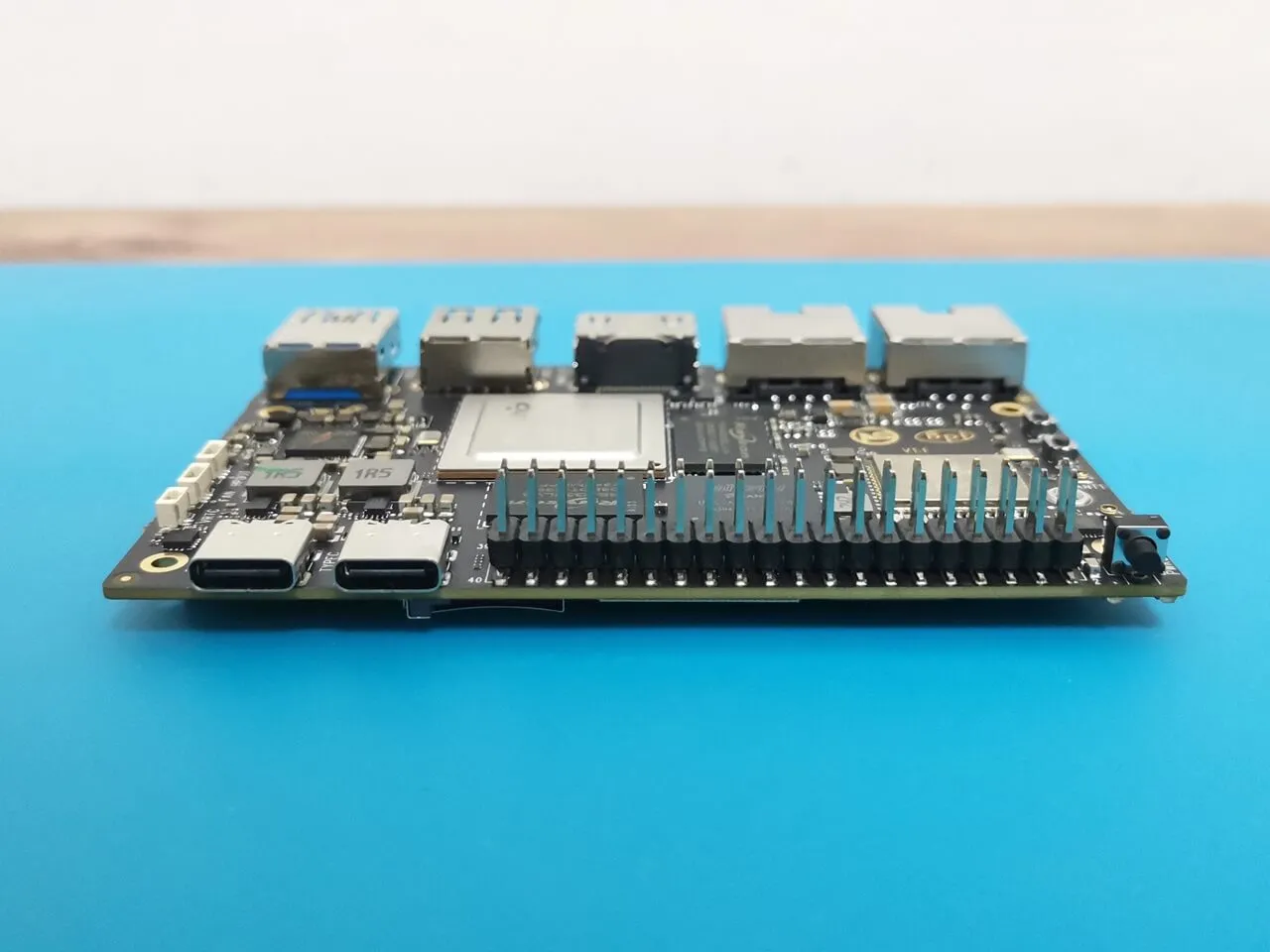

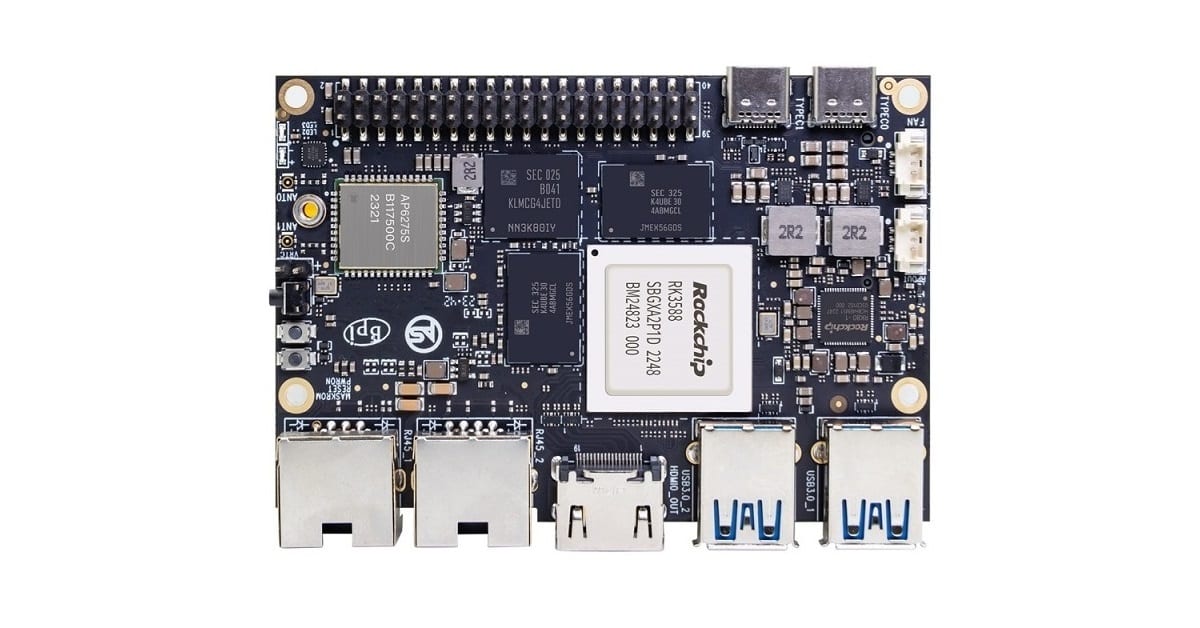

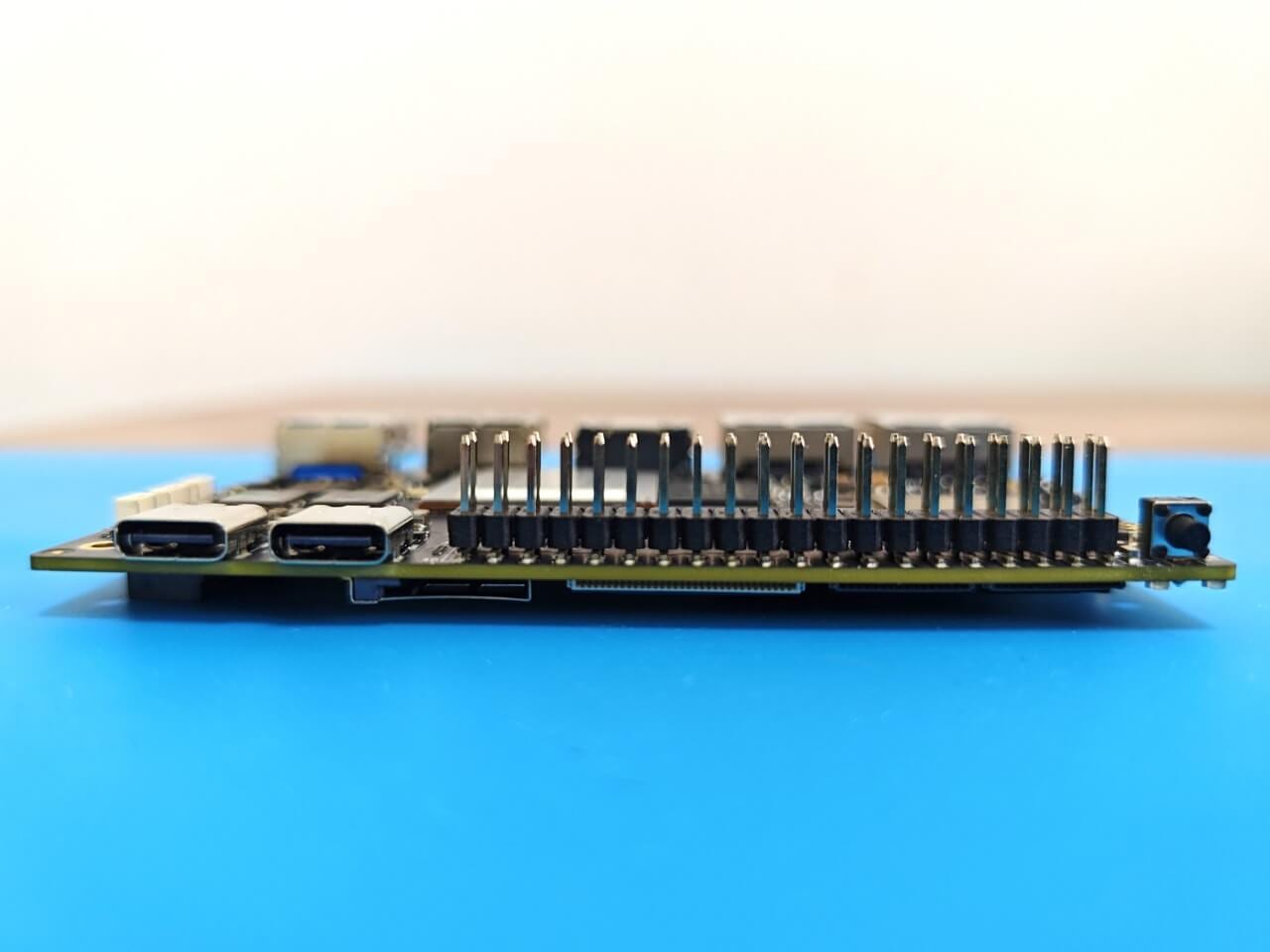

A Closer Look at the Board

Package No. 1: Bare Boad

Package Contents: x1 Banana Pi BPI-M7

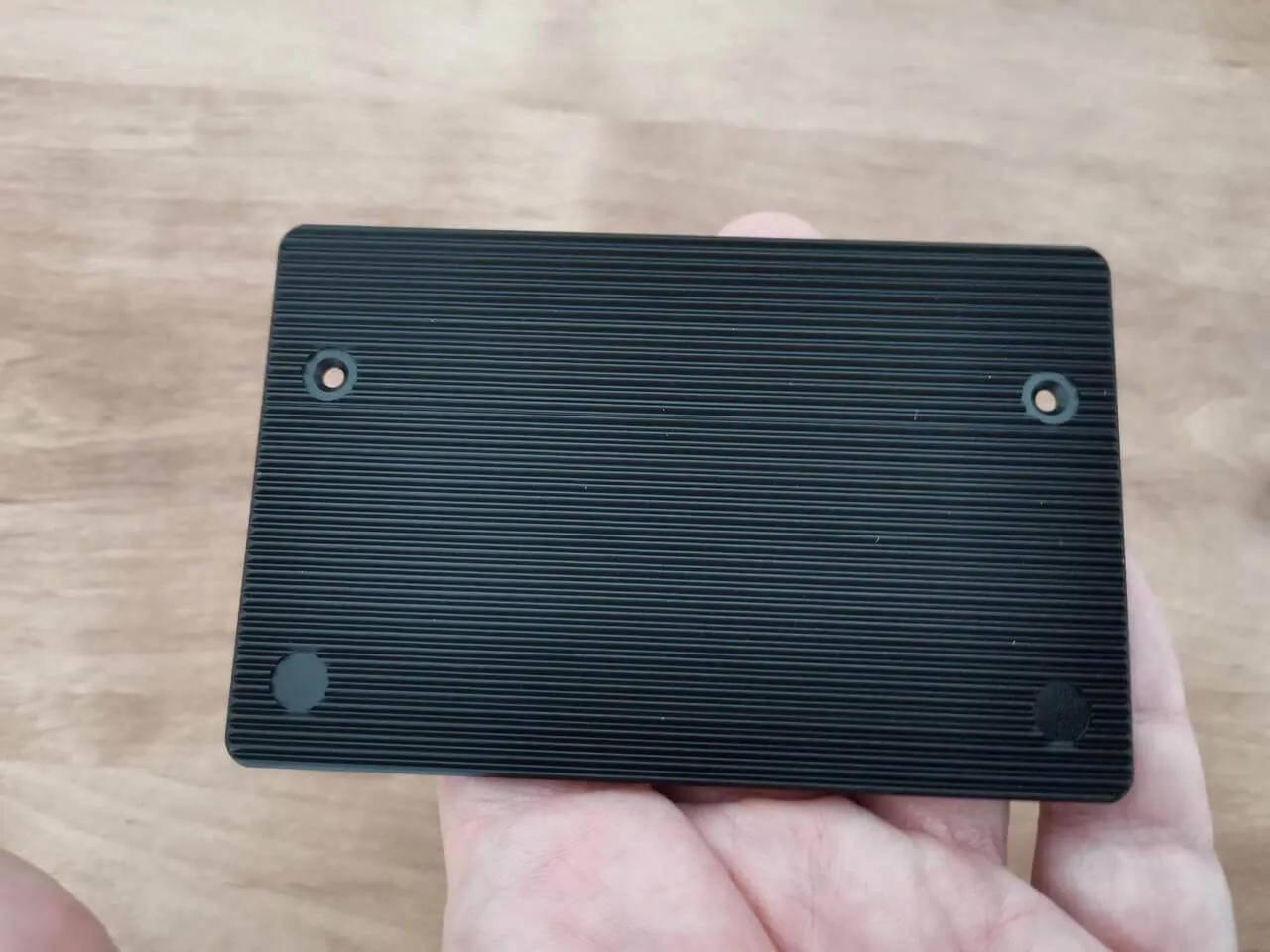

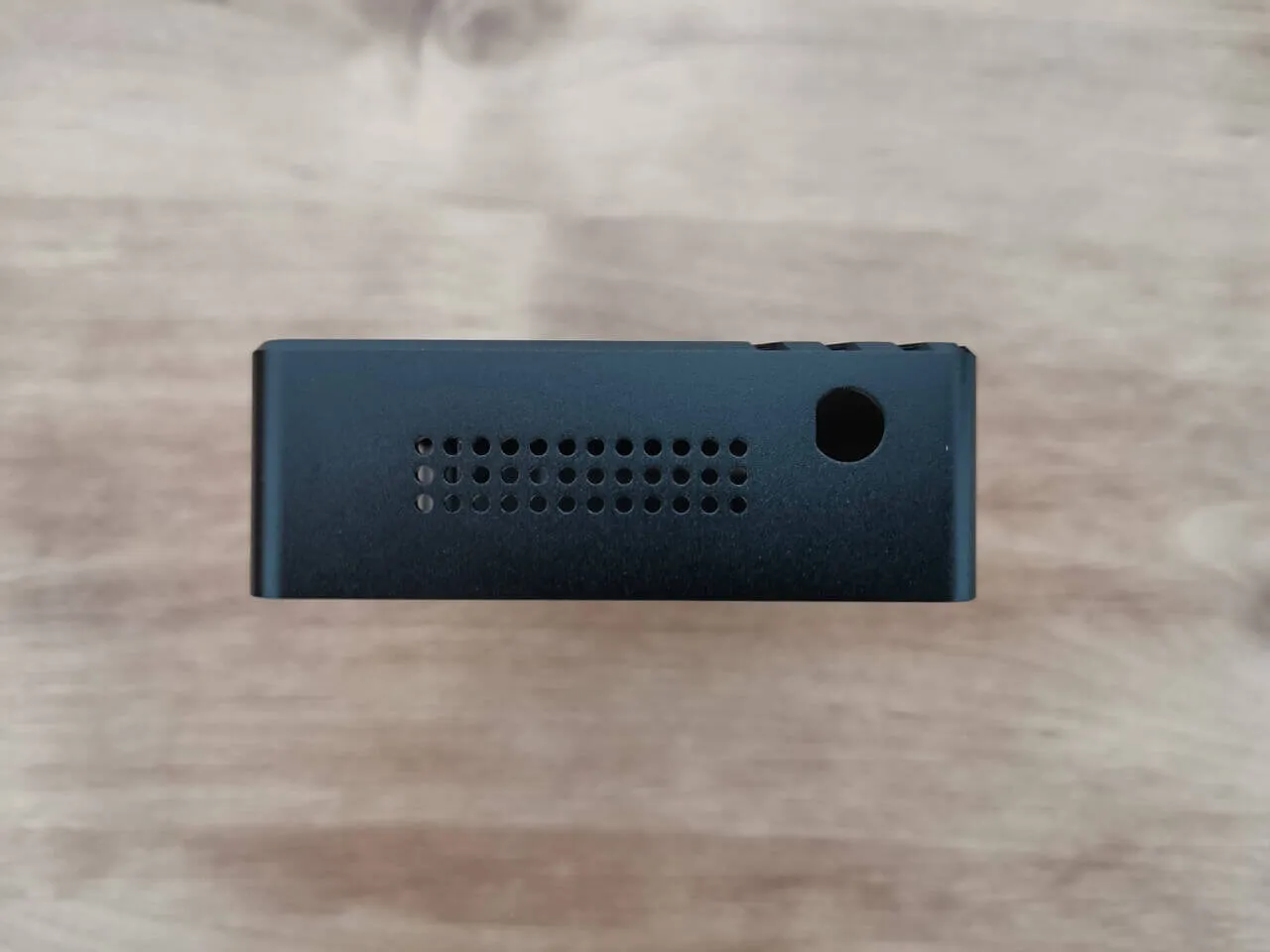

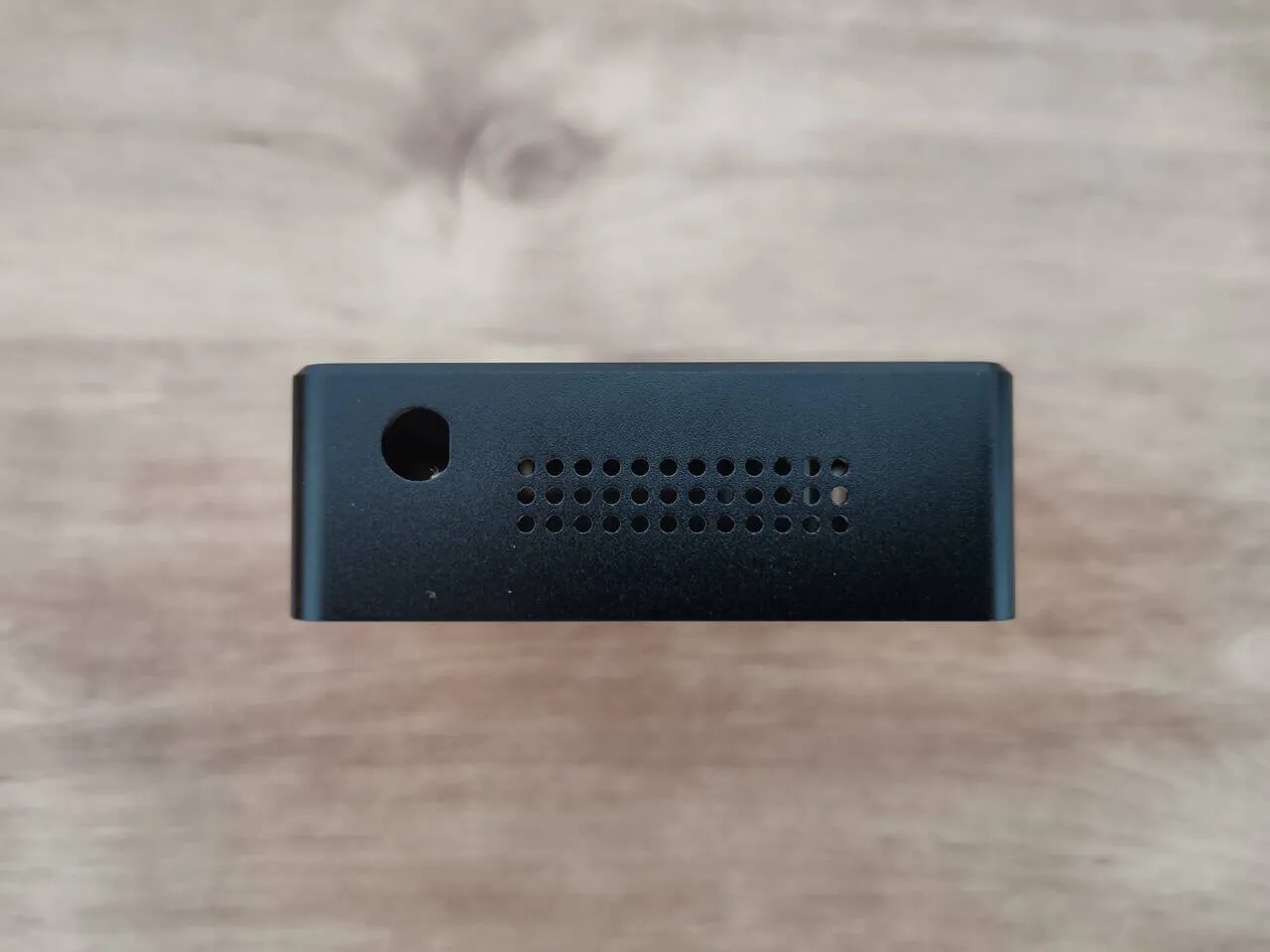

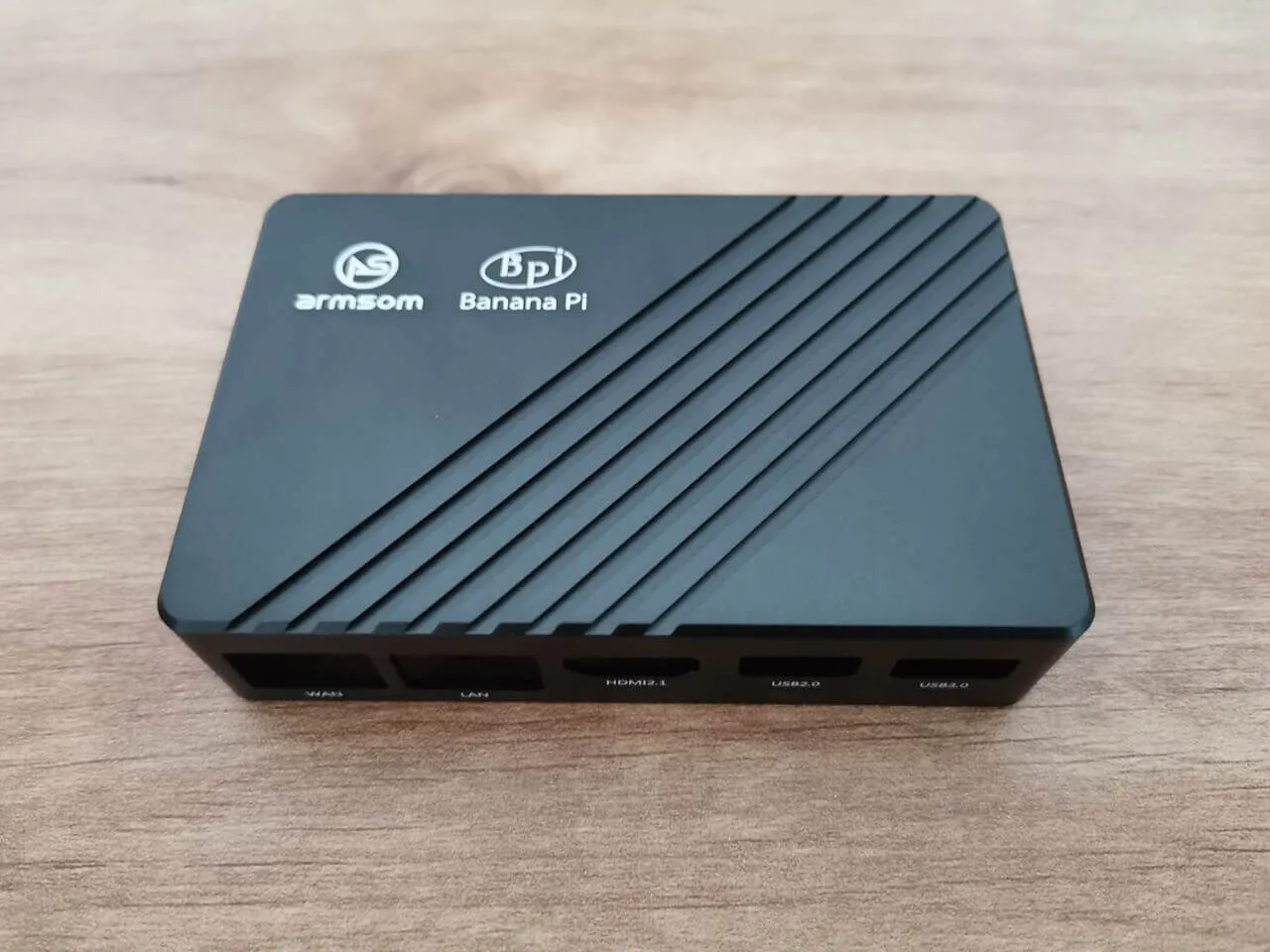

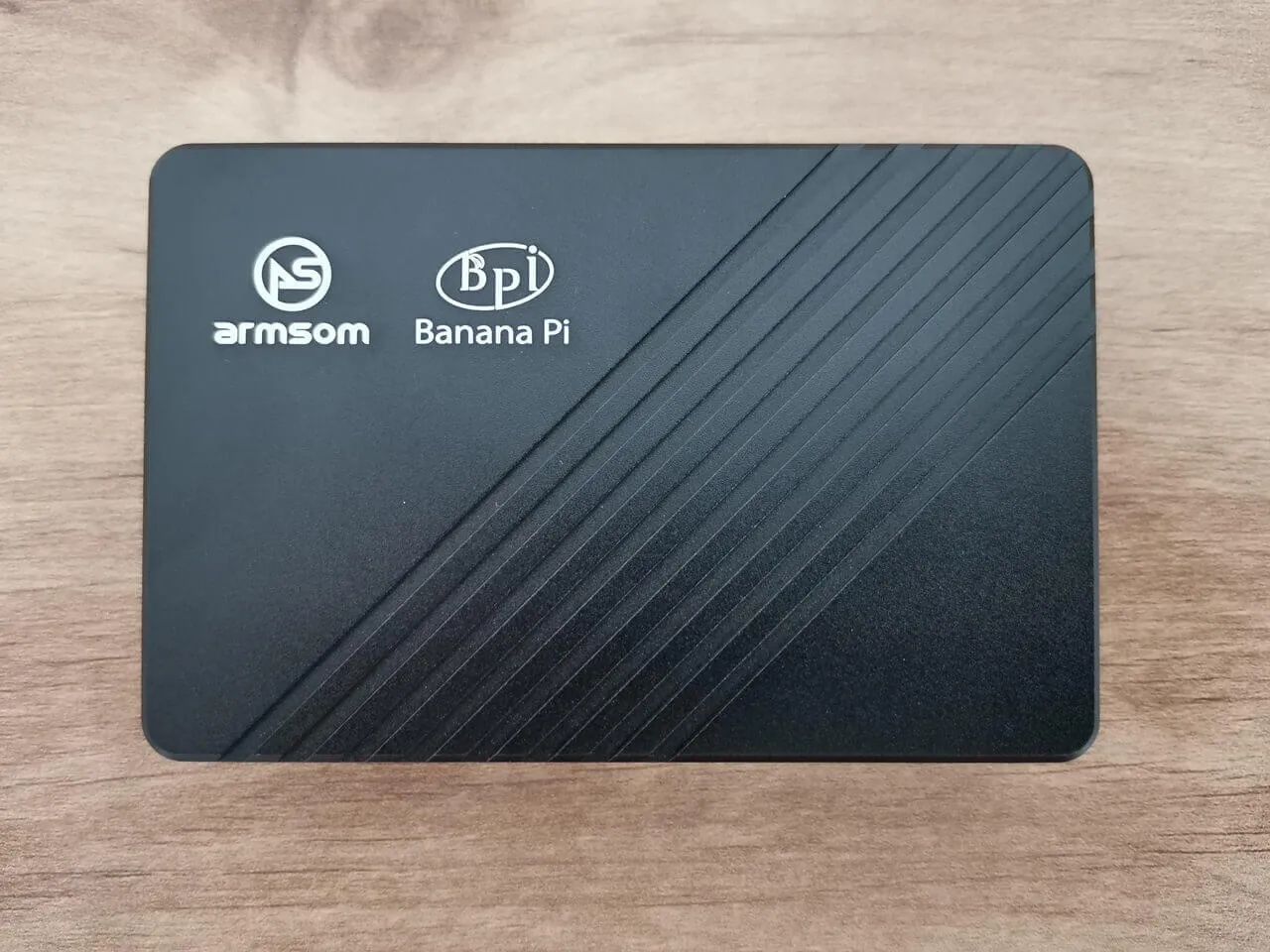

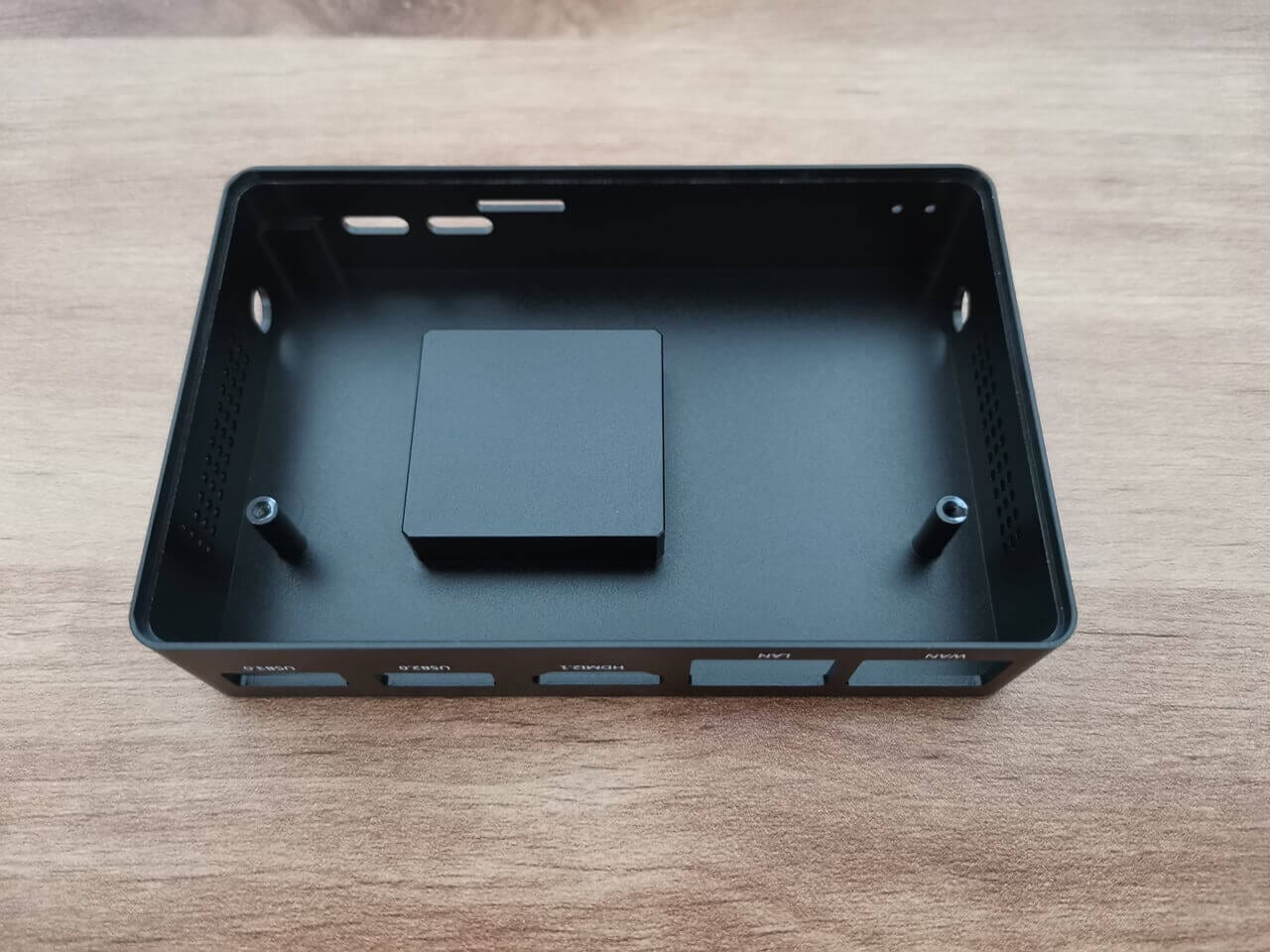

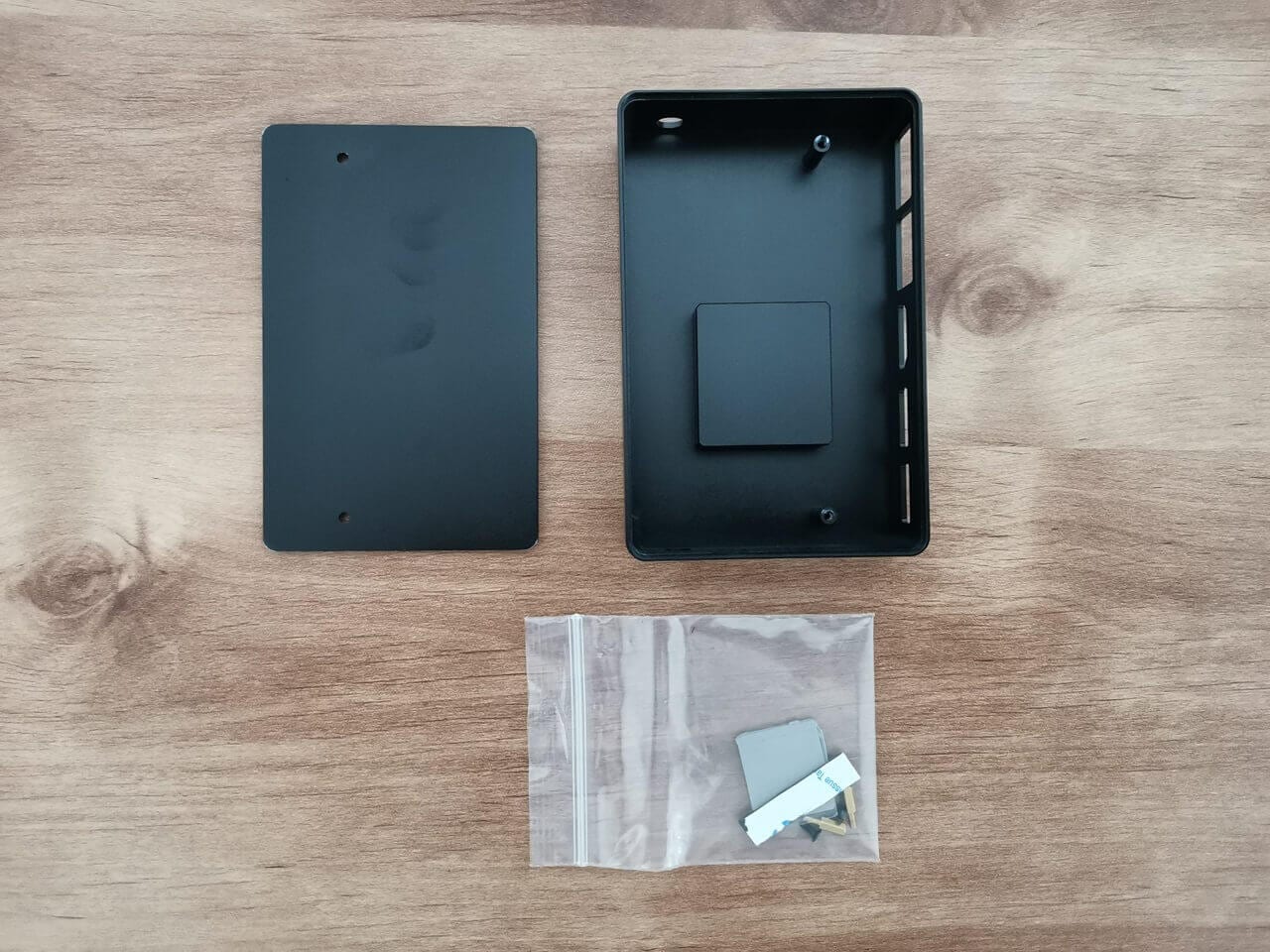

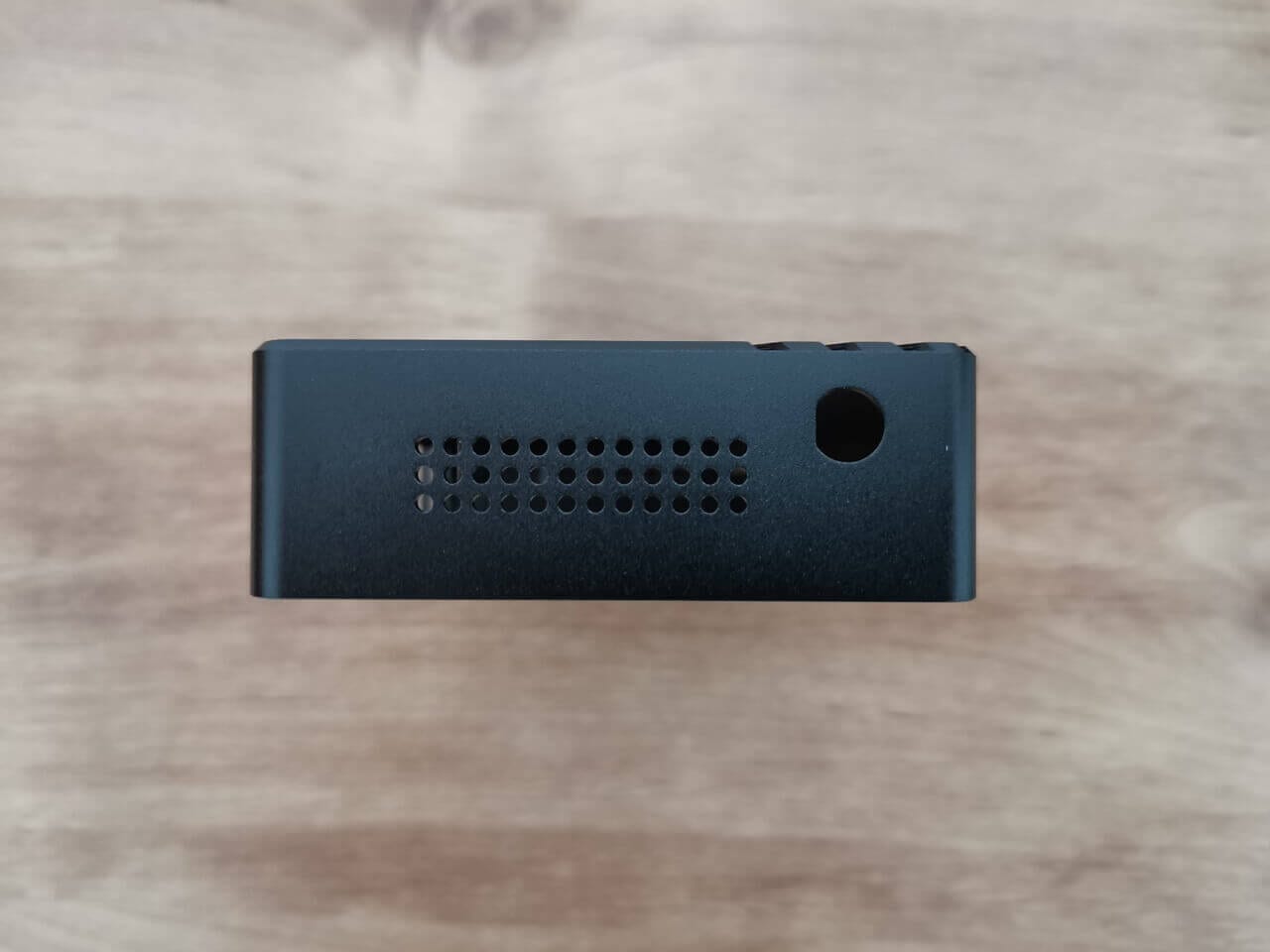

Package No. 2: Metal Case

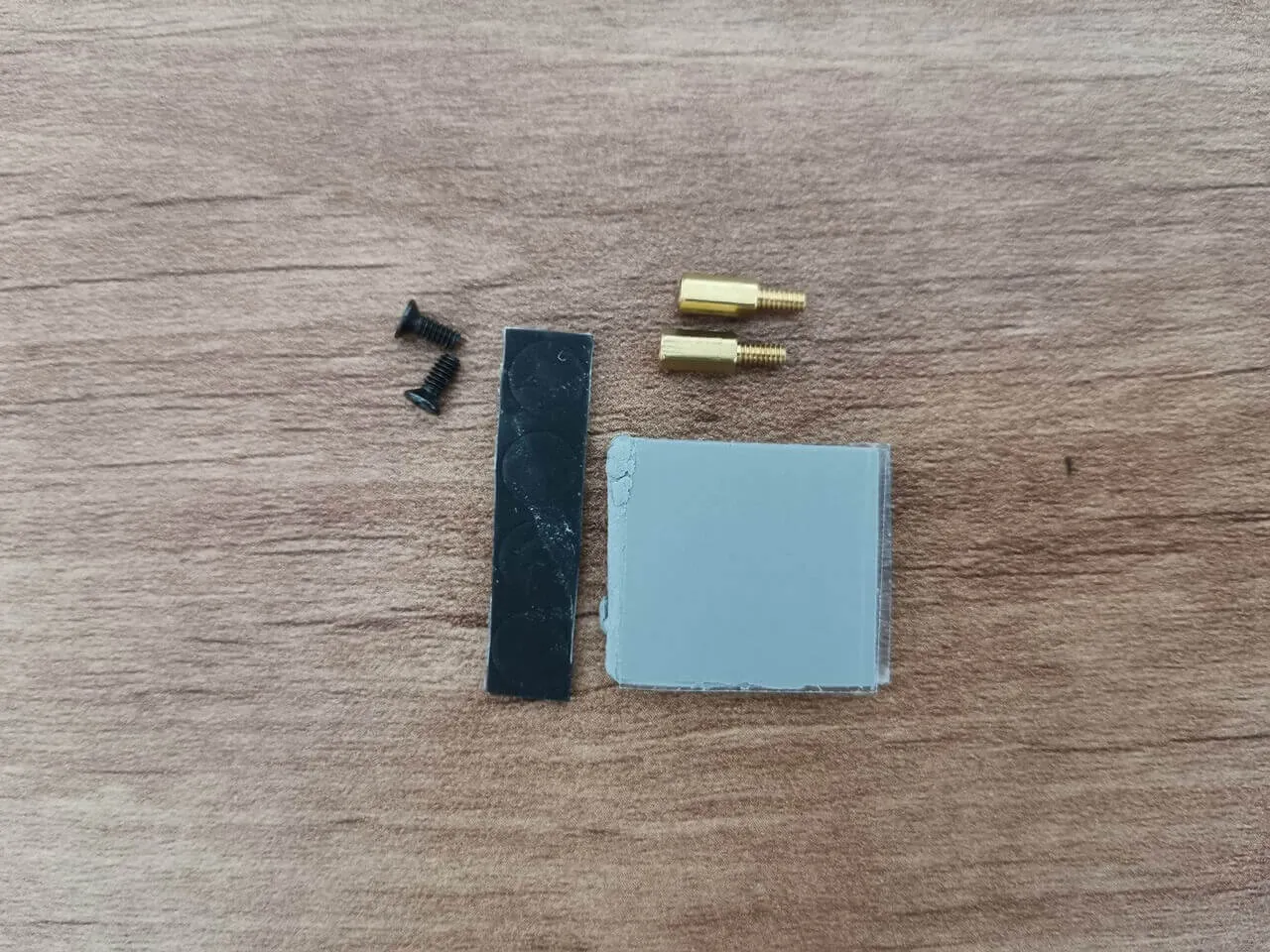

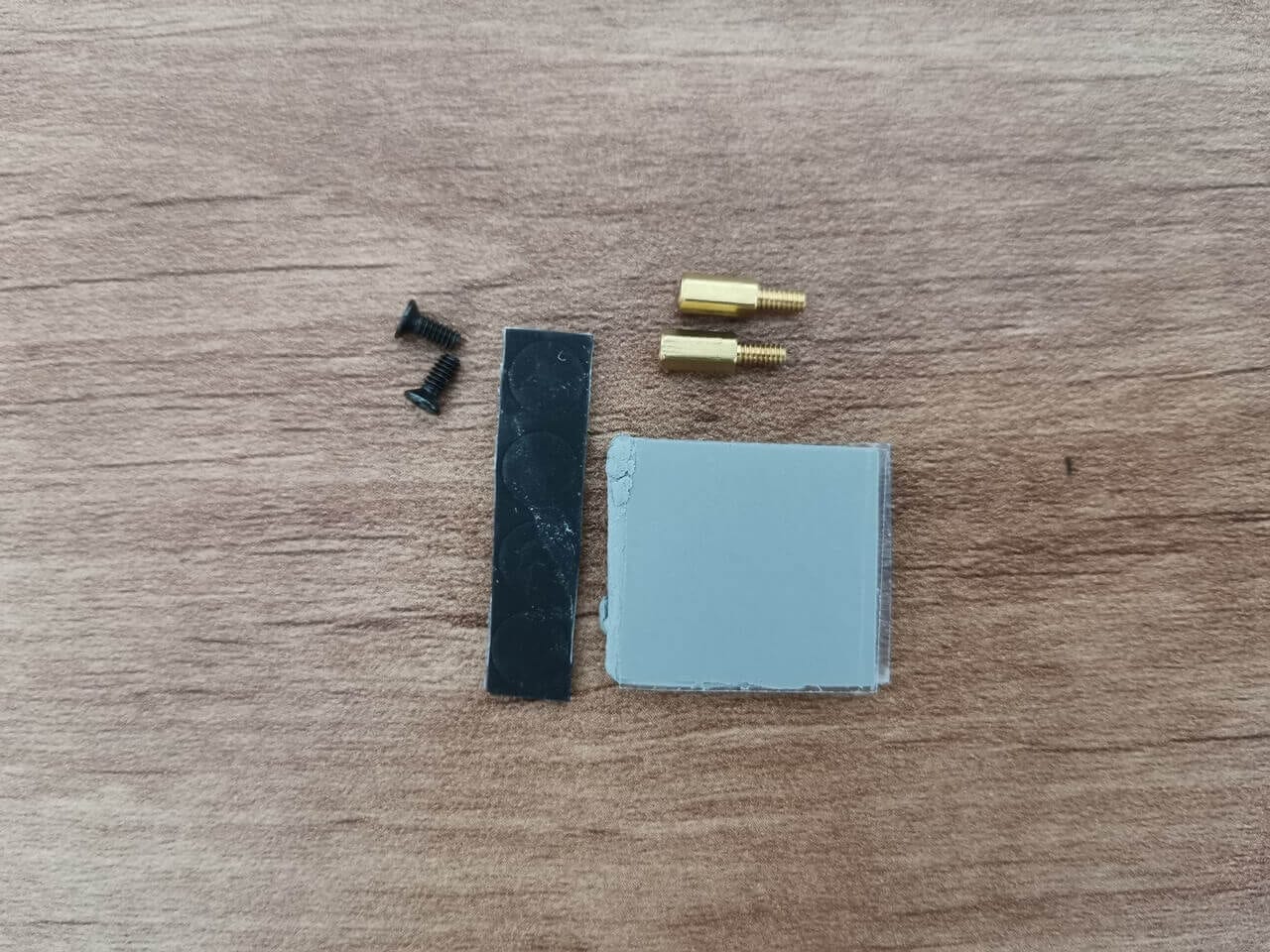

Package Contents:

• 2x Brass Hexagonal Stud (Male female threaded hexagon).
• 4x rubber legs.
• 2x Phillips Screw.
• 1x Thermal Pad.

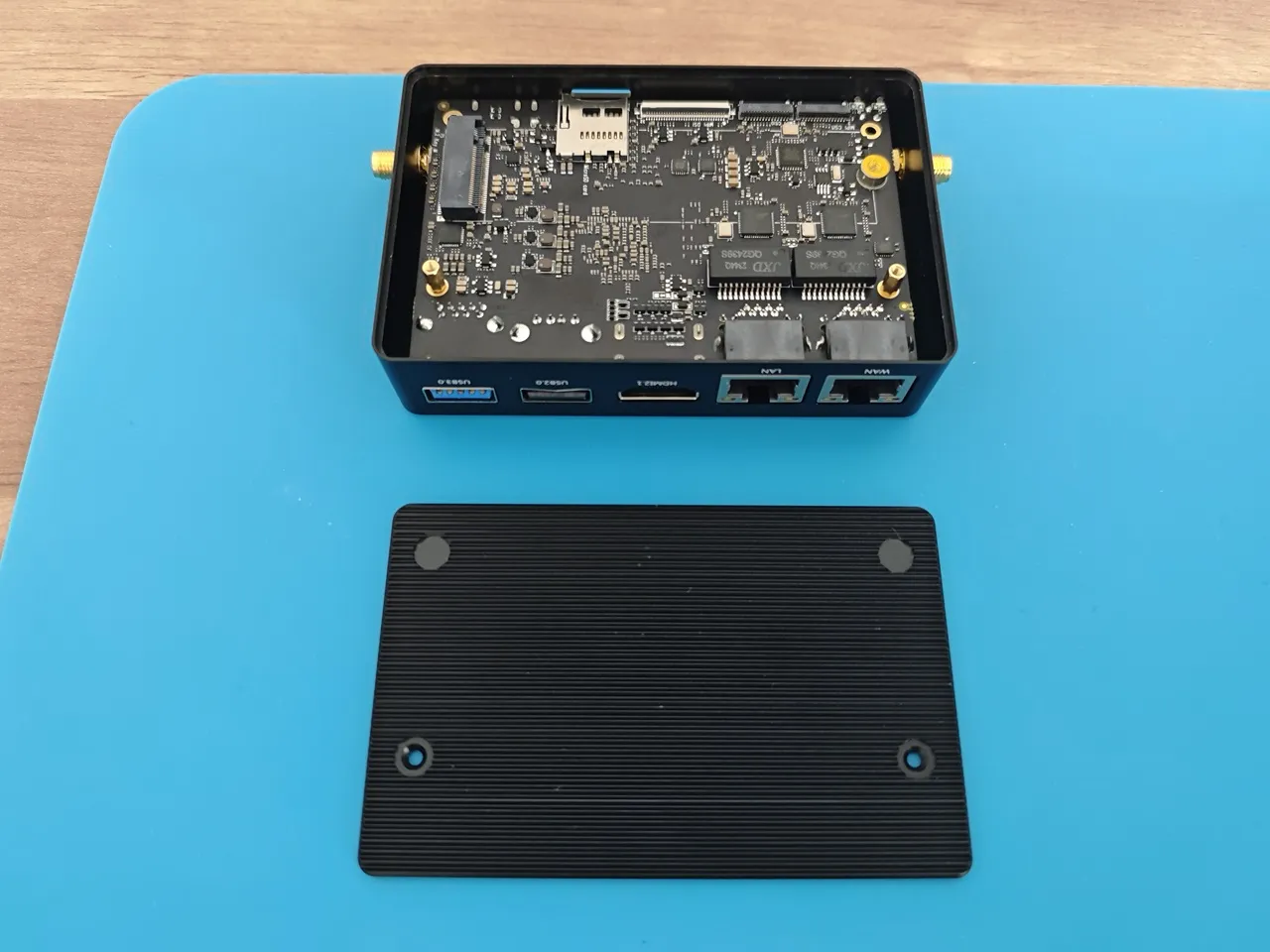

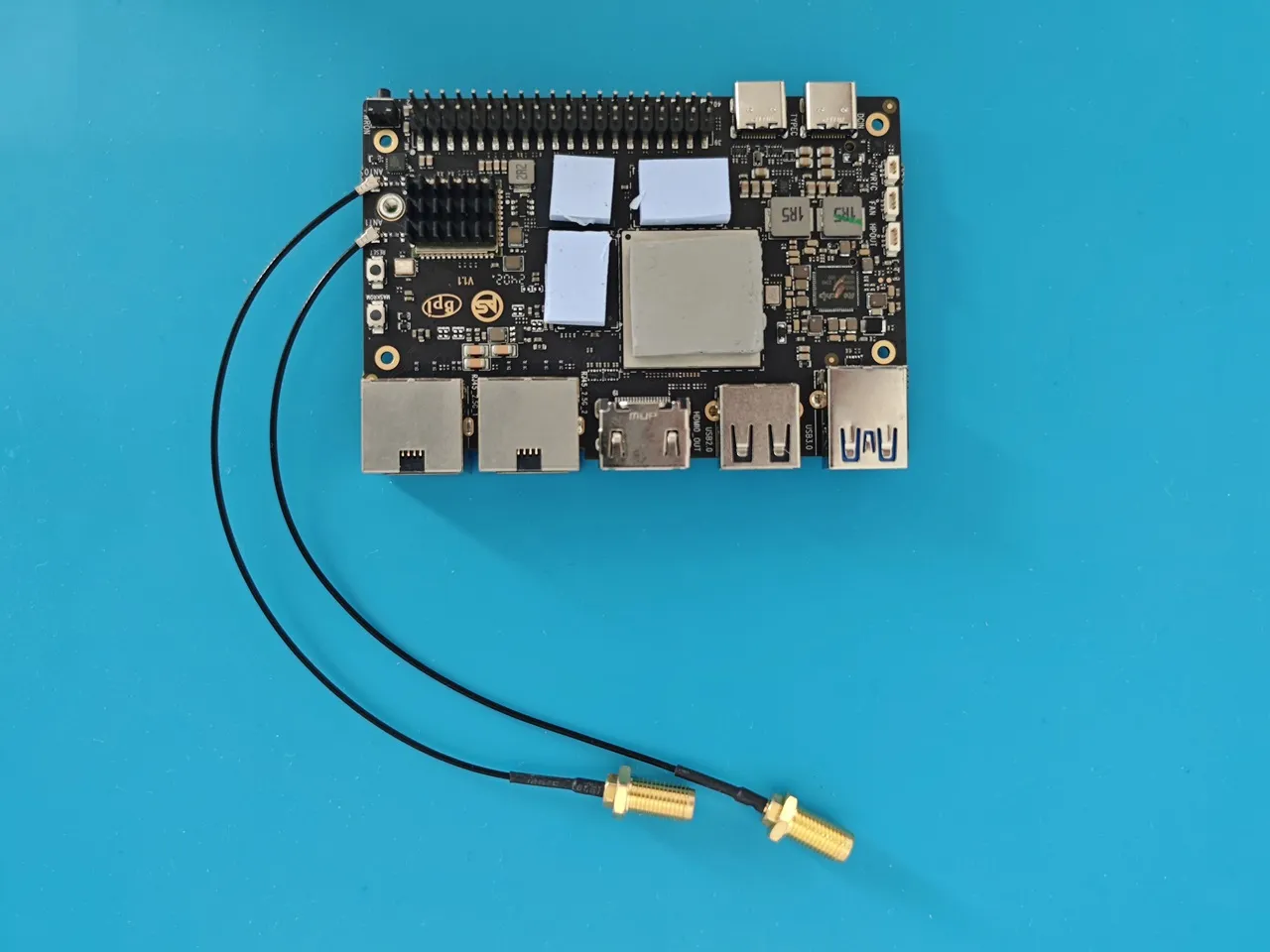

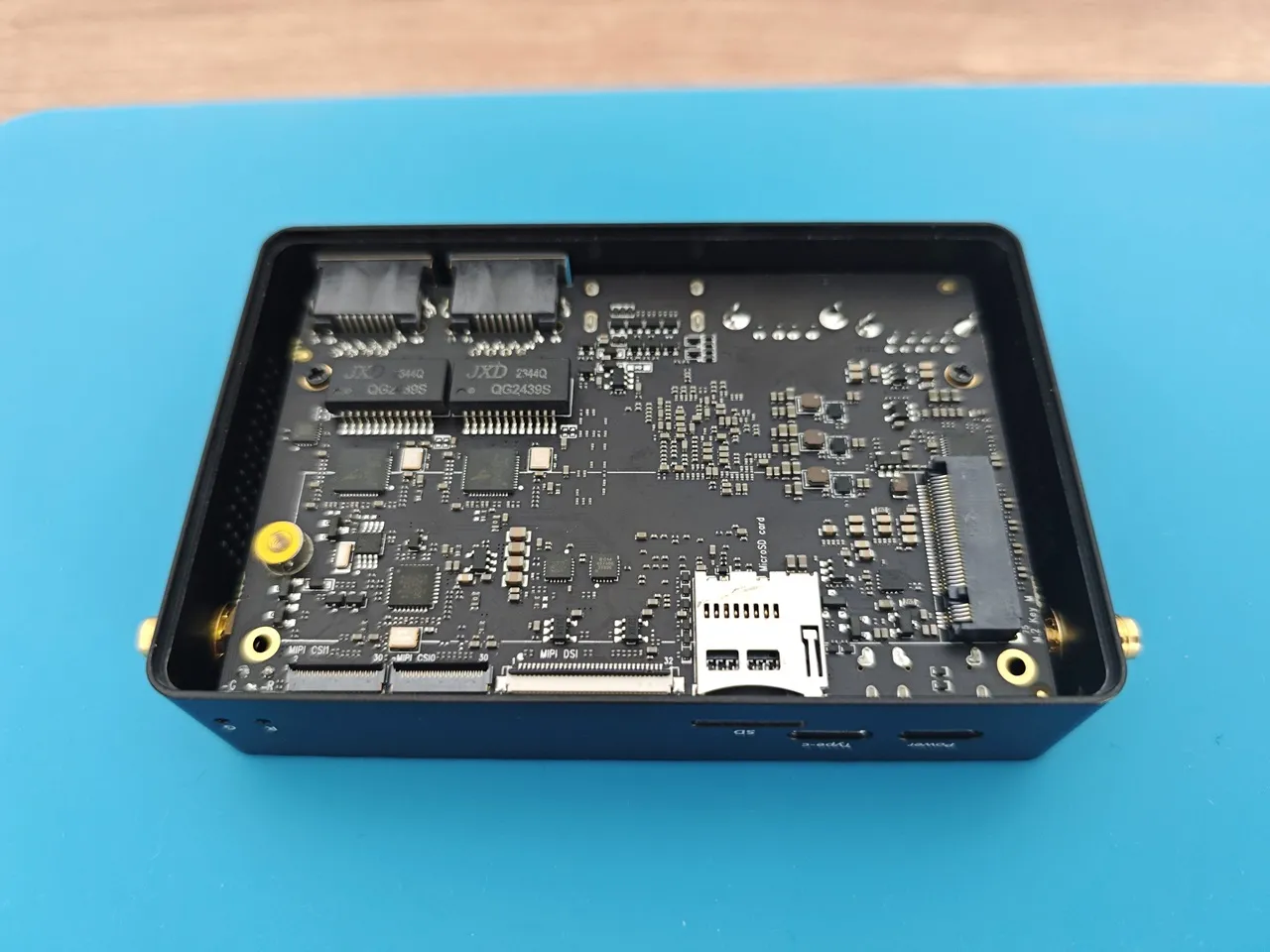

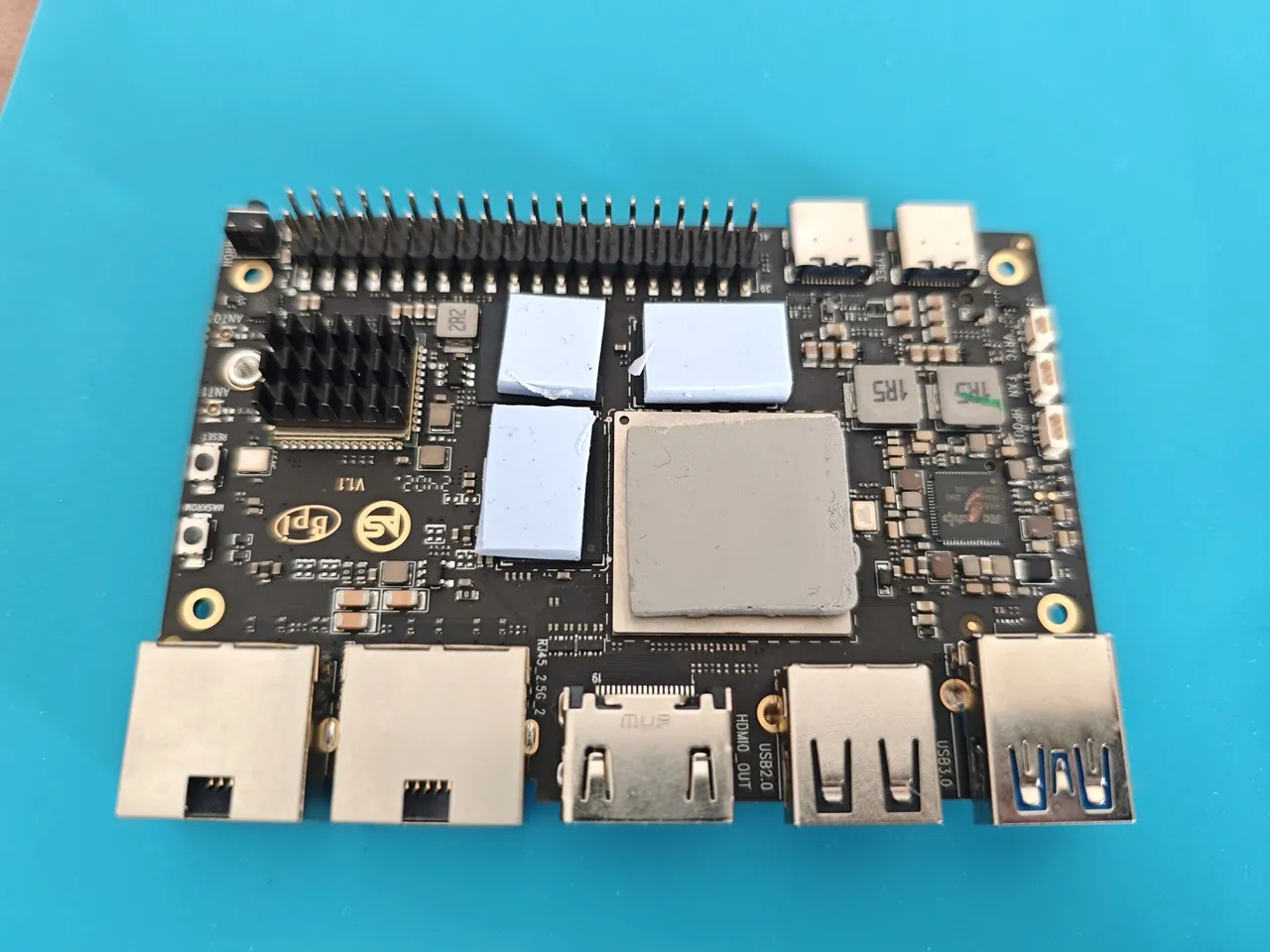

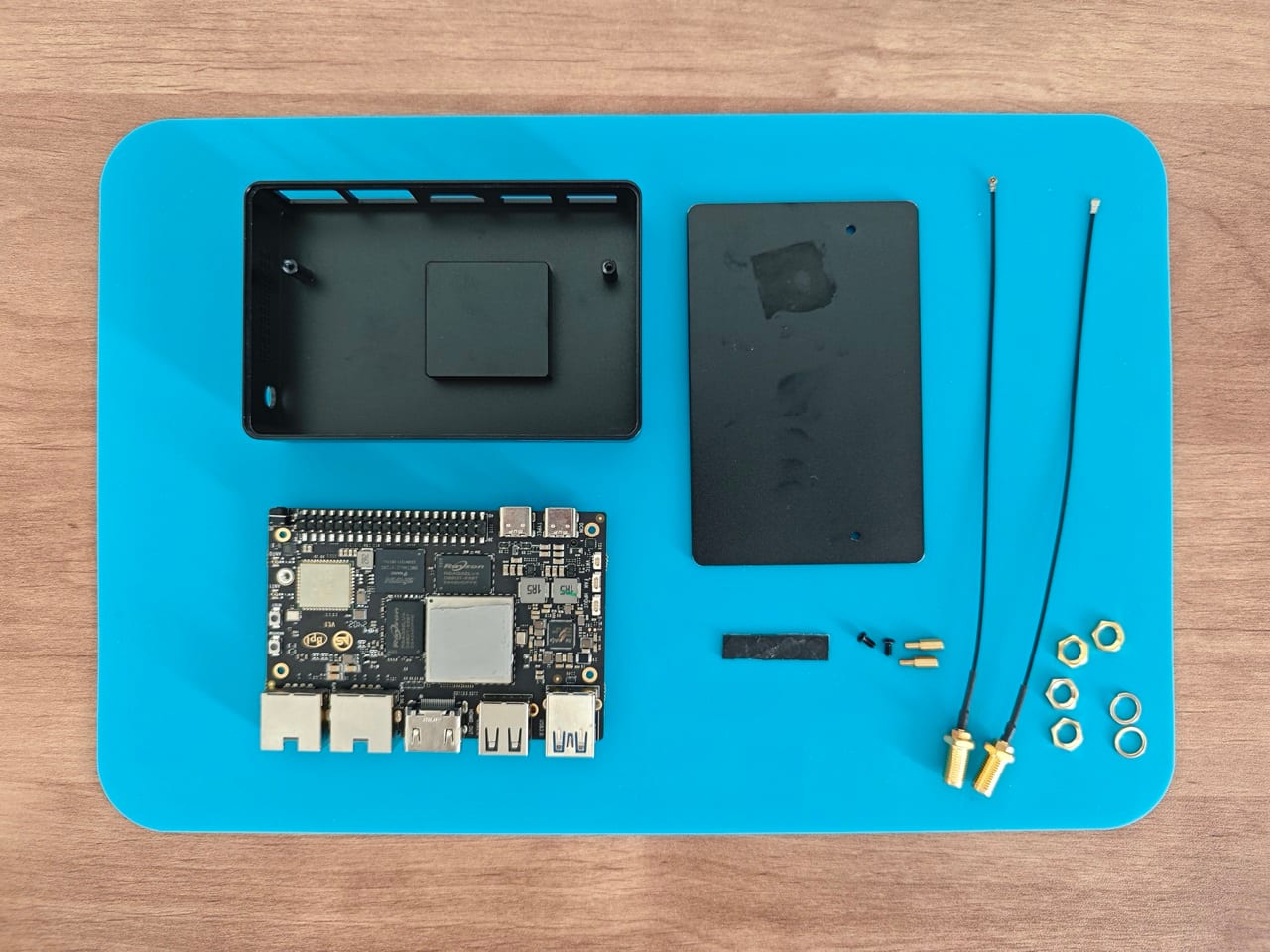

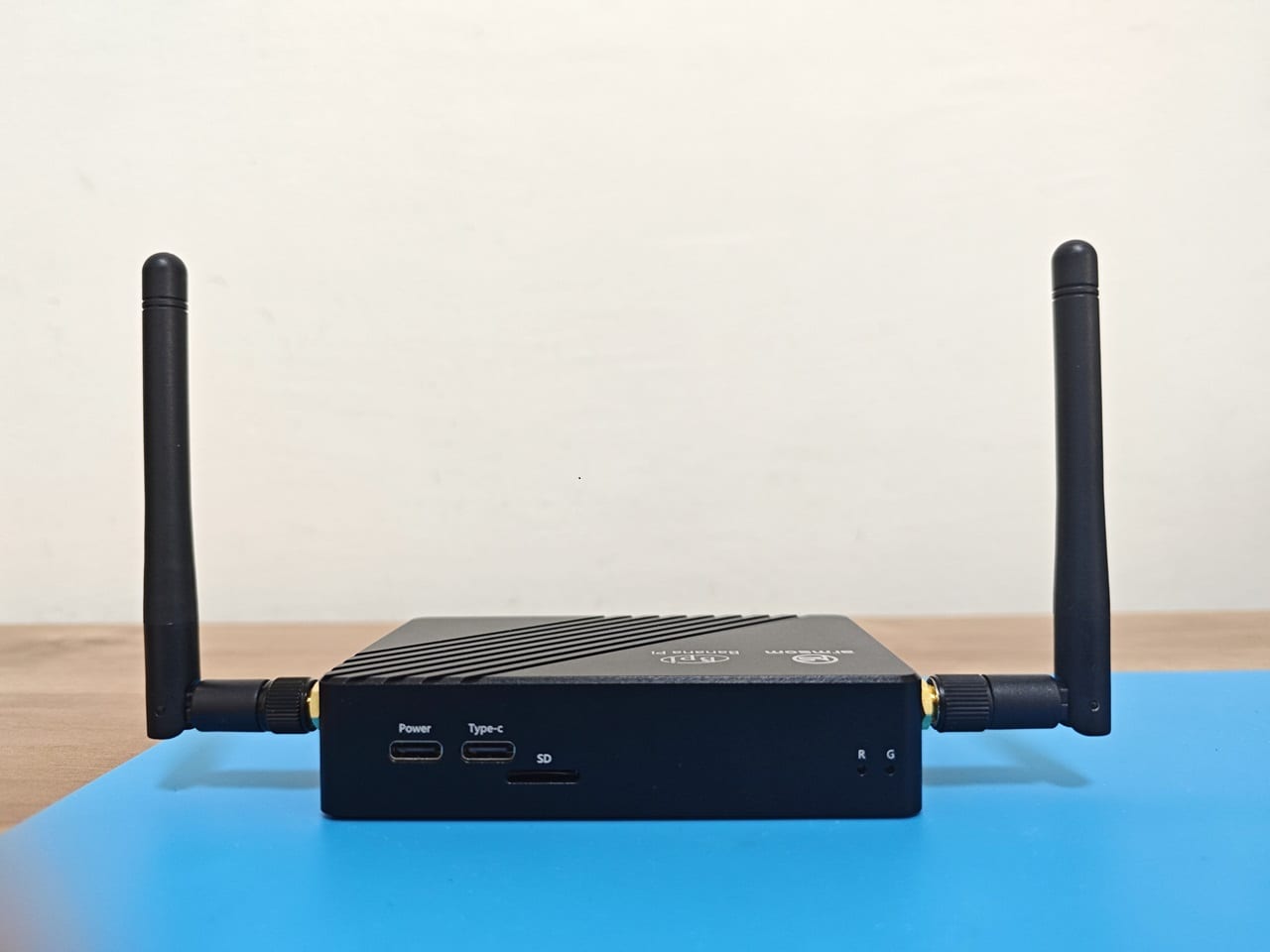

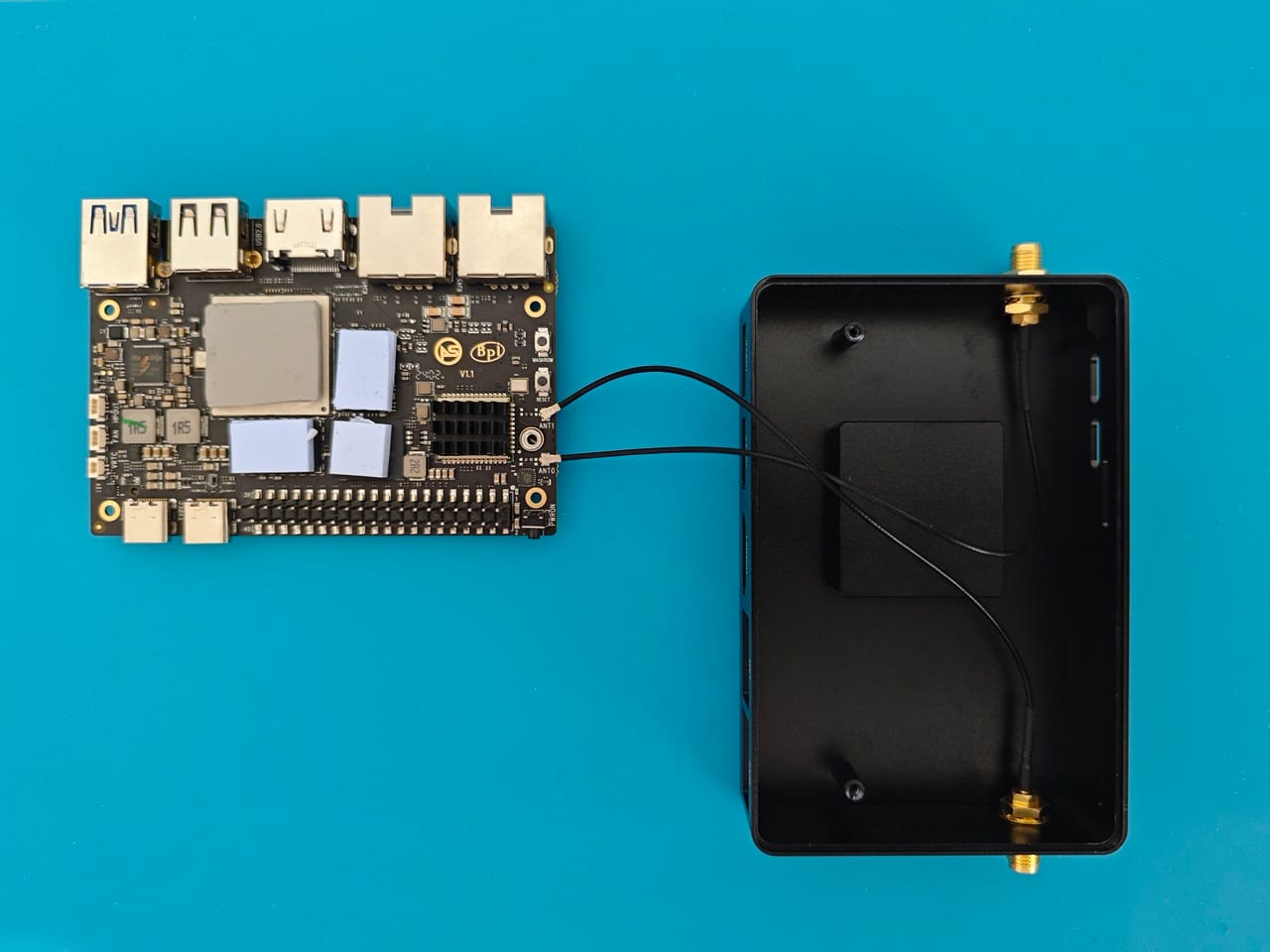

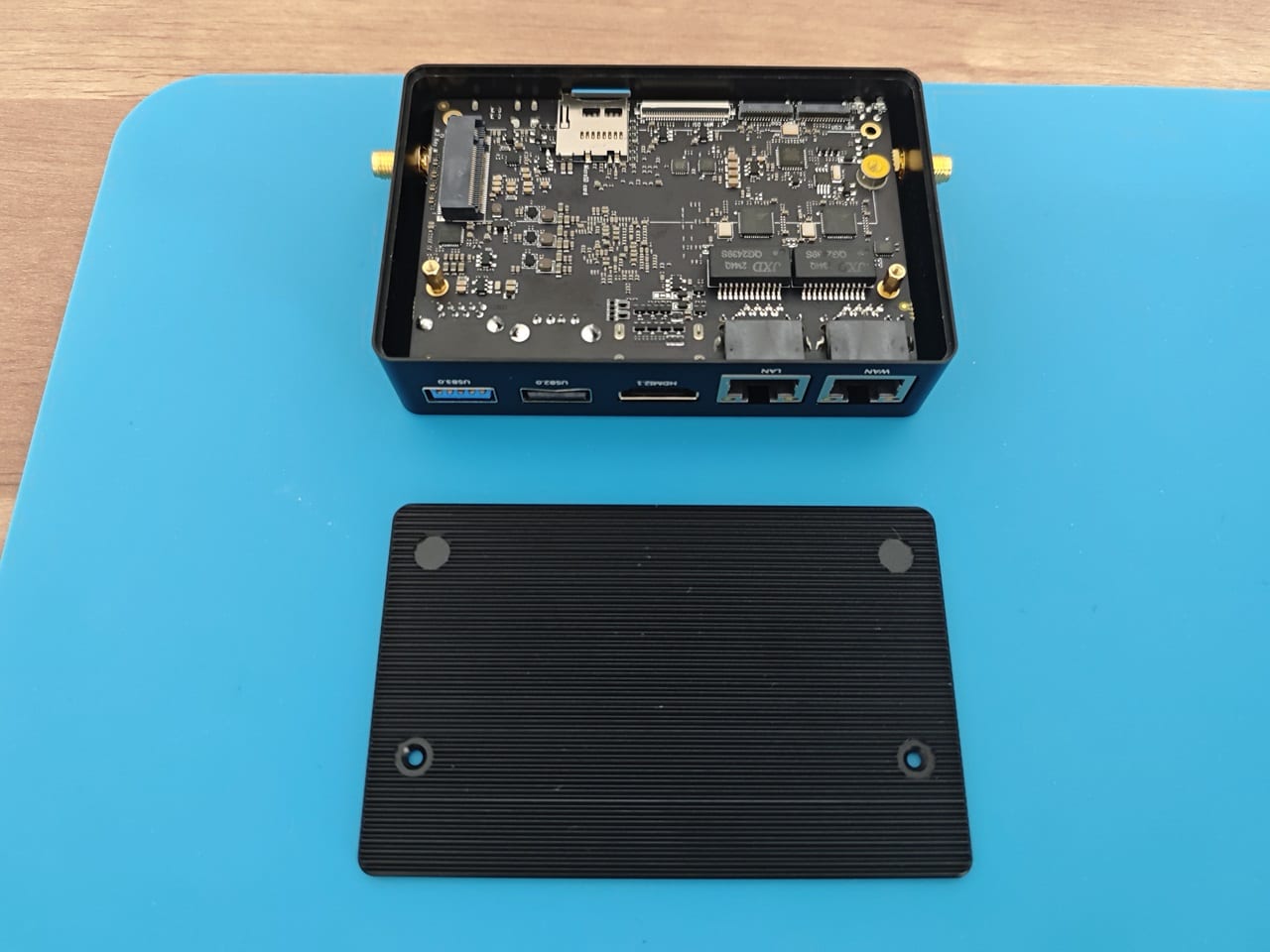

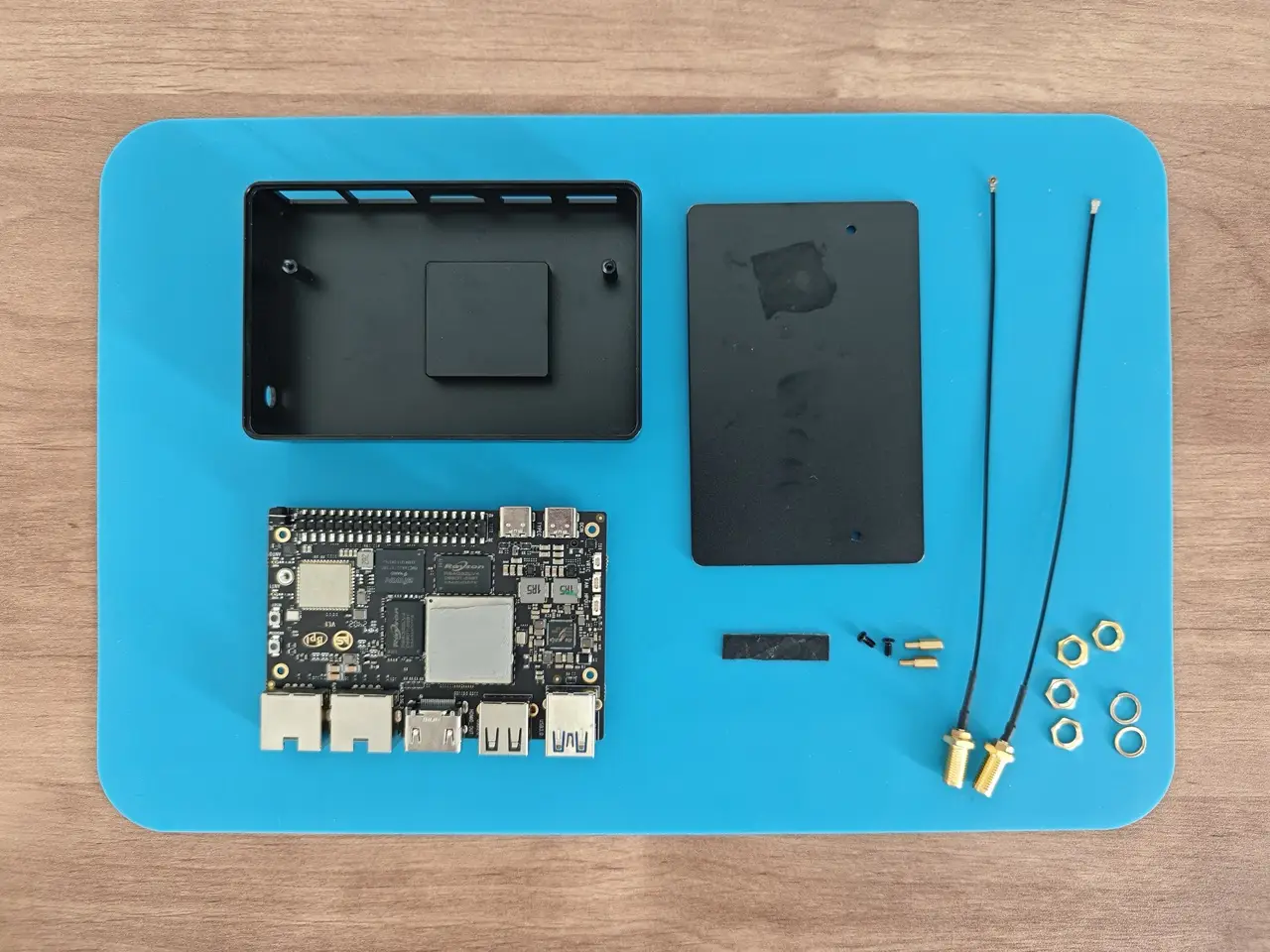

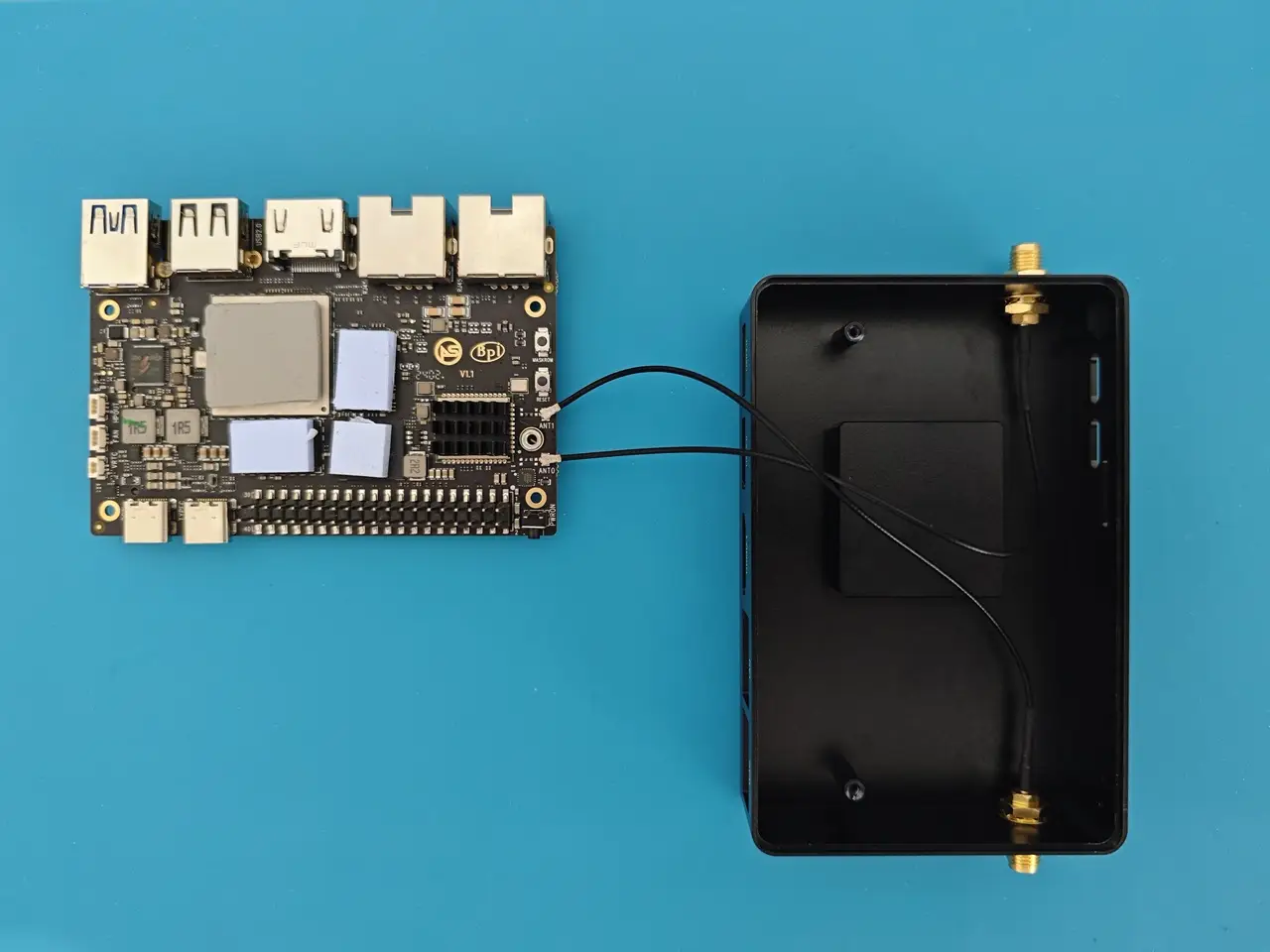

Assembling all the items together.
