Xiaomi Mi AIoT AX6000 Review

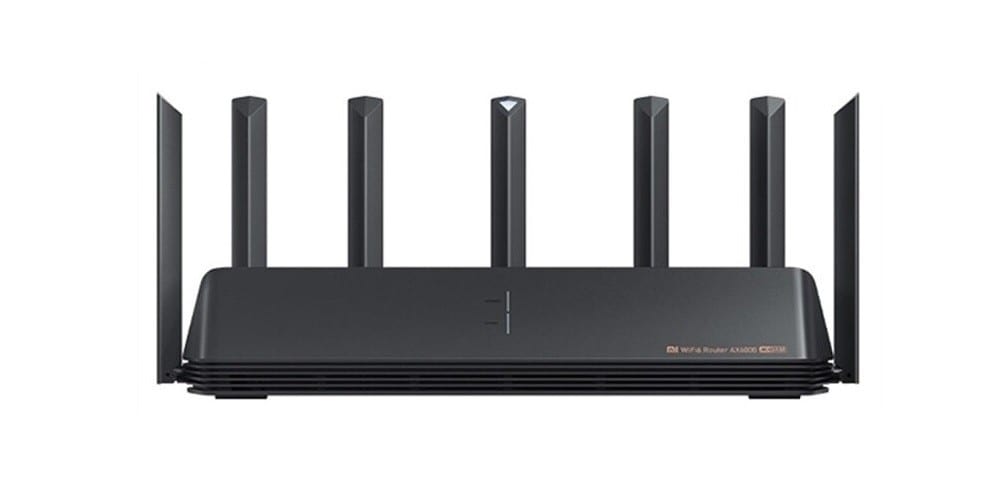

Announced on December 28th, at the Xiaomi Mi 11 conference, the long-awaited flagship router product finally arrived as scheduled. This is the Xiaomi Mi AIoT AX6000. It is almost the same in appearance design as the previous generation, but although it has the same ID design, you can feel the huge progress of this generation “from 3600 to 6000” in terms of numbers.
Xiaomi Mi AIoT AX6000 – Hardware
The Xiaomi Mi AIoT AX6000 runs MiWiFi ROM based which is based on a popular open-source OpenWRT framework, powered by a snappy dual-core Qualcomm IPQ5018 processor along with a 1.0GHz Network Processor Unit (NPU). It comes with 512 MB RAM and 256 MB of internal storage.
Comparing the CPU parameters of the two, the official website gives different ones. The Xiaomi Mi AIoT X3600 is a quad-core a53, and the frequency is 1.4G. The price is great, but the parameters of the new AX6000 are a bit ambiguous compared to the Xiaomi Mi AIoT AX6000 dual-core a53 CPU which operates at a lower frequency of 1.0GHz.
According to Xiaomi, it’s capable of supporting 248 devices simultaneously. Most none power users will mainly benefit from improved bandwidth, but Xiaomi enthusiastic fans already using Xiaomi home appliances will definitely find this router very useful to control and manage all of their devices under the same user-friendly Ecosystem platform.

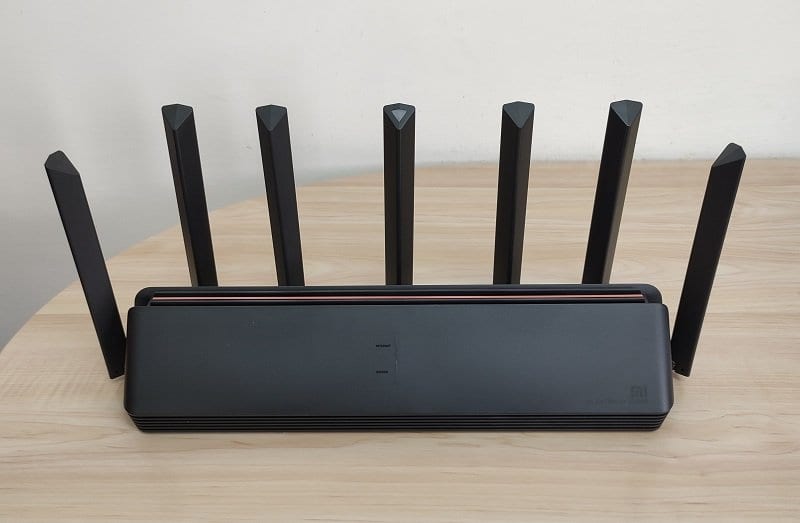

Mi AIoT Router AX3600 (Previous Model)
Xiaomi Mi AIoT AX6000 – Interfaces

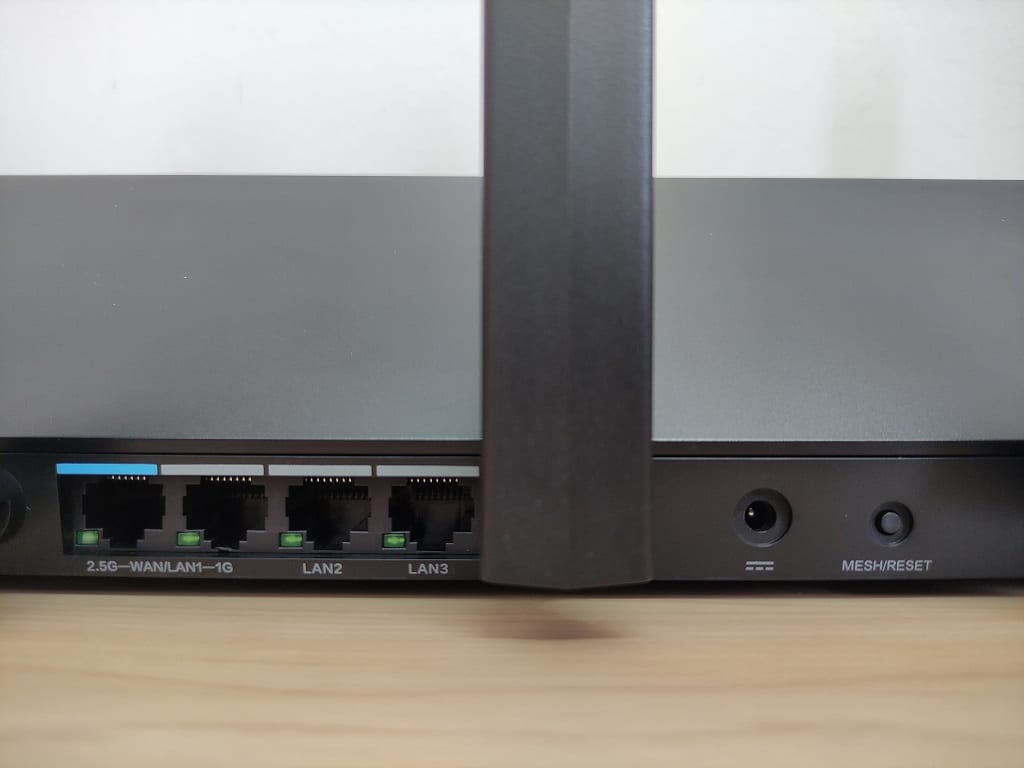

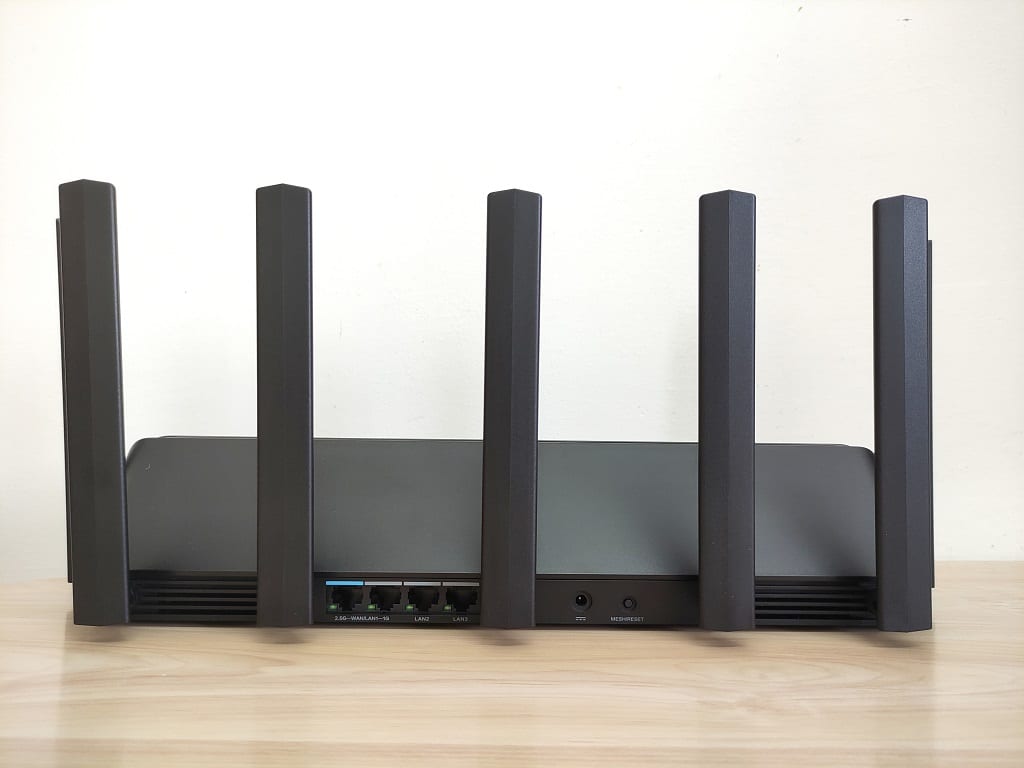

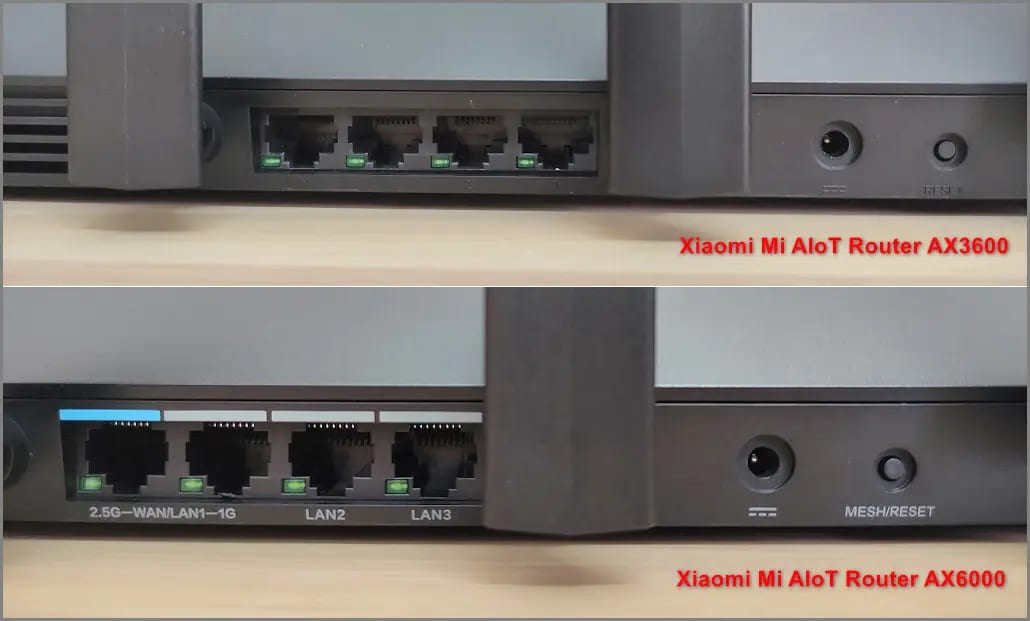

On the back of the Xiaomi Mi AIoT AX6000, you will find 4 network ports. The router is equipped with one 2.5GbE WAN/LAN adaptive network port, along with three LAN ports surpassing the standard Gigabit Ethernet ports found in traditional routers.
Xiaomi added a new 2.5GbE Ethernet port that can better serve the needs of users for feature broadband upgrades in the years ahead. Another change compared to the previous Xiaomi Mi AIoT AX3600 model is the all-in-one reset and mesh button that was also added and the new labeling of the ports is greatly improved and more clear to understand from a user standpoint.
The Less Positive
According to the official product specifications, the Xiaomi Mi AIoT AX6000 router comes with one 2500M WAN Ethernet port, while the rest remaining 3 LAN ports are 1Gb type, which raises some questions about this poor selection of Ethernet ports.
If only the input WAN port is capable of reaching 2.5Gb at best, then the throughput of other devices connected to the other 1Gb ports will be able able to reach a maximum throughput of 1Gb. The point here is that having a high through WAN port will not help you achieve real transfer speeds closer to 2Gb or above it.

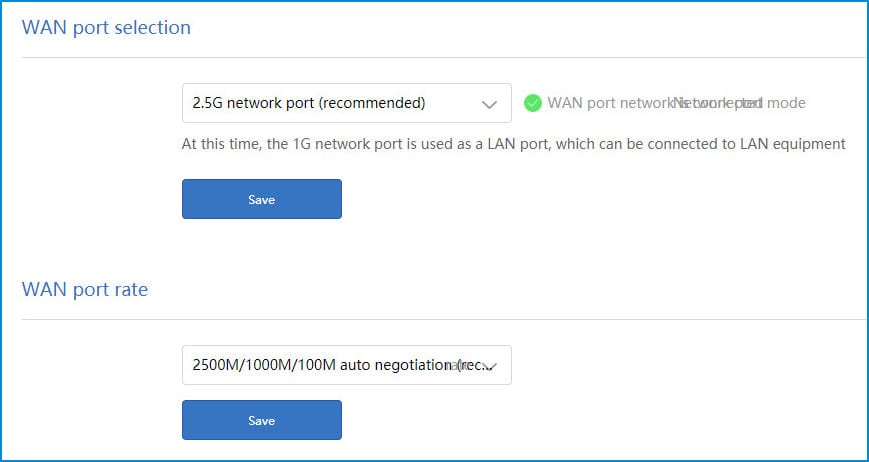

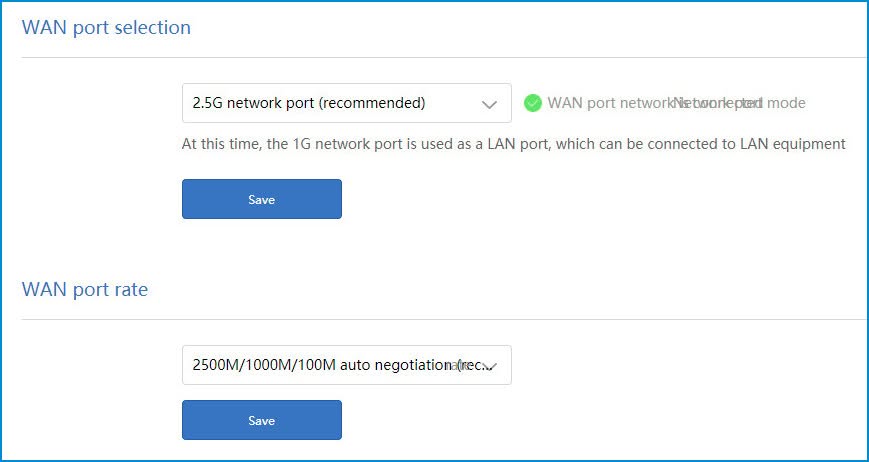

Under Xiaomi AX6000 Settings, you will find a WAN port option for toggling between 1Gb/ 2.5Gb and also specify the preferred port rate.
Xiaomi Mi AIoT AX6000 – IoT Connectivity
The new predecessor of the Xiaomi Xiaomi Mi AIoT AX3600, the Xiaomi Mi AIoT AX6000 featured a total of 7 external Antennas, including 1 IoT which is dedicated to the Internet of Things products. It comes with x2 2.4GHz antennas, and x4 5GHz antennas to ensure a wider signal coverage and further enhance wall penetration performance.
Xiaomi Mi AIoT AX6000 – Build With X6 Built-in Amplifiers
Integrated with a 6-channel external signal amplifier. At the same time: the 2.4GHz band and 5GHz band are equipped with 2 and 4 external high-performance signal amplifiers (PA power amplifier + LNA low noise amplifier). The power amplifier effectively enhances the signal transmission power, so that the signal transmitted by the router can be transmitted further, and the low noise amplifier can improve the signal receiving sensitivity so that the router can receive weaker signals.
XiaoXiaomi Mi AIoT AX6000 – Extra Security
As a new generation Wi-Fi6 router, Xiaomi AIoT router AX3600 supports the WPA3 encryption protocol, which greatly improves the security of the router. The Xiaomi AIoT router AX3600 also supports the IPv6 protocol. IPv6 has a larger network address space. As more and more resources are deployed on a global scale to support IPv6 access.
Xiaomi Mi AIoT AX6000 – Materials

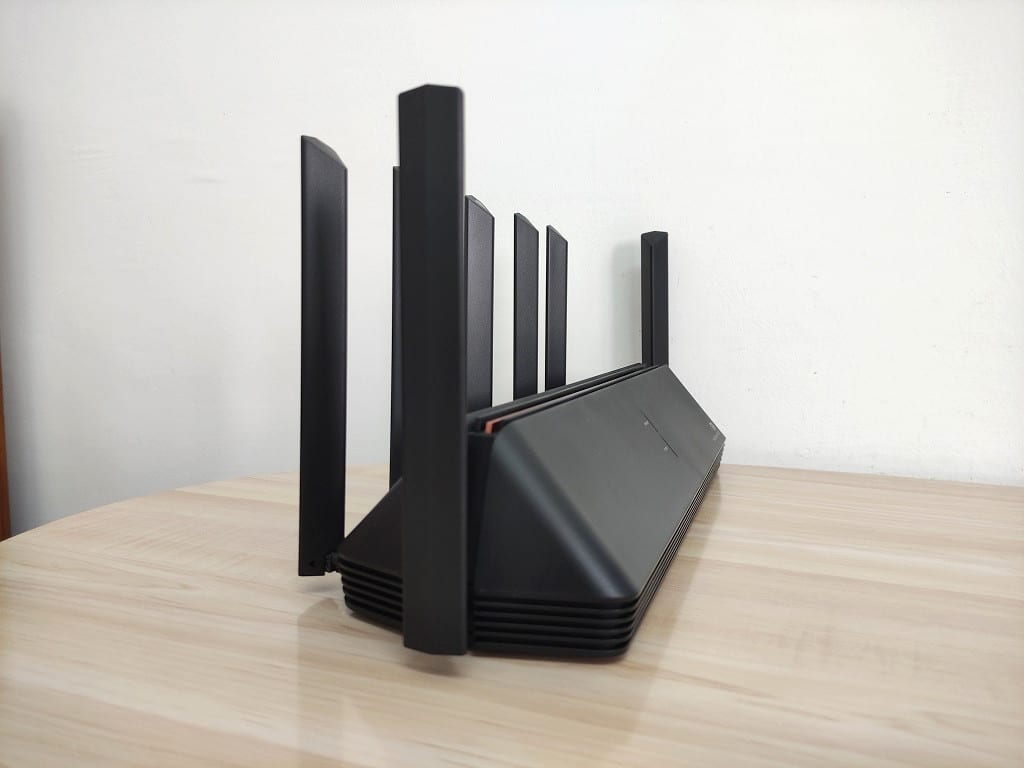

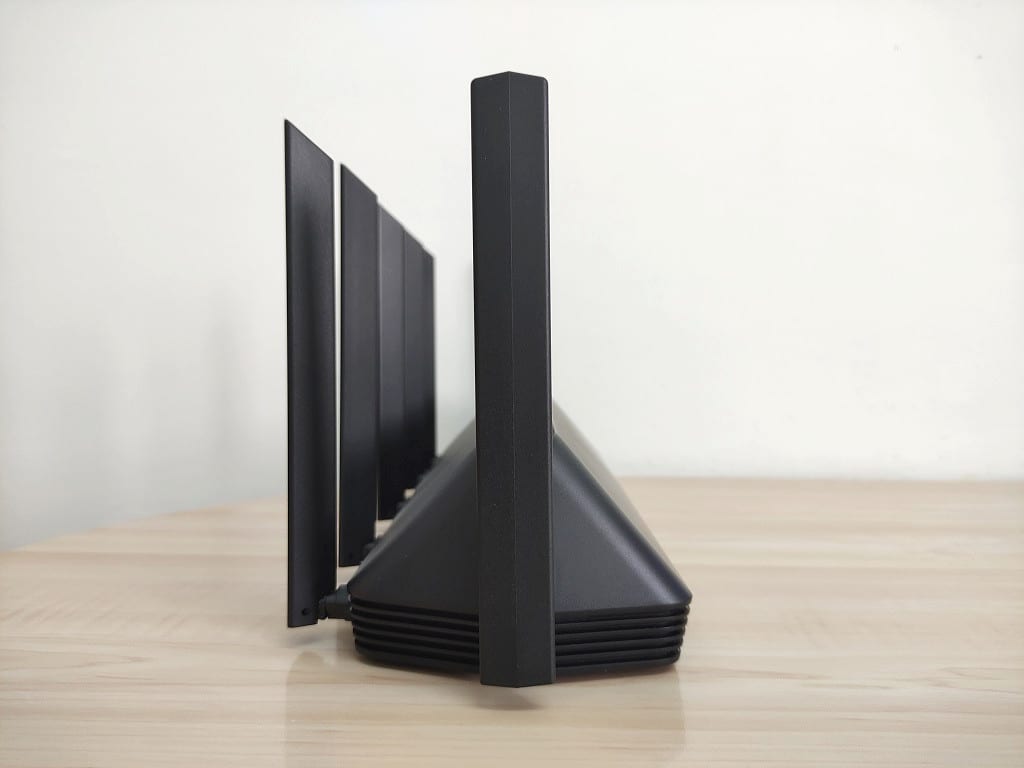

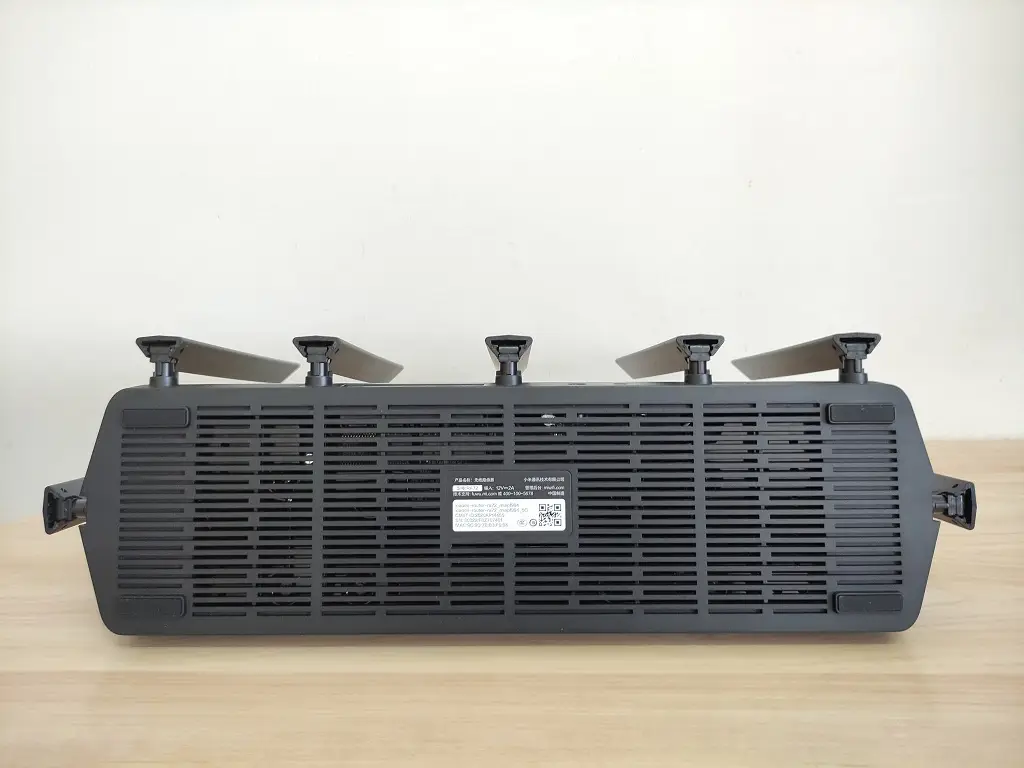

The router is made of ABS material, which has a strong sense of plasticity and poor touch. From the side, the router body is triangular. If you think about it carefully, the different generations of Xiaomi routers are completely different in design and there is no continuity you are wrong. It’s not as compact in size compared to the AX1800 with the tower-shaped style design. Some users would find it problematic placing the device in crowded places such as a shelf or on a table, but the high-level specs justify the device size.
Higher Bandwidth Benefit
Xiaomi states that the router can supply up to 574 Mbps speeds on the 2.4 GHz frequency and up to 4804 Mbps on 5 GHz. The Xiaomi router AX6000 supports Wi-Fi 6 enhanced technologies and further supports 4×4 160MHz high-frequency bandwidth, which is doubled again compared to the current mainstream Wi-Fi 6 4×4 80MHz bandwidth.
It is also the world’s first to support the most advanced 4K QAM high-speed transmission technology to date, further compressing the data density, allowing the amount of data transmitted at the same time to increase by 20% compared to the previous generation of 1024 QAM.
The AX6000 router also supports OFDMA technology (Orthogonal Frequency-Division Multiple Access) which allows it to send data to multiple terminal devices using only one transmission.
Wi-Fi 6E Support
Thanks to the Xiaomi Mi AIoT AX6000 Wi-Fi 6 Enhanced technology support its possible to utilize 4×4 160MHz bandwidth to provide a wider channel to make your WiFi faster. Compared with the current mainstream WiFi 6 4×4 80MHz bandwidth, the bandwidth of this current version is doubled and also offers multi-device connectivity. 160 MHz channel utilization capability increases bandwidth to deliver greater performance with low latency.
Xiaomi Mi AIoT AX6000 – Software
The AX6000 router can be used to connect and manage all of Xiaomi’s smart products through ‘Mi Home’ (a mobile app that can automatically detect Xiaomi IoT devices, enabling users to configure and operate them with one click of a button.
You can also use Xiaomi’s second app, named ‘Mi Wi-Fi’ which gives you full control over the router operation. Options such as automatic disconnecting from a local network, firewall settings, real-time connection optimization, applying QoS restrictions/limitations on specific devices, and much more.

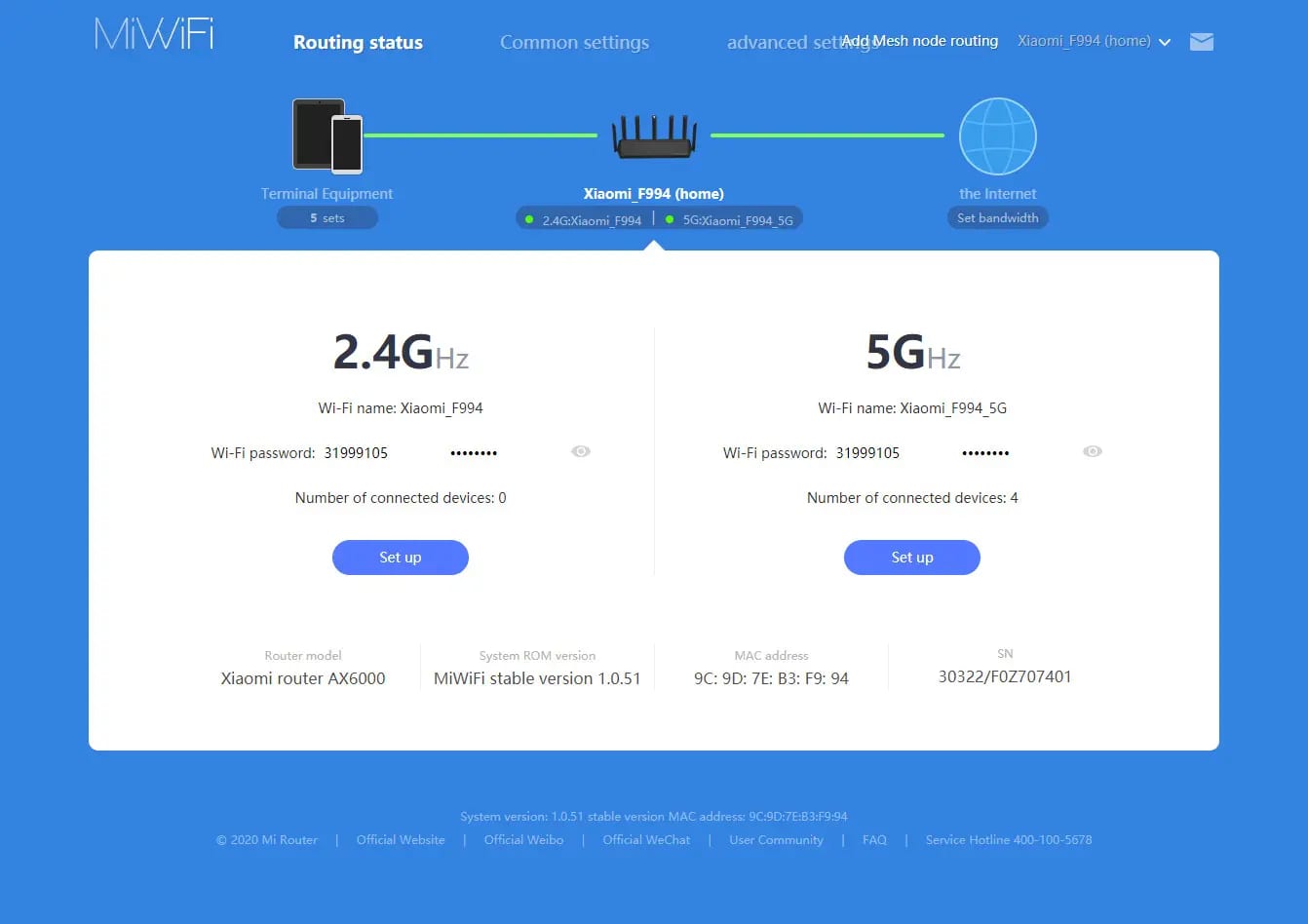

Web Interface Access
Once connected, the router identifies an active internet connection you are automatically redirected to Xiaomi’s main gateway portal. There you need to set your WiFi SSD names and passwords. Depending on your specific needs, You can combine both bands together under a single SSD or configure them separately.
This Xiaomi Mi AIoT AX6000 router edition is designed for the Chinese market. If you want to use the Web-access option, you will need to right-click on the browser and use Google Translate feature built-in in popular browsers such as Chrome browser.
The AX3600 already has an official ROM in English that can also be applied to routers in the Chinese edition, so we expect this to be the case also for this product. Soon or later, a manual upgrade will become available also for the Xiaomi Mi AIoT AX6000, until then you can use the Xiaomi ‘Mi Wi-Fi’ mobile application that offers a wide choice of 55 languages.

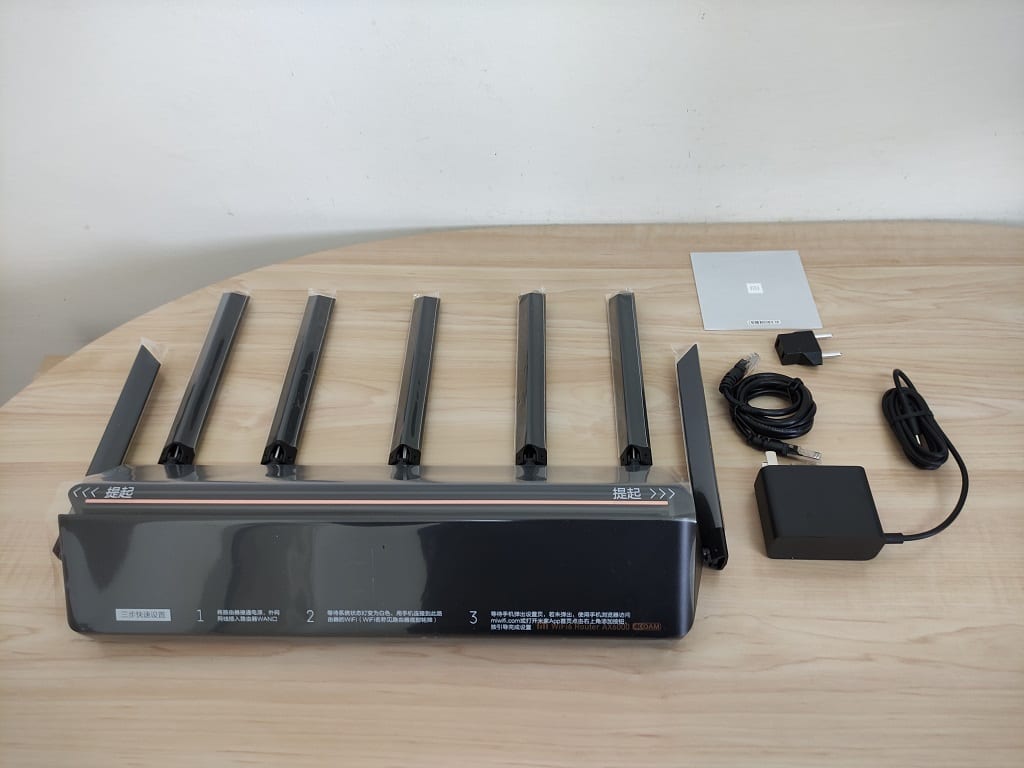

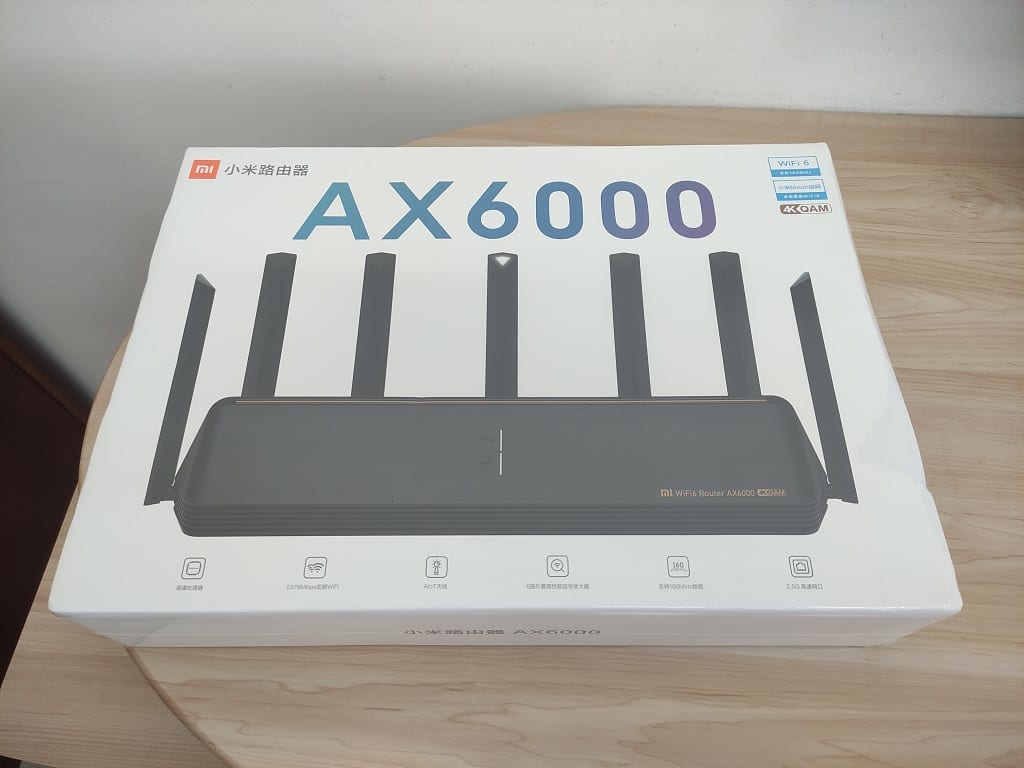

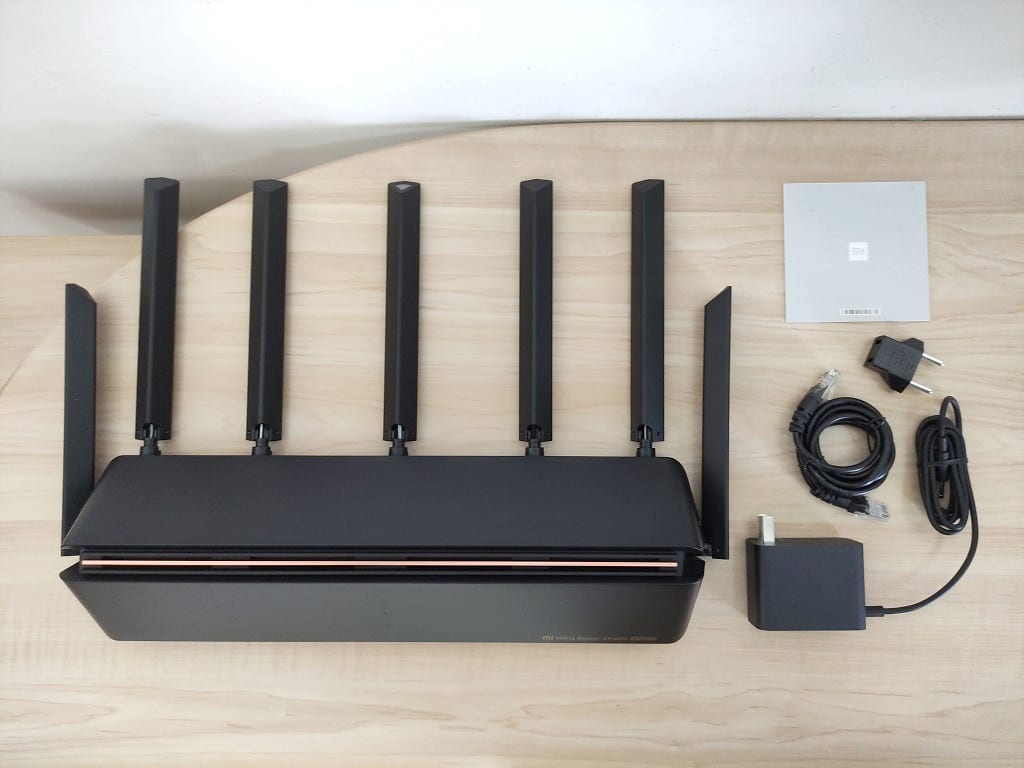

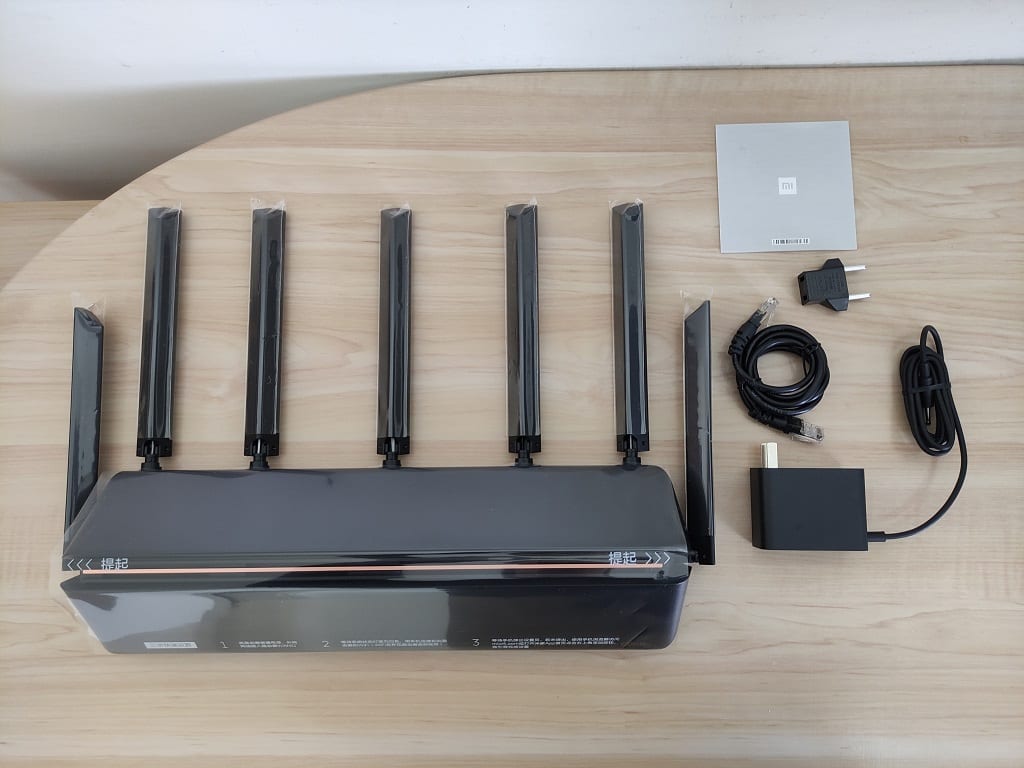

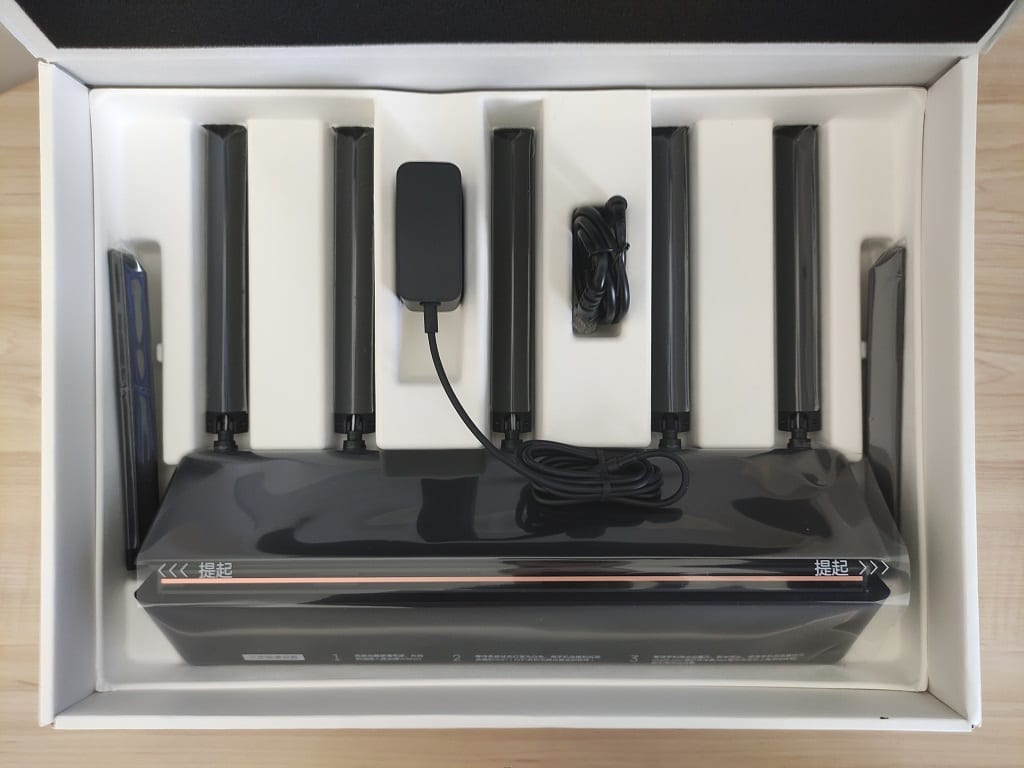

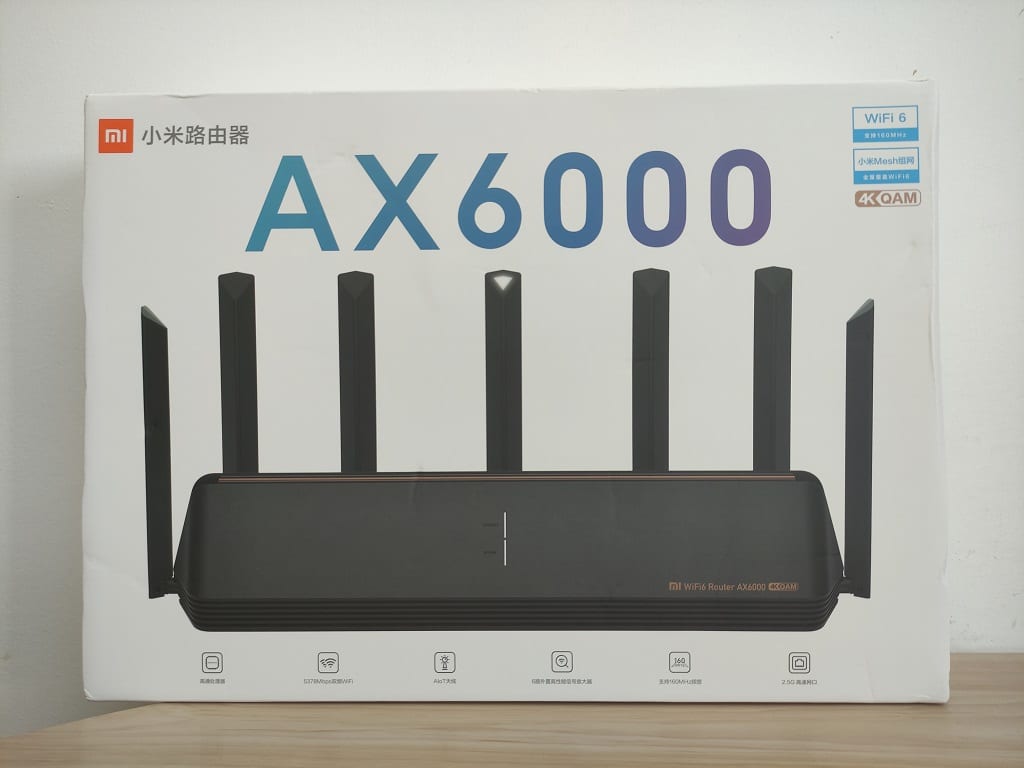

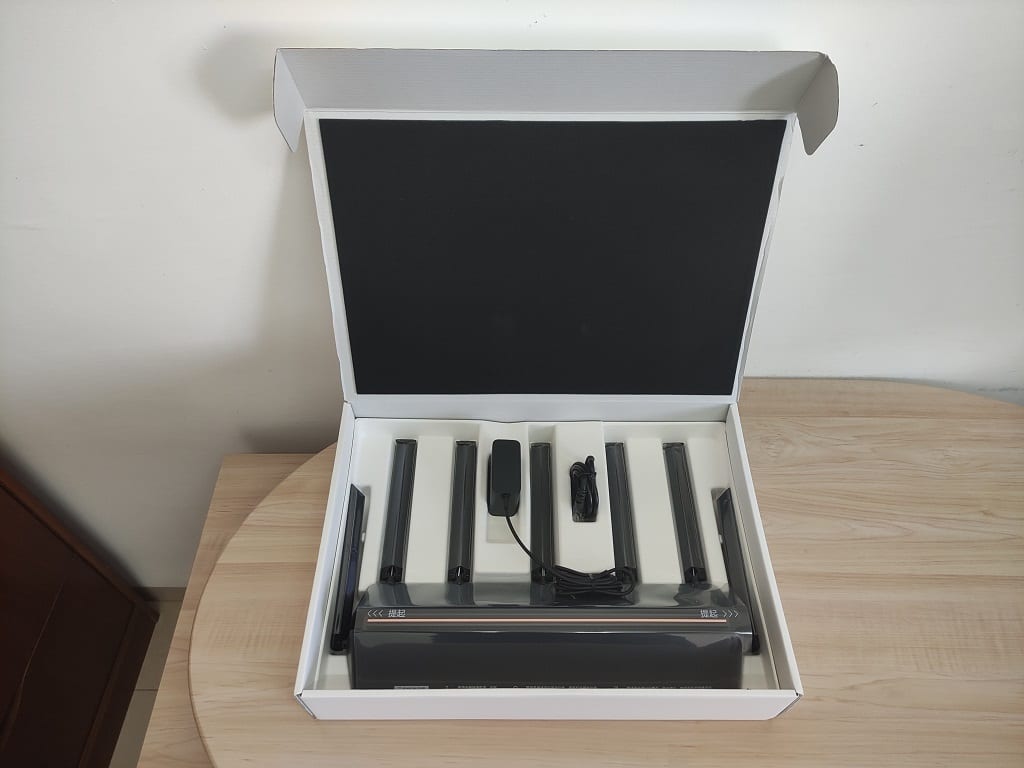

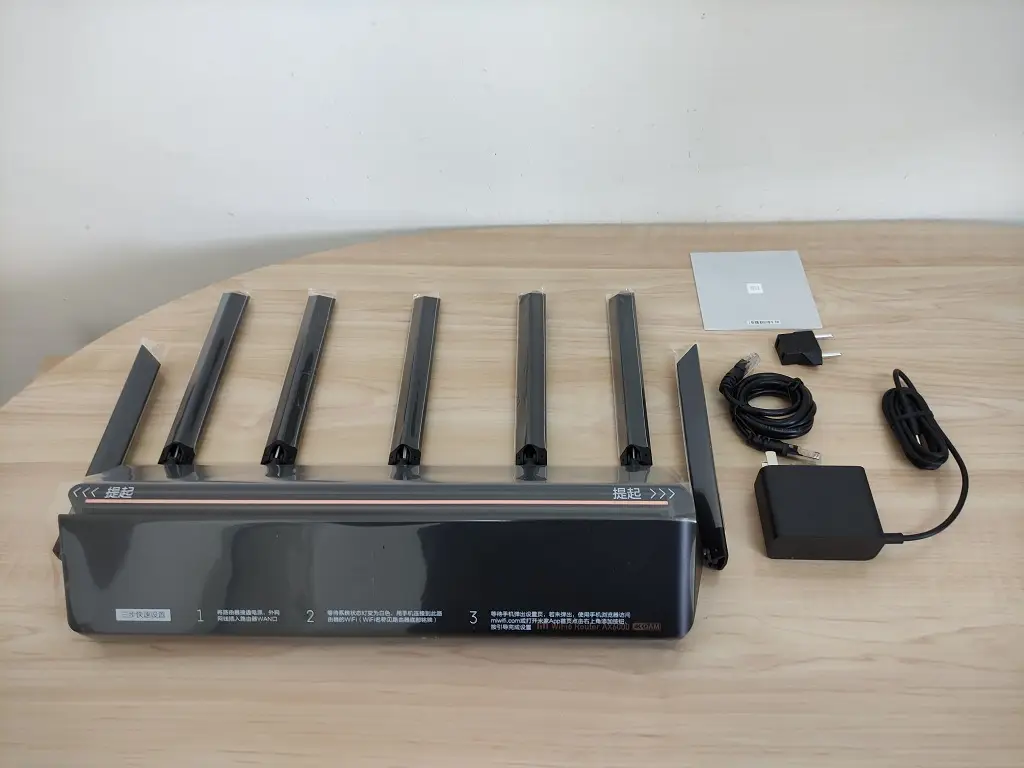

- 1x Xiaomi Mi AIoT AX6000
- 1x Power adapter (12V – 2A)
- 1x User Manual
- 1x Cat 5e Ethernet Cable
- 1x US to EU converter Adapter (Not included in the package).
Design [ New vs. Old]

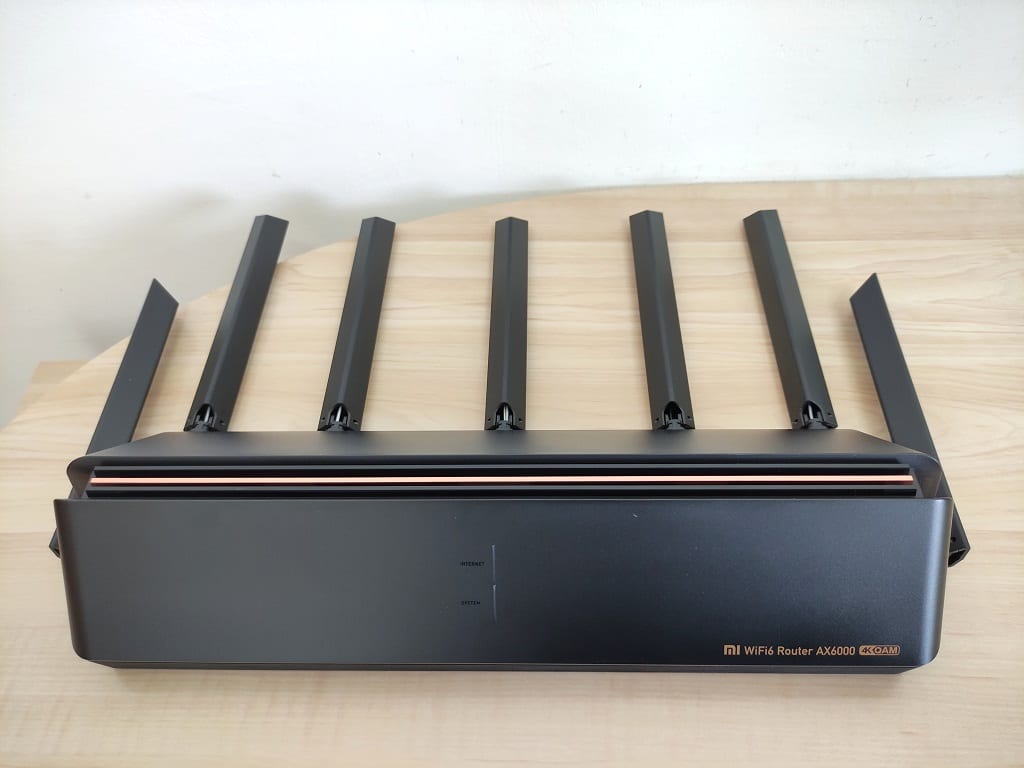

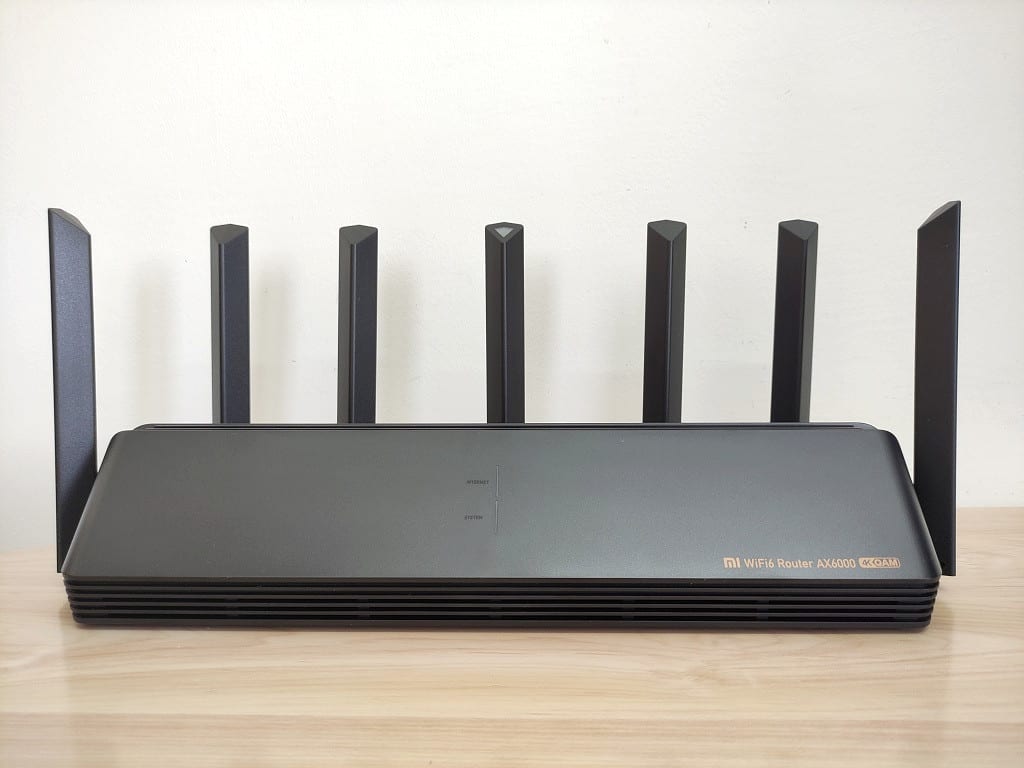

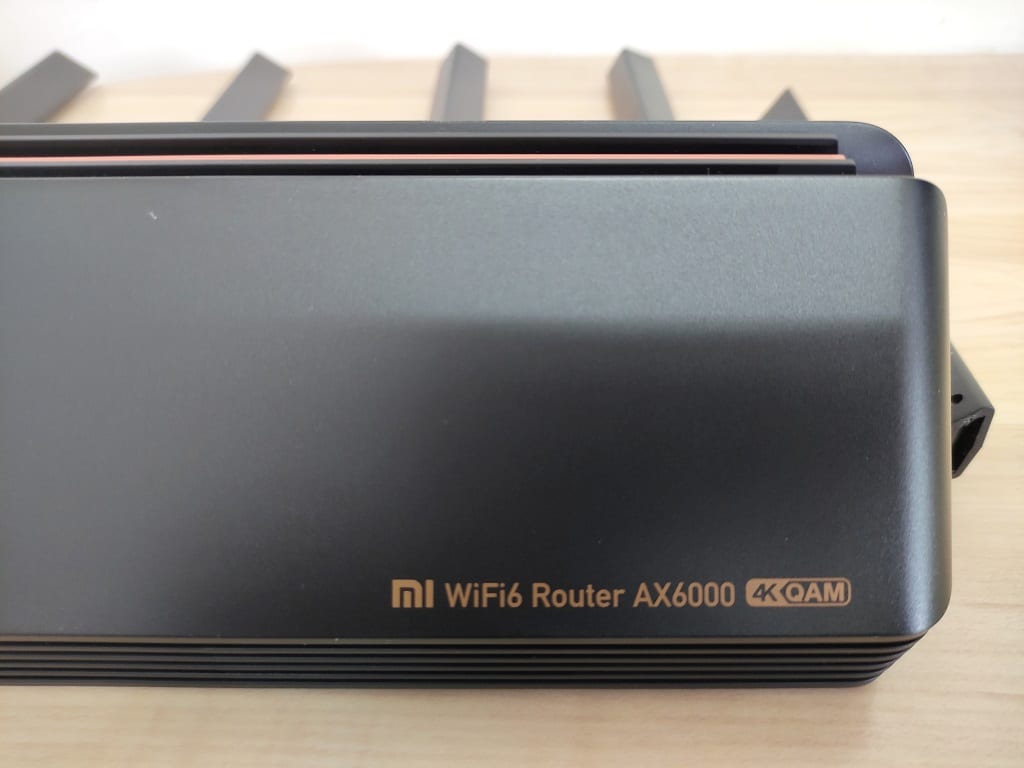

Focusing on externals. The appearance of the Xiaomi Mi AIoT AX6000 is almost exactly like the previous Xiaomi Mi AIoT AX3600 model, with a few minor changes. Xiaomi added a mesh/reset button and the hardware under the hood is completely different.
Xiaomi decided to cut some costs with a slightly lower level CPU implementing the Quad-core Qualcomm IPQ5018 Chip based on the Cortex A7 ARM architecture in favor of a high-speed throughput of 2.5 Gb Ethernet LAN port and also a lower price tag. That said, The hardware specifications are still impressive and should be more than enough to connect and work with multiply devices at home or work. Other changes in the specification you can find in the comparison specs & features table listed under ‘Xiaomi AIoT Router AX3600 Mi AIoT vs. Xiaomi Mi AIoT AX6000‘.

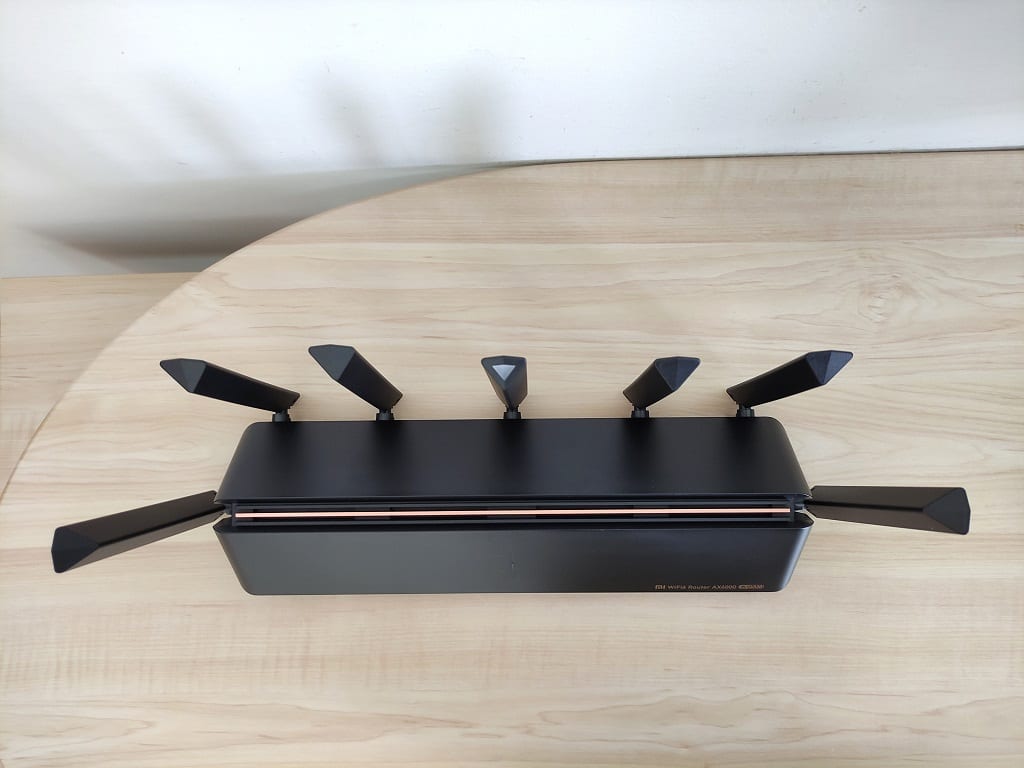

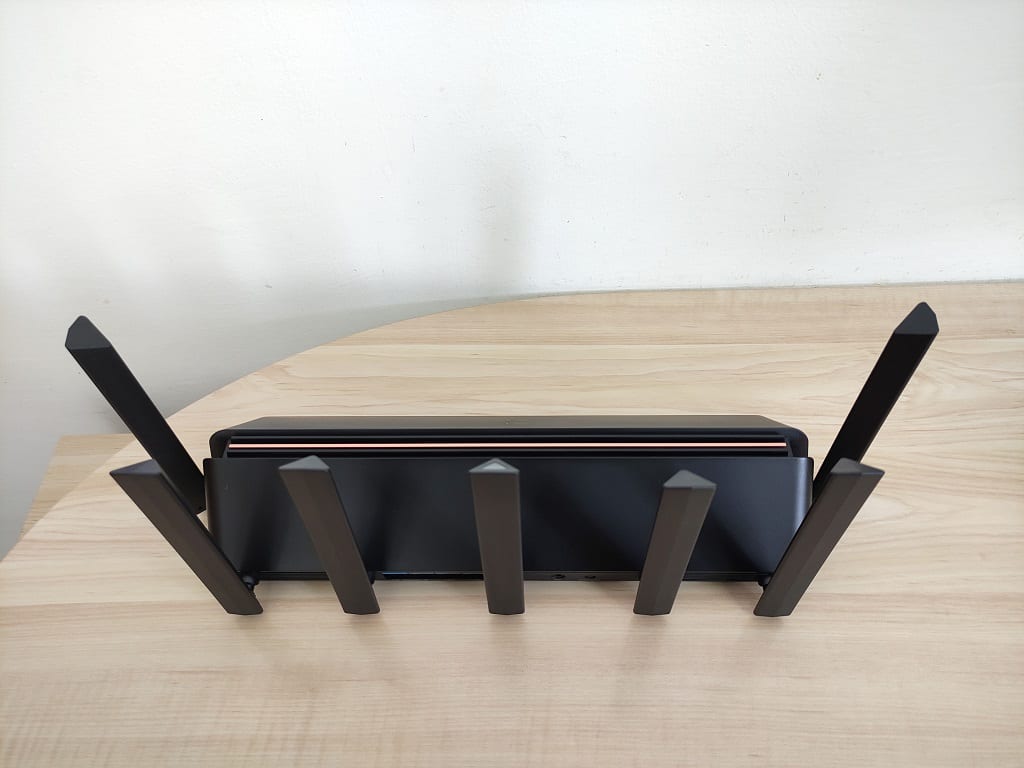

The new Xiaomi Mi AIoT AX6000 router shell/housing is completely the same as the previous AX3600 mode. It is relatively large in dimensions, with an elongated horizontal type design, measuring approximately 400 mm in length. Placing the unit on a small table might be somewhere challenging, But considering the fact it comes with 7 antennas, it’s impressive and very reasonable for the value you are getting as a customer. Xiaomi Could have done a better job by designing a simple wall mounting unit that can carry the router, but overall the general design is impressive.

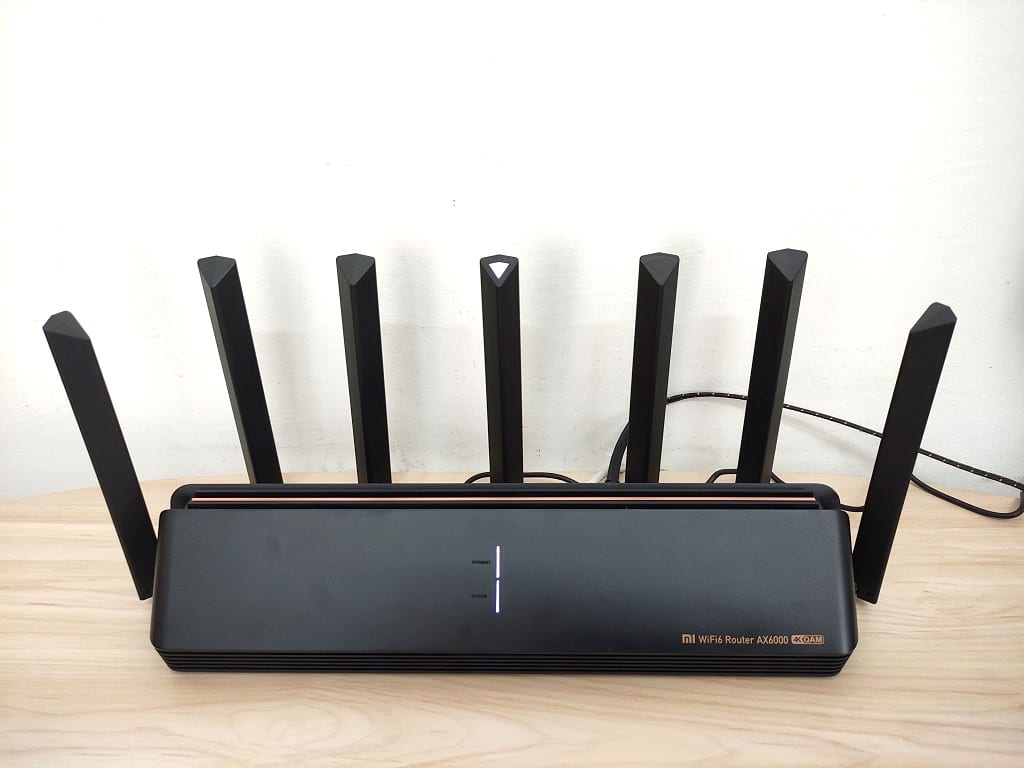

The status operation status lights functionality remains exactly the same as in the previous Xiaomi Mi AIoT AX3600 model. You have two indicator lights: Internet and system. If one of them turns orange it means you are facing a technical problem with the unit. The default normal state is when both LEDs light up in blue-violet (illustrated in the photo below).
Xiaomi AX6000 Router
Xiaomi AIoT Routers – AX3600 vs. AX6000
Xiaomi AIoT Router AX3600
Xiaomi AIoT Router AX6000
Qualcomm x4 Cores, Cortex ARM A53 chip IPQ8071A (1.4GHz)
Qualcomm x4 Cores, Cortex ARM A7 chip IPQ5018
Network acceleration engine
Dual core 1.7GHz NPU
Dual core 1.0GHz NPU
4K QAM Modulation
6 external high gain antennas + 1 AloT antenna
6 independent signal amplifiers
6 independent signal amplifiers
Independent IoT Antenna
Wi-Fi 5/6 (802.11ac/ax)
1x WAN/LAN 1G
3x LAN 1G
1x WAN/LAN 2G
3x LAN 1G
Can connect up to 248 devices at the same time
Theoretical network throughput
55 languages (including English) using
55 languages (including English) using
Starting at $95
Starting at $130
Product Buy Links

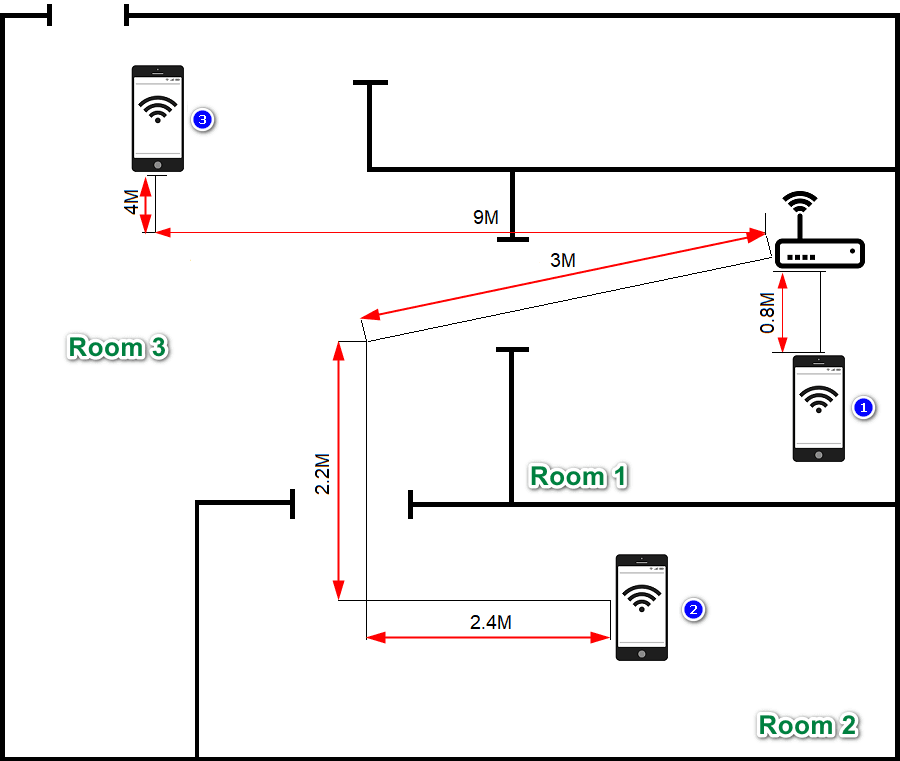

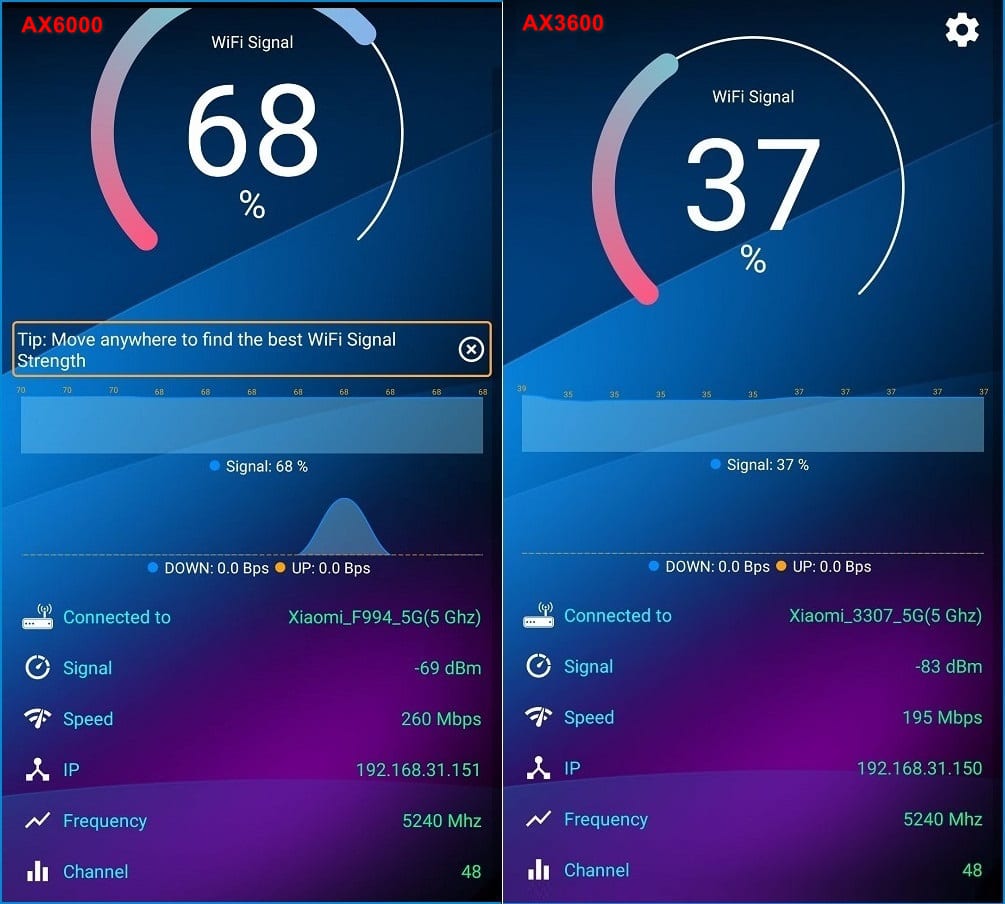

Instead of doing the usual bandwidth testing through the Ookla Speedtest website, we placed our Xiaomi POCO X3 phone in three strategic locations in a 100 square meters apartment and checked two major parameters: available bandwidth and signal strength.
The three router units were placed in the exact same location and tested using the ‘Wi-Fi Signal Strength Meter’ Android app. We connected the router units via Cat 6 Ethernet cables and all testing took place in rooms with open doors!
Mi AIoT Router AX6000 [Chinese Edition]
Mi AIoT Router AX3600 [Global Edition]
Testing signal strength in location no` 3
Measured near the end of the apartment. The Xiaomi Mi AIoT AX6000 signal was much better with a wider bandwidth compared to the Xiaomi Mi AIoT AX3600 Model.
The winner in terms of maximum coverage and signal strength was the Xiaomi Mi AIoT AX6000 device. Right behind its “tail”, you will find the Xiaomi Mi AIoT AX3600 and AX1800 models as second and third choices.
Mesh Network Setup

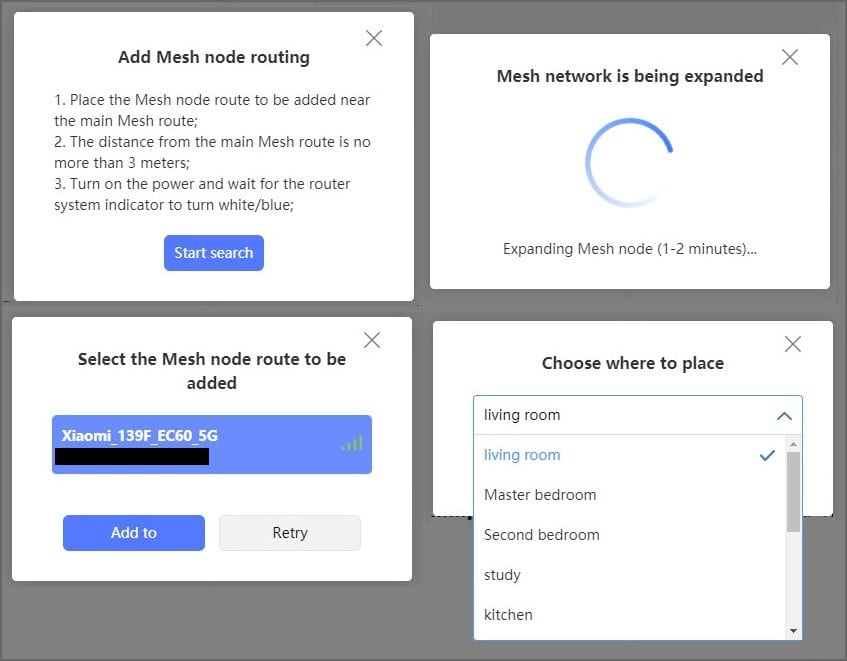

According to Xiaomi prompt notification. For first-time setup, the preferred range for setting a mesh unit is no more than 3 meters. After the pairing is completed, you can place the mesh units almost everywhere across your apartment in places you have weaker reception. The benefit of using Xiaomi brand routers is that each device can operate independently as a router, or mesh unit.
To get optimum performance from your mesh system, you need to make sure that you have some open space, without closed doors so the signal will not be blocked with minimum interference. That said, the router devices that we highly recommend are AX3/AX5/AX6 models and especially, the AX1800 model as our primary recommendation.
The pairing with a mesh unit usually takes about 1-2 minutes. In our case, the AX1800 router is connected to the Xiaomi Mi AIoT AX6000 router. After the linkage is complete, you can select the location of the mesh unit from a list.

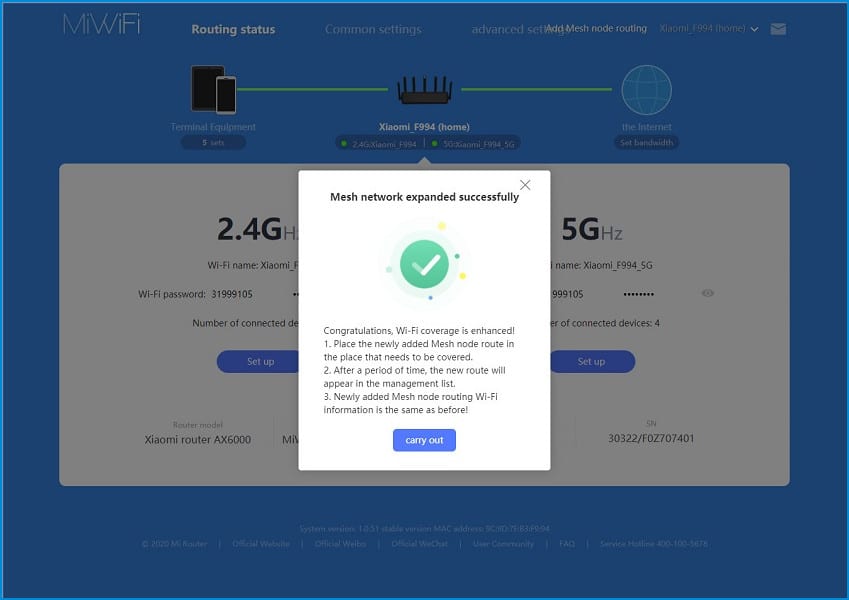

A message notifying that the pairing process between the Xiaomi Mi AIoT AX6000 and the AX1800 used as a mesh unit is successful.

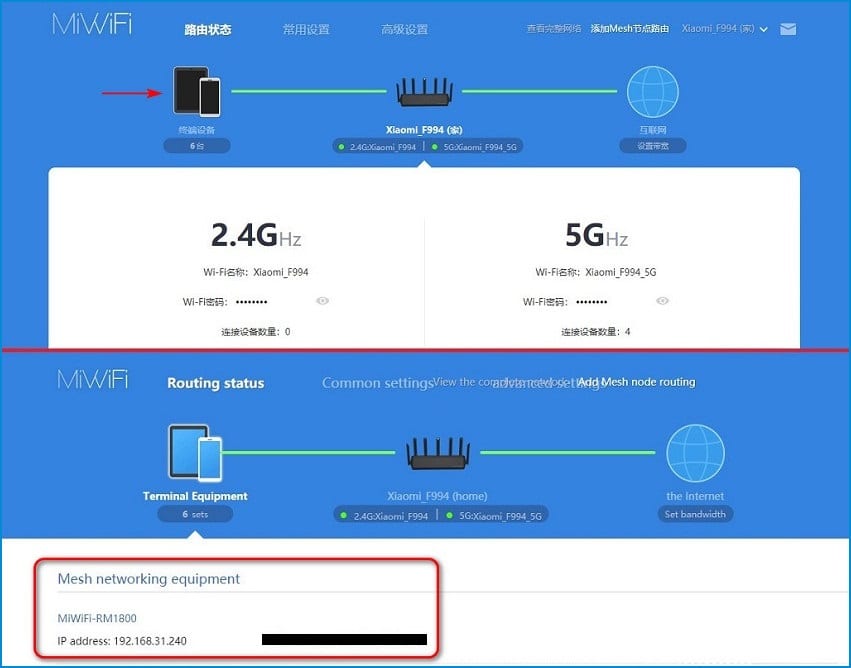

After the paring with the AX1800 unit is successful, you can see a detailed list of all terminal devices connected to the main Xiaomi Mi AIoT AX6000 router unit, including the Mesh terminal unit IP address and MAC address.
According to our test, you can still gain improved performance if you place the mesh end unit at larger distances beyond 10 meters from the main router unit, in this case, the Xiaomi Mi AIoT AX6000 router which broadcasts the signal.
The reason we recommend using the Xiaomi AX1800 model is because of its economic design in a tower shape that you can easily place even on a small shelf. You can use 1 or 4 units to cover your whole apartment. Again, it depends on how big your apartment area is, but you get the point. The more end units you spread, the better coverage you will get.
The Xiaomi Mi AIoT AX6000 router is a super excellent product packed with an impressive set of features every gamer/family household member would love to use. Particularly heavy users, who consume a large amount of multimedia content that are looking for a good router capable of providing a robust stable WiFi connection for video and audio streaming applications.
Focusing on the low price tag, you will most likely not find any better router in this category as well as a price range packed with a total of six amplifiers, and seven external WiFi antennas, including a very wide bandwidth range.
Xiaomi Mi AIoT AX6000 Router
An excellent buy!
– Only one 2Gb Ethernet port.
– Large in size.
Price & Where to Buy
The new Xiaomi Mi AIoT AX6000 router is currently available on Banggood official store for a price of $136.99USD using a discount coupon code BGAINANAS and we definitely think it’s a great product worth considering buying!
