Youyeetoo R1 Review: A Powerful ARM SBC Boasting rich interfaces with NFC support

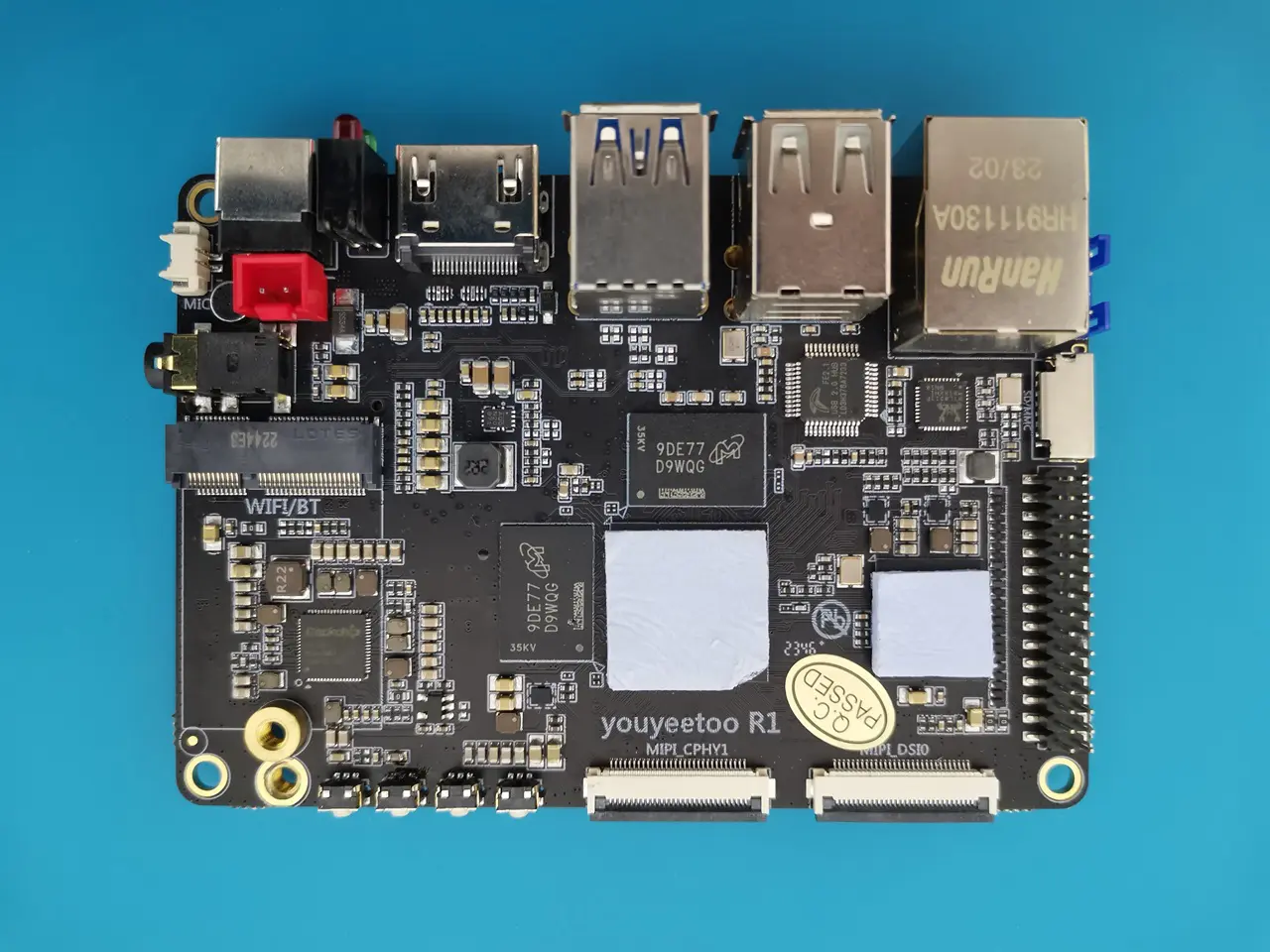

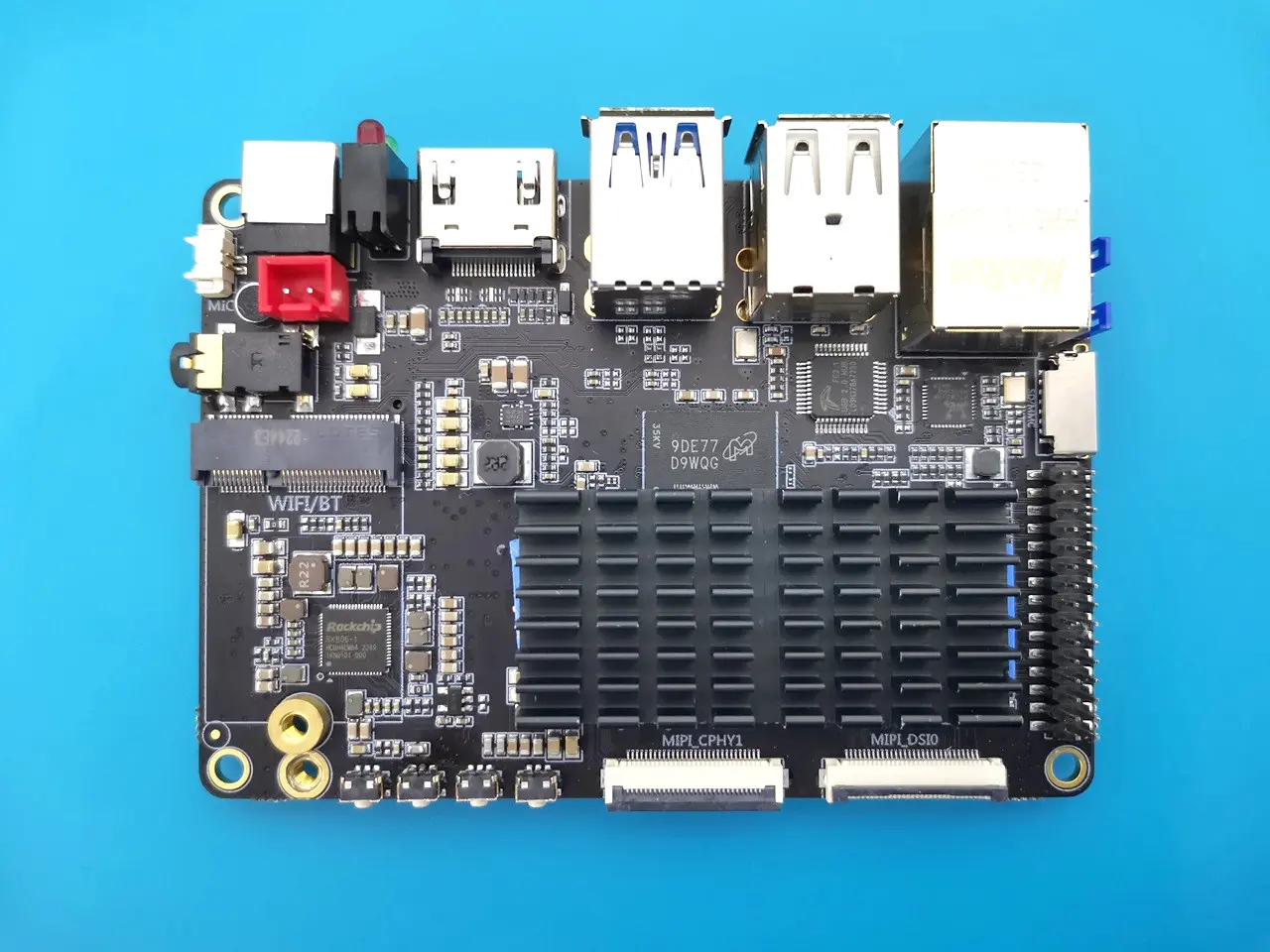

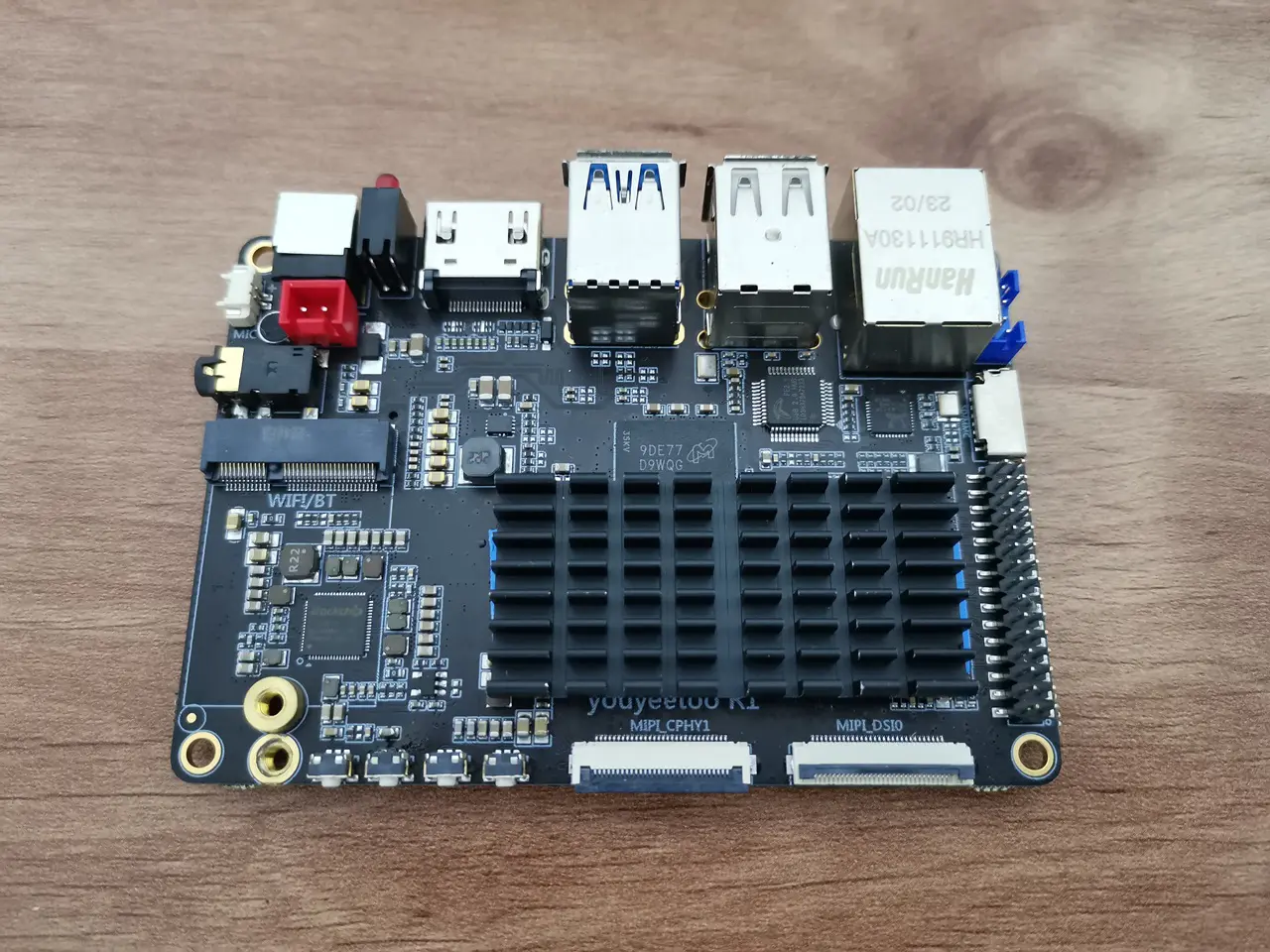

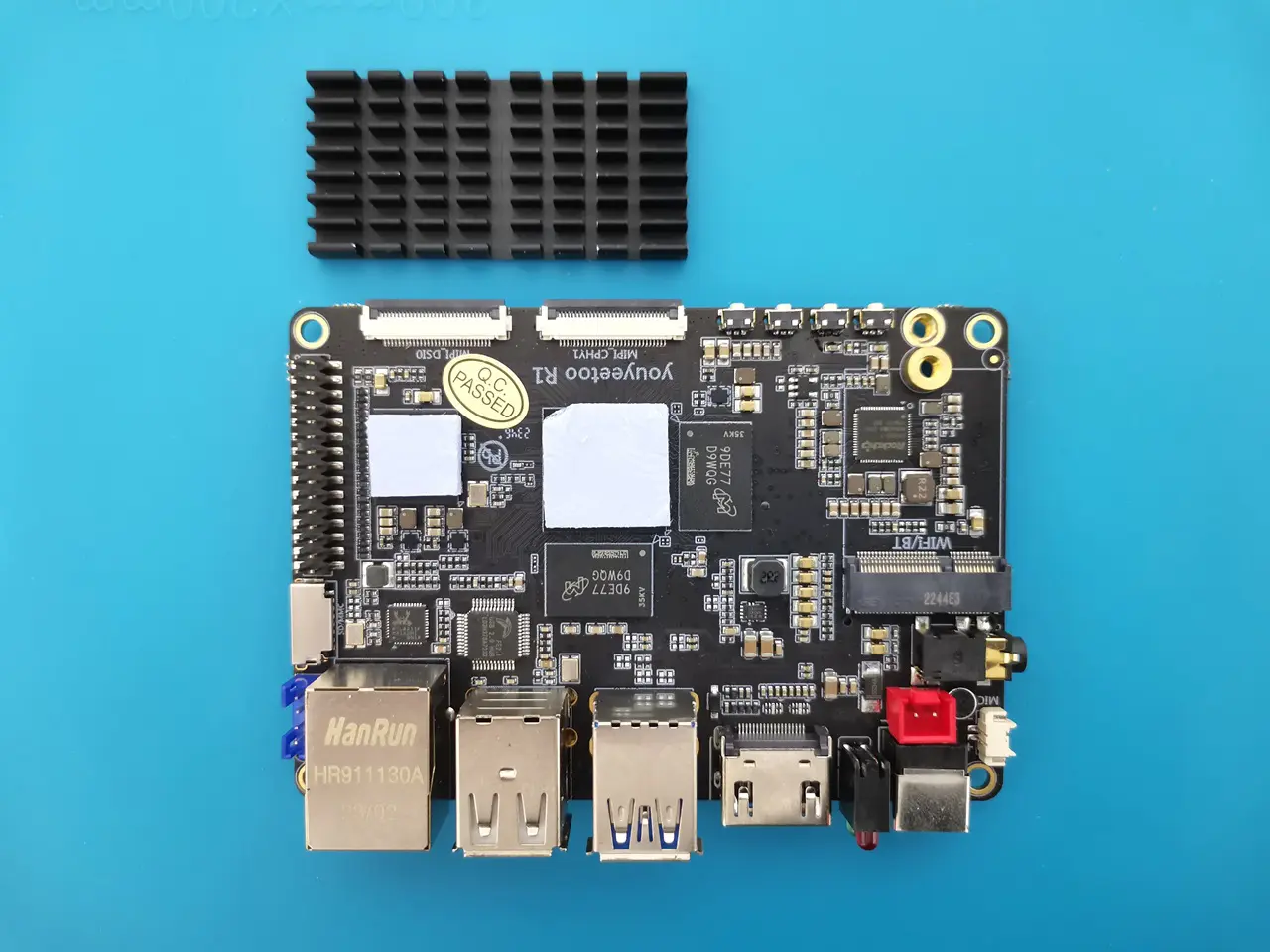

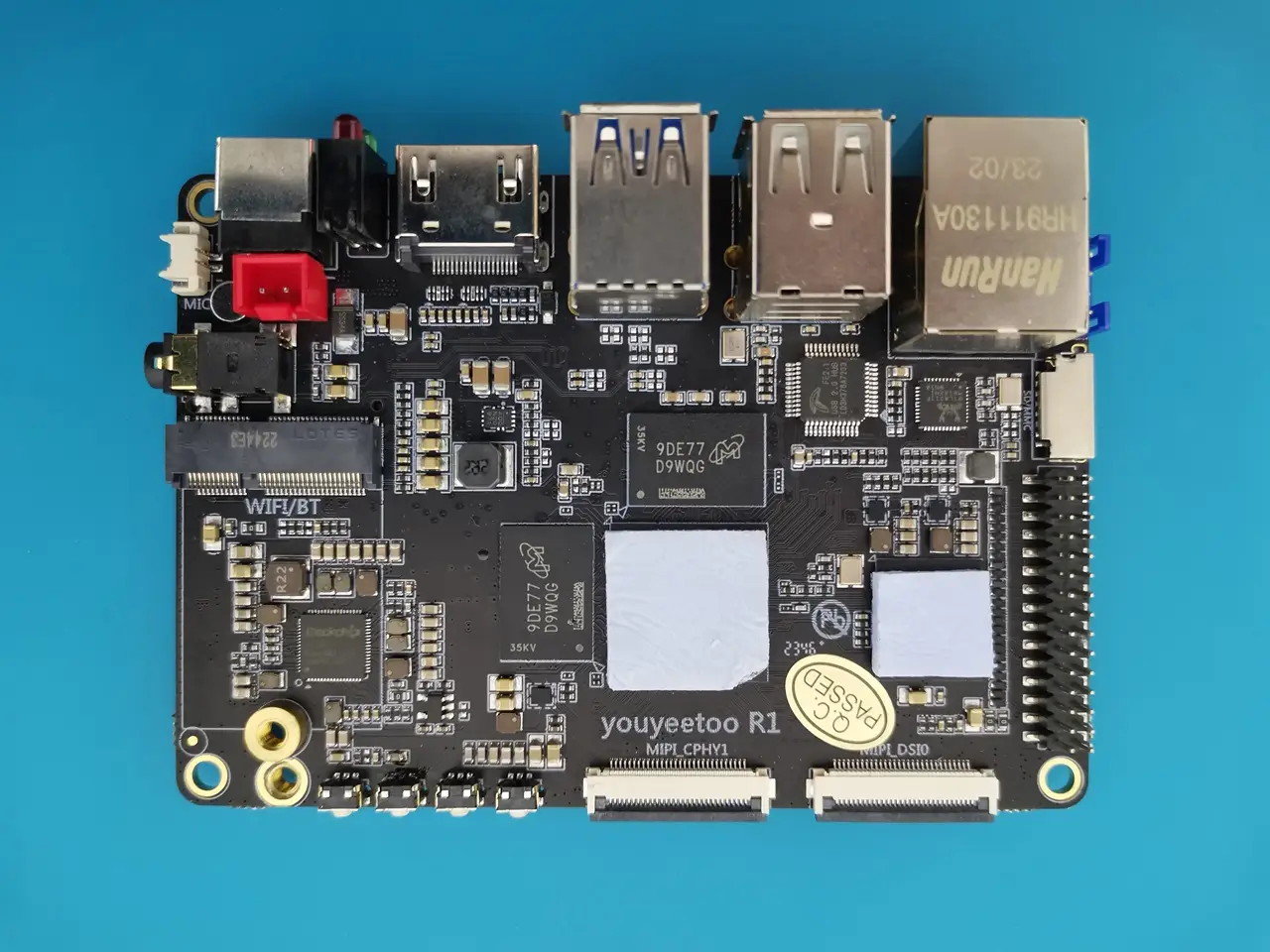

Mounting a heat sink

Installing the heat sink was a breeze, even without mounting holes available on the board. The strong adhesive of the thermal pads ensures highly effective heat transfer throughout the entire sink. Amazingly, the board consistently maintains impressively low temperatures, as low as 35°C in idle mode in an open environment, without being enclosed in a case.

---

Storage Space Details

Out of the original 64GB eMMC capacity, we have set aside 57GB for the operating system files. This means that we still have a generous 43GB of free space available for our everyday use.

This storage option offers ample space for storing files, documents, and media without feeling restricted by limited capacity. It provides a comfortable amount of space that meets the needs of most users. If you require more storage, consider purchasing a Micro SD Card with high write/read speeds, which can offer performance equivalent to that of the eMMC.

Checking the amount of free space that is left on a file system.

linaro@linaro-alip:~$ df -H
Filesystem      Size  Used Avail Use% Mounted on
/dev/root        15G  3.9G   11G  28% /
devtmpfs        4.2G  8.2k  4.2G   1% /dev
tmpfs           4.2G   39M  4.2G   1% /dev/shm
tmpfs           1.7G  1.6M  1.7G   1% /run
tmpfs           5.3M  4.1k  5.3M   1% /run/lock
tmpfs           4.2G  5.0M  4.2G   1% /tmp
/dev/mmcblk0p8   46G   41k   44G   1% /userdata
/dev/mmcblk0p7  134M   13M  115M  10% /oem
tmpfs           831M   29k  831M   1% /run/user/0
tmpfs           831M   46k  831M   1% /run/user/1000

 Displaying all partitions.

inaro@linaro-alip:~$ sudo fdisk -l
Disk /dev/ram0: 4 MiB, 4194304 bytes, 8192 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes


Disk /dev/mmcblk0: 57.62 GiB, 61865984000 bytes, 120832000 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: gpt
Disk identifier: E3340000-0000-4060-8000-307800006ACF

Device            Start       End  Sectors  Size Type
/dev/mmcblk0p1    16384     24575     8192    4M unknown
/dev/mmcblk0p2    24576     32767     8192    4M unknown
/dev/mmcblk0p3    32768    163839   131072   64M unknown
/dev/mmcblk0p4   163840    425983   262144  128M unknown
/dev/mmcblk0p5   425984    491519    65536   32M unknown
/dev/mmcblk0p6   491520  29851647 29360128   14G unknown
/dev/mmcblk0p7 29851648  30113791   262144  128M unknown
/dev/mmcblk0p8 30113792 120831935 90718144 43.3G unknown

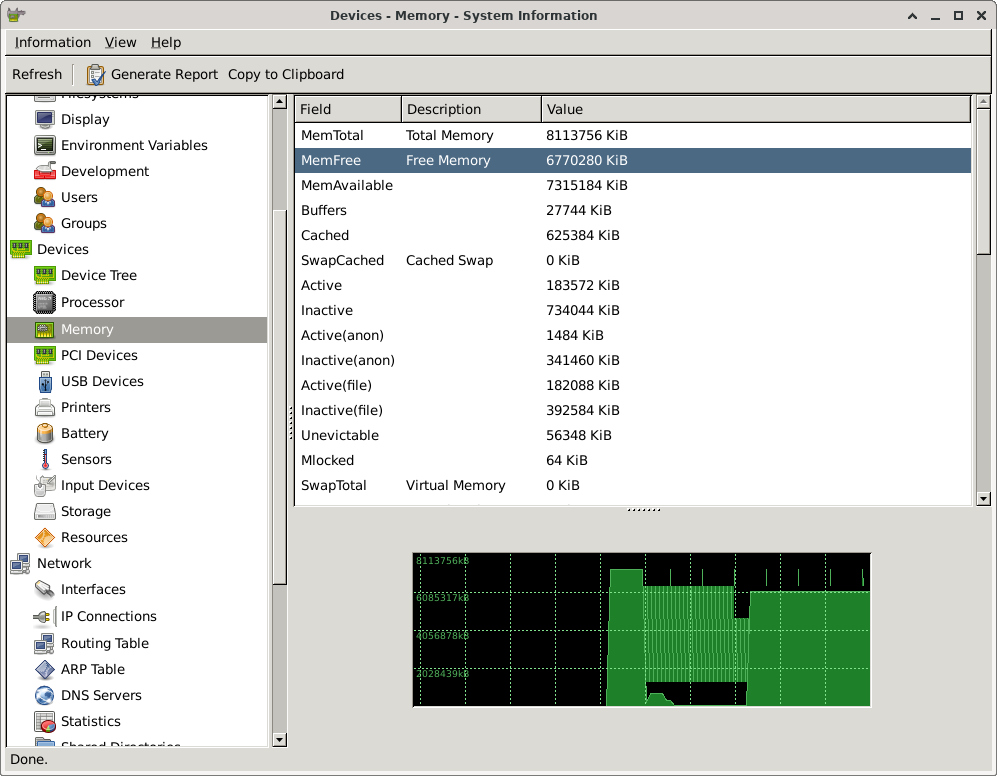

There is still approximately 7GB of available memory left out of the original 8GB allocated to RAM.
