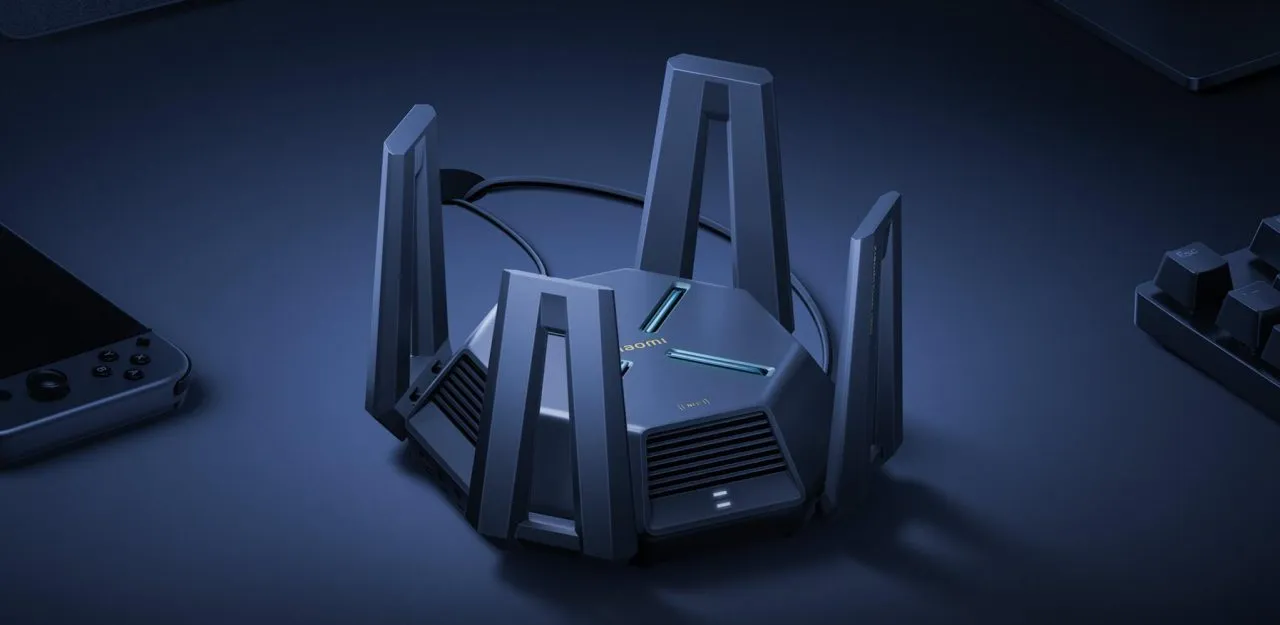

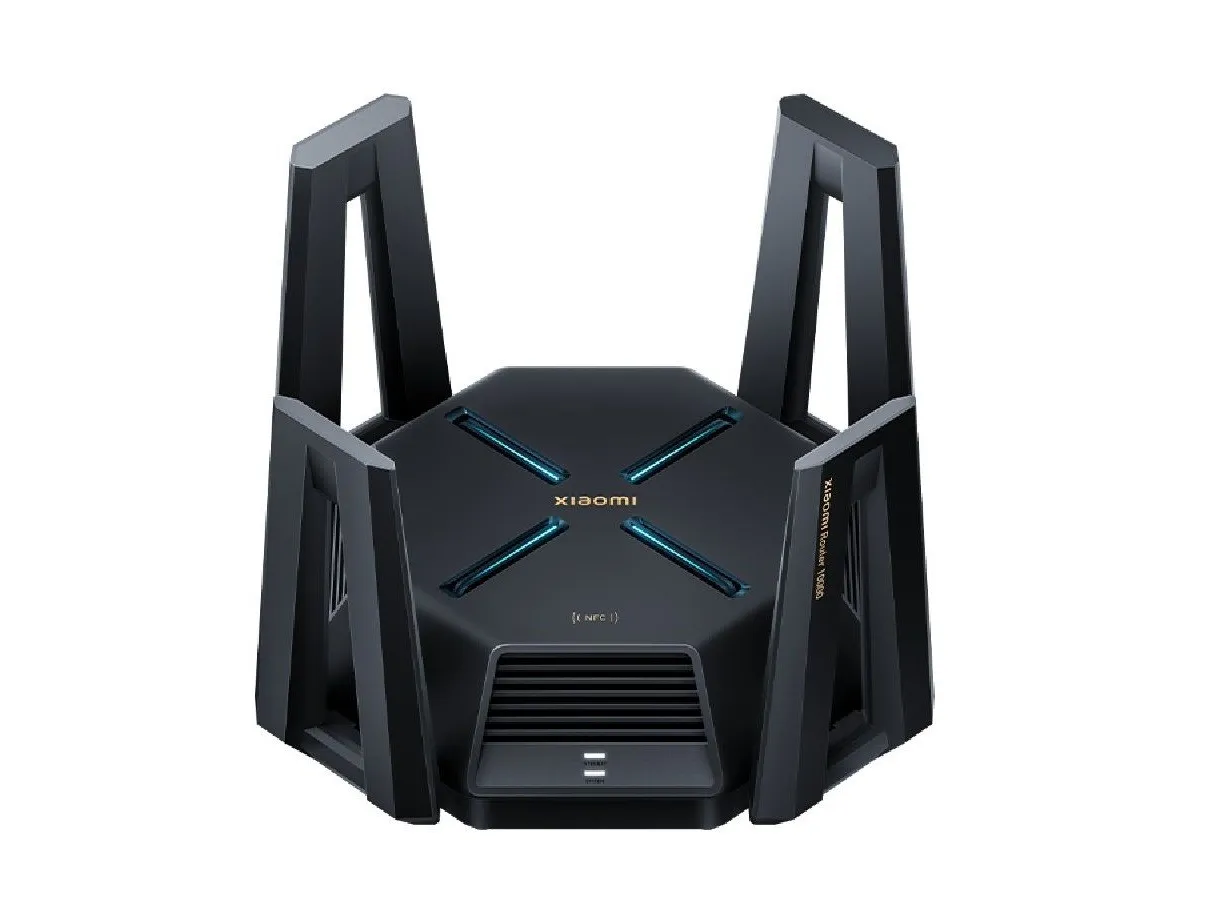

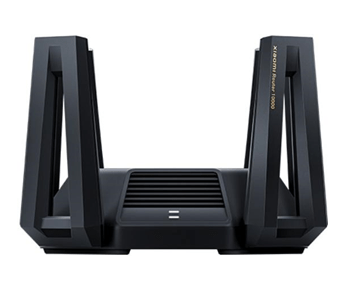

Xiaomi Router 10000
Have you been working from home a lot these past few years? Nowadays, there are many intelligent devices surrounding our family life. If you want to experience convenient functions, then networking is a must! How to allocate network speed? Can the wall penetration ability be higher? It is hard to say! Xiaomi will bring you the flagship router at the end of the year with Xiaomi’s Router AX10000. A long time ago, the author bought Xiaomi routers from the first generation to the fourth generation. A simple household product, Xiaomi made a mess!
In 2020, the Shenzhen Consumer Council released the “2020 Router Comparison Test Report”. Among ten router products of different brands, three devices from ASUS, Xiaomi, and Mercury were awarded five stars in this comparison test. Two of the three “five-star” router samples support WiFi6 networks: ASUS AX3000 and Xiaomi AIoT AX3600 router.
The AX10000 can support up to x10 Xiaomi/Redmi Wi-Fi 6 routers in tri-band Mesh networking, realizing seamless roaming of multiple routers, especially suitable for friends with large villas or self-built houses!
Xiaomi Router AX10000 Specifications
Xiaomi Router 10000 |  |
Product Category | High-end Router |
Model | Xiaomi Mi AX10000 |
Design Type | Polygonal shape |
Color | Black |
CPU | Qualcomm IPQ9570, quad-core A73 2.2GHz |
Network acceleration engine | Dual-core 1.0GHz NPU |
Network protocols | IEEE 802.11a/b/g/n/ac/ax |
Maximum wireless transmission speeds | 4×4 2.4GHz up to 1376Mbps 4×4 5.2GHz up to 5764Mbps |
Frequency Range (Tri-band) | 2.4GHz, 5.2GHz, 5.8GHz |
2.4G Wi-Fi Wireless Channels | 1,2,3,4,5,6,7,8,9,10,11,12,13 |
5.2GHz Channel | 36,40,44,48,52,56,60,64 |
5.8GHz Channel | 149,153,157,161,165 |
Network Interface | 4x 2.5Gbps WAN/LAN 1×10Gbps adaptive RJ45 WAN/LAN port 1×10Gbps SFP+ port |
LED indicator light | 8 lights 1x Internet indicator 1x Network port 5 Types of Atmosphere light |
2G DDR4 RAM |  |
128MB ROM | |
USB 3.0 interface | |
NFC | |
12 External high-gain antennas | |
12 independent external signal amplifiers | |
Port aggregation | |
Signal amplifiers | 12 independent signal amplifiers |
Wi-Fi 5/6 (802.11ac/ax) | |
MU-MIMO | |
OFDMA | |
Wi-Fi Mesh | |
Wall anchors | |
Dual WAN ports | |
OFDMA support | |
OAM technology | |
MU-MIMO | |
MESH networking | Support up to 10 units |
Can connect up to 256 devices at the same time (Theoretically) | |
Mobile App Support | Mijia APP (Only Works in China) |
Network management | Support Web, Android, iOS |
Wireless security | WPA-PSK/WPA2-PSK/WPA3-SAE encryption, wireless access control (black and white list), SSID hiding, intelligent anti-rubbing network |
Operating system | MiWiFi ROM (based on OpenWrt deep customization) |
Other Paramaters | |
Status Indicator | 7 (top status indicator × 1, network port light × 5, ambient light × 1) |
Environmental Standard | Working Temperature: 0-40℃ |
Working Humidity | 10%-90%RH (non-condensing) |
Storage Temperature | -40-70℃ |
Storage Humidity | 5%-90%RH (non-condensing) |
Button | 1 system reset button, 1 Mesh button |
Voltage | 12V/5A Power |
Product Size | 270×270×174mm |
Packing list | x1 Xiaomi Mi AX10000 Router |
Starting Price | 1799.00 RMB ($257.99) |
Xiaomi Router AX10000: What’s New?
The new Xiaomi Router 10000 is expected to support the latest Wi-Fi 6 standard with improved transmission speeds and many new features. Wider channels, a more efficient QAM modulation, and multi-and adaptive connection. We expect the router to have a more powerful processor than the Qualcomm IPQ8072A of the AX9000. The router offers 2GB of memory and a maximum rate of 3.5Gbps and supports triple band concurrency.
The Benefits of Owning a Xiaomi Router 10000
Xiaomi Router 10000 is a powerful and reliable router that offers a variety of benefits to its users. This router is designed to provide a fast and reliable connection to the internet, allowing users to enjoy a smooth and uninterrupted online experience. It also offers a wide range of features that make it an ideal choice for both home and business users.
One of the main benefits of owning a Xiaomi Router 10000 is its high speed. This router is capable of providing speeds of up to 1000 Mbps, which is more than enough for most users. This means that users can enjoy faster downloads, streaming, and gaming without any lag or buffering. Additionally, the router is equipped with four antennas that provide a strong and reliable signal, ensuring that users can stay connected even in areas with weak signals.
Another benefit of owning a Xiaomi Router 10000 is its security features. This router is equipped with advanced security protocols such as WPA2-PSK and WPA3-PSK, which help to protect users from malicious attacks. Additionally, the router also features a built-in firewall that helps to protect users from external threats. This ensures that users can browse the internet safely and securely.
Finally, the Xiaomi Router 10000 is also easy to set up and use. This router comes with a user-friendly interface that makes it easy for users to configure the settings and customize the router according to their needs. Additionally, the router also comes with a mobile app that allows users to manage their router remotely. This makes it easy for users to access their routers from anywhere in the world.
Overall, the Xiaomi Router 10000 is an excellent choice for both home and business users. It offers a fast and reliable connection, advanced security features, and an easy-to-use interface. With these features, users can enjoy a smooth and uninterrupted online experience.
Exploring the Advanced Features of Xiaomi Router 10000
Xiaomi Router 10000 is a powerful and feature-rich router that offers users a wide range of advanced features. This router is designed to provide users with a reliable and secure connection to the internet. It is equipped with a dual-band Wi-Fi system that supports both 2.4GHz and 5GHz frequencies, allowing users to enjoy faster speeds and better coverage. Additionally, the router is equipped with four high-gain antennas that provide a strong signal and wide coverage.
The Xiaomi Router 10000 also offers users a variety of advanced features. It is equipped with a built-in firewall that provides users with enhanced security and protection from malicious attacks. Additionally, the router supports multiple VPN protocols, allowing users to securely access the internet from anywhere in the world. It also supports parental control, allowing users to set up restrictions on the types of websites and content that can be accessed.
The Xiaomi Router 10000 also offers users a variety of advanced networking features. It is equipped with a built-in QoS (Quality of Service) system that allows users to prioritize certain types of traffic, such as streaming video or gaming. Additionally, the router supports multiple SSIDs (Service Set Identifiers), allowing users to create multiple wireless networks with different security settings.
Finally, the Xiaomi Router 10000 is equipped with a USB port, allowing users to connect external storage devices and printers. This allows users to easily share files and documents with other devices on the network. Additionally, the router supports a variety of third-party applications, allowing users to customize their network settings and access additional features.
Overall, the Xiaomi Router 10000 is a powerful and feature-rich router that offers users a wide range of advanced features. It is designed to provide users with a reliable and secure connection to the internet, as well as a variety of advanced networking features. Additionally, the router supports multiple VPN protocols, parental control, and a variety of third-party applications.
Comparing Xiaomi Router 10000 WIFI Signal Strength to Other Routers
When it comes to choosing a router for your home or office, it is important to consider the signal strength of the device. The Xiaomi Router 10000 WIFI is a popular choice for many users due to its impressive signal strength. In this article, we will compare the signal strength of the Xiaomi Router 10000 WIFI to other routers on the market.
The Xiaomi Router 10000 WIFI is equipped with four high-performance antennas that provide a strong signal for up to 10,000 square feet. This makes it ideal for larger homes or offices that require a strong signal to cover a large area. The router also features a dual-band system that allows users to switch between 2.4GHz and 5GHz frequencies for optimal performance. Additionally, the router is equipped with MU-MIMO technology, which allows multiple devices to connect to the router simultaneously without sacrificing speed or performance.
When compared to other routers on the market, the Xiaomi Router 10000 WIFI stands out for its impressive signal strength. For example, the Linksys WRT1900ACS router has a signal strength of up to 3,000 square feet, while the Netgear Nighthawk X6S has a signal strength of up to 5,000 square feet. The Xiaomi Router 10000 WIFI, however, has a signal strength of up to 10,000 square feet, making it the ideal choice for larger homes or offices.
In conclusion, the Xiaomi Router 10000 WIFI is an excellent choice for users who require a strong signal to cover a large area. Its four high-performance antennas and dual-band system provide a reliable signal for up to 10,000 square feet, making it one of the strongest routers on the market.
Hardware
Dual 10G ports
Xiaomi removed all Gigabit (1Gbps) Ethernet ports on this router. The remaining four LAN / WAN network ports are directly connected to 2.5G (2.5Gbps), supporting dual aggregation to Up to 5Gbps rate.
Equipped with a 10Gbps Ethernet (LAN / WAN) interface next to a 10G SFP+ network port designed for an optical fiber module. The wired dual 10-Gigabit interfaces the vast majority of families who have not yet entered 10-Gigabit broadband, this set of 10-Gigabit wired ports is more meaningful for accessing 10-Gigabit NAS systems, which dramatically improves the reading of NAS content transferred through the local network.
A more powerful processor
Under the unchanged appearance of the Xiaomi Router 10000, the interior has changed a lot, which is enough to support the evolution of its connection performance-Xiaomi using Qualcomm’s new enterprise-level router, this time powered with a 4-Cores 2.2GHz A73 processor. The performance is twice that of the IPQ8072A with the 4-Core A53 processor of the AX9000.
Power Consumption
The power consumption of the new Xiaomi Router 10000 Router is slightly bigger (60W), as written on the power adapter, which consumes more power than the Mi AX9000 router, which uses a 48W power adapter.
Tri-Band WiFi System: 2.4GHz, 5.2GHz, 5.8GHz
The Xiaomi Router 10000 router uses a 2.4G chip QCN6124, which supports a maximum rate of 4×4 1376Mbps; the 5G-1 chip is QCN6274, which supports a total speed of 4×4 5765Mbps; and the 5G-2 chip is QCN6274, which supports a maximum rate of 4×4 5765Mbps. The 4G FEM chip is QPF4259, and the 5G FEM chip is QPF4559.

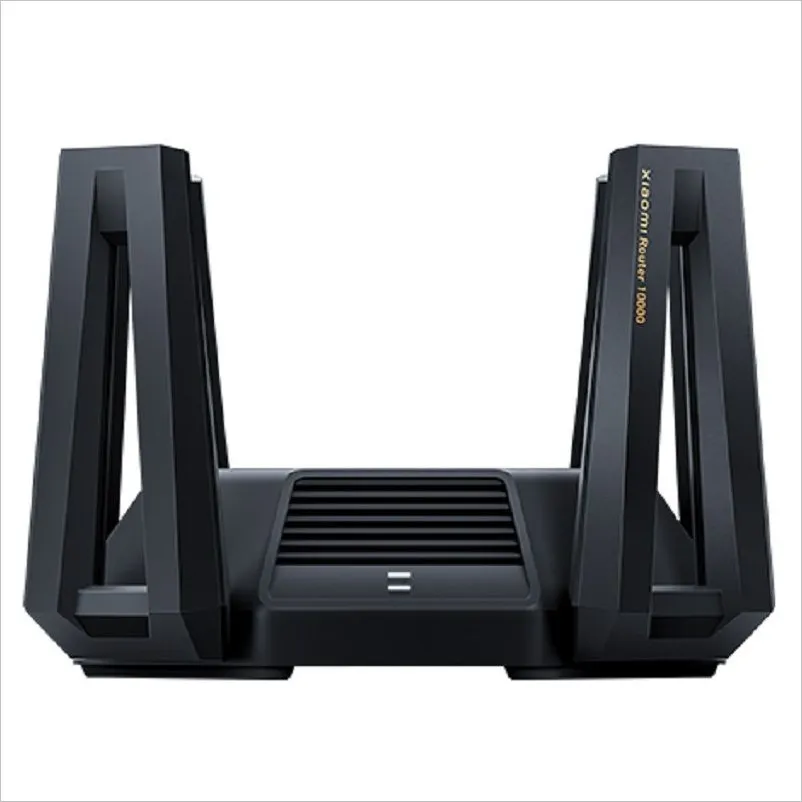

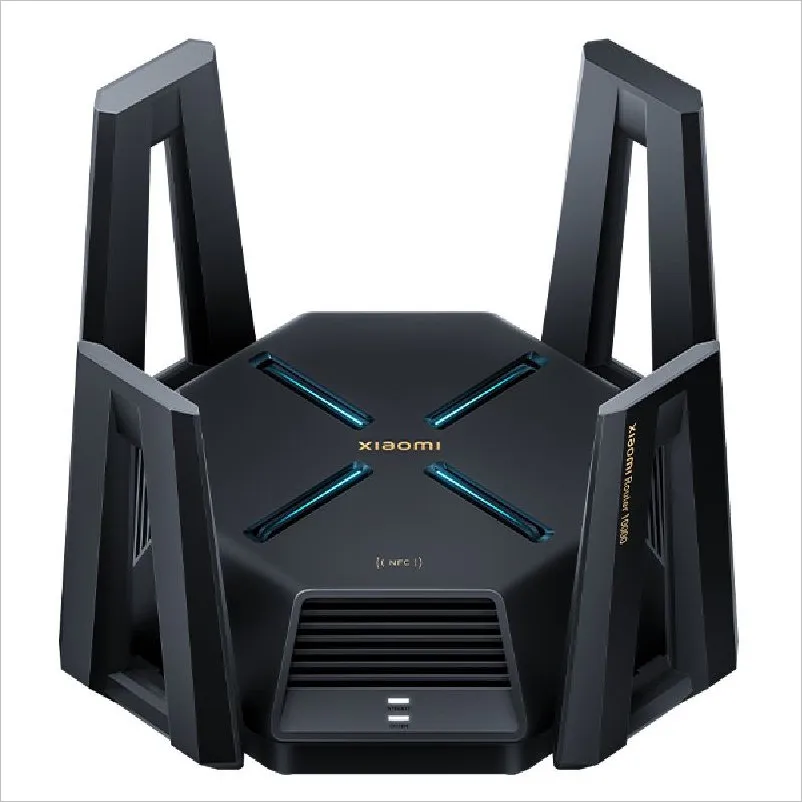

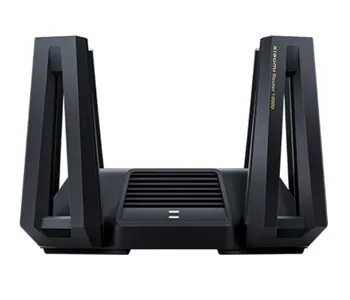

Exterior Design
The outer packaging and the inner packaging shell are the same as the Xiaomi AX9000, with dimensions of 270mm × 270mm × 174mm. The router has four antenna arrays and sells in black color.

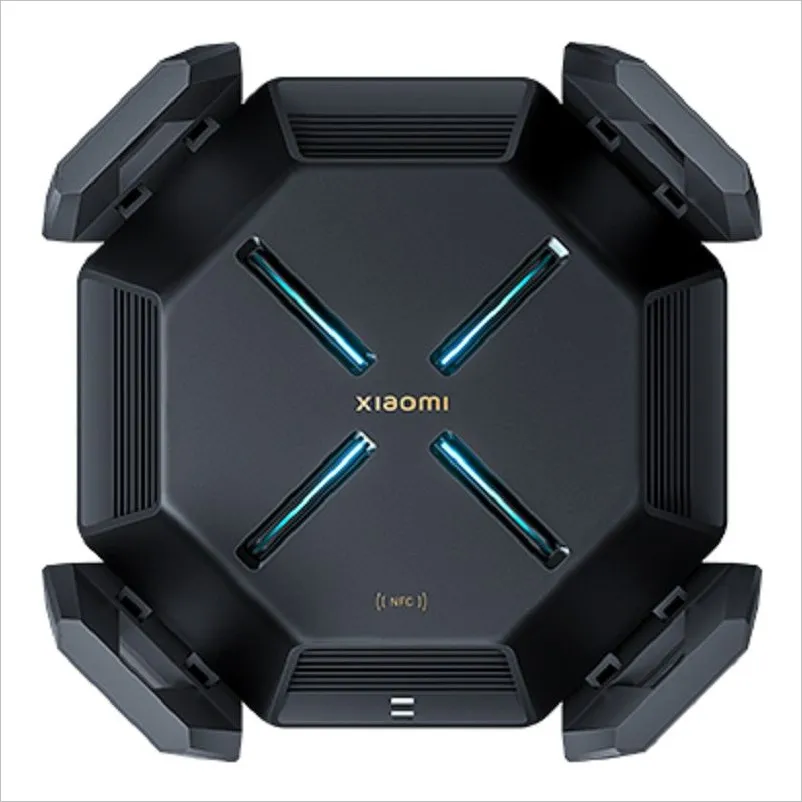

NFC touch connection
Xiaomi Router AX10000 supports an NFC pairing function. A smilier option exsits also in the Huawei AX3 Pro Router. This option saves users extra time remembering and entering usernames and passwords, making the end device connectivity simpler and faster.
USB 3.0 Port
The Xiaomi 10000 router also comes with one USB 3.0 interface. Users can upload files remotely and back them up at home on external hard drives.
Price and Availability
The Xiaomi 10000 router price in china is about ~$258 (1799 yuans). We expect that overseas prices on AliExpress would drop to around $400. If you like the product, you can grab it for $416.03, including free shipping on mijia youpin AliExpress Store.
Does it support future wifi 7?
The Networking Pro 1220 Platform from Qualcomm is fully compatible with Wi-Fi 7. Although it remains uncertain when Xiaomi will release the update enabling this feature, it is worth noting that the router hardware is already compatible with it.
Hi.
If the Xiaomi router 10000 (called also rc01 ?) os the same of xiaomi BE10000 ?
Same spec, same aspect, …
Because we can find some tuto for custom firmware for BE10000
I would like if with my Xiaomi 10000 I Can follow this.
Thks a lot
The Xiaomi BE10000 is likely the Chinese model, but it is actually the same product as the Xiaomi Router 10000.
There could be potential modifications to the hardware, particularly in the signal amplifiers. Updating firmware manually is risky unless you have a software
updating tool and a firmware backup, so it would help in an emergency if you brick it.
It’s best to wait for an official update from the manufacturer.
Thks a lot.
Welcome.
Just wondering if 2 x Xiaomi Router 10000 – would they combine into a mesh network?
It should function properly since all Xiaomi routers are equipped with mesh support.
