Banana Pi BPI-R3 Mini Review: A Tiny & Fast 2.5GbE router board
Home Embedded ComputersBanana Pi BPI-R3 Mini Review: A Tiny & Fast 2.5GbE router board

Banana Pi BPI-R3 Mini Review: A Tiny & Fast 2.5GbE router board

by androidpimp
3 comments

Part II: Banana Pi R3 Mini review

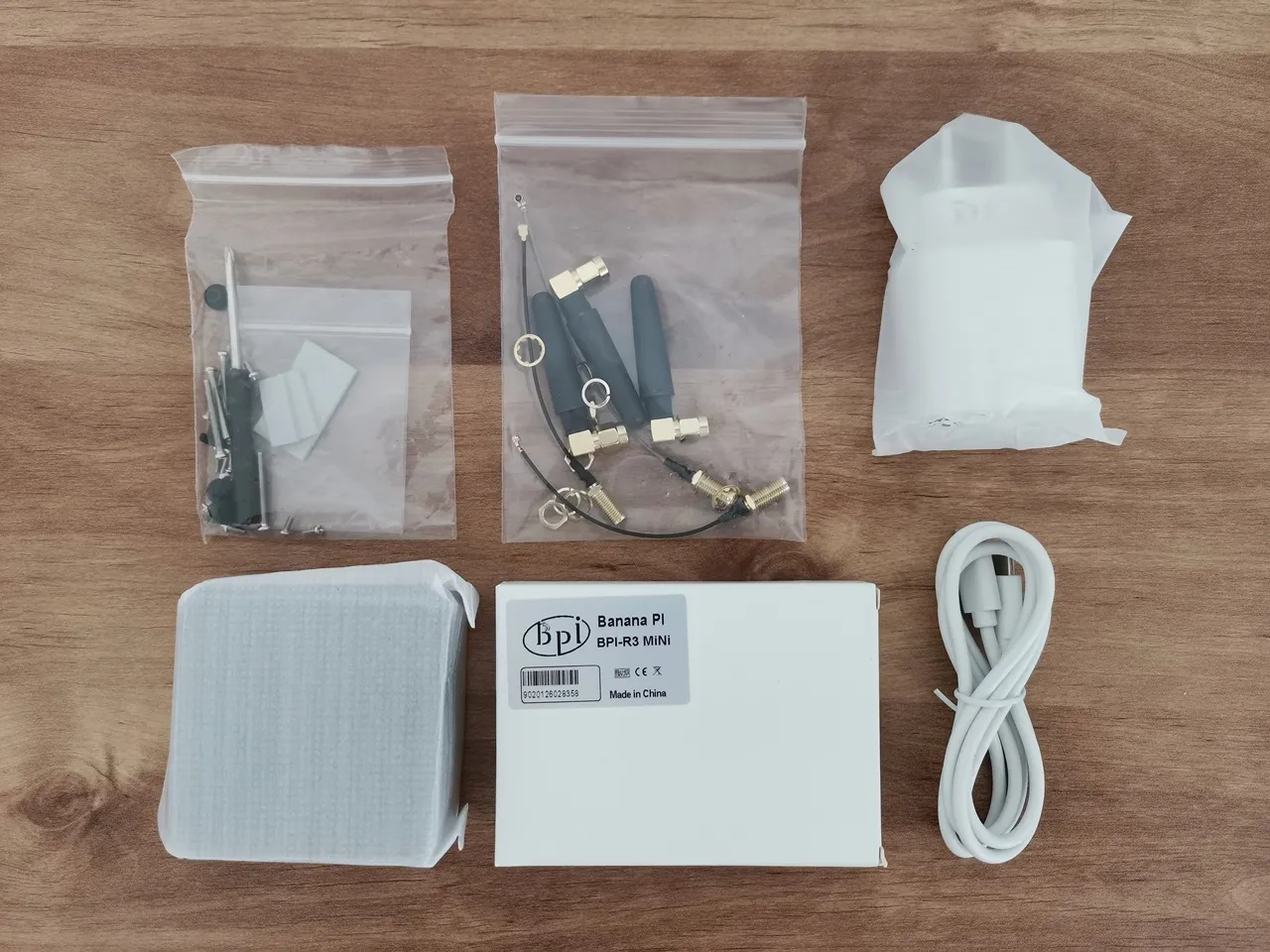

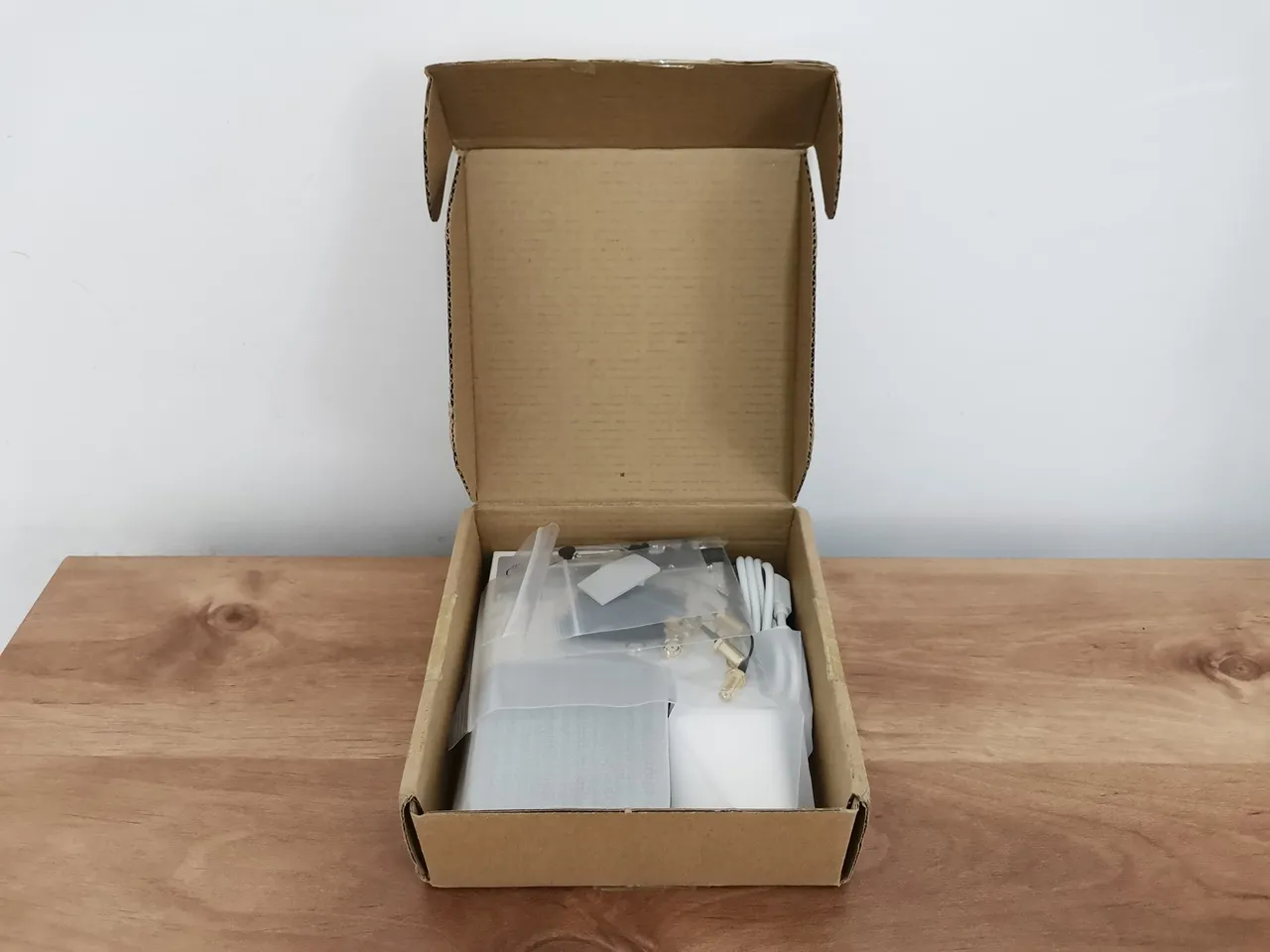

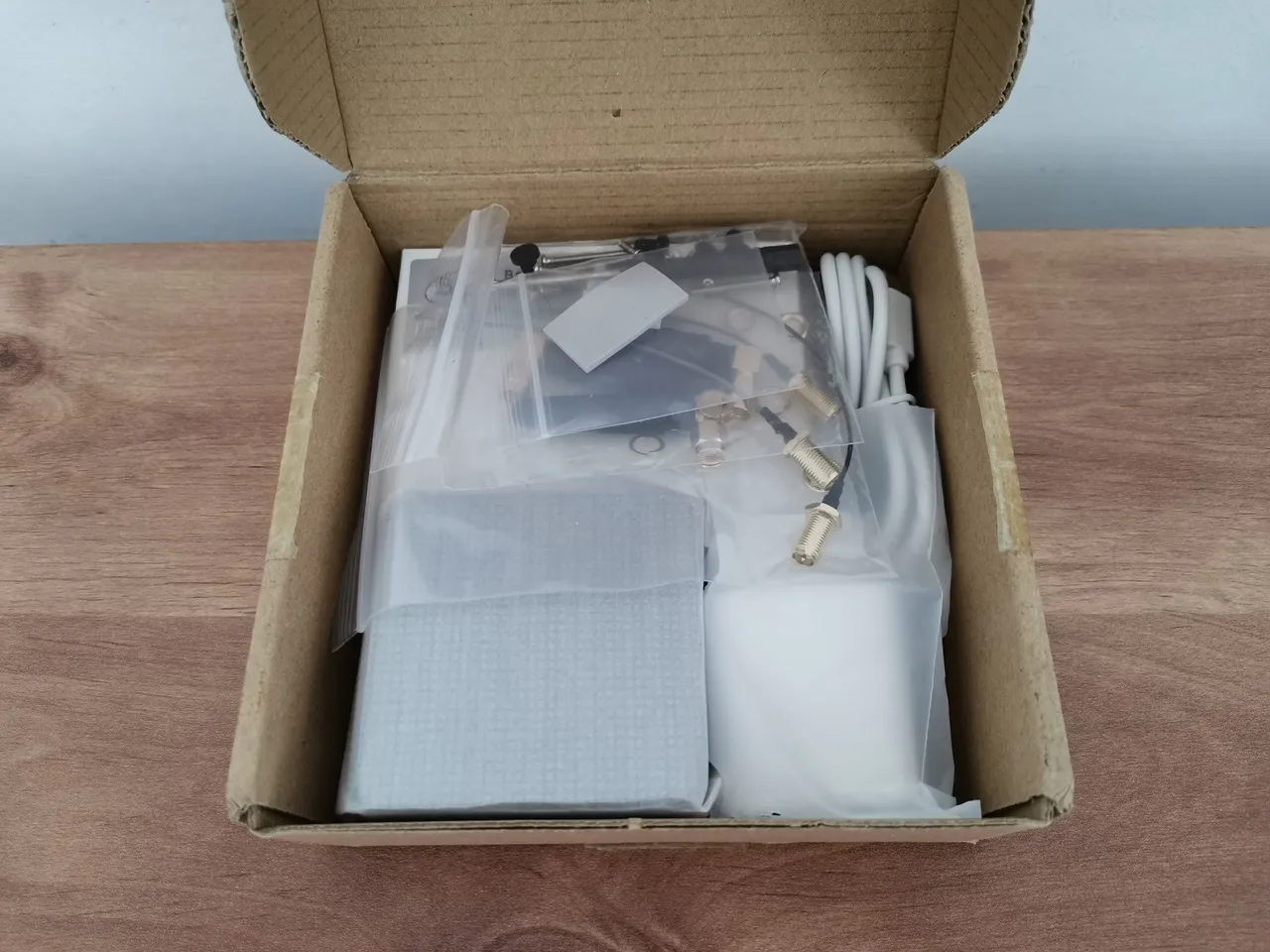

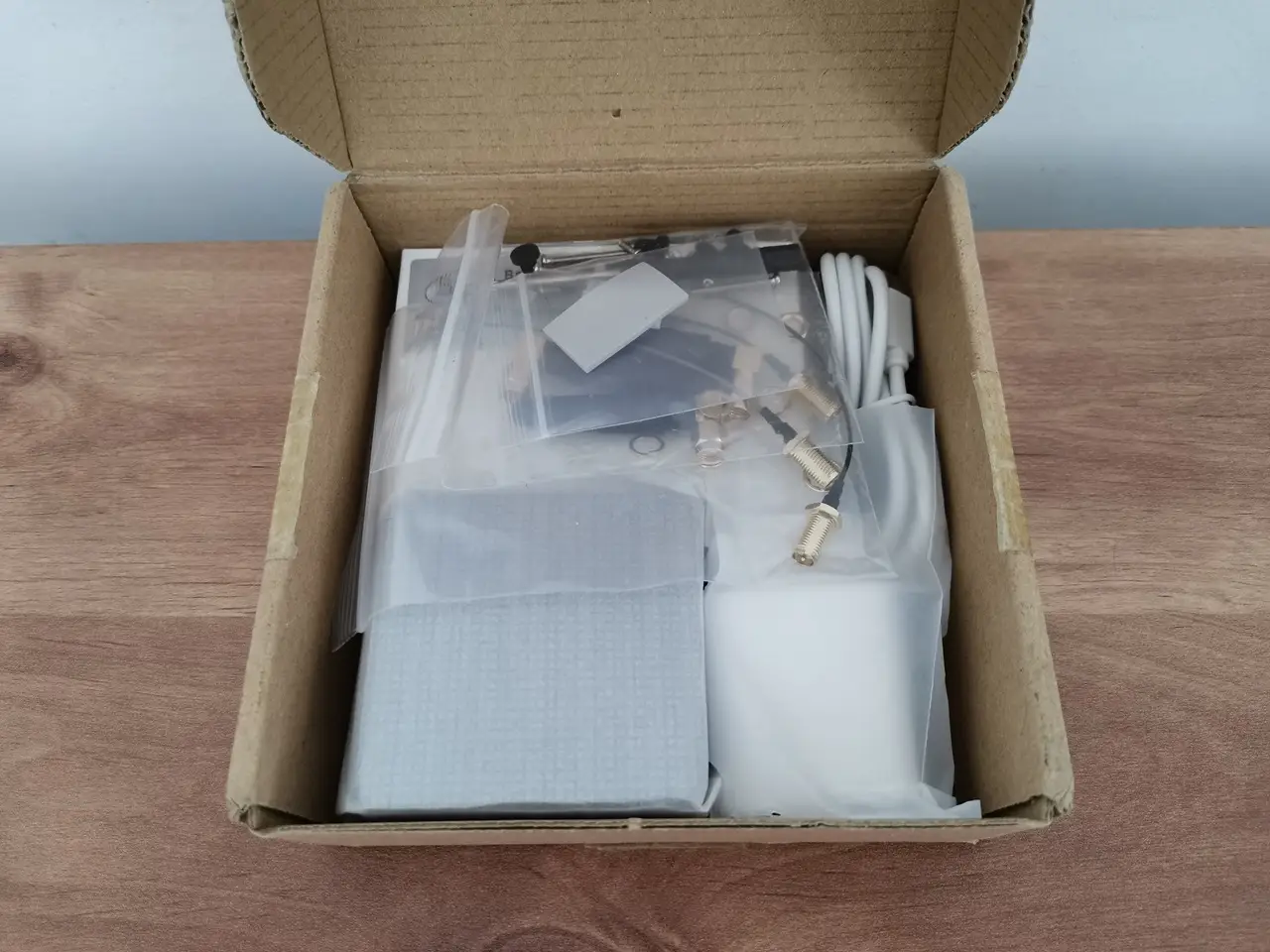

Unboxing all items (Before being assembled).

Banana Pi R3 (Full Package Kit)

Package No.

Kit Description

Package Contents

1

Board Only

1x Banana Pi R3 Mini

2

Antennas

3x SMA-J L Type 50mm
3x RP-SMA female to IPX U.FL UFL

3x Washer

3x Nuts
3x Spring washer

3

Fasttners and Thermal Pads

4x Case cover screw: ⌀2.5×22 mm

4x Cork screws / Case legs
4x Board mounting screw ⌀2.5×5 mm
1x Thermal Pad: 17x32mm (t=2mm)
2x Thermal Pad: 17x32mm (t=2mm)

4

Case

1x Cover:  □69x3mm
1x Main Case Body: □69x30mm
x1 Brushless Fan: □35x 7.5mm
x1 Phillips screwdriver

Included packages:

  • x1 Banana Pi R3 Mini.
  • x1 Antennas.
  • x1 Fasteners + Thermal Pads.
  • x1 Metal Case.

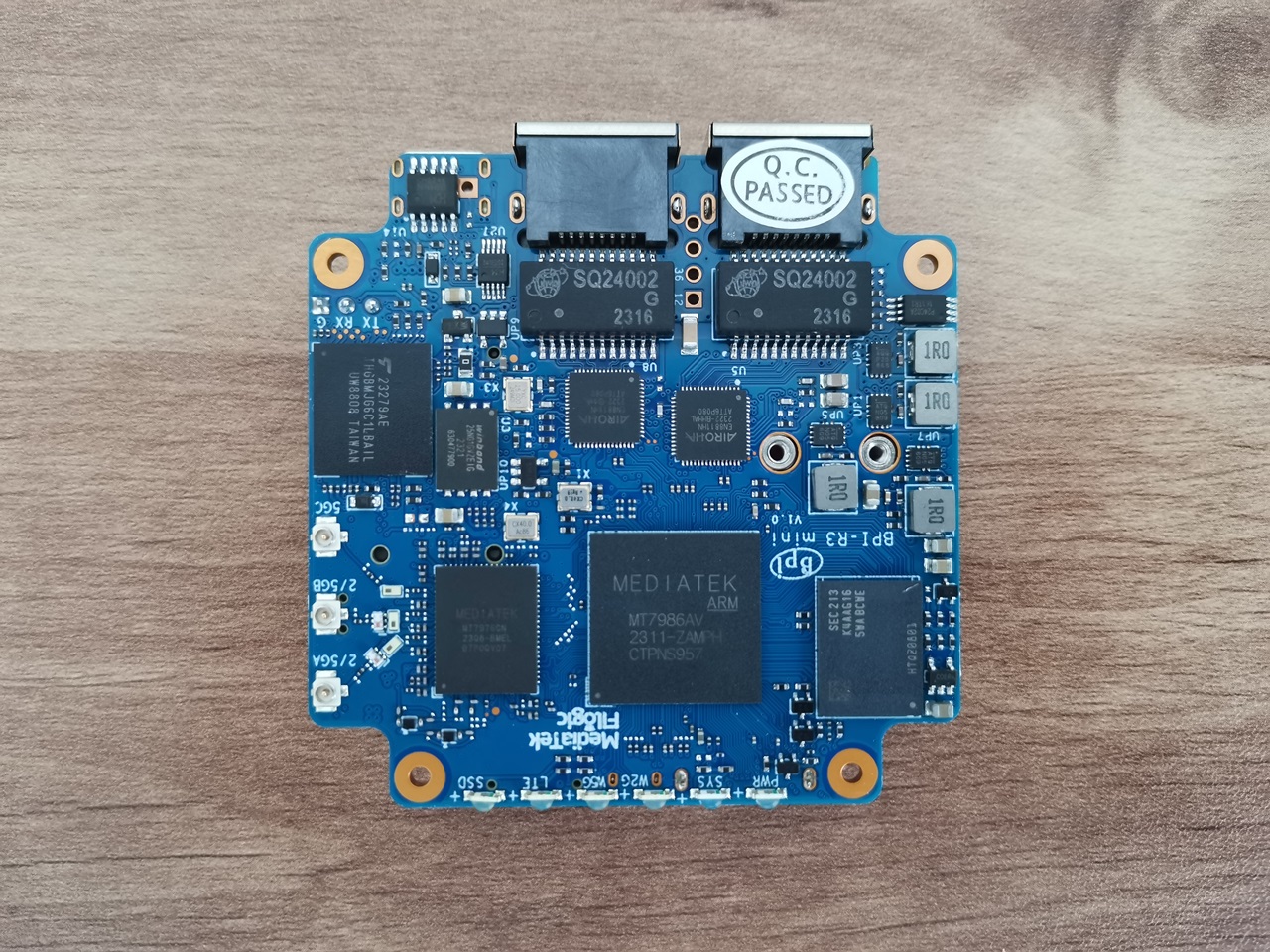

  • BPi R3 Mini Package 1
    BPi R3 Mini (Kit) - Package No. 1

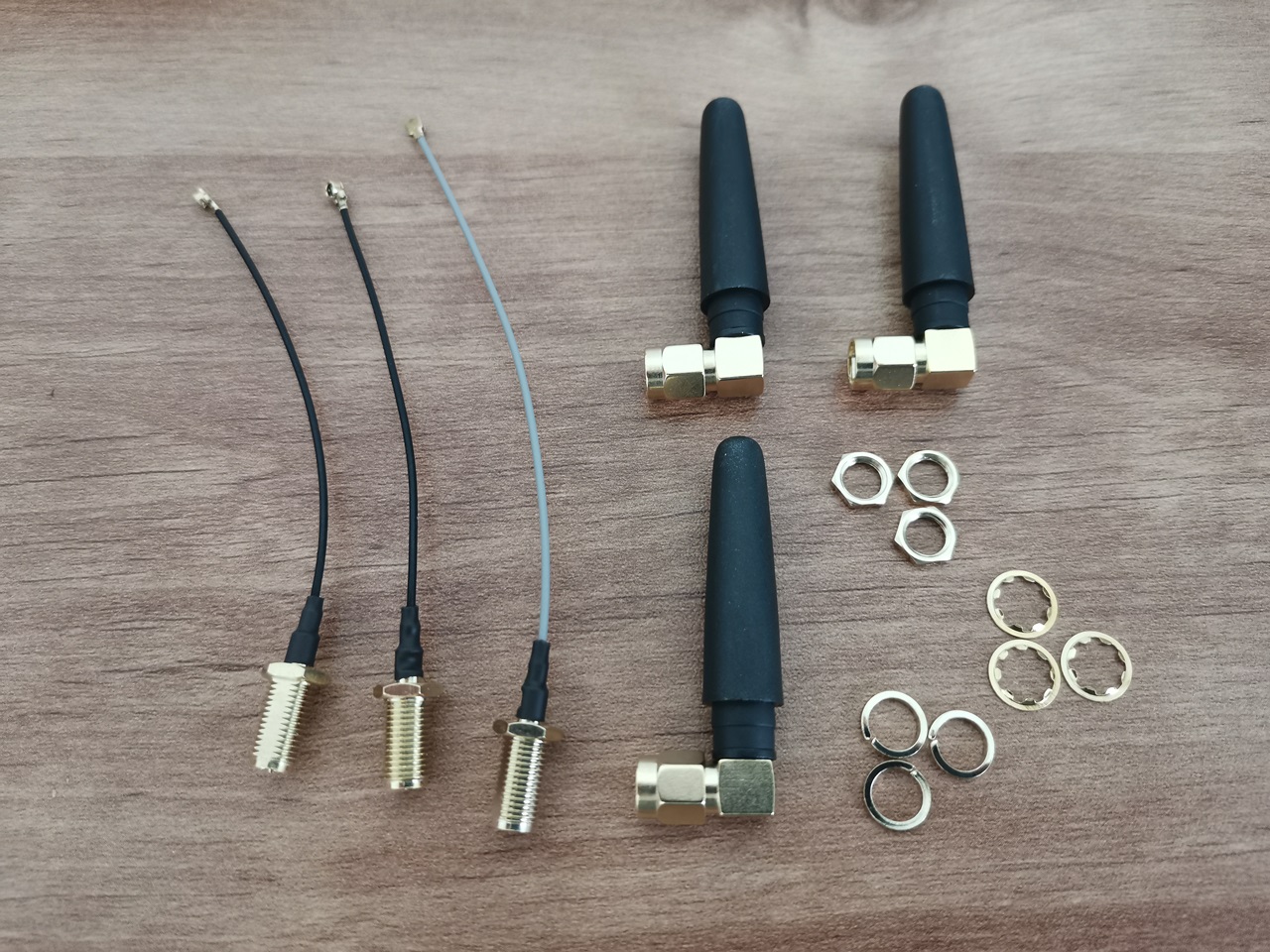

  • BPi R3 Mini Package 2
    BPi R3 Mini (Kit) - Package No. 2

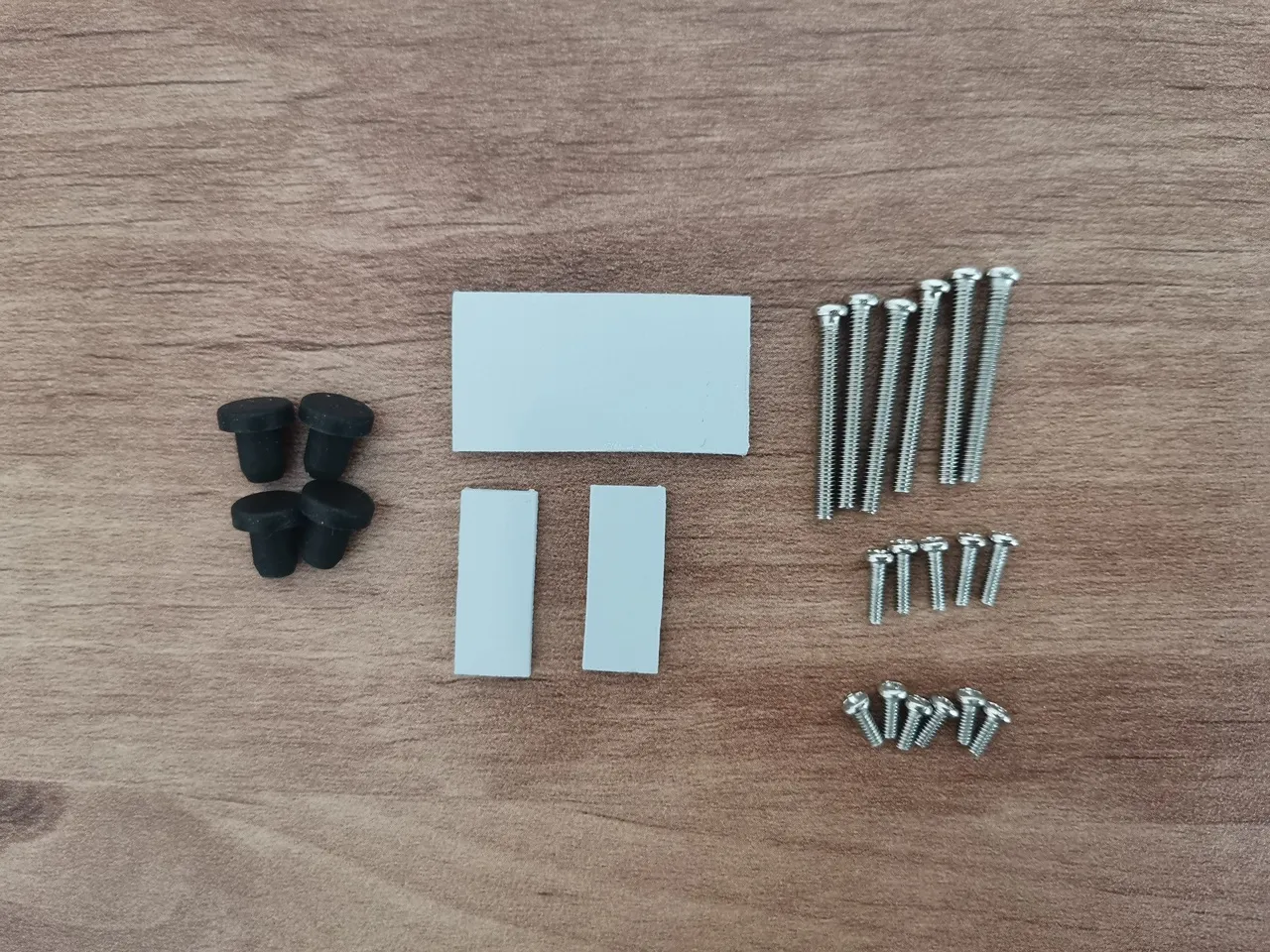

  • BPi R3 Mini Package 3
    BPi R3 Mini (Kit) - Package No. 3

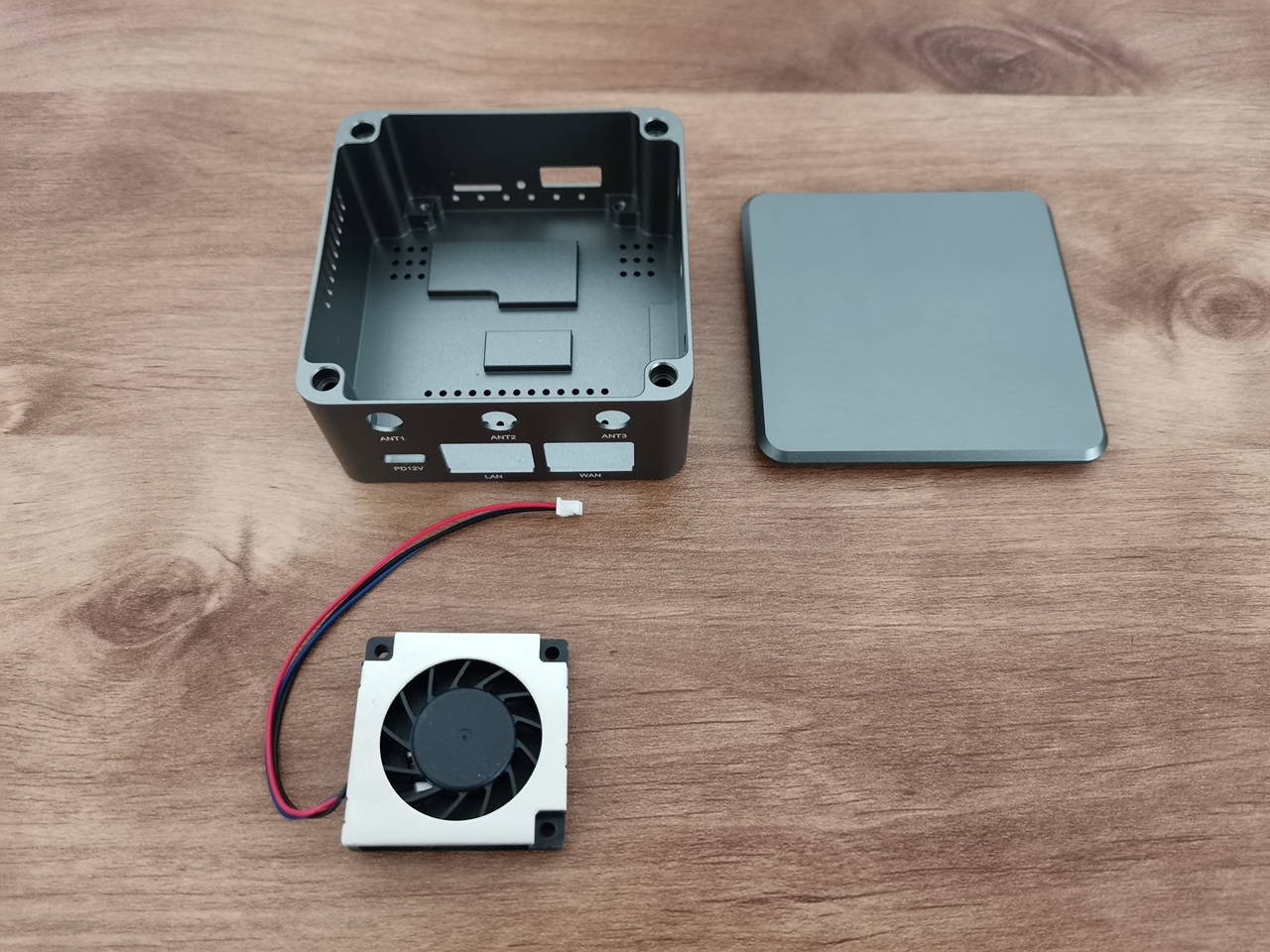

  • BPi R3 Mini Package 4
    BPi R3 Mini (Kit) - Package No. 4
