Xunlong New Aluminum Hard Case for Orange Pi 4/B

Orangepi 4b Aluminum Case
Written by androidpimp

Orange Pi 4/B SBCs Aluminum Hard Case

Shenzhen Xunlong just released initial details about a new aluminum case designed for the latest Rockchip RK3399 based Orange Pi 4 SBC. The Orange Pi 4 and Orange Pi 4B board have a dimension of 90×64mm, which makes it a little smaller than Orange Pi 3. Both boards are powered by the RK3399, and houses two Cortex-A72 cores, typically clocked at 1.8GHz up to 2.0GHz, as well as four Cortex-A53 cores at up to 1.42GHz along with an ARM Mali-T864 GPU for handling graphics.

Orange Pi 4 Metal Case (All Parts)

  • Orange Pi 4b Case 2

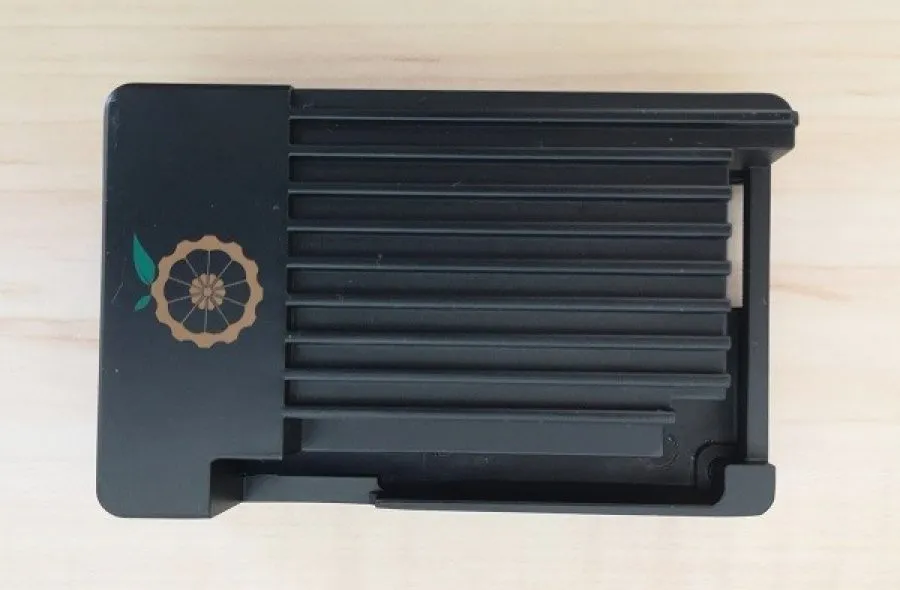

    Orange Pi 4b Case 2

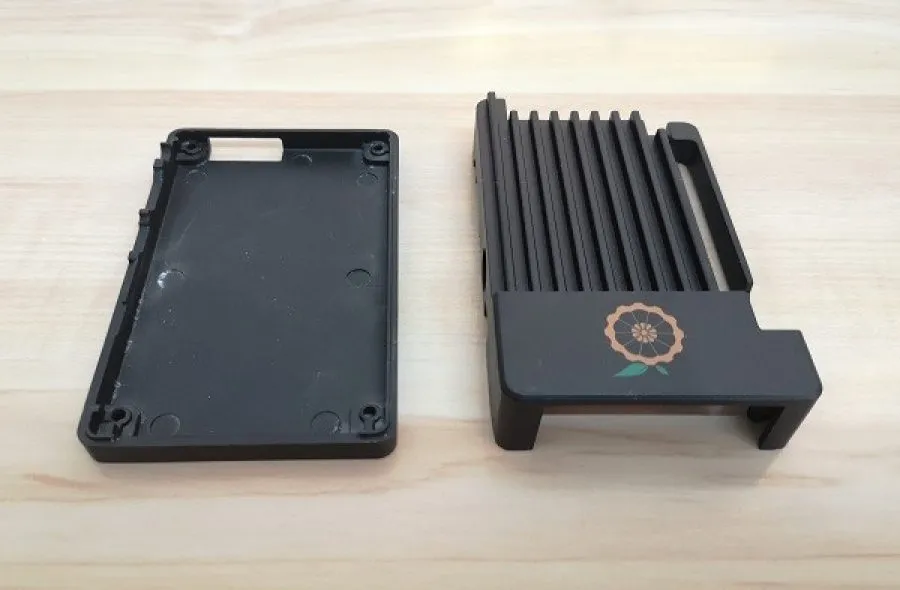

  • Orange Pi 4b Case 3

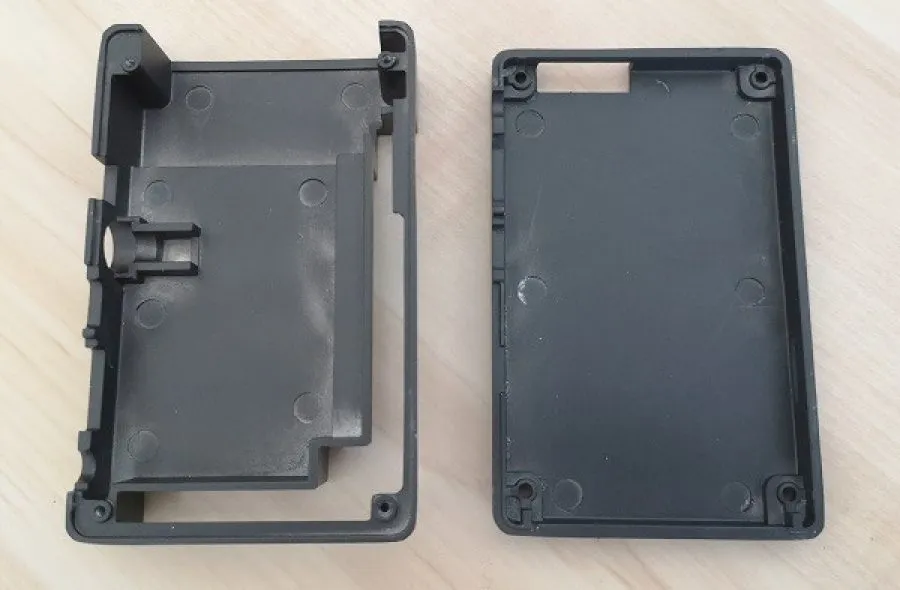

    Orange Pi 4b Case 3
  • Orange Pi 4b Case 4
    Orange Pi 4b Case 4
  • Orange Pi 4b Case 5
    Orange Pi 4b Case 5
  • Orange Pi 4b Case 6

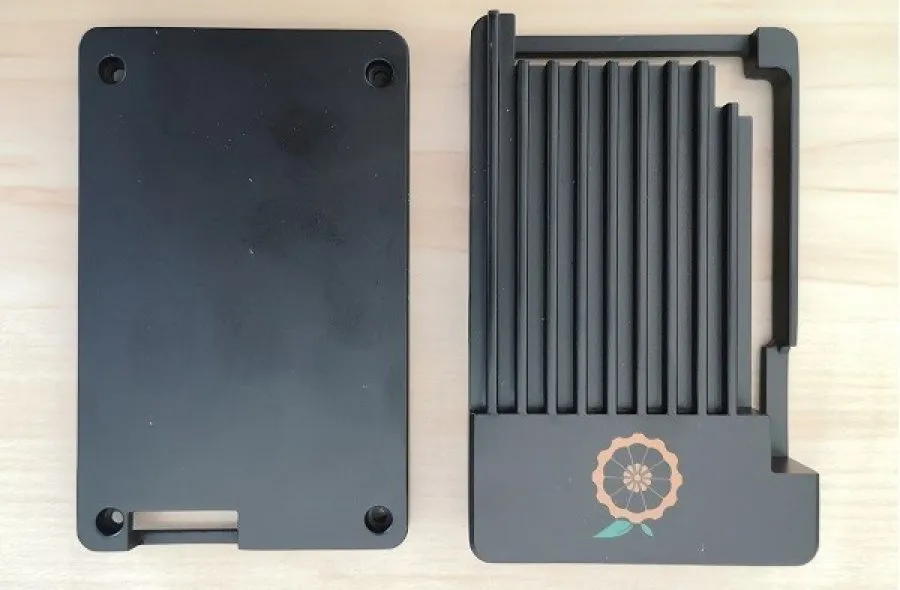

    Orange Pi 4b Case 6
  • Orange Pi 4b Case 7

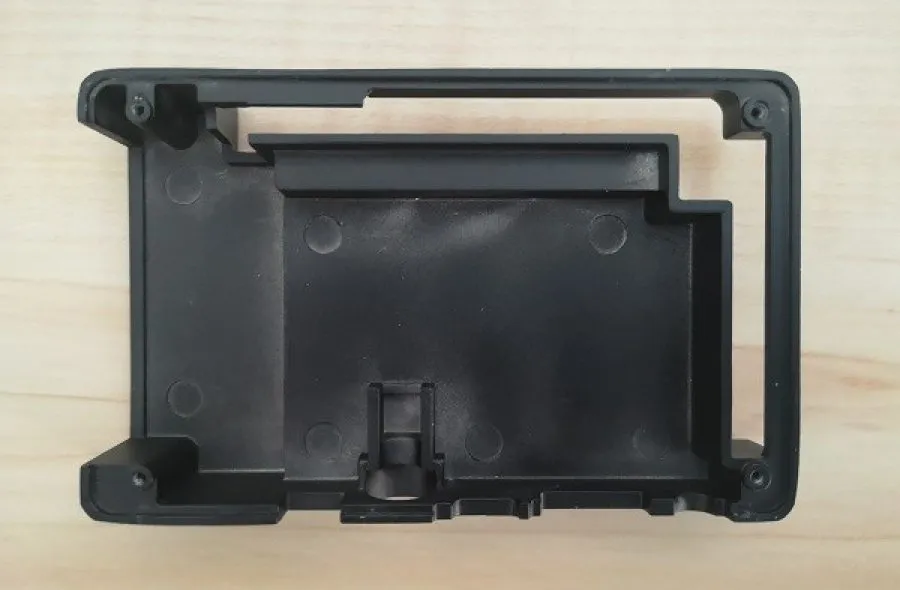

    Orange Pi 4b Case 7
  • Orange Pi 4b Case 8

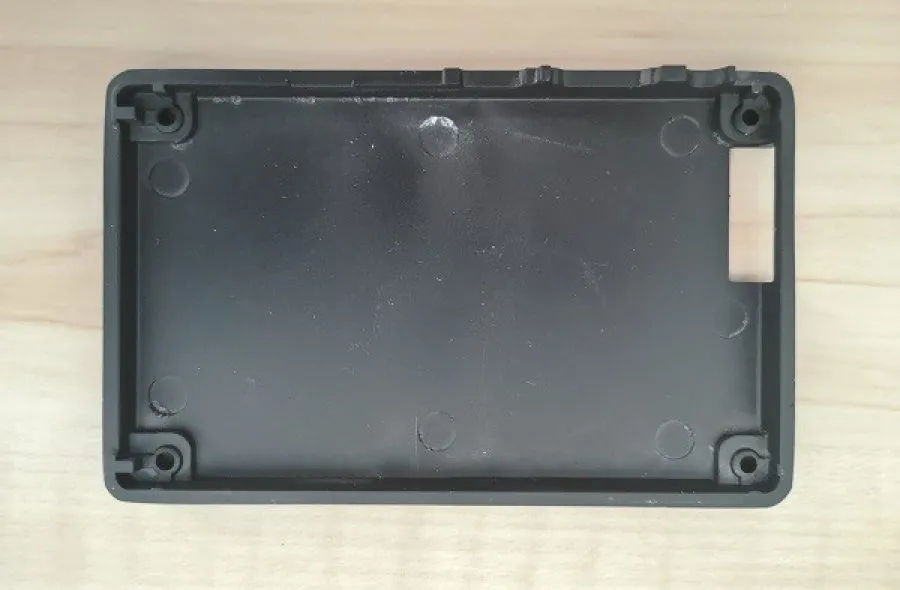

    Orange Pi 4b Case 8
  • Orange Pi 4b Case 9

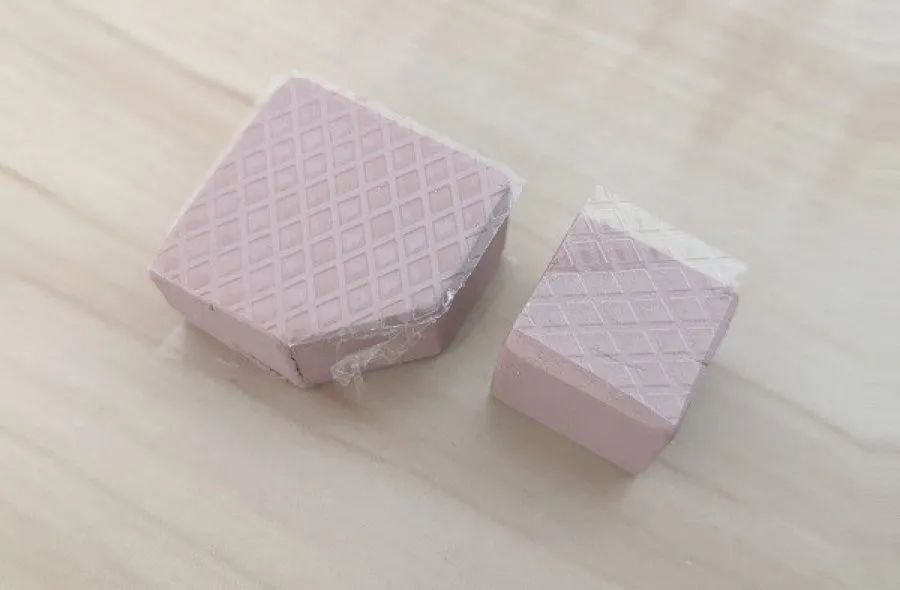

    Orange Pi 4b Case 9

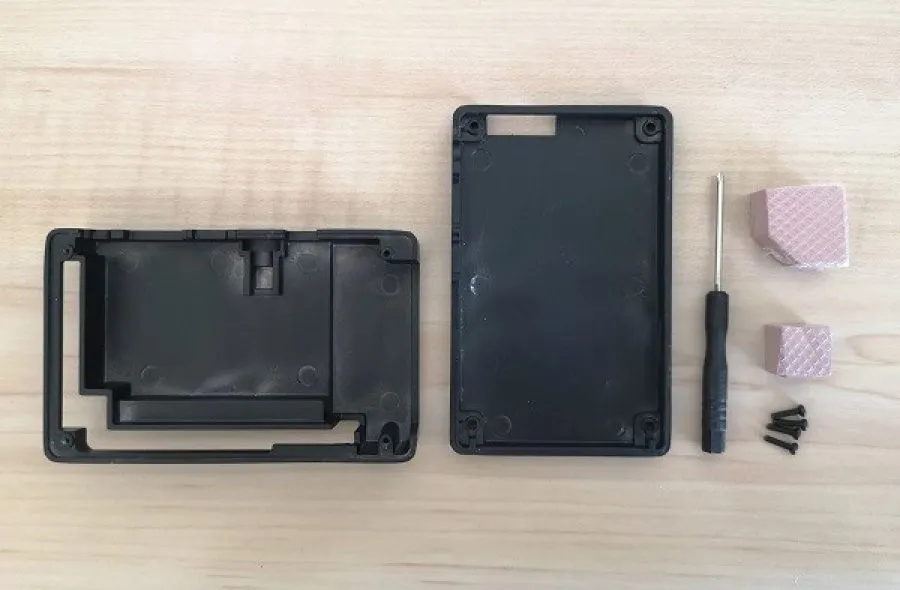

  • Orange Pi 4b Case 1
    Orange Pi 4b Case 1

Orange PI 4 Assembled inside the Metal Case

  • Orange Pi4b Case Asm 01
    Orange Pi4b Case Asm 01
  • Orange Pi4b Case Asm 02
    Orange Pi4b Case Asm 02
  • Orange Pi4b Case Asm 03
    Orange Pi4b Case Asm 03
  • Orange Pi4b Case Asm 04
    Orange Pi4b Case Asm 04
  • Orange Pi4b Case Asm 05
    Orange Pi4b Case Asm 05
  • Orange Pi4b Case Asm 06
    Orange Pi4b Case Asm 06
  • Orange Pi4b Case Asm 07
    Orange Pi4b Case Asm 07
  • Orange Pi4b Case Asm 08
    Orange Pi4b Case Asm 08
  • Orange Pi4b Case Asm 09
    Orange Pi4b Case Asm 09
  • Orange Pi4b Case Asm 10
    Orange Pi4b Case Asm 10
  • Orange Pi4b Case Asm 11
    Orange Pi4b Case Asm 11
  • Orange Pi4b Case Asm 12
    Orange Pi4b Case Asm 12
  • Orange Pi4b Case Asm 13
    Orange Pi4b Case Asm 13
  • Orange Pi4b Case Asm 14
    Orange Pi4b Case Asm 14

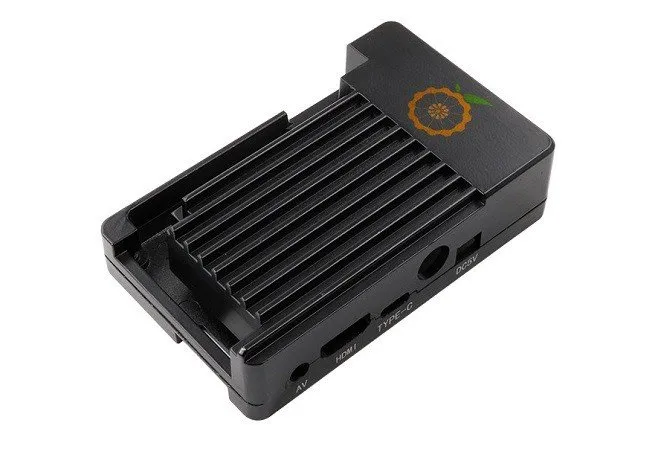

Aluminum Case


Orange Pi Official AliExpress Store

[Designed for Orange Pi 4/B]

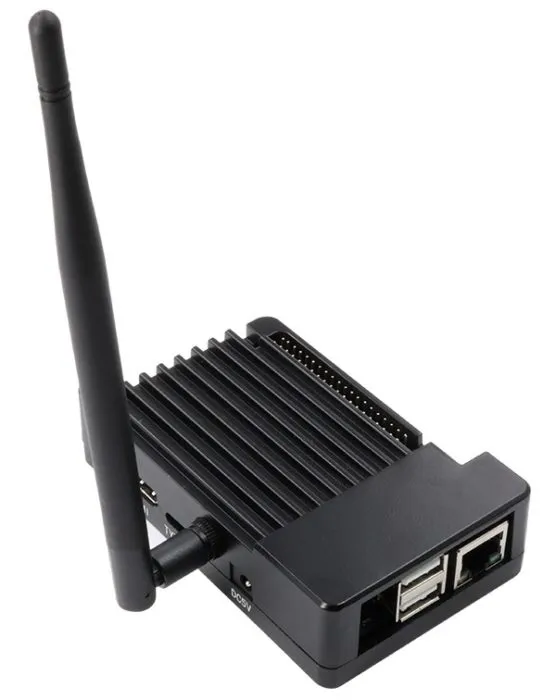

Orange Pi 4b Metal Case
Orange Pi 4b Metal Case | Full view

Compatibility

The case is compatible with the two Orange PI 4 variants mentioned, and it’s worth considering buying, especially for SBCs powered by a Rockchip RK3399 CPU that tends to heat fast and needs proper cooling.

Design

Xunlong case design is composed of two separate parts joined together by four screws. The case and not fully closed, tt’s a semi-open type with fins located on the upper cover. Its body and manufactured from a metal raw aluminium material that possible suitable used in hostile industrial environments.

Xunlong added one mounting hole on the left side of the case to assemble an external Wifi antenna. It’s optional and probably very needed, just keep in mind that If you need an antenna, you would have to buy it separately.

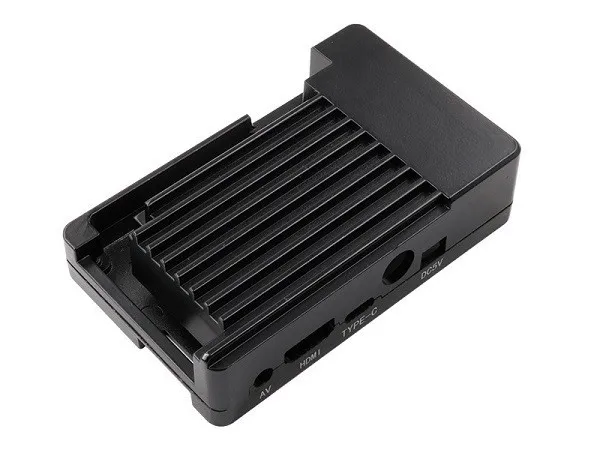

Orange Pi 4b Metal Case P1
Orange Pi 4b Metal Case | Top View

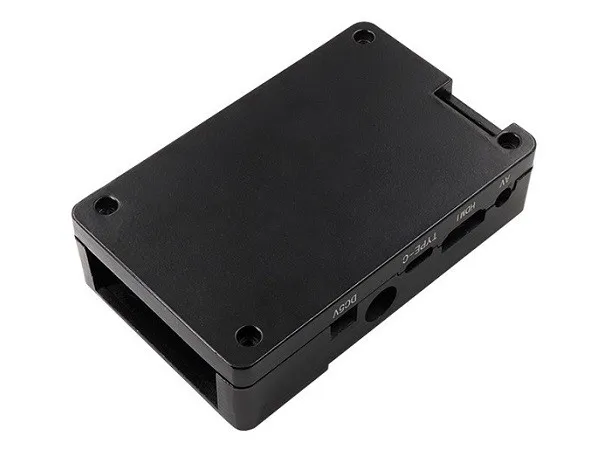

Orange Pi 4b Metal Case P2
Orange Pi 4b Metal Case | bottom View

Accessibility

Most of the Orange PI 4 board interfaces are accessible with this case. The user has access to the central AV, HDMI, TYPE -C, Power hole socket interfaces as well as the rear side of the SBC where the pair of camera interfaces are located.

The GPIO header pins interface is also very accessible, giving the user complete freedom to access the pins without a need to remove any external covers to connect trough it.

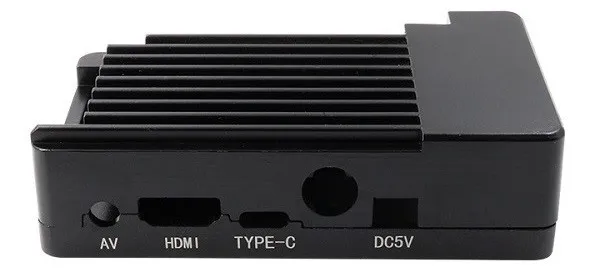

Orange Pi 4b Case Interfaces
Orange Pi 4b Case | Main Interfaces
