Ethernet and SFP+ Interfaces
The R4 Pro comes with a variety of LAN ports, including four Ethernet RJ45 ports, one 1GB LAN port, and two pairs of combo-type WAN/LAN 10G ports. In simple terms, “combo” means you can only use one of the paired ports at a time. This design choice comes down to hardware architecture and engineering considerations. While the SFP+ 10G cages are fixed at 10Gbps, the shared RJ45 ports offer full auto-negotiation, giving non-fiber internet users more flexibility.

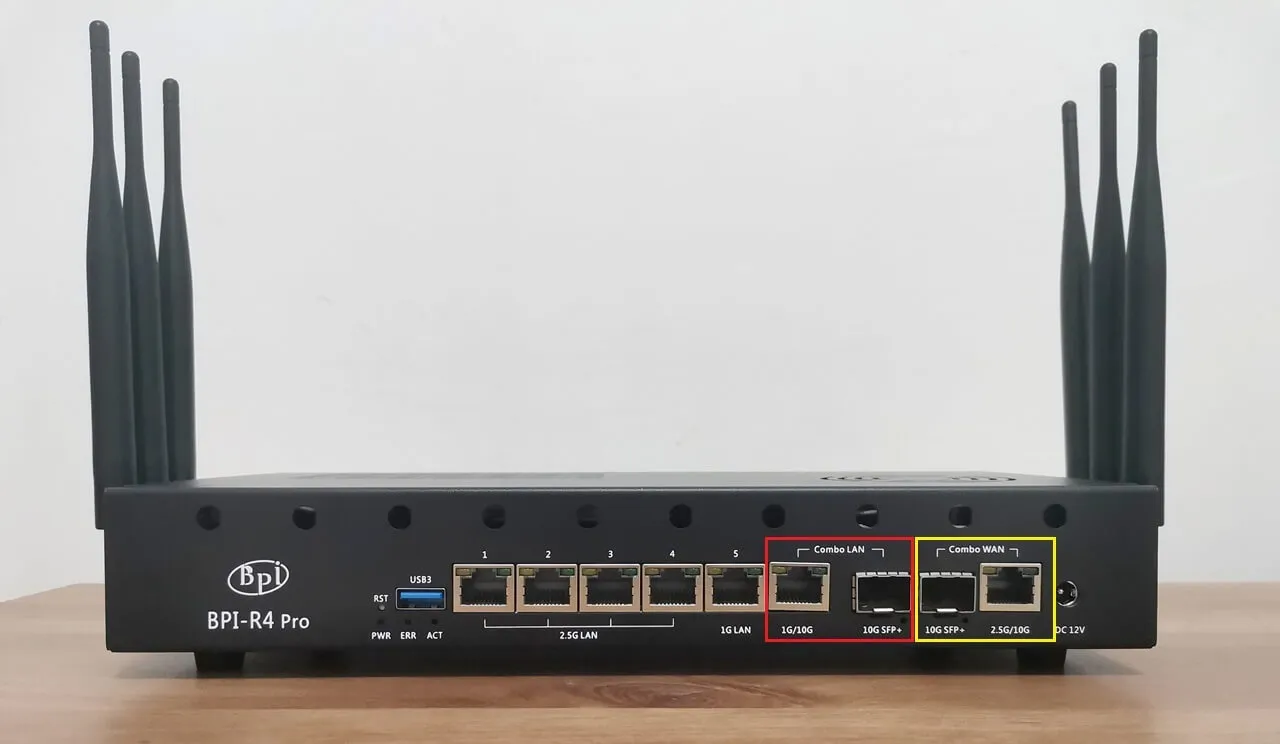

The R4 Pro Combo Ports
Which ports should you use?
Well, it depends. If you have a 2.5Gb or 5Gb internet connection and your setup uses a standard ethernet network cable, your best bet is to go with one of the shared RJ45 combo ports. That said, we successfully connected our home Fiber ONT unit, which has a 1Gb LAN port with a Cat8 cable plugged into the R4 Pro’s WAN 2.5G/10G RJ45 port.

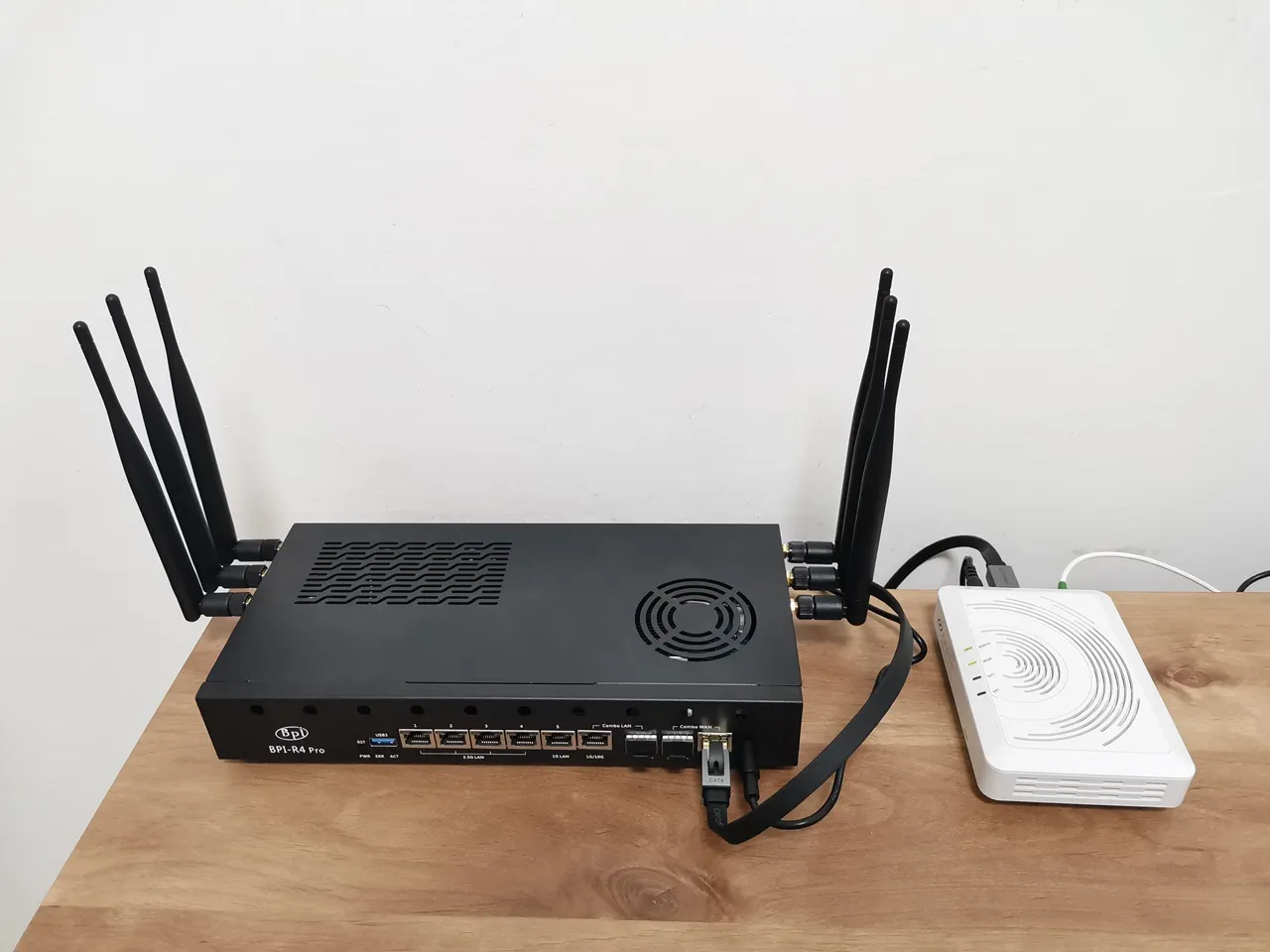

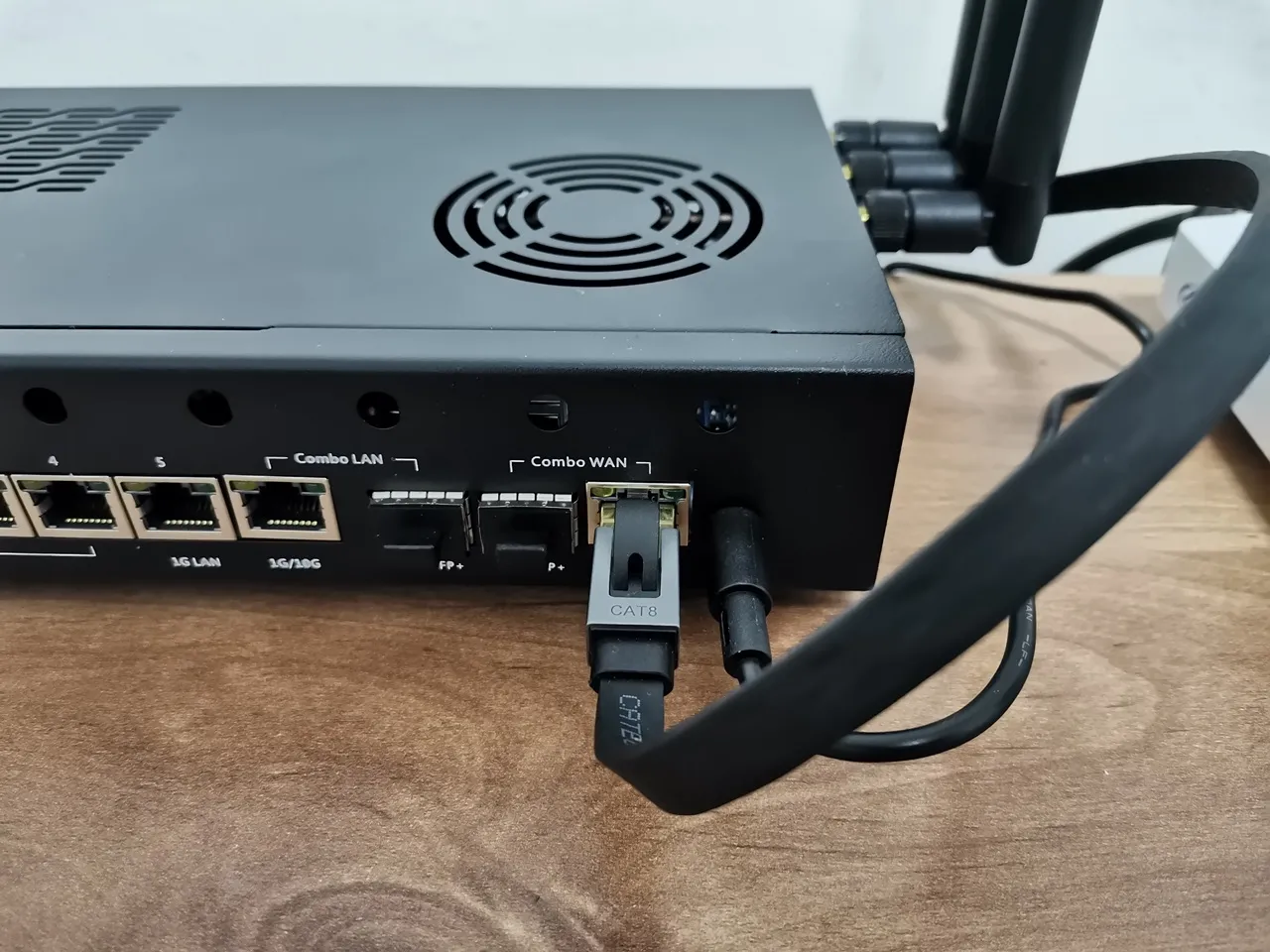

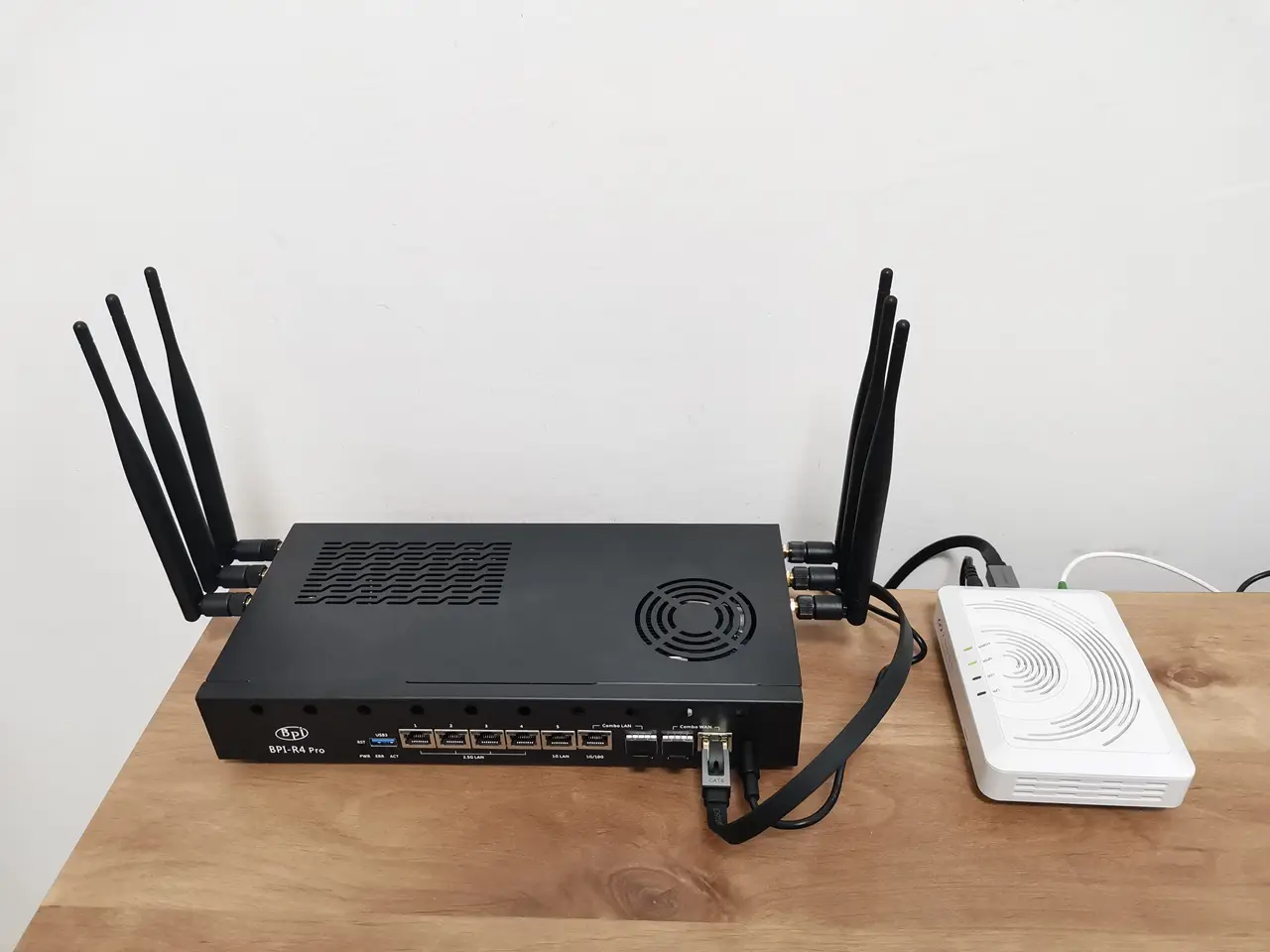

Fiber ONT unit connected to the R4 Pro WAN 2.5G/10G RJ45 port.
The table below provides an overview of the control and switching functions for all LAN and SFP+ ports.
| Port / group | Physical interface | Data rate | SoC connection (logic) | Switching / selection control |
| ETH1–ETH4 | 4 × RJ45 | 4 × 2.5G | High‑speed inband link to MxL86252C | External MxL86252C 2.5G PHY/switch under MT7988A control; global reset via GPIO4. |
| 10G LAN combo (SFP+ LAN / ETH6) | 1 × SFP+ cage + 1 × RJ45 | 10G each (shared) | USXGMII_0 10G → external 10G PHY | Small selector switch chooses SFP+ vs RJ45; selection by GPIO54, resets on GPIO81/82. |
| 10G WAN combo (SFP+ WAN / ETH7) | 1 × SFP+ cage + 1 × RJ45 (PoE PD) | 10G each (shared) | USXGMII_1 10G → external 10G PHY | Selector switch chooses SFP+ vs RJ45; selection by GPIO63, shared reset on GPIO82. |
| ETH5 | 1 × RJ45 | 1G | Integrated 1G PHY P0 | Direct from MT7988A internal switch and PHY block. bpi-r4pro-blockdiagram.jpg |
| ETH8 | FPC connector | 1G | Integrated 1G PHY (P1–P3) | Routed from MT7988A internal switch to FPC edge connector. |
| Internal 1G switch | Not externally exposed as jacks | Up to 4 × 1G | Inside MT7988A (P0–P3) | Handles basic L2 switching/VLAN between ETH5, ETH8 and any other internal 1G ports. |
| Wi‑Fi NIC slots | 2 × mPCIe slots | PCIe 3.0 x1 | PCIe controllers in MT7988A | Wi‑Fi cards act as separate PCIe devices; no Ethernet/SFP+ path sharing. |
